USER MANUAL Home Gym HG80 TUNTURI

Technical line drawing of a gym machine with pulleys and weights (no text or symbols)

B-1

1	2	3	4	5
6	7	8	9	10
11	12	13	14	15
16	17	18	19	20
21	22	23	24	25
26	27	28	29	30
31	32	33	34	35
36	37	38	39	40

B-2

41	42	43——	44	45
46	47	48	49	50
51	52	53	54	55
56	57	58	59	60
61	62	63	64	65
66	67	68	69	70
71	72	73	74	75
76	77	78	79	80

B-3

81	82	83	84	85
86	87	88	89	90
91	92	93	94	95
96	97	98	99	100
101	102	103	104	105
106	107	108	109	110
111	112	113	114	115
116	117	118	119[AHS7]	120[SXTX]

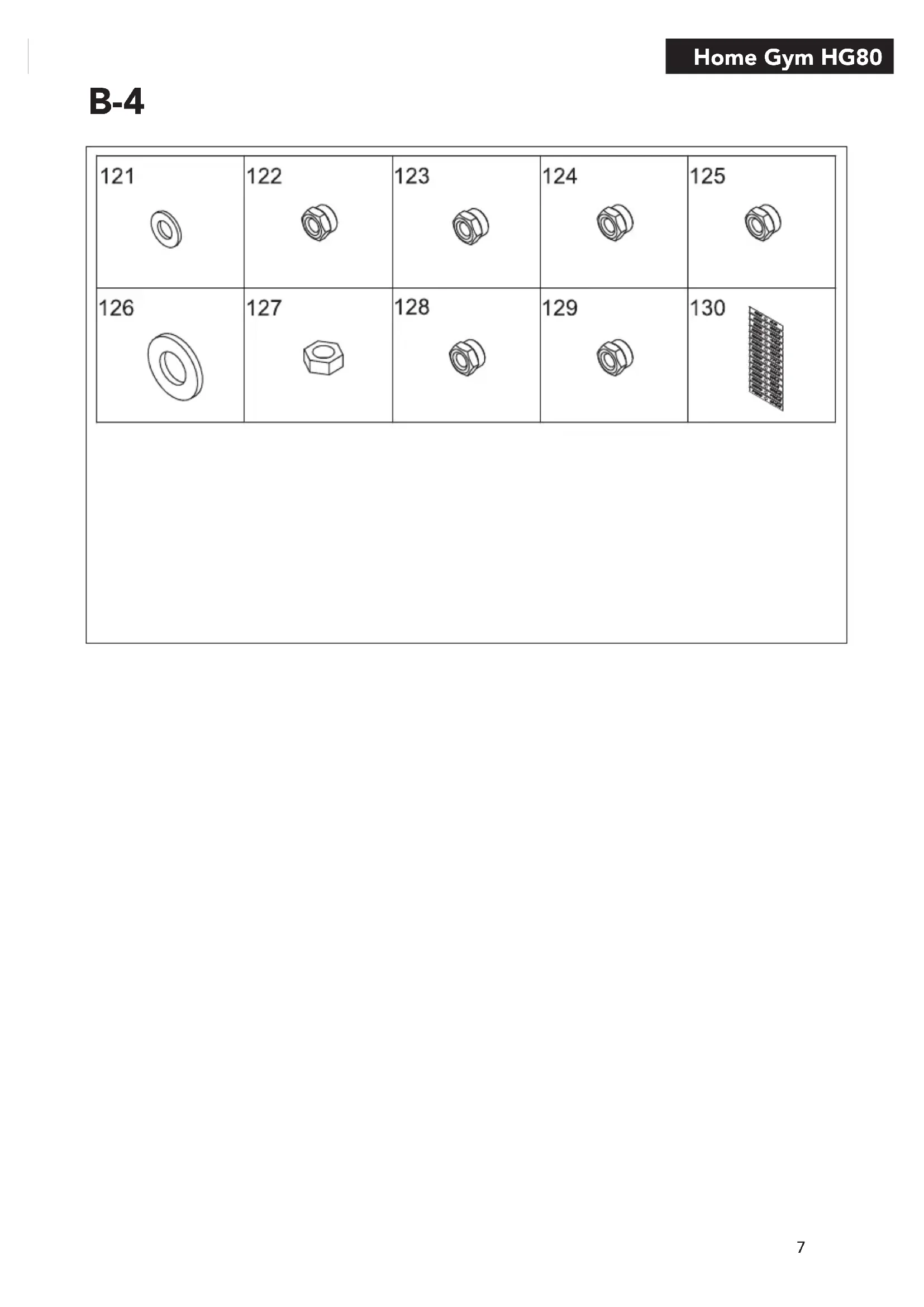

B-4

121	122	123	124	125
126	127	128	129	130

C-1

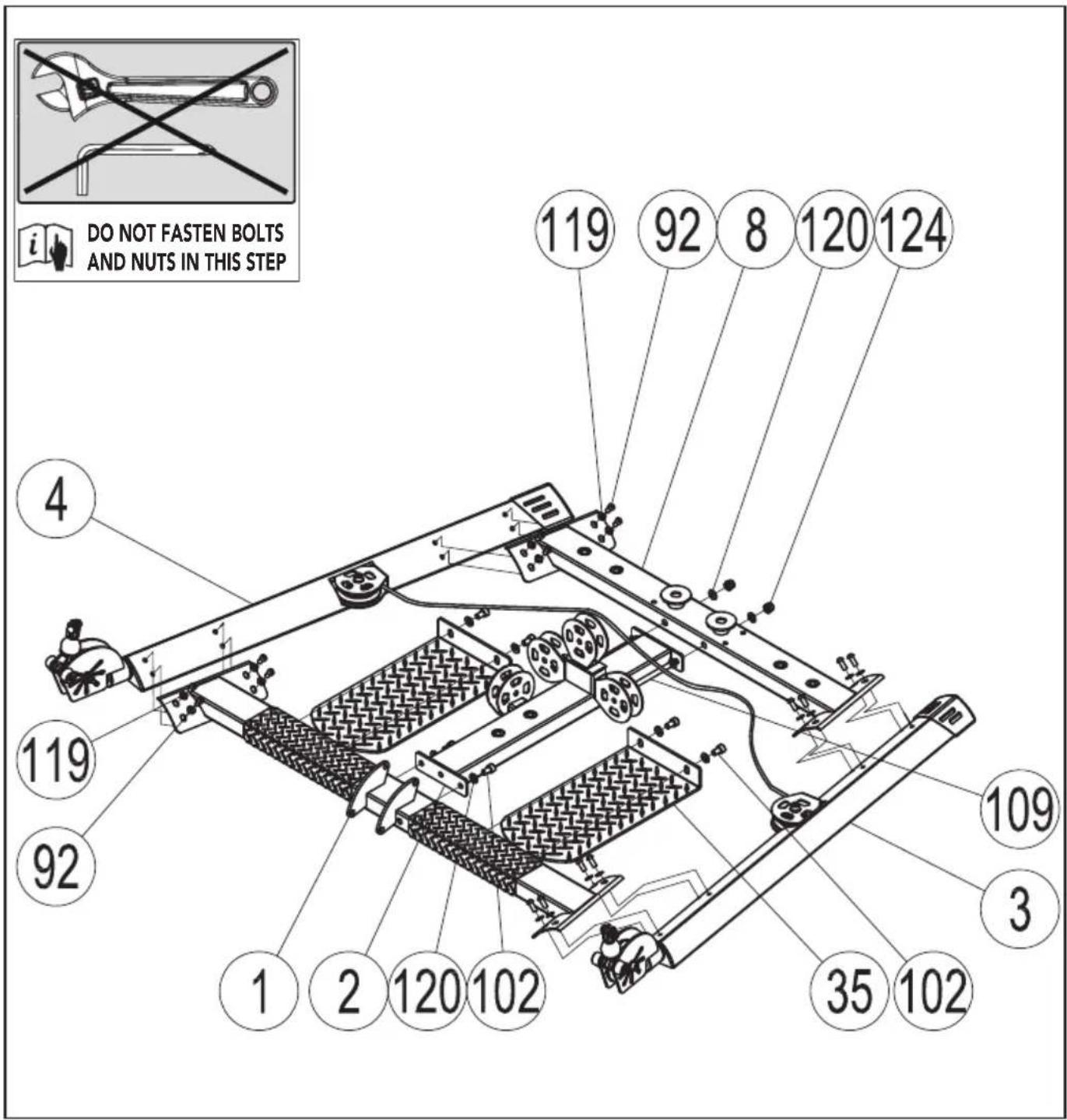

1#			Qty:1
2#			Qty:1
3#		preass-embled	Qty:1
4#			Qty:1
8#			Qty:1
35#			Qty:2
79#		preass-embled	Qty:1

92#		M8*16	Qty:16
102#		M10*25	Qty:6
109#		M10*100	Qty:2
119#		8	Qty:16
120#		10	Qty:10
124#		M10	Qty:2

C-2

12#		Qty:2	71#		Qty:1	96#		M12*60	Qty:1
13#		Qty:1	76#		Qty:13	100#	[G2DS]	M8*16	Qty:4
14#		Qty:1	77#		Qty:1	107#		M10*60	Qty:2
28#		Qty:2	83#	[YYBW]	Qty:1	119#	[75ST]	8	Qty:4
61#		Qty:2	130#		Qty:1	120#		10	Qty:2
						127#		M12	Qty:2

C-4

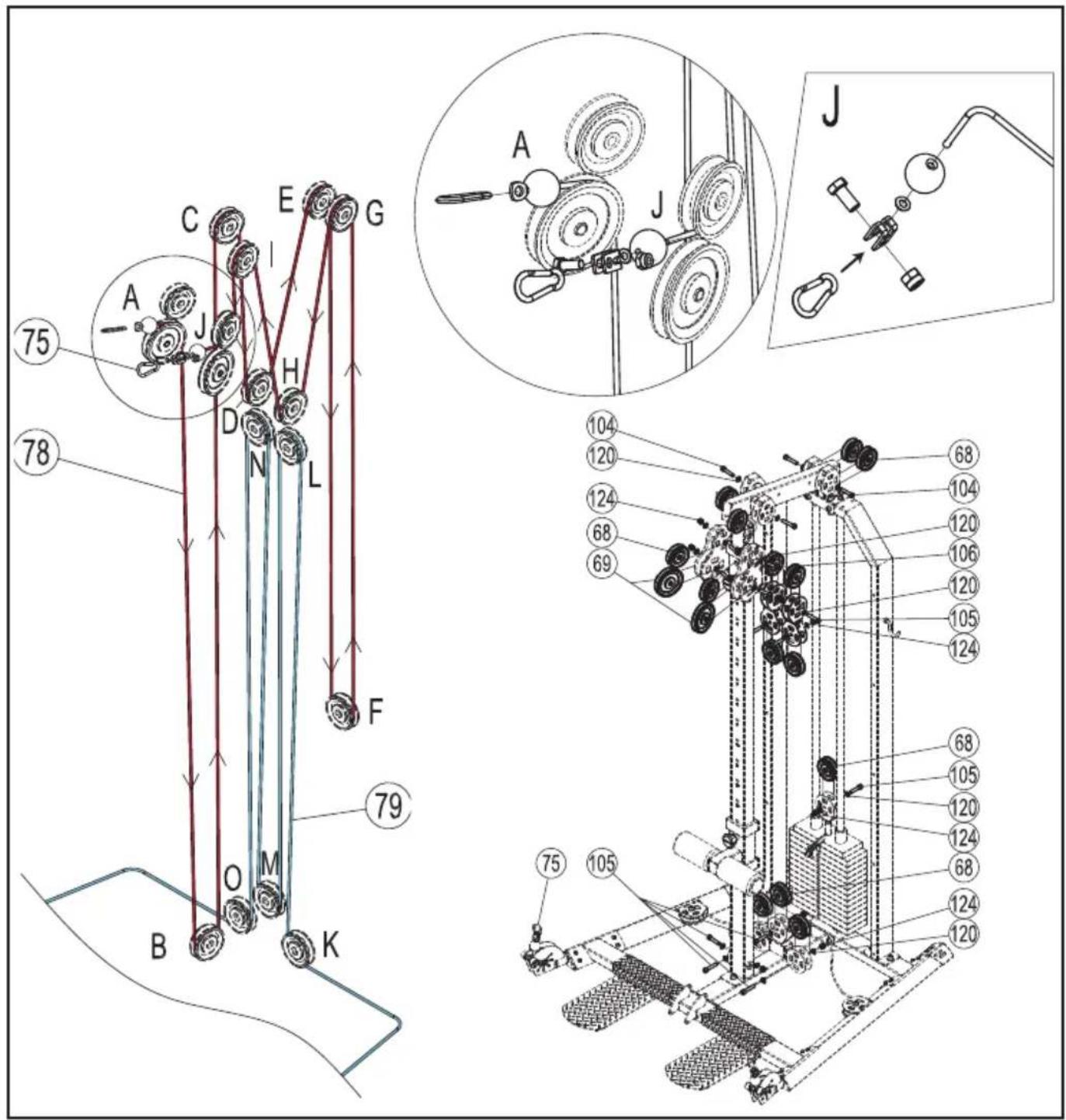

Cable #78: A→B→C→D→E→F→G→H→I→J

Cable #79: K→L→M→N→O

30#		Qty:2	104#		M10*45	Qty:4
68#		Qty:15	105#		M10*48	Qty:9
69#		Qty:2	106#		M10*50	Qty:4
75#		Qty:4	120#		10	Qty:30
78#		Qty:1	124#		M10	Qty:13

104#		M10*45	Qty:4
105#		M10*48	Qty:9
106#		M10*50	Qty:4
120#	[ATXK]	10	Qty:30
124#		M10	Qty:13

C-5

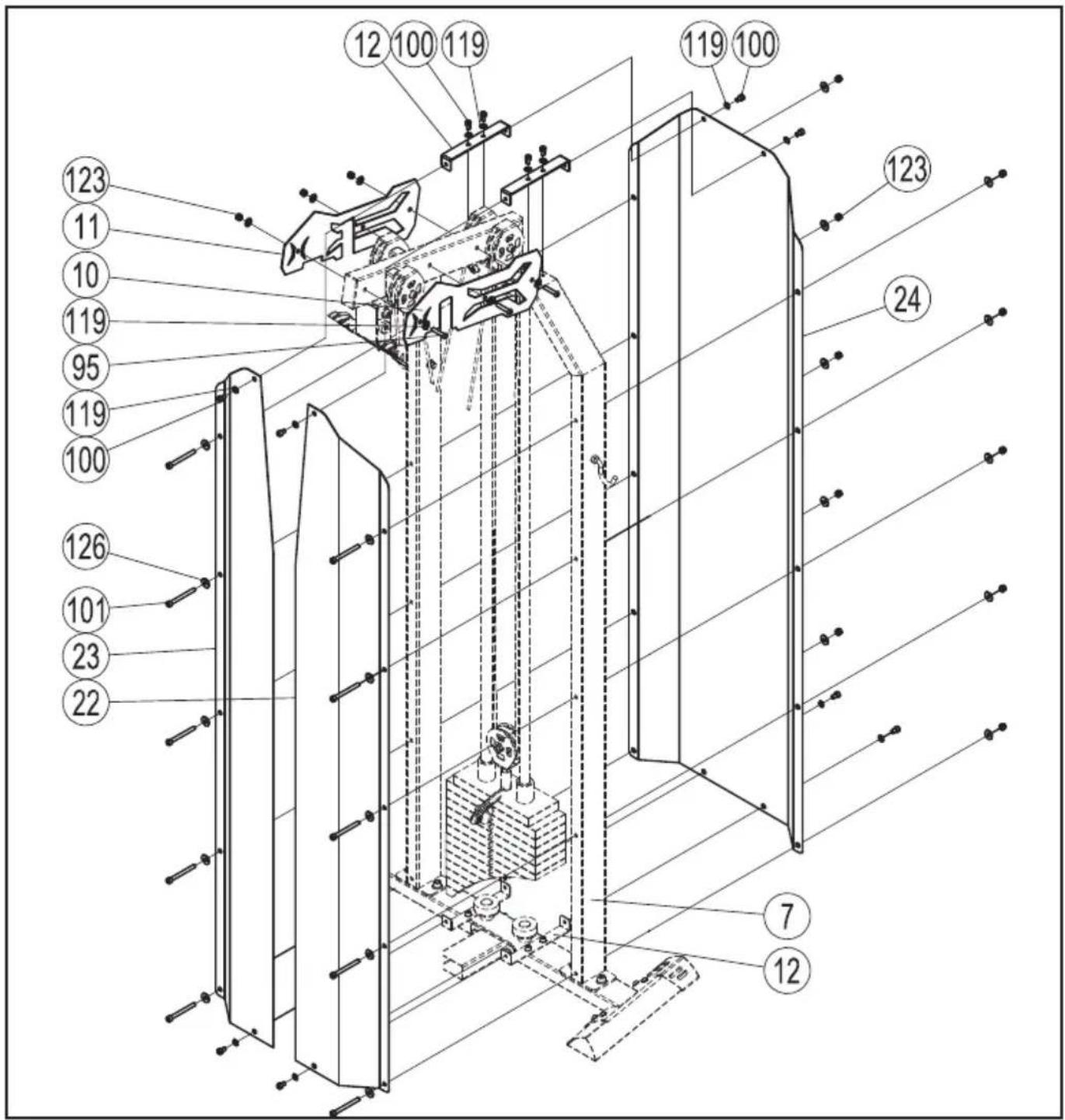

10#		Qty:1
11#		Qty:1
12#		Qty:2
22#		Qty:1
23#		Qty:1
24#		Qty:1

C-6

80#		Qty:1
81#		Qty:1

98#		M6*25	Qty:8
110#		M10*103	Qty:2
118#		6	Qty:8
120#		10	Qty:4
124#		M10	Qty:2

C-9

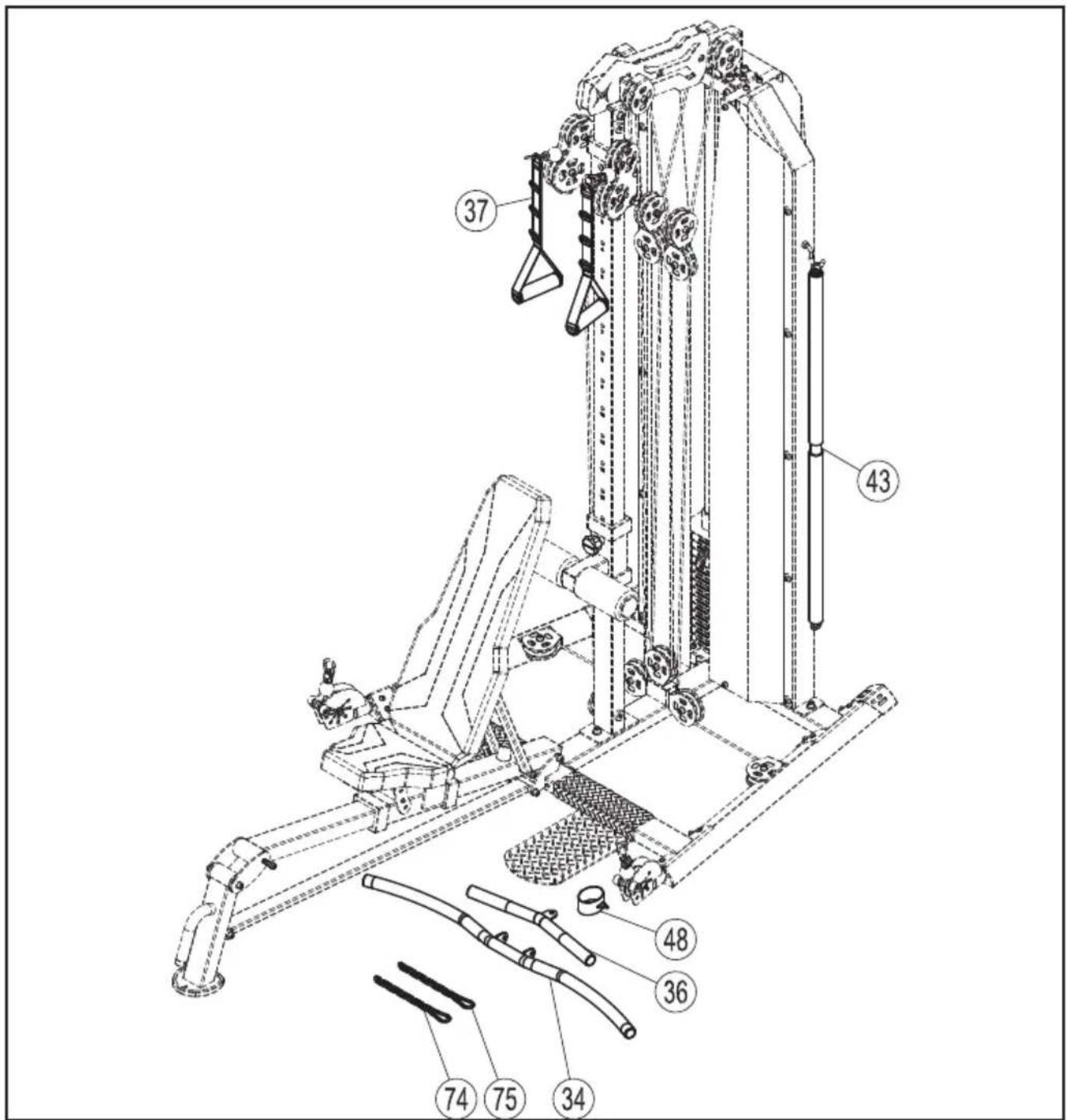

34#		Qty:1
36#		Qty:1
37#		Qty:2
43#		Qty:1
48#	[70TW]	Qty:1
74#	[3704]	Qty:2
75#		Qty:2

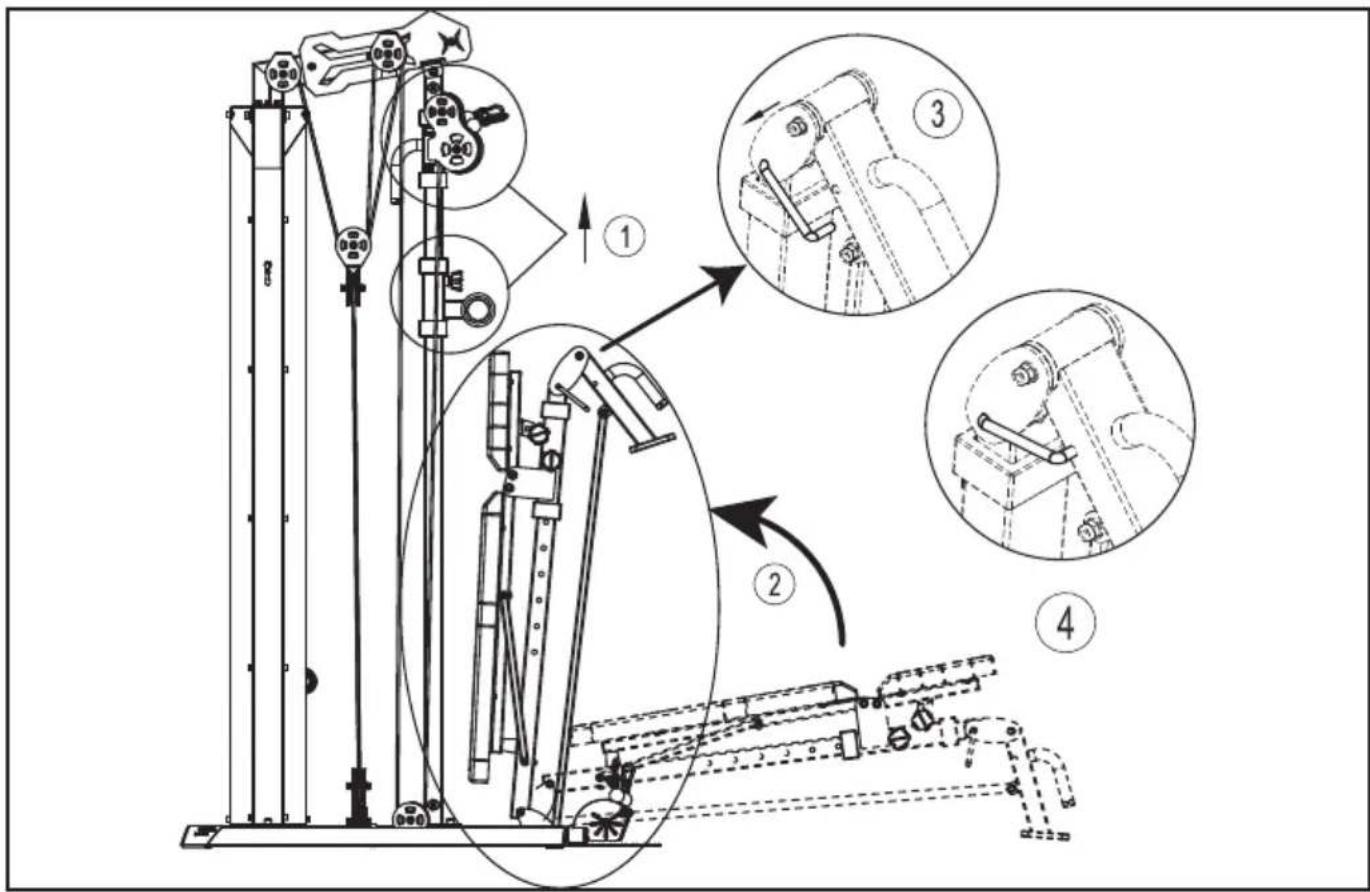

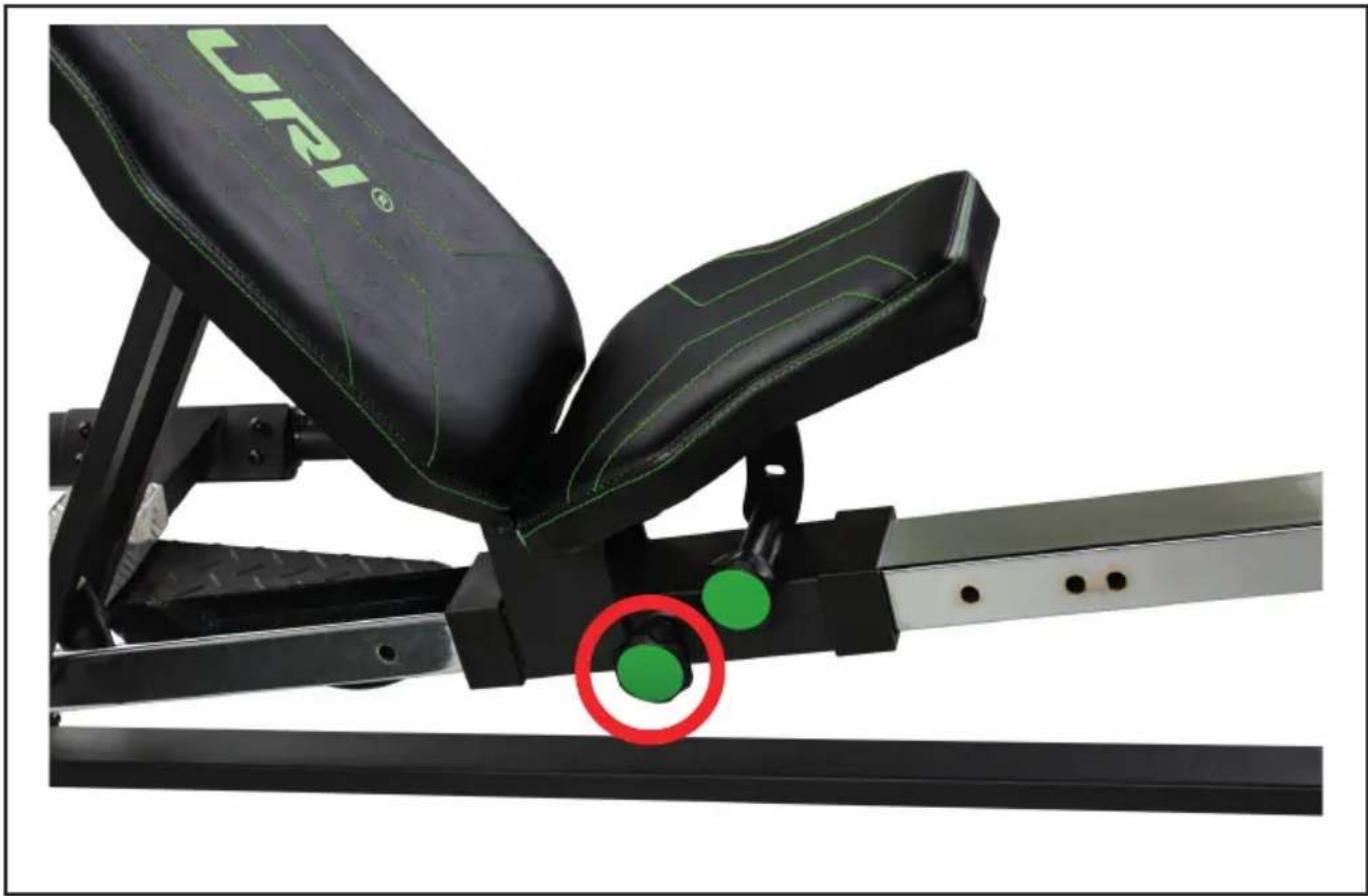

Use #1

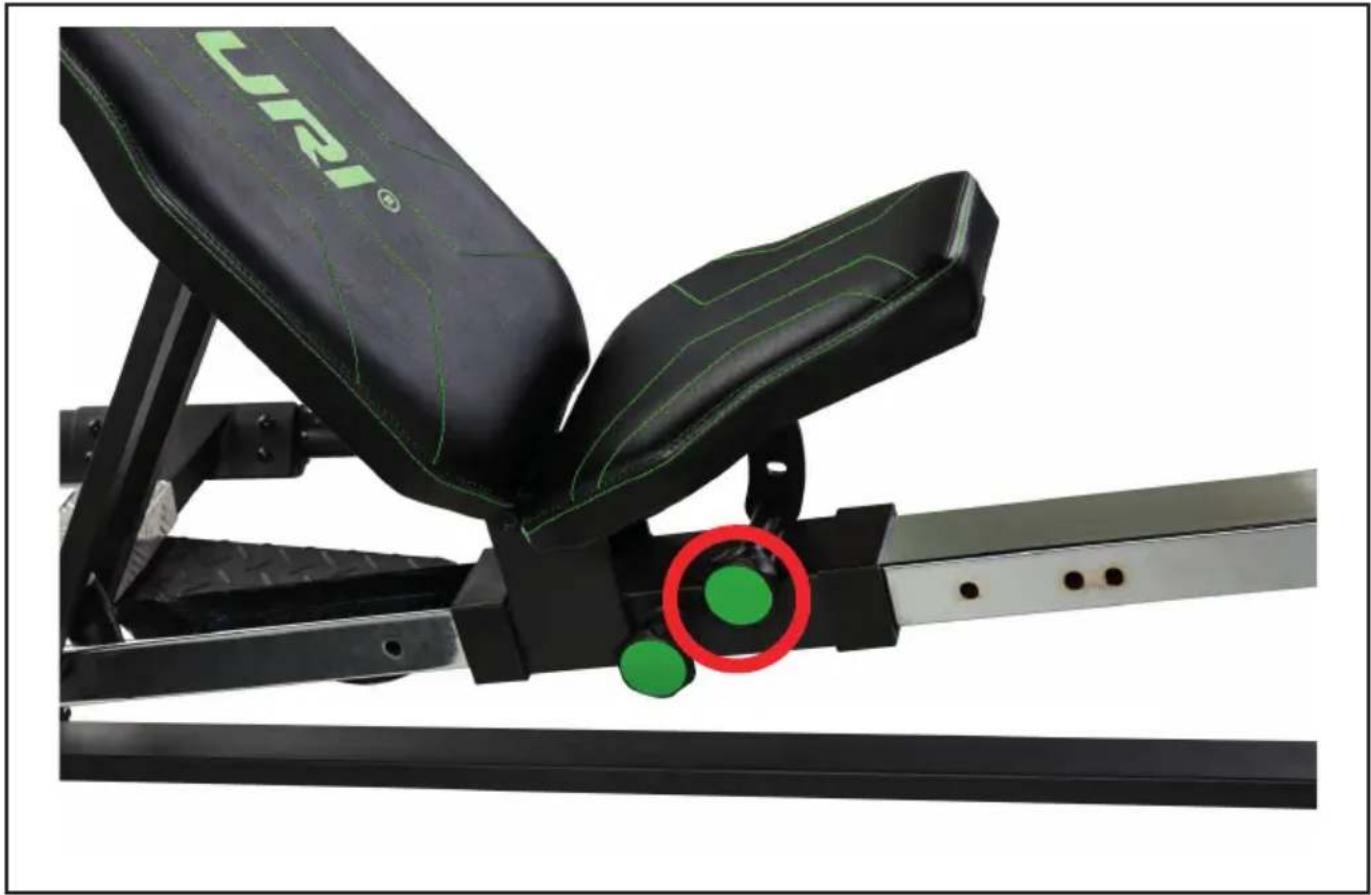

Use #2

Close-up of a black and green weightlifting machine seat with a red circular marker highlighting a green dot on the base (no text or symbols visible)

Use #3

Close-up of a black weightlifting machine seat with green accents, showing no text or symbols on the device itself.

W #1

Green recycling symbol with a tree and recycling arrow, no text or symbols present

To reduce the impact on the environment, we have kept this user manual as concise as possible by only providing the most essential information.

Visit http://manuals.tunturi.com for a complete version and www.tunturi.com for all product related information.

THINK GREEN

We are proud to be ecologically responsible

Please retain the product model name and SKU code for a quick match when searching the database.

The SKU and product model name can be found on your serial number label.

Index

Welcome....19

Important safety notice......19

Additional safety instructions....20

Important assembly information .... 20

Assembly....20

Fasten Nuts and Bolts 21

Weight plate installation....21

Additional information....21

Limited warranty 22

Weight capacity and dimension.....22

Disclaimer 22

Welcome

Important Safety Instructions

This Owner's Manual is an essential part of your training equipment: reading all instructions in this manual before you start using this appliance. The following precautions must always be followed:

Important safety notice

This exercise equipment is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your equipment. In particular, note the following safety precautions:

• Keep children and pets away from the equipment at all times. DO NOT leave children unattended in the same room with the equipment.
• Only one person at a time should use the equipment.

- If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

Position the equipment on a clear, levelled surface. DO NOT use the equipment near water or outdoors.

- Keep hands away from all moving parts.

- Always wear appropriate workout clothing when exercising. DO NOT wear robes or other clothing that could become caught in the equipment. Running or aerobic shoes are also required when using the equipment.

Use the equipment only for its intended use as described in this manual. DO NOT use attachments not recommended by the manufacturer.

• Do not place any sharp object around the equipment.
• Disabled person should not use the equipment.
• Before using the equipment to exercise, always do stretching exercises to properly warm up.
• Never operate the equipment if the equipment is not functioning properly.
• A spotter is recommended during exercise.

- This equipment is designed and intended for home and consumer use only, not for commercial use.

Additional safety instructions

• During exercising hands must be kept clear from the guiding bars of the weights.
• Never re-set weights during exercising.
• Avoid the cord grating along sharp parts.
• When selecting a weight, always push the pin in to its full extent.
• Children should only use this equipment under the direct supervision of a knowledgeable adult. At no times should children be left unattended near the machine.
• Prior to carrying out any exercise ensure that the body is in the correct position to avoid injury.

WARNING

• When using the latissimus grip, first the load must be selected, before the grip is mounted.
• If you change the weight in the meantime you have to hold the upper weight to prevent the grip falling down.

Warning:

Before beginning any exercise program, consult your physician. This is especially important for individuals over the age of 35 or persons with pre-existing health problems. Read all instructions before using any fitness equipment.

Tunturi New fitness bv. assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

Save these instructions!

Important assembly information

Tools Required for Assembling the Bench:

Two Adjustable Wrenches.

NOTE

- It is strongly recommended that this equipment is assembled by two or more people to avoid possible injury.

• Ensure Carriage Bolts are inserted through the SQUARE holes on components that need to be assembled. Attach washer only to end of the Carriage Bolt.
• Use Allen Bolts or Hex Bolts inserted through the ROUND hole on components that need to be assembled.
• Always wait until all bolts are assembled onto the bench before tightening the bolts. Do not tighten each bolt right after it is installed

Assembly

(Fig. A)

WARNING

• Assemble the equipment in the given order.
• Carry and move the equipment with at least two persons.

CAUTION

• Place the equipment on a firm, level surface.
• Place the equipment on a protective base to prevent damage to the floor surface.
• Allow at least 100 cm of clearance around the equipment.

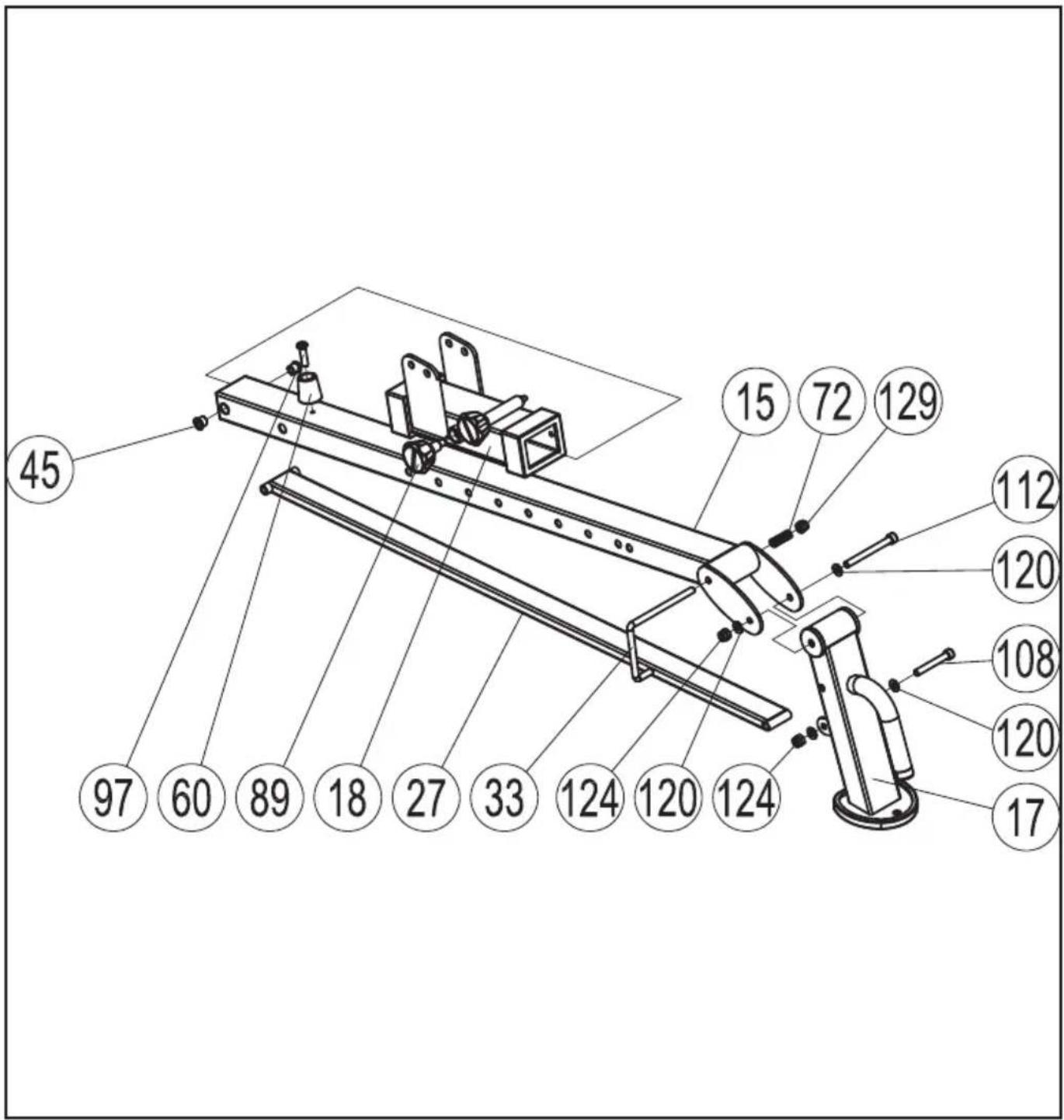

• Refer to the illustrations for the correct assembly of the equipment.

Fasten Nuts and Bolts

Illustration of an adjustable wrench and a separate L-shaped tool (no text or symbols)

Securely tighten all Nuts and Bolts after all components have been assembled in current and previous steps.

NOTE

• Do not over tighten any component with pivoting function.
• Make sure all pivoting components are able to move freely.

Symbol of an adjustable wrench crossed out by a diagonal line, indicating no tool or resistance (no text present)

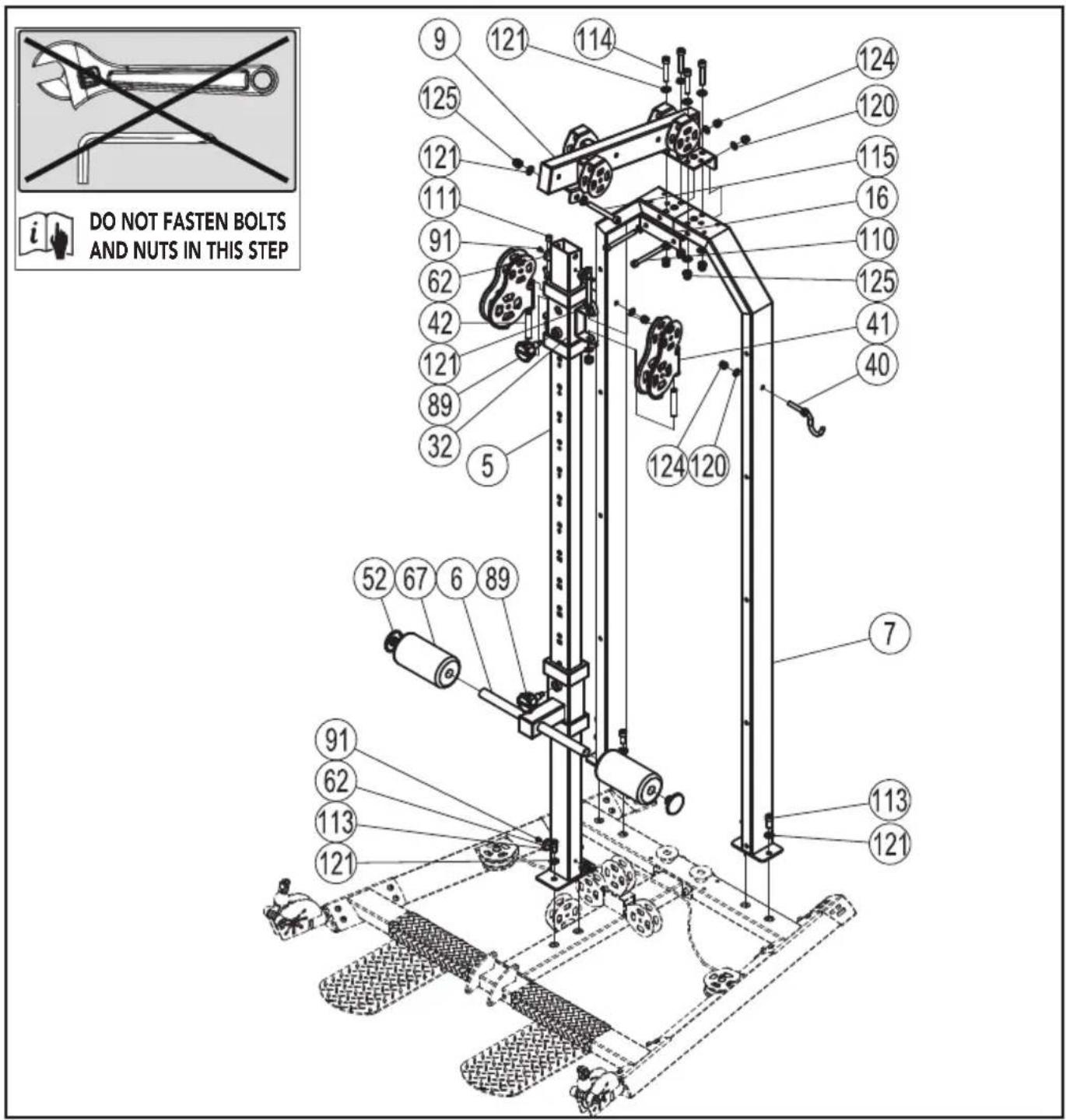

Do not tighten all Nuts and Bolts in this step.

Weight plate installation

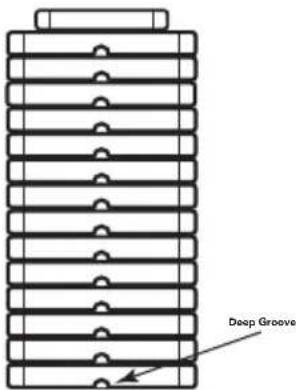

Slide weight plates onto Guide Rod from top to bottom. The deep groove on each weight plate needs to face front and downwards.

Two 3D diagrams showing a rectangular block with circular holes and an arrow indicating direction, no text or symbols present.

Isometric line drawing of a multi-tiered mechanical or electrical component with mounting holes (no text or symbols)

Weight Plate	Lat Pull Low	pulley
1 12 12
2 18 18
3 24 24
4 36 36

5 42 42
6 48 48
7 54 54
8 60 60
9 66 66
10 72 72
11 78 78
12 84 84
13 90 90
14 96 96

Care and maintenance

• Lubricate moving parts with WD-40 or light oil periodically.
• Inspect and tighten all parts before using the equipment.
• The equipment can be cleaned using a damp cloth and mild non-abrasive detergent. DO NOT use solvents.
• Examine the equipment regularly for signs of damages or wear.
• Replace any defective components immediately and/or keep the equipment out of use until repair.
• Failure to examine regularly may affect the safety level of the equipment.

Additional information

Packaging disposal

Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres.

End of life disposal

We at Tunturi hope you enjoy many years of enjoyable use from your fitness trainer. However, a Time will come when your fitness trainer will come to the end of its useful life. Under 'European WEEE Legislation you are responsible for the appropriate disposal of your fitness trainer to a recognised public collection facility.

Limited warranty

Tunturi New Fitness warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the frame and one year on all other parts and components from the date of purchase. This warranty extends only to the original purchaser. Tunturi New Fitness's obligation under this Warranty is limited to replacing damaged or faulty parts at Tunturi New Fitness's option.

All returns must be pre-authorised by Tunturi New Fitness. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage, purchasers own repairs or for products used for commercial or rental purposes. No other warranty beyond that specifically set forth above is authorised by Tunturi New Fitness.

Tunturi New Fitness is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.

Your statutory rights are not affected.

Weight capacity and dimension

(Fig. W#1)

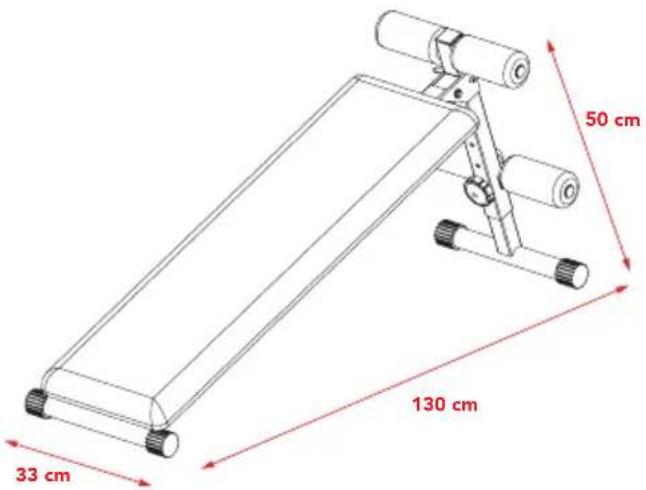

- Maximum load weight: 135 kg. Assembled Dimension: 189,5 x 184 x 208,5 cm.

Disclaimer

© 2020 Tunturi New Fitness BV All rights reserved.

• The product and the manual are subject to change.
• Specifications can be changed without further notice.
• Check our website for the latest user manual version.

Green recycling symbol with leafy branches and a recycling curve, no text or symbols present

We are proud to be ecologically responsible

Deutsch

Illustration of an adjustable wrench and a separate L-shaped tool (no text or symbols)

Diagram of an adjustable wrench crossed out by a diagonal line, no text or symbols present

Technical illustration of a mechanical component being processed into a multi-tiered stack (no text or symbols present)

Green recycling symbol with leafy branches and a recycling curve, no text or symbols present

We are proud to be ecologically responsible

Français

Illustration of an adjustable wrench and a separate L-shaped tool (no text or symbols)

Symbolic illustration of an adjustable wrench crossed out by a diagonal line (no text or labels)

Technical illustration of a mechanical component being processed into a multi-tiered stack (no text or symbols present)

© 2020 Tunturi New Fitness BV

Green recycling symbol with a tree and recycling symbol (no text or numbers)

We are proud to be ecologically responsible

Nederlands

Illustration of an adjustable wrench and a separate L-shaped tool (no text or symbols)

Symbolic illustration of an adjustable wrench crossed out by a diagonal line (no text or labels)

Diagram showing two 3D rectangular blocks with circular holes and directional arrows indicating movement or force (no text or symbols)

Isometric line drawing of a multi-tiered electrical or mechanical component with mounting holes (no text or symbols)

Gewicht plaat	Lat Pull lage	katrol
1 12 12
2 18 18
3 24 24
4 36 36
5 42 42
6 48 48
7 54 54
8 60 60
9 66 66
10 72 72
11 78 78
12 84 84
13 90 90
14 96 96

Zorg en onderhoud

Green recycling symbol with a tree and recycling curve, no text or symbols present

We are proud to be ecologically responsible

Illustration of an adjustable wrench and a separate L-shaped wrench (no text or symbols)

Pure crossed wrench and angle tool symbol without any text or labels

Technical illustration of a mechanical component assembly showing two views of a multi-tiered housing with mounting holes (no text or symbols)

Piastra peso	Tiro laterale	Puleggia inferiore
1 12 12
2 18 18
3 24 24
4 36 36
5 42 42
6 48 48
7 54 54
8 60 60
9 66 66
10 72 72
11 78 78
12 84 84
13 90 90
14 96 96

Cura e manutenzione

Green recycling symbol with leafy branches and a recycling curve, no text or symbols present

We are proud to be ecologically responsible

Illustration of an adjustable wrench and a separate L-shaped tool (no text or symbols)

Pure diagram of an adjustable wrench crossed out by two diagonal lines (no text or symbols)

Diagram of two rectangular electronic components with circular holes and directional arrows indicating movement or interaction (no text or symbols)

Isometric line drawing of a multi-tiered mechanical or electrical component with mounting holes (no text or symbols)

Placa de peso	tirón lat Poulie basse
1 12 12
2 18 18
3 24 24
4 36 36
5 42 42
6 48 48
7 54 54
8 60 60
9 66 66
10 72 72
11 78 78
12 84 84
13 90 90
14 96 96

Green recycling symbol with a tree and recycling curve, no text or symbols present

We are proud to be ecologically responsible

Illustration of an adjustable wrench and a separate L-shaped tool (no text or symbols)

crossed wrench and wrench symbol (no text or labels)

Two 3D isometric diagrams of a rectangular electronic component with circular holes, showing internal structure and directional arrows (no text or symbols)

Isometric line drawing of a multi-tiered electrical connector or module (no text or symbols)

Viktplatta Lat. drag Lågt drag
1 12 12
2 18 18
3 24 24
4 36 36
5 42 42
6 48 48
7 54 54
8 60 60
9 66 66
10 72 72
11 78 78
12 84 84
13 90 90
14 96 96

© 2020 Tunturi New Fitness BV

Green recycling symbol with leafy branches and a recycling curve inside, no text or symbols present

We are proud to be ecologically responsible

Suomeksi

Illustration of an adjustable wrench and a separate L-shaped wrench (no text or symbols)

Two 3D isometric diagrams of a rectangular electronic component with circular holes, showing internal structure and directional arrows (no text or symbols)

Isometric line drawing of a multi-tiered electrical connector or module (no text or symbols)

Painolevy Ylätaljaveto Alataljaveto
1 12 12
2 18 18
3 24 24
4 36 36
5 42 42
6 48 48
7 54 54
8 60 60
9 66 66
10 72 72
11 78 78
12 84 84
13 90 90
14 96 96

Hoito ja huolto

Abstract green ribbon illustration with no text or symbols

TUNTURI®

WORLDWIDE FITNESS

Tunturi New Fitness BV

Purmerweg 1

NL - 1311 XE Almere

P.O. Box 60001

NL - 1320 AA Almere

The Netherlands

www.tunturi.com
