CL 3716 - Air-conditioner CLATRONIC - Free user manual and instructions

Product type	Monoblock mobile air conditioner
Brand	Clatronic
Model	CL 3716
Net weight	approx. 24.5 kg
Power supply	220-240 V~, 50 Hz
Power consumption	1010 W
Cooling capacity	9000 BTU (2.64 kW)
Refrigerant	R290 (flammable)
Energy efficiency class	A
Operating modes	Cooling, dehumidification, fan
Special functions	Sleep mode (energy saving), timer (1-24h), remote control, Wi-Fi via Smart Life app
Temperature setting	16 °C to 31 °C
Fan speeds	2 levels
Water tank	Manual drainage, full level indicator (FL light)
Remote control	Yes, AAA batteries (2x 1.5 V)
Connectivity	Wi-Fi 802.11b/g/n, 2.4 GHz
Dimensions (approx.)	Not specified in the manual
Included accessories	Flexible exhaust hose, adapters, window installation kit, water hose, caps
Safety	Compressor protection (3 min delay), automatic shut-off, flammable refrigerant (R290)
Maintenance	Clean filters every 2 weeks; drain tank as needed

Frequently Asked Questions - CL 3716 CLATRONIC

How to install the CL 3716 air conditioner?

Place the unit on a flat surface, at least 50 cm away from walls. Assemble the exhaust hose by attaching the adapter to the hose, then connect it to the back of the unit. Pass the hose through an open window and use the window installation kit to seal the opening. Plug the unit into a grounded outlet.

How to empty the water tank when the FL light comes on?

Unplug the unit. Place a container under the rear water outlet (or both outlets). Remove the cap and connect the supplied water hose to drain the water. Once emptied, replace the cap. You can then restart the unit.

What do error codes E1 and E2 mean?

E1 indicates a temperature sensor fault. E2 also indicates a sensor fault (not detailed). In both cases, contact customer service.

How to use the timer for automatic start?

Turn off the unit with the power button. Press the timer button: the hour digit blinks. Use the + and - buttons to set the number of hours (1 to 24) before start. Wait 5 seconds to confirm. The timer indicator stays on.

How to clean the air filters?

Remove the grilles at the back of the unit (above and below the hose connection). Remove the filters from the grilles. Vacuum the dust or wash them with lukewarm water and mild detergent. Let them dry completely in the shade before reinstalling. Never operate the unit without filters.

Can I use the unit with a smartphone app?

Yes, download the free app Smart Life - Smart Living from Google Play or the App Store. Create an account, activate Wi-Fi on the unit by holding the Wi-Fi button for 5 seconds, then follow the in-app instructions to pair the unit.

What type of refrigerant is used and is it dangerous?

The refrigerant is R290 (propane), which is flammable. The unit must be installed in a room larger than 12 m². Do not puncture the cooling circuit. In case of a leak, ventilate the room and do not use any flame.

What to do if the remote control does not work?

Check the distance (max 8 m) and ensure no obstacles between the remote and the IR sensor. Replace the batteries with new AAA batteries respecting polarity. If the problem persists, the unit can be used directly from the control panel.

Why is the unit not cooling enough?

Possible causes: open windows or doors, direct sunlight, dirty filters, heat source in the room, or too many people. Check that the set temperature is lower than the room temperature. Clean the filters and close openings.

What safety precautions should I take?

Do not cover the unit, keep a distance of 50 cm around it, do not operate without filters, unplug before cleaning, do not puncture the refrigerant circuit. Wait 3 minutes after shutdown before restarting. Do not use in a bathroom or near a swimming pool.

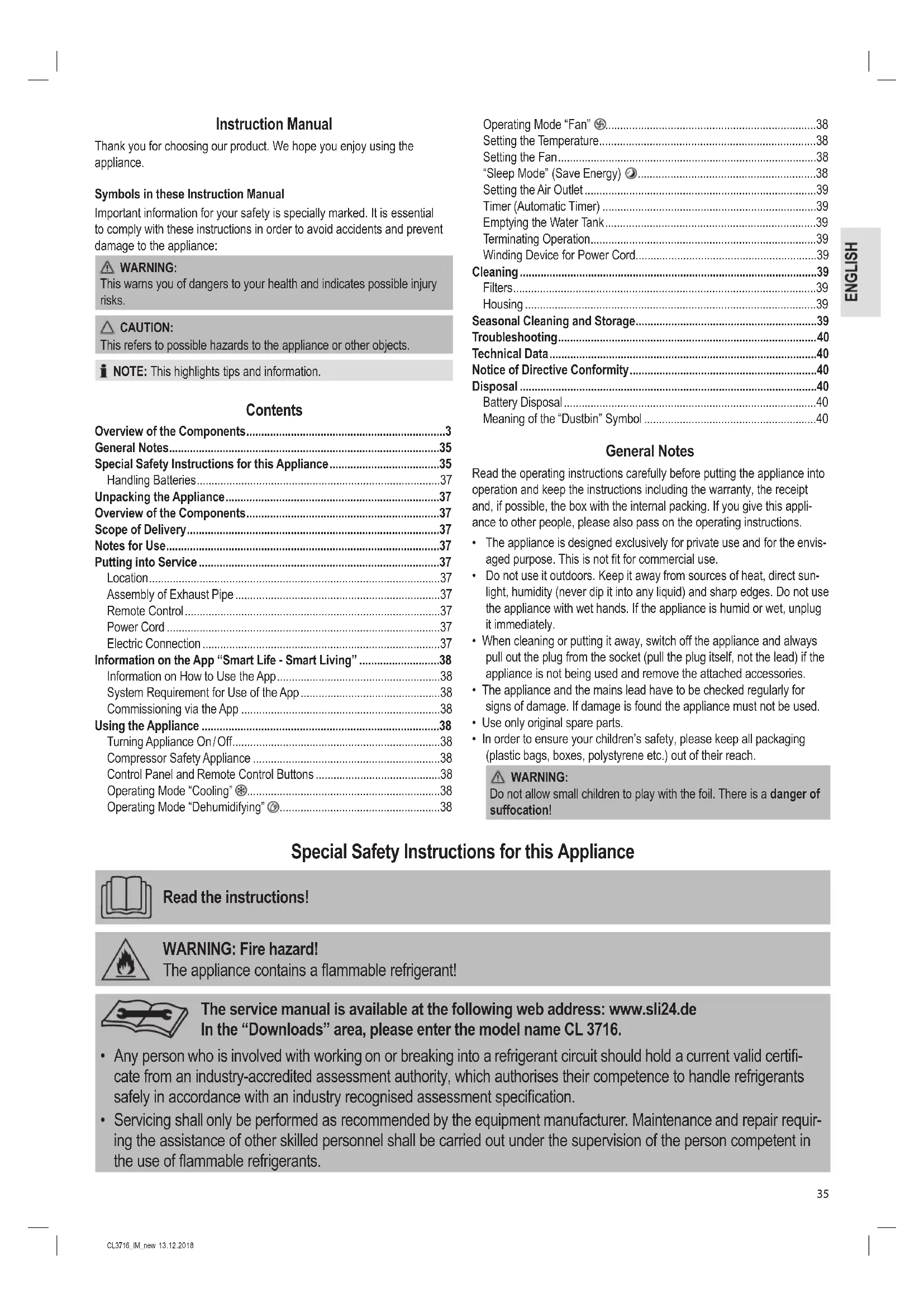

USER MANUAL CL 3716 CLATRONIC

Exterior view of a black and white industrial air conditioner unit (no visible text or symbols on the device body)

WAARSCHUWING: Brandgevaar!

Chiavi Wi-Fi supportate: WPA/WPA2

Thank you for choosing our product. We hope you enjoy using the appliance.

Symbols in these Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE: This highlights tips and information.

Contents

Overview of the Components....3

General Notes......35

Special Safety Instructions for this Appliance....35

Handling Batteries....37

Unpacking the Appliance....37

Overview of the Components....37

Scope of Delivery....37

Notes for Use....37

Putting into Service....37

Location....37

Assembly of Exhaust Pipe 37

Remote Control....37

Power Cord 37

Electric Connection 37

Information on the App "Smart Life - Smart Living" 38

Information on How to Use the App....38

System Requirement for Use of the App 38

Commissioning via the App 38

Using the Appliance ....38

Turning Appliance On/Off....38

Compressor Safety Appliance 38

Control Panel and Remote Control Buttons 38

Operating Mode "Cooling" 38

Operating Mode "Dehumidifying" 38

Operating Mode "Fan" 38

Setting the Temperature....38

Setting the Fan....38

"Sleep Mode" (Save Energy) 38

Setting the Air Outlet 39

Timer (Automatic Timer) 39

Emptying the Water Tank....39

Terminating Operation....39

Winding Device for Power Cord....39

Cleaning....39

Filters....39

Housing 39

Seasonal Cleaning and Storage....39

Troubleshooting....40

Technical Data....40

Notice of Directive Conformity....40

Disposal 40

Battery Disposal....40

Meaning of the "Dustbin" Symbol 40

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Instructions for this Appliance

Read the instructions!

WARNING: Fire hazard!

The appliance contains a flammable refrigerant!

The service manual is available at the following web address: www.sli24.de In the "Downloads" area, please enter the model name CL 3716.

• Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specification.
• Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.

WARNING:

• Do not try to accelerate the defrost process.

• Do not use and store the appliance at the following locations:

• Near a fire source.

• An area, where water or oil can splash.
• An area exposed to direct sunlight.

• In the bathroom, the laundry room or next to a swimming pool.

• Do not drill or burn the appliance.

• Remember that refrigerants are odourless.
• The appliance must be set up, operated and stored in a room with a floor area larger than 12m^2 .

CAUTION: Risk of overheating!

• Keep the ventilation slots free!
• Do not cover the appliance!

• R 290 is a refrigerant that complies with European environmental directives.
- Do not damage the refrigerant circuit.
• The appliance is intended for indoor use only.
- The appliance must be stored in such a way that it does not get damaged.
- Adhere to the national connection regulations.
- In the event of strange noises, smells and/or smoke emissions, unplug the power plug from the socket.
- Use the appliance in the upright position only.
- Ensure a distance of at least 50 cm between the appliance and any walls or other objects to ensure sufficient air circulation during operation.
- Never use the appliance without filters.
- Do not leave the appliance unattended for hours at a time. Do not leave your home whilst the appliance is in operation.
- This appliance has been designed for the air-conditioning of residential rooms and must not be used for other purposes.
- Do not operate the appliance in rooms where gas, fuel, oil or other easily flammable liquids are present. Do not use sprays such as paint, pesticides or other flammable materials in that room.
- Do not insert any objects into the openings of the appliance.
- Do not move the appliance when the mains cable is connected to the wall socket.
• Always turn off the appliance first using the @button before disconnecting the mains plug.
- If operation has been interrupted, wait for approx. 3 minutes before restarting the appliance again, in order for the cooling circuit pressure to decrease.
- Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Prevent small children from touching the appliance.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- Please follow the instructions in the chapter "Cleaning".
• Details of type and rating of fuses: T, 250 V AC, 3,15 A

Handling Batteries

WARNING:

• Do not expose batteries to excessive heat such as sunlight, fire or similar. There is a risk of explosion!
• Batteries are not toys. Keep away from children.
• Do not open batteries by force.
• Avoid contact with metal objects (rings, nails, screws, etc.). There is a risk of short circuit!
• A short circuit could cause the battery to heat up excessively or even to catch fire, resulting in injuries.
• For your own safety, cover the battery terminals with adhesive tape during transport.
• In case of battery leakage, make sure not to rub the liquid into your eyes or mucous membranes. In case of contact, wash your hands and rinse your eyes with clear water. Seek medical attention if any discomfort persists.

CAUTION:

• When not using the remote control for a long period of time, remove the batteries in order to prevent "leakage" of battery acid.
• Different battery types or new and used batteries must not be used together.
• Do not dispose of batteries along with domestic waste. Return used batteries to the relevant collection facilities or your retailer.

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all the packaging material such as plastic bags, filler material, cable ties and cardboard packaging.
3. Check that all parts are supplied in the package.

Overview of the Components

1 Lever
2 Air outlet (fins)
3 IR receiver for remote control
4 Control panel
5 Display
6 Handle
7 Grille with internal filter
8 Exhaust pipe connector
9 Water outlet
10 Winding device for power cord
11 Power plug bracket
12 Water outlet

Scope of Delivery

1 Air conditioning appliance
1 Remote control
2 Batteries
1 Flexible exhaust pipe
1 Exhaust pipe adapter (Connection on the appliance)
1 Window kit, 2-piece
1 Adapter for the window exhaust kit
1 Water hose
2 Plugs (spares)

Notes for Use

△ CAUTION: Important for initial operation or after transport! Before initial operation, the appliance must stay in an upright position for at least 3 hours in order for the cooling agent to sink. The compressor will be damaged otherwise.

CAUTION:

• When you interrupt the operation with the button, wait for at least 3 minutes before switching the appliance on again.
• If you want to move the appliance to another location, first empty the water tank!
• The appliance operates most effectively with a room size up to 70m^3 .
• The flexible exhaust hose and the adapter have been manufactured especially for this appliance. In order to avoid incorrect operation, do not replace the pipe with another pipe.
• The exhaust pipe can be extended up to 150 cm. Do not use any extension.
• Ensure free airflow. Make sure not to kink or bend the exhaust pipe. Any blockage can cause the appliance to overheat.
• Close all windows and doors in order to prevent outside air from entering the room and thus allowing a more effective operation of the appliance.

Putting into Service

Location

• When installing the appliance, make sure to keep a distance of at least 50 cm between the appliance and any walls or other objects.
  • The surface must be flat and dry.

Assembly of Exhaust Pipe

i NOTE:

For sliding windows, you may use the window kit provided and install it in a vertical or horizontal position. Adjust the length of the seal plate as desired.

1. Connect the adapter to the exhaust hose. Place the exhaust hose in a way that the first fin of the hose lays in the rail. Tighten the adapter by turning it clockwise.
2. Connect the adapter to the connector on the back of the appliance. To do this, push the adapter with the narrower side from the right into the guides. It must audibly snap.
3. Extend the pipe to the desired length.
4. Stick the open end of the pipe into a window.
5. Close the window as far as possible. Also lower any external roller blinds, if present, to the end of the pipe.

Remote Control

1. Open the battery compartment cover on the back of the remote control.
2. Insert 2 batteries of type R03 "AAA" 1.5 V, observing the correct polarity (see markings on the bottom of the compartment)!
3. Close the battery compartment cover.

Power Cord

Unwind the power cord from the winding appliance.

Electric Connection

1. Make sure the mains voltage you want to use corresponds to the voltage of the appliance. Please check the rating label for detailed specifications.
2. Connect the appliance to a properly installed grounded socket. A signal will sound indicating that the appliance is ready for use.

Information on the App "Smart Life - Smart Living"

The Smart Life - Smart Living app is available for android and iOS. Scan the corresponding QR code to get directly to the download.

Depending on the provider, there may be costs involved in downloading the app.

Google Play App Store

Information on How to Use the App

This appliance allows you to operate the appliance via your home network. A prerequisite is a permanent Wi-Fi connection to your router and the free app "Smart Life - Smart Living".

We recommend disconnecting the appliance from the power supply when you are away from home to prevent unintentional switching on while you are on the road!

System Requirement for Use of the App

• iOS 8.0 or higher
• Android 4.1 or higher

Commissioning via the App

1. Install the "Smart Life - Smart Living" app. Create a user account.
2. Activate the Wi-Fi function in the settings of your appliance.
3. Place the appliance at a distance of about 5 meters to your router.
4. Press and hold the Ⓤ button for about 5 seconds. The button will flash rapidly.
5. Launch the app and select "+".
6. Select the "air conditioner" menu and follow the instructions on the display.
7. Once the appliance has been successfully connected, the ⏻ button lights up. Now you can operate the appliance using the app.

Using the Appliance

Turning Appliance On/Off

• Press the ⏻ button to turn on the appliance. The appliance is pre-set to "Cooling" mode and the temperature is 22 °C. If operation has been stopped without disconnecting the plug, all previously set operating mode and temperature settings will be retained.
• Press the button again to turn off the appliance.

Compressor Safety Appliance

If operation is interrupted, the safety appliance for the compressor is activated. This prevents operation of the compressor for approx. 3 minutes, in order to relieve the pressure in the cooling circuit. This is not a malfunction of the appliance. Therefore, wait at least 3 minutes, before switching the appliance on again.

Control Panel and Remote Control Buttons

Control Panel	Remote Control	Function
		Turn on / off
	- Wi-Fi
		Operating mode “Cooling”
		Operating mode “Dehumidifying”
		Operating mode “Fan”
		Fan level 1
		Fan level 2
		“Sleep mode” (save energy)
		Reduce temperature
		Increase temperature
		Timer operation
		Water tank full (This is just an indicator lamp, not a button.)

The Ⓐ and ✕ buttons must be pressed several times to select the individual functions.

The buttons on the control panel are explained below.

Operating Mode "Cooling"

In this operation mode, you can adjust the fan speed and the temperature as desired.

To operate the appliance with the compressor, the set temperature must be lower than the current room temperature.

Operating Mode "Dehumidifying"

• This operating mode does not support any further settings.
• The fan will operate at the lowest speed setting.
• The appliance will cool the room and extract the humidity from the air.

Operating Mode "Fan"

This mode only allows you to set the speed of the fan.

Setting the Temperature

Use the ☑ buttons in "Cooling" mode to set the temperature. Select a temperature between 16 °C and 31 °C.

Setting the Fan

In "Cooling" and "Fan" modes you can set the fan speed with 2 different settings.

• Button Level 1
• Button Level 2

"Sleep Mode" (Save Energy)

The appliance is operating in sleep mode. You may only use this mode when "Cooling" mode is active. In this case, the fan settings cannot be changed.

Setting the Air Outlet

Adjust the fins to regulate the direction of discharged air.

- Use the lever on the lower fin to direct the air up / down.

Timer (Automatic Timer)

Use the timer function to set the power-on and power-off times of the appliance. Select a time between 1 and 24 hours.

Using the Timer Function for Automatic Power-On

1. Press the Ⓐ button to turn on the appliance.
2. Select the operating mode, temperature and fan speed for the appliance to operate in or at when powered on at the pre-set time.
3. Press the ⓣ button to turn off the appliance.
4. Press the Ⓞ button. The number of hours flashes.
5. You can set the desired number of hours with the buttons ☑ and Ⓐ. The setting mode is automatically exited after approx. 5 seconds. The timer mode is activated and the ⏻ button lights up.

NOTE:

Do not press the ⏻ button after setting the hours, as the timer operation will not be saved.

Using the Timer Function for Automatic Power-Off

• If you want to deactivate the set timer operation, press the button twice. The illumination of the button turns off.
• You may also cancel the timer function at any time by pressing the Ⓤ button to turn the appliance on / off.

Emptying the Water Tank

The appliance integrates a water tank for collecting condensation. When the water tank is full, the pilot lamp lights up. The compressor switches off in each operation mode. The fan keeps running independent of this.

CAUTION:

Do not transport the appliance while the water tank is full. Water could get into the appliance.

For continued operation with the compressor, you must empty the water tank. For this, you need a floor cloth, a flat bowl with a capacity for approx. 1 litre of water and the water hose supplied with the appliance.

1. Disconnect the mains plug from the wall socket.
2. Place the floor towel and the flat bowl underneath the water outlet. If possible, set the bowl on a lower level than the appliance.
3. Remove the stopper.
4. Connect the water hose to the water outlet of the appliance. Place the end of the hose in the bowl.
5. After the water has been discharged, remove the water hose. Use the stopper to close the water drain on the appliance again.
6. For the other water drain repeat steps 2 - 5 as described above.

Terminating Operation

1. Press the Ⓐ button to turn off the appliance.
2. Disconnect the mains plug from the wall socket.

Winding Device for Power Cord

Wind the power cord around the winding device. Insert the plug into the slots provided.

Cleaning

WARNING:

• Always disconnect the mains plug from the wall socket before cleaning!
- Make sure no water enters the openings of the appliance during cleaning. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not spray the appliance with cleaning agents.
• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.

Filters

If the appliance is in daily use, clean both filters every 2 weeks. The efficiency of the appliance is no longer guaranteed if dust in the filters blocks the air circulation.

1. There is a grille with an internal filter above and below the connection for the exhaust hose on the back of the appliance.
2. Remove the grilles from the appliance and the filters from the grilles.
3. Vacuum the filters with a vacuum cleaner.
4. Clean the filters under running water. If necessary, use a mild detergent.
5. Allow the filters to dry in the air or in a shady place.
6. Put the filters back into the grilles and attach the grilles to the appliance once they have dried thoroughly.

CAUTION:

Do not operate the appliance without filters!

Housing

• Use a vacuum cleaner to vacuum the fins and ventilation openings.
• Wipe the housing with a slightly damp cloth.

Seasonal Cleaning and Storage

When not using the appliance for a long period of time, proceed as follows:

1. Empty the water tank as described above.
2. Operate the appliance in "Fan" mode for 2 hours in order to dry the inside of the appliance.
3. Press the ⏻ button to turn off the appliance. Disconnect the mains plug from the wall socket.
4. Disconnect the flexible exhaust pipe from the appliance.
5. Clean the filters and the appliance as described above.
6. Cover the appliance with foil.
7. Always store the appliance out of the reach of children in a dry, well ventilated place.

Troubleshooting

Problem Possible cause $ Solution
Appliance does not function.	No power supply Check the power connection.
	Timer function is activated.	Press the button to turn on the appliance.
	The ambient temperature is too low or too high. It is recommended to use the appliance at an ambient temperature of 16 - 35 °C.
	The appliance is defect. Contact our service department or a specialist. Please consider the enclosed service manual.
Appliance does not cool sufficiently.	The appliance is exposed to direct sunshine. Choose another location or shade the windows.
	Windows or doors are open. Close any windows or doors.
	There are too many people or other heating sources in the room.	Remove portable heaters or switch them off.
	The filters are dirty. Clean the filters.
	The air inlet or air outlet is blocked. Remove the blockage. Keep the ventilation openings free from obstructions.
Appliance too noisy during operation.	The appliance is not in an upright position.	Place the appliance on a flat surface. Avoid vibrations.
Display indication: FL The control lamp lights.	The water tank is full.	Turn the appliance off. Pull the power plug. Empty the water tank. You may then restart the appliance again.
The remote control does not work.	The distance to the appliance is too far.	Move closer to the appliance.
	You are not holding the remote control towards the sensor.	Hold the remote control so it points to the sensor. Make sure there are no obstacles between the remote control and the sensor.
	The batteries are dead.	Replace the batteries.
Display indication: E1	Temperature sensor defective.	Contact our customer service or your dealer.
Display indication: E2

Technical Data

Model: CL 3716

Net weight: approx. 24.5 kg

Power supply: 220 - 240 V\~, 50 Hz

Power consumption: 1010W

Protection class:.... I

Energy efficiency class: A

Cooling capacity: 9000 BTU (2.64 kW)

Refrigerant: R290

Maximum permissible operating pressure:

Pressure side: 1.8 MPa

Suction side: 0.6 MPa

Maximum pressure allowed: 3.0 MPa

WLAN

Supported network: 802.11b/g/n

Maximum radio-frequency power transmitted: 100 mW

Frequency range: 2.4 GHz

Channels: 1-13

Supported Wi-Fi keys: WPA/WPA2

The right to make technical and design modifications in the course of continuous product development remains reserved.

Notice of Directive Conformity

Hereby, Clatronic International GmbH declares that the radio equipment type CL 3716 is in compliance with Directive 2014 / 53 / EU.

Furthermore, the appliance is in compliance with the requirements of the RoHS directive 2011 / 65 / EC.

The full text of the EU declaration of conformity is available at the following internet address: www.sli24.de

In the "Download" area, please enter the model name CL 3716.

Tested for operation in Great Britain.

Disposal

Battery Disposal

As a consumer you are obliged by law to return old batteries / accumulators.

Remove the batteries from the remote control before disposing of the appliance.

Return the batteries to a collection facility for the collection of old batteries or hazardous waste. Contact your local authority for more information.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

Instrukcja obsługi

CTC Clatronic Sp. z o.o

Ul. Brzeska 1

45-960 Opole

Usuwanie

Usuwanie baterii
