USER MANUAL Ultrasonic Hybrid 7214 Solis

Conservare la confezione originale di questo articolo, in modo che Lei può utilizzarla per un eventuale e necessario trasporto o spedizione. Solis of Switzerland SA Solis-Haus • CH-8152 Glattbrugg-Zurigo • Svizzera Telefono [phone] • Fax [phone] [e-mail] • www.solis.ch • www.solis.com5556 important saFety precautions Please read through these operating instructions carefully before using your SOLIS Ultrasonic Hybrid, so that you can come acquainted with your appliance and can operate it safely. At SOLIS we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions. We thoroughly recommend that you keep these instructions and, if you pass the appliance on, that you also hand these instructions to the new owner.

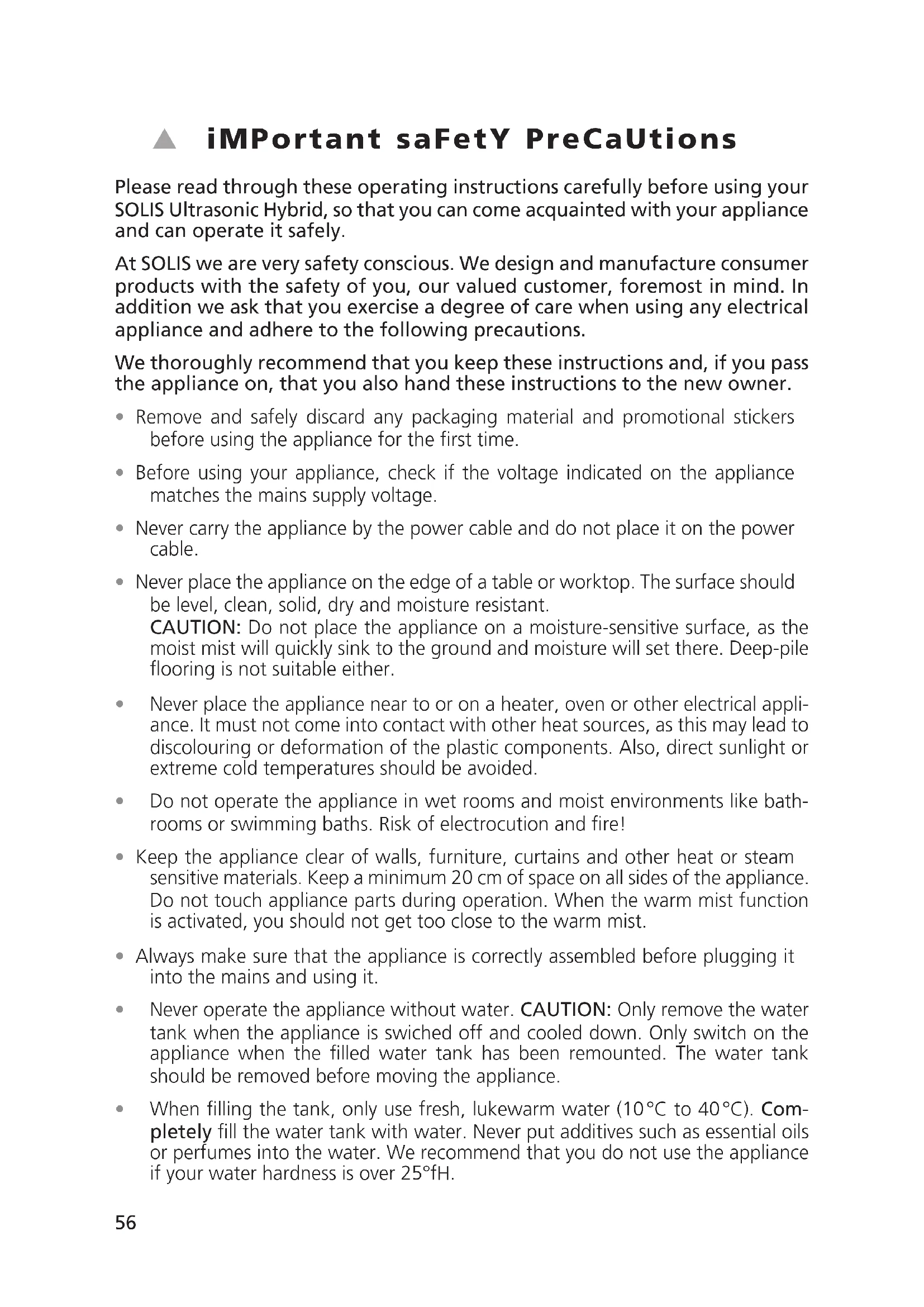

• Remove and safely discard any packaging material and promotional stickers before using the appliance for the first time.

• Before using your appliance, check if the voltage indicated on the appliance matches the mains supply voltage.

• Never carry the appliance by the power cable and do not place it on the power cable.

• Never place the appliance on the edge of a table or worktop. The surface should be level, clean, solid, dry and moisture resistant. CAUTION: Do not place the appliance on a moisture-sensitive surface, as the moist mist will quickly sink to the ground and moisture will set there. Deep-pile flooring is not suitable either.

• Never place the appliance near to or on a heater, oven or other electrical appli- ance. It must not come into contact with other heat sources, as this may lead to discolouring or deformation of the plastic components. Also, direct sunlight or extreme cold temperatures should be avoided.

• Do not operate the appliance in wet rooms and moist environments like bath- rooms or swimming baths. Risk of electrocution and fire!

• Keep the appliance clear of walls, furniture, curtains and other heat or steam sensitive materials. Keep a minimum 20 cm of space on all sides of the appliance. Do not touch appliance parts during operation. When the warm mist function is activated, you should not get too close to the warm mist.

• Always make sure that the appliance is correctly assembled before plugging it into the mains and using it.

• Never operate the appliance without water. CAUTION: Only remove the water tank when the appliance is swiched off and cooled down. Only switch on the appliance when the filled water tank has been remounted. The water tank should be removed before moving the appliance.

• When filling the tank, only use fresh, lukewarm water (10 °C to 40 °C). Com- pletely fill the water tank with water. Never put additives such as essential oils or perfumes into the water. We recommend that you do not use the appliance if your water hardness is over 25°fH.57

• Unwind the power cord fully before use.

• Do not let the cord hang over the edge of a table or counter or touch hot sur- faces.

• Do not use the appliance for anything other than it's intended purpose as de- scribed in this booklet. Do not use outdoors.

• When lifting or moving the appliance, please always carry it by the base. Do not shake or throw the appliance, this could damage it and cause it to leak.

• Do not operate the appliance on an inclined surface and do not move the ap- pliance while it is in operation.

• Also, the appliance, when filled with water, should be kept upright at all times.

• Only use with the provided accessories, incorrect accessories can lead to damage of the appliance.

• In order to avoid electric shock, do not use the appliance if the supply cord or plug are damaged or the appliance is otherwise faulty, dropped or damaged. Do not operate if damaged in any way or after the appliance malfunctions, never attempt repairs yourself. Immediately cease use of the appliance and take it to SOLIS or a SOLIS approved service center for examination, repair or adjustment.

• Never put sharp or pointed objects and tools into the appliance openings. The appliance may become damaged – danger of electric shock!

• We recommend the use of a residual current device (RCD safety switch) to en- sure additional protection during the use of electrical appliances. It is advisable to use a safety switch with a rated residual operating current of 30 mA maximum. For professional advice consult an electrician.

• Persons with reduced physical, sensory or mental capacities (including children) or uninformed and inexperienced people are not permitted to use the SOLIS Ultrasonic Hybrid, unless they are supervised by a person responsible for their safety or are instructed by this person exactly how to use the appliance.

• Children must be supervised, so that they do not play with the appliance.

• Close supervision is necessary when the appliance is used by or near children.

• The use of accessory attachments not recommended by SOLIS may result in fire, electric shock or injury to persons.

• The appliance should be switched off and the plug should be pulled before moving, cleaning or storing the appliance, also before adding or removing parts. Let the appliance disconnected from the power cool down completely before cleaning.

• To disconnect from the wall outlet, first turn off the appliance then remove the power plug from the wall outlet.58

• When the appliance is not in use, disconnect the power cord from the wall outlet.

• When not using the appliance for extended periods of time, always disconnect it from the power, empty out the remaining water and let it dry on the inside as well. Store the appliance in a dark, cool and well-circulated place.

• Only clean the appliance base with a soft damp cloth.

• Strictly follow the Cleaning instructions on pages 68 and 69.

• Do not use harsh abrasives or caustic cleaners when cleaning this appliance.

• Never place the appliance in a place where it could fall into water.

• Never take hold of an appliance that has fallen into water. Always take the plug out of the power socket before removing the appliance from the water.

• This appliance is for household use only and not suitable for commercial use!

• Save these instructions.59 Functions and adVantages oF your solis ultrasonic hybrid humidiFier

• Great air humidification capacity

• Cold and cold/warm mist mixture selectable

• Perfect nebulisation, evenly increases air moisture in the entire room

• Automatic-stop when water tank is removed or empty

• Built-in high-temperature-sterilisation of water for healthy air moisture60 appliance description

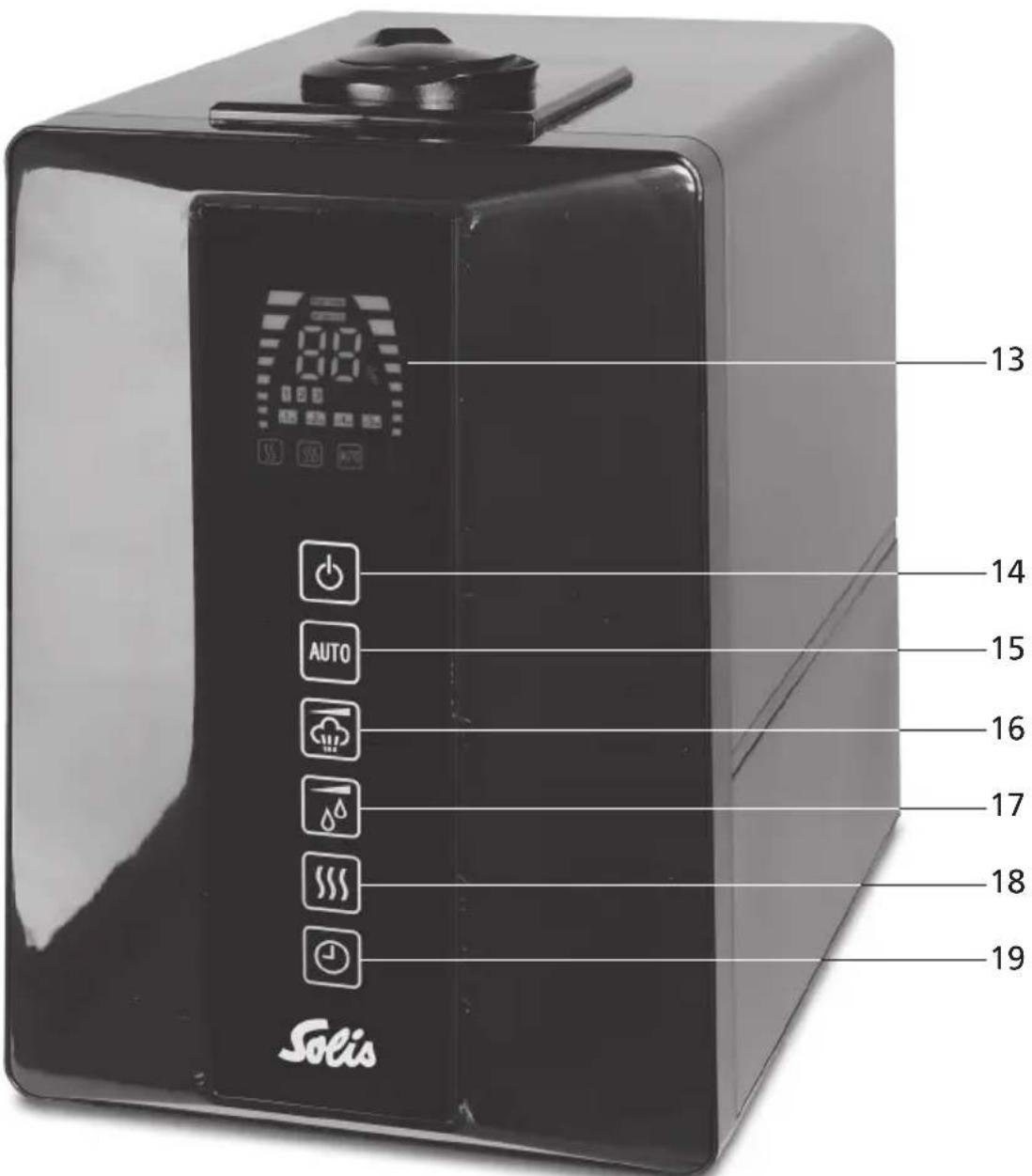

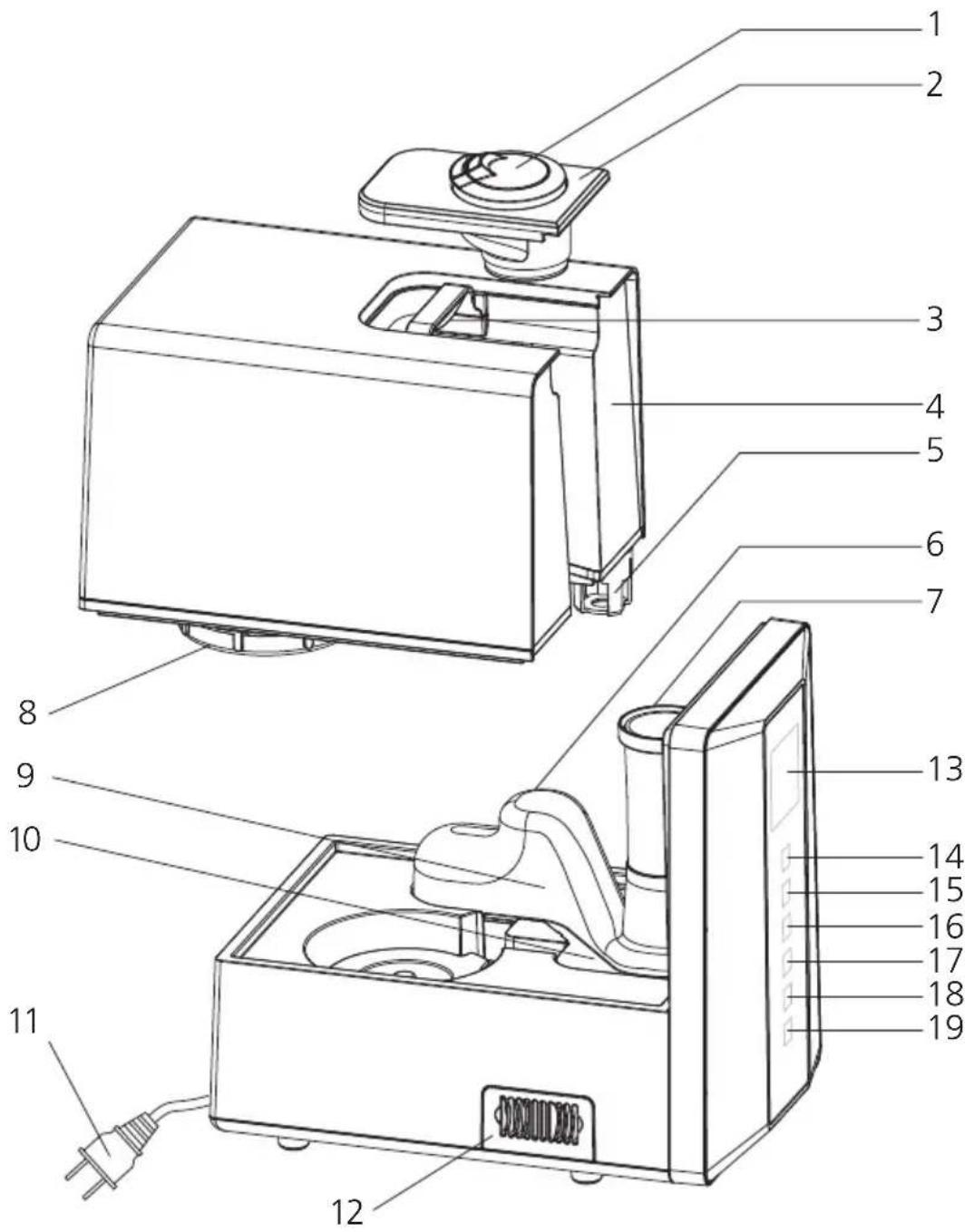

Part description 1 Outlet nozzles 2 Cover with underlying tank handle 3 Tank handle 4 Water tank 5 Water tank sensor 6 Mist duct; beneath, the nebulisation chamber is situated 7 Mist pipe 8 Water tank cap 9 Nebulisation unit cover 10 Heating unit 11 Power cable 12 Aroma compartment61 control panel 13 LED display 14 ON/OFF switch

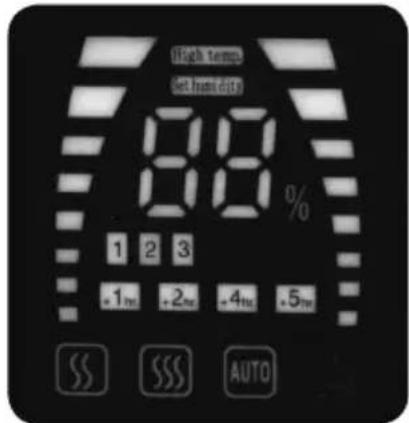

the led-display These symbols indicate: Time set using the timer button. Operation time can be set between 1 and 12 hours, press- ing the button once will increase time by one hour. The display will state the 1, 2, 4 or 5 hours. Adding up these illuminated numbers will allow you to read off the set time. Set air humidification capacity (cold mist). 3 settings can be selected Indicates the user programmed resp. current air humidity. While programming the air humidity that is to be reached resp. maintained in the room, the display will flash. A few seconds after the last setting has been made, the display will illuminate permanently and display the current air humidity. Empty water tank display. Auto function is enabled. Lowest warm mist level is set. Intermediate warm mist level is set. Highest warm mist level is set. Warning prompt for excessive temperature which has activated overheating protection. Should case the humidifier be damaged or wrongly operated, the heating or nebulisation units might overheat, causing the machine to switch off automatically - the prompt „High temp.“ will illuminate as a warning symbol. In this case, turn off the machine, pull the power plug and remove the water tank. Empty out the water in the nebulisation chamber (be careful, as this water might be hot). Completely fill up the water tank with fresh, luke- warm water (10 °C–40 °C) and place it back onto the appliance. Plug the power plug back into the outlet and turn the machine back on. Programming mode for air humidity is activated. High temp. Set humidity63 Function buttons ON / OFF switch – When plugging in the appliance, a signal will sound and the appliance will go to standby mode. When pressing the ON/OFF switch, the LED-display will illuminate and the appliance is operational. Pressing the ON/OFF switch once again will turn the appliance back to standby mode. AUTO button – Pressing this button will turn the appliance to automatic mode. The appliance will register the current air humidity of the room and bring it to resp. maintain it constant between 55% and 68%. Humidification capacity button – You can personally set nebulisation intensity – you can choose between three humidification / capacity levels: low ¡, intermediate “ and high ¶. Every touch of the button will change hu- midification capacity, the display will state the particular symbols ¡, “ or ¶. If you turn off the warm mist function the outlet nozzles will atomise cold mist. Air humidity button – With this button you can manually set air humidity in the room. You can program any value between 40% and 80% in intervals of 5%. The appliance will register current air humidity of the room, bring it to the set value and maintain it constant. An example: When you set air humidity to 50% the appliance will check am- bient air humidity. If air humidity in the room is below 50%, the humidifier will begin operation. If air humidity is at or above 50%, the appliance will stop operation. The appliance is equipped with a built-in humidity switch, guaranteeing that user programmed air humidity is permanently maintained. The humid- ity switch will continuously meter air humidity at intervals of 3–5 minutes. Should effective air humidity drop 4% below the value set by you, the ma- chine will turn on. This tolerance is picked deliberately to keep the appliance from turning on and off frequently and disturbingly. This is also why your appliance is programmed so that time in between two turn-on processes is at least 3 minutes. In our example this would mean: Should air humidity in the room drop below 46% (this value exceeds the tolerance of 4%), the appliance would turn back on not later than 3–5 minutes and return air humidity to 50%. NOTE: When the appliance is turned on (regardless of whether the power supply has been disrupted or not) it will start operating for at least 1 minute to meter current air humidity, even if effective air humidity is above the set value. After that, the appliance will either keep operating - if the value is be- low 50%, as in our example - or discontinue operation - if the value is above 50%, as in our example.64 MEMORY FUNCTION: If the air humidifier is turned on and power has not been disconnected since last programming of air humidity, the programmed value is saved and the appliance will humidify the air of the room according to this last pro- grammed value. If the power supply has been disrupted, the previously programmed air hu- midity value is erased. In this case, the appliance will humidify to the manu- facturer set standard value of 55%. Should you desire a different value the machine has to be user programmed anew. Warm mist button – This button allows setting of the warm mist intensity. The higher the warm vaporisation, the warmer the steam and the higher the humidification capacity with warm mist will be. You have four different possi- bilities: High warm nebulisation, intermediate warm nebulisation, low warm nebulisation or disabled warm nebulisation. In this last case, the appliance will operate with cold mist only - here too, three different humidification levels can be set. Timer button – Pressing this button will activate the timer. Each touch of the button will increase operation time by one hour. Humidification time can be set between 1 and 12 hours. The sum of all illuminated hour digits in the display gives the set operation time. Please note the following:

• The operating range of your air humidifier is between 5 °C and 45 °C, air humidity in the room should be below 90%.

• Water that has been decalcified by a plant operating with salt is not suitable for your Ultrasonic Hybrid. The decalcifying cartridge of the humidifier can not absorb the salt, causing white deposits all over the machine. Should white deposits form anyway, the cartridge capacity has depleted. When this happens can vary, depending on water hardness. In this case please replace the decalcifying cartridge.

• We do not recommend using this machine if your water hardness exceeds 25 °fH.

• Never add additives like essential oils or perfumes to the water! CAUTION: When operating the machine after not using it for extended periods of time, we recommend cleaning of water tank, mist duct and nebulisation chamber in any case (see „Cleaning“ section).65 starting up

1. mounting decalciFying cartridge

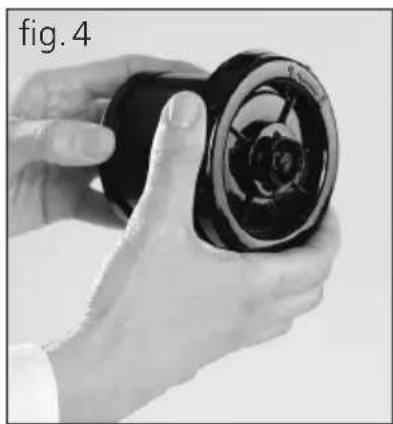

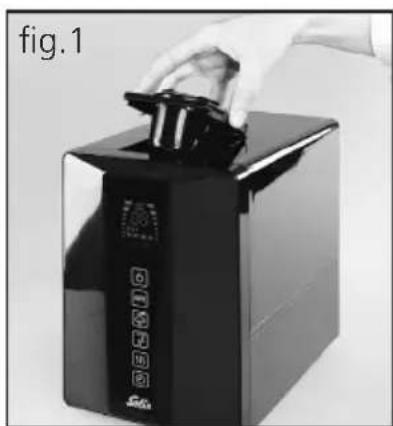

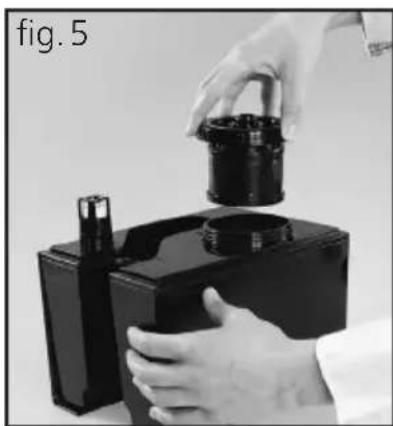

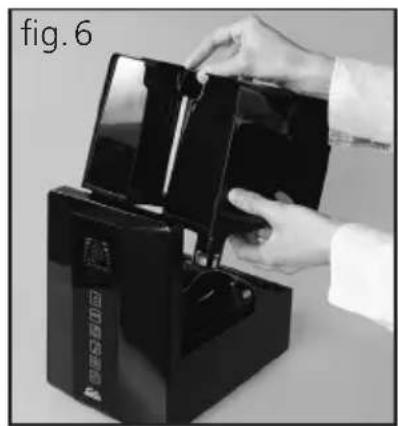

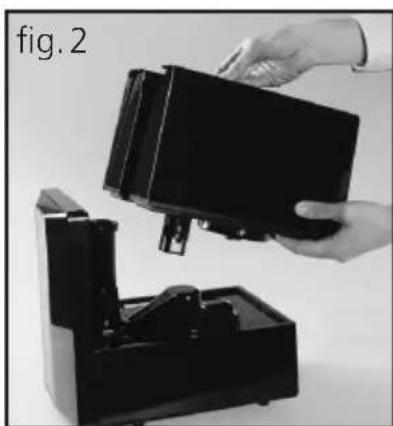

and Filling the tank With Water – Remove cover (2) with outlet nozzles (fig.1). – Use the handle to lift the water tank and turn it around (fig. 2). – Unscrew the cap (8) of the water tank (fig. 3). – Clock-wisely screw the decalcifying cartridge onto the thread on the cup‘s inner side (fig. 4). – completely fill the water tank with fresh, 10 °C–40 °C warm tap water. cAUTIOn: Always fill the water into the water tank, never pour it directly into the nebulisation chamber (except when cleaning). – Close the water tank by clock-wisely turning the cap with the decalcifying car- tridge on it. The sealing ring should be positioned correctly (fig. 5). – Turn the water tank back around and correctly replace it on it‘s base (fig. 6). fig.1 fig. 4 fig. 2 fig. 5 fig. 3 fig. 666

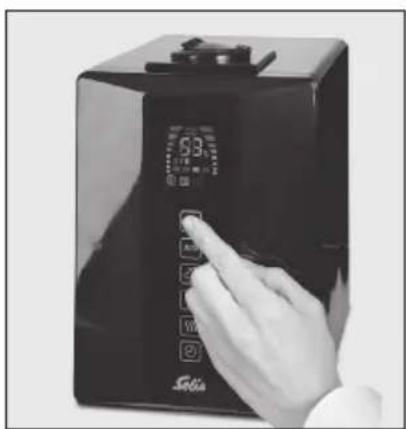

2. turning on the appliance

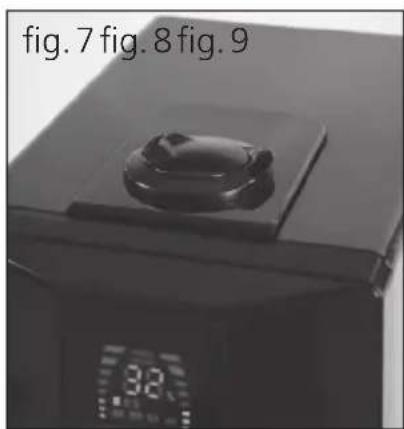

– Put back the cover with the two outlet nozzles on the water tank resp. the appliance. Check if outlet nozzles are positioned correctly. nOTE: The two-part and fully rotating outlet nozzle can always be set individually for optimal humidity dispensation (fig. 7). – Plug the power plug into a suitable power outlet. A signal will sound and your appliance is in standby mode. – Press the ON/OFF switch. The LED display will illuminate and your appliance will start up (fig. 8). – Now, press the function buttons you wish to activate. If you press no other button, your appliance will work with the highest warm mist setting and with nebulisation setting “ (fig. 9). fig. 7 fig. 8 fig. 9

3. actiVating the aroma Function

– Due to the sponge placed in the aroma compartment, your SOLIS Ultrasonic Hybrid can diffuse pleasant fragrance. – Remove the aroma compartment from the base. – Drizzle a few drops of water-soluble aroma oil onto the sponge (fig.10). – Slide the aroma compartment back into the base. – When you turn on your air humidifier, the aroma function will be activated. – If you want to deactivate the aroma function, or should the appliance not be in use for extended periods of time, remove the aroma sponge from the com- partment and wash it with a little of mild soap water. Let it dry completely before placing it back in the aroma compartment. Basically, the aroma sponge is reusable. cAUTIOn: Never put additives like essential oils or perfumes into the tank resp. the water! This would cause damage to your appliance! fig. 1067

4. turning oFF the appliance

– Turn off the appliance with the ON/OFF switch. – Pull the power plug from the socket. – Remove the water tank from the base and open the cap. Pour out the water and rinse the tank. – Let all parts dry and store away the appliance.

5. automatic shutdoWn When Water tank is empty

• When the water tank is empty an acoustic signal will sound, the corresponding symbol will light up in the display and the appliance will automatically stop hu- midifying. In this case, turn off the appliance with the ON/OFF switch and pull the power plug from the socket. Let the appliance cool down before pouring in any more water (see page 65).

• CAUTION: The appliance and the water in the nebulisation chamber might be very hot. When lifting the appliance or removing the water tank right after operation you risk scalding yourself with the hot water!

• Ensure that the water tank is always completely refilled.

• When the nebulisation chamber is overfilled or empty or when the air humidifier has not been operated properly, overheating protection is activated. An acoustic signal will sound and the display will state „High Temp.“. The appliance will automatically stop humidifying and shut down completely. In this case, pull the power plug from the socket and let the appliance cool down. Empty out the water in the nebulisation chamber and completely refill the tank. The appliance should be operational again. Should this not be the case, the water level sensor might be damaged. Please bring your air humidifier to a SOLIS service centre.

• CAUTION: The appliance and the water in the nebulisation chamber might be very hot. When lifting the appliance or removing the water tank right after operation you risk scalding yourself with the hot water!68 cleaning and maintenance

1. cleaning casing and Water tank

• Always switch off the appliance and pull the power plug before cleaning.

• Let appliance cool down completely.

• Regularly clean the water tank using clean water (at least once a week). Should there be lime deposits in the water tank, add decalcifier suitable for air humidi- fiers to the rinse water (f.e. SOLIPOL). Follow the directions on the bottle.

• Clean the outer side of the appliance with a soft, damp cloth and a little of mild washing-up liquid (when needed). Never dip the appliance in water and do not spray it with water or other liquids.

• cAUTIOn: Never use aggressive or corrosive cleaning agents or a rough sponge. The plastic casing might be damaged.

2. cleaning nebulisation, heating unit

and nebulisation chamber cAUTIOn: Always let the appliance cool down completely before cleaning nebulisation, heating unit and nebulisation chamber.

• Empty out the appliance.

• Remove mist duct and mist pipe as follows:

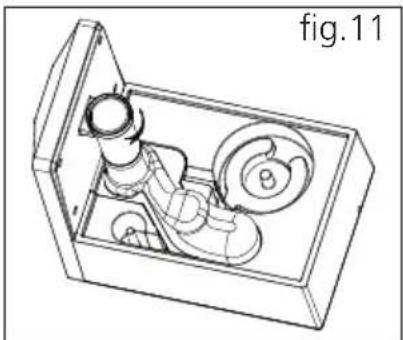

• Remove the mist pipe by turning it counter- clockwise (fig.11).

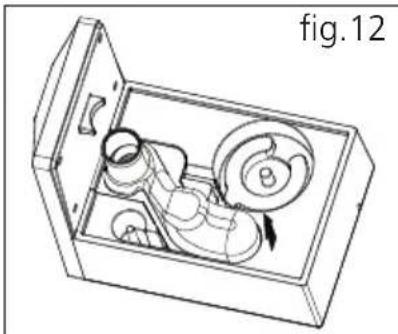

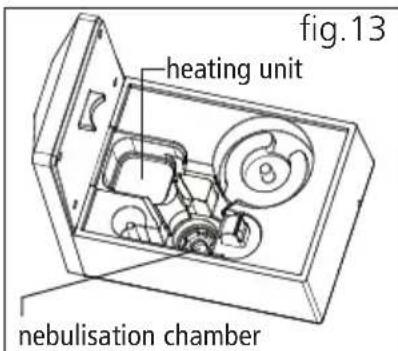

• Grab the upper end of the mist duct and pull it off in an upwards motion (fig.12+13).

• Clean the nebulisation chamber and heating unit with a soft brush and rinse with water. Then, dry both off with a cloth. fig.11 fig.12 fig.13 heating unit nebulisation chamberIf your water is so hard that white lime deposits form at the heating unit and in the nebulisation chamber in spite of the decalcifying cartridge, you should clean both parts with water and decalcifier.

• Put a small amount of decalcifier suitable for air humidifiers (f.e. SOLIPOL) on the heating unit and nebulisation chamber. Follow the directions on the bottle. Fill the nebulisation chamber and heating unit with water and allow to work for 10–15 minutes.

• Remove lime deposits with a soft brush.

• Rinse nebulisation chamber and heating unit twice with water.

• Remount mist duct and mist pipe. CAUTION: Except when cleaning, never pour water directly into the nebulisation chamber! Never use aggressive or abrasive cleaners or brushes - these might scratch the sur- face and damage the humidifier.

• Dry off the entire appliance with a soft cloth. Remove the water tank and allow the appliance to stand until it is completely dry.

• Store the appliance in a dry and dark place with good air circulation and pro- tected from dust. You require these supplies for your air humidifier:

• Decalcifying cartridge and SOLIPOL are available at good specialist shops or SOLIS AG. Telephone: [phone], Telefax: 0848 804 890 email: [e-mail] or www.solis-onlineshop.ch (Shipping only in Switzerland).

troubleshooting PROBLEM POTEnTIAL cAUSE POTEnTIAL RESOLUTIOn No mist is diffused. Power plug not plugged in. ON/OFF switch not pressed. Empty water tank. Not enough water in tank. Plug in appliance. Press ON/OFF switch. Fill tank with water. Refill tank with water. Unpleasant smell. New appliance.

Water dirty or not fresh. Remove tank cap and allow open tank to stand in a cool and dark place for approx. 12 hours. Clean water tank, fill with fresh tap water. Appliance is noisy. Tank not positioned correctly. Not enough water in tank. Appliance positioned unevenly. Correctly position tank on the base. Refill water in tank. Place appliance on solid and even ground. Steam evaporates around the outlet nozzle. Gap between steam outlet and water tank. Dip cover and outlet nozzle in water and place it back on the base.

High Temperature (High Temp.) Too high water level in nebulisation chamber, caused by filling water improperly. No water in nebulisation chamber, caused by dama- ged water level sensor. No water in nebulisation chamber because water tank is empty. Completely empty out nebu- lisation chamber and reposi- tion water tank. Bring appliance to a SOLIS service centre. Completely fill water tank with lukewarm water (10 °C– 40 °C).71 technical speciFications Model no. SH8410, Type 7214 Product description SOLIS Ultrasonic Hybrid Air Humidifier Voltage / frequency 220–240 V~ / 50 / 60 Hz Output 30 watts (nebulisation) 280 watts (vaporisation) Humidity switch 40% – 80% Suitable room size 50 m

Weight approx. 2,45 kg Dimensions approx. 19,5 29,5  30 cm (W H D) Water tank capacity 6 l Max. nebulisation capacity 600 ml/h72 DISPOSAL EU 2002 / 96 / EC Information for correct disposal of the product in accordance with the Euro- pean Directive 2002 / 96 / EC At the end of its working life this equipment must not be disposed of as an house- hold waste. It must be taken to special local community waste collection centres or to a dealer providing this service. Disposing of electrical and electronic equipment separately avoids possible negative effects on the environment and human health deriving from an inappropriate disposal and enables its components to be recov- ered and recycled to obtain significant savings in energy and resources. In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed-out dustbin. Solis of Switzerland Ltd reserves the right to carry out technical and visual changes and modifications to improve the product at any time. SOLIS HELPLINE: (Only for customers in Switzerland) This item stands out due to its long-life cycle and reliability. Despite this though, if a malfunction ever occurs, simply give us a call. Often a breakdown can be easily and quickly remedied with the right tip or technique without having to straight away send off the device for repair. We will give you all the advice and practical support you require.
