USER MANUAL Aroma Steamer 7215 Solis

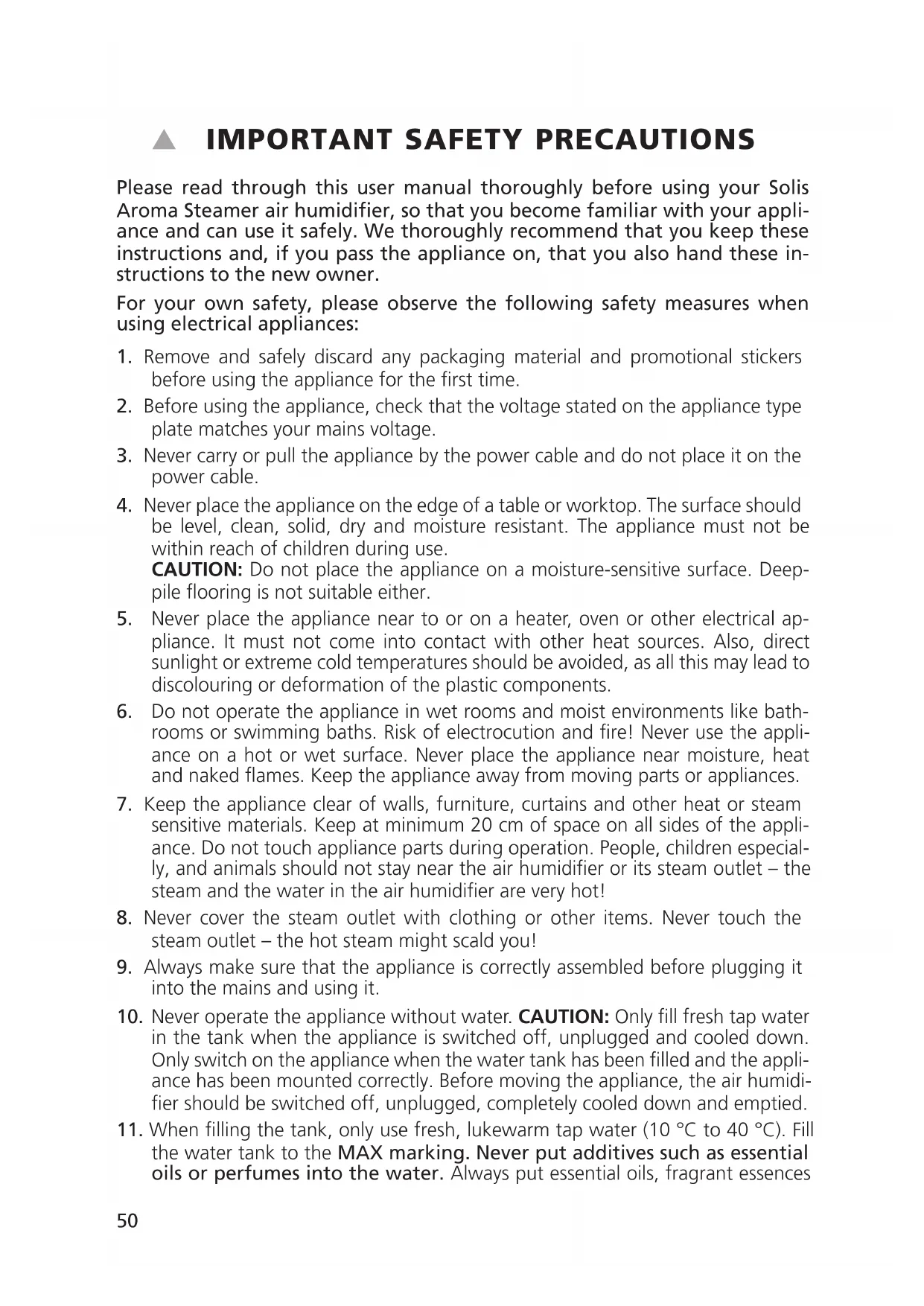

Please read through this user manual thoroughly before using your Solis Aroma Steamer air humidifier, so that you become familiar with your appli- ance and can use it safely. We thoroughly recommend that you keep these instructions and, if you pass the appliance on, that you also hand these in- structions to the new owner. For your own safety, please observe the following safety measures when using electrical appliances:

1. Remove and safely discard any packaging material and promotional stickers

before using the appliance for the first time.

2. Before using the appliance, check that the voltage stated on the appliance type

plate matches your mains voltage.

3. Never carry or pull the appliance by the power cable and do not place it on the

4. Never place the appliance on the edge of a table or worktop. The surface should

be level, clean, solid, dry and moisture resistant. The appliance must not be within reach of children during use. CAUTION: Do not place the appliance on a moisture-sensitive surface. Deep- pile flooring is not suitable either.

5. Never place the appliance near to or on a heater, oven or other electrical ap-

pliance. It must not come into contact with other heat sources. Also, direct sunlight or extreme cold temperatures should be avoided, as all this may lead to discolouring or deformation of the plastic components.

6. Do not operate the appliance in wet rooms and moist environments like bath-

rooms or swimming baths. Risk of electrocution and fire! Never use the appli- ance on a hot or wet surface. Never place the appliance near moisture, heat and naked flames. Keep the appliance away from moving parts or appliances.

7. Keep the appliance clear of walls, furniture, curtains and other heat or steam

sensitive materials. Keep at minimum 20 cm of space on all sides of the appli- ance. Do not touch appliance parts during operation. People, children especial- ly, and animals should not stay near the air humidifier or its steam outlet – the steam and the water in the air humidifier are very hot!

8. Never cover the steam outlet with clothing or other items. Never touch the

steam outlet – the hot steam might scald you!

9. Always make sure that the appliance is correctly assembled before plugging it

into the mains and using it.

10. Never operate the appliance without water. CAUTION: Only fill fresh tap water

in the tank when the appliance is switched off, unplugged and cooled down. Only switch on the appliance when the water tank has been filled and the appli- ance has been mounted correctly. Before moving the appliance, the air humidi- fier should be switched off, unplugged, completely cooled down and emptied.

11. When filling the tank, only use fresh, lukewarm tap water (10 °C to 40 °C). Fill

the water tank to the MAX marking. Never put additives such as essential oils or perfumes into the water. Always put essential oils, fragrant essences51 or aromas directly into the aroma tray before usage. They must not come into contact with other appliance parts or enter the steam outlet. In the latter case, hot water might splash up and cause burns, injuries or damage. Also, no additives should be poured into the aroma tray during use, as you might get burnt by the escaping steam.

12. Unwind the power cord fully before use.

13. Do not operate or unplug the appliance with wet or moist hands or feet.

14. We recommend that you do not use an extension cable with this appliance. Do

not place the appliance directly underneath a power socket.

15. Do not let the cord hang over the edge of a table or counter or touch hot sur-

faces or the appliance itself.

16. Do not use the appliance for anything other than it’s intended purpose as de-

scribed in this booklet. Do not use outdoors and protect against humidity and wetness.

17. When lifting or moving the appliance, please always carry it by the base. Always

switch the appliance off first, unplug it, let it cool down completely and, if pos- sible, empty it. Always move the appliance very carefully to keep the water in it from leaking out. Do not shake or throw the appliance, this could damage it and cause it to leak.

18. Do not operate the appliance on an inclined surface and do not move the ap-

pliance while it is in operation.

19. The appliance, when filled with water, should be kept upright at all times.

20. Only use the appliance with the provided accessories, or accessories recom-

mended by Solis, incorrect accessories can lead to damage of the appliance.

21. Do not make any adjustments to the appliance, cable, plug or accessories.

the cable or plug are damaged or the appliance is otherwise faulty, dropped or damaged. Never attempt repairs yourself, but take your appliance to Solis or a Solis approved service centre in order to get it inspected or mechanically and electrically repaired.

24. Never put sharp or pointed objects and tools into the appliance openings. The

appliance may become damaged – danger of electric shock!

25. We recommend the use of a residual current device (RCD safety switch) to en-

sure additional protection during the use of electrical appliances. It is advisable to use a safety switch with a rated residual operating current of 30 mA maxi- mum. For professional advice consult an electrician.

26. People with limited physical, sensorial or mental capabilities as well as unknow-

ing or inexperienced people and children from 8 years of age on must not use the air humidifier except when supervised or thoroughly instructed on how to use the appliance by a person responsible for their safety. Additionally, they must be aware of the dangers arising from the appliance and know how to operate it safely. Cleaning and maintenance of the appliance must not be done by unsupervised children. Under no circumstances must the appliance be used by children under 8 years of age.52

27. Always keep the appliance and power cord out of reach of children.

28. Children must be supervised, so that they do not play with the appliance or

parts of the appliance.

29. Close supervision is necessary when the appliance is used by or near children.

30. The appliance should be switched off, unplugged, cooled down and emptied

before moving, cleaning or storing the appliance, also before adding or remov- ing parts. Never lift the cover or the aroma tray during use.

31. To disconnect from the wall outlet, first turn off the appliance then remove

power plug from the wall outlet.

32. When the appliance is not in use, disconnect the power cord from the wall

33. Do not leave the air humidifier unattended when in use. Incorrect use may

34. When removing the cover, the aroma tray or the steam pipe from the appliance,

remember that hot water residues or steam might still be in the tank!

35. When not using the appliance for extended periods of time, always disconnect

it from the power, empty out the remaining water and let it dry on the inside as well. Store the appliance in a dark, cool and well-circulated place.

36. Only clean the body with a soft damp cloth.

37. Stictly follow the Cleaning instructions on pages 60 and 61.

38. Do not use harsh abrasives, scrubbing or causic cleaners when cleaning this

39. Never place the appliance in a place where it could fall into water.

40. Never take hold of an appliance that has fallen into water. Always pull the plug

with dry rubber gloves out of the power socket before removing the appliance from the water. Do not use the appliance again until you have had it’s ability to function safely checked by Solis or a Solis approved service centre.

41. This appliance is for household use only and not suitable for commercial

• Air humidifier with hot water vaporization with maximum safety, as only the small amount of water in the heating tank is heated during use instead of the entire content of the main water tank. Should the appliance fall over during use, only a small amount of boiling hot water could escape, additionally mixing with the cold water from the water tank at the same time.

• Automatic stop when water tank is empty.

• The water is automatically sterilized by the steam, practically no bacteria or germs are released into the air of the room.54 APPLIANCE DESCRIPTION Fig. 1

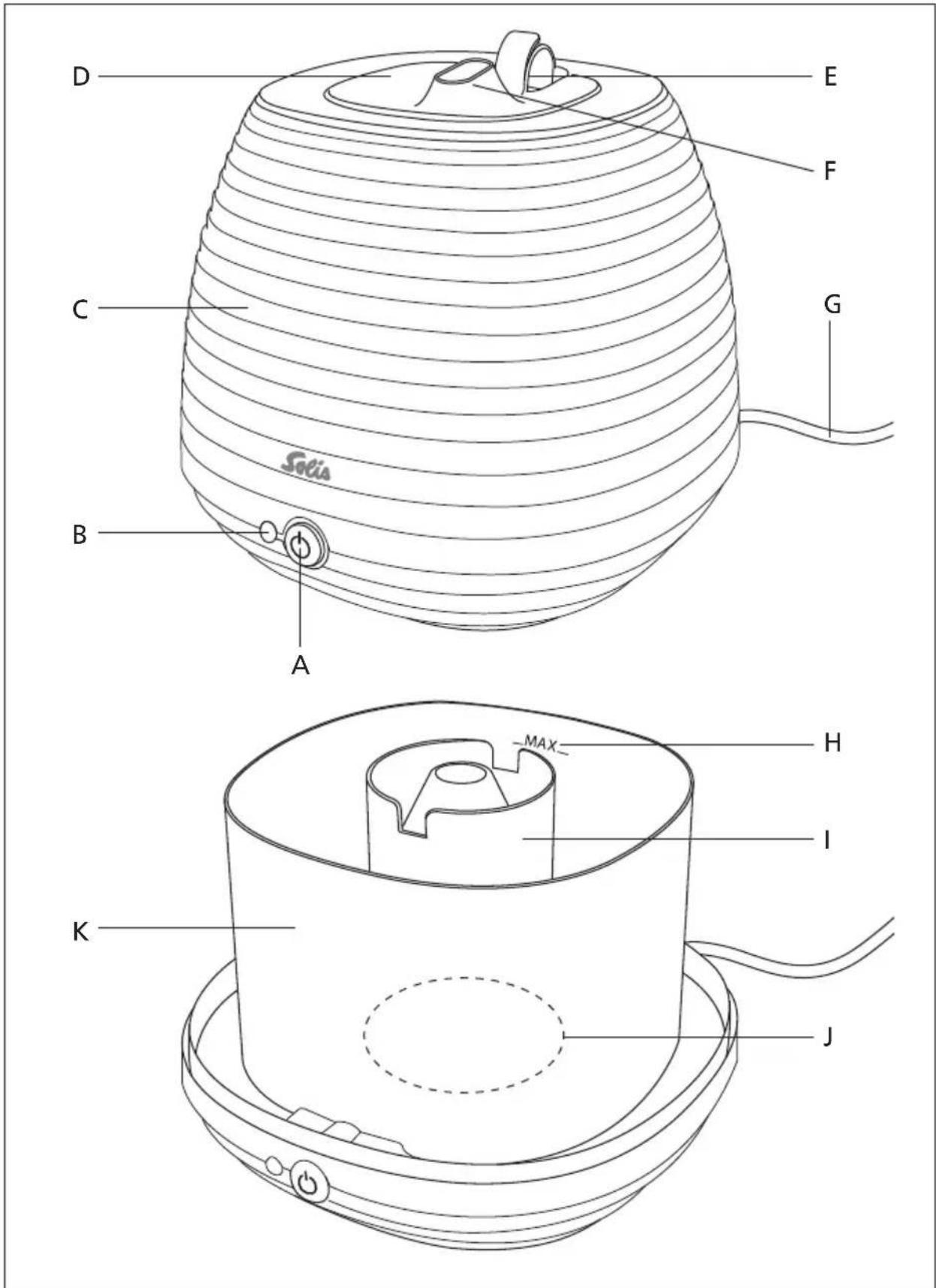

K55 A ON/OFF button B Function light C Cover D Aroma tray E Cover removal loop F Steam outlet G Power cord H Water level marking MAX I Steam duct J Heater unit (supply duct, heating tank and resistor) K Water tank56

PREPARING THE APPLIANCE

1. Take the air humidifier out of the box and check the appliance for completeness

and integrity. For questions, please contact Solis or a service centre authorized by Solis.

2. Place the air humidifier in a suitable place (refer to safety measurements).

3. Please ensure that the steam outlet is not pointed towards people, furniture,

curtains, walls, electrical appliances or other heat resp. steam or moisture sen- sitive objects.

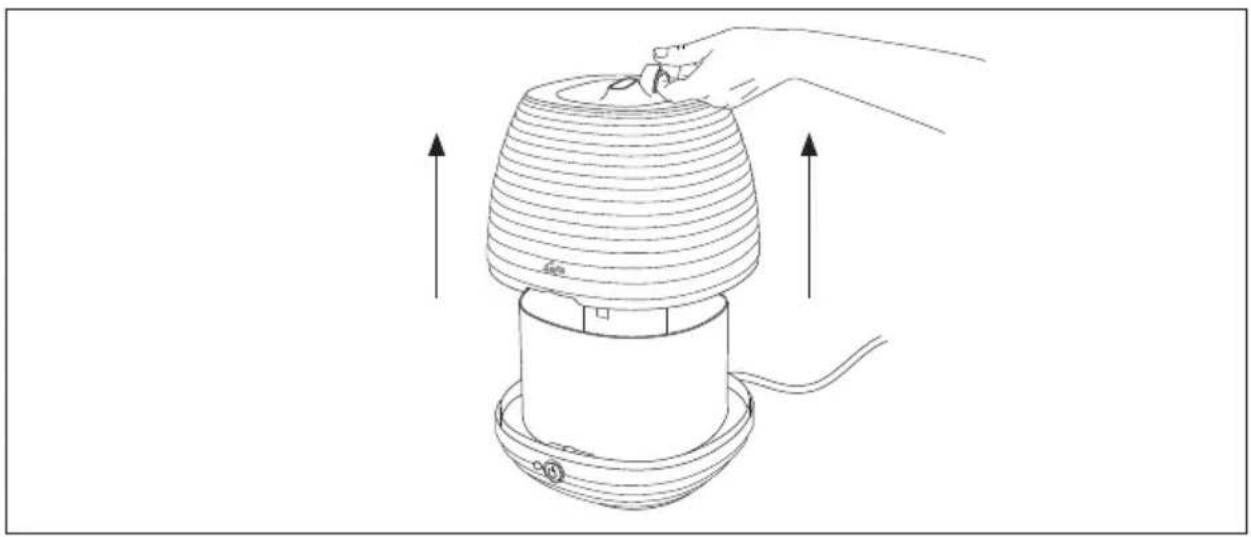

4. Remove the cover (C) using the removal loop (E) (Fig. 2) and check if the steam

duct (I) is correctly mounted and fastened to the water tank (tighten counter clock wisely).

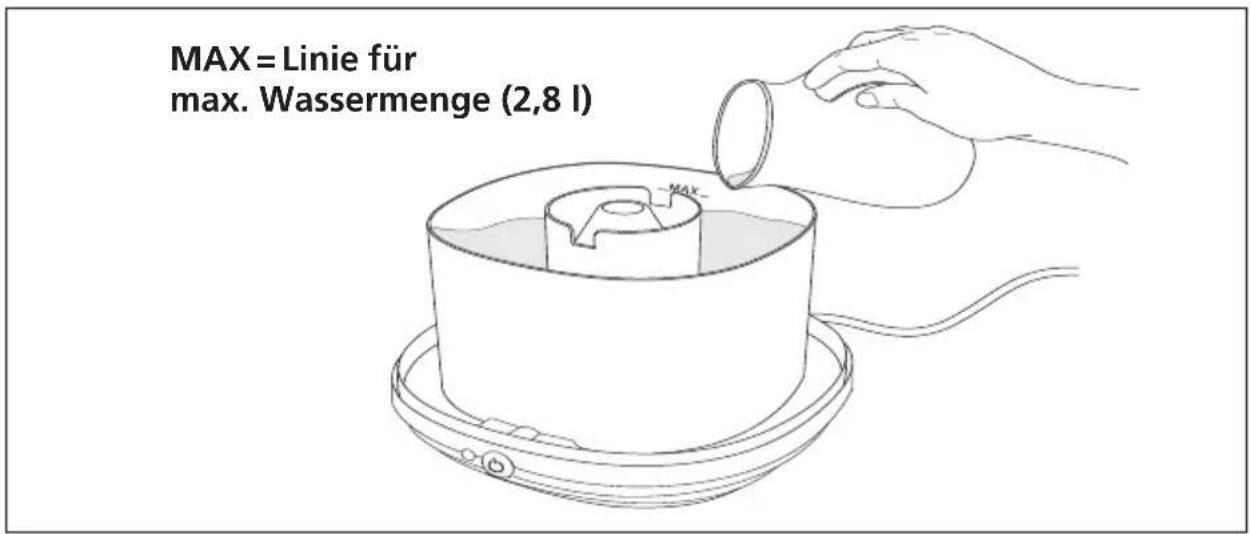

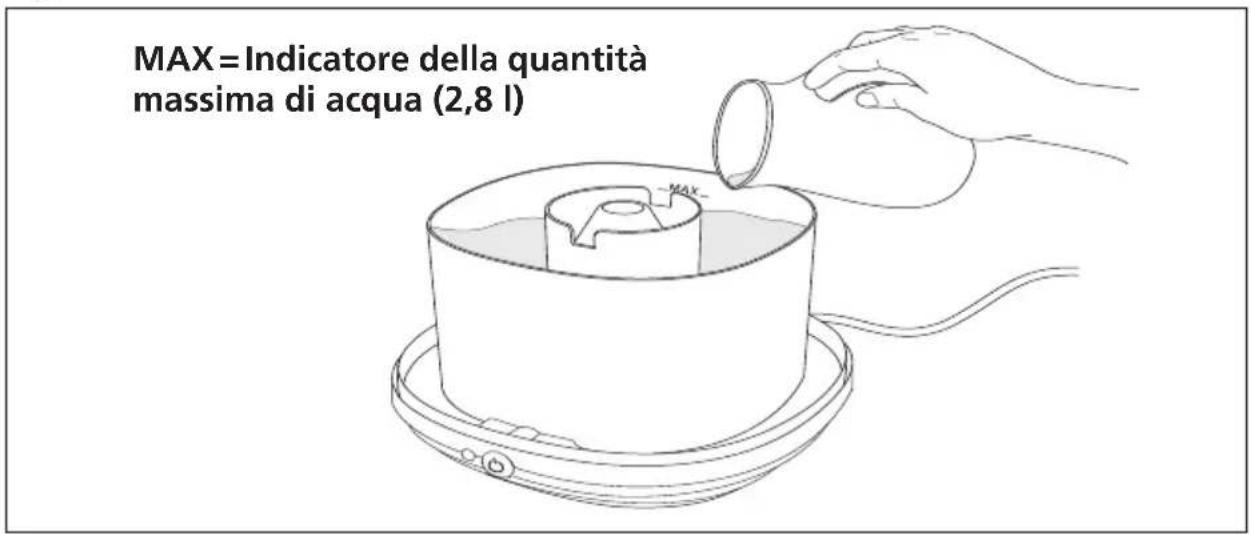

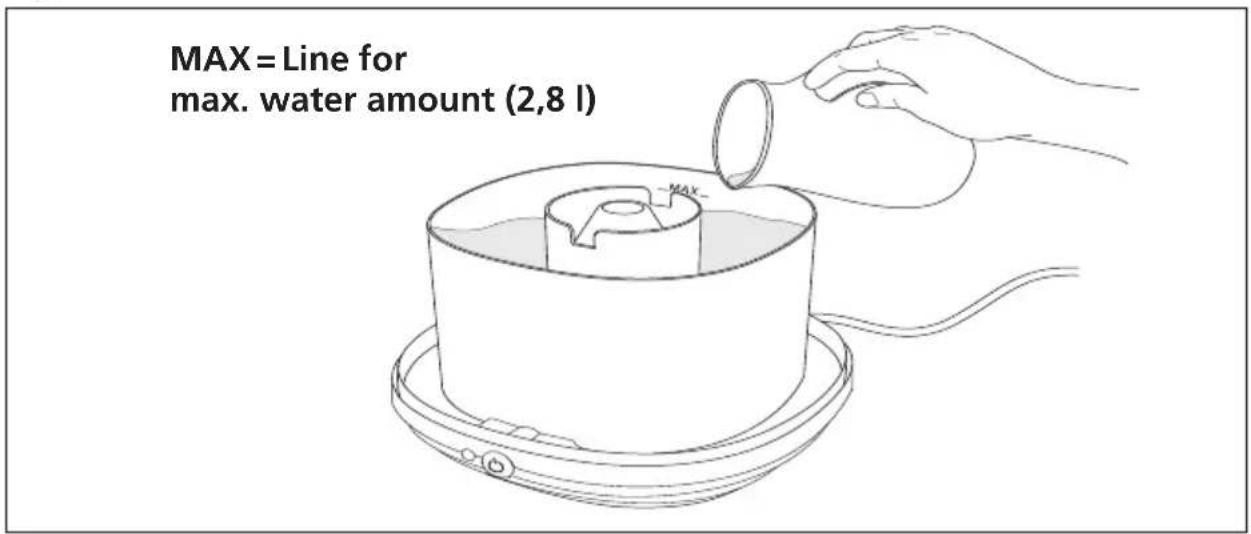

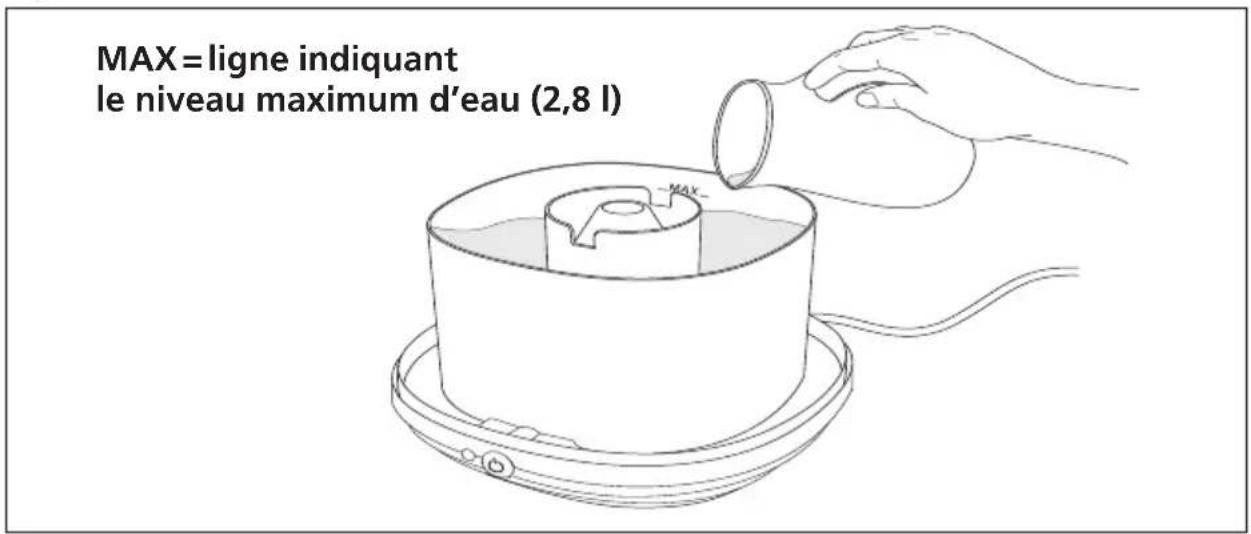

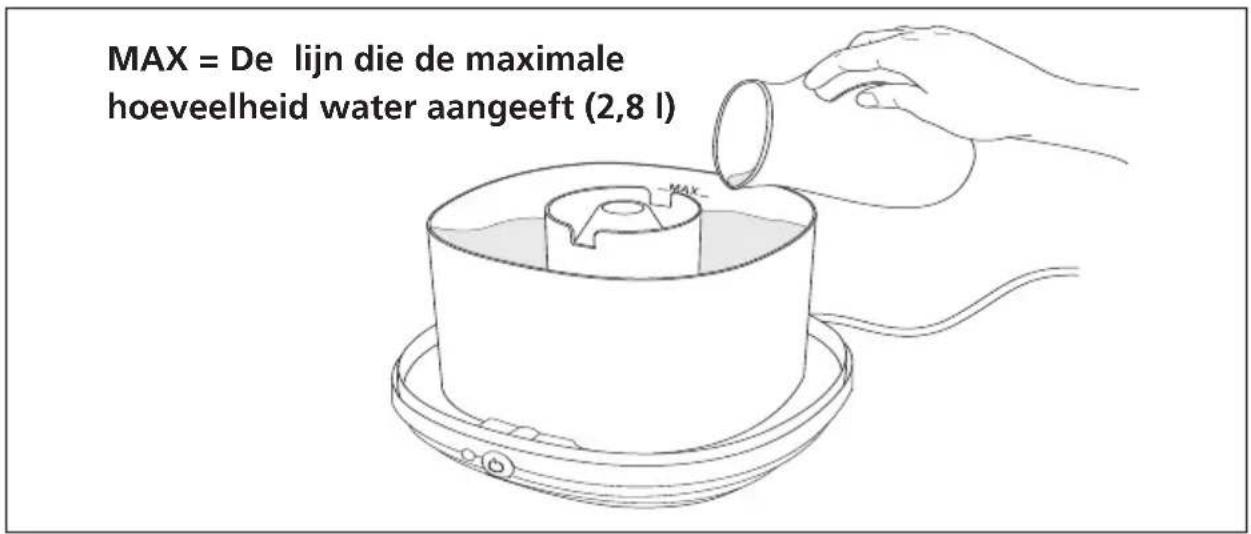

5. Use a container to fill the water tank with cold tap water to the MAX marking

(H) (Fig. 3). A maximum of 2,8 liters can be filled in, the water level must not exceed the MAX marking.

6. Replace the cover onto the tank so that rests in the groove at the bottom and

lines up with the base.

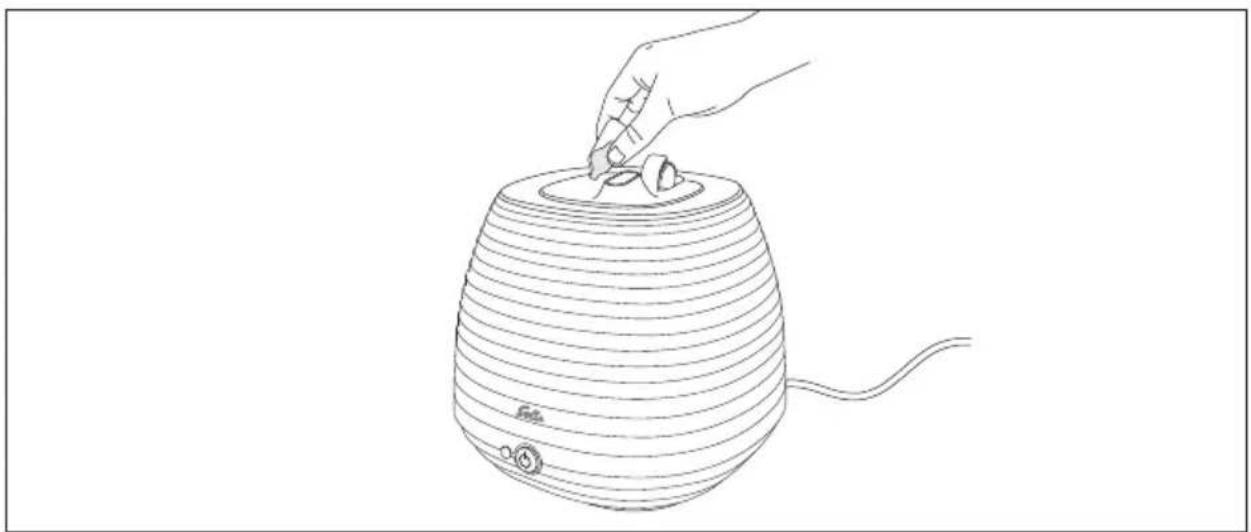

7. If desired, you can put a few drops of fragrant essence or aroma oil into the

aroma tray (D) (Fig. 4). Please ensure that the oil resp. the essence does not come into contact with the surface of the cover (C), drip around the aroma tray or get into the steam outlet (F). The essence or the oil should not get into the tank water resp. the appliance interior.

8. Plug the power plug into a suitable wall power outlet that is, if possible, only

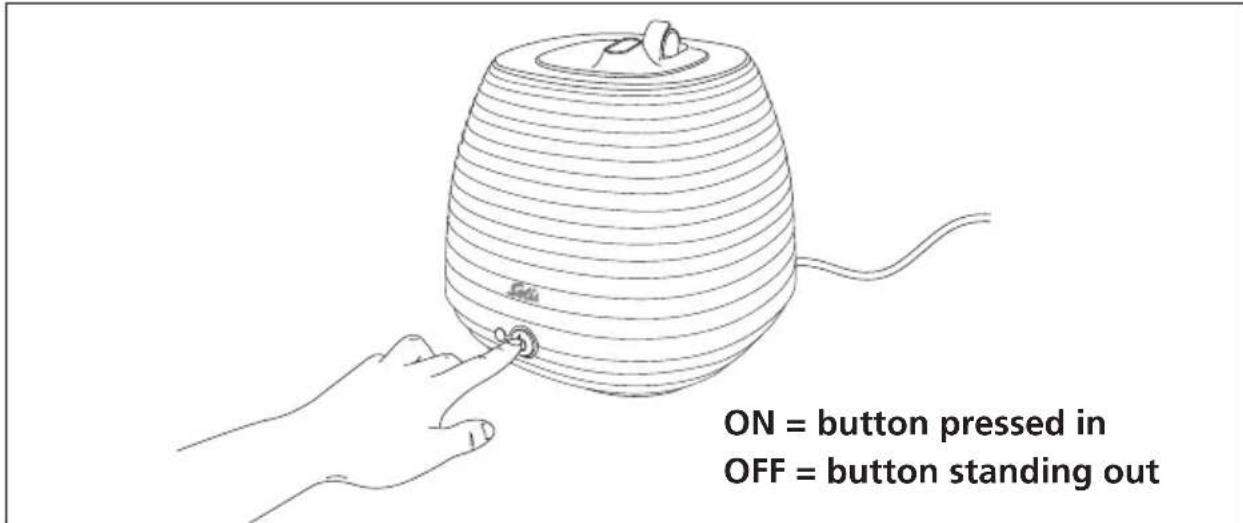

Press the ON / OFF button (A) inwards, the function light (B) will illuminate (see Fig. 5) and the appliance will begin heating up.

WARNING: About 9 minutes after you have switched on the air humidifier,

steam will evaporate from the steam outlet (F)! Therefore, never keep your face or hands near the steam outlet (F) or cover it with objects. The steam is very hot and can cause serious burns.

THE WATER IS USED UP

When the water in the water tank (K) is used up, the air humidifier will stop, the control light (B) will go out but the ON / OFF button (A) will remain pushed-in and thus in the ON position. CAUTION: The appliance is equipped with an automatic shutdown which will disable the heating unit (J) once the water tank is empty. In this case, switch the appliance off by pressing the ON / OFF button (A) to make it return to the OFF position, pull the power plug from the power outlet and let the appliance cool down. Carefully lift off the cover and fill fresh tap water into the water tank with a container as described in the section „Preparing the appliance“. CAUTION: The heating unit and the water remaining in the tank are very hot. Please consider that steam might escape when you lift the cover. Therefore, always let the appliance cool down before refilling water. To restart the appliance, it always has to be turned off and unplugged first, then, the heating unit has to cool down and water has to be refilled. Only then can the power plug be reconnected and the appliance restarted with the ON/ OFF button. CAUTION: The cover (C) or the aroma tray (D) must never be removed from the base before the appliance is switched off, the plug is pulled and the appliance has cooled down. To switch the appliance off, the ON / OFF button has to be pressed every time (OFF position = the button is not pressed inwards).

WARNING: Immediately after switching off, the water in the heating tank (J)

might still be so hot that it keeps boiling for a few minutes. CAUTION: Should the outside of the air humidifier resp. the appliance base get wet when emptying or filling the water tank, they have to be wiped dry immediately with a clean, dry cloth before the power plug is plugged into the power outlet and the appliance is switched on.59 Fig. 5 ON = button pressed in OFF = button standing out Fig. 6 Fig. 760

SWITCHING OFF THE APPLIANCE

• Switch the appliance off with the ON / OFF button (A).

• Pull the power plug from the outlet.

• Wait for a few minutes to let the water in the heating tank (J) cool down and remove the cover (C).

• Empty the water tank (K) and rinse it with fresh tap water.

• Let all parts dry, reassemble the appliance and best store the appliance in the original carton.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, always switch the appliance off with the ON / OFF button (A) and pull the plug first. Let the appliance cool down com- pletely, including the cover (C), the aroma tray (D) and the steam duct (I).

1. CLEANING AND DECALCIFYING THE WATER TANK,

STEAM DUCT, HEATING TANK AND COVER

Using the appliance will cause limestone deposits to form in the steam duct (I) and the heating tank (J). How quickly both parts will calcify is down to water hardness and how frequently you use the air humidifier. Limestone deposits impair the effi- ciency of the air humidifier, therefore the appliance should be descaled once a week as follows:

1. Remove the cover (C) from the switched off, unplugged and cooled down ap-

pliance using the removal loop (E).

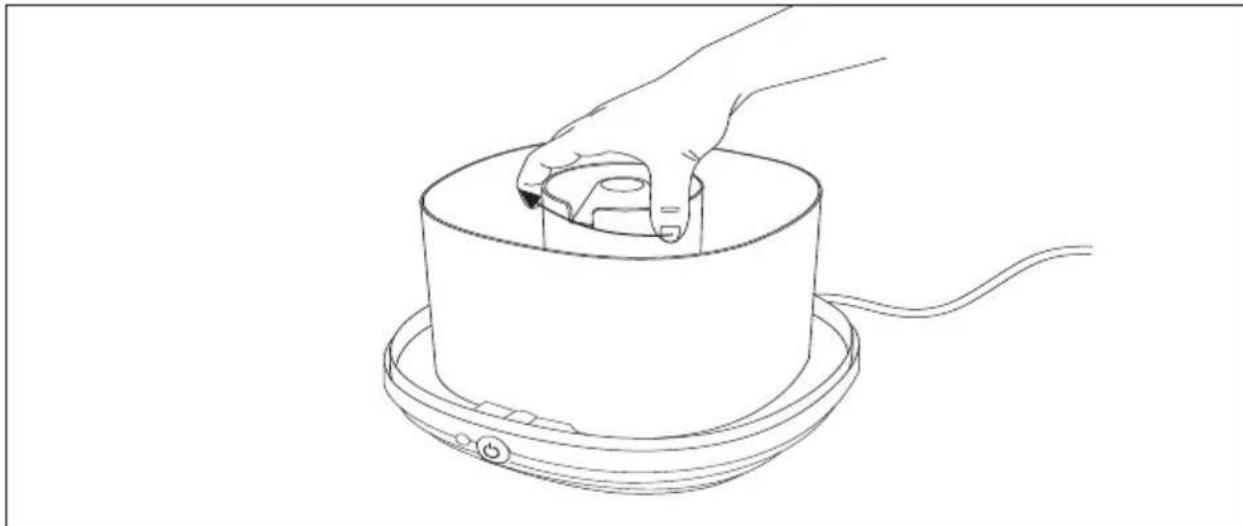

2. Remove the steam duct (I) situated in the water tank from the base by turning

the steam duct clock wisely and lifting it (see Fig. 6).

3. Fill the water tank with cold tap water.

4. Rinse the water tank multiple times and pour out the water, but be careful to

keep the water from running over the power cord or the ON / OFF button (A) resp. the function light (B) (see Fig. 7)

5. Use a soft brush to remove the limestone deposits from the heater unit (J) (sup-

ply duct, heating tank and resistor) in the center of the water tank.

6. Pour tap water into the empty water tank again and add some decalcifying

forte). Please note the quan- tities and prescriptions given on the agent bottle. Let the solution sit with the cover closed as prescribed. Then, empty out the water and wipe the tank interi- or clean with a cloth. Rinse the water tank (K), the cover (C) and especially the steam duct (I) and the heating tank (J) multiple times and dry all parts with a soft cloth. Please make sure that you use a suitable decalcifying agent. Damage caused by an unsuitable decalcifying agent is not covered by the warranty.61

7. Replace the steam duct (I) into the water tank above the heater unit, tighten

it counter clock wisely and place cover as well as aroma tray on the appliance.

8. Clean the outside of the appliance with a soft, moist cloth and, if necessary,

some mild detergent. Never dip the appliance into liquid and do not spray the appliance with water or other liquids. CAUTION: Never use aggressive, abrasive or caustic detergents or a scratching sponge. The plastic casing might be damaged.

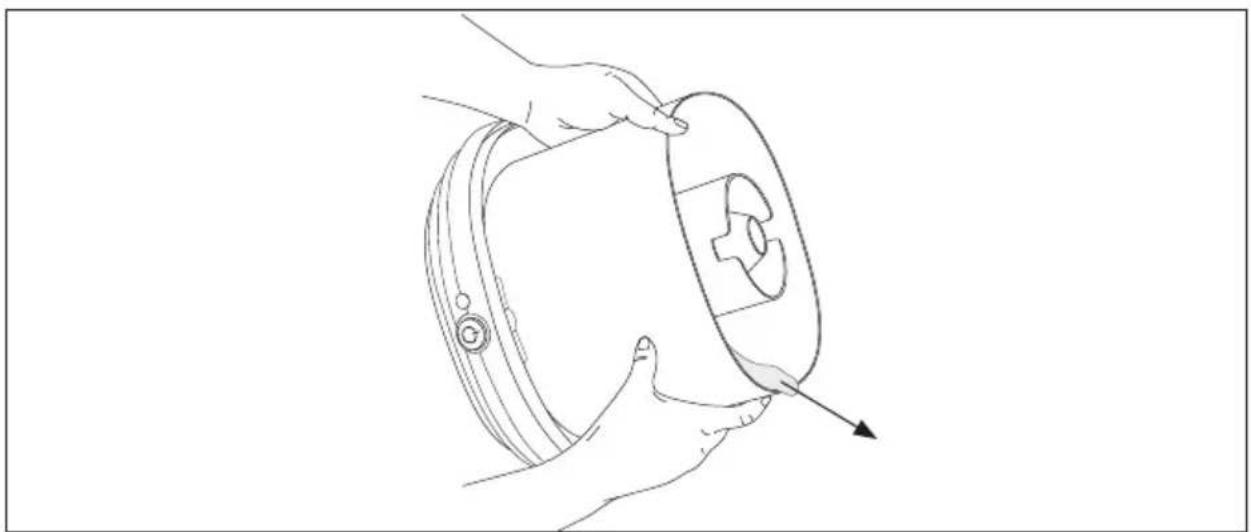

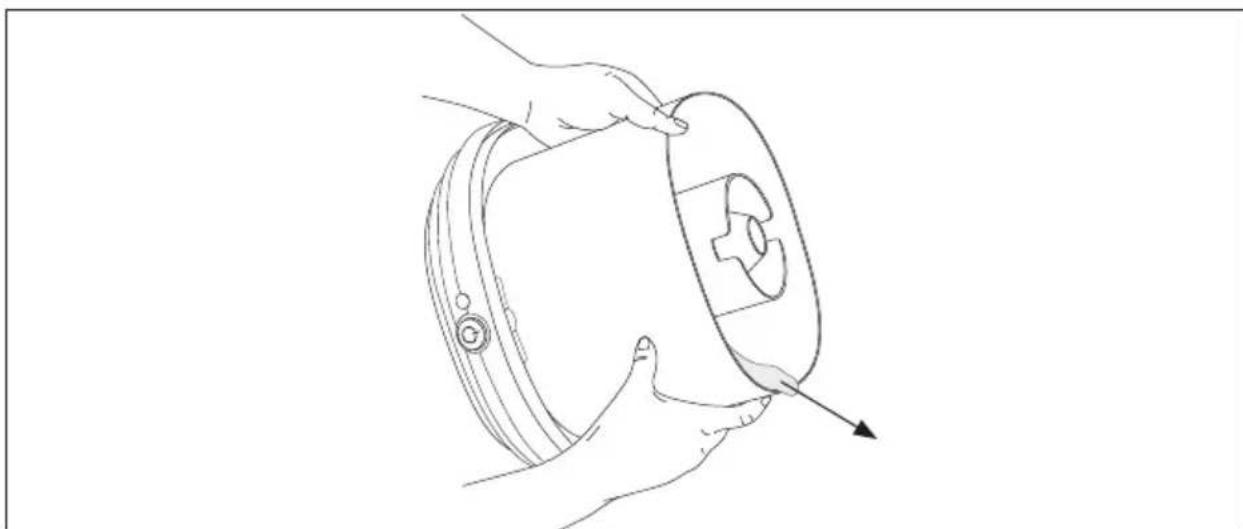

• Pour all water out of the tank and the heater unit. Dry the entire appliance with a soft cloth. Leave the appliance open – with the cover removed – until it is completely dry.

• Store the appliance protected from dust in a dry and dark place with good air circulation.62 TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION

The air humidifier does not work. Power plug not connected. ON/OFF button not pressed. Water tank empty. Connect power plug to power outlet. Press ON/OFF button. Fill water into the tank. To restart the air humidifier after water has been refilled, always switch the appliance off with the ON / OFF button, let the heater unit cool down, then restart the appliance with the ON / OFF button. Unpleasant smell. Appliance dirty.

Water dirty or not fresh. Clean appliance as described in „Cleaning and maintenance“. Then, remove cover and let the opened tank stand in a cool, dark place for approx. 24 hours. Clean water tank, fill fresh tap water. Appliance is noisy. Cover and / or steam duct incorrectly positioned. Not enough water in tank. Appliance unevenly placed. Appliance dirty. Properly place cover and/or steam duct on base. Refill water in tank. Place appliance on an even, solid surface. Clean appliance as described in „Cleaning and maintenance". Then, remove cover and let the opened tank stand in a cool, dark place for approx. 24 hours. TECHNICAL SPECIFICATIONS Model-No. UM750, type 7215 Product description Solis Aroma Steamer air humidifier Voltage / frequency 220–240 V~ / 50 / 60 Hz Output 300 watts Suitable room size approx. 12,5 m

Weight approx. 1,55 kg Specifications approx. 25,5 23  26 cm (W H D) Water tank capacity 2,8 l Max. vaporization capacity approx. 380 ml/h Operating time per tank approx. 6 /7 hours Storage conditions: Temperature –10 °C to +70 °C Humidity 10%–90% SUPPLIES For your Solis Aroma Steamer air humidifier, the following supplies are available: Art.-No. 703.01 SOLIPOL

forte decalcifying agent (1000 ml bottle) The supplies are available from good specialist retailers or from Solis of Switzerland Ltd. Telephone: [phone], Telefax: 0041 848 804 890, E-mail: [e-mail] or www.solis-onlineshop.ch (Shipping only within Switzerland)

DISPOSAL EU 2002 / 96 / EC Information for correct disposal of the product in accordance with the Euro- pean Directive 2002 / 96 / EC At the end of its working life this equipment must not be disposed of as an house- hold waste. It must be taken to special local community waste collection centres or to a dealer providing this service. Disposing of electrical and electronic equipment separately avoids possible negative effects on the environment and human health deriving from an inappropriate disposal and enables its components to be recov- ered and recycled to obtain significant savings in energy and resources. In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed-out dustbin. Solis of Switzerland Ltd reserves the right to carry out technical and visual changes and modifications to improve the product at any time. SOLIS HELPLINE: (Only for customers in Switzerland) This item stands out due to its long-life cycle and reliability. Despite this though, if a malfunction ever occurs, simply give us a call. Often a breakdown can be easily and quickly remedied with the right tip or technique without having to straight away send off the device for repair. We will give you all the advice and practical support you require.
