Ultrasonic To Go Executive 7212 - Humidifier Solis - Free user manual and instructions

USER MANUAL Ultrasonic To Go Executive 7212 Solis

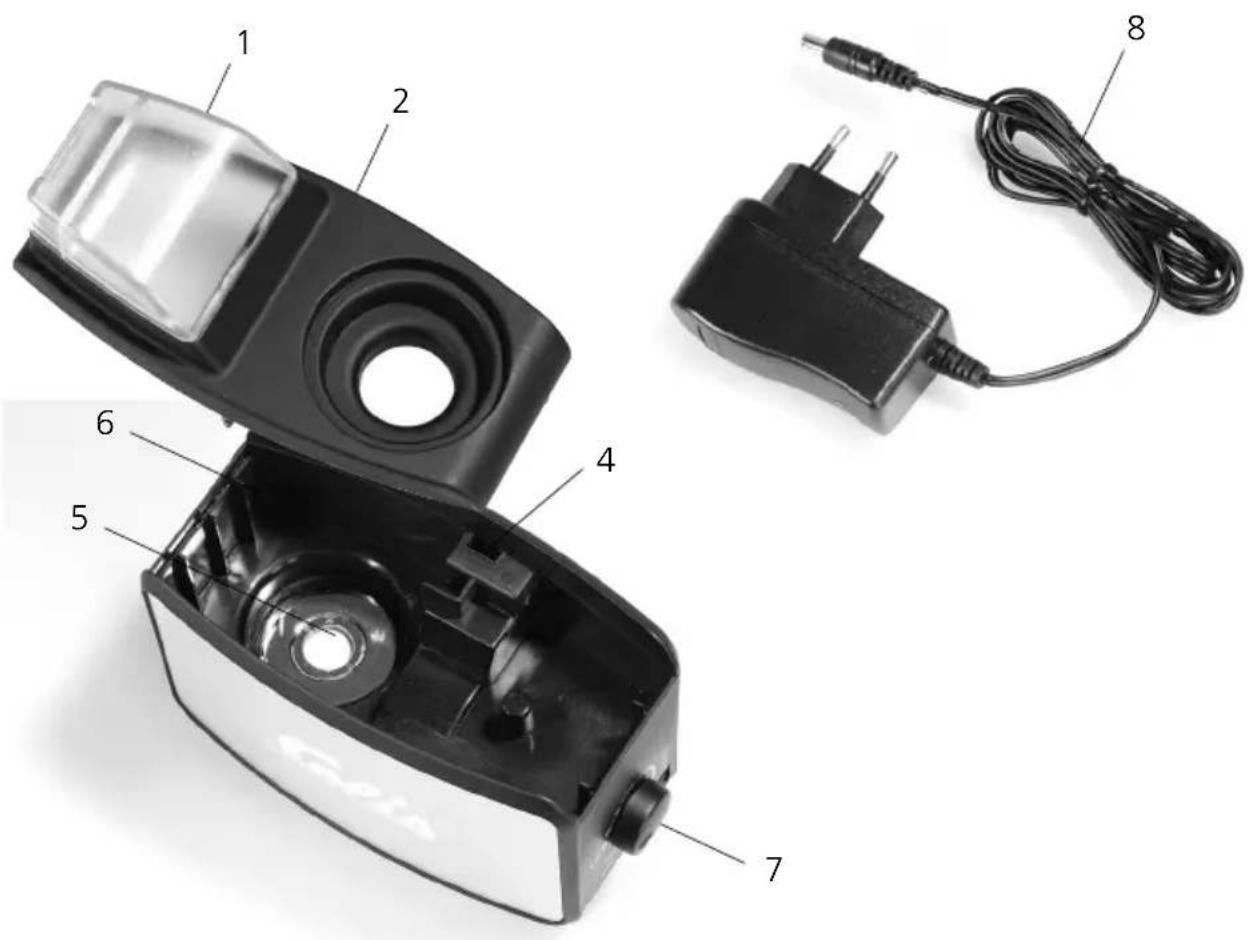

3. Bottle adaptors (two pieces with different thread sizes)

6. Vaporiser compartment

7. Humidification control

8. Power adaptor with power cord

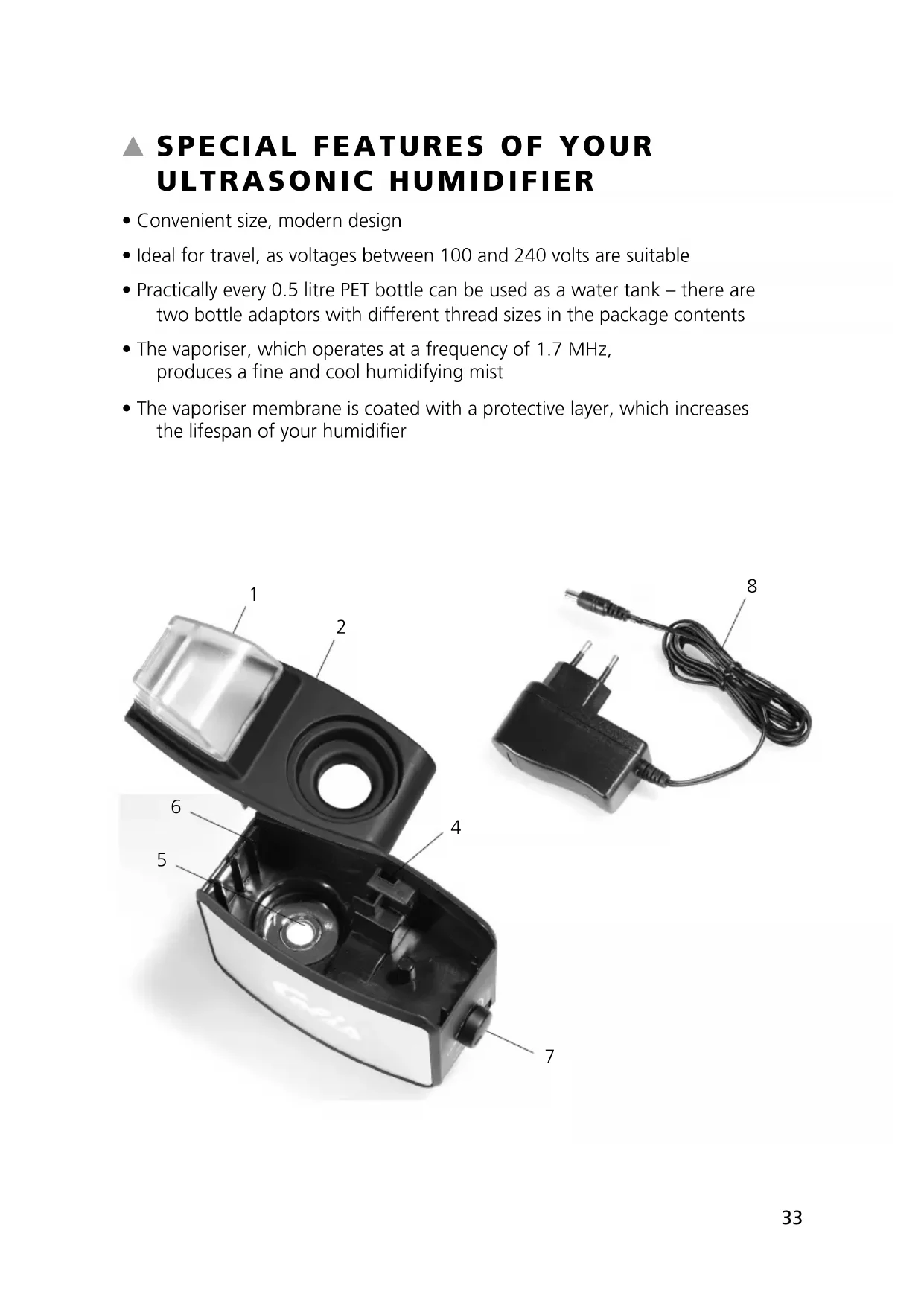

• Ideal for travel, as voltages between 100 and 240 volts are suitable

• Practically every 0.5 litre PET bottle can be used as a water tank – there are two bottle adaptors with different thread sizes in the package contents

• The vaporiser, which operates at a frequency of 1.7 MHz, produces a fine and cool humidifying mist

• The vaporiser membrane is coated with a protective layer, which increases the lifespan of your humidifier

Please read through this user manual carefully before using the humidifier, so that you can become acquainted with your appliance and can operate it safely. We thoroughly recommend that you keep these instructions and, if you pass the appliance on, that you also hand these instructions to the new owner. For your own safety, please observe the following safety measures when using elect- rical appliances:

1. In order to avoid electric shock, neither the power adaptor, cord or plug adap-

tor may come into contact with water or other fluids.

2. Before first time of use, check that the voltage on the power rating plate mat-

ches your mains voltage. Do not use an extension cable.

3. Do not use the appliance if the device itself, the power adaptor, cord or plug is

damaged or otherwise faulty. Never attempt repairs yourself, but take your hu- midifier to SOLIS or a SOLIS approved service centre in order to get it inspected or mechanically and electrically repaired.

4. Do not allow the cable to hang over the edge of a table so that the humidifier

cannot be pulled down. The appliance could get damaged or water could leak out.

5. Never carry or pull the appliance by the cable. Always unplug the appliance from

the socket, at the power adaptor, never do this with wet hands!

6. Make sure that neither the appliance, power adaptor, cable or plug respectively,

come into contact with hot surfaces e.g. a hotplate or a radiator.

7. Keep the appliance out of direct sunlight and use the appliance at a large dis-

tance from heat sources like radiators.

8. Do not use the appliance in close proximity to furniture or electrical appliances

as they could be damaged by the moisture released by the appliance.

9. Also, do not place the humidifier near windows or curtains. Fire hazard!

10. Place the appliance on a level, heat and moisture resistant surface.

11. Do not use the appliance outdoors.

12. Pull out the power adaptor when the appliance is not in use or when it is unat-

tended. Never leave the humidifier switched on unattended. We recommend the use of a residual current device (RCD safety switch) to ensure additional pro- tection during the use of electrical appliances. It is advisable to use a safety switch with a rated residual operating current of 30 mA maximum. Get professional ad- vice from an electrician.

13. Do not make any changes to the appliance, power adaptor, cable or plug.

14. Children should not play with the humidifier and may not use it unattended. Do

not use the humidifier in rooms where children sleep or where children are stay- ing.

15. Pets should not come into contact with the appliance.

16. People with limited physical, sensory or mental capacities are not permitted to

use the humidifier, except when supervised by a person responsible for their safety.

17. Incorrect use may cause injury!

18. Do not reach for an appliance that has fallen into water. Always pull out the

power adaptor before you remove it from the water. Danger of electric shock!

19. Never place the humidifier such that it could fall into water (e.g. next to a bath-

tub, swimming pool, whirlpool etc.). Danger of electric shock!

20. Never use the appliance in damp environments such as bathrooms.

21. During thunderstorms, disconnect the appliance from the mains and do not use

22. Never use the appliance in rooms with flammable or explosive materials or liquids

such as, for example, deodorant or hairspray.

23. Never bring sharp or pointed objects or tools near the humidifier. The appliance

could become damaged!

24. Always use clean, fresh and cold tap water. Do not mix in additives or scents!

25. Only operate the appliance as described in this manual. Only use with the pro-

vided accessories. Use of incorrect accessories can lead to damage of the appli- ance.

26. This appliance is only for domestic use and is not suitable for commercial

27. The appliance is a travel-humidifier for occasional use while travelling and

is not designed for permanent use. SOLIS Luftbefeuchter engl.-03_2012 31.03.14 12:09 Seite 35▲ FIRST USE

• The humidifier can be used in surroundings with an ambient temperature bet- ween 5° and 40°C, the relative room humidity must be under 90%.

1. Install the the cover and moisture outlet on the main body

of the appliance. (Ill. 1)

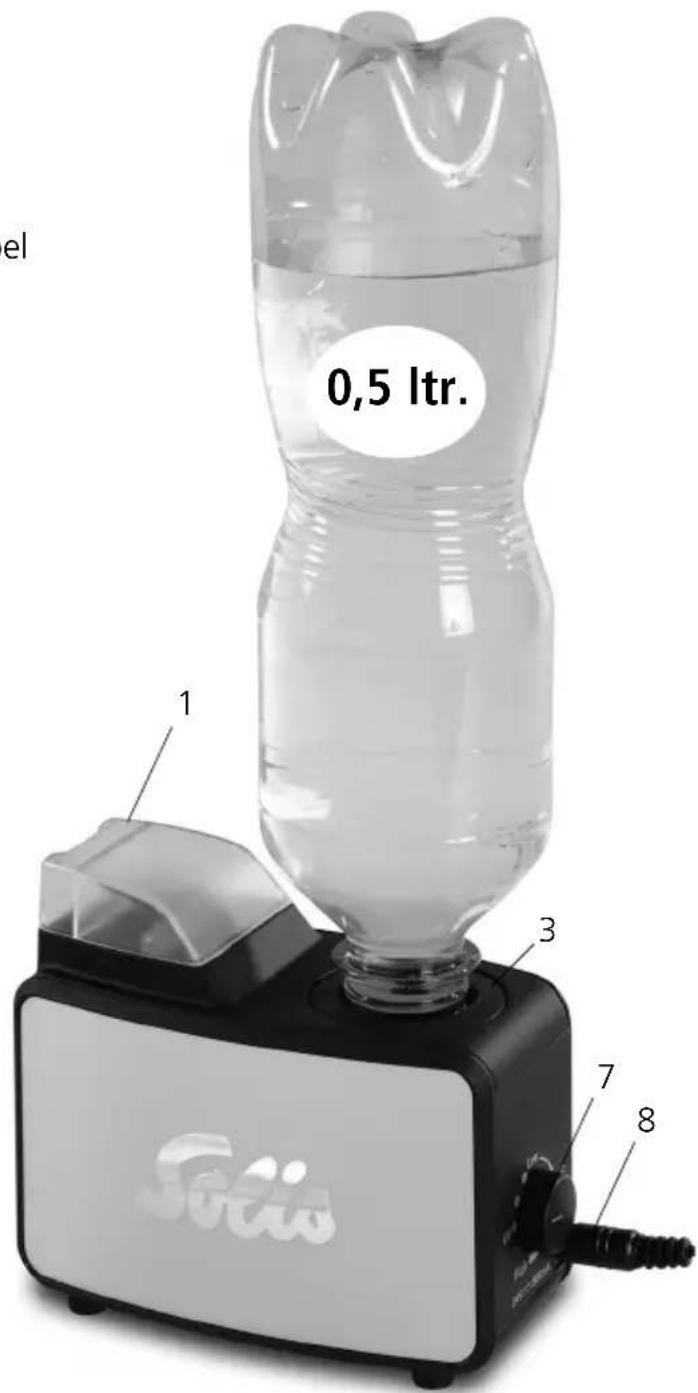

2. Take a 0.5 litre PET bottle and fill this with fresh, cold tap

water. The maximum temperature of the water must not be above 50°C! Put not additives in the water! Caution: the PET bottle must not hold more than 0.5 litres!

3. Take the appropriate bottle adaptor (3) and screw it onto

the bottle (Ill. 2). Turn the bottle, with the adaptor, upside down and place the bottle and bottle adaptor into the ope- ning in the cover. (Ill. 3)

4. Plug the plug into the socket on the side of the appliance

and the power adaptor into a power socket. (Ill. 4)

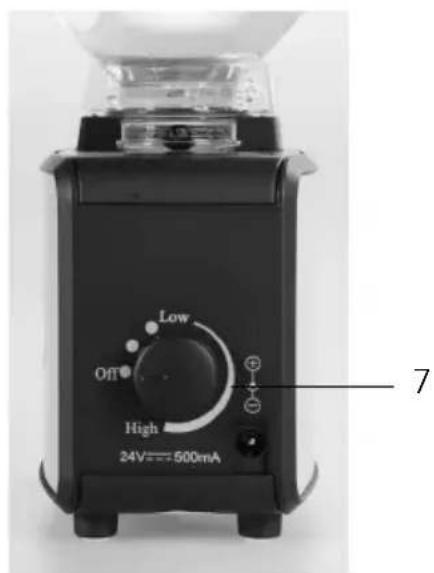

5. Switch the appliance on by turning the humidity control

clockwise. Set the control to a position between LOW and HIGH. The further you turn it, the more intense the hu- midification, the more water evaporates.

6. If the water bottle is empty, the vaporising unit in the eva-

porator switches off automatically. Nevertheless, you should turn the humidity control to the “Off” position and pull out the power adaptor from the socket as soon as you realise that the water bottle is empty.

7. To switch off please set the humidity control to the “Off”

position and pull out the the power adaptor from the so- cket.

• Note: If you wish to use the appliance again after a long time, rinse the bottle and the vaporising compartment with fresh, cold tap water and pour this away. Fill the water bottle with fresh tap water.

• Before beginning cleaning, make sure that the appliance is switched off and that it is the power adaptor is unplugged. The appliance should be completely coo- led down - this can take up to 60 minutes after use.

• Wipe the outside of the appliance with a damp cloth. Do not use harsh or ab- rasive cleaning agents, scouring pads, alcohol or acetone.

• Hard tap water can leave lime scale deposits in the vaporiser. In this case we re- commend: – to de-scale the humidifier weekly with SOLIPOL Liquid De-scaler – to pour away the water in the bottle and the vaporiser after use and to fill up the bottle with fresh tap water before each new usage.

• To de-scale, put 10 ml of a mixture of SOLIPOL Liquid De-scaler agent in a 1:1 ratio (1 part SOLIPOL, 1 part water) directly on the vaporiser membrane and leave it for 2 to 5 minutes. With a soft toothbrush gently remove the lime scale and pour the solution. Rinse using fresh tap water and pour this away.

• The appliance must always remain completely dry, before you put the cover back on and store the device.

• If your appliance is not functioning properly, it can sometimes have an easily re- moved cause. Should your appliance, however, not be set back in motion using these tips, please contact SOLIS or a SOLIS authorized service centre. Problem Produces no mist Unpleasant odour High noise level Possible causes

• Power adaptor not plugged in correctly

• Humidity control is not switched on

• No water in tank or bottle

• The appliance is very new

• Up to 35 dB is nor- mal. If the appliance is louder it may not be sitting level on the surface it is on Solution

• Plug the power adaptor secu- rely into the socket, plug the plug into appliance socket

• Please turn the humidity control right

• Fill the bottle with enough fresh water

• Remove cover and leave for 14 hours in a dry environ- ment

• Please place on a stable, level surface SOLIS Luftbefeuchter engl.-03_2012 31.03.14 12:09 Seite 38▲ DISPOSAL EU 2002/96/EC Information for correct disposal of the product in accordance with the Eu- ropean Directive 2002/96/EC At the end of its working life this equipment must not be disposed of as an house- hold waste. It must be taken to special local community waste collection centres or to a dealer providing this service. Disposing of electrical and electronic equipment se- parately avoids possible negative effects on the environment and human health de- riving from an inappropriate disposal and enables its components to be recovered and recycled to obtain significant savings in energy and resources. In order to un- derline the duty to dispose of this equipment separately, the product is marked with a crossed-out dustbin. Solis of Switzerland Ltd reserves the right to carry out technical and visual changes and modifications to improve the product at any time. Keep the original packaging in a safe place so that you may use it in the event that transportation or shipping of the product becomes necessary.

(Only for customers in Switzerland) This item stands out due to its long-life cycle and reliability. Despite this though, if a malfunction ever occurs, simply give us a call. Often a breakdown can be easily and quickly remedied with the right tip or technique without having to straight away send off the device for repair. We will give you all the advice and practical support you require.
