USER MANUAL BSS 1309 CLATRONIC

Yellow and black vacuum cleaner with a funnel, no visible text or symbols

Bedienungsanleitung ...... Seite 4
Gebruiksaanwijzing....Pagina 13
Mode d'emploi....Page 20
Manual de instrucciones......Página 27
Istruzioni per l'uso....Pagina 34
Instruction Manual......Page 41
Instrukcja obsługi......Strona 48
Használati utasítás.... Oldal 56
Руководство по эксплуатации......стр. 63
76 صفحة....دليل التعليمات

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Bedienungsanleitung

Recipiente recolector....32

Accesorios ....32

Carcasa....32

Almacenamiento 33

Recipiente recolector

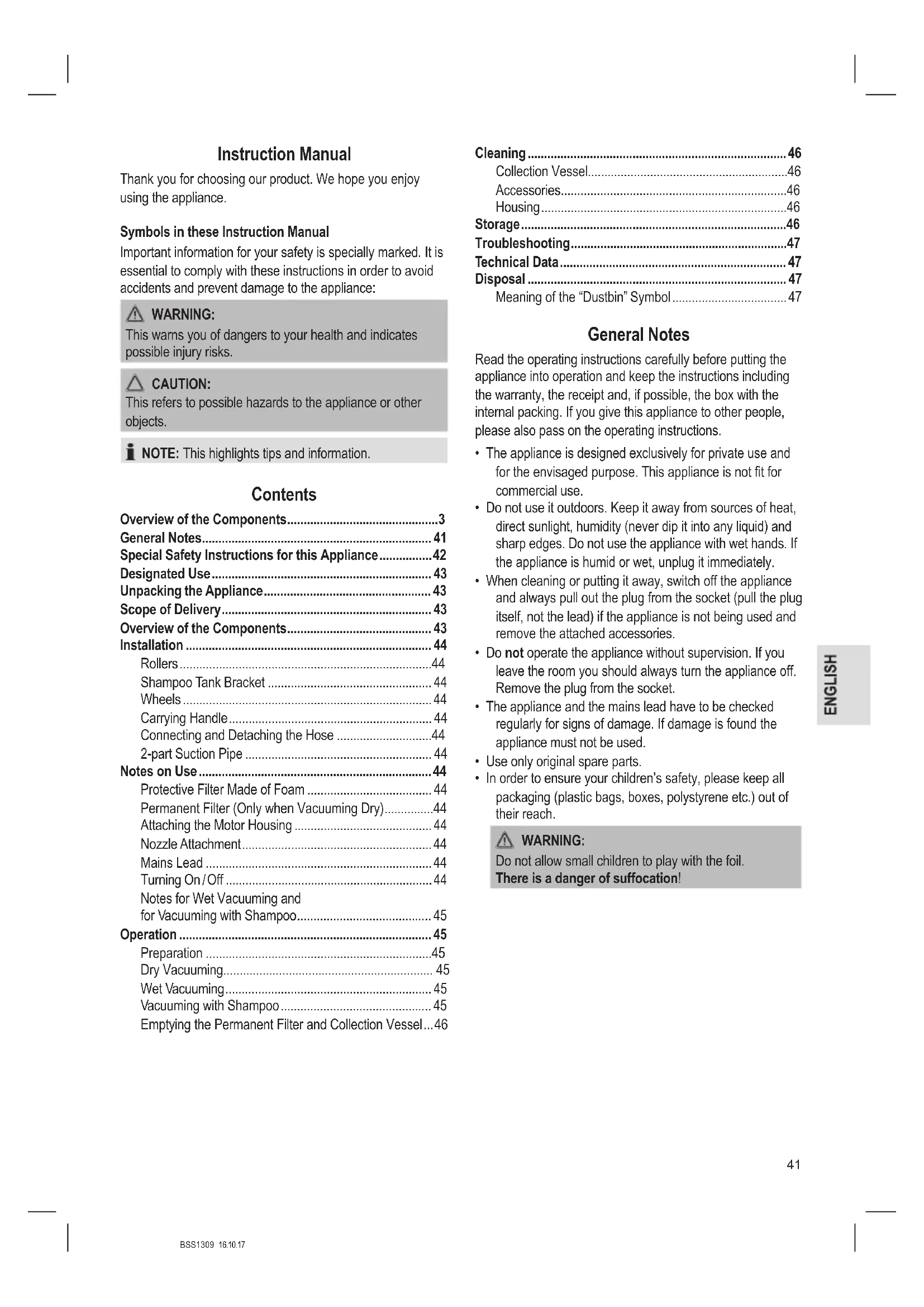

Thank you for choosing our product. We hope you enjoy using the appliance.

Symbols in these Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE: This highlights tips and information.

Contents

Overview of the Components....3

General Notes......41

Special Safety Instructions for this Appliance....42

Designated Use 43

Unpacking the Appliance....43

Scope of Delivery 43

Overview of the Components....43

Installation 44

Rollers 44

Shampoo Tank Bracket 44

Wheels 44

Carrying Handle....44

Connecting and Detaching the Hose ....44

2-part Suction Pipe 44

Notes on Use 44

Protective Filter Made of Foam 44

Permanent Filter (Only when Vacuuming Dry)....44

Attaching the Motor Housing 44

Nozzle Attachment....44

Mains Lead 44

Turning On/Off 44

Notes for Wet Vacuuming and

for Vacuuming with Shampoo 45

Operation 45

Preparation 45

DryVacuuming....45

Wet Vacuuming....45

Vacuuming with Shampoo 45

Emptying the Permanent Filter and Collection Vessel...46

Cleaning....46

Collection Vessel....46

Accessories....46

Housing....46

Storage....46

Troubleshooting....47

Technical Data....47

Disposal 47

Meaning of the "Dustbin" Symbol 47

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil.

There is a danger of suffocation!

Special Safety Instructions for this Appliance

WARNING:

• The vacuum cleaner should only be used in damp rooms if for your protection a residual-current-operated circuit breaker is connected upstream in the electric circuit. If you are not sure, ask a qualified electrician for advice.
• If the water-filled appliance should fall over accidentally, always remove the plug from the socket first before uprighting it again.
• Always unplug the appliance when changing accessories or cleaning the appliance.
• Do not use the appliance in potentially explosive rooms.
• Never use the appliance to suck up explosive liquids (such as heating oil, petrol, paint thinner, acetone) or dusts (such as magnesium or aluminium dusts), combustible gases or undiluted solvents and acids - danger of explosion! Turbulence caused by the suction air could lead to the creation of explosive vapours or mixtures. These substances might attack the parts and materials used.
• Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.

WARNING:

- Cleaning and user maintenance shall not be made by children without supervision.

• Never use without the filter. Check that the filter is inserted correctly!
• Never point the jet at people, animals or electrical appliances.
• Do not suck up hot ashes or pointed or sharp objects!
• Keep hair, clothing and body parts away from the vacuum nozzle during use!
• Keeps the vacuum cleaner away from sources of heat such as radiators, stoves etc.!

Designated Use

This appliance comes with the following functions:

• Wet and dry vacuuming
  • Vacuuming with shampoo
• Blower function

It is intended for the use in private households and similar applications.

It is only to be used as instructed in this user manual. The appliance is not intended for commercial use.

Any other use shall be considered as not intended use and can lead to material damage or even personal injury.

The manufacturer shall not be liable for damages caused by not intended use.

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging materials like foils, filling materials, cable holders, and carton packaging.
3. Check the scope of deliveries for completeness.
4. In case of incomplete delivery or damage, do not operate the appliance. Return it to your dealer immediately.

NOTE:

There may still be dust or production residues on the appliance. We recommend to clean the appliance as described under "Cleaning".

Scope of Delivery

2x Wheels
2x Rollers
2 x Feet of the rollers
1 x Carrying handle
6x Screws

Overview of the Components

1 Suction pipe, 2-part.
2 Shampoo tank connector
3 Suction basket
4 Motor housing
5 On / off switch I/O/II
6 Shampoo hose connector
7 Hose connection
8 Shampoo hose
9 Vacuum hose
10 Retaining clip
11 Bottom of the roller with mounting device for nozzle attachments
12 Roller
13 Suction opening
14 Outlet opening
15 Shampoo brush
16 Collection vessel
17 Locking mechanism
18 Wheel
19 Shampoo tank bracket
20 Shampoo tank
21 Mounting device for the nozzle attachments
22 Blower opening
23 Carrying handle
24 Spray device
25 Permanent filter (Dry vacuuming)
26 Protective filter made of foam
27 Wet / Dry brush
28 Upholstery brush
29 Crevice nozzle

NOTE:

For replacement parts, please consult your dealer.

Installation

Before you are able to use the appliance you have to assemble it first. Proceed as follows:

Rollers

1. Plug the black feet left and right on the bottom next to the outlet opening of the appliance. Secure each with a screw.
2. Plug the rollers into the bottom of the foot.

Shampoo Tank Bracket

Insert the shampoo tank bracket opposite of the rollers already mounted. Secure it on both sides each with a screw.

Wheels

Attach the big wheels left and right at the shampoo tank bracket.

i NOTE:

Once the wheels are mounted, it is no longer possible to detach them!

Carrying Handle

Install the handle with 2 screws onto the engine housing.

Connecting and Detaching the Hose

Suction Function

• Put the hose connection into the suction opening on the collection vessel. Use the guides to do so.
• Turn the hose connection towards . In order to remove the suction hose twist off the hose connection counterclockwise.

Blower Function

• Insert the hose connection into the blower opening at the engine housing. Use the guides to do so.
• Turn the hose connection towards . In order to remove the suction hose twist off the hose connection clockwise.

2-part Suction Pipe

• Insert one of the suction pipes with the thicker end into the hose end.
• Insert the other suction pipe with the thicker end onto the first suction pipe.
• To release the suction pipes, pull them off while turning them slightly.

Notes on Use

Protective Filter Made of Foam

Beneath the motor, there is a protective filter made of foam. This is required for both wet and dry vacuuming.

- If not yet in place, put the protective filter over the suction basket.

i NOTE:

• The protective filter must fully enclose the suction basket.
• You should check the condition of the filter and that it is firmly in place at regular intervals.

Permanent Filter (Only when Vacuuming Dry)

Put the permanent filter over the protective filter.

i NOTE:

The permanent filter must fully enclose the suction basket.

Attaching the Motor Housing

• Adjust the motor housing so that the on/off switch (I/O/II) sits above the suction opening.
• Close both locking mechanisms.

Nozzle Attachment

Wet/Dry Brush

You may vacuum leaked or spilled liquids of flat surfaces, carpets and parquet with the wet / dry brush.

i NOTE:

Check the maximum fill capacity of the collection vessel. 10 litres of liquid without foaming additive!

Shampoo Brush

You may clean carpets with a commercial carpet shampoo by using the shampoo brush.

Upholstery Brush

You may clean upholstery with a commercial upholstery shampoo by using the upholstery brush.

Crevice Nozzle

For vacuuming upholstery, curtains and in corners and crevices etc.

Mains Lead

• Completely unwind the cable during operation.
  • After use, allow the motor housing to cool down. You may wind the cord around the engine housing afterwards.

Turning On/Off

The On / Off switch has several functions:

0 Off

I Wet and dry vacuuming / Blower function

II Vacuuming with shampoo

NOTE:

Switch position II additionally activates the pump.

Notes for Wet Vacuuming and for Vacuuming with Shampoo

CAUTION:

• Do not fill foaming shampoos into the shampoo tank!
• Always remove the permanent filter when vacuuming liquids.
• Before the cleaner is used again for dry vacuuming, all components must be dry.

Immediately switch off the appliance in the following situations:

• During foaming
• If liquid escapes
• When the vessel is full.
• When the appliance falls over.

NOTE:

• The collection vessel can hold approx. 10 litres of liquid (without foaming).
• If foam should form in the collection vessel, then the maximum capacity is only 1.5 litres!
• When the vessel is full the float valve closes the suction aperture and the motor runs at a higher speed. Switch the appliance off immediately and empty it.

Operation

Preparation

1. Unwind the lead completely.
2. Check if the mains voltage that you want to use matches the information on the rating plate.

CAUTION:

Take note of the range limited by the length of the cable!

1. Open the locking mechanisms.
2. Remove the engine housing using the handle.
3. If the protective filter has not yet been mounted, attach it as described in chapter "Notes on Use" "Protective Filter Made of Foam".

CAUTION:

Check that the protective filter fits properly.

Dry Vacuuming

1. Attach the permanent filter as described in chapter "Notes on Use" "Permanent Filter".
2. Attach the motor housing.
3. Close the locking mechanisms.
4. Attach the wet / dry brush or the crevice nozzle to the suction pipe or directly to the suction hose.
5. Connect the mains plug to a properly installed earthed socket.
6. Set the On / Off switch to I.
7. Vacuum at a steady speed. There is no need to exert pressure.

Wet Vacuuming

1. Disconnect the mains plug from the socket.
2. Remove the permanent filter.
3. Attach the motor housing.
4. Close the locking mechanisms.
5. Attach the wet / dry brush to the suction pipe or directly to the suction hose.
6. Connect the mains plug to a properly installed earthed socket.
7. Set the On / Off switch to I.

Vacuuming with Shampoo

NOTE:

• Dose as indicated on packaging or instruction leaflet.
  • Furthermore, refer to the instructions for carpets or upholstery in order to avoid damaging them.
• Test your appliance beforehand at an insignificant spot.

Installation of the Shampoo Accessory

1. Disconnect the mains plug from the socket.
2. Attach the shampoo or upholstery brush to the suction pipe or directly to the suction hose. Insert the hose of the brush into the connector of the shampoo hose.
3. The bottom end of the shampoo hose must be connected to the engine housing. You find symbols at the shampoo house and engine housing (▲ ↗ ). Attach the shampoo hose to the engine housing in such a way that the symbols are facing each other. Tighten the shampoo hose by turning it clockwise.
4. There is another hose at the shampoo tank. Attach it in the same way as previously described.

NOTE:

Make sure the shampoo hose has no kinks!

Handling

1. Remove the permanent filter.
2. Attach the motor housing.
3. Close the locking mechanisms.
4. Fill the shampoo tank with water and cleaning shampoo. Do not fill more than 3 L. There is a marking on the shampoo tank.
5. Connect the mains plug to a properly installed earthed socket.
6. Set the On / Off switch to II.
7. Use the spray device lever on the suction hose to release the shampoo.

Dismantling of the Shampoo Accessory

1. Disconnect the mains plug from the socket.
2. In order to remove the brush, press down the bottom of the connector at the shampoo hose. Remove the hose.
3. Remove the hose ends from the engine housing by turning them counterclockwise.

You may remove the shampoo device completely. Proceed as follows:

1. Open the clamps at the suction hose.
2. Pull off the spray device towards the suction hose.

WARNING:

Take care of your fingers! The spray device must be pulled off with a lot of force.

Emptying the Permanent Filter and Collection Vessel

1. Set the On/Off switch to O. Pull the plug out of the socket.

2. Open the locking mechanisms. Remove the motor housing.

3. Pull off the permanent filter if necessary. Shake it out.

4. Remove the suction hose.
5. Empty the collection vessel.

NOTE:

There is an outlet opening underneath the suction port. Hold your appliance over a correspondingly large vessel and counterclockwise twist off the lid.

1. If necessary, put the permanent filter over the protective filter again.
2. Reassemble the hose connection and the motor housing.
3. Close the locking mechanisms.
4. You can now use the vacuum cleaner again.

Cleaning

WARNING:

• Before cleaning remove the mains lead from the socket.
• Under no circumstances should you immerse the motor housing in water in order to clean it. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.

Collection Vessel

• Rinse out the collection vessel after use with clean water.
• Any dirt in the vessel can be removed with a sponge or nylon brush.
• Hold your appliance over a correspondingly large vessel and counterclockwise twist off the lid.

Accessories

All parts may be cleaned under warm running water.

NOTE:

• For cleaning purposes you may remove the bristles of the shampoo brush. For this pull them off to the side.
• Restart operation only with dried accessory.

Housing

The housing can be wiped off with a slightly damp cloth.

Storage

• Clean the appliance as described and allow it to dry.
• There are 4 plug-in connections at the engine housing and on the appliance feet in total. There you may stow the nozzle attachments.
  These are not suitable for the suction pipes.
• We recommend that you keep the appliance in the original packaging if it will not be used for long periods.
  • Always store the appliance out of the reach of children in a dry, well ventilated place.

NOTE:

Troubleshooting

Problem Possible Cause Remedy
The appliance does not work.	The appliance has no power supply. Check the socket	with another appliance.
		Plug in the mains plug correctly.
		Check the main circuit breaker.
	Wrong switch position. Check the position of the switch.
The appliance does not suck anything up.	The collection vessel is full. Empty the collection vessel.
	There is a foreign body in the suction hose or nozzle.	Check the accessories for foreign bodies.
	The appliance has fallen over. 1. Switch off the appliance.	2. Wait until the motor comes to a complete stop.3. Restart operation.
The appliance does not release the shampoo.	Wrong switch position.	Set the On/Off switch to II.
	The shampoo tank is empty. Fill the shampoo tank once again.
	The shampoo hose is not attached properly.	Check the connections of the shampoo hose.Remedy the kinks in the hose if necessary.

Technical Data

Model: BSS 1309

Power supply: 220 - 240 V\~, 50 / 60 Hz

Power consumption: 1200 W

Protection class:......II

Degree of protection against liquids: IPX4*

Net weight: ....approx. 6.1 kg

* This appliance complies with IPX4. This means, the appliance is protected against splashing water on all sides.

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

Instrukcja obsługi

CTC Clatronic Sp. z o.o

Ul. Brzeska 1

45-960 Opole

Usuwanie
