USER MANUAL LS CI7950 GH CANDY

●

●

●

●

●

○

65°C

○

○

105 S

●

●

●

●

●

○

65°C

○

○

100 S

●

●

●

●

65°C

○ ～S

●

●

●

●

55°C

○ ～S

●

●

●

●

55°C

○ ～S

SI

programmi rapidi

Pulsance maximum absorbee

Tension

12

8 personnes

Min. 0,08 - Max 0,8 MPa

Programme

Description

●

●

●

●

●

○

65°C

○

○

105O

UI

●

●

●

●

●

○

65°C

○

○

100O

UI

●

●

●

●

65°C

○~5OUI

●

●

●

●

55°C

○~2OUI

●

●

●

●

55°C

○~3OUI

OUI

programmes rapides

Thank you for choosing a Candy appliance; quality dishwashers which guarantee high performance and reliability.

Candy manufacture a vast range of domestic appliances: washing machines, washer/dryers, cookers, microwave ovens, ovens and hobs, refrigerators and freezers.

Ask your dealer for the catalogue with the complete range of Candy products.

Please read this booklet carefully as it provides important information regarding the safe installation, use, and maintenance of the machine, together with some useful advice on how to achieve the best results from your dishwasher.

For future reference please keep this instruction booklet in a safe place.

Guarantee

This appliance is supplied with a guarantee certificate which allows free use of the Technical Assistance Service, apart from a fixed call out charge, for a period of one year from the date of purchase. Remember to post part A of the guarantee certificate within 10 days of the purchase date.

Part B should be filled in and retained by you, to be shown to the person from the Technical Assistance Service if required. You should also keep your sales receipt.

Contents

Description of the controls page 15

Technical data page 15

Programmes selection page 16

Operating the programmes and special functions page 18

The watercontrol system page 19

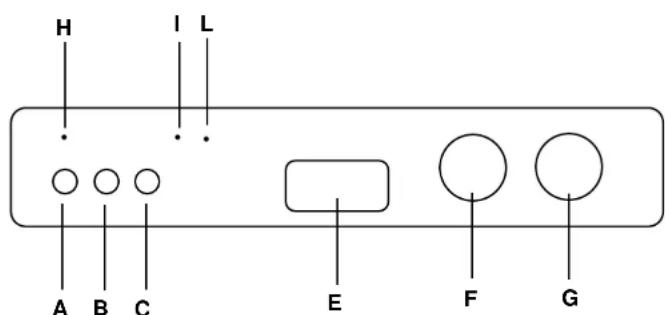

Description of the control

A On/off button
B Half load button
C Glass button
E Door handle
FProgramme selector

G Start delay selector
H Mains Indicator Light
Low level salt Indicator Light
L Stand-by pilot light for programme Rapid

Technical Data

IEC place load
Capacity with pans and dishes
Water supply pressure
Fuse
Power input
Supply voltage

12
8 people
Min. 0.08 - Max 0.8 MPa
(see rating plate)
(see rating plate)
(see rating plate)

Dimensions

Height cm 82÷88,5
Depth cm 55
Width cm 59.8
Depth with door open cm 117

PROGRAMMES SELECTION

Programme	Description
Energetic and delicate programmes
1 65°C	Intensive	Suitable for pans and all other items in daily use which are very dirty.
2 65°C	Universal	Suitable for your daily wash of normal dirty dishes and pans. Programme standardised to IEC 436.
3 65°C	Daily	Suitable for pans and dishes which are to be washed straight after a meal.
4 ECO 55°C	Eco 55°C	Suitable for normal soiled daily pans and kit-chenware. Using detergents with enzyme. Programme standardised to EN 50242.
5 55°C	Delicate	Suitable for delicate dishes and glassware. Also for slightly dirty daily dishes, excluding pans.

What to do

Programme cycle

Average duration in minutes

Special function in operation

Detergent for scaking

Detergent for washing

Clean filter

Check rinse aid dispenser

Check salt container

Hot pre-wash

Cold pre-wash

Main wash

Intermediate rinse

Hot rinse with rinse aid

With cold water (15°C)

Half load button

Glass button

●

●

●

●

●

○

65°C

○

○

105

YES

●

●

●

●

●

○

65°C

○

○

100

YES

●

●

●

●

65°C

○°5○

YES

●

●

●

●

55°C

○°0○

YES

●

●

●

●

55°C

○°7○

YES

YES

Rapid programmes

	Pre-heating	Water is heated before the machine is loa- ded with dishes.
6 R 60°C	18 minutes rapid	Extra quick wash for dishes which are to be washed immediately after the meal. Wash load of 4/6 persons.
7	Cold pre-wash	Short cold pre-wash for breakfast and lunch dishes which can then remain in the dishwa- sher until after the evening meal.

15

YES

●

●

60°C

○

18

YES

5

YES

Attention

This dishwasher is equipped with an anti-overflow safety device which works even when power is

switched off and closes off the water flow if, due to a possible malfunction, it exceeds the normal level.

Important

To prevent an inopportune release of the antioverflow safety device, it is recommended not to move or to tilt the dishwasher during operation.
If it is necessary to move or to tilt the dishwasher, first make sure the washing cycle is finished and that no water is left in the tank.

Selecting the programme and special functions

To set the programme, turn the dial clockwise until the pointer indicates the symbol of the required programme on the control panel.

Then press the On/Off button. Ensure that the water supply is turned on and the door is closed properly.

Half load button

By pressing this button it is possible to wash a small quantity of crockery using just the upper basket for dishes and wash the cutlery only in the bottom basket. This reduces water and energy consumption and requires a smaller quantity of detergent as well.

Glass button

By pressing this button in conjunction of the programme K^V5 , your dishwasher operates the wash at 45^ .

Recommended for delicate glass.

Start Delay Control

Start Delay is available on all programmes and is used to postpone the start of programmes by up to 12 hours. Each one hour period is marked. If you wish to delay the start, simply load the machine, load the dispenser with detergent, and turn the programme control knob clockwise to the number of hours you wish the programme to be delayed. For example if it is 8pm and you want the machine to start at midnight, turn the start delay knob to 4. Press the On/Off button. The red pilot light will come on to show that the machine is switched on. The start of the programme will then be delayed according to the selected time.

N.B.: When setting very short delay times (1 or 2 hours) it is advisable to turn the knob to the last position and then move it back to the required times.

Pre-heating for rapid wash

For rapid wash, the water must be pre-heated. Turn the knob to the symbol and press the 0 button.

This should be done 15 minutes before you actually load the dishwasher. While you are finishing your meal, your dishwasher will automatically fill with water and then bring it to the correct temperature. So when the dial wash

Is on stop position, the pilot light comes on and the machine is ready to be loaded with dishes.

Switch it off by pressing the ① button. Open the door, put the detergent in the dispenser and load the dishes carefully in the two baskets. One convenient way of doing this is to put the dishes in alternate grooves of the basket.

18' rapid wash

Turn the knob to the Rapid wash symbol and press the ① button. After approximately 18^ the wash will be completed. Switch off by pressing the ① button and open the door leaving it slightly ajar to aid the natural drying process.

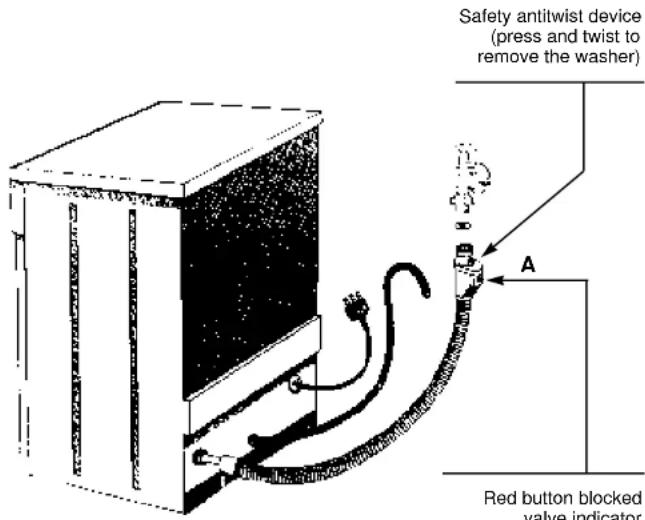

Watercontrol-system

The water-stop device protects against water damages caused by leaks on the fill hose which could develop due to natural ageing of the hose.

In the water-stop system the leaking water fills the corrugated hose and activates a stop valve which cuts off the water supply to the machine.

This fault is shown by a red sector on the window «A». Would this occur, please refer to your Service Agent.

If the hose is not long enough for correct connection, it must be replaced with a longer one. The hose can be obtained from your Service Agent.

●

●

●

●

●

○

65°C

○

○

105 JA

●

●

●

●

●

○

65°C

○

○

100 JA

●

●

●

●

65°C

○

○

85 JA

●

●

●

●

55°C

○

○

80 JA

●

●

●

●

55°C

○

○

70 JA

JA

Schnell-Programme

●

●

●

●

●

○

65°C

○

○

105 S

●

●

●

●

●

○

65°C

○

○

100 S

●

●

●

●

65°C

○~5°S

●

●

●

●

55°C

○~7°S

●

●

●

●

55°C

○~9°S

SI

programas rapiidos

●

●

●

●

●

○

65°C

○

○

105

SIM

●

●

●

●

●

○

65°C

○

○

100

SIM

●

●

●

●

65°C

○~○

SIM

●

●

●

●

55°C

○~○

SIM

●

●

●

●

55°C

○~○

SIM

SIM

Programas rapiidos

Snelle cyclus: 18 minutes

●

●

●

●

●

○

65°C

○

○

105 JA

●

●

●

●

●

○

65°C

○

○

100 JA

●

●

●

●

65°C

○

○

85

JA

●

●

●

●

55°C

○

○

80

JA

●

●

●

●

55°C

○

○

70

JA

JA

snellegrogramma's

●

●

●

●

●

○

65°C

○

○

105

TAK

●

●

●

●

●

○

65°C

○

○

100

TAK

●

●

●

●

65°C

○ 85°

TAK

●

●

●

●

55°C

○ 80°

TAK

●

●

●

●

55°C

○ 70°

TAK

TAK

Programy szybkie

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
