Product type	Freezer
Brand	Siemens
Model	GS24VVWF0N
Main functions	Freezing, ice making, interior LED lighting
Freezing capacity	Not specified in the manual
Energy class	Not specified in the manual
Dimensions (H x W x D)	Not specified in the manual
Weight	Not specified in the manual
Power supply	mains (disconnect 60 seconds before repair)
Lighting	Replaceable top LED
Ice making	Integrated removable ice maker
Refrigerant	Not specified in the manual
Noise level	Not specified in the manual
Safety instructions	Disconnect before repair, wear gloves, avoid electric shocks
Maintenance and cleaning	Repair tips for part replacement
Spare parts and repairability	Door gasket, handle, hinges, drawer, ice maker, LED lighting – user replaceable
Tools required for repair	Torx TX20 screwdriver, flathead screwdriver, Philips PH2 screwdriver
Compatibility with original parts	Use only original Siemens spare parts
After-sales service	Contact after-sales service in case of damage or questions

Frequently Asked Questions - GS24VVWF0N SIEMENS

How to replace the door gasket?

Open the door, remove the old gasket from the grooves starting at the corners. For installation, slightly warm the new gasket with a hair dryer or hot water, then push it progressively into the groove starting at the corners. Ensure the groove is not damaged.

How to change the door handle?

Disconnect the appliance and open the door. Remove screw caps, unscrew the two screws with a Torx TX20 bit, then remove the handle. Installation is done in reverse order.

How to replace the top door hinge?

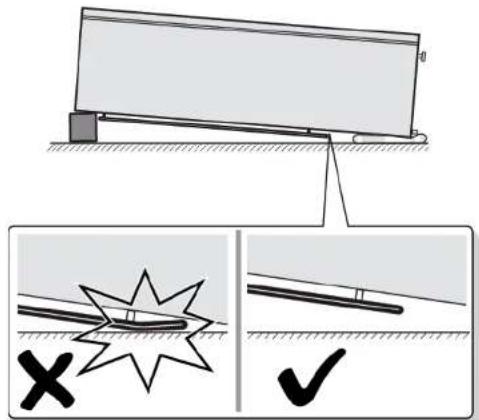

Disconnect the appliance and remove interior equipment. Lay the appliance on its back. Remove the hinge cover, unscrew the screws, then remove the hinge. Caution: the appliance is heavy, ask for help. Wear gloves.

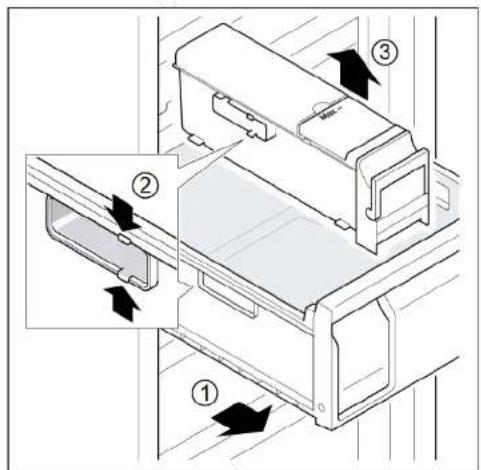

How to clean the ice maker?

Remove the frozen food drawer containing the ice maker. Unhook the hooks to separate the ice maker. Clean it with a soft cloth and warm water. Reassemble in reverse order.

How to replace the LED lighting?

Disconnect the appliance and open the door. Move the LED lighting to the left to disconnect the electrical connection. Release the hooks and remove the lighting from the front. Installation is done in reverse order.

What safety precautions should be taken before a repair?

Always disconnect the appliance from the mains at least 60 seconds before starting. Wear cut-resistant protective gloves. For heavy parts, use safety shoes and secure components against falling.

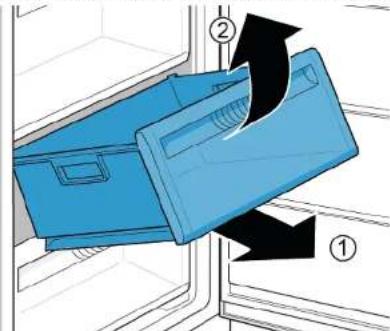

How to replace the frozen food drawer?

Open the door, fully pull out the frozen food drawer, then remove it. Installation is done in reverse order.

What tools are needed for common repairs?

For most repairs, you will need a Torx TX20 bit (6.3 mm), a flathead screwdriver (blade 10 mm x 1.6 mm) and a Philips PH2 screwdriver. Some models require a smaller flathead screwdriver (2.4 mm).

What to do if the door does not close properly?

Check the condition of the door gasket: if it is deformed, you can warm it and reshape it. If the hinges are adjustable, adjust them. If the gasket is damaged, replace it.

Can I repair electrical parts myself?

Electrical parts (such as LED lighting) can be replaced by the user according to the instructions. However, for any repair involving live components, call a qualified technician and perform a safety test after repair.

USER MANUAL GS24VVWF0N SIEMENS

4.3 Replacing the easy opening handle 11

4.3.1 Removing the easy opening handle 11 4.3.2 Installing the easy opening handle 11

4.4 Replacing the door panel and the door 12

4.4.1 Removing the door panel 12 4.4.2 Installing the door panel 14

4.5 Replacing the upper door panel (door with display) 15

4.5.1 Removing the door panel 16 4.5.2 Installing the upper door panel 17

4.6 Replacing the lower door panel 18

4.6.1 Removing the lower door panel 18 4.6.2 Installing the lower door panel 19

4.7 Replacing the hinge 20

4.7.1 Removing the hinge 20 4.7.2 Installing the hinge 20

4.8 Replacing the container for frozen food 21

4.8.1 Removing the container for frozen food 21 4.8.2 Installing the container for frozen food 21

4.9 Replacing the door gasket 22

4.9.1 Removing the door gasket 22 4.9.2 Installing the door gasket 22

4.10 Replacing the LED lighting 23

4.10.1 Connection to LED lighting 23 4.10.2 Mounting of LED lighting device 24

ABOUT THIS DOCUMENT

1.1 Important information

1.1.1 Purpose

This document is intended to help the user to repair the device themselves, in accordance with the regulations for environmentally friendly design of devices (as of 03.2021).

The information is provided so that you can replace certain spare parts, including warnings and risks.

If you have any questions, please contact our customer service department. We are not responsible for damages only if the repair instructions have been followed correctly.

1.2 Explanation of symbols

1.2.1 Danger

You are warned by the symbol of a burning flame. The signal word indicates the severity of the danger.

The danger symbols are symbolic images that give an indication of the type of danger.

In this document, the following danger symbols are used:

Mains voltage.

Repair

4.3 Replacement of easy opening handle

Special tools:

Cross-head screwdriver PH2

Removal:

The door is excluded from the closing mechanism. The door is open.

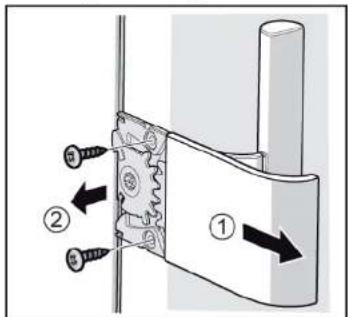

4.3.1 Removing the easy opening handle

1. Pull the cable of the easy opening handle (1).
2. Unscrew the two screws (2).

The easy opening handle is removed.

4.3.2 Installing the easy opening handle

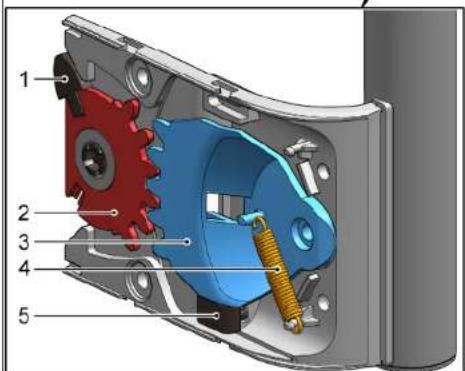

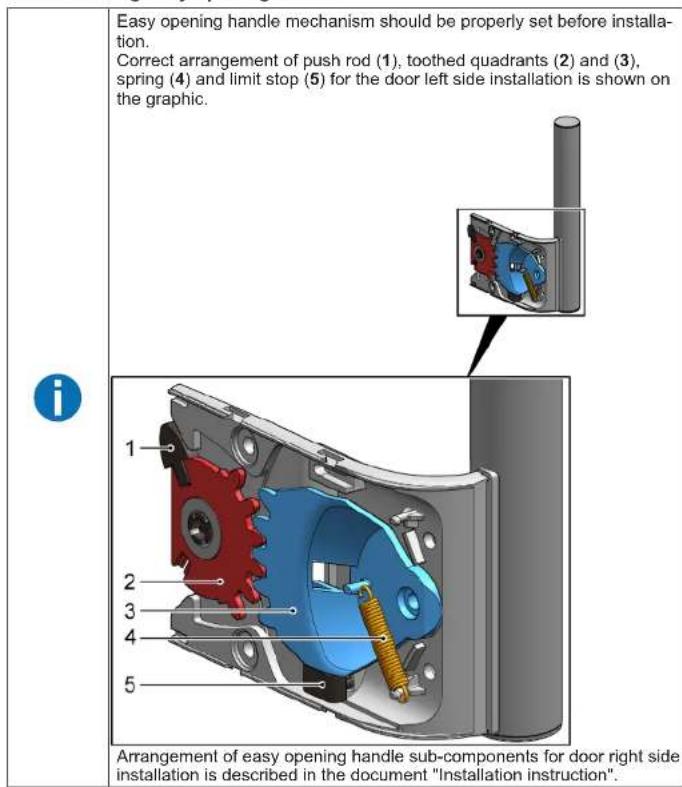

The mechanisms of the easy opening handle must be correctly adjusted before installation. The correct position of the buffer (1), the springs (2) (3), the spring (4) and the limiter (5) for installation on the door is shown in the figure.

The position of the components of the easy opening handle during installation on the door is described in the document "Installation Instructions."

Install the handle.

Repair

4.4 Replacing the top hinge of the door

Special tools:

HakpaimHK Torx TX20 6.3 mm (1/4") [00340865]

Tool, intended use!

Call for professional help!

Bone fractures/Dislocation risk

Secure the tool with the attachment.

CAUTION

Risk of falling parts due to loose screws!

Properly tighten the parts to secure the component, so it does not fall.

WARNING!

Risk of falling parts due to loose screws!

Damage to the tool or property of the client, etc.

Secure the component so it does not fall.

Disposal:

Remove the locking screw. The adjustment screws on the device are removed.

4.4.1 Removing and installing the door leaves

Repair

1. Place the device against the door leaf on the opposite side.

2.1. Press the cable of the upper plate from the opposite side (1).

1. Pull out the cable of the upper plate (2).
2. Remove the cable of the upper plate (3).

Repair

3.1. Loosen the screws (1).

1. Remove the upper plate (2).

The upper plate of the door is removed. 4.4.2 Installing the door leaf plate

Install the return spring.

Install the return spring.

Repair

4.6 Replacing the lower door leaf

Tools needed:

Torx screwdriver TX20 6.3 mm (1/4") [00340865]

WARNING

Before servicing, ensure the device is disconnected from the power supply.

Installation and removal.

Repair

4.8 Removing the container for contaminated food products

Check: The lid is open.

4.8.1 Removing the container for contaminated food products

1. 1. Remove the lid of the container for contaminated food products (1). 2. Remove the container for contaminated food products (2).

The container for contaminated food products has been removed.

4.8.2 Installing the container for contaminated food products

Installation and removal.

The decontaminator has been removed.

4.9.2 Installing the decontaminator

MoHTnpaTBeB0paTeHpeI.

PemOH

4.10 CMraHa HA LED oCBetneHneTo otrope

CneuaJIHm HcTpymEnTn:

PiNCKa OTBePTKa Bpbx 2,4 MM x 0,4 MM x 60 MM, B KOMnIeKTa [00341820]

BaWnAT ype n cHa6dene C LED ocBtneHme, KoTe He H3uCKBa NoD- DpbXkA. Toba ocBtneHme MOKe Da 6bJe peMOHTnpaHO CaMo OT CneuaHnCTU ot cIyKbata 3a 0cIcyXbaHe Ha KIneHTn NINOT KBANFncnPaHn TexHn!

ONACHOCT

Pmck ot TKOB yub npoprna tactn noanHanpexkHe! OnAnOHCT 3a KWBOTA ot TKOB yub aB city nHenPBAP

EeKtPrnTeKteTneAactn TpRbBa da ce pEmOHnpat OT KBAIINPHUNPAHn EeKToTeXHn. Cnep pemOHa TpR6Ba Da ce H3bBpiN npOBepKa 3a 6e3oNaCHOCTcRlachO VDE 0701 mnn B cTobETCTBHe CbC cneunHnHTe 3a cTpaHATA paanope6n.

ONACHOCT

PnCK OT TOKOB ydap npaHn qactn noHanpeXeHHe!

CmbptOT TOKOB ydap

NtKIOHOTe YEpDITE O t ENEKTPNHECKOTO 3aXpaHBAHe NOHE 60 CEYHNn PnpDl 3aONoBAHa peMOnTA.

BHIMATEJIHO

Octpn pb6oBe!

Follow the instructions.

Search:

The device is switched off. The door is open. The inner lighting is off.

4.10.1 Replacing the LED lighting

1. Disconnect the LED lighting from the power supply.

The connection to the electrical network and the LED lighting is disconnected.

2. Remove the LED lighting.

Repair

3. Connect the LED lighting, pressing it until it clicks.

The LED lighting is connected. 4.10.2 Mounting the LED lighting from the mounting bracket.

4.3 Replacing the easy opening handle 34

4.3.1 Removing the easy opening handle 34 4.3.2 Installing the easy opening handle 34

4.4 Replacing the upper door hinge 35

4.4.1 Removing the door hinge 35 4.4.2 Installing the door hinge 37

4.3 Replacing the easy opening handle

Special tools:

Phillips screwdriver PH2

Requirement:

The appliance is disconnected from the power supply. The door is open.

4.3.1 Removing the easy opening handle

1. Remove the cover of the easy opening handle (1). 2. Unscrew the two screws (2).

The easy opening handle is removed.

4.3.2 Installing the easy opening handle

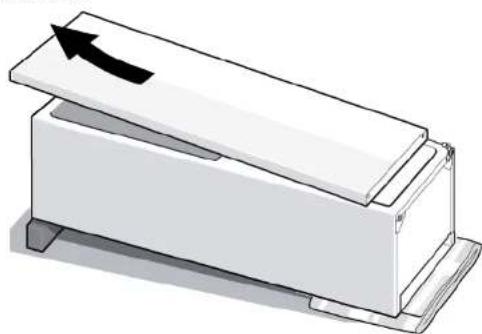

4.6 Replacing the lower door hinge 63

4.6.1 Removing the lower door hinge 63 4.6.2 Installing the lower door hinge 64

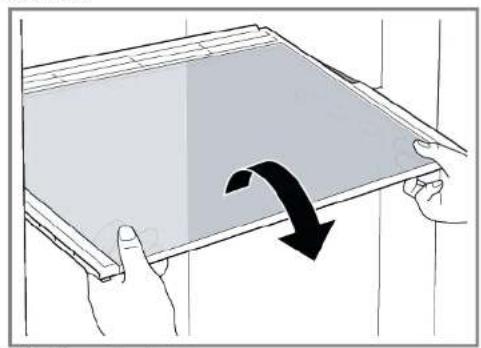

4.7 Replacing the shelf 65

4.7.1 Removing the shelf.. 65 4.7.2 Installing the shelf 65

4.8 Replacing the frozen food drawer 66

4.8.1 Removing the frozen food drawer 66 4.8.2 Installing the frozen food drawer 66

4.9 Replacing the ice maker 67

4.9.1 Removing the ice maker 67 4.9.2 Installing the ice maker 67

4.10 Replacing the LED top lighting 68

4.3 Replacing the Easy opening handle

Special tools:

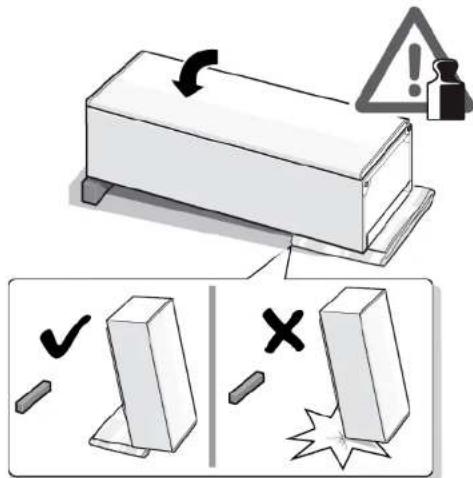

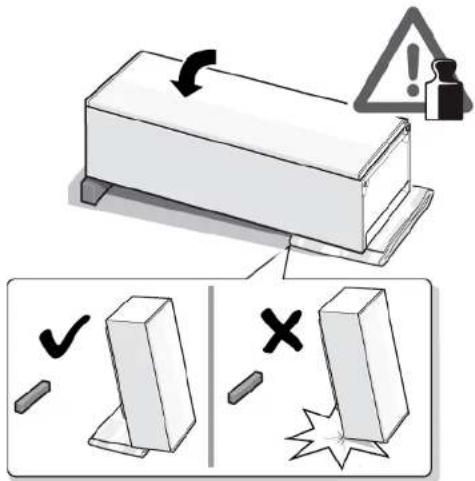

Make sure to secure the appliance against slipping.

Risk of falling parts due to loose screws!

Risk of injury from falling parts. Make sure to secure the component against falling.

BEM/ERK!

Danger of falling parts due to loose screws!

Make sure to secure the component against falling.

Presetting:

Make sure to secure the devices against slipping.

PAS PAI

Danger of falling parts due to loose screws!

Injury hazard due to falling parts

Make sure to secure the component against falling.

BEM/ERK!

Danger of falling parts due to loose screws!

Make sure to secure the component against falling.

DANGER

Make sure to secure the devices against slipping.

PAS PAI

Risk of falling parts due to loose screws!

Injury due to falling parts. Ensure that the component is secured against falling.

NOTE!

Risk of falling parts due to loose screws!

Ensure that the component is secured against falling.

Presetting:

Repair hints - Freezer

1 Concerning this document. 116

1.1 Important information 116

1.1.1 Purpose 116 1.2 Explanation of symbols 116 1.2.1 Danger levels 116 1.2.2 Hazard symbols 116 1.2.3 Structure of the warnings 117 1.2.4 General symbols 117

Safety. 118

2.1 General Safety instructions 118 2.1.1 All domestic appliances 118

Tools and aids. 119

Repair 120

4.3 Replacing easy opening handle 124

4.3.1 Removing easy opening handle 124 4.3.2 Installing easy opening handle 124

4.4 Replacing door upper hinge 125

4.5 Replacing door upper hinge (door with display) 128

4.7 Replacing shelf. 133

4.7.1 Removing shelf 133 4.7.2 Installing shelf 133

4.8 Replacing frozen food container. 134

4.8.1 Removing frozen food container 134 4.8.2 Installing frozen food container 134

4.9 Replacing ice maker 135

4.9.1 Removing ice maker 135 4.9.2 Installing ice maker 135

4.10 Replacing LED top light 136

4.10.1 Removing LED light. 136 4.10.2 Installing top LED light 137

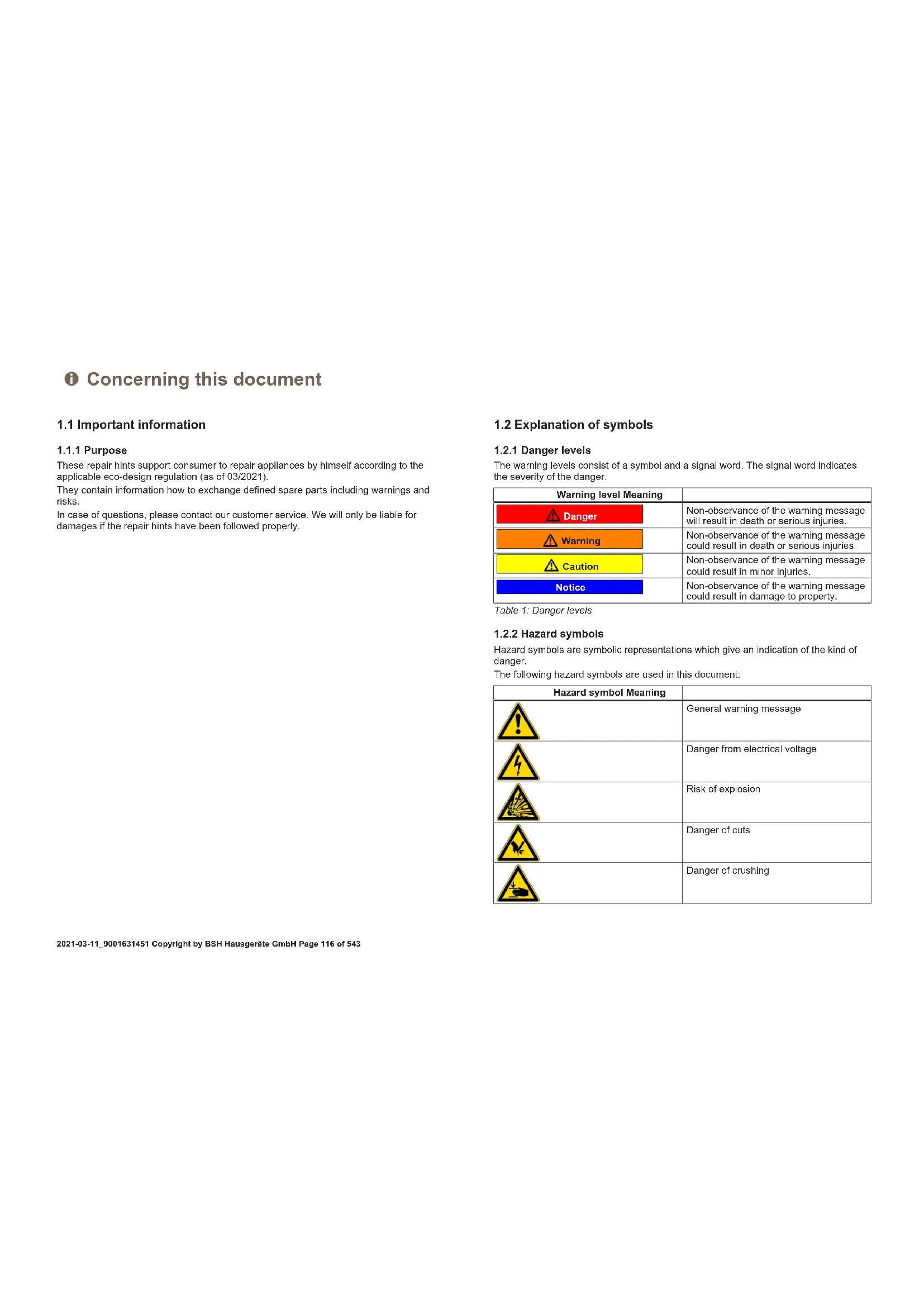

Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information on how to exchange defined spare parts, including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Table 1: Danger levels

Warning level Meaning
Danger	Non-observation of the warning message will result in death or serious injuries.
Warning	Non-observation of the warning message could result in death or serious injuries.
Caution	Non-observation of the warning message could result in minor injuries.
Notice	Non-observation of the warning message could result in damage to property.

1.2.2 Hazard symbols

Hazard symbols are symbolic representations that give an indication of the kind of danger.

The following hazard symbols are used in this document:

Hazard symbol Meaning
!	General warning message
	Danger from electrical voltage
	Risk of explosion
	Danger of cuts
	Danger of crushing

Concerning this document

Hazard symbol Meaning
	Danger from hot surfaces
	Danger from strong magnetic field
	Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardized appearance and a standardized structure.

Danger

Type and source of danger!

Possible consequences of ignoring the danger / warning.

Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Danger

Risk of electric shock due to live parts!

Death by electrocution

• Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
1	Identification of a special tip (text and/or graphic)
i	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start]Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

Errors by repairs involving electrical components can lead to electrical shock! - Disconnect the appliance from the mains for at least 60 seconds before starting work. After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components.

Wear protective shoes. - Secure heavy components from falling down. - Do not stick body parts into moving components.

Risk to the appliance's safety / function! Only use original spare parts. Risk of damage to electrostatically sensitive components (ESDs)! - Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth [00342013]	60 cm x 50 cm	###
Phillips screwdriver PH2
Torr Bit TX20 [00340865]	6.3 mm (1/4")
Slotted screwdriver	Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]	①

Prerequisite: Door is open.

1. Release door gasket from the groove on right and left corner.

1. Pull out door gasket from groove.

Door gasket is removed.

	Thickness of new door gasket may deviate slightly from thickness of old door gasket. This will not affect closing behavior and long-term function.
	If your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior subsequently.
	Small side holes in door gasket are functional (required for ventilation). These are not production faults.

Repair

1. Check groove for gasket for damage.

1. If groove for gasket is damaged.
2. Contact customer service.
3. Slight deformation of door gasket is normal and does not affect its function. It is recommended to straighten door gasket before inserting it into appliance.

Heat door gasket with a hair dryer or hot water and manually reshape it.

1. Push corners of gasket at the top and bottom to the groove.

Repair

1. Press whole gasket step by step into the groove.

Door gasket is installed.

Appliance is disconnected from power supply. Door is open.

4.2.1 Removing door handle

1. Remove two screw caps (1).
2. Unscrew two screws (2).
3. Remove door handle (3).

Door handle is removed.

Install in reverse order.

Repair

4.3 Replacing easy opening handle

Required tools:

Phillips screwdriver PH2. Prerequisite: Appliance is disconnected from power supply. Door is open.

4.3.1 Removing easy opening handle

1. Remove easy opening handle cover (1).
2. Unscrew two screws (2).

Easy opening handle is removed.

4.3.2 Installing easy opening handle

Install in reverse order.

Repair

4.4 Replacing door upper hinge

Required tools:

Torx Bit TX20 6.3 mm (1/4") [00340865]

Warning

Heavy, bulky appliances!

Back and muscle injuries

Appliance door removal operation should only be carried out by trained specialists. To move the appliance, two people are required. Use only suitable tools and equipment.

Caution

Sharp edges!

Cut injuries

Wear protective gloves.

Warning

Slipping of tilted appliances!

Bone fractures / crush injuries

Secure appliances against slipping

Caution

Risk of falling parts due to released screws!

Injury because of falling parts. - Secure component from falling down.

Notice

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customer's home, e.g., bottom.

tom.

• Secure component from falling down.

Prerequisite:

Appliance is disconnected from power supply. Appliance interior fittings are removed.

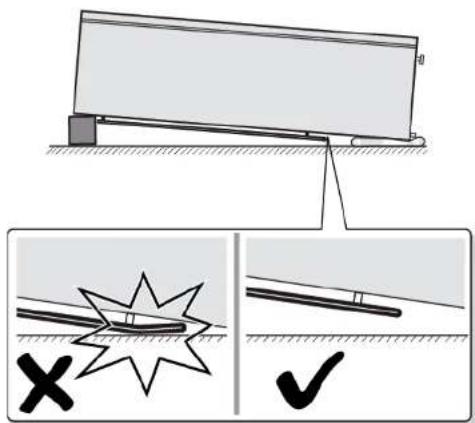

1. Place appliance on the back side.

2.1. Press upper hinge cover on both sides (1).

1. Move out upper hinge cover (2).
2. Remove upper hinge cover (3).

Repair

3.1. Unscrew two screws (1).

1. Remove upper hinge (2).

Door upper hinge is removed. 4.4.2 Installing door hinge Install in reverse order.

Repair

4.5 Replacing door upper hinge (door with display)

Required tools:

Torx Bit TX20 6.3 mm (1/4") [00340865]

Warning

Heavy, bulky appliances!

Back and muscle injuries

• Appliance door removal operation should only be carried out by trained specialists. To move the appliance, two people are required. Use only suitable tools and equipment.

Caution

Sharp edges!

Cut injuries

Wear protective gloves.

Warning

Slipping of tilted appliances!

Bone fractures / crush injuries

Secure appliances against slipping

Caution

Risk of falling parts due to released screws!

Injury because of falling parts.

Secure component from falling down.

Notice

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customer's home, e.g. bottom.

Secure component from falling down.

• Danger

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair.

Danger to life through electric shock in case of improper repair

Electric parts should be repaired by a qualified electrician.

After the repair, have a safety test performed according to VDE 0701 or country-specific regulations.

Risk of electric shock due to live parts!

Risk of electric shock due to live parts!

Death by electrocution

• Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Prerequisite:

Appliance is disconnected from power supply. Appliance interior fittings are removed.

Repair

1. Place appliance on the back side.

Repair

1. Press upper hinge cover on both sides (1). 2. Move out upper hinge cover (2). 3. Remove upper hinge cover (3).

1. Remove cable box cover (2). 2. Remove cable protection (2). 3. Disconnect electrical connection (3). 4. Unscrew two screws (4). 5. Remove upper hinge (5).

Door upper hinge is removed.

Install in reverse order.

Repair

4.6 Replacing door lower hinge

Required tools:

Torx Bit TX20 6.3 mm (1/4") [00340865]

Prerequisite:

The appliance is disconnected from the power supply. The appliance interior fittings are removed. The appliance is placed on its back.

Upper hinge is removed. (See page 128)

4.6.1 Replacing the door lower hinge

1. Remove the door.

2.1. Unscrew the screw (1).

1. Turn the lower hinge out (2).
2. Remove the lower hinge (3).

The lower hinge is removed.

Repair

Install in reverse order.

Repair

4.7 Replacing the shelf

Prerequisite: The door is open.

4.7.1 Removing the shelf

Pull out shelf.

Shelf is removed.

4.7.2 Installing shelf

Install in reverse order.

Repair

4.8 Replacing frozen food container

Prerequisite: Door is open.

4.8.1 Removing frozen food container

1. Pull out frozen food container all the way (1). 2. Remove frozen food container (2).

• Frozen food container is removed.

4.8.2 Installing frozen food container

Install in reverse order.

Repair

4.9 Replacing ice maker

Prerequisite: Door is open.

4.9.1 Removing ice maker

1. Pull out shelf frozen food container with ice maker (1).
2. Release hooks (2).
3. Remove ice maker (3).

Ice maker is removed.

4.9.2 Installing ice maker

Install in reverse order.

Repair

4.10 Replacing LED top light

Required tools:

Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LED light.

These lights may be repaired by customer service or authorised technicians only!

Danger

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

Electric parts should be repaired by a qualified electrician.

After the repair, have a safety test performed according to VDE 0701 or country-specific regulations.

Danger

Risk of electric shock due to live parts!

Death by electrocution

• Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Caution

Sharp edges!

Cut injuries

Wear protective gloves.

Prerequisite:

Appliance is disconnected from power supply. Door is open. Upper interior fittings are removed.

4.10.1 Removing LED light

1. Move the LED light to the left side.

LED light electrical connection is disconnected.

1. Release LED light hooks.

Repair

1. Remove LED light moving it forward.

LED light is removed. 4.10.2 Installing top LED light Install in reverse order.

Remonditeave - Sögavkülmik

1 Selle dokumendiga seoses 139

1.1 Tahtis teave 139

1.1.1 Eesmark 139

1.2 Sumbolite selgitus 139

1.2.1 Ohutasemed 139 1.2.2 Ohusumbolid 139 1.2.3 Hoiatuste struktuur 140 1.2.4 Üldised sumbolid 140

Ohutus. 141

2.1 Uldised ohutusiuhised 141 2.1.1 Kofik kodumasinad 141

Tabel 1: Ohutasedmed

1.2.2 Ohusumbolid

Therefore, m = 3/11

Tools and aids

4.3 Replacing the easy opening handle 418

4.3.1 Removing the easy opening handle 418 4.3.2 Installing the easy opening handle 418

4.4 Replacing the upper door hinge 419

4.4.1 Removing the door hinge 419 4.4.2 Installing the door hinge 421

4.5 Replacing the upper hinge (display door) 422

4.5.1 Removing the hinge 423 4.5.2 Installing the hinge 424

4.6 Replacing the lower hinge 425

4.6.1 Replacing the lower hinge 425 4.6.2 Installing the lower hinge 426

Torx TX20 screwdriver bit 6.3 mm (1/4") [00340865]

Flathead screwdriver Blade 10 mm x 1.6 mm x 200 mm

Requirement:

4.3 Replacing the easy opening handle

Special tool:

Phillips screwdriver PH2. Requirement: The appliance is disconnected from the power supply. The door is open.

4.3.1 Removing the easy opening handle

1. Remove the easy opening handle (1).
2. Unscrew two screws (2).

Torx TX20 6.3 mm (1/4") [00340865]

WARNING

Heavy, bulky appliances!

Back injury and muscle damage

Torx TX20 6.3 mm (1/4") [00340865]

WARNING

Heavy, bulky appliances!

Back injury and muscle damage

4.3 Replacing the easy opening handle 441

4.3.1 Removing the easy opening handle 441 4.3.2 Installing the easy opening handle 441

4.4 Replacing the upper door hinge 442

4.4.1 Removing the door hinge 442 4.4.2 Installing the door hinge 444

4.3 Replacing the easy opening handle

Special tools:

4.3 Replacing the Easy opening handle 509

4.3.1 Removing the Easy opening handle 509 4.3.2 Installing the Easy opening handle 509

1. Press the entire gasket into the groove bit by bit.

4.3 Replacing the Easy opening handle

Necessary tools:

Phillips screwdriver PH2

Prerequisite:

The appliance is disconnected from the power supply. The door is open.

4.3.1 Removing the Easy opening handle

1. Remove the cover for the Easy opening handle (1).
2. Unscrew the two screws (2).

Easy opening handle has been removed.

4.3.2 Mounting the Easy opening handle
