| Brand | Black & Decker |
| Model | BDV012I |
| Product type | Portable battery charger with starter and compressor |
| Weight | 7.9 kg |
| Internal battery | Lead-acid 12 V, 17 Ah, maintenance-free |
| Input power (charging) | 230 V AC (mains adapter) |
| Charging time (mains) | Approximately 48 hours |
| Maximum output current (starting) | 450 A (instantaneous), 300 A (5 seconds) |
| Compressor | Maximum pressure 120 psi |
| Lighting | Integrated LED light, runtime ~114 h |
| 12 V DC accessory outlet | Yes, max 5 A |
| Safety | Reverse polarity protection, audible beep, thermal cut-off |
| Maintenance | Clean with damp cloth, no abrasive products |
| Fuse (12 V cable) | 8 A, replaceable |
| Warranty | 24 months, EU/EEA coverage |
Frequently Asked Questions - BDV012I BLACK & DECKER
User questions about BDV012I BLACK & DECKER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Battery charger in PDF format for free! Find your manual BDV012I - BLACK & DECKER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BDV012I by BLACK & DECKER.
USER MANUAL BDV012I BLACK & DECKER

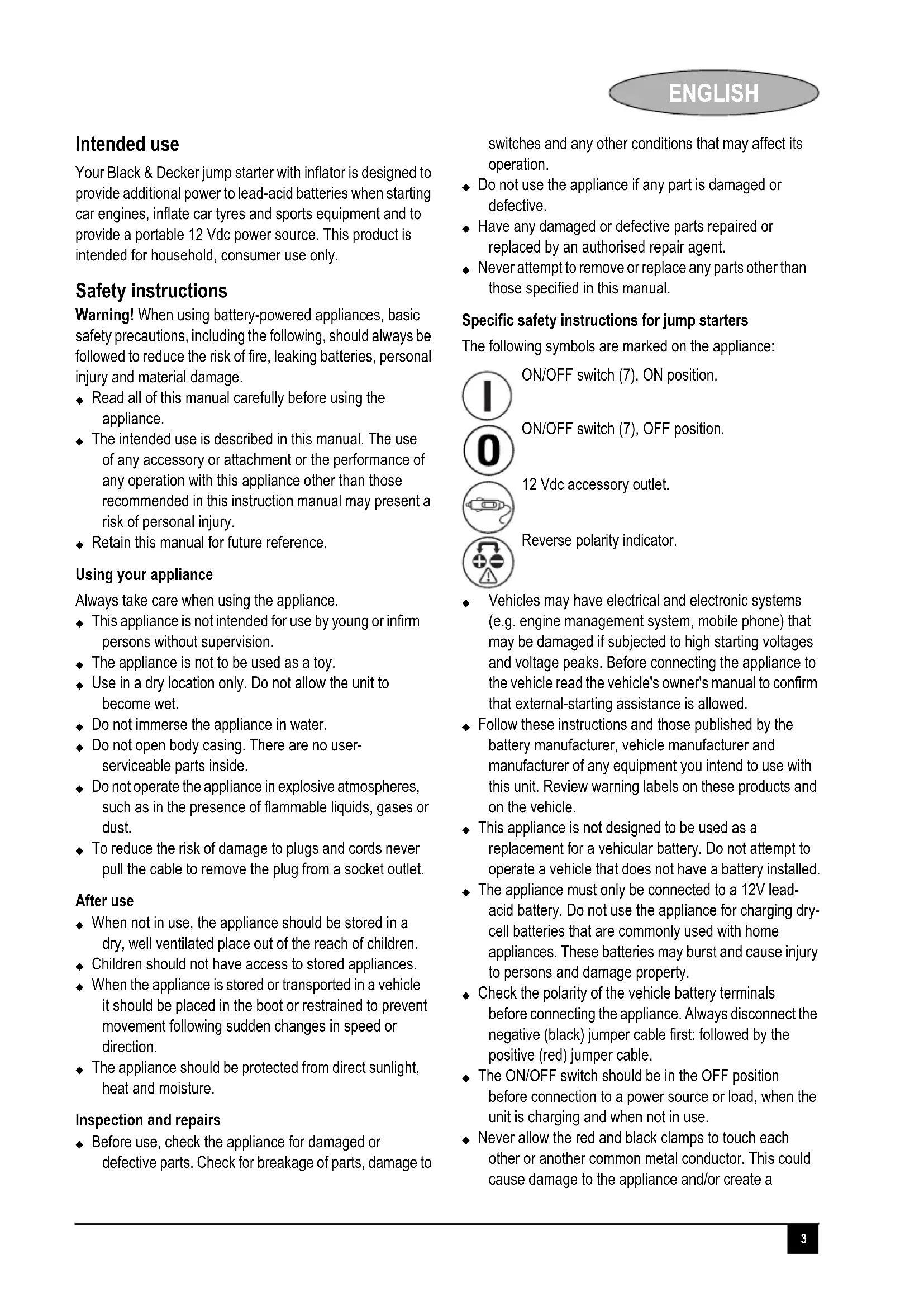

Your Black & Decker jump starter with inflator is designed to provide additional power to lead-acid batteries when starting car engines, inflate car tyres and sports equipment and to provide a portable 12 Vdc power source. This product is intended for household, consumer use only.
Safety instructions
Warning! When using battery-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, leaking batteries, personal injury and material damage.
◆ Read all of this manual carefully before using the appliance.
The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
◆ Retain this manual for future reference.
Using your appliance
Always take care when using the appliance.
- This appliance is not intended for use by young or infirm persons without supervision.
◆ The appliance is not to be used as a toy.
◆ Use in a dry location only. Do not allow the unit to become wet.
◆ Do not immerse the appliance in water.
Do not open body casing. There are no user-serviceable parts inside.
Do not operate the appliance in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
◆ To reduce the risk of damage to plugs and cords never pull the cable to remove the plug from a socket outlet.
After use
When not in use, the appliance should be stored in a dry, well ventilated place out of the reach of children.
◆ Children should not have access to stored appliances.
- When the appliance is stored or transported in a vehicle it should be placed in the boot or restrained to prevent movement following sudden changes in speed or direction.
◆ The appliance should be protected from direct sunlight, heat and moisture.
Inspection and repairs
Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to
switches and any other conditions that may affect its operation.
- Do not use the appliance if any part is damaged or defective.
◆ Have any damaged or defective parts repaired or replaced by an authorised repair agent. - Never attempt to remove or replace any parts other than those specified in this manual.
Specific safety instructions for jump starters
The following symbols are marked on the appliance:
ON/OFF switch (7), ON position.
ON/OFF switch (7), OFF position.
12 Vdc accessory outlet.
Reverse polarity indicator.
- Vehicles may have electrical and electronic systems (e.g. engine management system, mobile phone) that may be damaged if subjected to high starting voltages and voltage peaks. Before connecting the appliance to the vehicle read the vehicle's owner's manual to confirm that external-starting assistance is allowed.
- Follow these instructions and those published by the battery manufacturer, vehicle manufacturer and manufacturer of any equipment you intend to use with this unit. Review warning labels on these products and on the vehicle.
- This appliance is not designed to be used as a replacement for a vehicular battery. Do not attempt to operate a vehicle that does not have a battery installed.
The appliance must only be connected to a 12V lead-acid battery. Do not use the appliance for charging dry-cell batteries that are commonly used with home appliances. These batteries may burst and cause injury to persons and damage property.
◆ Check the polarity of the vehicle battery terminals before connecting the appliance. Always disconnect the negative (black) jumper cable first: followed by the positive (red) jumper cable. - The ON/OFF switch should be in the OFF position before connection to a power source or load, when the unit is charging and when not in use.
- Never allow the red and black clamps to touch each other or another common metal conductor. This could cause damage to the appliance and/or create a
ENGLISH
sparking/explosion hazard. Always store the battery clamps in the built-in holsters when not in use.
When using this unit in proximity to the vehicle's battery and engine, stand the unit on a flat, stable surface, and be sure to keep all clamps, cords, clothing and body parts away from moving parts of the vehicle.
- This appliance contains a sealed lead-acid battery. It is recommended that the appliance is positioned upright during storage, use, and recharging.
- Explosive gas may be vented from the lead acid batteries when charging and under extreme conditions battery leakage may occur. Ensure the area is well ventilated when conducting jump starting and charging procedures.
Do not charge the appliance using the 12V connector when the vehicle is occupied. Ensure the area is well ventilated.
- To reduce the risk of electric shock, disconnect the appliance from any power source before attempting maintenance or cleaning. Turning off controls without disconnecting the appliance will not reduce this risk.
- The 12 Vdc outlet is strictly for use as an accessory outlet, the maximum output is 5A. Never insert a vehicle cigarette lighter into the unit's 12 Vdc accessory outlet.
Make sure the appliance is disconnected from all charging power sources before beginning the jump start procedure.
- Never attempt to use the ac charger and dc charging connection simultaneously.
Additional safety instructions for batteries and chargers
Batteries
◆ Never attempt to open for any reason.
◆ Do not expose the battery to water.
- Do not store in locations where the temperature may exceed 40 °C.
◆ Charge only at ambient temperatures between 10 °C and 40 °C.
◆ Charge only using the chargers provided with the appliance.
- When disposing of batteries, follow the instructions given in the section "Protecting the environment".
◆ Under extreme conditions, battery leakage may occur. When you notice liquid on the batteries, carefully wipe the liquid off using a cloth. Avoid skin contact.
◆ In case of skin or eye contact, follow the instructions below.
Warning! The battery fluid is a diluted sulphuric acid and may cause personal injury or damage to property. In case of skin contact, immediately rinse with water. If redness, pain or irritation occurs seek medical attention. In case of eye
contact, rinse immediately with clean water and seek immediate medical attention.
Chargers
Your charger has been designed for a specific voltage. Always check that the mains voltage corresponds to the voltage on the rating plate.
Warning! Never attempt to replace the charger unit with a regular mains plug.
Use your Black & Decker charger only to charge the battery in the tool with which it was supplied. Other batteries could burst, causing personal injury and damage.
- Never attempt to charge non-rechargeable batteries.
◆ Have defective cords replaced immediately.
◆ Do not expose the charger to water.
◆ Do not open the charger. - Do not probe the charger.
The battery must be placed in a well ventilated area when charging.
The following symbols are found on your charger:
Fail-safe isolating transformer. The mains supply is electrically separated from the transformer output.
The charger automatically shuts off if the ambient temperature becomes too high. As a consequence the charger will be inoperable. The charging base must be disconnected from the mains supply and taken to an authorised service centre for repair.
The charging base is intended for indoor use only.
Read the instruction manual before use.
Electrical safety
This tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard.
Features
This appliance includes some or all of the following features:
- Jumper cables
- 12 Vdc charging socket
- 12 Vdc accessory outlet
- Battery status pushbutton
-
Carry handle
-
Battery status LEDs
- ON/OFF switch
- LED area light on/off switch
- Reverse polarity indicator
- LED area light
- Mains charging adaptor
- 12 Vdc vehicle adaptor
- Heavy-duty copper clamps
- Clamp holders
- Inflator nozzle
Use
Charging the unit (fig. A)
This unit is shipped in a partially charged state.
◆ Charge the unit before first use using the mains charging adaptor (11) for 48 hours.
Lead-acid batteries require routine maintenance to ensure a full charge and a long battery life. All batteries lose energy from self-discharge over time and more rapidly at higher temperatures. When the unit is not in use, Black & Decker recommend that the battery is charged at least every 60 days.
◆ Check the battery charge level by pressing the battery status pushbutton (4). The LED charge status display (6) will indicate the level of battery charge. When only one red LED lights, charge the unit.
Note: Charging the battery after each use will prolong the battery life; frequent heavy discharges between charges and/or overcharging will reduce battery life.
The battery can be charged using the mains charging adaptor (11) or the 12 Vdc vehicle adaptor (12).
Charging the unit with the mains charger (fig. A)
Make sure that the ON/OFF switch (7) and the LED area light (10) are turned off while the unit is being charged.
As charging progresses, the red LEDs will light one by one.
◆ Charge the unit until the green FULL LED lights.
◆ Continue to charge for one to two more hours.
Note: The mains charger should not be connected for more than 60 hours.
When charging is complete, disconnect the mains charging adaptor (11) and store it in a safe place.
Charging the unit with the 12 Vdc vehicle adaptor (fig. A)
Make sure that the ON/OFF switch (7) and the LED area light (10) are turned off while the unit is being charged.
The 12 Vdc vehicle adaptor (12) does not provide a taper charge.
Warning! While charging with the 12 Vdc vehicle adaptor (12):
◆ Do not charge for more than 4 hours maximum.
◆ Do not leave unattended.
To charge the unit with the 12 Vdc vehicle adaptor (12):
◆ Insert one end of the 12 Vdc vehicle adaptor (12) into a 12 Vdc accessory outlet on the vehicle or boat.
- Insert the other end of the 12 Vdc vehicle adaptor (12) into the 12 Vdc charging socket (3) on the front of the unit.
To check the charge status of the battery during dc charging, disconnect the 12 Vdc vehicle adapter from the accessory outlet and push the battery status pushbutton. Observe the battery status LEDs. Do not charge for more than 3 to 4 hours maximum.
When charging is completed, remove the 12 Vdc vehicle adaptor (12) and store it in a safe place.
Warning! You must remove the 12 Vdc vehicle adaptor from the 12 Vdc accessory outlet on the vehicle before attempting to drive the vehicle. Failure to do so could result in some cases of the engine continuing to run even when the ignition key is removed which could result in personal injury or property damage.
Using the unit as a jump-starter (fig. A & B)
Warning! Make sure the vehicle is in neutral with the parking brake applied.
- Turn off the vehicles ignition and all accessories before making any connections.
◆ Make sure that the units ON/OFF switch (7) is turned OFF. - The following procedure is for a negative earth system ie the negative battery terminal is connected to the chassis.
- Connect the positive (+) red clamp to the vehicle's positive battery terminal.
Connect the negative (-) black clamp to the vehicle's chassis or a solid, non-moving, metal vehicle component or chassis part.
Note: If you connections are incorrectly made the unit will beep continuously and the red Reverse Polarity Indicator (9) will illuminate, even if the ON/OFF switch (7) is in the OFF position. Rectify the connections immediatley.
Warning! Make sure that the cables are not in the path of moving belts or the fan.
◆ Turn the unit's ON/OFF switch (7) to the ON position.
◆ Start the vehicle and crank the engine in 3 to 6 second bursts.
If the engine doesn't start within 6 seconds let the unit's internal battery cool for 3 minutes before making another attempt.
When the vehicle starts, turn the unit's ON/OFF switch (7) to the OFF position.
ENGLISH
Leave the vehicle's engine running.
◆ Disconnect the (-) black clamp connected to the engine or chassis first, followed by the (+) red clamp that is connected to the battery positive (+) terminal.
- Carefully press the negative (black) jumper cable wire into the storage channel starting at the end furthest from the clamp.
- Clamp the negative (black) clamp onto the clamp holder (14).
- Carefully press the positive (red) jumper cable wire into the storage channel starting at the end furthest from the clamp.
◆ Clamp the positive (red) clamp onto the clamp holder(14).
◆ Charge the unit as soon as possible.
Using the inflator (fig. C)
Warning! When using the inflator:
◆ Do not direct the nozzle at animals or bystanders.
◆ Never leave the compressor unattended when running.
- Only use the adaptors supplied.
- Should the unit run over an extended period of time it may overheat and cause the thermal trip to activate. When this occurs switch the compressor off and allow to cool for 30 minutes.
- Keep the compressor stored out of reach of small children.
◆ The gauge is intended as a guide only. Tyre pressures should be regularly checked with a certified gauge.
- Do not over inflate any object as this may cause a risk of injury.
This inflator can be used to inflate car tyres and sports equipment.
◆ Remove the inflator hose from the storage compartment.
If an adaptor is required, choose the correct adaptor (18) for the product you are inflating and fit it into the nozzle (15).
Fit the nozzle (15) of the inflator or the adaptor (18), if fitted, to the valve of the item to be inflated. Make sure that the nozzle (15) is locked in place.
◆ Move the inflator switch (16) to the on position (I).
◆ Monitor the pressure gauge (17) until the required pressure is reached.
◆ Move the inflator switch (16) to the off position (0).
◆ Remove the adaptor (18), if fitted, or the nozzle (15) from the inflated item.
◆ Remove the adaptor (18), if fitted, and store it in a safe place and return the hose to the storage compartment.
Using the 12 Vdc portable power supply (fig. A)
This portable power supply can be used with all 12 Vdc accessories equipped with a male accessory outlet plug rated up to 5 amps.
Warning! Do not attempt to use or charge the unit while the 12 Vdc accessory outlet (3) is in use.
◆ Lift the cover of the 12 Vdc accessory outlet (3).
◆ Insert the 12 Vdc plug from the appliance into the 12 Vdc accessory outlet (3) on the top of the unit.
Warning! Do not exceed a 5A load.
◆ Switch on the appliance and operate as usual.
◆ Periodically press the battery status pushbutton (4) to check the status of the internal battery.
Warning! Make sure that the unit's ON/OFF switch (7) is in the OFF position when using the unit's 12 Vdc accessory outlet (3).
Warning! Do not operate appliances that draw more than 5 amps.
Warning! Never insert a cigarette lighter into the 12 Vdc accessory outlet (3).
Using the LED area light (fig. A)
The LED area light (10) will operate up to 114 hours on a full charge. The LED area light's operating life is 100,000 hours.
◆ Slide the LED area light on/off button (8) on the top panel of the unit to turn the LED area light (10) on.
◆ Slide the LED area light on/off button (8) on the top panel of the unit to turn the LED area light (10) off.
Make sure that the LED area light is turned off while the unit is being charged or stored.
Maintenance
Your Black & Decker tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
Warning! Before performing any maintenance or cleaning on the appliance, unplug the appliance.
From time to time wipe the appliance with a damp cloth. Do not use any abrasive or solvent-based cleaner. Do not immerse the appliance in water.
Replacing the fuse in the vehicle dc power cord
◆ Remove the gold cap by turning it counter clockwise.
◆ Remove the rubber washer, centre pin and the spring.
◆ Remove the fuse.
◆ Fit a new fuse of the same type and size (8 A).
◆ Install the centre pin, spring and rubber washer.
◆ Install the gold cap by turning clockwise onto the plug.
Protecting the environment
Separate collection. This product must not be disposed of with normal household waste.
Should you find one day that your appliance needs replacement, or if it is of no further use to you, think of the protection of the environment. Black & Decker repair agents will accept old Black & Decker tools and ensure that they are disposed of in an environmentally safe way.
Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.
Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.
Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.
You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.
Black & Decker batteries can be recharged many times. At the end of their useful life, discard batteries with due care for our environment:
Do not dispose of the battery in fire, as this may result in an explosion.
Lead Acid (Pb) batteries are recyclable. They must not be disposed of with household waste. If you do not have access to a product recycling scheme the battery must be removed as described below and disposed of in accordance with local regulations.
◆ Do not short-circuit the battery terminals.
◆ Be aware that the battery is heavy.
◆ If possible, operate the appliance to run the battery down completely.
Please refer to the exploded diagram at the back of this manual to aid you in the removal of the batteries.
Place the battery in a suitable packaging to ensure that the terminals cannot be short-circuited.
Take the battery to your service agent or a local recycling station. Collected batteries will be recycled or disposed of properly.
Technical data
| BDV012I | |
| Battery Type 12 V 17 Ah | sealed lead acid |
| Output (instant) A 450 | |
| Output (constant for 5 seconds) A 300 | |
| Inflator output psi 120 | |
| Weight kg 7.9 | |
| Battery Charger | |
| Input Vac 230 | |
| Approx. charging time h 48 | |
| Weight kg 0.2 |
EC declaration of conformity
BDV012I
Black & Decker declares that these products conform to: Standards & Legislation.
95/54/EC, 2006/95/EC, EN60335, EN55014, EN61000
Kevin Hewitt
Director of Consumer
Engineering
Spennymoor, County Durham
DL16 6JG,
United Kingdom
04-07-2007
Guarantee
Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.
If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to make sure of the minimum inconvenience to the customer unless:
◆ The product has been used for trade, professional or hire purposes.
◆ The product has been subjected to misuse or neglect.
◆ The product has sustained damage through foreign objects, substances or accidents.
◆ Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.
ENGLISH
To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at:
www.2helpU.com
Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and to be kept up to date on new products and special offers. Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk.
Director of Consumer
Engineering
Spennymoor, County Durham
DL16 6JG,
Spennymoor, County Durham
DL16 6JG,
Royaume-Uni
04-07-2007
Garantie
Spennymoor, County Durham
DL16 6JG,
Regno Unito
04-07-2007
Garanzia
Director of Consumer
Engineering
Spennymoor, County Durham
DL16 6JG,
Verenigd Koninkrijk
04-07-2007
Garantie
Spennymoor, County Durham
DL16 6JG,
Reino Unido
04-07-2007
Garantía
Spennymoor, County Durham
DL16 6JG,
Reino Unido
04-07-2007
Garantia
Director of Consumer
Engineering
Spennymoor, County Durham
DL16 6JG,
Storbritannien
2007-07-04
Garanti
Spennymoor, County Durham
DL16 6JG,
Storbritannia
4.7.2007
Garanti
Black & Decker er trygg på kvaliteten til sine produkter og tilbyr en enestående garanti. Denne garantierklæringen kommer i tillegg til dine lovbestemte rettigheter, og er ikke i konflikt med disse. Garantien er gyldig i EU- og EFTA-medlemsstatene.
Director of Consumer
Engineering
Spennymoor, County Durham
DL16 6JG,
Storbritannien
04-07-2007
Garanti
Director of Consumer
Engineering
Spennymoor, County Durham
DL16 6JG,
Iso-Britannia
4.7.2007
Takuu
Spennymoor, County Durham
DL16 6JG,
Ηνωμένο Βασίλειο
04-07-2007
