Product type	Wireless bone conduction headset
Brand	Nedis
Model	HPBT5400GY
Weight	36 g
Bluetooth version	5.0
Bluetooth range	Up to 10 m (no obstacle)
Frequency response	20 - 20,000 Hz
Impedance	8 Ω
Battery type	Lithium-ion
Battery capacity	180 mAh
Charging time	Up to 2 hours
Playback time	Up to 4.5 hours
Internal storage capacity	8 GB
Power supply	5 V DC, 1 A
Built-in microphone	Yes
Connectivity	Bluetooth and internal memory (MP3 player)
Care and cleaning	Clean with a soft, dry cloth. Do not use harsh cleaning products.
Safety	Do not expose to water or moisture. Avoid prolonged listening at high volume.
Spare parts and repairability	USB cable and foam ear tips included. Repair by qualified technician only.
Warranty	Statutory warranty of conformity (according to applicable regulations)

Frequently Asked Questions - HPBT5400GY NEDIS

How to pair the HPBT5400GY headset with a smartphone?

Turn on the headset by pressing the play/pause button for 3 seconds. Enable Bluetooth on your smartphone and select "HPBT5400GY" from the device list. The LED flashes red and blue during pairing. Once connected, the headset announces "Connected".

How to charge the Nedis HPBT5400GY headset?

Connect the supplied USB cable to the headset's micro-USB port and to a charger or computer. The indicator LED lights up when charging is complete. Charging time is about 2 hours.

What is the battery life of the headset?

Playback time is approximately 4.5 hours. The 180 mAh lithium-ion battery recharges in 2 hours.

How to store music in the headset's internal memory?

Connect the headset to a computer with the USB cable. It appears as a removable drive. Copy or move audio files (MP3, etc.) to the 8 GB internal memory.

How to switch between Bluetooth mode and memory card mode?

Press the play/pause button twice quickly. The headset announces the activated mode (Bluetooth or Card). In Card mode, the music stored internally is played.

How to adjust the volume on the HPBT5400GY headset?

Use the buttons: press the Previous Track button (5) to lower volume and the Next Track button (6) to increase volume.

How to answer or reject a call with the headset?

To answer, press the play/pause button. To reject, press and hold this button for 2 seconds. To end a call, press play/pause again.

What to do if the headset does not connect via Bluetooth?

Ensure the headset is on and in pairing mode (LED flashing). Check that Bluetooth on your device is enabled and that the headset is not already connected to another device. If necessary, turn off the headset and try again.

Is the Nedis HPBT5400GY headset water-resistant?

No, it is not water-resistant. Do not expose it to water or moisture. Use it in a dry environment.

How to clean the bone conduction headset?

Use a soft, dry cloth to clean the surface. Do not use harsh cleaning products, alcohol, or solvents. Avoid getting moisture into the ports.

USER MANUAL HPBT5400GY NEDIS

Bone Conduction Headphones

For safe and comfortable

enjoying your music

HPBT5400GY

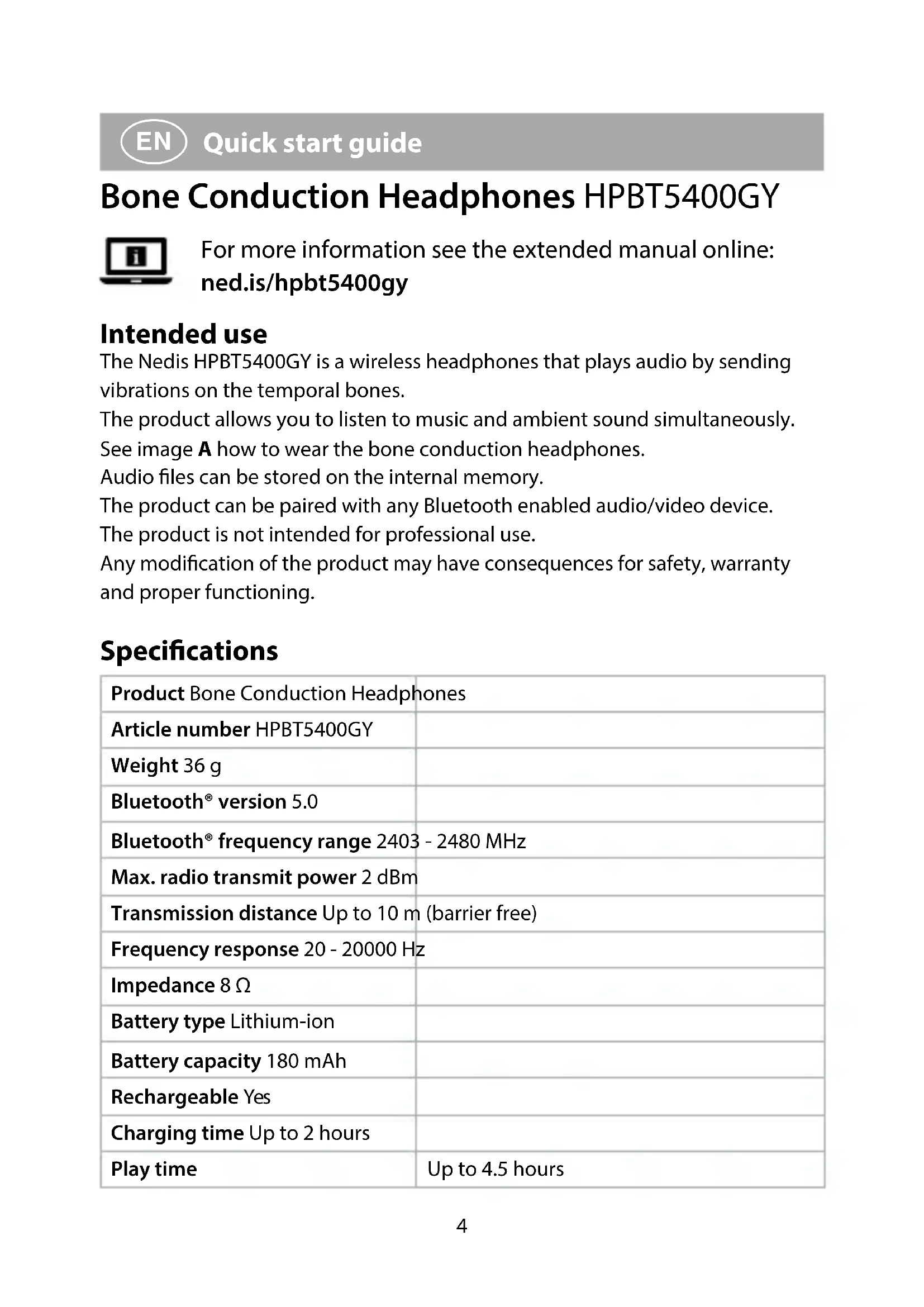

EN Quick start guide 4

DE Kurzanleitung 8

The Nedis HPBT5400GY is a wireless headphones that plays audio by sending vibrations on the temporal bones.

The product allows you to listen to music and ambient sound simultaneously.

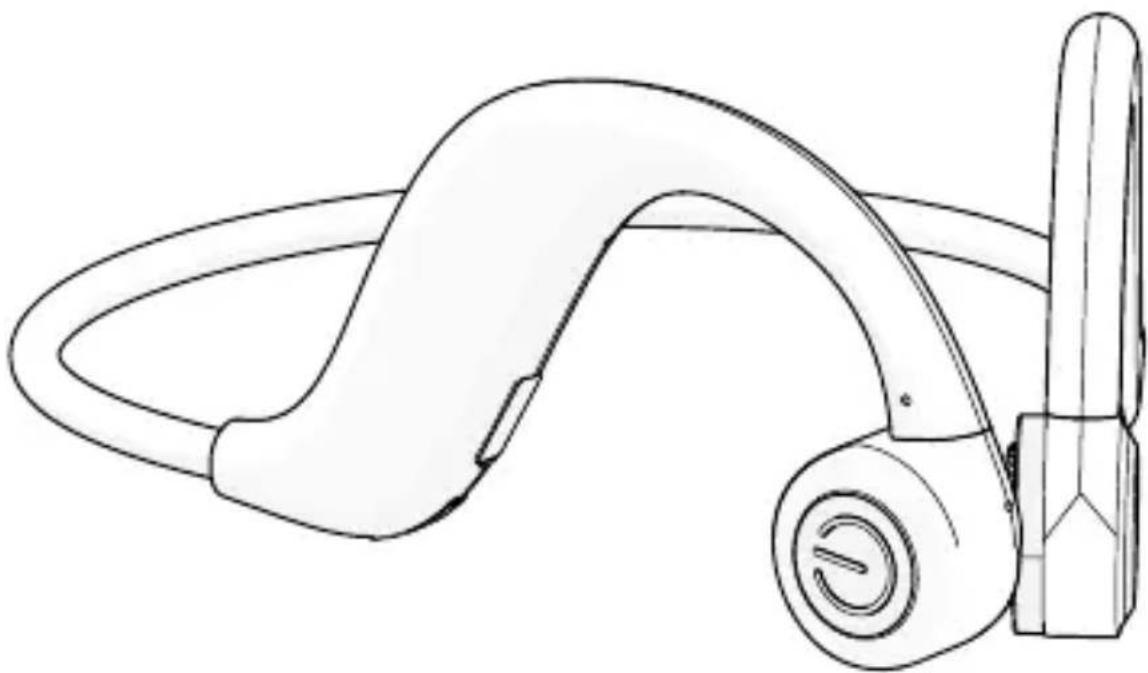

See image A how to wear the bone conduction headphones.

Audio files can be stored on the internal memory.

The product can be paired with any Bluetooth enabled audio/video device.

The product is not intended for professional use.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Bone Conduction Headphones
Article number HPBT5400GY
Weight 36 g
Bluetooth® version 5.0
Bluetooth® frequency range 2403 - 2480 MHz
Max. radio transmit power 2 dBm
Transmission distance Up to 10 m (barrier free)
Frequency response 20 - 20000 Hz
Impedance 8 Ω
Battery type Lithium-ion
Battery capacity 180 mAh
Rechargeable Yes
Charging time Up to 2 hours
Play time	Up to 4.5 hours
Storage capacity 8 GB
Power input 5 VDC; 1 A

Main parts (image A)

Built-in microphone
Status indicator LED
3 Play/pause button
4 Micro USB charging port

Previous song / Volume down
6 Next song / Volume up
7 USB power cable
Foam rubber earbuds

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.
• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Disconnect the product from the power source and other equipment if problems occur.
• Do not expose the product to water or moisture.
• Do not use any charger other than that specifically provided for use with the product.
• Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions.
• Do not leave a battery on prolonged charge when not in use.
• After extended periods of storage, it may be necessary to charge and discharge the cells or batteries several times to obtain maximum performance.
• Batteries contain explosive gases. Prevent contact with flames and sparks. Provide adequate ventilation during charging.
• During charging, the battery must be placed in a well-ventilated area.
• To prevent possible hearing damage, do not listen at high volume levels for long periods.

Using the product

Due to the wide variety of products with a bluetooth connection we cannot guaranty that all devices will be recognized or all operating options can function.

Charging the product

1. Plug the USB power cable B 7 into the micro USB charging port B4.
2. Plug the other end of B into a computer or power adapter.

The status indicator LED B 2 lights up blue when the headphones are fully charged.

Switching on the product

• Press and hold play / pause B 3 for 3 seconds.

Pairing the headphones to a Bluetooth audio source

1. Switch on the product to activate searching mode.
2. Enable Bluetooth on the device you want to pair the headphones with.

B2 blinks red and blue to indicate pairing mode is active.

1. Select "HPBT5400GY" from the list of available Bluetooth devices on your device.

When pairing is successful, the headphones voice says "Connected".

If the headphones have been paired with another device before, make sure that device is switched off.

If the headphones lose connection to the Bluetooth source, they will automatically reconnect when back in range and switched on.

Storing music

1. Plug B 7 into B4.
2. Plug the other end of B 7 into a computer.
3. Copy or move audio files to the internal storage of the product.

Switching between Bluetooth mode and Card mode (Internal storage mode)

• Double press B 3 to switch between Bluetooth mode and Card mode. The headphones voice says which mode is activated.

Controlling the music

• Press B 3 to play or pause the music.

• Press and hold B 5 to go back to the start of the song. Press again to go to the previous song.

• Press and hold B to skip to the next song.

Controlling the volume

• Press B 5 to decrease the volume.
• Press B 6 to increase the volume.

Making phone calls

To answer an incoming call, press B 3.
- To reject an incoming call, press and hold B 3 for 2 seconds.
To end a call, press B 3

Switching off the product

• Press and hold B 3 for 3 seconds to switch off the headphones.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product HPBT5400GY from our brand Nedis^®, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:

webshop.nedis.com/HPBT5400GY#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Phone: [phone] (during office hours)

Nedis B.V., de Tweeling 28

5215 MC's-Hertogenbosch, the Netherlands

5215 MC 's-Hertogenbosch, the Netherlands

5215 MC's-Hertogenbosch, the Netherlands
