USER MANUAL SFS 110 C2 SILVERCREST

Operating instructions

NL BE

VACUMEERMACHINE

Gebruiksaanwijizing

ES

ENVASADORALVACIO

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Limitation of liability 20

Intended use 20

Package contents and transport inspection 21

Unpacking 21

Disposal of packaging materials 21

Description of the appliance 22

Technical data 22

Safety guidelines 23

Setting up and connecting 25

Set-up location requirements 25

Electrical connection 25

Welding a tube film 26

Vacuum sealing 28

Vacuuming the tube film 28

Vacuuming sealing containers and recloseable bags 30

Cleaning 31

Cleaning the appliance 31

Storage 32

Disposal 32

Kompernass Handels GmbH warranty 3 3

Service 34

Importer 34

Ordering replacement parts 35

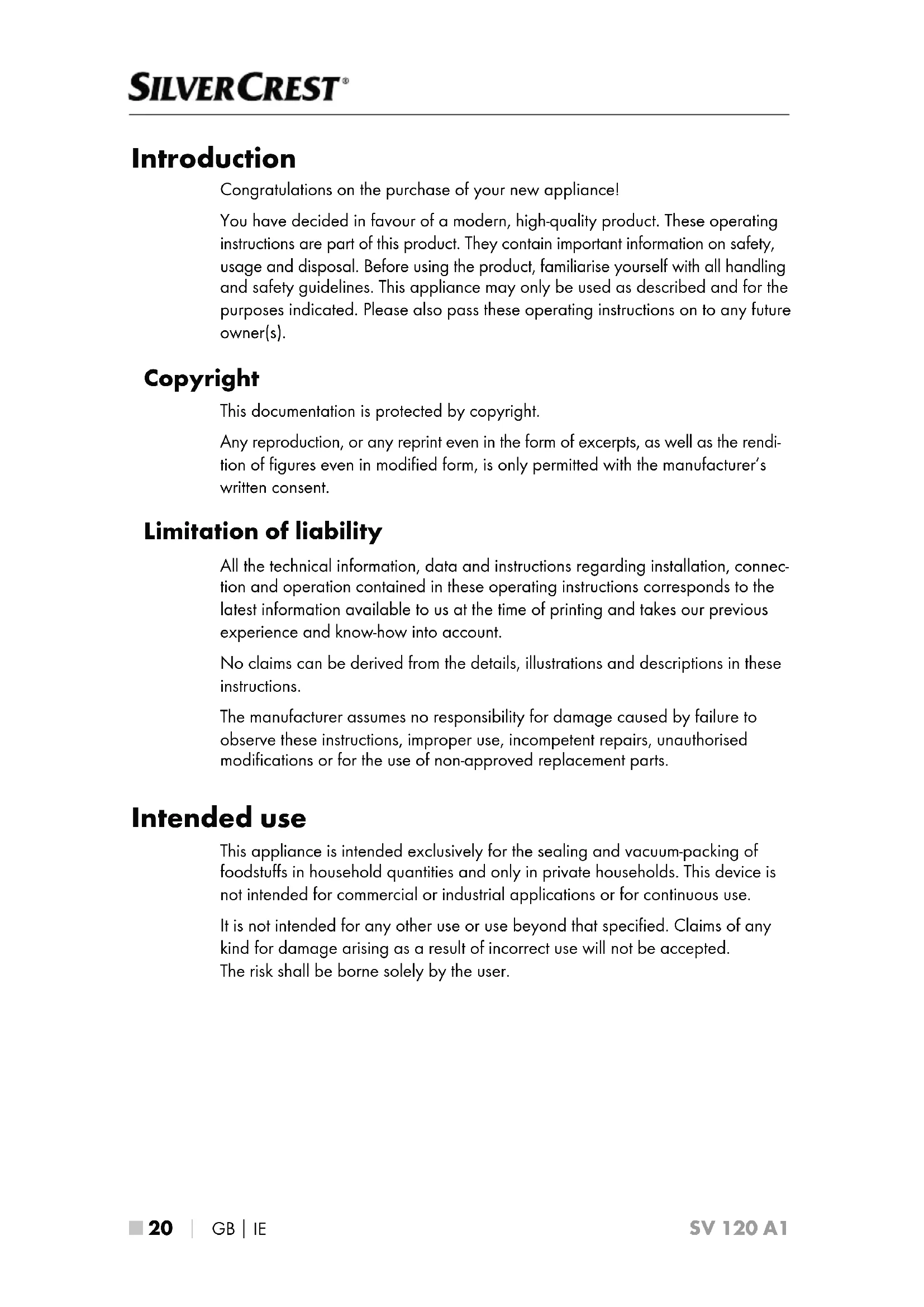

Introduction

Congratulations on the purchase of your new appliance!

You have decided in favour of a modern, high-quality product. These operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety guidelines. This appliance may only be used as described and for the purposes indicated. Please also pass these operating instructions on to any future owner(s).

Copyright

This documentation is protected by copyright.

Any reproduction, or any reprint even in the form of excerpts, as well as the rendi tion of figures even in modified form, is only permitted with the manufacturer's written consent.

Limitation of liability

All the technical information, data and instructions regarding installation, connection and operation contained in these operating instructions corresponds to the latest information available to us at the time of printing and takes our previous experience and know-how into account.

No claims can be derived from the details, illustrations and descriptions in these instructions.

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, unauthorised modifications or for the use of non-approved replacement parts.

Intended use

This appliance is intended exclusively for the sealing and vacuum-packing of foodstuffs in household quantities and only in private households. This device is not intended for commercial or industrial applications or for continuous use.

It is not intended for any other use or use beyond that specified. Claims of any kind for damage arising as a result of incorrect use will not be accepted. The risk shall be borne solely by the user.

Package contents and transport inspection

The appliance is supplied with the following components as standard:

Vacuum Sealer
- 1 x film roll
- 1 × 60 cm tube for recloseable bag
- 1 × 60 cm tube for container
- 1 × adapter for containers with a larger valve diameter
- 1x replacement sealing ring
These operating instructions

NOTE

• Check the package for completeness and for signs of visible damage.
• If the consignment is incomplete or damaged due to defective packaging or carriage, contact the Service hotline (see the chapter Service).

Unpacking

Remove the appliance, the tube film and the operating instructions from the carton.
Remove all packaging material.
Remove the protective film from the control panel.

DANGER

• Packaging materials should not be used as a plaything. Risk of suffocation.

Disposal of packaging materials

The packaging protects the appliance from damage during carriage.
The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.

Returning the packaging to the materials cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites

NOTE

If possible, keep the original packaging during the warranty period so that the device can be properly packed for returning in the event of a warranty claim.

Description of the appliance

Figure A

1 Appliance lid
Suction tube
3 Cable retainer
Welding wires
Lower sealing ring
6 Rear limiters
Front limiters
8 Lid release
Suction fitting
Upper sealing ring
1 Press seal

Figure B

Red control lamp (for monitoring sealing process)
13 button (external vacuuming/stop process)
14 button (seal/stop process)
15 button (vacuum/stop process)
16 Green control lamp (for monitoring vacuuming process)

Figure C:

Vacuum hose for bag
Suction cup
19 Adapter for connecting to appliance
Vacuum hose for container
21 Adapter for containers
Adapter for connecting to appliance
Adapter for containers with a large valve diameter

Technical data

Operating voltage	100 - 240 V ~ (alternating current), 50/60 Hz
Power consumption 120 W
Protection class	II/□ (double insulation)

Safety guidelines

RISK OF ELECTRIC SHOCK

Prior to use, check the device for visible external damage. Never operate an appliance that is damaged.
To avoid risks, arrange for a defective power cable to be replaced by qualified technicians or by our Customer Service Department.
NEVER use the appliance with a defective power cable.
- Do not use extension cables or power socket strips that do not meet the required safety standards.
Never open the appliance housing!
- Remove the plug from the mains power socket before beginning to clean the device.
- Ensure that no moisture can penetrate the device during cleaning.

RISK OF INJURY!

All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs may result in a risk of injury to the user or damage to the appliance. They will also invalidate any warranty claim.
The mains power socket must be easily accessible, so that the power cable can be easily disconnected in the event of an emergency.

RISK OF INJURY!

• Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
  The appliance and its connecting cable must be kept away from children younger than 8 years old.
  This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.
  Children must not play with the appliance!
  Children should be supervised to ensure that they do not play with the appliance.
• Do not leave the appliance unsupervised when it is ready for use. To prevent it being switched on accidentally, always unplug the appliance after use or during breaks.

CAUTION - PROPERTY DAMAGE!

• Do not use an external timer switch or a separate remote control system to operate the appliance.

Setting up and connecting

Set-up location requirements

For safe and trouble-free operation of the device, the set-up location must fulfil the following requirements:

When setting it up, place the appliance on a firm, flat and horizontal surface.
- Do not place the device in a hot, wet or extremely damp environment or in the vicinity of flammable materials.
The mains power socket must be easily accessible, so that the power cable can be easily disconnected in the event of an emergency.

Electrical connection

CAUTION

Before you connect the appliance, compare the connection data (voltage and frequency) on the data plate with that of your mains power network. These data must agree so that no damage is sustained by the device.
- Ensure that the power cable is undamaged and is not routed over hot surfaces and/or sharp edges.
Ensure that the power cable is not taut or kinked.
Do not let the power cable hang over edges (trip wire effect).
Insert the plug into the mains mains power socket.

Welding a tube film

NOTES ON THE FILM

The film width may not exceed 30~cm . Otherwise it cannot be welded correctly.
Use only nylon-PE films with a structure (points or grooves) on one side and that have a structure (points or grooves) on one side and a thickness of approximately 0.17 - 0.29 mm (170 - 290 μ).

Otherwise the weld seam will not be tight and the appliance may be damaged. You can recognise films of this type from the information on the packaging. The quality of the weld seam will vary depending on the type and thickness of the film.

The supplied film is suitable for temperatures between -20^ and +110^ .

1) Cut the desired length for your bag from the tube film using a pair of scissors. Cut as straight as possible.
2) Open the appliance lid ① by pressing the lid release ⑧ and opening the lid ① upwards.

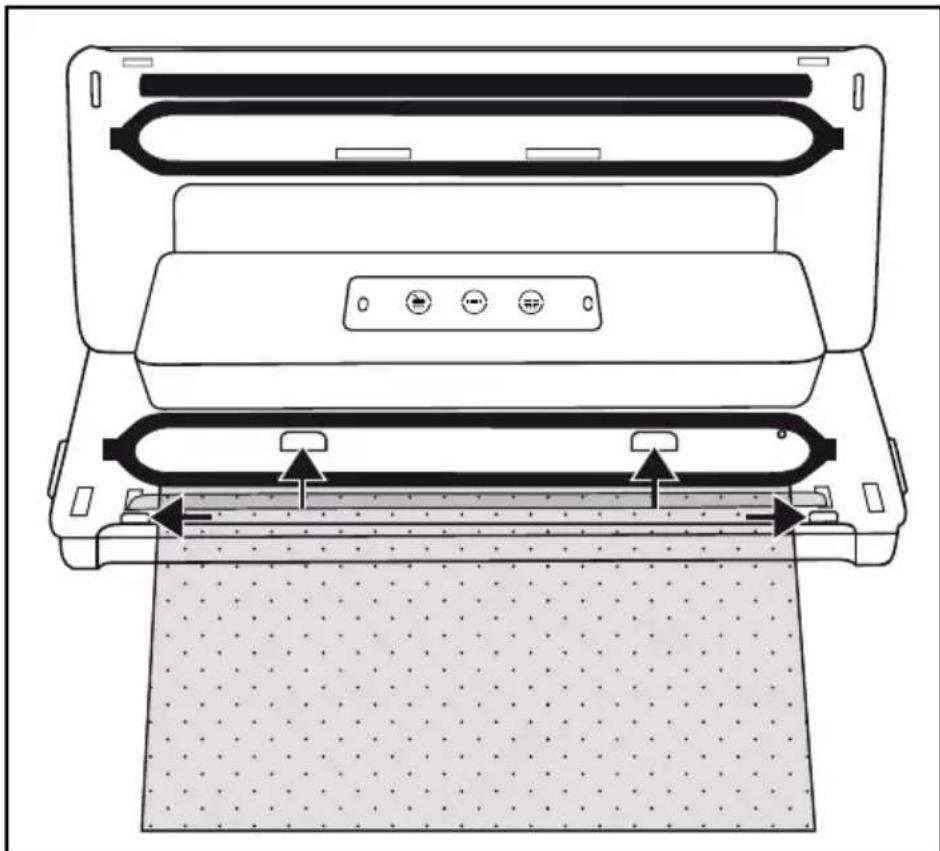

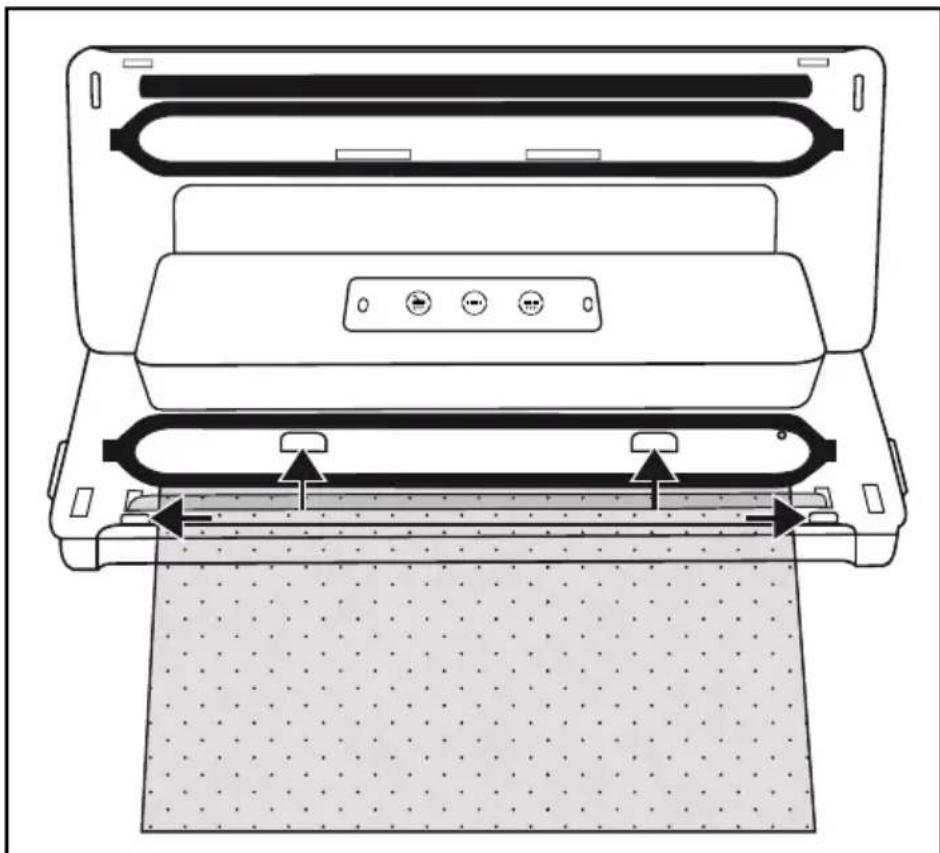

3) Lay the open end of the bag as far into the appliance so that the opening of the bag is located centrally under the lower sealing ring 5. The bag should be inserted no further than the rear limiters 6 and must lie between the front limiters 7. If the bag lies over one or both of the two limiters 7, then the bag cannot be correctly welded.

NOTE

The bag opening must lie flat on the welding wire. Otherwise the welding does not work properly.

4) Close the appliance lid ①. The press seal ⑩ presses the bag onto the welding wire ④, to create a smooth seam. Ensure that both corners of the appliance lid ① click closed. If necessary, press them down once again on the markings and so that the appliance lid ① clicks into place and locks shut.
5) Press the button. The red control lamp 12 lights up. As soon as the sealing process is finished, the red control lamp 12 goes off.

NOTE

• You can halt the sealing process at any time by pressing the button again. The red control lamp goes out 12.

CAUTION - PROPERTY DAMAGE!

If the red control lamp ⑫ does not go out after a maximum of 10 seconds, there is a fault with the appliance.

• Remove the plug from the mains power socket immediately. Do not attempt to repair the appliance yourself. Contact the Customer Service department.

6) Open the appliance lid ① by pressing the lid release ③ and flipping the lid ① upwards. Remove the bag. This is now sealed at one end.

NOTE

• Ensure that the weld seam is properly closed. A correct weld seam should be a smooth, straight stripe without any creases.

7) Fill the bag. You must leave at least 6cm of the bag free up to the edge to be welded.

CAUTION - PROPERTY DAMAGE!

• Fill the bag so that no food scraps or liquids can leak out during welding and get into the appliance.

8) If you do not want to vacuum the bag, you can now weld the other, open side.

NOTE

• Wait 15 seconds before sealing the next bag to allow the appliance to cool down. During this cool-down phase, you cannot start the "seal" function.

Vacuum sealing

Vacuuming the tube film

You can also suck the air out of the bag (vacuum) during welding:

NOTE

• Do not evacuate bags that contain only liquids. These could be sucked up during the vacuum sealing process. If small quantities of liquid or food do get sucked up, they will be deposited in the small drip tray that is located between the lower sealing ring 5.

1) Lay the open end of the bag as far into the appliance so that the opening of the bag is located centrally under the lower sealing ring 5. The bag should be inserted no further than the rear limiters 6 and must lie between the front limiters 7. Otherwise the vacuuming and welding will not function correctly:

2) Close the appliance lid ①. Ensure that both corners of the appliance lid ① click closed. If necessary, press them down once again on the markings and so that the appliance lid ① clicks into place and locks shut.

NOTE

• Ensure that the upper 10 and the lower sealing rings 5 are not damaged! Otherwise the device cannot suck the air out of the bag.

If either one of the sealing rings 10 / 5 is damaged, simply pull it out of the groove and press the replacement sealing ring into the groove.

3) Press the button. The green control lamp lights up and the appliance sucks the air out of the bag. As soon as all the air is sucked out, the green control lamp goes out and the red control lamp lights up. The appliance now seals the bag.

4) If both control lamps 12/16 have gone out, you can open the lid by pressing the lid catch 8 and flipping the lid 1 upwards. Remove the vacuum-sealed bag.

NOTE

• You can stop the vacuuming process at any time by pressing the button 15 at any time. The green control lamp 16 will then go off. Press the button 15 again to resume the extraction process.

If the appliance has already switched to the sealing process and the red control lamp is lit, the process can be stopped with the button. The appliance then stops the sealing process.

Once you have sealed 5 bags in a row, allow the appliance to cool down for about 1 minute.

During this cool-down phase, you cannot start the appliance. After the cool-down phase, you can use the appliance as normal.

TIP - "SOUS-VIDE COOKING"

As the supplied film is suitable for temperatures between -20^ and +110^ , it can be used for the so-called "sous-vide" cooking process (vacuum cooking).

"Sous-vide" is French and means "under vacuum".

In vacuum cooking, the food (usually fish or meat, but vegetables can also be used) is vacuum-sealed in a bag and then cooked in water or steam cooked at a relatively low temperature (50 to 90 C). The advantage of this is that volatile flavours or aroma are not lost during cooking. The food does not dry out and the vitamins and flavours are preserved. Herbs or spices that are vacuum-sealed in the bag with the food give off a more intense flavour.

Vacuuming sealing containers and recloseable bags

You can vacuum seal containers and recloseable bags using the vacuum hoses and appropriate adapters supplied with the appliance.

NOTE

• You can order suitable bags and container separately. Please refer to Chapter "Ordering replacement parts".

The vacuum hoses 17/20, the suction cup 18 and the adapters 21/23 are also compatible with bags and containers made by the manufacturers.

Vacuuming sealing bags:

1) Connect the vacuum hose onto the suction fitting on the appliance using the adapter 9.
2) Close the appliance lid ①. Ensure that both corners of the appliance lid ① click closed. If necessary, press downwards again on the markings and so that the appliance lid ① clicks into place and locks shut.
3) Close the bag to be vacuum sealed carefully. Vacuum sealing only works properly if the bag is completely closed off. We recommend positioning the bag so that the round extraction opening is placed on a smooth surface.
4) Press the suction cup ⑥ firmly onto the round extraction opening on the bag.
5) Press the button. The green control lamp lights up and the appliance sucks the air out of the bag. As soon as all the air is sucked out, the green control lamp goes out.
6) You can now remove the suction cup 18 from the bag.

Vacuum sealing containers:

1) Connect the vacuum hose 20 to the suction fitting 9 on the appliance using the adapter 22.

2) Close the appliance lid ①. Ensure that both corners of the appliance lid ① click closed. If necessary, press downwards again on the markings and so that the appliance lid ① clicks into place and locks shut.

3) Connect the adapter 2 to the appropriate container fitting. Please refer to the container instruction manual for further information.

NOTE

For containers with a large valve diameters, use the adapter 23. This is pressed onto the adapter for containers 21.
4) Press the button. The green control lamp lights up and the appliance sucks the air out of the container. As soon as all the air is sucked out, the green control lamp goes out.
5) You can now remove the adapters 21/22 from the container and the appliance.

Cleaning

DANGER

Risk of fatal injury from electrocution!

• Remove the plug from the mains power socket before beginning to clean the device.
  Ensure that no moisture can penetrate the device during cleaning.

CAUTION

Possible damage to the appliance.

• Do not use aggressive or abrasive cleaning agents, as these may corrode the surface of the casing.
• Do not use any hard or sharp objects to remove any adhesive from the welding wire 4. Otherwise the welding wire 4 or the insulation could be damaged.

Cleaning the appliance

Clean the surface of the housing of the appliance with a lightly moistened cloth and a mild detergent.

Wipe off the upper 10 and the lower sealing rings 5, as well as the press seal 11 with a damp cloth. Ensure that the appliance is dry before using it again.
Wipe the vacuum hoses 17/20, the suction cup 18 and the adapters 19/21/ 22/23 with a damp cloth. If there is heavy soiling, you can also clean these parts in hot water with a little detergent. Ensure that all components are completely dry before the next use.
Clean the drip tray that is located between the lower sealing ring 5 in warm water with a little detergent.

You can also clean the drip tray in the dishwasher, if required. Make sure that the drip tray does not get jammed in the dishwasher. Use the upper basket in the dishwasher if possible.

Storage

The appliance has a built-in cable retainer on the underside of the housing, on which you can wrap the power cable when it is not in use. This prevents the power cable from getting caught or soiled, or becoming a source of danger by hanging loosely down.

CAUTION

Possible damage to the appliance.

• Do not click the appliance lid ① closed for storage! When the appliance lid ① is clicked closed it exerts permanent pressure on the upper ⑩ and lower sealing rings ⑤, as well as the press seal ⑪. This can negatively affect their function.

Store the appliance in a clean, dry place away from direct sunlight.

Disposal

Under no circumstances should you dispose of the appliance with the normal household waste.

This product is subject to the provisions of European Directive 2012/19/EU (Waste Electrical and Electronic Equipment).

Dispos of the appliance via an approved waste disposal company or your municipal waste disposal facility. Please observe applicable regulations. In case of doubt, please contact your waste disposal centre.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
- You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN304253

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Ordering replacement parts

You can order the following replacement parts for the product SV 120 A1:

3-piece set of tubular film rolls, narrow (20× 300cm)

2-piece set of tubular film rolls, wide (28× 300cm)

Resealable bags, size S, 20 units

Resealable bags, size L, 15 units

3-piece set: lunch boxes

2-piece set: containers

Order the replacement parts via the Service hotline (see section "Service") or simply visit our website at www.kompernass.com.

NOTE

• Have the IAN number of the appliance ready (can be found on the cover of these operating instructions) when you place your order.

Table des matieres

Introduction 38

Droits d'auteur 38

Installation et raccordement

REMARQUES RELATIVES AU FILM

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Commander des pieces de rechange

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NEMECKO

www.kompernass.com

Caracteristicas techniques 95

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANIA

www.kompernass.com

Pedido de recambios

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANHA

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com
