USER MANUAL SWW 1500 B2 SILVERCREST

Congratulations on the purchase of your new product. You have selected a high-quality product. The operating instructions are a constituent part of this product. They contain important information about safety, use and disposal. Familiarize yourself with all the operating and safety instructions before using the product. Use the product only as described and for the stated spheres of application. If you pass the product on to a third party, always pass on all the documentation as well.

1.1 Intended purpose

This SilverCrest SWW 1500 B2 panel heater can be used to heat dry rooms. This appliance is intended for private use and is not suitable for commercial purposes. The appliance is suitable for providing auxiliary heating. It is not suitable for use on its own to heat large spaces. The appliance is floor-standing only or can be wall-mounted using the wall brackets also supplied.

• 4 wall brackets, u-shaped, with wall plugs and screws

• 1 fastening bracket, z-shaped, with wall plugs and screws

• 1 copy of the user instructions RP90993 Wärmewelle LB1 Seite 55 Freitag, 9. August 2013 4:07 1656

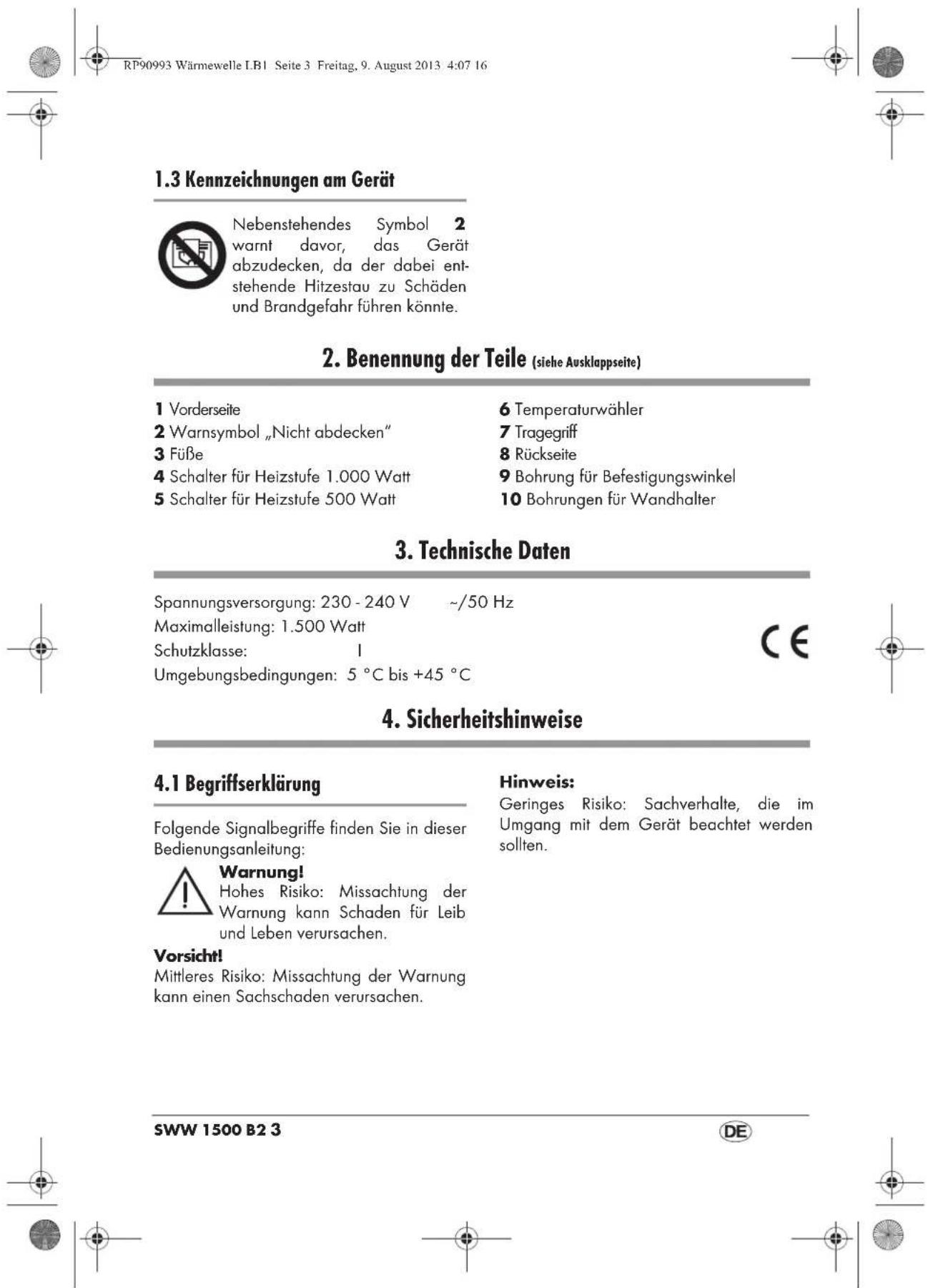

1.3 Symbols on the appliance

The adjacent symbol 2 warns against covering the appliance as this could cause a build up of heat leading to damage and the risk of fire.

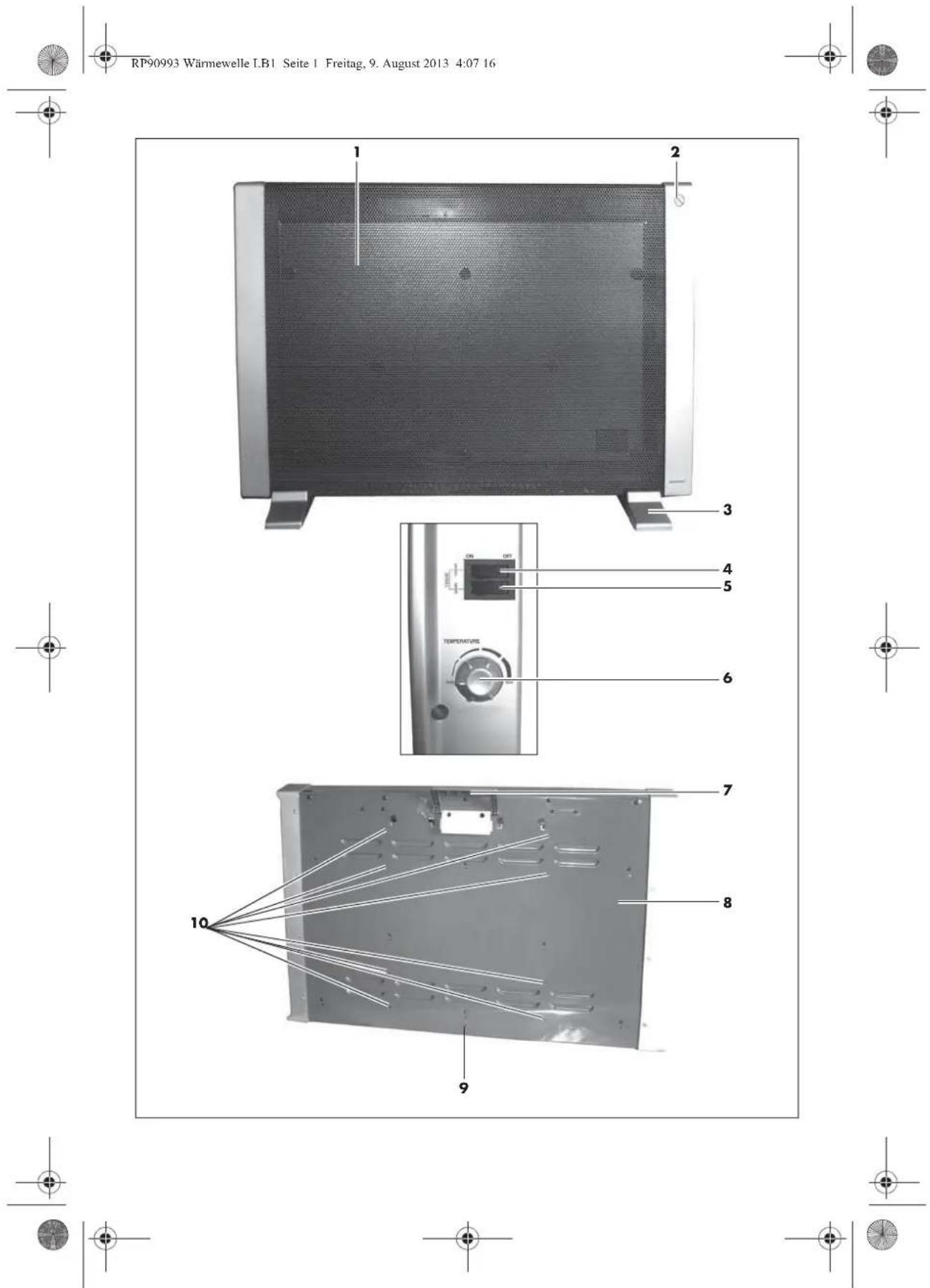

2. Names of parts (see fold-out page)

1 Front side 2 Warning symbol “do not cover” 3 Feet 4 Switch for heating setting 1,000 watts 5 Switch for heating setting 500 watts 6 Temperature selector 7 Carry handle 8 Rear side 9 Hole for fastening bracket 10 Holes for wall brackets

/50 Hz Maximum power: 1,500 watts Protection class: I Ambient conditions: 5 °C to +45 °C

The following signalling terms are found in these Operating Instructions: Warning! High risk. Disregarding the warning may cause injury to life and limb. Caution! Medium risk. Disregarding the warning may cause damage to property. Note: Low risk. Circumstances that should be taken into account when dealing with this appliance. RP90993 Wärmewelle LB1 Seite 56 Freitag, 9. August 2013 4:07 16SWW 1500 B2 57

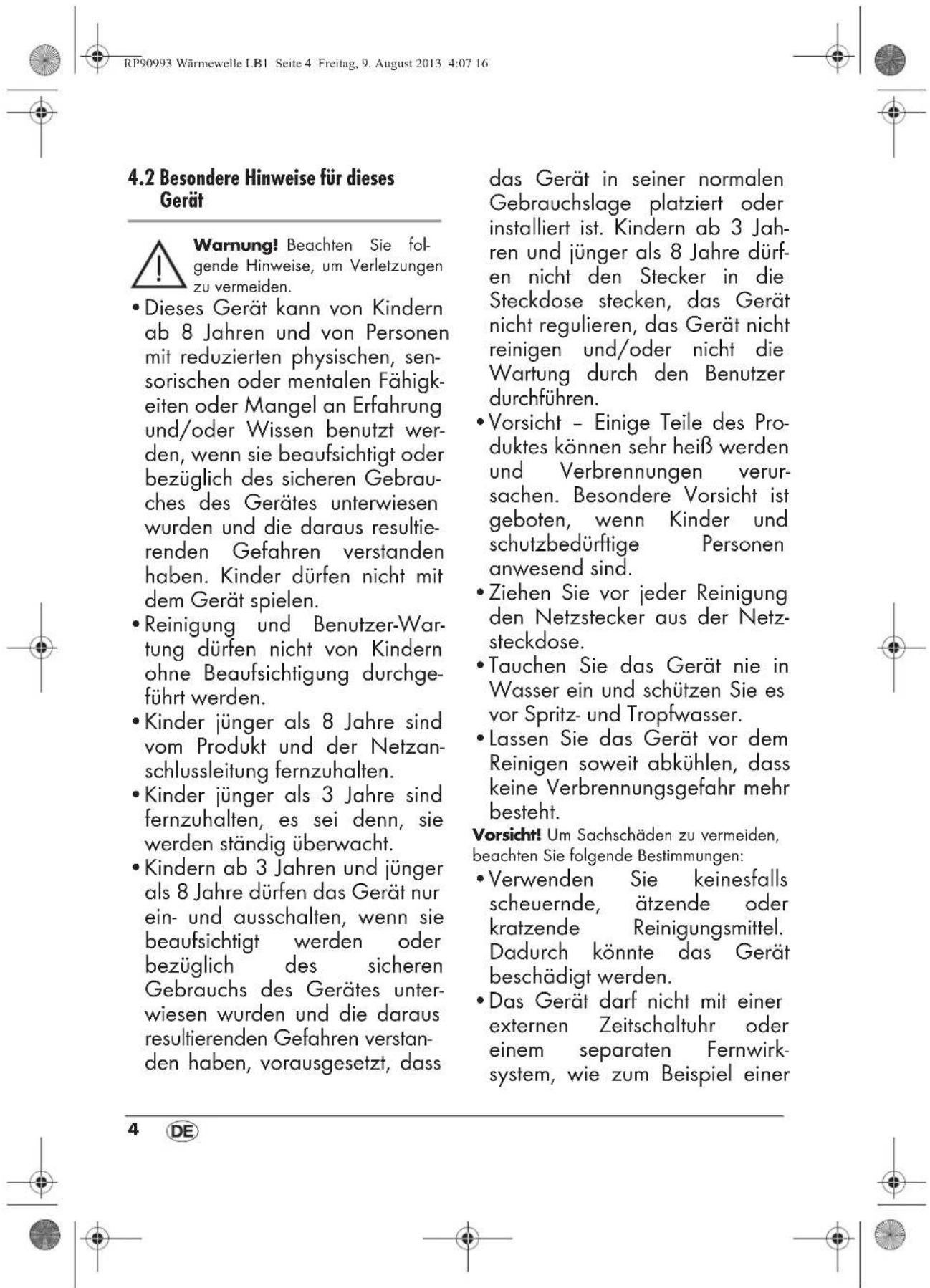

4.2 Special information about this

appliance Warning! To avoid injury, please observe the following information.

• This appliance can be used by children aged 8 or more, and by persons who have reduced physical, sensory or mental ability or who lack experience and/or knowledge, provided they are supervised or instructed in the safe use of the appliance and have understood its associated hazards. Do not allow children to play with the appliance.

• Children may not clean or maintain the appliance unsupervised.

• Children under the age of 8 should be kept away from the product and its power cable.

• Children under the age of 3 should be kept away from the product unless they are under constant supervision.

• Children between the ages of 3 and 8 may only switch the appliance on or off provided they are supervised or instructed in the safe use of the appliance and have understood its associated hazards and only when the appliance is placed or installed in its normal working position. Children between the ages of 3 and 8 may not insert the plug into the plug socket, control the appliance, clean or maintain it.

• Caution – Some product components can become very hot and may lead to burns. Please be especially careful when children or vulnerable persons are nearby.

• Always take the mains plug out of its socket before cleaning the product.

• Never immerse the appliance in water, and protect it from splashes and water droplets.

• Before cleaning the appliance, let it cool down sufficiently so that there is no risk of burns. Caution! To prevent material damage, please observe the following:

• Never use abrasive, caustic or rough cleaning materials. They could damage the appliance.

• The appliance may not be operated on an external time switch or separate remote control system, such as radio- controlled power socket.

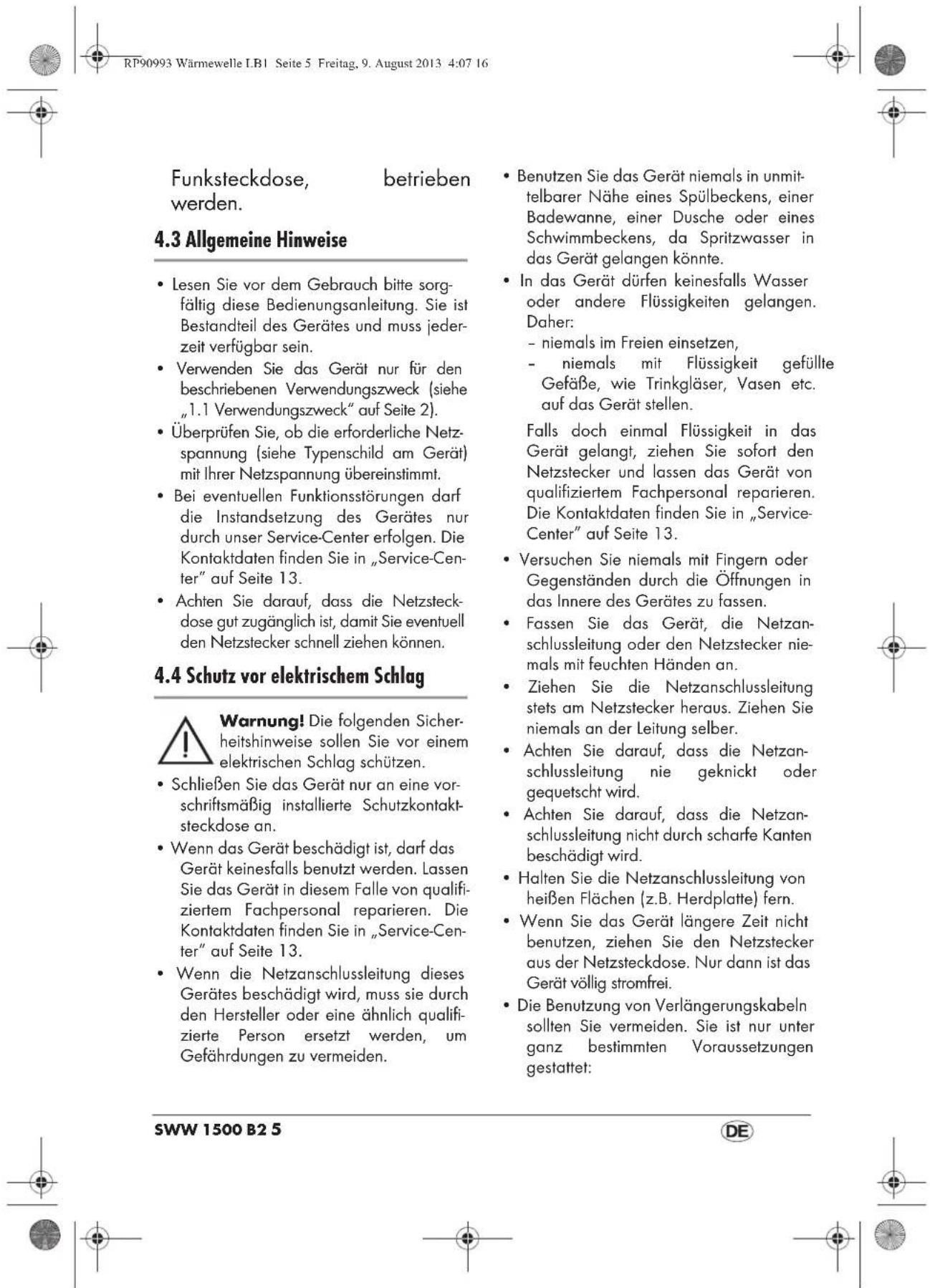

4.3 General information

• Before using the appliance, be sure to read these Operating Instructions carefully. They are a component part of the appliance and must be available at all times. RP90993 Wärmewelle LB1 Seite 57 Freitag, 9. August 2013 4:07 1658

• Use the appliance only for the purpose described (see “1.1 Intended purpose” on page 55).

• Check whether the mains voltage (see type plate on the appliance) agrees with your mains voltage.

• If there should be any malfunctions, the appliance may only be repaired by our Service Centre. The contact data can be found in “Service Centre” on page 66.

• Check that the power socket is easily accessible so that you can pull out the mains plug quickly if necessary.

4.4 Protection against electric shock

Warning! The following safety information is intended to protect you against electric shock.

• Only plug the appliance into a correctly installed, earthed wall socket.

• Do not use the appliance if it has fallen on the floor, received a hard blow or fallen into water. In this case, please contact our Service Centre. The contact data can be found in “Service Centre” on page 66.

• The appliance must not under any circumstances be used if it is damaged. Have the device repaired in such cases by a qualified specialist. The contact data can be found in “Service Centre” on page 66.

• If the mains cable for this appliance is damaged, it must be replaced by the manufacturer or a person with similar qualifications in order to avoid a hazard.

• Never use the appliance in the immediate vicinity of a sink, bath tub, shower or swimming pool as splashes might enter the appliance.

• Water or other liquids must never be allowed to enter the appliance. For this reason: – never use outdoors; – never place containers filled with liquid, such as drinking glasses, vases etc. on the appliance; If nonetheless liquid does enter the appliance, unplug the mains plug immediately and have the appliance repaired by a qualified specialist. The contact data can be found in “Service Centre” on page 66.

• Never insert fingers or any objects through the protective guards into the inside of the appliance.

• Never touch the appliance, the mains cord or the mains plug with moist hands.

• Always pull the mains cord out by the plug. Never pull it by the cord itself.

• Ensure that the mains cable is not kinked, twisted or crushed.

• Ensure that the mains cable is not damaged on sharp edges.

• Keep the mains cord away from hot surfaces (such as stove eyes).

• If you are not using the appliance for a prolonged period of time, remove the plug from the wall socket. Only then is the appliance completely free of current.

• You should avoid using extension cords. This is only allowed under very particular conditions: – The extension cord has to be suited for the appliance's amperage. – The extension cord must not be installed "loose": it must not be possible to trip over it or within the reach of children. RP90993 Wärmewelle LB1 Seite 58 Freitag, 9. August 2013 4:07 16SWW 1500 B2 59 – The extension cord must not by any means be damaged. – No other devices other than this appliance must be connected to the mains socket, as otherwise overloading of the power supply network could occur (multiple sockets are not allowed!).

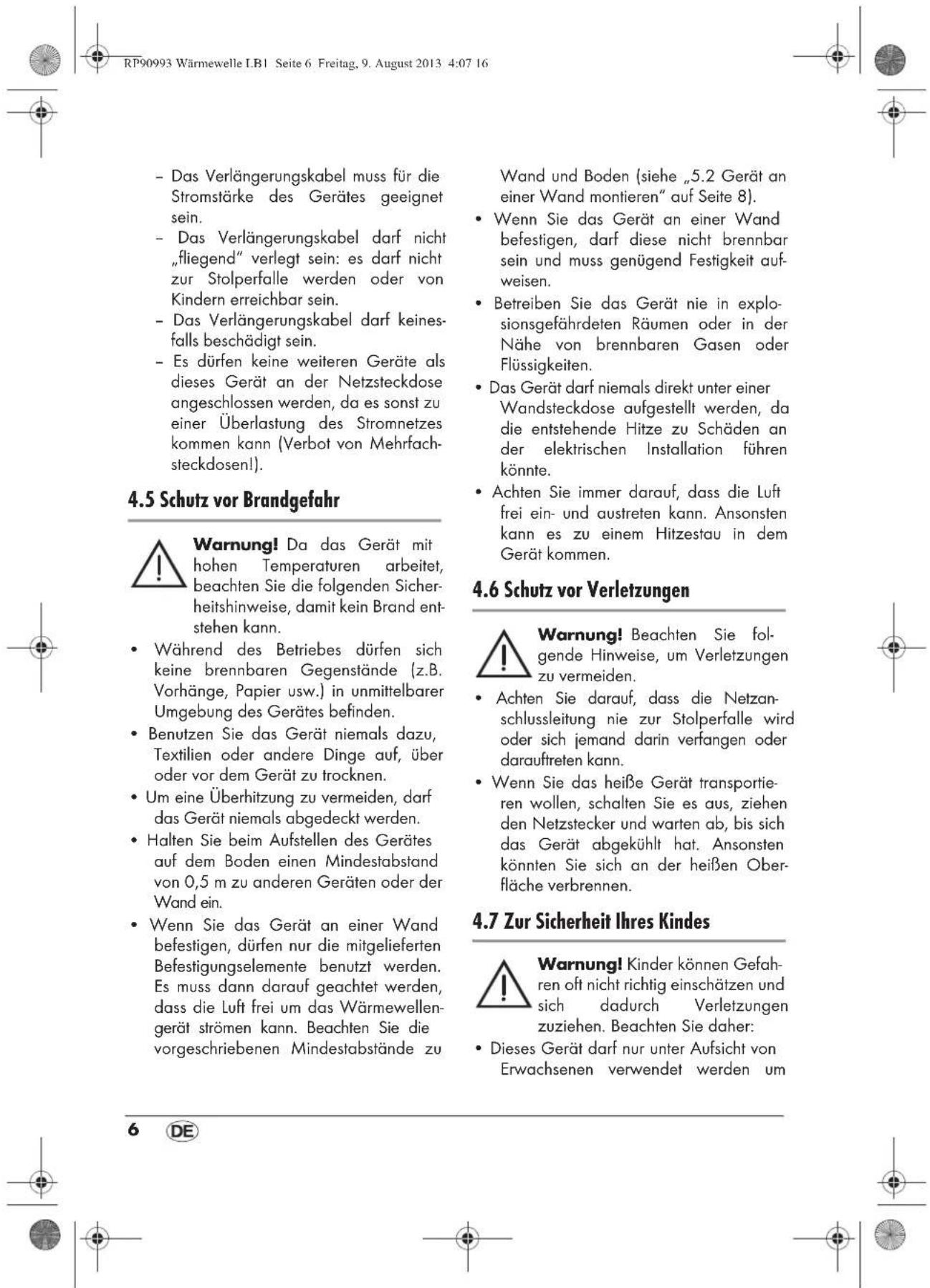

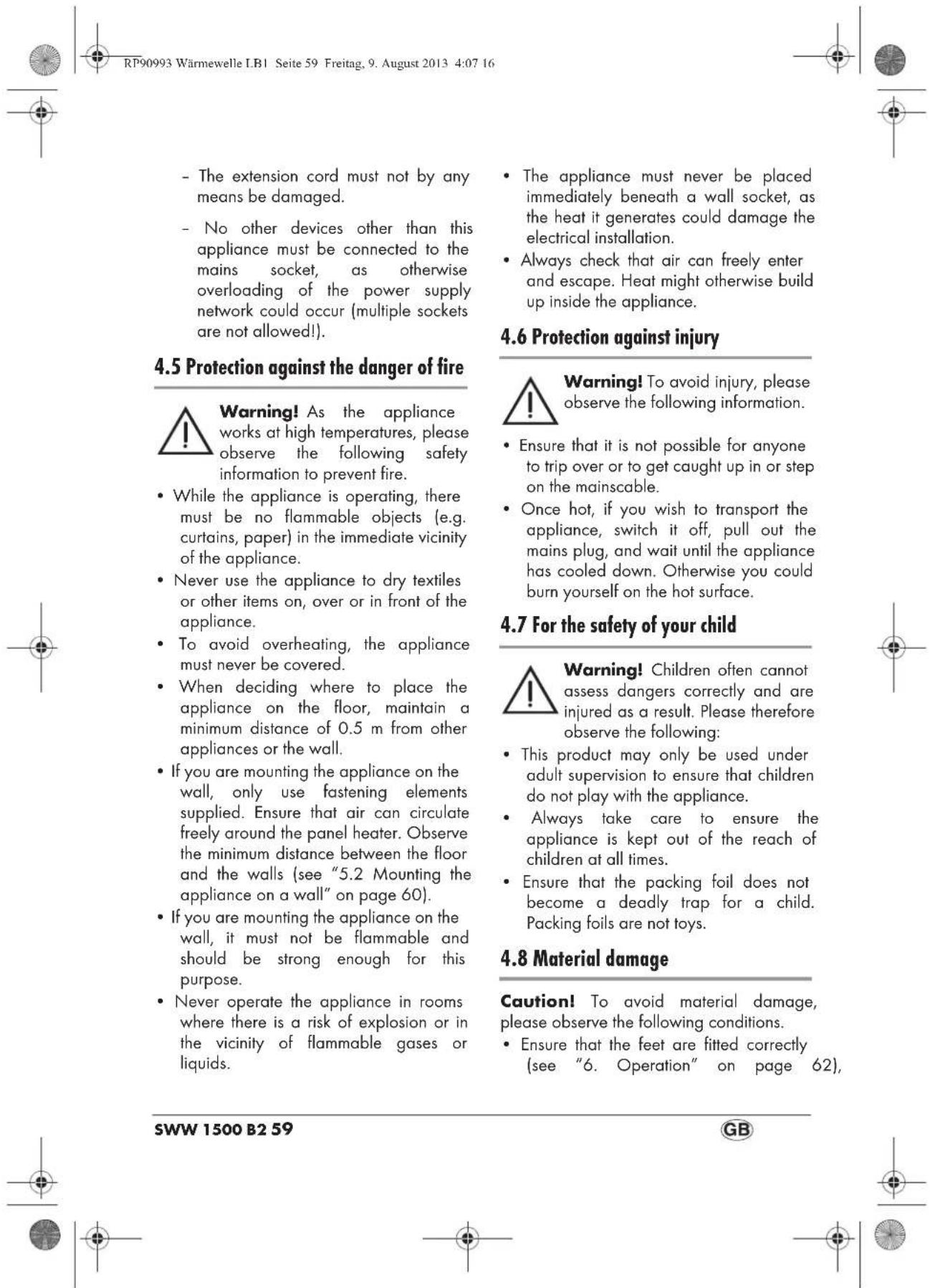

4.5 Protection against the danger of fire

Warning! As the appliance works at high temperatures, please observe the following safety information to prevent fire.

• While the appliance is operating, there must be no flammable objects (e.g. curtains, paper) in the immediate vicinity of the appliance.

• Never use the appliance to dry textiles or other items on, over or in front of the appliance.

• To avoid overheating, the appliance must never be covered.

• When deciding where to place the appliance on the floor, maintain a minimum distance of 0.5 m from other appliances or the wall.

• If you are mounting the appliance on the wall, only use fastening elements supplied. Ensure that air can circulate freely around the panel heater. Observe the minimum distance between the floor and the walls (see “5.2 Mounting the appliance on a wall” on page 60).

• If you are mounting the appliance on the wall, it must not be flammable and should be strong enough for this purpose.

• Never operate the appliance in rooms where there is a risk of explosion or in the vicinity of flammable gases or liquids.

• The appliance must never be placed immediately beneath a wall socket, as the heat it generates could damage the electrical installation.

• Always check that air can freely enter and escape. Heat might otherwise build up inside the appliance.

4.6 Protection against injury

Warning! To avoid injury, please observe the following information.

• Ensure that it is not possible for anyone to trip over or to get caught up in or step on the mainscable.

• Once hot, if you wish to transport the appliance, switch it off, pull out the mains plug, and wait until the appliance has cooled down. Otherwise you could burn yourself on the hot surface.

4.7 For the safety of your child

Warning! Children often cannot assess dangers correctly and are injured as a result. Please therefore observe the following:

• This product may only be used under adult supervision to ensure that children do not play with the appliance.

• Always take care to ensure the appliance is kept out of the reach of children at all times.

• Ensure that the packing foil does not become a deadly trap for a child. Packing foils are not toys.

Caution! To avoid material damage, please observe the following conditions.

• Ensure that the feet are fitted correctly (see “6. Operation” on page 62), RP90993 Wärmewelle LB1 Seite 59 Freitag, 9. August 2013 4:07 1660 otherwise the floor might be scratched or scorched.

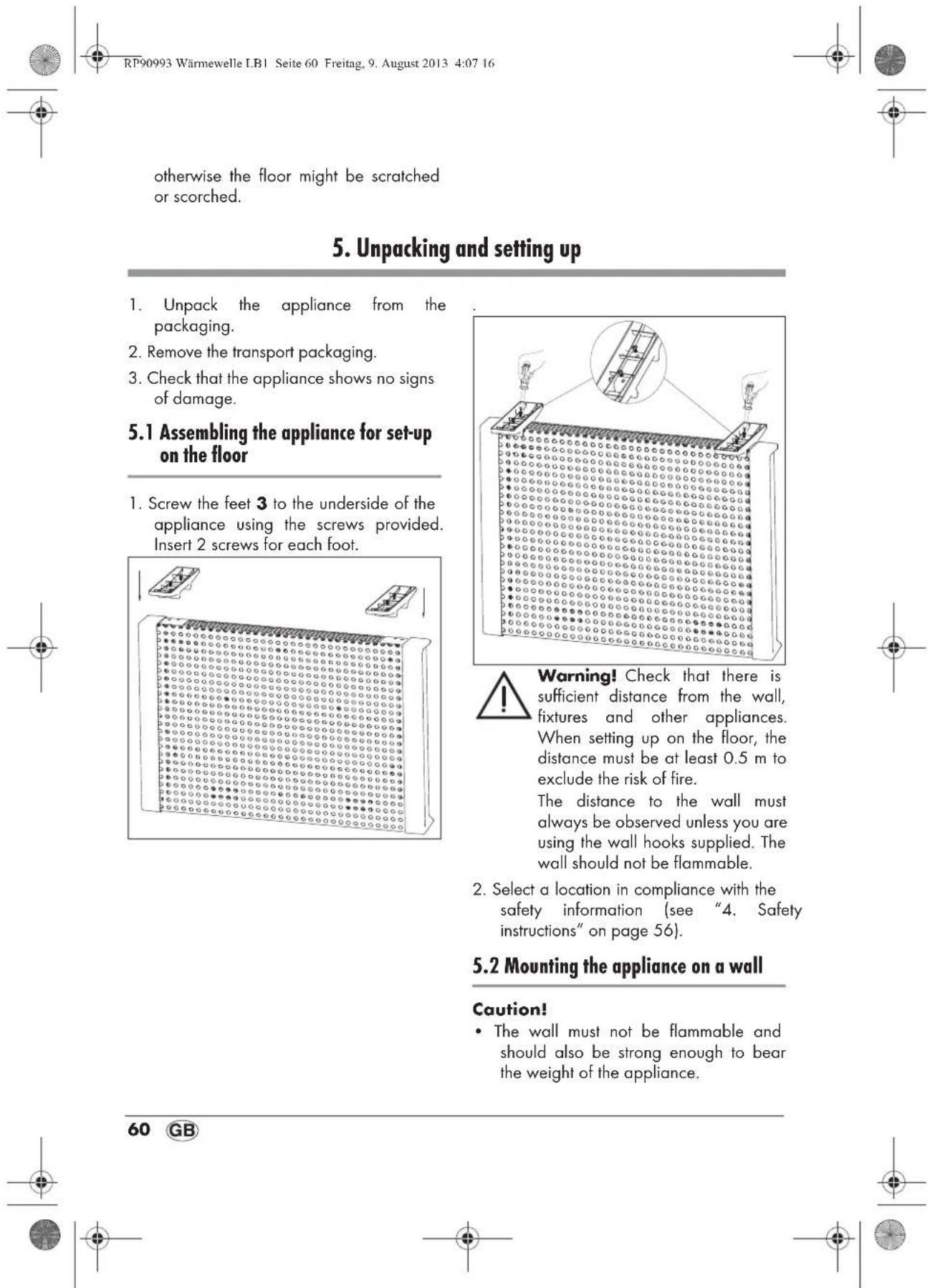

5. Unpacking and setting up

1. Unpack the appliance from the

2. Remove the transport packaging.

3. Check that the appliance shows no signs

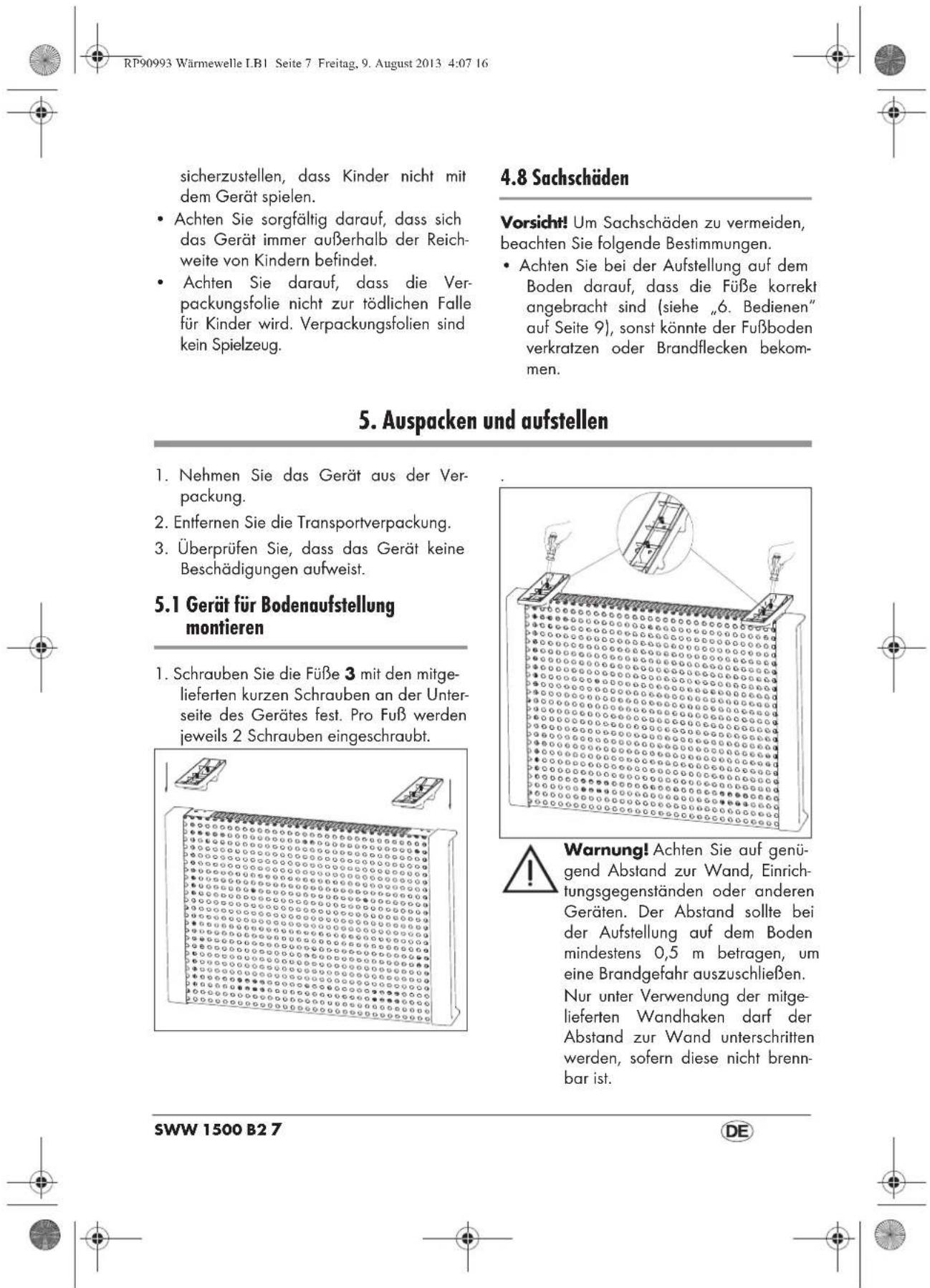

5.1 Assembling the appliance for set-up

1. Screw the feet 3 to the underside of the

appliance using the screws provided. Insert 2 screws for each foot.

Warning! Check that there is sufficient distance from the wall, fixtures and other appliances. When setting up on the floor, the distance must be at least 0.5 m to exclude the risk of fire. The distance to the wall must always be observed unless you are using the wall hooks supplied. The wall should not be flammable.

2. Select a location in compliance with the

safety information (see “4. Safety instructions” on page 56).

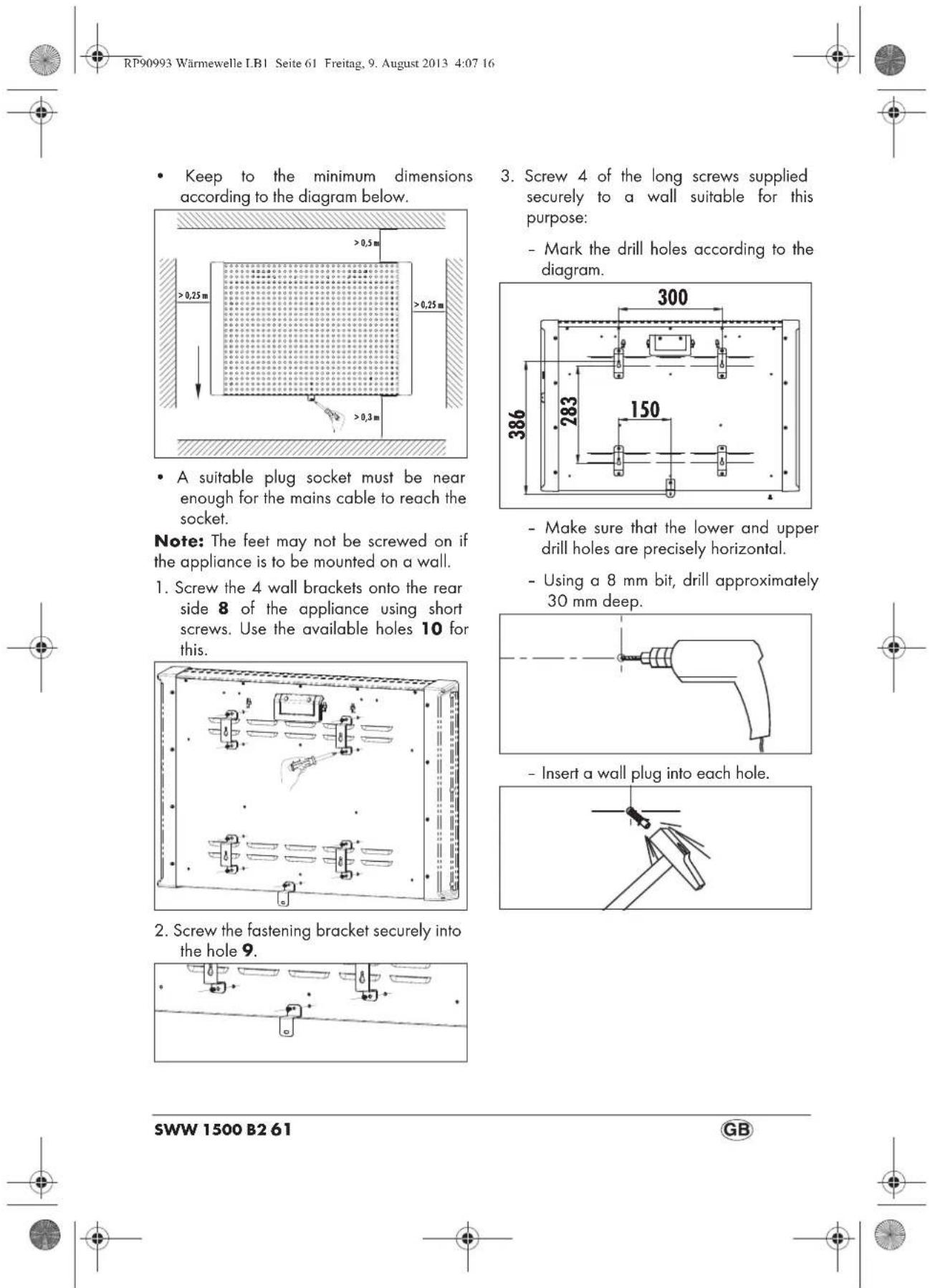

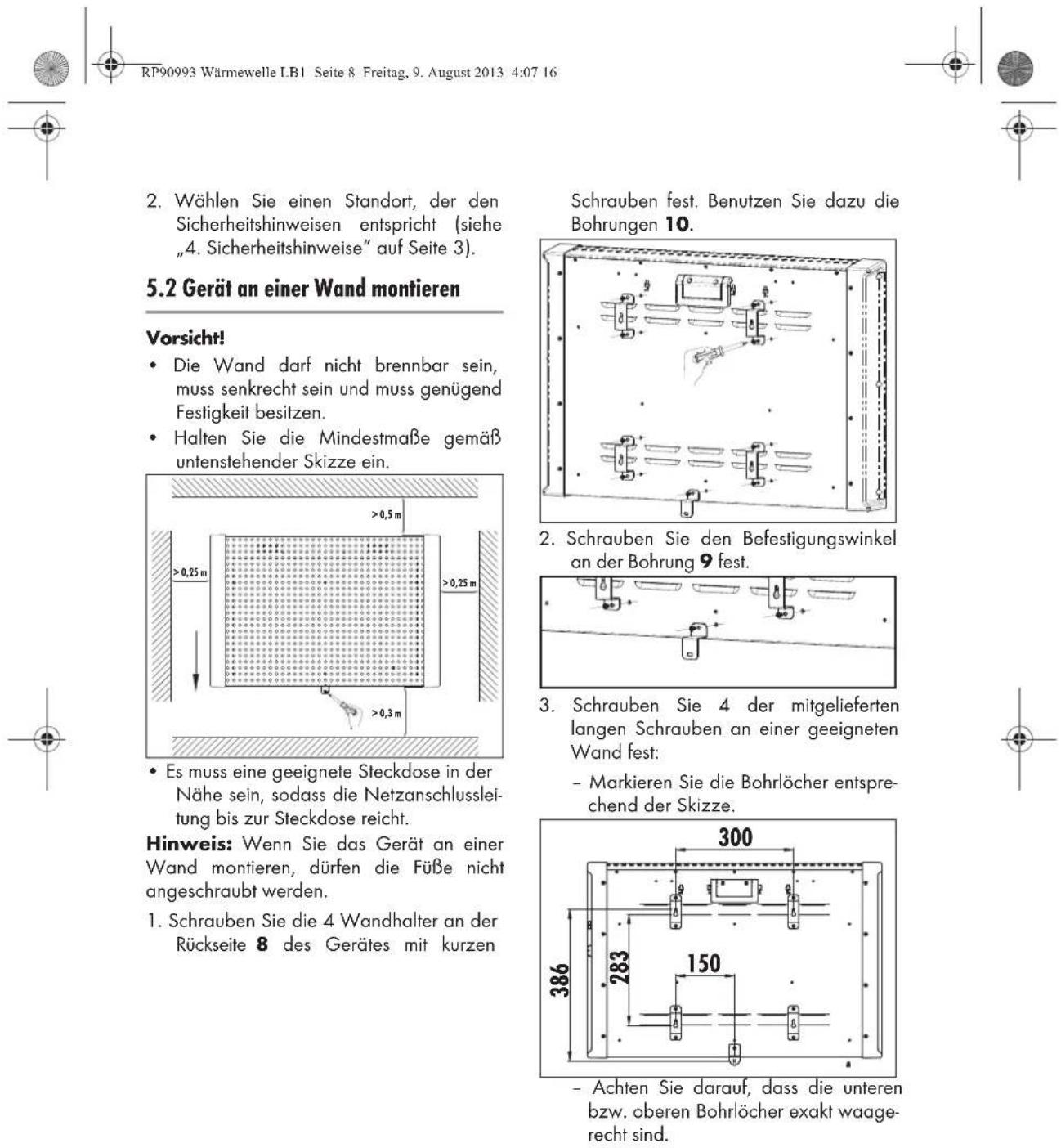

5.2 Mounting the appliance on a wall

• The wall must not be flammable and should also be strong enough to bear the weight of the appliance. RP90993 Wärmewelle LB1 Seite 60 Freitag, 9. August 2013 4:07 16SWW 1500 B2 61

• Keep to the minimum dimensions according to the diagram below.

• A suitable plug socket must be near enough for the mains cable to reach the socket. Note: The feet may not be screwed on if the appliance is to be mounted on a wall.

1. Screw the 4 wall brackets onto the rear

side 8 of the appliance using short screws. Use the available holes 10 for this.

2. Screw the fastening bracket securely into

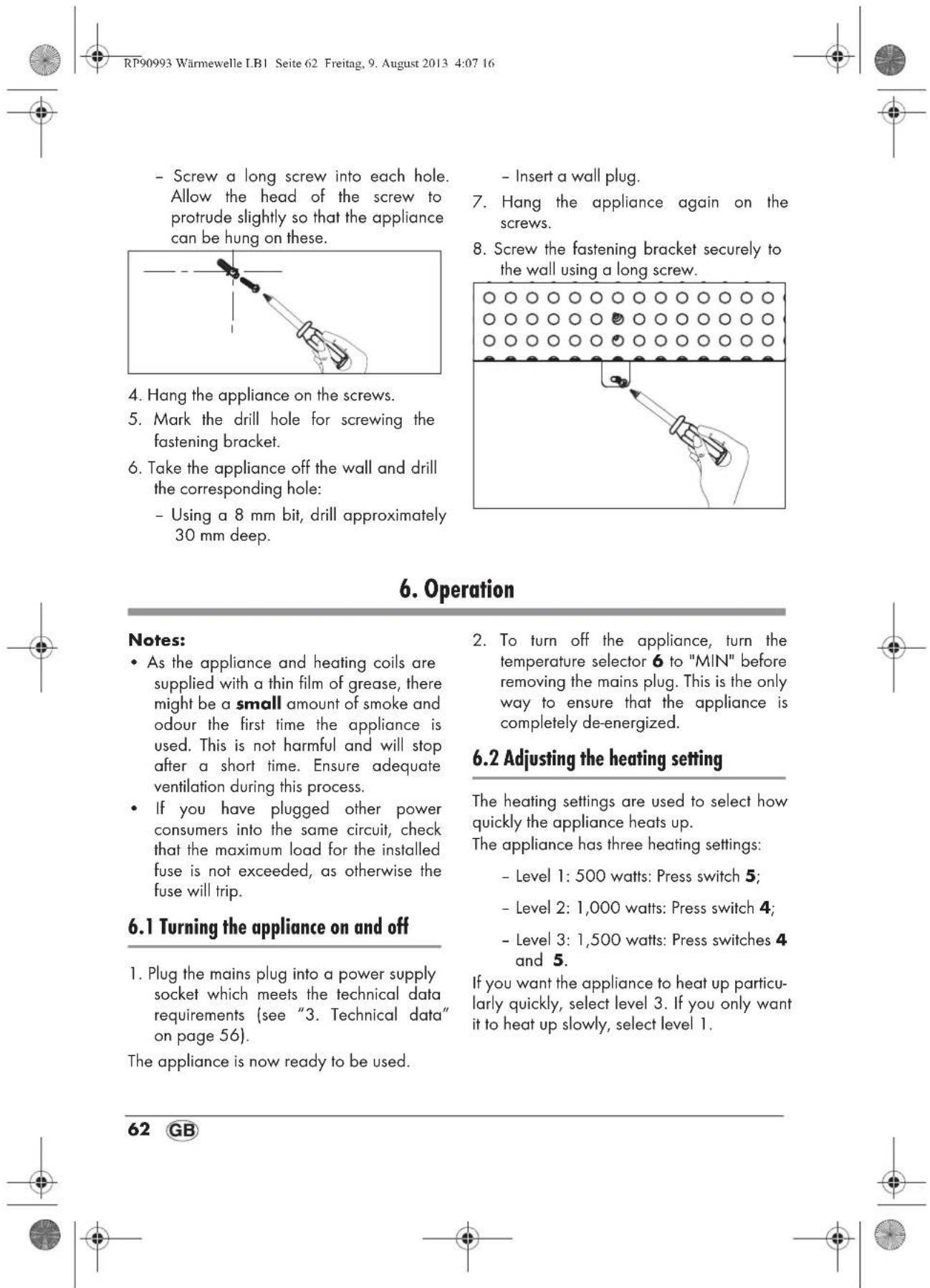

3. Screw 4 of the long screws supplied

securely to a wall suitable for this purpose: – Mark the drill holes according to the diagram. – Make sure that the lower and upper drill holes are precisely horizontal. – Using a 8 mm bit, drill approximately 30 mm deep. – Insert a wall plug into each hole. > 0,25 m> 0,5 m> 0,25 m> 0,3 m

RP90993 Wärmewelle LB1 Seite 61 Freitag, 9. August 2013 4:07 1662 – Screw a long screw into each hole. Allow the head of the screw to protrude slightly so that the appliance can be hung on these.

4. Hang the appliance on the screws.

5. Mark the drill hole for screwing the

6. Take the appliance off the wall and drill

the corresponding hole: – Using a 8 mm bit, drill approximately 30 mm deep. – Insert a wall plug.

7. Hang the appliance again on the

8. Screw the fastening bracket securely to

the wall using a long screw.

• As the appliance and heating coils are supplied with a thin film of grease, there might be a small amount of smoke and odour the first time the appliance is used. This is not harmful and will stop after a short time. Ensure adequate ventilation during this process.

• If you have plugged other power consumers into the same circuit, check that the maximum load for the installed fuse is not exceeded, as otherwise the fuse will trip.

6.1 Turning the appliance on and off

1. Plug the mains plug into a power supply

socket which meets the technical data requirements (see “3. Technical data” on page 56). The appliance is now ready to be used.

2. To turn off the appliance, turn the

temperature selector 6 to "MIN" before removing the mains plug. This is the only way to ensure that the appliance is completely de-energized.

6.2 Adjusting the heating setting

The heating settings are used to select how quickly the appliance heats up. The appliance has three heating settings: – Level 1: 500 watts: Press switch 5; – Level 2: 1,000 watts: Press switch 4; – Level 3: 1,500 watts: Press switches 4 and 5. If you want the appliance to heat up particu- larly quickly, select level 3. If you only want it to heat up slowly, select level 1. RP90993 Wärmewelle LB1 Seite 62 Freitag, 9. August 2013 4:07 16SWW 1500 B2 63 If one or both switches are switched to "ON", the red indicators will illuminate in the corresponding switches and the appliance will heat up according to the corresponding heating setting. If both switches are set to "OFF", the appli- ance will not produce any heat.

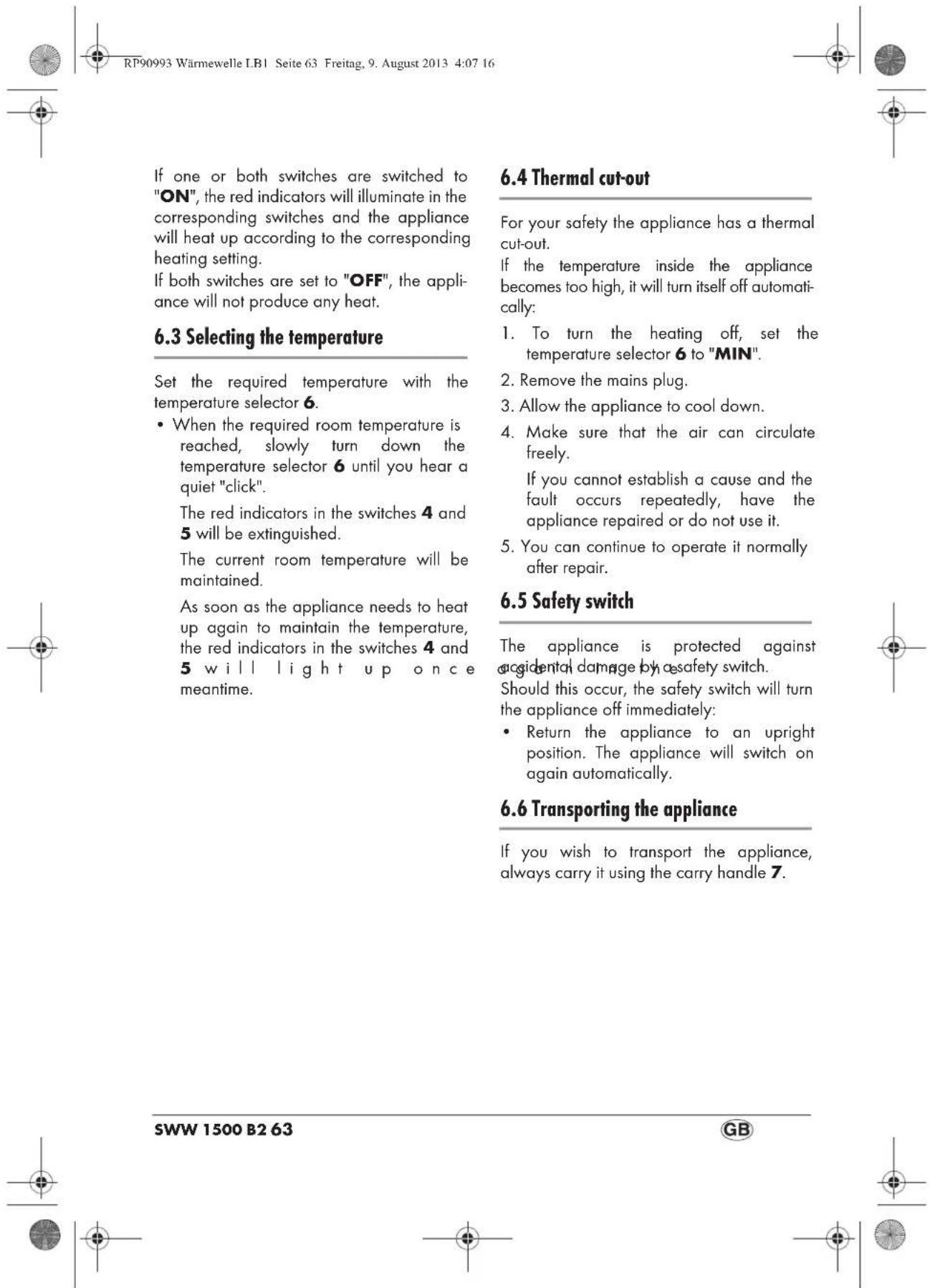

6.3 Selecting the temperature

Set the required temperature with the temperature selector 6.

• When the required room temperature is reached, slowly turn down the temperature selector 6 until you hear a quiet "click". The red indicators in the switches 4 and 5 will be extinguished. The current room temperature will be maintained. As soon as the appliance needs to heat up again to maintain the temperature, the red indicators in the switches 4 and 5 will light up once again in the meantime.

For your safety the appliance has a thermal cut-out. If the temperature inside the appliance becomes too high, it will turn itself off automati- cally:

1. To turn the heating off, set the

temperature selector 6 to "MIN".

2. Remove the mains plug.

3. Allow the appliance to cool down.

4. Make sure that the air can circulate

freely. If you cannot establish a cause and the fault occurs repeatedly, have the appliance repaired or do not use it.

5. You can continue to operate it normally

The appliance is protected against accidental damage by a safety switch. Should this occur, the safety switch will turn the appliance off immediately:

• Return the appliance to an upright position. The appliance will switch on again automatically.

6.6 Transporting the appliance

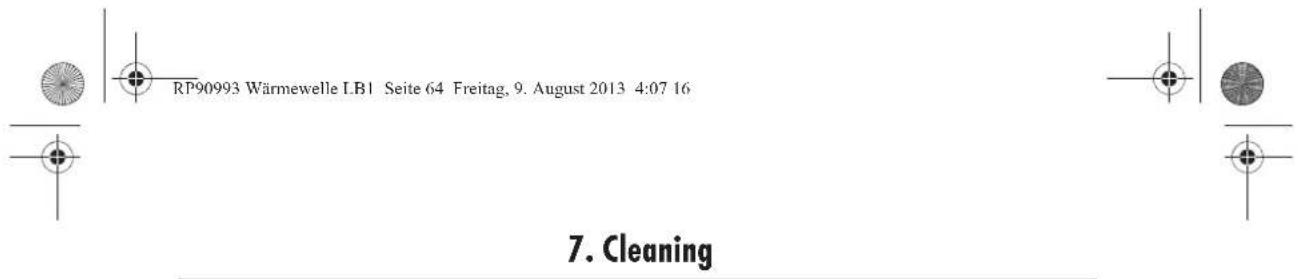

To ensure your appliance gives you lasting service, you should clean it regularly. Warning! To avoid the danger of an electric shock or burning: – remove the mains plug before each clean; – allow the appliance to cool down; – never immerse the appliance in water; – never allow water or cleaning agent to run into the appliance.

1. Carefully remove major dust deposits

with a vacuum cleaner.

2. Clean the outside of the appliance with

a damp cloth. You could also use a little washing-up liquid. Caution! Never use caustic or abrasive cleaning agents, as this could damage your appliance.

3. Wipe the appliance with a cloth

moistened with clear water.

4. Do not use the appliance again until it

has dried completely.

Fault Cause Remedy Appliance cannot be switched on Faulty fuse or wall socket Select another wall socket Faulty appliance Have repairs carried out at a specialist workshop or dispose of the appliance. You will find the service address in “Service Centre” on page 66. Appliance switches off automatically Thermal cut-out has triggered Allow the appliance to cool down (see “6.4 Thermal cut-out” on page 63) Clean the appliance (see “7. Cleaning” on page 64) Appliance does not heat Selected temperature has been reached Heating switches on again automati- cally as soon as the room temperature falls Select a higher required temperature RP90993 Wärmewelle LB1 Seite 64 Freitag, 9. August 2013 4:07 16SWW 1500 B2 65

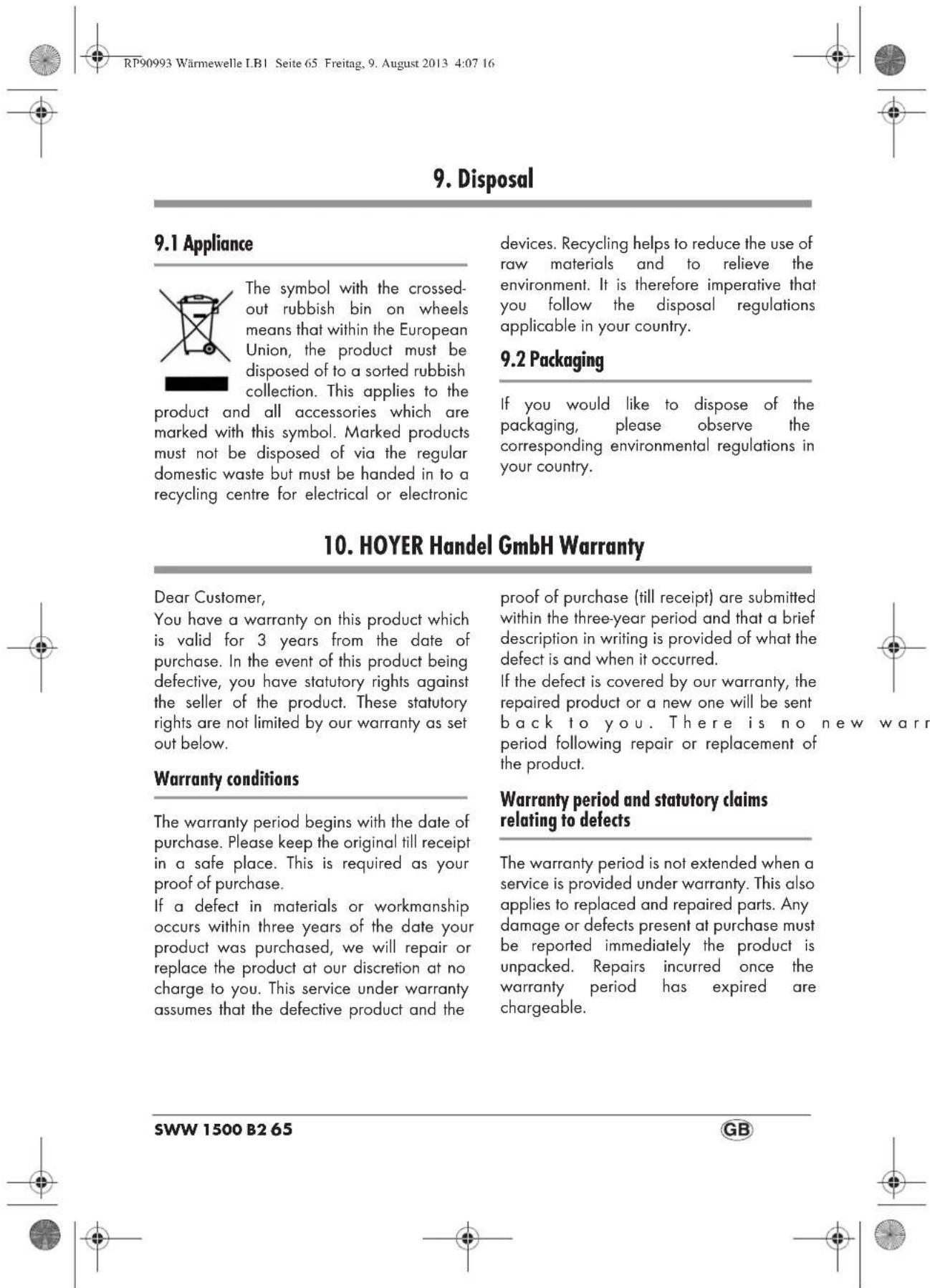

The symbol with the crossed- out rubbish bin on wheels means that within the European Union, the product must be disposed of to a sorted rubbish collection. This applies to the product and all accessories which are marked with this symbol. Marked products must not be disposed of via the regular domestic waste but must be handed in to a recycling centre for electrical or electronic devices. Recycling helps to reduce the use of raw materials and to relieve the environment. It is therefore imperative that you follow the disposal regulations applicable in your country.

If you would like to dispose of the packaging, please observe the corresponding environmental regulations in your country.

10. HOYER Handel GmbH Warranty

Dear Customer, You have a warranty on this product which is valid for 3 years from the date of purchase. In the event of this product being defective, you have statutory rights against the seller of the product. These statutory rights are not limited by our warranty as set out below. Warranty conditions The warranty period begins with the date of purchase. Please keep the original till receipt in a safe place. This is required as your proof of purchase. If a defect in materials or workmanship occurs within three years of the date your product was purchased, we will repair or replace the product at our discretion at no charge to you. This service under warranty assumes that the defective product and the proof of purchase (till receipt) are submitted within the three-year period and that a brief description in writing is provided of what the defect is and when it occurred. If the defect is covered by our warranty, the repaired product or a new one will be sent back to you. There is no new warranty period following repair or replacement of the product. Warranty period and statutory claims relating to defects The warranty period is not extended when a service is provided under warranty. This also applies to replaced and repaired parts. Any damage or defects present at purchase must be reported immediately the product is unpacked. Repairs incurred once the warranty period has expired are chargeable. RP90993 Wärmewelle LB1 Seite 65 Freitag, 9. August 2013 4:07 1666 Scope of warranty The product has been carefully manufactured in accordance with strict quality guidelines and was thoroughly checked before being delivered. The warranty applies to defective materials or workmanship. This warranty does not extend to product parts exposed to normal wear and tear (and which can therefore be considered wear parts) or to damage to fragile parts such as switches, batteries or parts made of glass. This warranty is void if the product is damaged or if it is not used or maintained properly. All the information in the operating instructions should be observed precisely to ensure that the product is used properly. It is essential to avoid intended uses and actions which are discouraged or warned against in the operating instructions. The product is intended for only private use and not for commercial purposes. The warranty is void in the event of misuse, incorrect treatment, use of force or interference by anyone other than our authorized service centre. Warranty process Please follow the instructions below to ensure that your claim is processed quickly.

• In case of any enquiry, please keep the article number (for this product: IAN 90993) and the till receipt as proof of purchase.

• The article number can be found on the rating plate, as an engraving, on the cover sheet of your instructions (bottom left) or as a label on the back or underside of your appliance.

• If malfunctions or any other defects should occur, in the first instance contact the Service Centre mentioned below by telephone or e-mail.

• Once a product has been recorded as defective, you can then send it Freepost to the service address you are given, enclosing the proof of purchase (till receipt) and quoting what the defect is and when it occurred. You can download these instructions and many other manuals, product videos and software from www.lidl-service.com. Service Centre Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: hoyer@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: hoyer@lidl.ie Service Cyprus Tel.: 8009 4409 E-Mail: hoyer@lidl.com.cy Service Malta Tel.: 80062230 E-Mail: hoyer@lidl.com.mt IAN: 90993
