Product type	Digital thermo-hygrometer
Brand	TFA
Model	30.5047 EXACTO
Temperature measurement range	-20 °C to +70 °C (-4 °F to +158 °F)
Humidity measurement range	1 % to 99 % RH
Temperature accuracy	±1 °C
Temperature resolution	1 °C
Humidity accuracy	±3 % (35 to 75 % RH), otherwise ±5 %
Humidity resolution	1 %
Display	Temperature, humidity, trends (arrows), comfort level, max/min values
Special functions	User calibration, touch backlight, max/min memory (24h or all-time)
Power supply	2 x 1.5 V AAA batteries (not included)
Housing dimensions	74 x 26 (48) x 90 mm
Weight	106 g (device only)
Mounting	Foldable stand, hanging eyelet, magnets on back
Care and cleaning	Soft, damp cloth, no solvents or abrasives
Safety instructions	Keep out of reach of children, do not repair yourself, batteries are dangerous
Used batteries	Do not dispose of in household waste, return to a recycling center
WEEE	Complies with WEEE directive, do not dispose of in household waste

Frequently Asked Questions - 30.5047 TFA

How to change the batteries of the TFA 30.5047 thermometer?

Open the battery compartment on the back of the device. Insert two new 1.5 V AAA batteries, observing polarity (+/-). Close the compartment. A low battery symbol appears on the screen when they need to be replaced.

How to switch the display from °C to °F?

Use a pointed object (like a paperclip) to press the °C/°F button on the side of the device. Each press toggles between the two units.

What does the comfort level icon mean?

The comfort level icon indicates the quality of the indoor climate. It appears when the temperature is between 18 °C and 22 °C and humidity between 40 % and 60 %, ideal conditions for well-being.

How to reset the maximum and minimum values?

Press the UP button (for max) or DOWN button (for min) for about 3 seconds depending on the selected mode (24h or all-time). The values will be cleared and the memory will start from zero.

What to do if the screen displays nothing?

First check the battery polarity. If the batteries are correctly inserted and the screen remains blank, replace them with new ones. If the problem persists, contact customer service.

How to calibrate the temperature or humidity display?

Press and hold the SET button for 5 seconds. Humidity flashes: adjust with UP or DOWN, then confirm with SET. Temperature then flashes: do the same. The screen shows 'CALIBRATED'.

Can I mount the device on the wall?

Yes, you can hang it on the wall using the hanging eyelet on the back. Otherwise, use the magnets to attach it to a metal surface, or place it on a flat surface with the foldable stand.

How to clean the thermo-hygrometer?

Use a soft, slightly damp cloth. Never use solvents or abrasive products. Avoid getting moisture inside the device.

What to do with used batteries?

Never dispose of batteries in household waste. Return them to your retailer or drop them off at a recycling center in accordance with local regulations. Batteries contain harmful substances such as cadmium (Cd), mercury (Hg), or lead (Pb).

How to activate the backlight?

Briefly press the LIGHT touch button on top of the device. The backlight turns on temporarily. You can also press any other button to activate it.

USER MANUAL 30.5047 TFA

A 2 78% high (80) 24hrs trend (75) low A 3 A 1 A 4 LOW 30% OK 50% HIGH 25°C high (26) trend (24) low A 7 A 6

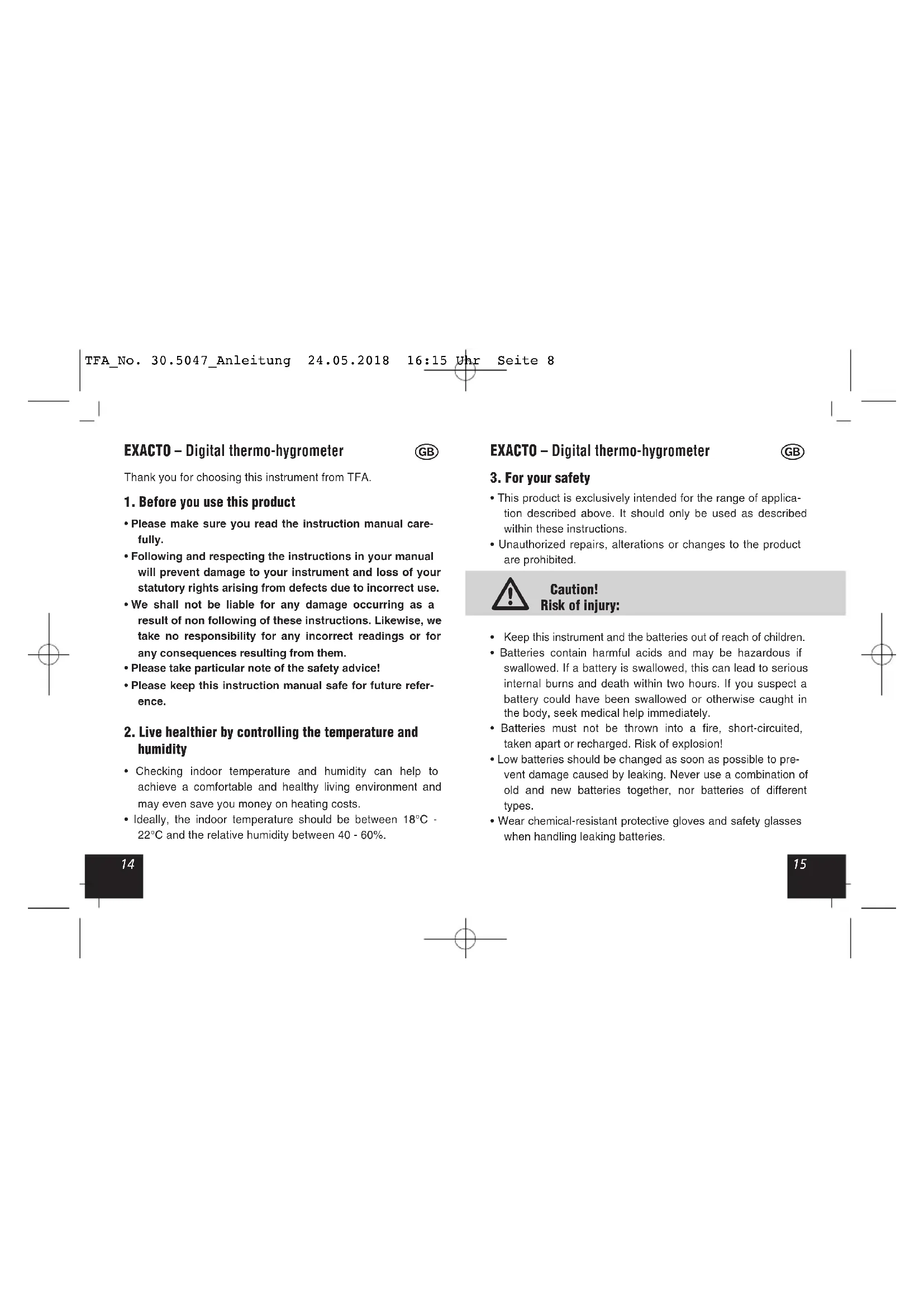

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of non following of these instructions. Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.
• Please take particular note of the safety advice!
• Please keep this instruction manual safe for future reference.

2. Live healthier by controlling the temperature and humidity

• Checking indoor temperature and humidity can help to achieve a comfortable and healthy living environment and may even save you money on heating costs.
• Ideally, the indoor temperature should be between 18^ - 22^ and the relative humidity between 40 - 60%.

EXACTO – Digital thermo-hygrometer GB

3. For your safety

• This product is exclusively intended for the range of application described above. It should only be used as described within these instructions.
• Unauthorized repairs, alterations or changes to the product are prohibited.

Caution! Risk of injury:

• Keep this instrument and the batteries out of reach of children.
• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

• Do not expose the device to extreme temperatures, vibrations or shocks.
• Protect it from moisture.
• Only suitable for indoor use.

4. Elements

A: Display (Fig. 1):

A 1: Humidity
A 2: Humidity trend arrow
A 3: Max/min values humidity
A 4: Comfort level indicator
A 5: Temperature
A 6: Temperature trend arrow
A 7: Max/min values temperature

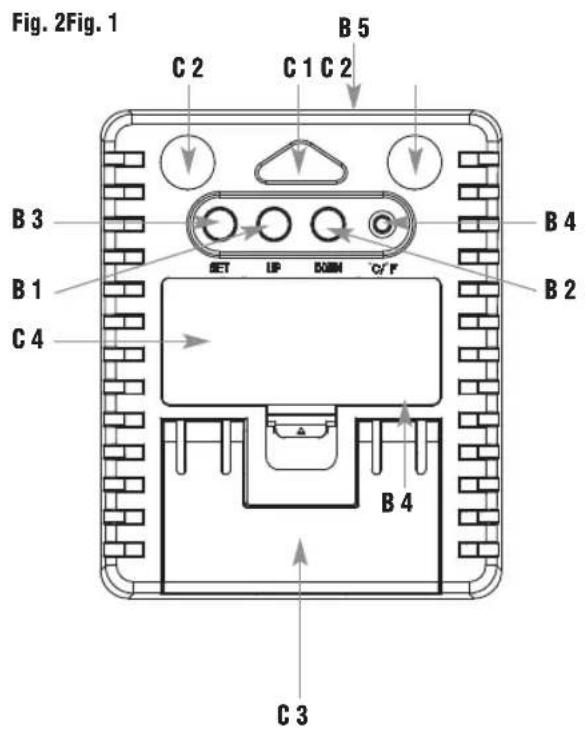

B: Buttons (Fig. 2+3):

B 1: UP button B 2: DOWN button

B 3: SET button B 4: °C/°F button

B 5: LIGHT sensor button

C: Housing (Fig. 2):

C 1: Mounting hole

EXACTO – Digital thermo-hygrometer GB

C 2: Magnet

C 3: Stand (fold out)

C 4: Battery compartment

5. Getting started

• Remove the protective film from the display.
• Open the battery compartment.
• Insert two new 1,5 V AAA batteries, polarity as illustrated. On the display appear the measured temperature and humidity.
• Close the battery compartment again.

6. Temperature display

- Press and hold the °C/°F button using a pin to change between °C (Celsius) or °F (Fahrenheit) as temperature unit.

7. Trend indicator

- The trend arrows indicate whether the values for temperature and humidity are currently increasing, steady or decreasing.

8. Comfort level

- A marking appears on the display to indicate the comfort level.

• There are two memory modes for highest and lowest values.
• Press the UP or DOWN button in normal mode to enter the automatic (24hrs) or manual (all-time) reset mode of the maximum-minimum values.
• All-time mode: As soon as the station is active the maximum and minimum values will be stored.
• 24hrs mode: The maximum and minimum values will be reset every 24 hours (from the moment of activation).

9.1 Manual reset

• Hold UP button in the respective mode to clear the recorded high reading.
• Hold DOWN button in the respective mode to clear the recorded low reading.

10. Backlight

- Press the LIGHT sensor button or any button to temporarily activate the backlight.

11. Positioning and mounting of the device

- The device can be placed onto any flat surface with the stand or wall mounted at a chosen location with the mounting hole, both found at the back of the unit.

EXACTO – Digital thermo-hygrometer GB

- Use the magnets at the back of the device for placement on metal surfaces.

12. Care and maintenance

• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the batteries if the device will not be used for an extended period of time.
• Keep the device in a dry place.

12.1 Battery replacement

- Change the batteries when the battery symbol appears on the display.

13. Troubleshooting

Problem Solution

No display → Ensure the batteries' polarity are correct → Change the batteries

Incorrect indication → Change the batteries → Use the calibration function

EXACTO – Digital thermo-hygrometer

14. Calibration function

• The thermo-hygrometer allows the user to calibrate the display of temperature and humidity measurements with an external, better reference source. The user can make adjustments to the temperature and humidity displays within the measuring range.
• When replacing batteries the calibrated values are deleted automatically.

15. Calibration of the humidity and temperature display

• Press and hold the SET button for 5 seconds.
  • The display of the humidity flashes.
• Press the UP or DOWN button to correct the display of the humidity.
• CALIBRATED appears on the display.
• Press SET button shortly to confirm it.
  • The temperature display flashes.
• Press the UP or DOWN button to correct the display of the temperature.
  • CALIBRATED appears on the display.
• Press SET button shortly to confirm it.

16. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

EXACTO – Digital thermo-hygrometer

Never dispose of empty batteries and rechargeable batteries with ordinary household waste. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment

The symbols for the contained heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

17. Specifications

Temperature range indoor -20 °C... 70°C (-4 °F ...158 °F)

Humidity range 1 ... 99%

Temperature accuracy ±1^

Temperature resolution 1°C

Humidity accuracy ±3 % at 35 ...75 %, otherwise ±5 %

Humidity resolution 1 %

Power consumption: Batteries 2 x 1,5 V AAA (not included)

Dimensions 74 x 26 (48) x 90 mm

Weight 106 g (device only)

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.

The latest technical data and information about your product can be found by entering the product number on our homepage.

www.tfa-dostmann.de 05/18
