| Product Type | Hi-Fi System |
| Brand | Soundmaster |
| Model | MCD5550DBR |
| Power Supply | 230 V~ 50 Hz |
| Power Consumption | 31 W |
| Radio Tuner | FM and DAB |
| FM Range | 87.5 - 108 MHz |
| DAB Range | 174.92 - 239.2 MHz |
| Bluetooth | Yes, frequency 2.402 - 2.480 GHz |
| Disc Playback | CD, CD-R, CD-RW, MP3 |
| USB Port | Yes, for MP3 playback and recording |
| Cassette Deck | Double (Deck 1 and Deck 2) |
| Turntable | Yes, with 45 RPM adapter |
| MP3 Recording | From CD, radio, cassette, Aux, Bluetooth |
| Timer | Sleep and Wake |
| Equalizer | Presets: Flat, Classic, Rock, Pop, Jazz |
| Auxiliary Input | 3.5 mm jack |
| Headphone Output | 3.5 mm jack |
| Remote Control | Yes, infrared, AAA batteries not included |
| Antenna | DAB/FM antenna supplied |
| Laser | Class 1 |

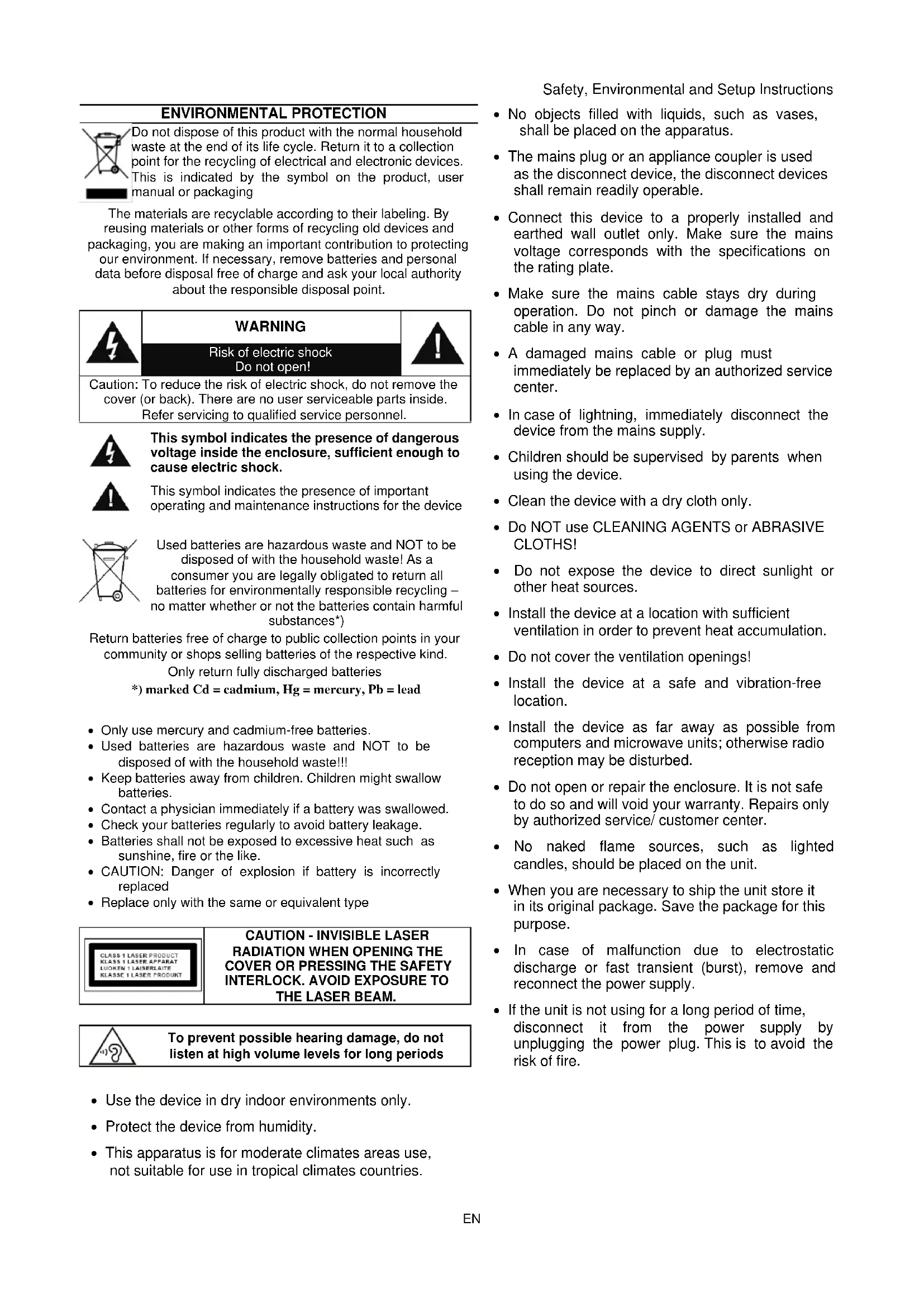

| Maintenance | Clean with a dry cloth, do not use detergents |
| Safety | Do not open, risk of electric shock; avoid exposure to laser |
| Used batteries | Do not dispose of with household waste, recycle |
Frequently Asked Questions - MCD5550DBR Soundmaster
How to set the clock?
Put the device in standby. Press and hold the Mem/Clk-Adj key until '24HR' appears. Use the Skip forward/back keys to choose 12 or 24-hour format, then press Mem/Clk-Adj. Set the hours with the skip keys, confirm, then set the minutes and confirm.
How to listen to FM radio?
Connect the supplied antenna. Turn on the device, press Function to select 'DAB', then press Band to switch to FM. Use the Tune forward/back keys to search manually, or the Scan key on the remote for automatic search.
How to connect a device via Bluetooth?
Select Bluetooth mode with the Function key. The screen displays flashing 'Bluetooth'. On your device, enable Bluetooth and search for 'MCD5550...'. Select it. Once connected, the name stops flashing. You can control playback from the main unit.
How to encode a CD to MP3 on USB?
Insert a USB drive. Set the CD to stop mode. Press the REC key three times until 'REC USB' flashes. Encoding starts automatically. Press Stop to interrupt. The default bitrate is 128 kbps, adjustable via the remote control.
How to program CD playback?
In CD mode and stop, press Mem/Clk-Adj. 'MEM' appears. Use the Skip keys to select a track, then press Mem/Clk-Adj to memorize it. Repeat up to 20 tracks. Press Play/Pause to start programmed playback.
How to use the alarm function?
In standby, press and hold the Timer key on the remote. Follow the steps: choose the source (CD, FM, DAB, USB), set the volume, then the alarm time. Press Timer to confirm. Activate the alarm by pressing the Timer key once until the '©' icon appears.
How to adjust the equalizer?
Press the EQ key on the unit or remote repeatedly to cycle through the modes: Flat, Classic, Rock, Pop, Jazz. The selected mode is displayed on the screen.
What to do if the device does not turn on?
Check that the power cord is properly connected to a working power outlet. Make sure the voltage matches 230 V~ 50 Hz. If the device remains off, contact an authorized service. Do not open the device.
How to clean the device?
Use a dry, soft cloth to clean the exterior. Never use detergents, sprays, or abrasive cloths. Protect the device from moisture and direct sunlight.
Where to find the batteries for the remote control?
The remote requires two AAA batteries (not included). Open the battery compartment on the back by pressing the tab. Insert the batteries respecting polarity. Do not dispose of used batteries with household waste.
