PG.15 PG.29 PG.43 PG.57 PG.71PG.127 PG.85 PG.99 PG.113 WARNING Do not try to light this appliance without reading the “LIGHTING” instrucons secon of this manual. Do not store or use gasoline or other ammable liquids or vapors in the vicinity of this or any other appliance. An L.P. cylinder not connected for use must not be stored in the vicinity of this or any other appliance. If the informaon in these instrucons is not followed exactly, a re or explosion may result, causing property damage, personal injury or death. DANGER IF YOU SMELL GAS:

• Shut o gas to the appliance.

• Exnguish any open ame.

• If odor connues, keep away from the appliance and immediately call your gas supplier or re department. APPLY SERIAL NUMBER LABEL FROM CARTONSerial No. XXXXXX000000MODEL NO. Noce to Installer: Leave these instrucons with the grill owner for future reference. This gas grill must be used only outdoors in a well-venlated space and must not be used inside a building, garage, screened-in porch, gazebo or any other enclosed area. TQ285X

NAPOLEON products are designed with superior components and materials, and are assembled by trained crasmen who take great pride in their work. This grill has been thoroughly inspected by a qualied technician before packaging and shipping to ensure that you, the customer, receive the quality product you expect from NAPOLEON. We at Napoleon are dedicated to you, “our valued customer”. It is our goal to provide you with the necessary tools for an unforgeable grilling experience. This manual is provided to assist you in assuring your new grill is assembled, installed, maintained and cared for properly. It is important to read and understand this enre manual before operang your new grill to ensure you fully understand all the safety precauons and features your grill has to oer. By carefully following these instrucons, you will enjoy years of trouble-free grilling. If this product fails to meet your expectaons, for any reason, please call our customer soluons department at 1-866-820-8686 between 9 AM and 5 PM (Eastern Standard Time) or visit our Website at www.napoleongrills.com. Napoleon Gas Grill President’s Limited Warranty NAPOLEON warrants that components in your new NAPOLEON product will be free from defects in material and workmanship from the date of purchase, for the following period: Lid Assembly 5 years plus5 Base Casng 5 years plus5 Stainless steel tube burners 5 years plus5 Porcelain-enameled cast iron cooking grids 5 years plus5 Plasc components 5 years All other parts 2 years plus5 indicates a period of extended warranty coverage whereby the replacement part will be made available to the consumer for an addional 5 years at 50% of the current retail price. Condions and Limitaons NAPOLEON warrants its products against manufacturing defects to the original purchaser only, provided that the purchase was made through an authorized NAPOLEON dealer and is subject to the following condions and limitaons:This factory warranty is non-transferable and may not be extended what-so-ever by any of our representaves.This limited warranty does not cover damages caused by misuse, lack of maintenance, grease res, hosle environments, accident, alteraons, abuse or neglect and parts installed from other manufacturers will nullify this warranty. Discoloraon to plasc parts from chemical cleaners or UV exposure is not covered by this warranty.This limited warranty further does not cover any scratches, dents, painted or plated nishes, corrosion or discoloring by heat, abrasive and chemical cleaners, nor chipping on porcelain enamel parts..Should deterioraon of parts occur to the degree of non-performance (rusted through or burnt through) within the duraon of the warranted coverage, a replacement part will be provided.Aer the rst year, with respect to this President’s Limited Warranty NAPOLEON may, at its discreon, fully discharge all obligaons with respect to this warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defecve part(s).NAPOLEON will not be responsible for the installaon, labor or any other costs or expenses related to the re-installaon of a warranted part, and such expenses are not covered by this warranty.Notwithstanding any provision contained in this President’s Limited Warranty NAPOLEON’s responsibility under this warranty is dened as above and it shall not in any event extend to any incidental, consequenal, or indirect damages.This warranty denes the obligaon and liability of NAPOLEON with respect to the NAPOLEON gas grill and any other warranes expressed or implied with respect to this product, its components or accessories are excluded.NAPOLEON neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilies with respect to the sale of this product. NAPOLEON will not be responsible for: over ring, blow outs caused by environmental condions such as strong winds, or inadequate venlaon,Any damages to the gas grill due to weather damage, hail, rough handling, damaging chemicals or cleaners will not be the responsibility of NAPOLEON.The bill of sale or copy will be required together with a serial number and a model number when making any warranty claims from NAPOLEON. NAPOLEON reserves the right to have its representave inspect any product or part prior to honoring any warranty claim.NAPOLEON shall not be liable for any transportaon charges, labor costs, or export dues.www.napoleongrills.com

WARNING! Failure to follow these instrucons could result in property damage, personal injury or death. Read and follow all warnings and instrucons in this manual prior to operang grill. Safe Operang Pracces

• This gas grill must be assembled exactly according to the instrucons in the manual. If the grill was store assembled, you must review the assembly instrucons to conrm correct assembly and perform the required leak tests before operang the grill.

• Read the enre instrucon manual before operang the gas grill.

• This gas grill must only be used outdoors in a well-venlated space and must not be used inside a building, garage, screened in porch, gazebo or any other enclosed area.

• This gas grill is designed for propane, butane or a propane/butane mix only.

• Do not locate in windy sengs. High winds adversely aect the cooking performance of the gas grill.

• Under no circumstances should this gas grill be modied. Parts sealed by the manufacturer, licensed authorized service technician or contractor must not be manipulated by the user.

• Do not operate unit under any combusble construcon.

• Maintain proper clearance to combusbles 18” (457mm) to rear of unit, 18” (457mm) to sides). Addional clearance is recommended near vinyl siding or panes of glass.

• The gas supply hose must be installed in a manner that will not allow contact with any hot surfaces of the grill while in use or in the storage/travel mode.

• The gas cartridge must be disconnected when the gas grill is not in use.

• When the gas cartridge is connected to the appliance, the gas grill and cartridge must be stored outdoors in a well-venlated space.

• When the gas grill is to be stored indoors, the connecon between the propane cartridge and the gas grill must be disconnected and the cartridge removed and stored outdoors in a well venlated space out of reach of children. Disconnected cartridges must not be stored in a building, garage or any other enclosed area.

• Inspect the gas supply hose before each use. If there is evidence of excessive abrasion or wear or the hose is cut, it must be replaced, prior to using the gas grill, with a replacement hose assembly specied by the grill manufacturer.

• Never store a spare cartridge under or near this grill.

• Do not route hose underneath drip pan - proper hose clearance to boom of unit must be maintained.

• Leak test the unit before inial use, annually and whenever any gas components are replaced.

• Follow the lighng instrucons carefully when operang the grill.

• Do not light burners with lid closed.

• Adults and especially children should be alerted to the hazards of high surface temperatures. Young children should be supervised near the gas grill.

• Do not leave grill unaended when operang.

• Do not move grill when hot or operang.

• Keep any electrical supply cord and gas supply hose away from any heated surfaces.

• Ensure sear plate (if equipped) is posioned properly.

• Clean grease tray and sear plates (if equipped) regularly to avoid build-up, which may lead to grease res.

• Do not use water, beer, or any other liquids to control are-ups.

• Do not use a pressure washer to clean any part of the unit.

• This gas grill is not intended for commercial use.

• This gas grill is not intended for and should never be used as a heater.www.napoleongrills.com

Handle With Care CAUTION! Use care when handling or transporng your grill to prevent damage and misalignment of internal components. Although this grill has been designed with mobility in mind, rough handling or abuse will result in damage to internal components, prevenng your grill from operang properly. Correct Disposal Of This Product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collecon systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Gas Cartridge Use only cartridges, which meet naonal and regional codes. Disposable cartridges must conform to the EN417 standard and be equipped with a lindal self-sealing valve. Cartridges must have a fuel capacity of between 430g and 460g. Cartridges must be lled with either propane or a propane / butane mix.

• Inspect the rubber o-ring on the regulator. If there is damage replace the regulator.

• Never connect a cartridge, which does not meet local codes.

• Disposable cartridges must always be secured to the side of the grill in an upright posion using the retaining bracket supplied.

• Never store a spare cartridge in close proximity of an operang appliance. Cartridges must not be exposed to extreme heat or direct sunlight.

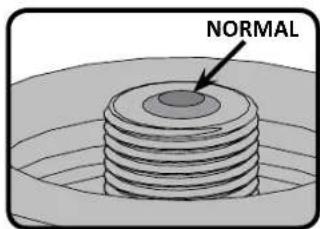

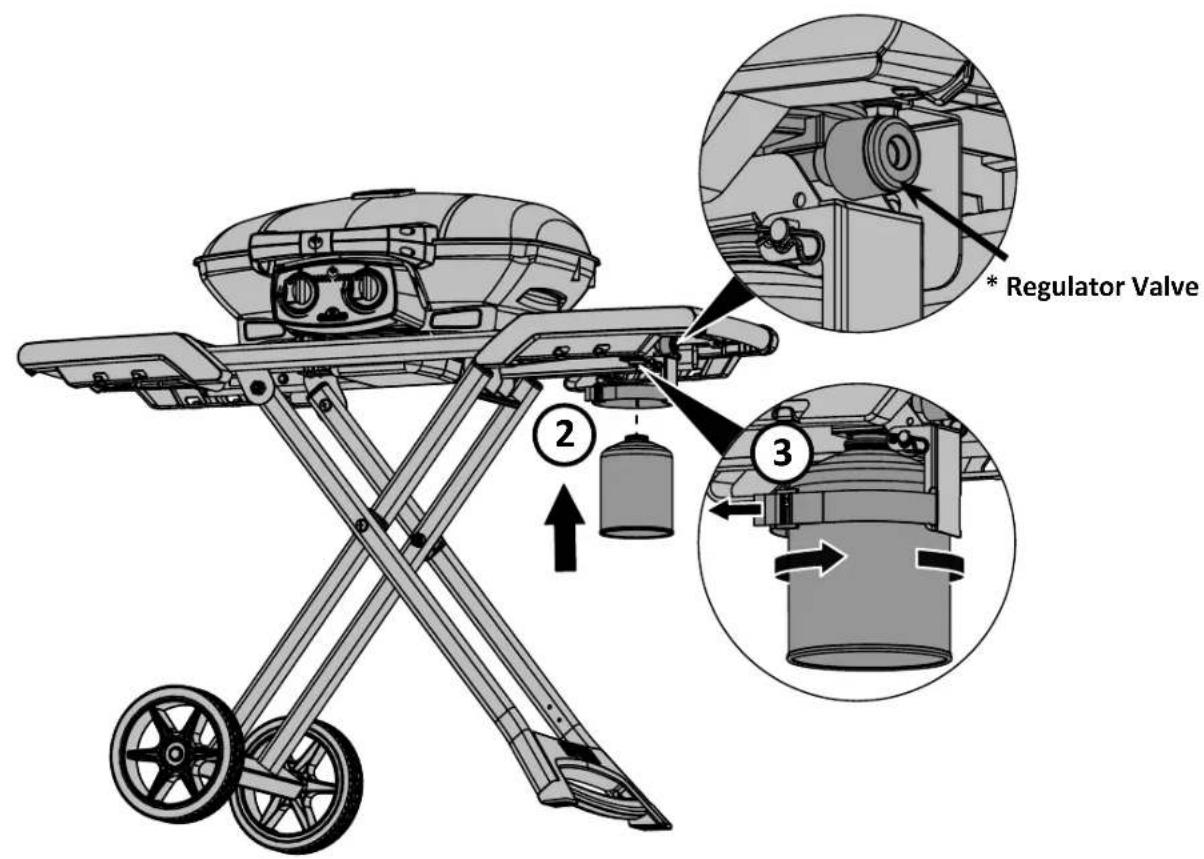

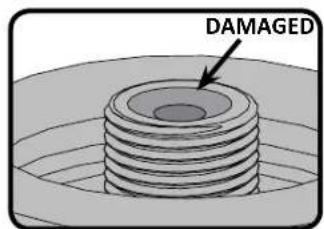

• Never over ghten the cartridge, as over ghtening may cause damage to the regulator connecon or the cartridge connecon. This can cause a leak or restrict the ow to the unit. WARNING! The dust cap should be in place when the cartridge is not in use to prevent dirt and debris from entering the valve. WARNING! Review instrucons on the cartridge prior to using. A dented or rusted cartridge may be hazardous. Discard cartridge if rust parcles or debris are in the connecon area of the cartridge. Cartridge Connecon: Ensure that the gas regulator hose is kink free. The cartridge has a posive seang connecon, which will not allow gas ow unl a posive seal has been achieved. Remove the cap or plug from the cartridge. To install the cartridge simply screw it into the regulator in a clockwise direcon. Hand ghten only, never use tools. Leak test all joints prior to using the barbecue. A leak test must be performed annually, and each me a cylinder is hooked up, or part of the gas system is replaced. Disposable cartridges must be secured to the side of the grill, in an upright posion, using the supplied retaining bracket. This will prevent liquid propane / butane from entering the regulator, which can cause over ring and damage to the regulator. *For proper operaon, ensure regulator valve is open. NORMAL DAMAGED 146 mm 108 mmwww.napoleongrills.com

• Do not route hose underneath drip pan.

• Ensure all connecons are ghtened using two wrenches. Do not use Teon tape or pipe dope on any hose connecon.

• Ensure the hose does not contact any high temperature surfaces, or it may melt and leak causing a re. Gas Hose

• If the hose and regulator are not included by the manufacturer, then only hoses and regulators which meet naonal and regional codes are to be used.

• Ensure that the hose does not come into contact with grease, other hot drippings, or any hot surfaces on the appliance.

• Check hose regularly. In the case of rips, melng or wear, replace hose before using the appliance.

• The hose must not be longer than 1.5m.

• Ensure that the hose is twist and kink free when installed.

• Replace the hose before expiry date printed on the hose. Technical Data The following table lists input values for the appliance. Burner Orice Size (Gross) Heat Input (Total) Gas Usage (Total) I II I II I II #69 (0.74 mm) #73 (0.61 mm) 4.1kW 4.1kW 301 g/hr 301 g/hr Cered Gases / Pressures - Check rang plate to ensure that it corresponds with following list. Do not tamper with or modify regulator. Use only regulators which supply the pressure listed in the table above. For replacement, use only the regulator specied by the manufacturer. Gas Category

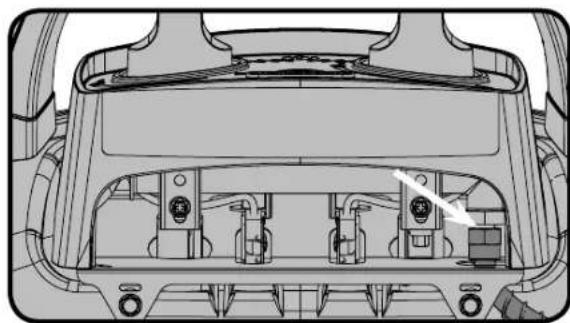

Leak Tesng Instrucons WARNING! A leak test must be performed annually and each me a cylinder is hooked up or if a part of the gas system is replaced. WARNING! Never use an open ame to check for gas leaks. Be certain no sparks or open ames are in the area while you check for leaks. Sparks or open ames will result in a re or explosion, damage to property, serious bodily injury, or death. Leak tesng: This must be done before inial use, annually, and whenever any gas components are replaced or serviced. Do not smoke while performing this test, and remove all sources of ignion. See Leak Tesng Diagram for areas to check. Turn all burner controls to the o posion. Turn gas supply valve on. Brush a half-and-half soluon of liquid soap and water onto all joints and connecons of the regulator, hose, manifolds and valves. Bubbles will indicate a gas leak. Either ghten the loose joint or have the part replaced with one recommended by the Napoleon Customer Soluons department and have the grill inspected by a cered gas installer. If the leak cannot be stopped, immediately shut o the gas supply, disconnect it, and have the grill inspected by a certied gas installer or dealer. Do not use the grill until the leak has been corrected. STOP Xwww.napoleongrills.com

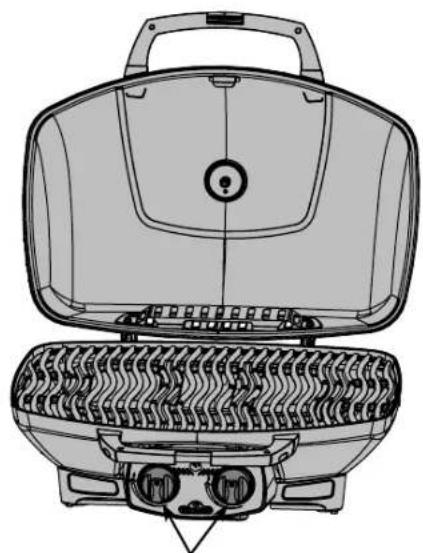

Lighng Instrucons WARNING! Open lid WARNING! Ensure all burner controls are in the o posion. Slowly turn on the cylinder gas supply valve. Main Burner Lighng

2. Push and turn any main burner control knob slowly to the 'hi' posion. This acon

will ignite the selected burner.

3. If the burner does not ignite, then immediately turn the control knob back to the

'o' posion and repeat step 2 several mes.

4. If the burner will not ignite within 5 seconds, turn the control knob to the 'o'

posion and wait 5 minutes for any excess gas to dissipate, either repeat steps 2 and 3 or light with a match.

5. If lighng the unit with a match, clip the match into the supplied lighng rod. Hold

the lit match down through the grill while turning the corresponding burner valve to high. Burner Controlwww.napoleongrills.com

Cooking Instrucons Inial Lighng: When lit for the rst me, the gas grill emits a slight odor. This is a normal temporary condion caused by the “burn-in” of internal paints and lubricants used in the manufacturing process and does not occur again. Simply run the main burners on high for approximately one-half hour. Main Burner Use: When searing foods, we recommend preheang the grill by operang all main burners in the high posion with the lid closed for approximately 10 minutes. Food cooked for short periods of me (sh, vegetables) can be grilled with the lid open. Cooking with the lid closed will ensure higher, more even temperatures that can reduce cooking me and cook meat more evenly. Food that has a cooking me longer than 30 minutes, such as roasts, can be cooked indirectly (with the burner lit opposite to the food placement). When cooking very lean meats, such as chicken breasts or lean pork, the grids can be oiled before pre-heang to reduce scking. Cooking meat with a high degree of fat content can create are-ups. Either trim the fat or reduce temperatures to inhibit this. Should a are-up occur, move food away from the ames and reduce the heat. Leave the lid open. See Your All Season Grill cookbook by Napoleon for more detailed instrucons. WARNING! Always wear protecve gloves and safety glasses when servicing your grill. WARNING! To avoid the possibility of burns, maintenance should be done only when the grill is cool. Avoid unprotected contact with hot surfaces. Ensure all burners are turned o. Clean grill in an area where cleaning soluons will not harm decks, lawns, or paos. Do not use oven cleaner to clean any part of this gas grill. Do not use a self-cleaning oven to clean cooking grids or any other parts of the gas grill. Barbecue sauce and salt can be corrosive and will cause rapid deterioraon of the gas grill components unless cleaned regularly. Cleaning Instrucons Note: Stainless steel tends to oxidize or stain in the presence of chlorides and suldes, parcularly in coastal areas and other harsh environments, such as the warm, highly humid atmosphere around pools and hot tubs. These stains could be perceived as rust, but can be easily removed or prevented. To provide stain prevenon and removal, wash all stainless steel and chrome surfaces every 3-4 weeks or as oen as required with fresh water and/or stainless steel cleaner. WARNING! Do not use this grill under extended awnings. Failure to follow these instrucons could result in a re or personal injury. DANGER! Do not put this grill in storage or travel mode immediately aer use. Allow the grill to cool to the touch before moving or storing. Failure to do so could result in a re resulng in property damage, personal injury or death. Cast Iron Cooking Grids: The cast iron cooking grids supplied with your new grill oer superior heat retenon and distribuon. By regularly seasoning your grids you are adding a protecve coang, which will aid in resisng corrosion and increase your grids non-sck capabilies. First Time Use: Wash the cooking grids by hand with mild dish soap and water to remove any residue from the manufacturing process (never wash in a dish washer). Rinse thoroughly with hot water and dry completely with a so cloth. This is important to avoid moisture from entering the cast iron. Seasoning: Using a so cloth, spread VEGETABLE SHORTENING over the enre grid surface ensuring all grooves and corners are covered. Do not use salted fats such as buer or margarine. Pre-heat your grill for 15 minutes, then place the seasoned cooking grids in the grill. Turn the burner control knobs to medium with the lid closed. Allow the cooking grids to heat for approximately one-half hour. Turn all the burners to the “OFF” posion and turn the gas o at the source. Let the cooking grids stand unl cool. This procedure should be repeated several mes throughout the season, although it is not required for daily use (follow daily usage procedure below). Daily Usage: Before pre-heang, and cleaning with a brass wire grill brush, coat the enre top surface of the cooking grids with VEGETABLE SHORTENING. Pre-heat the grill and then brush away any unwanted residue with a brass wire brush. Cleaning Inside The Gas Grill : Remove the cooking grids. Use a brass wire brush to clean loose debris from casng sides and underneath the lid. Brush all debris from inside the gas grill into the removable drip pan.www.napoleongrills.com

Drip Pan: Accumulated grease is a re hazard. Clean the drip pan frequently to avoid grease buildup. Grease and excess drippings pass through to the drip pan, located beneath the gas grill and accumulate. To clean, slide the drip pan free of the grill. Never line the drip pan with aluminum foil, sand or any other material as this could prevent the grease from owing properly. The pan should be scraped out with a puy knife or scraper. CAUTION! Ensure drip pan is empty and clean before transporng grill in vercal posion. Cleaning The Outer Grill Surface: Do not use abrasive cleaners or steel wool on any painted, porcelain or stainless steel parts of your Napoleon Grill. Doing so will scratch the nish. Exterior grill surfaces should be cleaned with warm soapy water while the metal is sll warm to the touch. To clean stainless surfaces, use a stainless steel or a non-abrasive cleaner. Always wipe in the direcon of the grain. Over me, stainless steel parts discolor when heated, usually to a golden or brown hue. This discoloraon is normal and does not aect the performance of the grill. Porcelain enamel components must be handled with addional care. The baked-on enamel nish is glass-like, and will chip if struck. Touch-up enamel is available from your Napoleon Grill dealer. WARNING! Always wear protecve gloves and safety glasses when cleaning your grill. WARNING! Turn o the gas at the source and disconnect the unit before servicing. To avoid the possibility of burns, maintenance should be done only when the grill is cool. A leak test must be performed annually and whenever any component of the gas train is replaced or gas smell is present. Maintenance Instrucons We recommend this gas grill be thoroughly inspected and serviced annually by a qualied service person. At all mes keep the gas grill area free from combusble materials, gasoline and other ammable vapors and liquids. Do not obstruct the ow of venlaon and combuson air. Burner: The burner is made from heavy wall 304 stainless steel, but extreme heat and a corrosive environment can cause surface corrosion to occur. This can be removed with a brass wire brush. CAUTION! Beware of Spiders. Spiders and insects are aracted to the smell of propane and natural gas. The burner is equipped with an insect screen on the air shuer, which reduces the likelihood of insects building nests inside the burner but does not enrely eliminate the problem. A nest or web can cause the burner to burn with a so yellow or orange ame or cause a re (ashback) at the air shuer underneath the control panel. To clean the inside of the burner, it must be removed from the gas grill: Remove the screw (s) that aach the cross light bracket and the burner to the base. Slide the burner back and upwards to remove. Cleaning: Use a exible venturi tube brush to clean the inside of the burner. Shake any loose debris from the burner through the gas inlet. Check the burner ports and valve orices for blockages. Burner ports can close over me due to cooking debris and corrosion; use an opened paperclip to clean them. The ports are easier to clean if the burner is removed from the grill, but it can also be done with the burner installed. CAUTION! Take care not to enlarge the holes. Ensure the insect screen is clean, ght, and free of any lint or other debris. Reinstallaon: Reverse the procedure to reinstall the burner. Check that the valve enters the burner when installing. Replace cross light bracket and ghten screws to complete reinstallaon.www.napoleongrills.com

WARNING! When reinstalling the burner aer cleaning it is very important that the valve/orice enters the burner tube before lighng your gas grill. If the valve is not inside the burner tube a re or explosion could occur. WARNING! Hose: Check for abrasions, melng, cuts, and cracks in the hose. If any of these condions exist, do not use the gas grill. Have the part replaced by your Napoleon Grill dealer or qualied gas installer.www.napoleongrills.com

Troubleshoong Problem Possible Causes Soluon Low heat / Low ame when valve turned to high. Blockage of gas. Improper preheang. Check for spider webs in the burner or orice. Preheat grill with main burners on high for 5 to 10 minutes. Excessive are-ups/ uneven heat. Improper preheang. Excessive grease and ash build up in drip pan. Preheat grill with both main burners on high for 5 to 10 minutes. Clean drip pan regularly. Do not line pan with aluminum foil. Refer to cleaning instrucons. Burners burn with yellow ame, accompanied by the smell of gas. Possible spider web or other debris, or improper air shuer adjustment. Thoroughly clean burner by removing. See general maintenance instrucons. Open air shuer slightly according to combuson air adjustment instrucons. (This must be done by a qualied gas installer.) Flames li away from burner, accompanied by the smell of gas, and possibly dicules in lighng. Improper air shuer adjustment. Close air shuer slightly according to combuson air adjustment instrucons. (This must be done by a qualied gas installer.) Burner will not light with the igniter, but will light with a match. Jet-re outlet is dirty or clogged. Clean jet-re outlet with a so bristle brush. Humming regulator. Normal occurrence on hot days. This is not a defect. It is caused by internal vibraons in the regulator and does not aect the performance or safety of the gas grill. Humming regulators will not be replaced. “Paint” appears to be peeling inside lid or hood. Grease build-up on inside surfaces. This is not a defect. The peeling is caused by hardened grease, which dries into paint-like shards that ake o. Regular cleaning will prevent this. See cleaning instrucons. Burner output on “high” seng is too low. (Rumbling noise and uering blue ame at burner surface.) Lack of gas. Supply hose is pinched. Dirty or clogged orice. Spider webs or other maer in venturi tube. Check gas level in propane cylinder. Reposion supply hose as necessary. Clean burner orice. Clean out venturi tube.www.napoleongrills.com

KEEP YOUR RECEIPT AS PROOF OF PURCHASE TO VALIDATE YOUR WARRANTY. Ordering Replacement Parts Warranty Informaon MODEL: DATE OF PURCHASE: SERIAL NUMBER: (Record informaon here for easy reference) Before contacng the Customer Soluons Department, check the Napoleon Grills Website for more extensive cleaning, maintenance, troubleshoong and parts replacement instrucons at www.napoleongrills.com. Contact the factory directly for replacement parts and warranty claims. Our Customer Soluons Department is available between 9 AM and 5 PM (Eastern Standard Time) at 1-866-820-8686, fax at 1-705-727-4282 or e-mail grills@napoleonproducts.com. To process a claim, we must be provided with the following informaon:

1. Model and serial number of the unit.

2. Part number and descripon.

3. A concise descripon of the problem (‘broken’ is not sucient).

4. Proof of purchase (photocopy of the invoice).

In some cases the Customer Soluons Representave could request to have the parts returned to the factory for inspecon before providing replacement parts. These parts must be shipped prepaid to the aenon of the Customer Soluons Department with the following informaon enclosed:

1. Model and serial number of the unit.

2. A concise descripon of the problem (‘broken’ is not sucient).

3. Proof of purchase (photocopy of the invoice).

4. Return Authorizaon Number - provided by the Customer Soluons Representave.

Before contacng Customer Soluons Representave, please note that the following items are not covered by the warranty:

• Costs for transportaon, brokerage or export dues.

• Labour costs for removal and reinstallaon.

• Costs for service calls to diagnose problems.

• Discoloraon of stainless steel parts.

• Part failure due to lack of cleaning and maintenance, or use of improper cleaners (oven cleaner or other harsh chemicals).15 www.napoleongrills.com

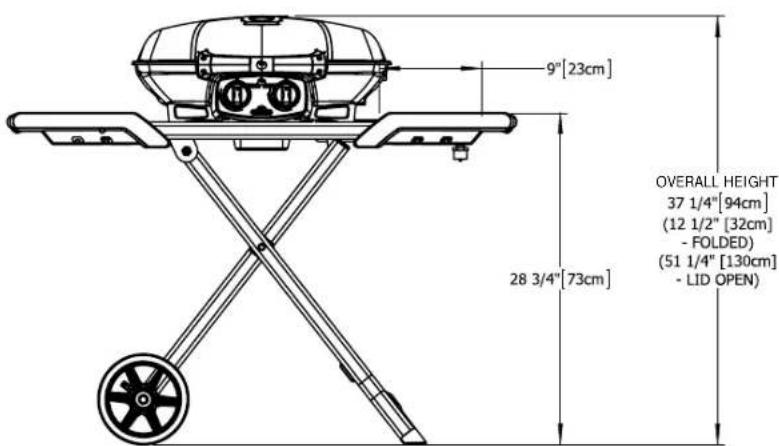

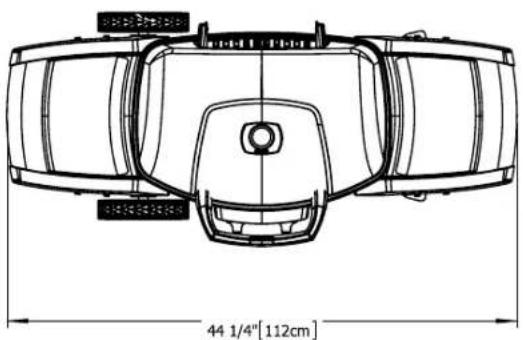

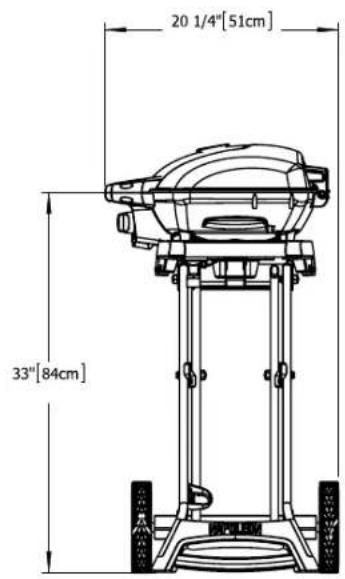

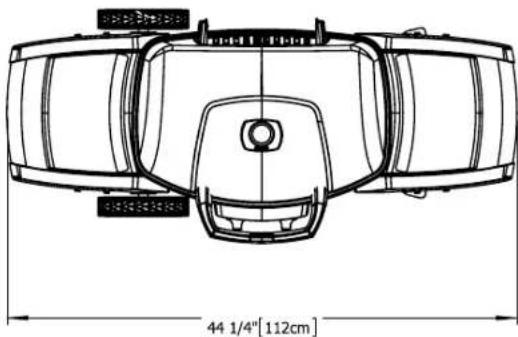

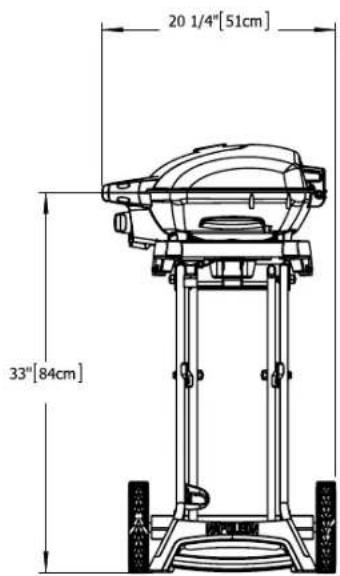

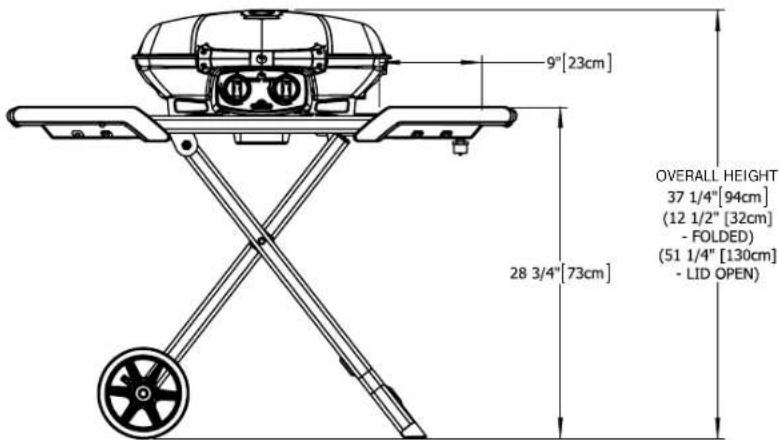

DIMENSIONS HAUTEUR TOTALE DIMENSIONS GRILLE: (IRR

82N415-0340CE-W Napoleon products are protected by one or more U.S. and Canadian and/or foreign patents or patents pending.
