580 XCD - Shredder Genie - Free user manual and instructions

Product type	Cross-cut paper shredder
Power supply	230-240 V~, 50 Hz, 1.2 A
Cutting capacity (paper)	10 sheets (80 g/m², A4)
Paper entry width	220 mm
CD/DVD entry width	120 mm
Cutting mode	Fragments (cross-cut), 5 × 18 mm
Security level	P-4 according to DIN 66399
Bin volume	21 liters
Max. operating cycle	2 minutes continuous
Cutting speed	1.5 m/min
Functions	Auto (automatic start), Rev (reverse), Off (stop)
Separate openings	Paper, CD/DVD and credit cards (separate cutting unit)
Overload protection	Yes (automatic motor stop)
Double insulation	Yes (class II)
Maintenance	Clean with a soft dry cloth, do not use cleaning products or solvents
Warranty	Return to retailer with original packaging and receipt
Manufacturer	GO Europe GmbH, Zum Kraftwerk 1, D-45527 Hattingen, Germany

Frequently Asked Questions - 580 XCD Genie

How many sheets can I shred at once with the Genie 580 XCD?

You can shred up to 10 sheets of A4 paper (80 g/m²) in one pass. Do not exceed this capacity to avoid damaging the device.

Can I shred CD/DVDs and credit cards with this shredder?

Yes, the Genie 580 XCD has a separate cutting unit for CDs, DVDs and credit cards. These are cut into 3 pieces and collected in a separate container.

How do I activate the reverse (REV) function?

Set the switch to the REV (reverse) position. This reverses the direction of the blades to clear a jam or remove stuck paper.

What should I do if the device stops suddenly?

This is due to the motor's overload protection. Unplug the device, remove excess paper, then plug it back in and set the switch to REV to clear the blades.

What type of cut does this shredder produce?

It produces a fragments (cross-cut) of 5 × 18 mm, offering a security level of P-4 according to DIN 66399.

How do I clean the document shredder?

Turn off and unplug the device. Use a soft dry cloth to clean the housing. Never use cleaning products or solvents.

Can I shred paper with staples or paper clips?

It is recommended to remove staples and paper clips before shredding, even though the device can cut them. This reduces blade wear.

What is the maximum continuous operation time?

The shredder can operate continuously for 2 minutes at maximum load. After that, let it cool down to avoid overheating.

How do I dispose of the device at the end of its life?

Do not dispose of it with household waste. Take it to a collection center for waste electrical and electronic equipment, in accordance with local regulations.

What should I do if the device does not start?

Check that the machine is properly positioned on the bin (a click confirms correct position). Also ensure the switch is set to AUTO and the power outlet works.

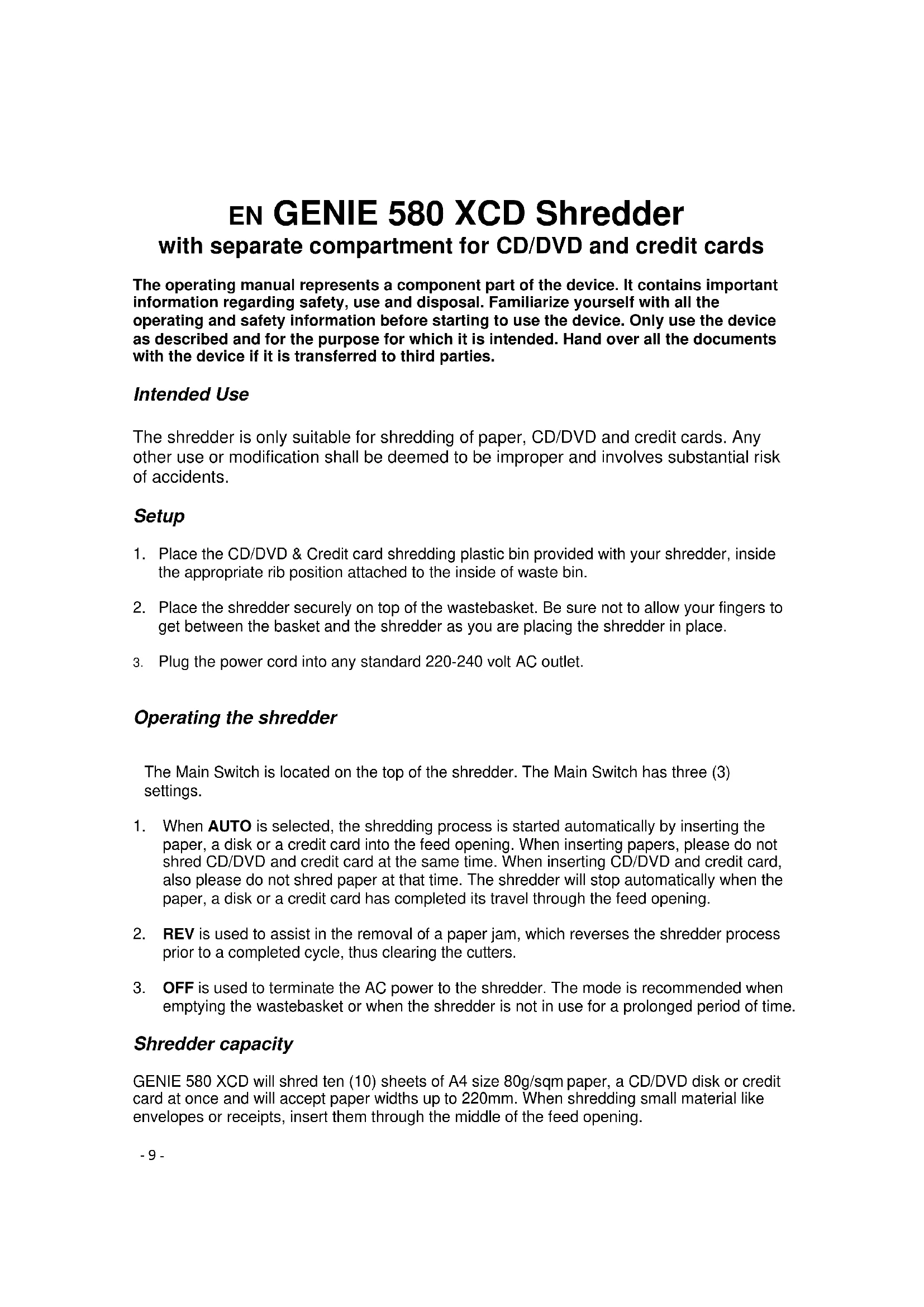

USER MANUAL 580 XCD Genie

EN Operating instruction 9

FR Mode d'emploi 15

with separate compartment for CD/DVD and credit cards

The operating manual represents a component part of the device. It contains important information regarding safety, use and disposal. Familiarize yourself with all the operating and safety information before starting to use the device. Only use the device as described and for the purpose for which it is intended. Hand over all the documents with the device if it is transferred to third parties.

Intended Use

The shredder is only suitable for shredding of paper, CD/DVD and credit cards. Any other use or modification shall be deemed to be improper and involves substantial risk of accidents.

Setup

1. Place the CD/DVD & Credit card shredding plastic bin provided with your shredder, inside the appropriate rib position attached to the inside of waste bin.
2. Place the shredder securely on top of the wastebasket. Be sure not to allow your fingers to get between the basket and the shredder as you are placing the shredder in place.
3. Plug the power cord into any standard 220-240 volt AC outlet.

Operating the shredder

The Main Switch is located on the top of the shredder. The Main Switch has three (3) settings.

1. When AUTO is selected, the shredding process is started automatically by inserting the paper, a disk or a credit card into the feed opening. When inserting papers, please do not shred CD/DVD and credit card at the same time. When inserting CD/DVD and credit card, also please do not shred paper at that time. The shredder will stop automatically when the paper, a disk or a credit card has completed its travel through the feed opening.
2. REV is used to assist in the removal of a paper jam, which reverses the shredder process prior to a completed cycle, thus clearing the cutters.
3. OFF is used to terminate the AC power to the shredder. The mode is recommended when emptying the wastebasket or when the shredder is not in use for a prolonged period of time.

Shredder capacity

GENIE 580 XCD will shred ten (10) sheets of A4 size 80g / sqm paper, a CD/DVD disk or credit card at once and will accept paper widths up to 220mm . When shredding small material like envelopes or receipts, insert them through the middle of the feed opening.

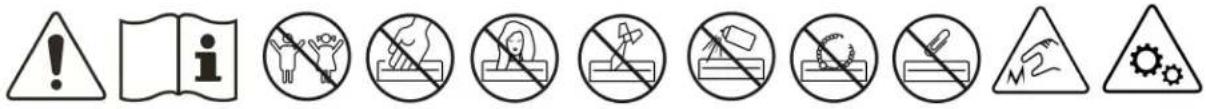

Cautions

1. Read the operating manual before starting to use the device

2. Ke ep all loose articles of clothing, ties , jewelry , hair or other small items away from the feed opening to prevent injury.

3. K eep in the OFF position when the shredder is not in use for prolonged periods of time.

4. Remove all paper clips and staples from paper before shredding. Unit will cut staples, however it is not recommended.

5. Do not place hands or fingers into the shredder throat as serious injury could result.

6. The document shredder must always be deactivated and disconnected from the electric line prior to moving, transporting and cleaning the device and prior to emptying the waste basket.

7. E mpty wastebasket frequently.

8. Please do not leave the document shredder unattended e.g. in the event children or pets are nearby.

9. Never open the case, if you have any problems, please contact the dealer where you bought this device or our hotline.

10. The device may not be operated with a damaged power cord.

11. For indoor use only.

12. This machine is no toy. Keep it away from children and pets.

13. Please do not shred credit cards, CDs/DVDs and paper at the same time.

14. Please do not spray any flammable gas or oil onto this shredder, it may cause fire.

15. To protect the machine well, we suggest the user to operate it in this way: work 2 minutes then rest one hour.

WARNING: Hazardous moving part is in this equipment, keep body parts away from moving parts.

WARNING: Sharp edges in the cutting unit. Keep fingers and other body parts away from the cutting unit

Paper Jams and overload protection

GENIE 580 XCD is equipped with a motor overload protection device. The normal short duty cycle for continuous shredding at maximum capacity is 2 minutes. The power may terminate automatically in case of the following abnormal situations:

1. Operating the shredder at the maximum capacity continuously for a prolonged period of time, e.g. more than 2 minutes for computer paper and CD/DVD or credit card without stopping.
2. Exceeding the shredding capacity e.g. inserting more than 10 sheets at one pass, or if the paper is not fed squarely into the feed opening.

Both abnormal operations may result in the activation of the automatic motor overload protection, which terminates the power to the unit. If this occurs, you should:

1. Unplug the power cord from the AC outlet to allow shredder to cool down. Tear or cut off any excess paper from the top of the shredder.
2. Plug the power cord back into the AC outlet and place the Switch in REV. Pull the remaining paper out of the cutters. Place the Switch back to the Auto position if necessary clear the feed opening of any remaining shredded pieces of paper, Keep fingers away from feed opening to avoid harm.
3. With the Main Switch in the AUTO position and the feed opening clear, you are now ready to resume normal shredding.

Cleaning

Warning! The blades of the device are very sharp! Danger of injury!

1. Switch off the unit.
2. Disconnect the power plug from the power socket.
3. Empty the drip trays regularly.
4. Clean the surface of the housing with a soft, dry, lint-free cloth. Do not use any solvents or cleaning agents.
5. Remove any residue in the cutting holes with a suitable object.

Specifications

Shred type: Cross cut

Shred Size: 5 × 18 mm

Shredding Capacity: 10 Sheets

Feed Opening: 220mm for paper

Feed Opening for CD/DVDs: 120mm

Input: 230-240 volt AC, 50HZ,1.2A

Shredding speed: 1,5m/min

Basket capacity: 21 L

We declare that this device, with regard to its task of the destruction of documents, fulfils the conditions defined for Security Level P-4 in accordance with DIN 66399.

P-4: Recommended for data media containing particularly sensitive and confidential data. Material particle area ≤ 160mm² and for consistent particles: strip width ≤ 6mm (e.g. particles 4× 40mm ).

Symbols

The following symbols are provided on the packaging or on the device itself. This section explains the significance of the individual symbols.

The symbol indicates that the design of the product complies with Protection Class II (double insulation).

A safety connection to the electrical earthing (ground) is not necessary.

Only use the product indoors.

GS tested safety mark

The «Geprüfte Sicherheit» mark (GS tested safety mark) certifies that the product satisfies the requirements defined by the German Product Safety Act (ProdSG).

The GS tested safety mark indicates that when implemented for its intended use and in the event of foreseeable misuse the identified product will not endanger the safety and health of the user. It concerns a voluntary safety mark which was issued by an authorized testing institute.

Disposal

Find out about the possibilities of taking back used appliances free of charge from your dealer.

The packaging is made of environmentally friendly materials that you can dispose of at local recycling points. Advice on the options with which to dispose of your old device can be obtained from your municipal or local administration offices.

The adjacent symbol indicates laws dictate that electrical and electronic apparatus no longer required must be disposed of separate from domestic waste. Dispos of your device at a collection point provided by your local public waste authority. Packaging materials must be disposed of according to local regulations.

Observe the identification on the packaging materials during the waste sorting process; they are identified by abbreviations (b) and numbers (a) which have the following significance: 1-7: plastic/20-22: paper and cardboard/80-98: composite materials.

Packaging materials must be disposed of according to local regulations.

The device and packaging materials can be recycled; sort them for disposal to simplify waste management. The Triman logo is only relevant for France.

The device and the packaging material can be recycled, so sort them prior to disposal for better waste management. Contact your local authorities for information on the various options available to ensure correct disposal. Observe the following identifications of the packaging materials: (a) numbers, (b) abbreviations and (c) materials which have the following significance: 1-7: plastics / 20-22: paper and cardboard / 80-98: composite materials and (d) type of packaging. The logo is only applicable to Italy.

Warranty

Dear customer,

We are delighted that you have chosen this equipment. In the case of a defect, please return the device together with the receipt and original packing material to the point of sale.

Manufacturer

GO Europe GmbH

Zum Kraftwerk 1

D-45527 Hattingen

Germany

Declaration of Conformity

The CE Mark on the device confirms conformity. The Declaration of Conformity can be read online at www.go-europe.com
