USER MANUAL LIFE P66120 MEDION

Via Bluetooth, you could use a portable device to connect to the Internet. This device is a portable device that can be used in any location.

1. Information about these operating instructions 161

1.1.Key to symbols 161
1.2. Proper use

2. Safety information

2.1. Dangers for children and people with reduced ability to operate devices 163
2.2. Operating safety ES164
2.3. Power supply 165
2.4. Installation location/surroundings
2.5. Repairs 168
2.6. Cleaning the device 168

3. Package contents

4. Hanging the device 169

4.1. Free-standing installation 170

5. EU declaration of conformity 171

5.1.Information on WLAN
5.2. Information on FM/DAB/Bluetooth 171

6. Overview of the device 172

7. Initial operation and use 173

7.1. Mains connection 173
7.2. Switching the device on/off 173
7.3. Aerial 173

8. Radio mode

9. DAB mode 174

10. FM mode 174

11. System settings in radio mode (DAB/FM) 175

11.1. Setting the date/time 175
11.2. Setting/activating the alarm (ALARM 1 / ALARM 2) 176
11.3. Setting/activating the sleep timer 177
11.4. Restoring factory settings 177
11.5. Displaying the system version 177
11.6. Equaliser (TREBLE/BASS) 178
11.7. DAB station search 178
11.8. Selecting DAB stations from the station list 178
11.9. FM station search 179
11.10. Saving favourites 179
11.11. Advanced station information 180

12. Bluetooth mode 181

12.1. Connecting Bluetooth devices.. 181
12.2. Control 181

12.3. Disconnecting a Bluetooth connection 181

1. WiFi mode 182

13.1. Establishing a network connection and activating the voice control 182
13.2.Disconnecting the network connection 183
13.3. Close-range voice control 183
13.4.Muting the microphone 183

1. Troubleshooting 184

2. Cleaning 185

3. Storing the device when not in use 185

4. Disposal 185
5. Technical data 186
6. Service information 187
7. Legal Notice 188

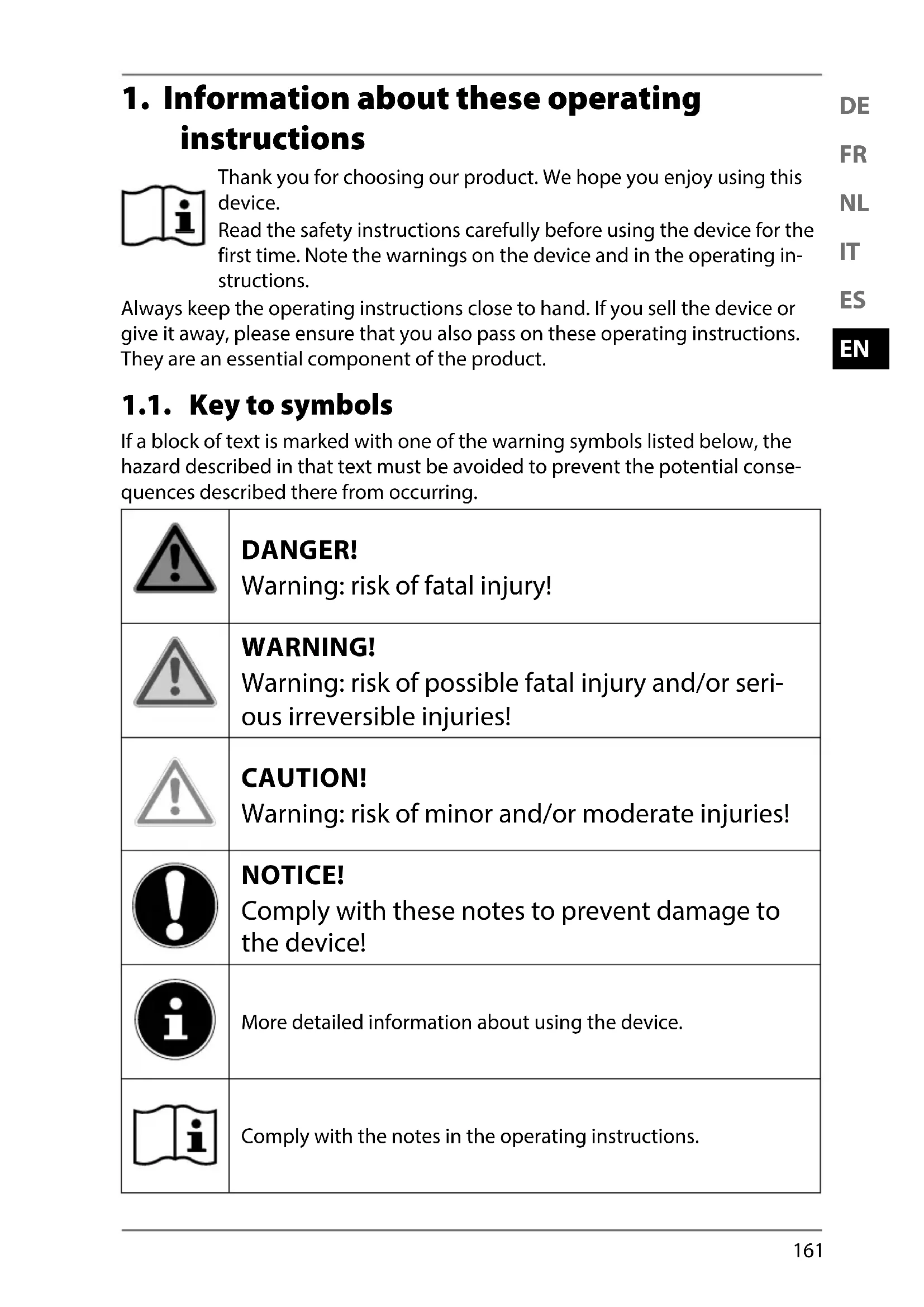

1. Information about these operating instructions

Thank you for choosing our product. We hope you enjoy using this device.

Read the safety instructions carefully before using the device for the first time. Note the warnings on the device and in the operating instructions.

Always keep the operating instructions close to hand. If you sell the device or give it away, please ensure that you also pass on these operating instructions.

They are an essential component of the product.

1.1. Key to symbols

If a block of text is marked with one of the warning symbols listed below, the hazard described in that text must be avoided to prevent the potential consequences described there from occurring.

!	DANGER! Warning: risk of fatal injury!
!	WARNING! Warning: risk of possible fatal injury and/or serious irreversible injuries!
!	CAUTION! Warning: risk of minor and/or moderate injuries!
!	NOTICE! Comply with these notes to prevent damage to the device!
i	More detailed information about using the device.
i	Comply with the notes in the operating instructions.
·Bullet	point/information on steps when the device is in use
◆Instruction to be carried out
CE	Declaration of Conformity (see "Declaration of Conformity" section): Products that feature this symbol meet the requirements of the EC directives.
	Protection class II Electrical devices in protection class II are devices that have double and/or reinforced insulation throughout, and do not have the option of connecting a protective earth. The housing of an electrical device in protection class II, with surrounding insulating material, may either form all of the additional or reinforced insulation, or part of it.
	Indoor use Devices with this symbol are intended solely for indoor use.
─	Symbol for direct current
~	Symbol for AC current

1.2. Proper use

The radio is an entertainment electronics device you can communicate with at any time via Alexa®. The device is also used to play radio broadcasts and audio signals transmitted via Bluetooth or display the time and also has a sleep-timer and alarm function.

The device is intended for private use only and not for industrial/commercial use.

The specified reception frequency range represents the technical possibilities of the device. Information received outside this range may not be used or further distributed. The respective national laws must be observed.

Please note that we shall not be liable in cases of improper use:

• Do not modify the device without our express agreement and do not use any accessories that have not been supplied or approved by us.
• Only use replacement parts or accessories that we have supplied or approved.

• Comply with all the information in these operating instructions, especially the safety information. Any other use is considered improper and can cause personal injury or property damage.

• Do not use the device in potentially explosive atmospheres. This includes petrol stations, fuel storage areas and areas where solvents are processed. This device must also not be used in areas with particle-laden air (for example flour or wood dust).

• Do not use the device in extreme environmental conditions. Avoid:

-high humidity or wet conditions
-extremely high or low temperatures
direct sunlight
-naked flames

2. Safety information

2.1. Dangers for children and people with reduced ability to operate devices

• This device is not intended for use by people (including children) with reduced physical, sensory or mental abilities or by those without experience and/or knowledge, unless they are supervised by a person responsible for their safety or they have been instructed in its use by that person. Children must be supervised to ensure they do not play with this device.
• Cleaning and user maintenance may not be carried out by children unless they are supervised.
• Keep the device and its accessories out of the reach of children.

DANGER!

Risk of choking and suffocation!

The packaging material is not a toy! There is a risk of suffocation from breathing in or swallowing plastic film or small parts.

• Keep packaging away from children.

2.2. Operating safety

• Before using the device for the first time, check the device for damage. A defective or damaged device may not be operated.

DANGER!

Risk of electric shock!

Risk of injury from electric shock due to live parts. They pose a risk of electric shock or fire if an unintentional short circuit occurs.

Do not place containers filled with liquid, e.g. vases, on or near the product, and protect all the parts from drips or splashes. Such containerers could tip over and the liquid could impair the electrical safety of the device.
- Never open the product housing or power supply housing and do not push objects inside the product through the slots and openings
If the mains adapter, connection cable or device is damaged, immediately unplug the mains adapter from the socket.
If liquid or foreign bodies get into the device, unplug the network adapter from the socket immediately.
Unplug the mains adapter from the socket if you are away for a long period or there is a thunder storm.

2.3. Power supply

DANGER!

Risk of electric shock!

Risk of injury from electric shock due to live parts.

• Only connect the mains adapter to a properly installed earthed mains socket (230 V ~ 50 Hz) that is easy to reach and close to the place where you have set up the device. Always keep the socket free of obstructions so that the power supply can be disconnected easily.

DE

FR

NL

IT

ES

EN

In order to disconnect the power to your device or to completely isolate the device from voltage sources, remove the mains adapter from the socket.
- When disconnecting the connection cable from the mains supply, always pull on the mains adapter rather than on the cable.
- Remove the mains adapter from the socket if the device or power supply produces unusual noises or smoke.

• Please note that the device continues to use power when in standby mode.

2.3.1. Mains adapter

Use only the mains adapter supplied.
If the housing of the mains adapter or the connection cable is damaged, the mains adapter must be disposed of and replaced with a new mains adapter of the same type.
The mains adapter may only be used in dry rooms.

2.4. Installation location/surroundings

In the first few hours of use, new products may give off a typical, unavoidable but totally harmless smell which will wear off with time. We recommend you ventilate the room regularly to help dissipate this odour. We have taken appropriate measures during the development of this product to ensure that levels are well below legal limits.

DANGER!

Risk of electric shock!

Major changes in temperature or fluctuations in humidity can cause moisture to build up within the device due to condensation – this can cause an electrical short circuit.

After transporting the device, wait until it has reached ambient temperature before switching it on.

NOTICE!

Risk of damage to the device!

Unsuitable environmental conditions could cause damage to the device.

Use the device only in dry rooms.
To prevent the device from falling, only install and operate it and its components on a sturdy, level and vibration-free surface.

When setting up the device, make sure that

• there is a sufficient gap in relation to other objects, and that the ventilation slots are not covered in order to ensure that there is always sufficient ventilation;

• the device and mains adapter are not exposed to direct sources of heat (e.g. radiators);

--the device and the mains adapter are not left in direct sunlight;
- contact with moisture, water, droplets or splashes is avoided, and no liquid-filled objects – for example, vases – are placed on or near the device;
- the device is not placed close to magnetic fields (e.g. television sets or other loudspeakers);
-no naked flames, such as lit candles, are placed near the device;
-the connection cable is not taut or bent.

2.4.1. Mounting

The device can be fitted below a horizontal mounting plate, e.g. under a wall cupboard.

WARNING!

Risk of fire/short circuit!

Rising steam or heat can pose a risk of electric shock or fire if a short circuit occurs.

• Never mount the device above a hob or any other heat or steam source (for example, electric kettles, etc.).
• Never allow the connection cable to hang over a cooker hob or other heat source.

2.5. Repairs

DANGER! Risk of electric shock!

There is a risk of electric shock due to live parts.

• Check the device and the connection cable for damage before using the device for the first time, and after each use.
  Do not use the device if the device or mains adapter show visible signs of damage.
  If you discover any damage or experience any technical problems, have the device repaired exclusively by a qualified technician.
  If a repair must be carried out, please contact only our authorised service partners.

2.6. Cleaning the device

DANGER! Risk of electric shock!

Risk of injury from electric shock due to live parts.

Before cleaning, pull the mains adapter out of the socket.

NOTICE! Possible material damage!

Improper handling of sensitive surfaces can damage the device.

Use a soft, dry cloth to clean the device.
- Avoid the use of chemical solutions and cleaning products because these may damage the device surface and/or markings.

3. Package contents

Please check your purchase to ensure that all items are included. If anything is missing, please contact us within 14 days of purchase. The following items are supplied with your device:

DANGER!

Risk of choking and suffocation!

Packaging film can be swallowed or used improperly, creating a risk of choking and suffocation.

• Keep packaging material such as plastic film or plastic bags away from children.

Remove all packaging materials and make sure the following parts have been supplied when unpacking:

Under cabinet radio
- Mains adapter
- Mounting material (Montageplatte inkl. 10 Schrauben)
- Operating instructions, incl. warranty documents

4. Hanging the device

The kitchen radio is designed to be mounted on the underside of a wall cupboard or shelf unit. Please proceed as follows:

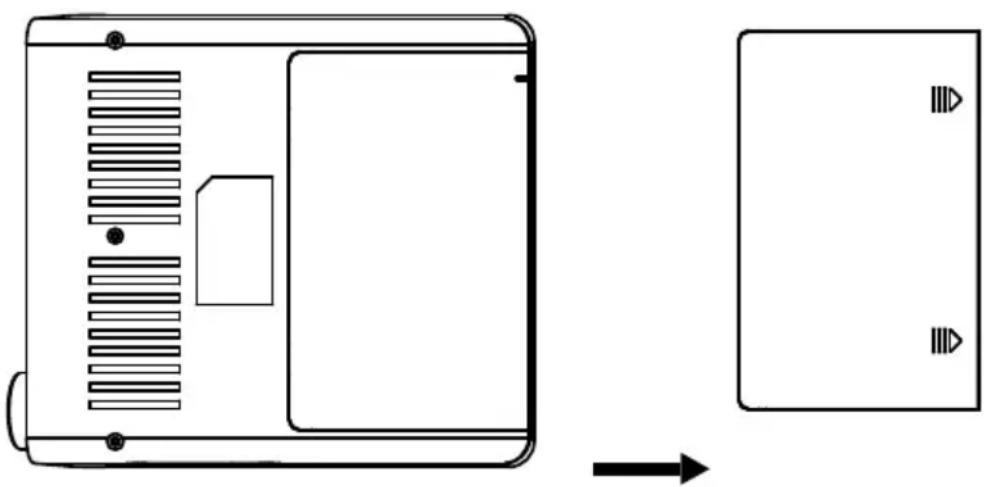

Remove the rear cover from the device.

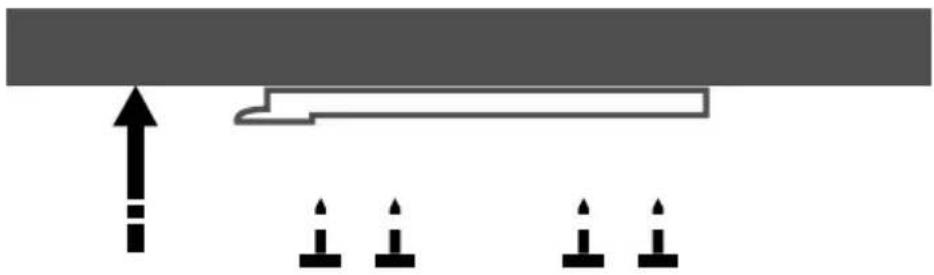

Take the mounting plate provided and fasten this using the eight appropriate screws on the bottom of the wall cupboard or shelf. If necessary, drill eight holes where you made your markings on the underside of the shelf unit in order to fix the screws. Make sure the side labelled UPFRONT points to the front.

The screws supplied are suitable for mounting in wood. Appropriate screws must be used for other materials. It is not necessary to drill in the shelf when mounting on wood.

• Push the device with the recess where the cover was located onto the retaining pins of the bracket and carefully push the device to the rear. Ensure a secure hold.

Warning!

Risk of fire/short circuit!

Rising steam or heat can pose a risk of electric shock or fire if a short circuit occurs.

• Never mount the device above a hob or any other heat or steam source (for example, electric kettles, etc.).
• Never allow the connection cable to hang over a cooker hob or other heat source.

4.1. Free-standing installation

Instead of mounting the device on a cupboard/shelf, you can also put it on a table or a cupboard without having to fix it permanently into place.

5. EU declaration of conformity

MEDION AG hereby declares that this device complies with the fundamental requirements and the other relevant provisions of:

RE Directive 2014/53/EU
- Ecodesign Directive 2009/125/EC
RoHS Directive 2011/65/EU.

You can download the complete EU Declaration of Conformity at www.medion. com/conformity.

5.1. Information on WLAN

WLAN
Frequency range 2,4 GHz
WLAN standard 802.11 b/g/n
Encryption WEP/WPA/WPA2
Range Indoors approx. 35 – 100 m / Outdoors approx. 100 – 150 m
Frequency range/ MHz	Channel	Max. transmission pow- er/dBm
2412-2472 1-13 18,8

5.2. Information on FM/DAB/Bluetooth

Bluetooth
Version 4.1
Profile A2DP, AVRCP, HFP
Class	2, bis zu 10 Meter Radius
Frequency	2,402 - 2,480 GHz
Sendeleistung	1,2 dBm
FM/DAB
Frequency range FM	87,5 - 108 MHz
Frequency range DAB	174 - 240 MHz

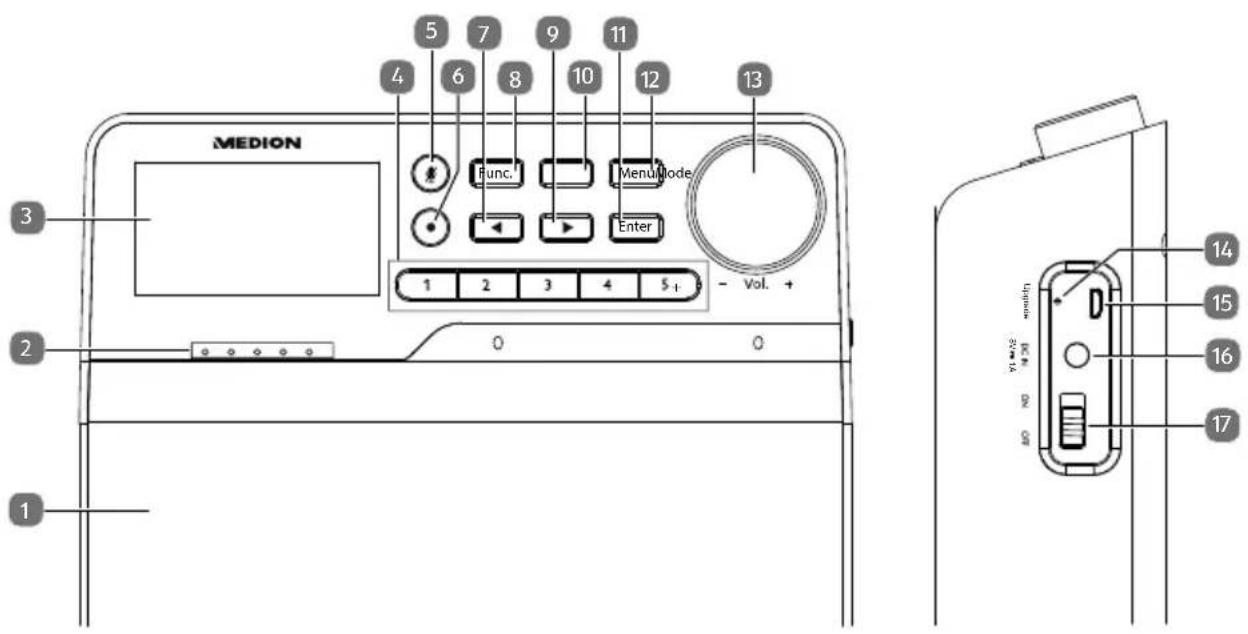

6. Overview of the device

1) Loudspeaker
2) LED display for WLAN voice detection
3) Display
4) Station buttons for saving/selecting radio stations (in FM and DAB mode)
5) Microphone mute button: Deactivating the voice control function
6) Close-range voice control button
7) Station selection / Select menu entry / In Bluetooth mode: Title backwards
8) FUNC.: Activate/deactivate device and button functions
9) Station selection / Select menu entry / In Bluetooth mode: Title forwards
10) MODE: Function selection button (FM radio, DAB radio, Bluetooth mode, WiFi mode)
11) ENTER: Confirm menu entry
12) MENU: Press for station information / press and hold to call up the menu settings
13) - VOL. + : Set volume / In Bluetooth mode: Mute play
14) Wire antenna
15) UPGRADE: Software upgrade USB connection
16) Mains adapter connection
17) ON/OFF: Switch radio on/off. The voice control is active when the device is switched on, provided it has been set up beforehand.

7. Initial operation and use

7.1. Mains connection

Connect the mains adapter.

To do this, place the connection cable plug in the socket DC IN 8V-LA and the mains adapter into a properly installed 230V 50Hz earthed power socket which is accessible at all times.

7.2. Switching the device on/off

• Switch the ON/OFF mains switch to ON to switch on the radio. The device is then in voice control mode, provided this has been set up beforehand. Please read section "13. WiFi mode" on page 182 for more information.
• To manually activate the device and button functions, now press the FUNC. button. The voice control is active in every operating mode in this case too, provided it has been set up beforehand.

After activation with the FUNC. button the device returns to the most recently used mode.

7.3. Aerial

The device has an aerial for FM/DAB+ reception.

Extend the aerial fully and arrange it for optimum reception.

7.3.1. Volume

Use the ^+ VOL. - control knob on the device to set the volume.

On the display, the volume is displayed as a bar for a few seconds below VOL-UME.

8. Radio mode

You can use this radio to receive FM and DAB+ stations.

You can save up to 10 FM stations and 10 DAB+ stations.

After switching on the device, the radio plays the station that was listened to most recently. During the initial start-up, the device starts in DAB mode.

9. DAB mode

In order to receive DAB+ stations, the device must be set to DAB mode.

Press the MODE button in active operation until NO STATION appears on the display. If you have already searched for digital stations, you will hear the station selected most recently.

Please read section "11.7. DAB station search" on page 178 for more information about searching for digital radio stations.

10. FM mode

In order to receive FM stations, the device must be switched to FM mode.

Press the MODE button in active operation until FM (with FM frequency display) appears on the display.
You can press the or buttons several times to search for stations manually. Press and hold one of the buttons to start an automatic search. The search stops at the next station with a strong signal. This station is then played.

Please read section „11.9. FM station search" on page 179 for more information about searching for analogue radio stations.

11. System settings in radio mode (DAB/FM)

11.1. Setting the date/time

The device is equipped with the Radio Data System that sets the time and date automatically.

The data is synchronised after the device has been connected to the power supply. During this process, 00:00 01-01-2018 is first shown on the display.

The current data will appear once the process is completed.

In some cases, the data cannot be synchronised if the radio signal is too weak. In this case, 00:00 01-01-2018 is shown on the display and the data must be set manually.

In radio mode, press and hold the MENU button until SET MENU appears on the display with the TIME/DATE submenu.
Press the ENTER button to navigate to the TIME/DATE menu.

SET TIME

• Use the or buttons to set the hour (HOUR) and confirm with EN-TER.
• Use the or buttons to set the minute (MIN) and confirm with EN-TER.
• Use the or buttons to set the year (YEAR) and confirm with EN-TER.
• Use the or buttons to set the month (MONTH) and confirm with ENTER.
• Use the or buttons to set the day (DATE) and confirm with ENTER. After this you will then automatically exit the SET MENU menu.

If you switch off the device with the ON/OFF switch (or also in the event of a power failure), the time set previously will be lost. After switching on the device again, the time is synchronised again automatically. If you exit the current operating mode after the manual time setting and select this again, the time setting will also synchronise again automatically and the settings made previously will also be lost.

11.2. Setting/activating the alarm (ALARM 1 / ALARM 2)

The device has two alarm functions, using either an alarm tone or the radio as a wake-up call.

• In radio mode, press and hold the MENU button until SET MENU appears on the display. Use the or buttons to select the ALARM 1 SET submenu.
  Press the ENTER button to navigate to the ALARM 1 SET or ALARM 2 SET menu.

ALARM1/ALARM2

• Activate ALARM 1 / ALARM 2 with the or (ON) buttons and confirm with ENTER.

SET ALARM TIME

• Use the or buttons to set the hour (HOUR) and confirm with EN-TER.
• Use the or buttons to set the minute (MIN) and confirm with EN-TER.

SET ALARM VOL

• Use the or buttons to set the alarm tone (VOL) and confirm with ENTER.

SET ALARM SRC

• Under SRC use the or buttons to select the type of alarm tone (ALARM, DAB or FM) and confirm with ENTER.

SET ALARM MODE

• Under MODE use the or buttons to set the mode (DAILY (daily), WEEKENDS (only at weekends), WEEKDAYS (only on weekdays) or ONCE (once)) and confirm with ENTER. After this you will then automatically exit the SET MENU menu.

Press the -VOL.+ controller to interrupt the alarm signal. Pressing again causes the alarm to continue.
- Pressing the ENTER button during the alarm activates the snooze function. The alarm is interrupted and sounds again after approx. 10 minutes.
Press the MODE button during the alarm to stop the alarm.

11.3. Setting/activating the sleep timer

The device features a sleep timer function, which switches the radio off after a certain time if no actions have been performed up until then.

In radio mode, press and hold the MENU button until SET MENU appears on the display. Use the or buttons to select the SLEEP SET submenu.
Press the ENTER button to navigate to the SET SLEEP menu.

SET SLEEP

• Use the or buttons to select a desired sleep timer time (5, 15, 30, 45, 60, 90 or 120 minutes) and confirm with ENTER. The sleep timer is deactivated in the OFF setting.

11.4. Restoring factory settings

To restore the factory settings of the device, please proceed as follows:

• In radio mode, press and hold the MENU button until SET MENU appears on the display. Use the or buttons to select the FACTORY RESET submenu.
  Press the ENTER button and confirm the subsequent prompt with YES. The device is then reset to the factory settings, which means all alarm times, sleep timers, network and Bluetooth settings etc. are lost. The digital station search then starts automatically and the device remains in active DAB mode. The date and time are also synchronised automatically.

11.5. Displaying the system version

Please proceed as follows to display the current software version:

• In radio mode, press and hold the MENU button until SET MENU appears on the display. Use the or buttons to select the SYSTEM VERSION submenu.
  Press the ENTER button to display the current software version.
  Press the MENU twice to exit the SET MENU again, or wait a few seconds until the display closes automatically.

You can perform a software update via the side USB connection, if required.

11.6. Equaliser (TREBLE / BASS)

The 2-band equaliser function allows individual sound control of the radio signal in the treble and bass range.

• In radio mode, press and hold the MENU button until SET MENU appears on the display. Use the and buttons to select the EQ TREBLE or EQ BASS submenu.
  Press the ENTER button to reach the TREBLE or BASS menu.

TREBLE / BASS

• Use the and buttons to adjust the treble and bass to how you want them and confirm with ENTER. After this you will then automatically exit the SET MENU menu.

The equaliser function is also available in Bluetooth and voice control mode.

11.7. DAB station search

To search for digital radio stations in DAB mode please proceed as follows:

In DAB mode, press and hold the MENU button until SET MENU appears on the display. Use the or buttons to select the DAB SCAN submenu.
Press ENTER to start the digital station search (FULL SCAN).

The device now searches for all available DAB+ stations. The search progress (in %) and the number of stations found are shown in the display. As soon as the process is finished the SET MENU is closed automatically.

11.8. Selecting DAB stations from the station list

Press the or button during operation to select a station from the station list.
Press the ENTER to select the desired station.

11.9. FM station search

Before searching for analogue radio stations, you can make presets for the station search in the menu for FM mode:

In FM mode, press and hold the MENU button in until SET MENU appears on the display. Use the or buttons to select the FM SCAN SET submenu and confirm with ENTER.
Now choose underSTATION STRONG whether you only wish to search for strong (ONLY) or all (ALL) station signals.
Then confirm the selection with ENTER.

To search for FM radio stations in FM mode, please proceed as follows:

You can press the or buttons several times to search for stations manually. Press and hold one of the buttons to start an automatic search. The search stops at the next station with a strong signal. This station is then played. Stations found can then be saved as favourites. Please read section "11.10. Saving favourites" on page 179 for more information.

11.10. Saving favourites

You have the option of saving your preferred stations on the 1-5+ buttons so you can select these quickly. You can save up to 10 favourites. Proceed as follows:

Select the desired station.

Press and hold the 5+ button until PRESET STORE appears on the display.
- Use the or buttons to select the desired favourites storage space (1-10).
Press the ENTER button to conform the selection.

11.10.1. Select favourites

You can access favourites 1 to 5 by pressing the corresponding favourites button and then confirming with ENTER. To select favourites 6 to 10, you must press one of the favourites buttons and then the desired favourites storage space step-by-step with the and buttons. Then confirm the selection with ENTER.

11.11. Advanced station information

The radio offers you the option of displaying advanced station information.

Press the MENU button several times to display the following information:

DAB:

• Radio text (dynamic label segment)
• Signal strength
• Signal fault
  Multiplex number/frequency
  Programme type
  Time/date
  Audio bit rate

FM:

Radio text
Program type
- Signal strength
Time/date
Frequency
Audio type

12. Bluetooth mode

You can use Bluetooth to play tracks wirelessly from external devices such as MP3 players or mobile phones with Bluetooth on this device. Furthermore, you can also make phone calls using the hands-free function.

• When the device is switched on, press the MODE button several times until BLUETOOTH PAIRING blinks in the display.

12.1. Connecting Bluetooth devices

• Switch on Bluetooth mode as described above. Enable the Bluetooth function on your external device and carry out the pairing process. Refer to the instructions for your external device for more information. The audio system's name is "MD 44120".
  The pairing process is now complete and the external device can now be used with the kitchen radio.
  If you want to stop data transfer via Bluetooth, either switch off the Bluetooth function on the external device or press MODE to return to radio mode.

12.2. Control

You can control how tracks are played, the volume and a range of special functions on your external device and on the kitchen radio. What functions are available is dependent on your external device and the software that you use. In principle, these buttons on the device are intended for control via Bluetooth:

-/+ (control- ler/button)	Turn: Reduce/increase volume Push: Mute playback
← / →	Previous track/next track
ENTER Start/pause playback

12.3. Disconnecting a Bluetooth connection

Press and hold the ENTER button if you wish to revoke the Bluetooth connection between your devices.

13. WiFi mode

The device voice control is always active, provided it has been set up beforehand. To set up the voice control, press the MODE button several times until WIFI CONNECTING appears on the display. The LED display below this lights up white if a network connection has not yet been established with an access point (AP). The voice control works using Amazon Alexa®. A network connection must be established with another Internet-enabled device for this.

13.1. Establishing a network connection and activating the voice control

The MEDION SPEAKER app is required to set up Amazon Alexa®, this can be easily installed from the App Store (Apple) or Google Play Store (Android). To set up the voice control please proceed as follows:

• Switch the radio on and activate WiFi mode with the MODE button.
  Install and open the MEDION SPEAKER app on your external device (e.g. iPhone) and activate WLAN. The app now searches for a wireless HiFi system. The LED indicator below the display flashes white alternately. Once the device has been paired, the radio can be put into connection mode by pressing the for a prolonged time.

Now select the device model.

You must then establish a network connection with the radio in your WLAN settings. You now change to the WLAN settings of your smartphone here.
Search for network-enabled devices in your WLAN settings. The MEDION MD 44120 radio now appears in the list. The last digits of the MAC address are shown to distinguish precisely between different devices.
Now select the MEDION MD 44120 device and connect to it.

You will hear an indication that the devices have been connected successfully and you should continue to the follow the app instructions.

• Go back one step from your WLAN settings to return to the MEDION SPEAKER app.
• Select the desired WLAN network to which the radio is to be connected, then enter the corresponding password and continue.

A voice indicates that the WLAN network connection has been established. The LED indicator below the display no longer flashes. Note that the radio must be connected to the same network as the external device.

A green checkmark appears as soon as the connection has been established. Continue.

To activate Amazon Alexa®, register the Micro Audio System in your Amazon account. You need to be registered on Amazon for this:

Log into your Amazon account.
In the next step, select the language in which you wish to communicate with Amazon Alexa® and confirm this.
A checkmark signals that the registration was successful. Continue.
This is followed by information on Amazon Alexa. Continue.
- Your radio is then displayed. Here you can change the global volume and make further settings for Amazon Alexa®. You can now close the MEDION SPEAKER app.

You can now use the Amazon Alexa® function. As soon as you talk to the device with "Alexa" it will respond to your requests. If necessary, define your current location for the radio in the Alexa app.

13.2. Disconnecting the network connection

Press and hold the close-range voice control button if you wish to cancel the WLAN network connection of your devices again.

13.3. Close-range voice control

If you press the close-range voice control button the device will change to close-range voice recognition mode. You can now use the Amazon Alexa® function without waking up the device with "Alexa". The reception range is thus reduced to 3 metres.

Make sure you do not press the close-range voice control button for too long because this will disconnect the WLAN network connection.

13.4. Muting the microphone

Press the microphone mute button if you wish to mute the microphone of your device. Amazon Alexa® no longer receives signals in this case and is basically deactivated. The LED indicator below the display then lights up red. Press the button again to reactivate the microphone.

14. Troubleshooting

If a fault occurs, first see whether you can resolve the problem yourself. You might find this overview useful.

CAUTION!

Risk of injury!

Opening the device can cause injuries.

• Never attempt to repair the device yourself. If a repair is necessary, please contact our Service Center or a suitable authorised repair workshop.

Fault Possible cause/action
No function If the device has been disrupted by a thunderstorm, a static charge or another external factor, follow this procedure to resolve the problem: Disconnect the mains adapter and then plug it in again.
No sound The volume may be set too low. In Bluetooth mode: Set the volume of the external device to the maximum and then control the volume using the kitchen radio.
No radio signal for the time/no radio reception	If necessary, select another location to improve the radio signal for the time. Adjust the wire antenna to optimise the radio reception.
The voice control is not working	Check whether microphone mute is enabled. The close-range voice control might also be activated and you are outside the reception range. Check the WLAN network connection and re-establish this, if necessary.
No Bluetooth®connection	Take care to ensure that all settings have been made correctly on all devices. The Bluetooth®function may be deactivated on the external device. Activate this, if necessary. Check whether the device to be connected is switched on and is in search mode.

15. Cleaning

Always pull the mains adapter out from the socket before cleaning the device. Only use a dry, soft cloth to clean the device. Do not use chemical solutions or cleaning products because these may damage the device's surface and/or inscriptions.

16. Storing the device when not in use

If you do not intend to use the device over a longer period of time, store it in a cool, dry place and make sure that it is protected from dust and extreme temperature fluctuations.

17. Disposal

Packaging

Your device has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmentally friendly manner.

Device

The adjacent symbol of a crossed out wheelie bin means that the device is subject to Directive 2012/19/EU. Do not dispose of old devices in normal household waste. In accordance with Directive 2012/19/EU, the device must be properly disposed of at the end of its service life. This involves separating the materials in the device for the purpose of recycling and minimising the environmental impact. Take old devices to a collection point for electrical scrap or a recycling centre. Before doing so, remove the batteries from the device and take them to a separate collection point for used batteries. Contact your local waste disposal company or your local authority for more information on this subject.

18. Technical data

Mains adapter
Manufacturer	WINNA DongGuan Yingna Electronic Technology Co., Ltd.
Model	YN-15WA080100EU
Input voltage	AC 100-240 V ~ 50/60 Hz 0,4 A
Output voltage	DC 8,0 V=1,0 A
Device
Power supply	DC 8,0 V=1,0-A
Output power	4 W RMS
DAB III frequency band	174,928 – 239,200 MHz
FM frequency range	87,5 – 108 MHz
Station memory	10
Connection	Mains adapter connection
Dimensions (W x H x D)	180 x 66 x 210 mm (incl. bracket)
Weight	870 g
Humidity	20-80 %
Ambient temperature (operating condition)	0 °C – 40 °C
Connections
USB connection microUSB (for software upgrades only)

CE

Amazon, Alexa and all associated logos are registered trademarks of Amazon. com, Inc. or its subsidiaries.

The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used by MEDION under licence.

Other trademarks are the property of their respective owners.

19. Service information

Please contact our Customer Service team if your device ever stops working the way you want or expect it to. There are several ways for you to contact us:

• In our Service Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service Community at http://community.medion.com.
• Alternatively, use our contact form at www.medion.com/contact.
• You can also contact our Service team via our hotline or by post.

Opening times Hotline	number UK
Mon – Fri: 08.00 –20.00Sat – Sun: 10.00 –16.00	0333 3213106Hotline number Ireland
	1 800 992508

Service address

MEDION Electronics Ltd.
120 Faraday Park, Faraday Road, Dorcan Swindon SN3 5JF, Wiltshire
United Kingdom

You can download this and many other sets of operating instructions from our service portal at www.medion.com/gb/service/start/.

You will also find drivers and other software for a wide range of devices there.

You can also scan the QR code on the side of the screen, to download the operating instructions onto your mobile device from the service portal.

20. Legal Notice

Copyright © 2018

Date: 21.11.2018

All rights reserved.

These operating instructions are protected by copyright.

Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer.

Copyright is owned by the company:

MEDION AG

Am Zehnhof 77

45307 Essen

Germany

Please note that you cannot use the address above for returns. Please always contact our Customer Service team first.
