USER MANUAL iSENSYS MF449X CANON

Please read "Important Safety Instructions" before operating this product. After you finish reading this guide, store it in a safe place for future reference.

The information in this document is subject to change without notice.

https://oip.manual.canon

Quick Setup

Getting Started

Please read "Important Safety Instructions" before operating this product. P.136

After you finish reading this guide, store it in a safe place for future reference. The information in this document is subject to change without notice.

Mise en route

https://oip.manual.canon to read the User's Guide that describes all functions of this machine.

* This item may not be included depending on the model of the machine.

Toner cartridge (included with the machine)

Installing the Machineltems Included with

Before starting the installation

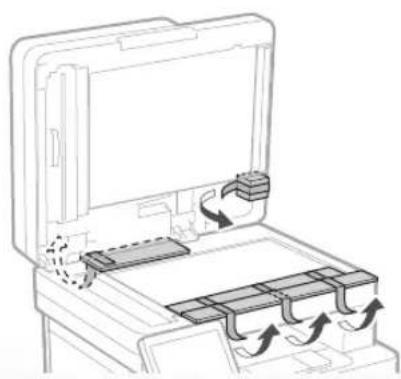

- Remove all of the tape.

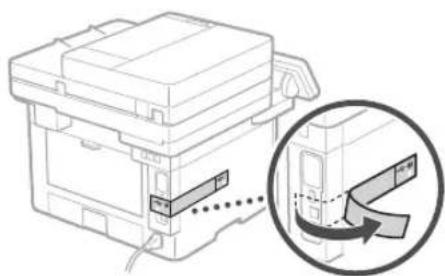

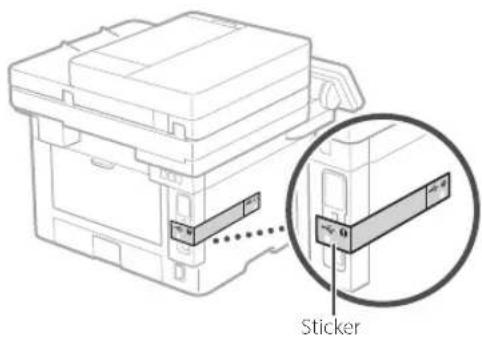

- Do not remove the sticker that covers the USB port.

Sticker

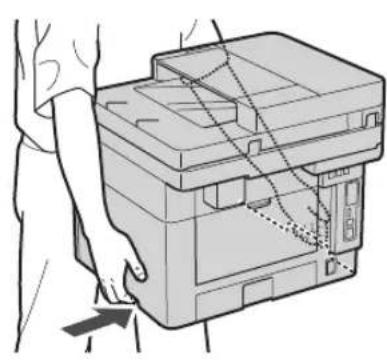

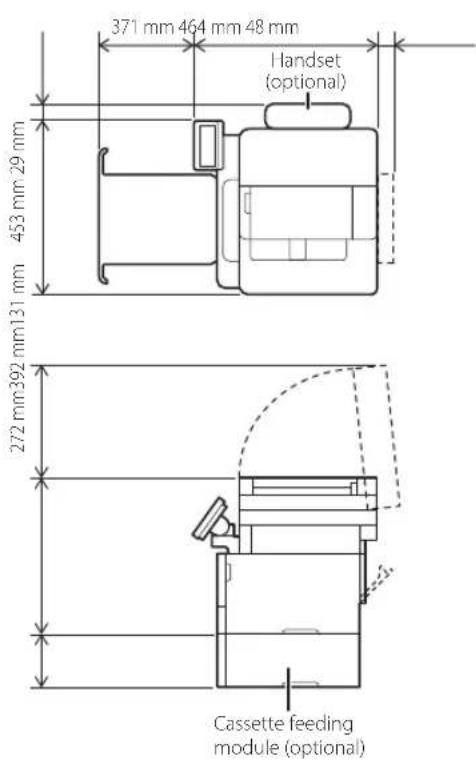

Installation requirements

Provide a space of 100 mm or more around the machine.

371 mm 464 mm 48 mm Handset (optional) 453 mm 29 mm 272 mm 392 mm 131 mm Cassette feeding module (optional)

1

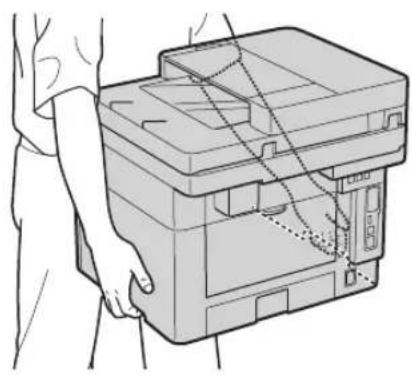

Line drawing of a person handling a device with arrows indicating motion (no text or symbols)

4

Diagram of a printer's front panel with a curved arrow indicating compression or disassembly (no text or symbols present)

2

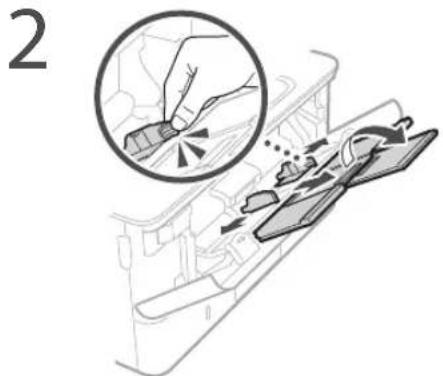

Diagram of a device with an open lid and arrow indicating a curved arrow, no text or symbols present

5

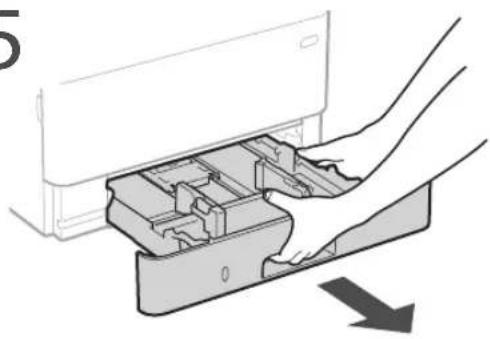

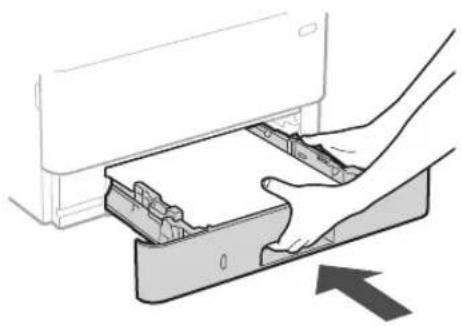

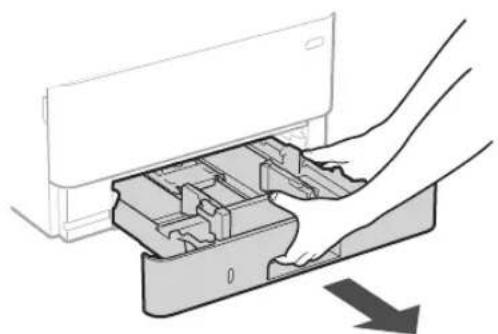

Illustration of hands inserting a device into a drawer (no text or symbols visible)

3

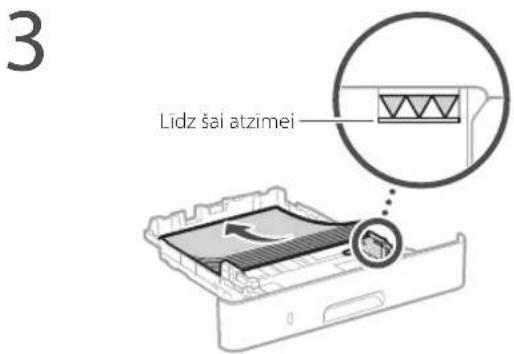

Diagram of a printer's internal structure showing paper feeding into a tray with arrows indicating flow direction (no text or symbols)

6

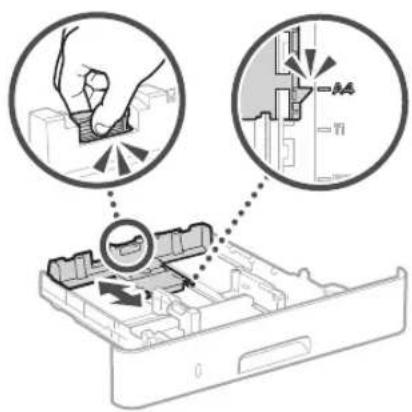

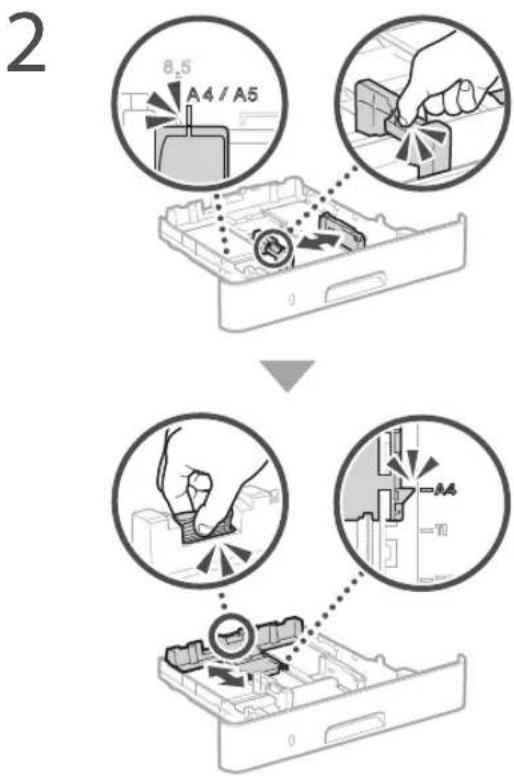

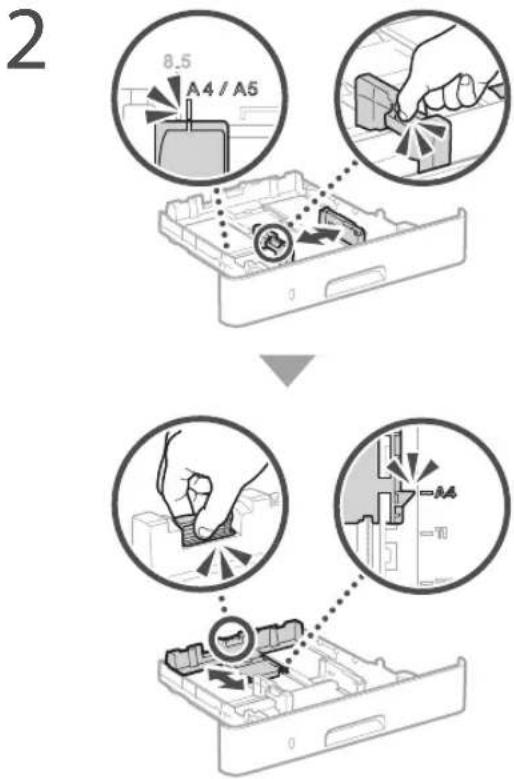

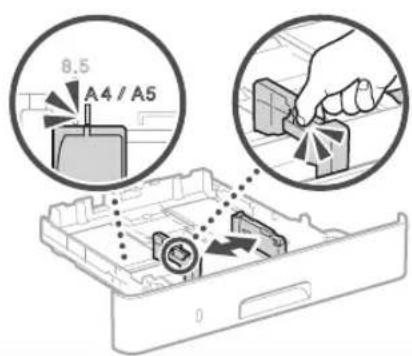

8.5 A4 / A5

7

Diagram illustrating hand positioning and movement of a device with labeled components and directional arrows

10

Illustration of a hand inserting a device into a drawer with an arrow indicating direction (no text or symbols present)

8

Diagram of a device casing with a curved arrow indicating rotation or movement (no text or symbols)

9

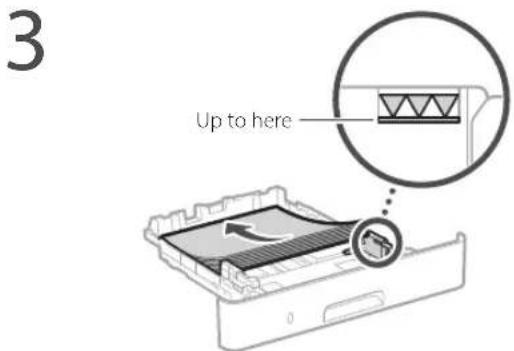

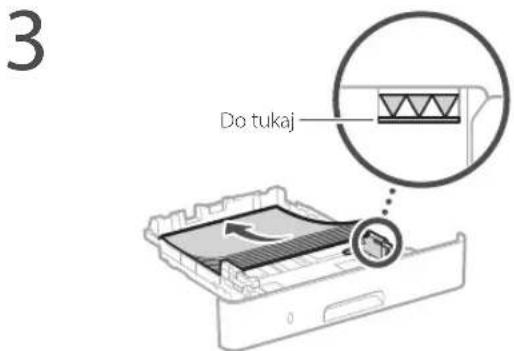

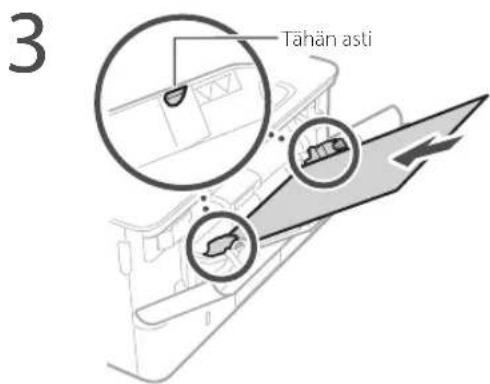

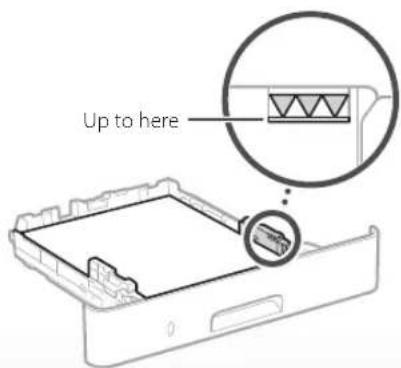

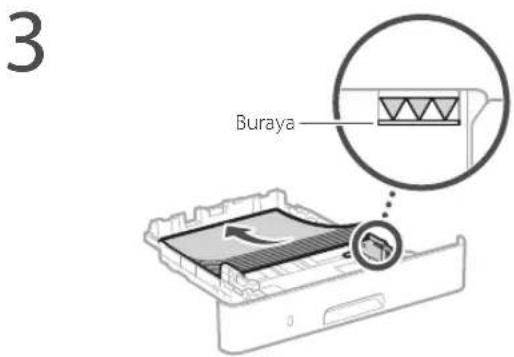

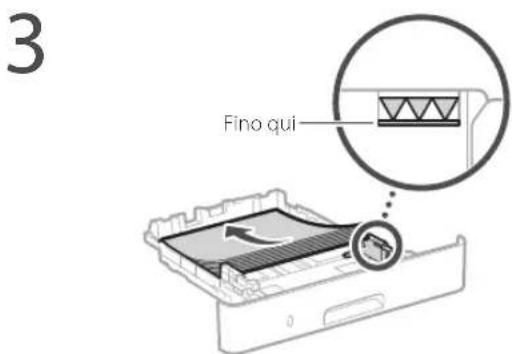

Up to here

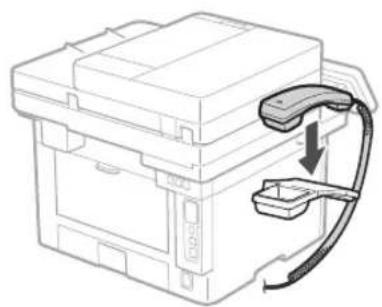

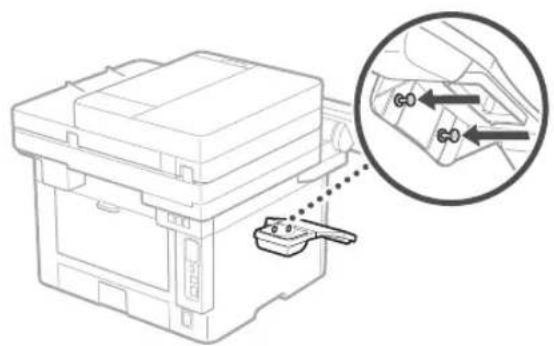

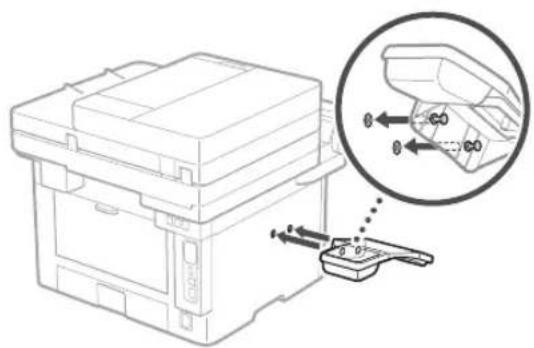

11 Attach the handset (optional).

Diagram of a mechanical device with a circular button and an arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a close-up of a hand holding a clip (no text or symbols present)

Technical line drawing of a mechanical component with a magnified inset showing a detail (no text or symbols)

Line drawing of a printer with a cable and connector, no text or symbols present

Technical line drawing of a mechanical device with an inset showing internal components (no text or symbols)

Diagram of a device with cable and connector, showing internal components and connection (no text or symbols)

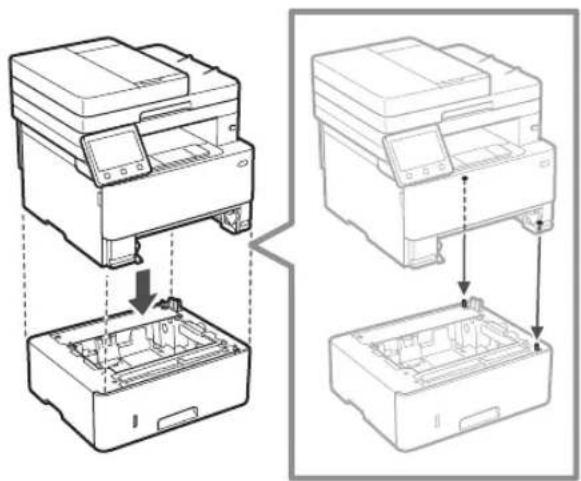

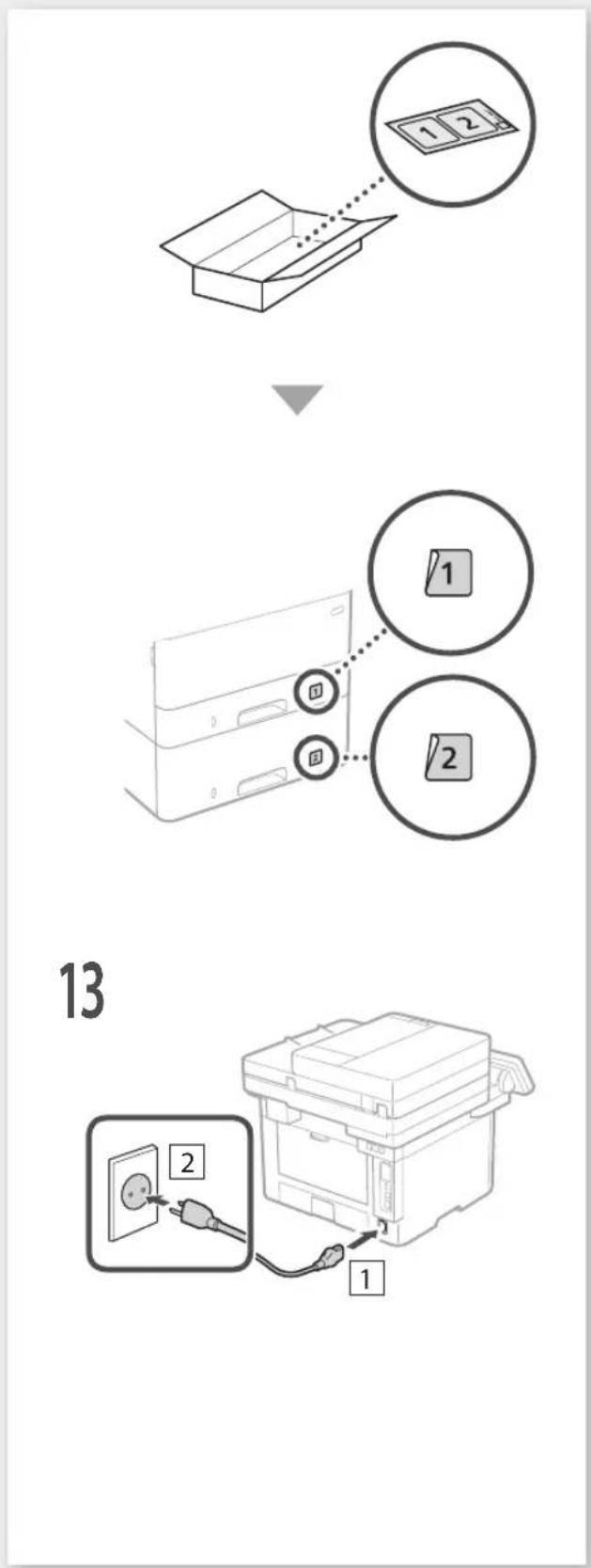

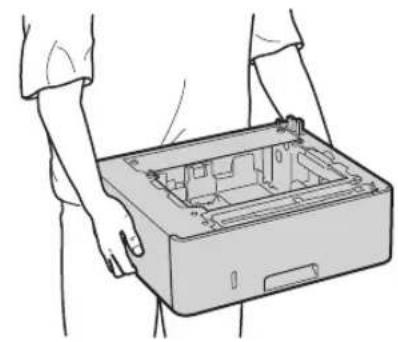

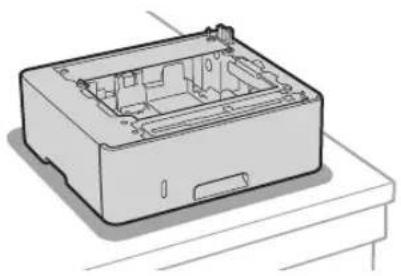

12 Install the cassette feeding module (optional).

Line drawing of hands holding an open electronic device casing (no text or symbols)

3D rendering of a rectangular electronic device casing with internal components, placed on a base (no text or symbols visible)

Illustration of hands inserting a device into a plastic housing (no text or symbols)

Line drawing of a person handling a large electronic device with internal components (no text or symbols)

Technical line drawing showing two views of a printer's internal structure, with no visible text or symbols.

Line drawing of a printer with an open drawer showing internal compartments (no text or symbols)

1 2 1 2 13 2 1

Next, proceed to configure the machine.

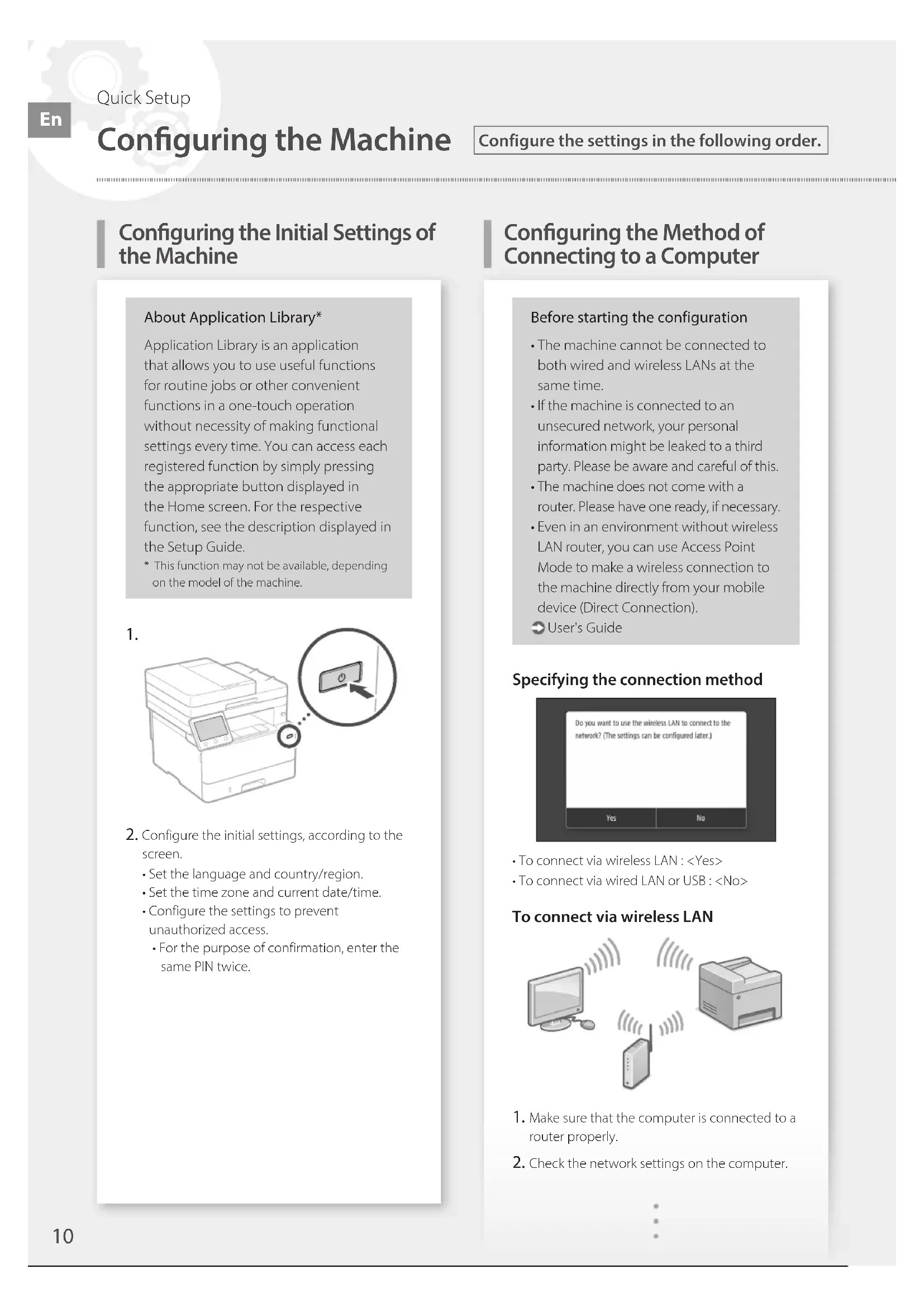

Configuring the Initial Settings of the Machine

About Application Library\*

Application Library is an application that allows you to use useful functions for routine jobs or other convenient functions in a one-touch operation without necessity of making functional settings every time. You can access each registered function by simply pressing the appropriate button displayed in the Home screen. For the respective function, see the description displayed in the Setup Guide.

* This function may not be available, depending on the model of the machine.

1.

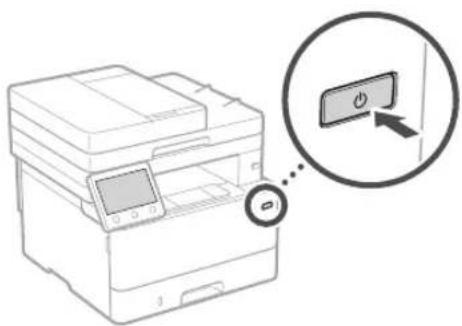

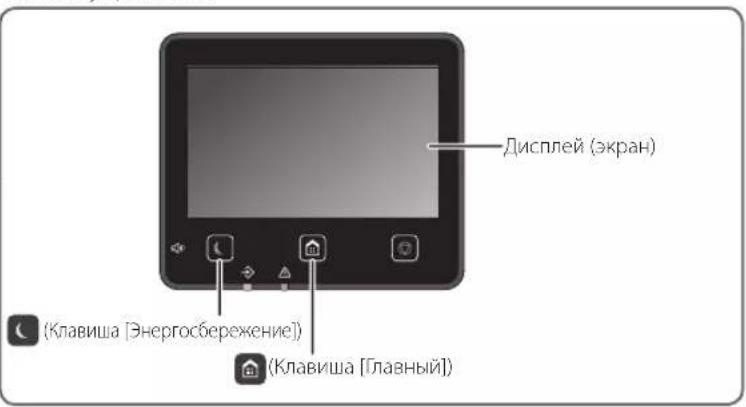

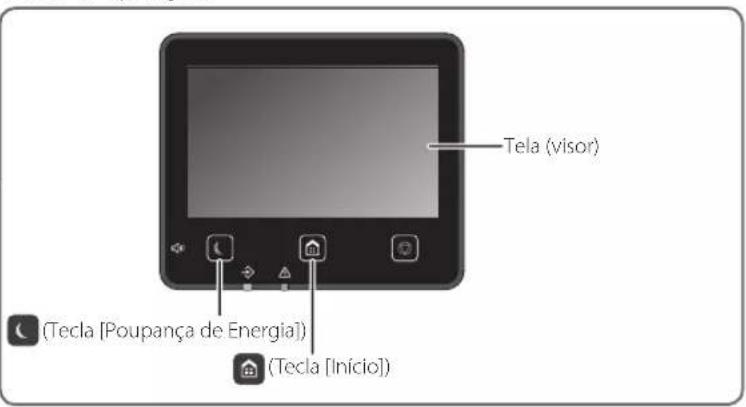

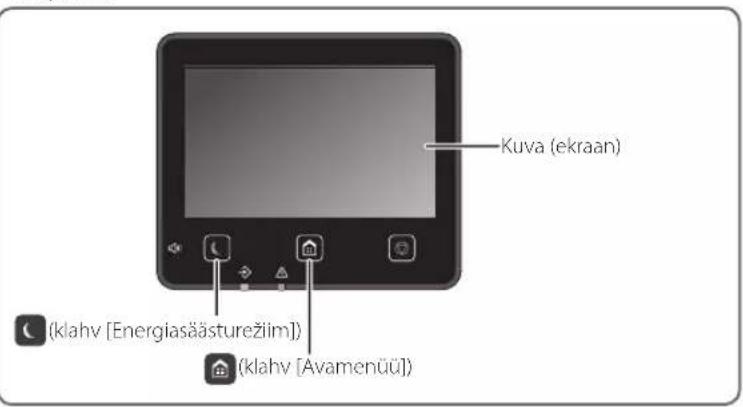

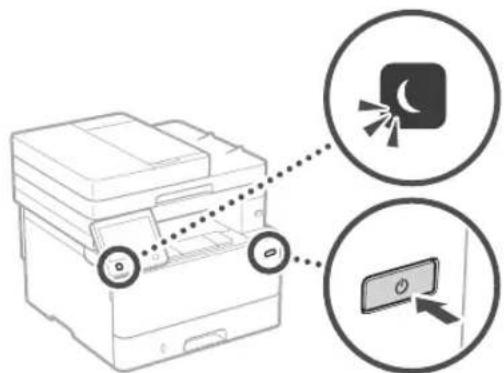

Diagram of a printer with a close-up view showing a button labeled 'Power' (no text or symbols on the device itself)

1. Configure the initial settings, according to the screen.

2. Set the language and country/region.

3. Set the time zone and current date/time.
4. Configure the settings to prevent unauthorized access.

- For the purpose of confirmation, enter the same PIN twice.

Configuring the Method of Connecting to a Computer

Before starting the configuration

• The machine cannot be connected to both wired and wireless LANs at the same time.
• If the machine is connected to an unsecured network, your personal information might be leaked to a third party. Please be aware and careful of this.
• The machine does not come with a router. Please have one ready, if necessary.
• Even in an environment without wireless LAN router, you can use Access Point Mode to make a wireless connection to the machine directly from your mobile device (Direct Connection).

→ User's Guide

Specifying the connection method

Do you want to use the wireless LAN to connect to the network? (The settings can be configured later.) Yes No

• To connect via wireless LAN :
• To connect via wired LAN or USB :

To connect via wireless LAN

Illustration of three electronic devices: a monitor, a printer with wireless signal lines, and a router (no text or symbols present)

1. Make sure that the computer is connected to a router properly.
2. Check the network settings on the computer.

1. Take note of the SSID and network key.

2. Check the label on the router. ➞ User's Guide

3. The setting operation is easier if the router is provided with a WPS mark. ➕ User's Guide

4. Set the access point and network key according to the screen below.

For more information, refer to the manual. OK

1. Select .
2. Select .
3. Select .
4. Select the access point (SSID), and select .
5. Select .
6. Enter a network key, and select .
7. Select .

- Wait until message is displayed.

1. Select .
   • The IP address will be automatically configured in a few minutes.

2. Install the driver and software.

P.12 "Installing the software"

Now you are finished with the configuration of the initial settings.

If your machine is provided with the fax function, proceed to configuring the fax settings. P.13

To connect via wired LAN

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

The machine does not come with a LAN cable. Please have one ready, if necessary.

1. Make sure that the computer is connected to a router properly.
2. Check the network settings on the computer.

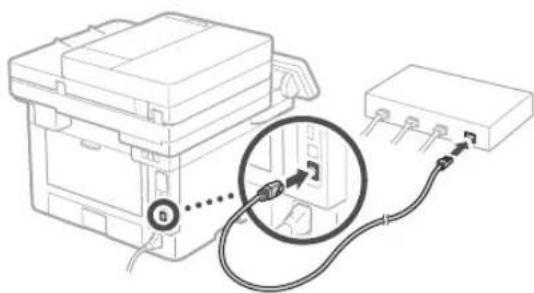

3. Connect the LAN cable.

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

• After connecting the cable, wait a few minutes (until the IP address is set automatically).
- If a static IP address has been set on the computer, set the machine's IP address manually.

1. Install the driver and software. →P.12 "Installing the software"

Now you are finished with the configuration of the initial settings.

If your machine is provided with the fax function, proceed to configuring the fax settings. P.13

To connect via USB

Illustration of a computer monitor connected to a printer via a cable (no text or symbols)

- The machine does not come with a USB cable. Please have one ready, if necessary.

• Make sure that the USB cable you use has the following mark.

- Do not connect the USB cable before installing the driver. If you did, disconnect the USB cable from the computer, close the dialog box, and then perform the following procedure from step 1.

1. Install the driver and software.

P.12 "Installing the software"

- When a screen with instructions for connecting the USB cable to the machine is displayed, remove the sticker that covers the USB port.

Technical line drawing of a mechanical assembly with an inset showing a curved arrow indicating rotation or force (no text or symbols present)

Now you are finished with the configuration of the initial settings.

If your machine is provided with the fax function, proceed to configuring the fax settings. P.13

Installing the software

• The procedure described here is only applicable when your computer runs on the Windows OS. For more details on the software installation procedure, see the driver's manual.
- For the installation when your computer runs on the macOS, see the driver's manual.
- Your machine may not come with the driver for the macOS, depending on the time of purchase. New drivers are uploaded to the Canon website, and you can download and use the latest one.

1.

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

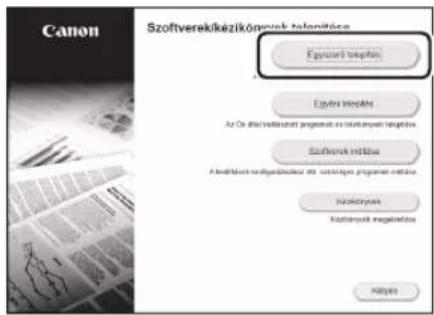

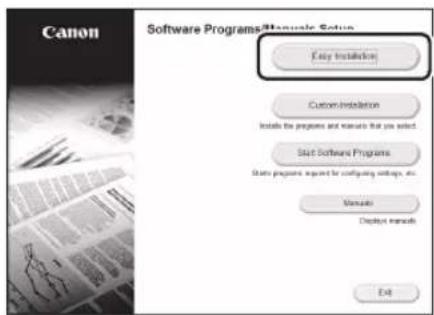

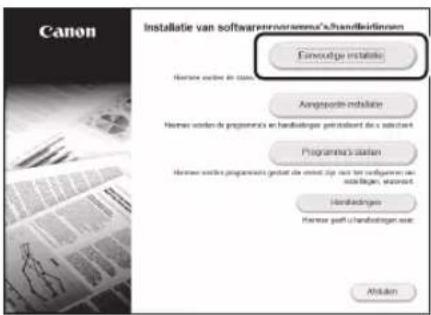

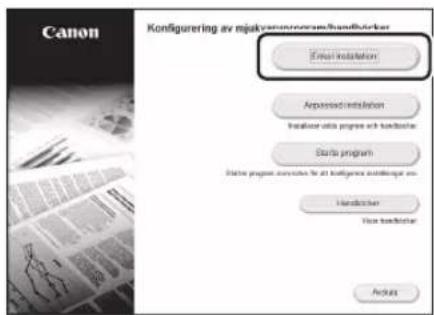

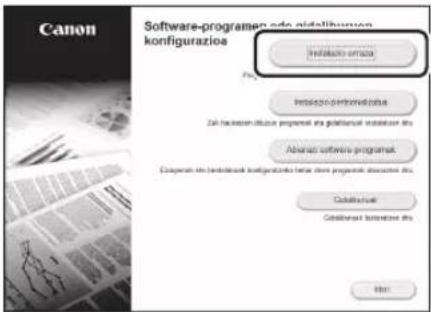

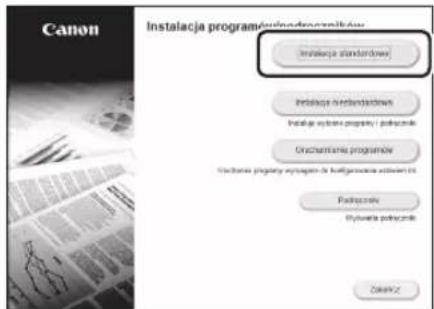

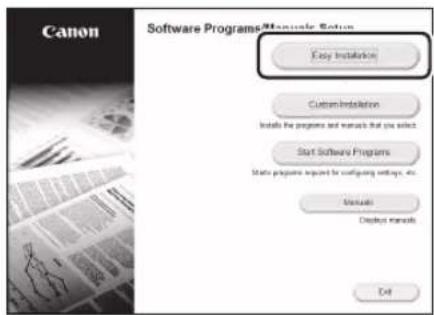

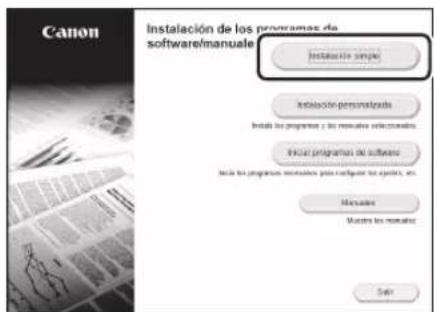

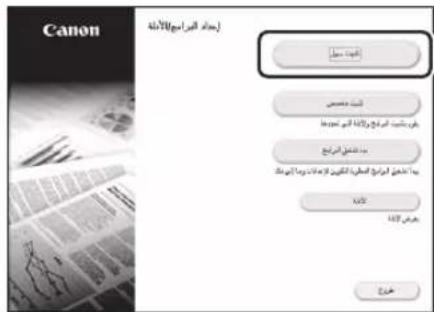

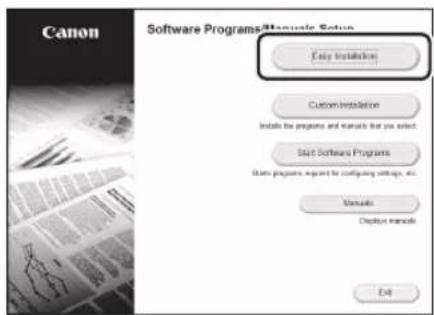

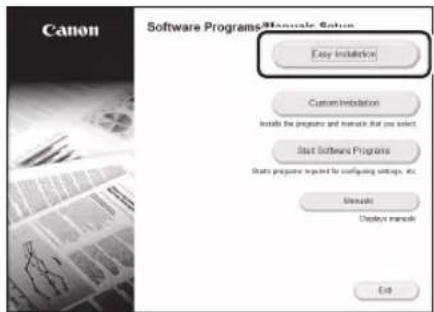

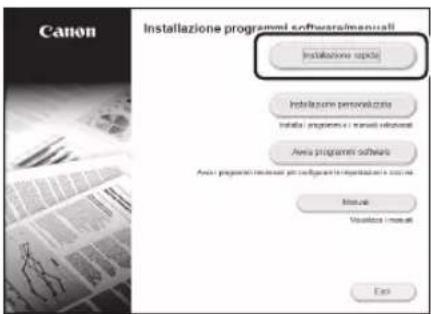

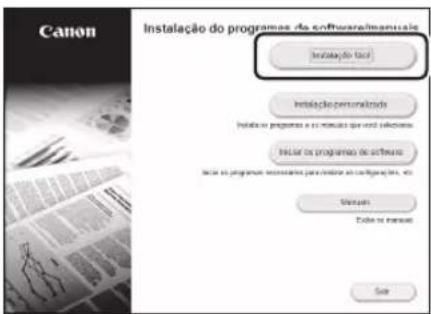

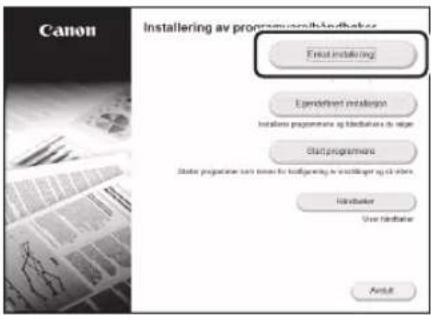

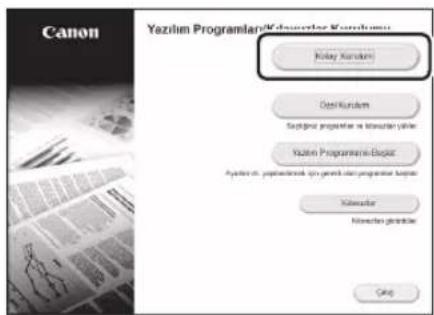

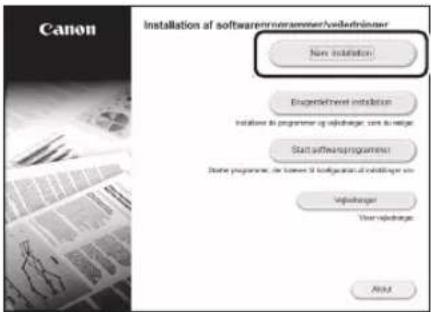

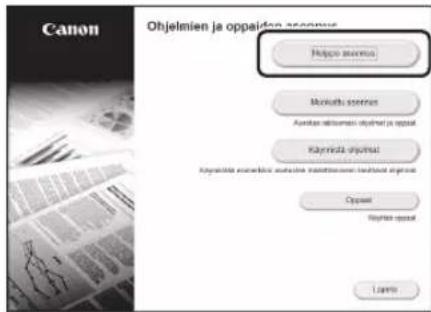

Canon Software Programs/Manuals Setup Easy Installation Custom Installation Installs the programs and manuals that you select Start Software Programs Start programs required to configuring settings, etc. Manuals Display manuals Exit

If the screen is not displayed properly, re-insert the CD-ROM/DVD-ROM or search for "D:\MInst.exe" on the Windows platform (This description assumes that "D:" is the CD-ROM/DVD-ROM drive name).

Using the scanner conveniently

Configuring the network settings with "Send Function Setting Tool" allows you to directly send scanned originals with e-mail or I-Fax or store them in a shared folder or on the FTP server.

In the screen displayed in step 2, select [Start Software Programs] ▶ [Send Function Setting Tool] to start the Send Function Setting Tool.

For details

"Configuring Initial Settings for Fax Functions" in the User's Guide

En

Configuring Fax Settings

Before starting the configuration

If your machine does not come with a telephone cable, have one ready, as necessary.

Configure the fax settings, according to the screen below.

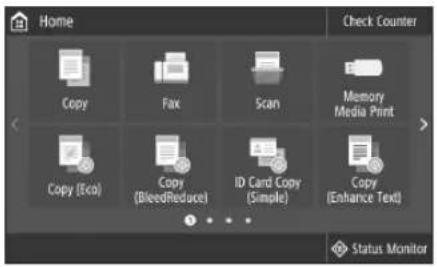

Home Check Counter Copy Fax Scan Memory Media Print Copy (Eco) Copy (BleedReduce) ID Card Copy (Simple) Copy (Enhance Text) Status Monitor

1. Select .
2. Select .
3. Register the machine's telephone number (fax number) and abbreviated user name.

Fax Setup Guide Register the unit telephone number for this device. (Fax number) Next

• The information below will be printed at the top part of the paper output from the destination machine as sender information.

Fax Number Number's Type Sent Time Unit Name Page Number 02/02 2017 10:00AM CANON!23XXXXXXX00FAX 0001

1. Set the reception mode.
2. Make the setting by answering the questions on your purposes of using the fax function.

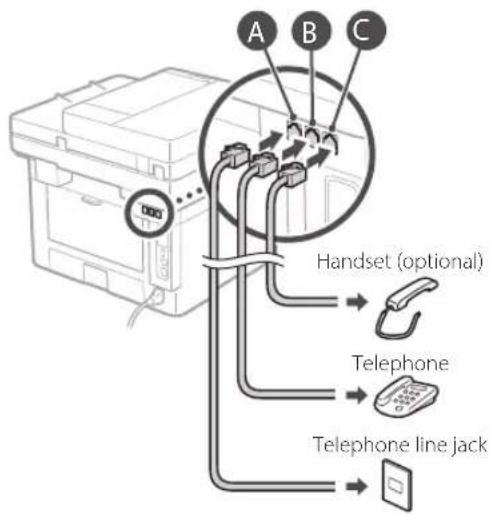

3. Connect to a telephone line.

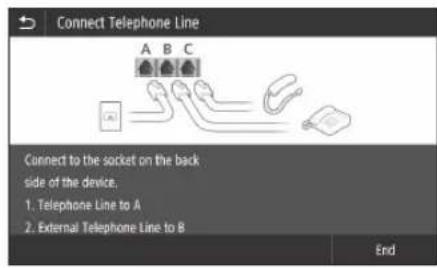

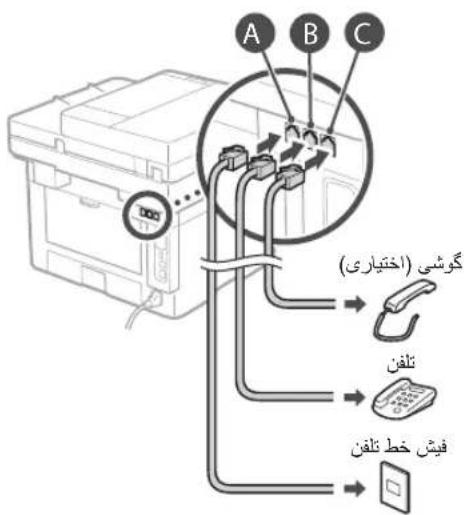

Connect Telephone Line A B C Connect to the socket on the back side of the device, 1. Telephone Line to A 2. External Telephone Line to B End

A B C Handset (optional) Telephone Telephone line jack

1. Select .
2. Select .

Now you are finished with the configuration.

Illustration of a printer with a close-up of its screen and a button, no text or symbols present.

Illustration of three electronic devices: a monitor, a printer with wireless signal lines, and a router (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a curved arrow indicating rotation or force (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Illustration of a printer with a power button and magnified view showing the next page (no text or symbols present)

Illustration of three electronic devices: a monitor, a printer with wireless signal lines, and a router (no text or symbols present)

Illustration of a desktop computer connected to a printer via serial links (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a curved arrow indicating rotation or movement (no text or symbols present)

Diagram showing a computer monitor with a CD inside and a tower emitting a circular arrow (no text or symbols)

2.

Illustration of a printer with a close-up of its screen and power button (no text or symbols)

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial links (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a computer monitor connected to a printer via a cable (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a curved arrow indicating rotation or force (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a rectangular box (no text or symbols present)

2.

Illustration of a printer with a power button and magnified view showing the next right button (no text or symbols present)

Illustration of a desktop computer, printer, and wireless router with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

Diagram showing a computer monitor with a CD inside and a tower emitting a disc (no text or symbols)

2.

Illustration of a printer with a power button and magnified view showing the next right button (no text or symbols present)

Illustration of a printer, network device, and computer monitor with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a close-up of a curved bracket (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Illustration of a printer with a close-up of its screen and a button, no text or symbols present

Illustration of a wireless network device with monitor, printer, and tower (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a curved arrow indicating rotation or force (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Illustration of a printer with a close-up of its screen and a button, no text or symbols present.

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a curved arrow indicating rotation or force (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a rectangular box (no text or symbols present)

2.

Diagram of a printer with an open door and a magnified inset showing a button labeled 'Power' (no text or symbols on the device itself)

Illustration of a printer, network device, and computer monitor with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial links (no text or symbols)

Diagram of a device with cable and connector, showing connection to an electronic component (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Software Programs/Manual Setup Easy Institution Custom Information Install the programs and manuals that you select Start Software Programs Start programs required to configuring settings. All Manual Display manuals Exit

Illustration of a printer with a close-up of its screen and a button, no text or symbols present.

Illustration of three electronic devices: a monitor, a printer, and a wireless router with signal waves (no text or symbols)

S.48 "Installation af softwaren"

Illustration of a desktop computer connected to a printer via serial links (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

S.48 "Installation af softwaren"

Illustration of a desktop computer connected to a printer (no text or symbols present)

S.48 "Installation af softwaren"

Diagram of a mechanical device with an inset showing a rotating component (no text or symbols present)

Illustration of a CD or DVD drive system with an arrow pointing to a CD (no text or symbols present)

2.

Canon Installation af softwareprogrammer/selladminser Non installation: Engagement installation: Installations du programme og veldvåranger som du retige Start softwareprogrammer: Drive programme, de lassen af configura at software veldvåranger Veldvåranger Veld veldvåranger 2018

Illustration of three electronic devices: a monitor, a printer, and a wireless router with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram of a device with cable and connector, showing connection to an electronic component (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a curved arrow indicating rotation (no text or symbols present)

Illustration of a CD or DVD drive system with an external CD (no text or symbols visible)

2.

1. Selecteer .
2. Selecteer .

Diagram of a printer with a power button and magnified view showing the next right corner (no text or symbols present)

Illustration of a printer, network device, and computer monitor with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial links (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

• Vent i et par minutter etter at kabelen er koblet til (til IP-adressen er automatisk innstilt).

• Hvis det er angitt en statisk IP-adresse for datamaskinen, må maskinens IP-adresse stilles inn manuelt.

• Installer driver og programvare.

→side 56 "Installere programvaren"

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a curved arrow indicating rotation or force (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Diagram of a printer with a power button and magnified view showing the next button (no text or symbols present)

Illustration of three electronic devices: a monitor, a printer, and a wireless router with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial communication (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical diagram of a mechanical device with an inset showing a curved arrow indicating rotation or force (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Konfigurering av mjakysenverkaanbanbärker E-mail installation Anpassed installation Installation of a program och handbärker Starta program Starta program currently for all handbärker auskörger en Handbärker Find handbärker Finish

Illustration of a printer with a close-up of its screen and a circular button, no text or symbols present.

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial links (no text or symbols)

Diagram of a printer setup with cable and connector, showing connection point (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a curved arrow indicating rotation or force (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a rectangular box (no text or symbols present)

2.

Canon Ohjelmien je oppaidan opurna Helpo inurna Markets spornes Aurkan adlumasi objekt je oppai Kajmada objekt Kajmada ostradički motačke nandizomane lodičko objekt Oppai Kojmada oppai Lampi

Illustration of a printer with a power button and magnified view showing the next page (no text or symbols present)

Illustration of three electronic devices: a monitor, a printer, and a wireless router with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a curved arrow indicating rotation or force (no text or symbols present)

Diagram showing a CD or DVD drive interacting with a computer tower (no text or symbols present)

1.

Illustration of a printer with a close-up of its screen and a button, no text or symbols present.

Do you want to use the wireless LAN to connect to the network? (The settings can be configured later.) Yes No

Illustration of three electronic devices: a monitor, a printer with wireless signal lines, and a router (no text or symbols present)

For more information, refer to the manual.

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram of a printer with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a curved arrow indicating rotation or force (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Software Programs Manual Custom Easy Installation Custom Installation Installs the programs and manuals that you select Start Software Programs Start programs imposed to configuring settings, etc. Manual Custom manuals Exit

Home Check Counter Copy Fax Scan Memory Media Print Copy (Eco) Copy (BleedReduce) ID Card Copy (Simple) Copy (Enhance Text) Status Monitor

Fax Setup Guide Register the unit telephone number for this device. (Fax number) Next

Connect Telephone Line A B C Connect to the socket on the back side of the device. 1. Telephone Line to A 2. External Telephone Line to B End

Diagram of a printer with a power button and magnified view showing the next button (no text or symbols present)

Illustration of three electronic devices: a monitor, a printer, and a wireless router with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial links (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a computer monitor connected to a printer via a cable (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

1.

Canon Software Programs/Standard Setup Easy Installation Custom Installation Installs the programs and manuals that use select. Start Software Programs Start programs required for configuring settings, etc. Manuals Displays manuals Edit

Illustration of a printer with a close-up of its screen and a button, no text or symbols present.

Illustration of a printer, tower, and monitor with wireless signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a curved arrow indicating rotation or force (no text or symbols present)

Illustration of a computer monitor with a CD inside, showing an arrow pointing to its disc (no text or symbols present)

2.

Canon Software Programs/Manuals Setup Easy Installation Custom Installation Installs the programs and instructs that you select Start Software Programs Start programs required to configure settings, etc. Estments Display manuals Exit

Illustration of a printer with a close-up of its screen and button, no text or symbols present

Illustration of a desktop computer, printer, and wireless router with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial links (no text or symbols)

Diagram of a device with cable and connector, showing connection to a terminal block (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a curved arrow indicating rotation or force (no text or symbols present)

Illustration of a CD or DVD drive system with an open disk (no text or symbols visible)

2.

Canon Software Programs/Manual Solution Easy Installation Custom Installation Insts the programs and manage that you select Start Software Programs Start programs required for configuring settings, etc. Next Display manuals Exit

Illustration of a printer with a close-up of its screen and a button, no text or symbols present.

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial links (no text or symbols)

Diagram of a device with cable and connector, showing connection to a terminal block (no text or symbols present)

Illustration of a computer monitor connected to a printer via a cable (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a curved arrow indicating rotation or force (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a server unit (no text or symbols present)

2.

Illustration of a printer with a close-up of its screen and a circular button, no text or symbols present.

Illustration of a desktop computer, printer, and wireless router with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a curved arrow indicating rotation or force (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a rectangular box (no text or symbols present)

2.

Canon Installace softwarevich programu i opliuk Search instance Finish instance Installate software výrody programu a platy Install software výrody programu Install programu výrody po ######zis ######zis platy Finish Finish platy Finish

Illustration of a printer with a power button and magnified view showing the next button (no text or symbols present)

Illustration of three electronic devices: a monitor, a printer with wireless signal lines, and a router (no text or symbols present)

Illustration of a desktop computer connected to a printer via serial and link (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a curved arrow indicating rotation or force (no text or symbols present)

Illustration of a computer monitor with a CD inside, showing an arrow pointing to its screen (no text or symbols present)

2.

Canon Software Programs/Manual Solution Easy Installation Custom Installation Installs the programs and manuals that you select Start Software Programs Start programs required to configuring settings, etc. Manuals Display manuals Exit

Illustration of a printer with a close-up of its screen and button, no text or symbols present

Illustration of a desktop computer, printer, and wireless network device (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Naprava ni opremljena s kablom LAN, zato ga po potrebi zagotovite.

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

- Naprava ni opremljena s kablom USB, zato ga po potrebi zagotovite.

Technical line drawing of a mechanical component with an inset showing a close-up of a curved arrow indicating rotation or force (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a server tower (no text or symbols present)

2.

Canon Software Programs/Automatic Options Easy Installation Custom Interface Installs the programs and manuals that you select Start Software Programs Start programs required for configuring settings, etc. Manuals Display manuals Exit

Illustration of a printer with a close-up of its screen and a button, no text or symbols present.

1. Konfigurirajte početne postavke u skladu sa zaslonom.

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram showing a device with cable and connector, no text or symbols present

• Nakon što ste spojili kabel pričekajte par minuta (dok se adresa IP automatski postavi).

• Ako je na računalu postavljena statička IP adresa, ručno postavite IP adresu uređaja.

• Instalirajte upravljački program i softver.

Str.104 „Instaliranje softvera“

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a mechanical device with an inset showing a curved arrow indicating rotation or force (no text or symbols present)

Illustration of a CD or DVD drive system with an external CD (no text or symbols visible)

2.

Canon Software Programs Manual Setup Easy Installation Custom Installation Installs the programs and manuals that use select Start Software Programs Start programs required to configuring settings, etc. Manuals Direct manuals Del

Ako se zaslon ne prikazuje ispravno, ponovno umetnite CD-ROM/DVD-ROM ili potražite „D:\MInst.exe“ na sustavu Windows (U ovom se opisu „D:“ odnosi na pogon CD-ROM/DVD-ROM).

Jednostavno korištenje skenera

Konfiguriranje mrežnih postavki pomoću „Send Function Setting Tool" (Alat za postavljanje funkcija slanja) omogućava vam izravno slanje skeniranih originala putem e-pošte ili I-faksa ili pohranjivanje u dijeljenu mapu na poslužitelju FTP.

Na zaslonu prikazanom u Koraku 2 odaberite [Start Software Programs] (Pokreni softverske programe) [Send Function Setting Tool] (Alat za postavljanje funkcija slanja) kako biste pokrenuli Send Function Setting Tool (Alat za postavljanje funkcija slanja).

Za detalje

„Konfiguracija početnih postavki za funkcije faksa“ u Korisničkom vodiču

Konfiguriranje postavki faksa

1. Odaberite .
2. Odaberite .

Illustration of a printer with a close-up of its screen and a button, no text or symbols present.

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial links (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram of a device with an inset showing a cable being inserted into a door (no text or symbols present)

Illustration of a computer tower with a CD inside, showing disc transfer from tower to base (no text or symbols)

1.

Illustration of a printer with a close-up of its screen and a button, no text or symbols present.

Illustration of a desktop computer, printer, and wireless router with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial links (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical diagram of a mechanical device with an inset showing a close-up of a component being inserted (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Software Programs/Manuals Setup Easy Installation Custom Installation Installs the programs and manuals that you select. Start Software Programs Start programs required for configuring settings, etc. Manuals Direct manuals Exit

Illustration of three devices: a monitor, a printer with wireless signal lines, and a router (no text or symbols)

Illustration of a desktop computer connected to a printer via serial links (no text or symbols)

Diagram of a device with cable and connector, showing connection to an electronic component (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Software Programs Manual Setup Easy Installation Custom Installation Install the programs and manuals that you select Start Software Programs Start programs required for configuring settings, etc. Manuals Direct manuals Exit

Diagram of a printer with a close-up view showing a button labeled 'Power' (no text or symbols on the device itself)

Illustration of a desktop computer, printer, and wireless router with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial links (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a computer monitor connected to a printer via a cable (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a curved arrow indicating rotation or force (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Illustration of three devices: a computer, a printer with wireless signal, and a server with antenna (no text or symbols)

Illustration of a printer with a close-up of its screen and a magnified inset showing the device's button (no text or symbols present)

Illustration of a desktop computer connected to a printer via serial links (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

Illustration of a computer tower with a CD inside, showing disc transfer from tower to base (no text or symbols)

Illustration of a computer monitor connected to a printer via a cable (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

.حدد <إنهاء>.

. <赞成> . V

Do you want to use the wireless LAN to connect to the network? (The settings can be configured later.) Yes No

Illustration of a printer, tower, and monitor with wireless signal waves (no text or symbols)

Illustration of a printer with a close-up of its screen and a magnified inset showing a button (no text or symbols present)

Illustration of a desktop computer connected to a printer via serial links (no text or symbols)

Diagram of a device with cable and connector, showing connection point and wiring (no text or symbols)

For more information, refer to the manual. OK

Illustration of a computer monitor with an open CD and a server tower, showing a disc transfer (no text or symbols)

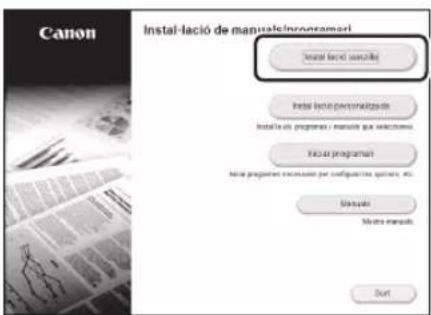

Canon Software Programs/Manual Setup Easy Installation Custom Installation Installs for programs and networks that you select Start Software Programs Start programs required to configure settings, etc. External Display manuals Exit

Illustration of a computer monitor connected to a printer (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

Connect Telephone Line A B C Connect to the socket on the back side of the device. 1. Telephone Line to A 2. External Telephone Line to B End

Home Check Counter Copy Fax Scan Memory Media Print Copy (Eco) Copy (BleedReduce) ID Card Copy (Simple) Copy (Enhance Text) Status Monitor

Fax Setup Guide Register the unit telephone number for this device. (Fax number) Next

Place the Original Properly

Remember before You Start Operation

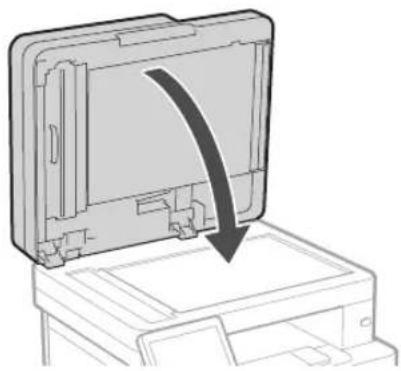

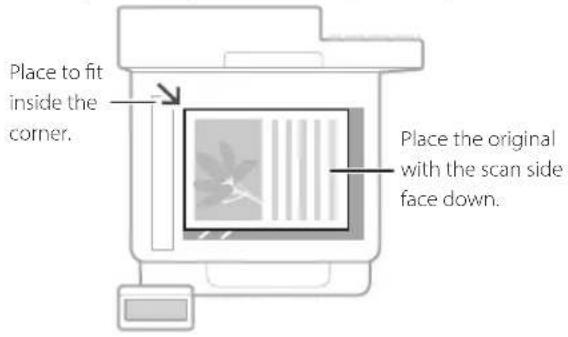

Place your original on the platen glass

Place to fit inside the corner. Place the original with the scan side face down.

Suitable for scanning book pages, magazine pages and newspaper clips.

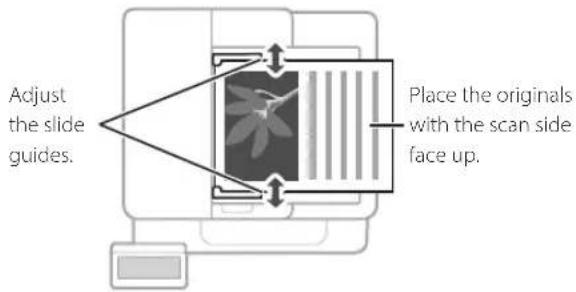

Place your originals into the feeder

Adjust the slide guides. Place the originals with the scan side face up.

Suitable for continuously scanning many pages of literature, quotation, etc.

Start the Operation from the Operation Panel

Machine

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

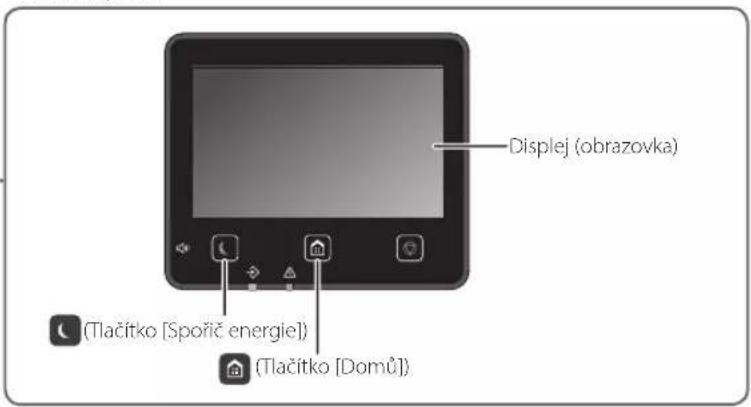

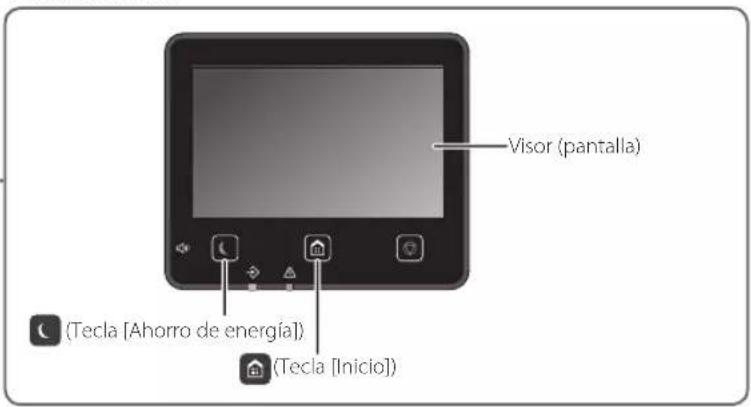

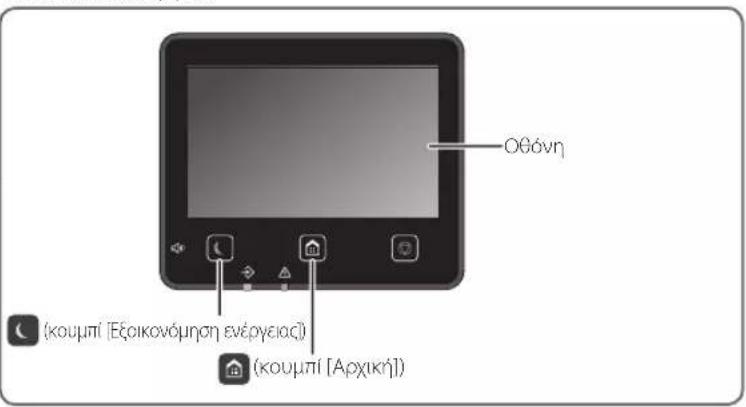

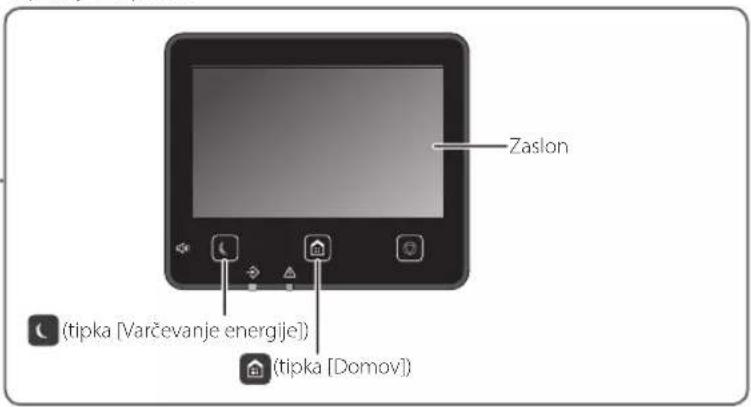

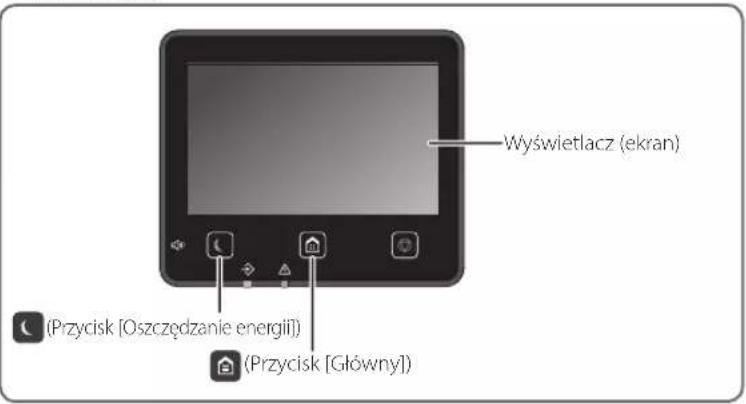

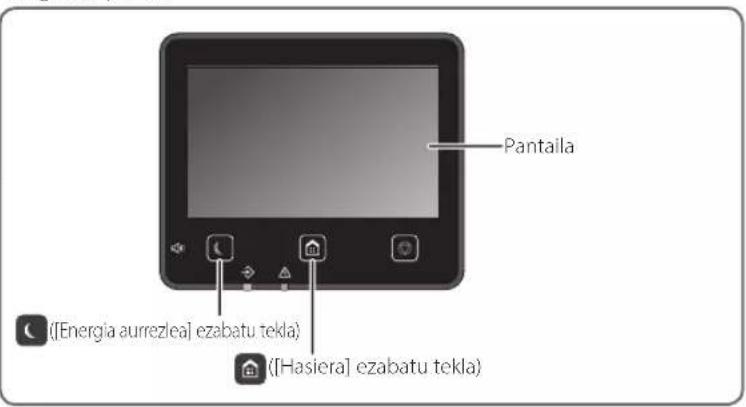

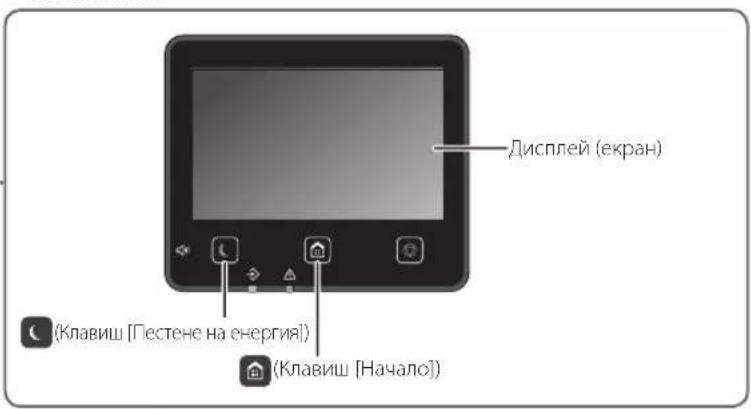

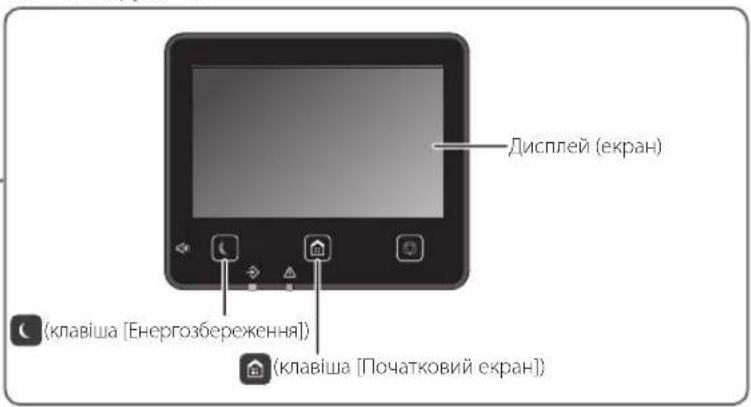

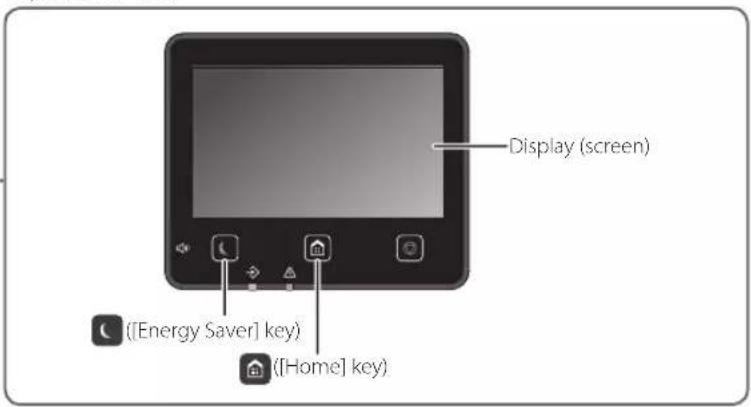

Operation Panel

Display (screen) ([Energy Saver] key) ([Home] key)

Scanning

1. Place the original.
2. Press 📋, and select .
3. Select the type of scan, and enter the necessary information.
4. Select , or .

Types of scan

■ Store in computer
■ Store in USB memory device
■ Send e-mail/I-Fax
■ Send to file server

To scan from a computer

■ MF Scan Utility

Scan Select a scan type. Computer USB Memory E-Mail F-Fax File Status Monitor

For details

"Scanning" in the User's Guide

Copying

1. Place the original.
2. Press 🔒, and then select .
3. Specify the copy settings, as necessary.
4. Enter the desired number of copies.
5. Select .

Useful copy functions

■ Non 1
■ 2-Sided or 1-Sided
■ Enlarging or reducing
■ Copying ID cards
■ Passport Copy

Copy Copy Ratio 100% Paper Density Number of Copies A4 ±0 1 2 Select: 50% N on: 1.00% Reset Start Other Settings Status Monitor

For details

→"Copying" in the User's Guide

Faxing\*

1. Place the original.
2. Press 📋, and select .
3. Enter the destination information.
4. Specify the fax settings, as necessary.
5. Select .

Useful fax functions

■ Sequential Broadcast
■ Memory Reception
PC Fax

Fax [phone]:00AM Specify a destination. Enter Dest. Speech Destination TV/RS Settings 1 ABC 3 CHF Hook 4 FSG 5 6 SNNO Puzzle 7 PPGS 8 Yee 9 WmV2 Next Spot * Time 0 # Status Monitor

For details

→ "Faxing" in the User's Guide

Printing

1. Open the document to print, and select the print function of the application.
2. Select the printer driver for the machine, and select [Preferences] or [Properties].
3. Specify the paper size.
4. Specify the paper source and paper type.
5. Specify the print settings, as necessary.
6. Select [OK].
7. Select [Print] or [OK].

Useful print settings

2-sided
■ Non 1
■ Booklet Printing

File Edit View Insert Options File Edit View Insert Options Export Export Type Import Mode Export Mode Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path

For details

→ "Help" on the printer driver

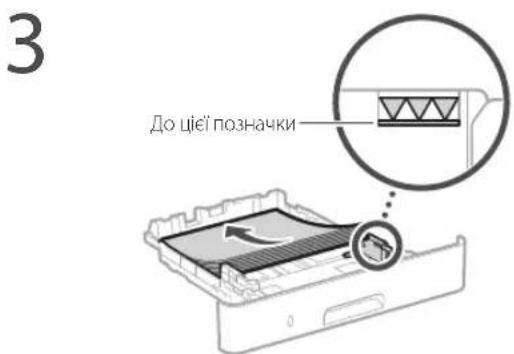

Loading in the Paper Drawer

1 Pull out the paper drawer.

2 8,5 A4 / A5 AA = 10

3 Up to here

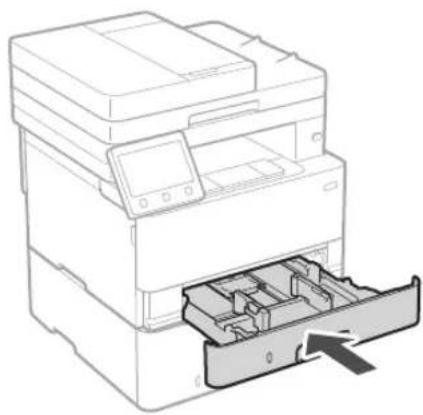

4 Insert the paper drawer into the machine.

If you load a different size or type of paper from the one before, make sure to change the settings.

5 Press and select .

6 Specify the size and type of paper, according to the screen.

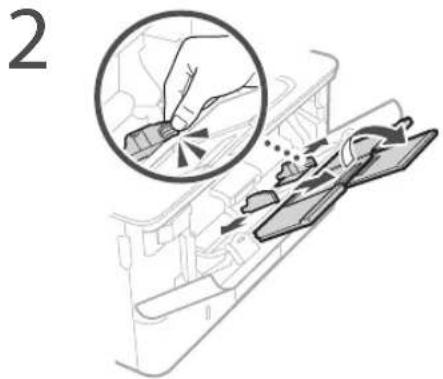

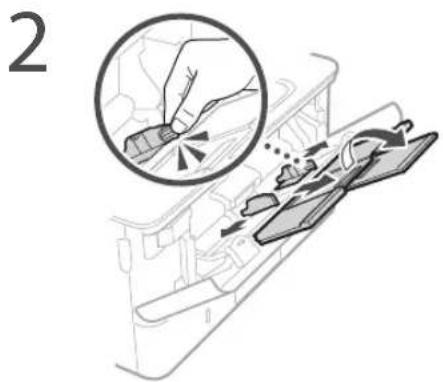

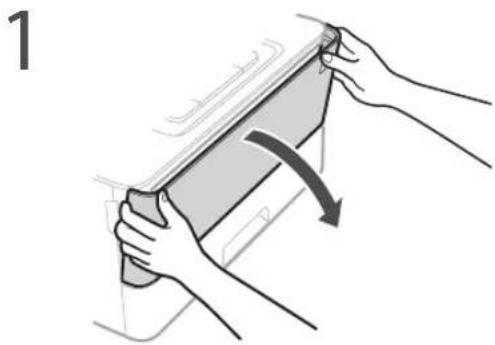

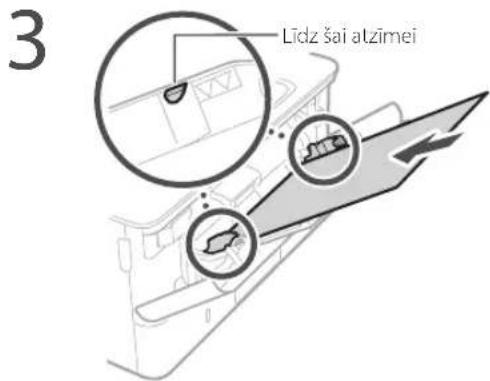

Loading in the Multi-Purpose Tray

Illustration of hands holding a device with an arrow indicating rotation (no text or symbols)

2

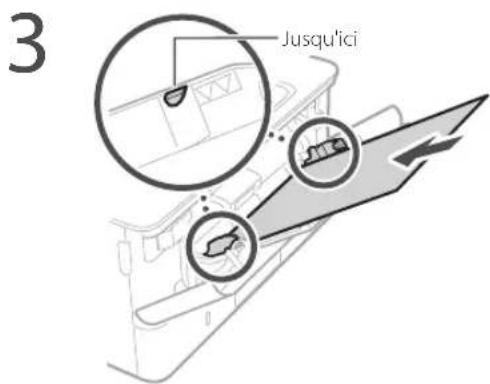

3 Up to here

4

5 Specify the size and type of paper, according to the screen.

The Machine Does Not Seem to Work

Check the following.

• Is the power turned ON?
• Is the machine out of sleep mode?

If both the display and 📁 are not lit, press the power switch.

Diagram showing a printer with two circular insets highlighting the camera and screen interface, labeled in Chinese.

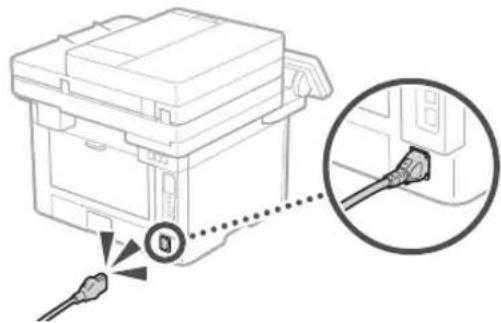

• Is the power cord connected correctly?

Diagram of a device with cable connectors and a magnified inset showing internal wiring (no text or symbols)

If the problem persists, see the User's Guide.

Paper Jams Have Occurred

Clear the paper jams, according to the on-screen instructions.

Paper jammed. Press the button and open the front cover. Previous 1/7

Replacing the Toner Cartridge

Replace the toner cartridge, according to the on-screen instructions.

End of Cartridge Lifetime Press the button and open the front cover. Previous 1/4

Model number of replacement toner cartridge

• Canon Cartridge 057
• Canon Cartridge 057 H

Appendix

Important Safety Instructions

This chapter describes important safety instructions for the prevention of injury to users of this machine and others, and damage to property. Read this chapter before using the machine, and follow the instructions to use the machine properly. Do not perform any operations not described in this manual. Canon will not be responsible for any damages resulting from operations not described in this manual, improper use, or repair or changes not performed by Canon or a third party authorized by Canon. Improper operation or use of this machine could result in personal injury and/or damage requiring extensive repair that may not be covered under your Limited Warranty.

WARNING

Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To use the machine safely, always pay attention to these warnings.

CAUTION

Indicates a caution concerning operations that may lead to injury to persons if not performed correctly. To use the machine safely, always pay attention to these cautions.

IMPORTANT

Indicates operational requirements and restrictions. Be sure to read these items carefully to operate the machine correctly and avoid damage to the machine or property.

Installation

To use this machine safely and comfortably, carefully read the following precautions and install the machine in an appropriate location.

WARNING

Do not install in a location that may result in a fire or electrical shock

• A location where the ventilation slots are blocked (too close to walls, beds, sofas, rugs, or similar objects)
  • A damp or dusty location
• A location exposed to direct sunlight or outdoors
  • A location subject to high temperatures
  • A location exposed to open flames
• Near alcohol, paint thinners or other flammable substances

Other warnings

• Do not connect unapproved cables to this machine. Doing so may result in a fire or electrical shock.
• Do not place necklaces and other metal objects or containers filled with liquid on the machine. If foreign substances come in contact with electrical parts inside the machine, it may result in a fire or electrical shock.
• When installing and removing the optional accessories, be sure to turn OFF the power, unplug the power plug, and then disconnect all the interface cables and power cord from the machine. Otherwise, the power cord or interface cables may be damaged, resulting in a fire or electrical shock.
• If any foreign substance falls into this machine, unplug the power plug from the AC power outlet and contact your local authorized Canon dealer.

CAUTION

Do not install in the following locations

The machine may drop or fall, resulting in injury.

• An unstable location
• A location exposed to vibrations

Other cautions

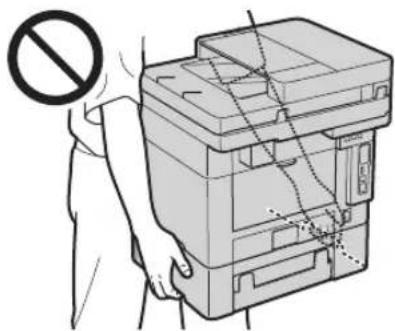

• When carrying this machine, follow the instructions in this manual. If carried improperly, it may fall, resulting in injury
• When installing this machine, be careful not to get your hands caught between the machine and the floor or walls. Doing so may result in injury.

IMPORTANT

Do not install in the following locations

Doing so may result in damage to the machine.

• A location subject to temperature and humidity extremes, whether low or high
• A location subject to dramatic changes in temperature or humidity
• A location near equipment that generates magnetic or electromagnetic waves
• A laboratory or location where chemical reactions occur
• A location exposed to corrosive or toxic gases
- A location that may warp from the weight of the machine or where the machine is liable to sink (a carpet, etc.)

Avoid poorly ventilated locations

This machine generates a slight amount of ozone and other emissions during normal use. These emissions are not harmful to health. However, they may be noticeable during extended use or long production runs in poorly ventilated rooms. To maintain a comfortable working environment, it is recommended that the room where the machine operates be appropriately ventilated. Also avoid locations where people would be exposed to emissions from the machine.

Do not install in a location where

condensation occurs

Water droplets (condensation) may form inside the machine when the room where the machine is installed is heated rapidly, and when the machine is moved from a cool or dry location to a hot or humid location. Using the machine under these conditions may result in paper jams, poor print quality, or damage to the machine. Let the machine adjust to the ambient temperature and humidity for at least 2 hours before use.

In altitudes of above sea level 3,000 m or higher

Machines with a hard disk may not operate properly when used at high altitudes of about 3,000 meters above sea level, or higher.

Connecting the Telephone Line

This machine conforms to a analog telephone line standard. The machine can be connected to the public switched telephone network (PSTN) only. If you connect the machine to a digital telephone line or a dedicated telephone line, it might impede proper operation of the machine and could be the cause of damage. Make sure to confirm a type of telephone line before connecting the machine. Contact your optical fiber line or IP telephone line service providers if you want to connect the machine to those telephone lines.

When using wireless LAN

• Install the machine at a distance of 50 meters or less from the wireless LAN router.
- As far as possible, install in a location where communication is not blocked by intervening objects. The signal may be degraded when passing through walls or floors.
- Keep the machine as far as possible from digital cordless phones, microwave ovens, or other equipment that emits radio waves.
- Do not use near medical equipment. Radio waves emitted from this machine may interfere with medical equipment, which may result in malfunctions and accidents.

If the operating noise concerns you

Depending on the use environment and operating mode, if the operating noise is of concern, it is recommended that the machine be installed in a place other than the office.

Power Supply

WARNING

• Use only a power supply that meets the specified voltage requirements. Failure to do so may result in a fire or electrical shock.
• The machine must be connected to a socket-outlet with grounding connection by the provided power cord.
• Do not use power cords other than the one provided, as this may result in a fire or electrical shock.
• The provided power cord is intended for use with this machine. Do not connect the power cord to other devices.
• Do not modify, pull, forcibly bend, or perform any other act that may damage the power cord. Do not place heavy objects on the power cord. Damaging the power cord may result in a fire or electrical shock.
• Do not plug in or unplug the power plug with wet hands, as this may result in an electrical shock.
• Do not use extension cords or multi-plug power strips with the machine. Doing so may result in a fire or electrical shock.
• Do not wrap the power cord or tie it in a knot, as this may result in a fire or electrical shock.
• Insert the power plug completely into the AC power outlet. Failure to do so may result in a fire or electrical shock.
• Remove the power plug completely from the AC power outlet during a thunder storm. Failure to do so may result in a fire, electrical shock, or damage to the machine.
  • Make sure that the power supply for the machine is safe, and has a steady voltage.
• Keep the power cord away from a heat source; failure to do this may cause the power cord coating to melt, resulting in a fire or electrical shock.

Avoid the following situations:

If excessive stress is applied to the connection part of the power cord, it may damage the power cord or the wires inside the machine may disconnect. This could result in a fire.

- Connecting and disconnecting the power cord frequently.

-Tripping over the power cord.
- The power cord is bent near the connection part, and continuous stress is being applied to the power outlet or the connection part.
- Applying excessive force on the power plug.

ACAUTION

• Install this machine near the power outlet and leave sufficient space around the power plug so that it can be unplugged easily in an emergency.

IMPORTANT

When connecting power

• Do not connect the power cord to an uninterruptible power source. Doing so may result in malfunction of or damage to the machine at power failure.
• If you plug this machine into an AC power outlet with multiple sockets, do not use the remaining sockets to connect other devices.
• Do not connect the power cord to the auxiliary AC power outlet on a computer.

Other precautions

Electrical noise may cause this machine to malfunction or lose data.

Handling

WARNING

• Immediately unplug the power plug from the AC power outlet and contact an authorized Canon dealer if the machine makes an unusual noise, emits an unusual smell, or emits smoke or excessive heat. Continued use may result in a fire or electrical shock.
• Do not disassemble or modify this machine. There are high-voltage and high-temperature components inside the machine. Disassembly or modification may result in a fire or electrical shock.
• Place the machine where children will not come in contact with the power cord and other cables or gears and electrical parts inside the machine. Failure to do so may result in unexpected accidents.
• Do not use flammable sprays near this machine. If flammable substances come into contact with electrical parts inside this machine, it may result in a fire or electrical shock.
• When moving this machine, be sure to turn OFF the power of this machine, and then unplug the power plug and interface cables. Failure to do so may damage the power cord or interface cables, resulting in a fire or electrical shock.
• When plugging or unplugging a USB cable when the power plug is plugged into an AC power outlet, do not touch the metal part of the connector, as this may result in an electrical shock.

If you are using a cardiac pacemaker

This machine generates a low level magnetic flux and ultrasonic waves. If you use a cardiac pacemaker and feel abnormalities, please move away from this machine and consult your physician immediately.

CAUTION

• Do not place heavy objects on this machine as they may fall, resulting in injury.
• For your safety, please unplug the power cord if the machine will not be used for a long period of time.

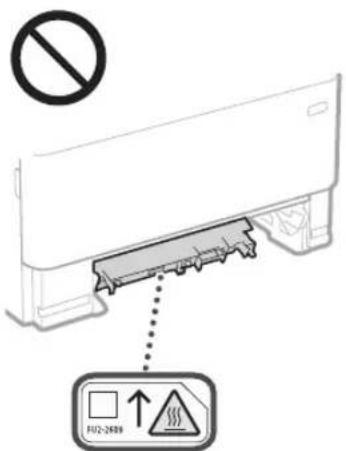

• Use caution when opening and closing covers to avoid injury to your hands.

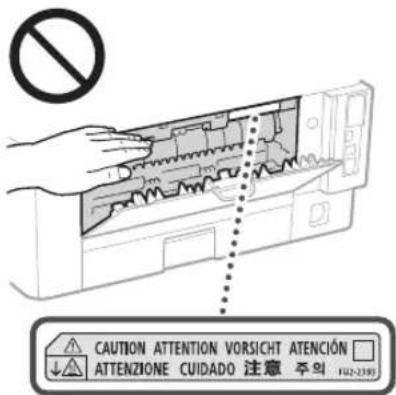

• Keep hands and clothing away from the rollers in the output area. If the rollers catch your hands or clothing, this may result in personal injury.

- The inside of the machine and the output slot are very hot during and immediately after use. Avoid contact with these areas to prevent burns. Also, printed paper may be hot immediately after being output, so use caution when handling it. Failure to do so may result in burns.

CAUTION ATTENTION VORSICHT ATENCIÓN ATTENZIONE CUIDADO 注意 주의 192-2395

F02-2658

• Be careful not to drop a heavy object, such as a dictionary, on the platen glass. Doing so may
  damage the platen glass and result in injury.
• Do not carry the machine with any of the paper drawer or optional paper feeder installed. Otherwise, they may fall, resulting in injury.

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Feeder

• Do not press down hard on the feeder when using the platen glass to make copies of thick books. Doing so may damage the platen glass and result in personal injury.
• Close the feeder gently to avoid catching your hands, as this may result in personal injury.
• Be careful not to put your hands or fingers into the feeder. Otherwise, you may be injured.

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Paper drawer

- Do not insert your hand into the machine while the paper drawer is removed, as this may result in personal injury.

Energy Saver key

- Press (Energy Saver) for safety when the machine will not be used for a long period of time, such as overnight. Also, turn OFF the main power switch, and disconnect the power cord for safety when the machine will not be used for an extended period of time, such as during consecutive holidays.

Laser Safety

This product is confirmed as a Class 1 laser product in IEC60825-1:2014 and EN60825-1:2014.

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS

The laser beam can be harmful to human bodies. Since radiation emitted inside the product is completely confined within protective housings and external covers, the laser beam cannot escape from the machine during any phase of user operation. Read the following remarks and instructions for safety.

• Never open covers other than those instructed in the manuals for this machine.
• If the laser beam should escape and enter your eyes, exposure may cause damage to your eyes.
• Use of controls, adjustments, or performance of procedures other than those specified in this manual may result in hazardous radiation exposure.

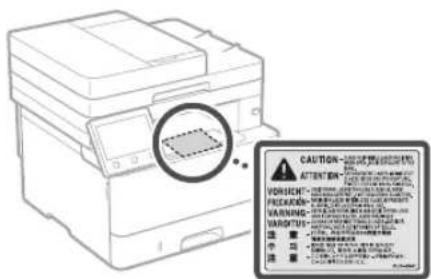

Laser Safety Caution

• Follow the caution instructions on labels and the like found on this machine.
• Do not subject the machine to strong shocks or vibration.
• Do not forcibly open and close doors, covers, and other parts. Doing so may result in damage to the machine.
• Do not turn the main power switch OFF or open the covers while the machine is in operation. This may result in paper jams.
• Use a modular cable that is shorter than 3 meters.
• Use a USB cable that is shorter than 3 meters.

Appendix

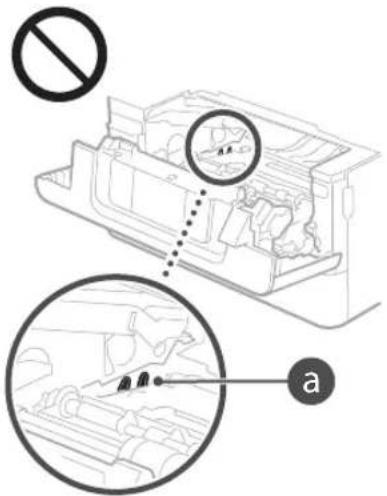

- Do not touch the contacts (a) inside the machine. Doing so may result in damage to the machine.

Diagram showing a vehicle interior with a circular annotation and a magnified view of the interior, including a prohibition symbol and labeled point 'a'.

When transporting the machine

To prevent damage to the machine during transport, perform the following.

• Remove the toner cartridge.
• Securely pack the machine in the original box with packing materials.

Safety-Related Symbols

Power switch: "ON" position

Power switch: "OFF" position
Power switch: "STAND-BY" position
① Push-push switch "ON" "OFF"
Protective earthing terminal

Dangerous voltage inside. Do not open covers other than instructed.
CAUTION: Hot surface. Do not touch.
Class II equipment
Moving parts: Keep body parts away from moving parts
CAUTION: An electrical shock may occur. Remove all the power plugs from the power outlet.
There are sharp edges. Keep body parts away from sharp edges.

[NOTE]

Some of symbols shown above may not be affixed depending on the product.

Maintenance and Inspections

Clean this machine periodically. If dust accumulates, the machine may not operate properly. When cleaning, be sure to observe the following. If a problem occurs during operation, see the User's Guide. If the problem cannot be resolved or you feel the machine requires an inspection, see "When a Problem Cannot Be Solved" in the User's Guide.

WARNING

- Before cleaning, turn OFF the power and unplug the power plug from the AC power outlet. Failure to do so may result in a fire or electrical shock.

• Unplug the power plug periodically and clean with a dry cloth to remove dust and grime. Accumulated dust may absorb humidity in the air and may result in a fire if it comes into contact with electricity.
• Use a damp, well wrung-out cloth to clean the machine. Dampen cleaning cloths with water only. Do not use alcohol, benzine, paint thinner, or other flammable substances. Do not use tissue paper or paper towels. If these substances come into contact with electrical parts inside the machine, they may generate static electricity or result in a fire or electrical shock.
• Check the power cord and plug periodically for damage. Check the machine for rust, dents, scratches, cracks, or excessive heat generation. Use of poorly-maintained equipment may result in a fire or electrical shock.

CAUTION

• The inside of the machine has high-temperature and high-voltage components. Touching these components may result in burns. Do not touch any part of the machine that is not indicated in the manual.
- When loading paper or removing jammed paper, be careful not to cut your hands with the edges of the paper.

Consumables

WARNING

• Do not dispose of used toner cartridges or the like in open flames. Also, do not store toner cartridges or paper in a location exposed to open flames. This may cause the toner to ignite, and result in burns or fire.
• If you accidentally spill or scatter toner, carefully gather the toner particles together or wipe them up with a soft, damp cloth in a way that prevents inhalation. Never use a vacuum cleaner that does not have safeguards against dust explosions to clean up spilled toner. Doing so may cause a malfunction in the vacuum cleaner, or result in a dust explosion due to static discharge.

If you are using a cardiac pacemaker

- The toner cartridge generates a low level magnetic flux. If you are using a cardiac pacemaker and feel abnormalities, please move away from the toner cartridge and consult your physician immediately.

ACAUTION

• Use caution not to inhale any toner. If you should inhale toner, consult a physician immediately.
• Use caution so that toner does not get into your eyes or mouth. If toner should get into your eyes or mouth, immediately wash with cold water and consult a physician.
• Use caution so that toner does not come into contact with your skin. If it should, wash with soap and cold water. If there is any irritation on your skin, consult a physician immediately.
• Keep the toner cartridges and other consumables out of the reach of small children. If toner is ingested, consult a physician or poison control center immediately.
• Do not disassemble or modify the toner cartridge or the like. Doing so may cause the toner to scatter.
• When removing the sealing tape from the toner cartridge, pull it out completely but without using excessive force. Doing otherwise may cause the toner to scatter.

OIMPORTANT

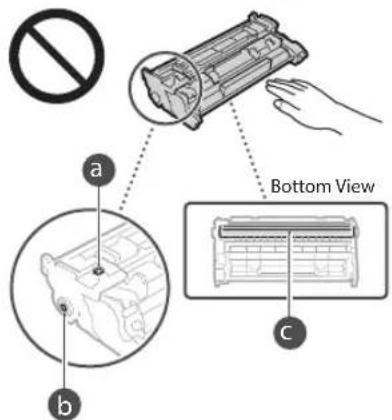

Handling the toner cartridge

- Be sure to hold the toner cartridge using the handle.

Line drawing of a hand holding a cylindrical mechanical component (no text or symbols)

- Do not touch the toner cartridge memory (a) or the electrical contacts (b). To avoid scratching the surface of the drum inside the machine or exposing it to light, do not open the drum protective shutter (c).

No a b Bottom View c

• Except when necessary, do not take out the toner cartridge from the packing material or from this machine.
• The toner cartridge is a magnetic product. Do not move it close to products susceptible to magnetism including floppy disks and disk drives. Doing so may result in data corruption.

Storing the toner cartridge

• Store in the following environment to ensure safe and satisfactory use. Storage temperature range: 0 to 35°C Storage humidity range: 35 to 85% RH (relative humidity/no condensation)*
• Store without opening until the toner cartridge is to be used.
• When removing the toner cartridge from this machine for storage, place the removed toner cartridge in the original packing material.
• When storing the toner cartridge, do not store it upright or upside down. The toner will solidify and may not return to its original condition even if it is shaken.
  * Even within the storable humidity range, water droplets (condensation) may develop inside the toner cartridge if there is a difference of temperature inside and outside the toner cartridge. Condensation will adversely affect the print quality of toner cartridges.

Do not store the toner cartridge in the following locations

• Locations exposed to open flames
• Locations exposed to direct sunlight or bright light for five minutes or more
• Locations exposed to excessive salty air
• Locations where there are corrosive gases (i.e. aerosol sprays and ammonia)
• Locations subject to high temperature and high humidity

• Locations subject to dramatic changes in temperature and humidity where condensation may easily occur

• Locations with a large amount of dust

• Locations within the reach of children
• Please be aware that there are counterfeit Canon toner cartridges in the marketplace. Use of counterfeit toner cartridge may result in poor print quality or machine performance. Canon is not responsible for any malfunction, accident or damage caused by the use of counterfeit toner cartridge. For more information, see global.canon/ctc.

Be careful of counterfeit toner cartridges

Availability period of repairing parts and toner cartridges and the like

- The repairing parts and toner cartridges and the like for the machine will be available for at least seven (7) years after production of this machine model has been discontinued.

Toner cartridge packing materials

• Save the packing materials for the toner cartridge. They are required when transporting this machine.
• The packing materials may be changed in form or placement, or may be added or removed without notice.
  • After you pull out the sealing tape from the toner cartridge, dispose of it in accordance with the applicable local regulations.

When disposing of a used toner cartridge or the like

- When discarding a toner cartridge or the like, place it in the original packing material to prevent toner from scattering from inside, and dispose of it in accordance with the applicable local regulations.

Notice

Product Name

Safety regulations require the product's name to be registered.

In some regions where this product is sold, the following name(s) in parentheses () may be registered instead.

MF449x / MF445dw (F177002) MF446x / MF443dw (F177000)

EMC requirements of EC Directive

This equipment conforms with the essential EMC requirements of EC Directive. We declare that this product conforms with the EMC requirements of EC Directive at nominal mains input 230 V, 50 Hz although the rated input of the product is 220 to 240 V, 50/60 Hz. Use of shielded cable is necessary to comply with the technical EMC requirements of EC Directive.

EU WEEE and Battery Directives

You can see the WEEE and Battery Directives information in the latest User's Guide (HTML manual) from the Canon website (https://oip.manual.canon).

Wireless LAN Regulatory Information

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRCA SS/2018/181

Regulatory information for users in UAE MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Legal Limitations on the Usage of Your Product and the Use of Images Using your product to scan, print or otherwise reproduce certain documents, and the use of such images as scanned, printed or otherwise reproduced by your product, may be prohibited by law and may result in criminal and/or civil liability. A non-exhaustive list of these documents is set forth below. This list is intended to be a guide only. If you are uncertain about the legality of using your product to scan, print or otherwise reproduce any particular document, and/or of the use of the images scanned, printed or otherwise reproduced, you should consult in advance with your legal advisor for guidance.

• Paper Money
• Travelers Checks
• Money Orders
• Food Stamps
  • Certificates of Deposit
• Passports
• Postage Stamps (canceled or uncanceled)
  • Immigration Papers
  • Identifying Badges or Insignias

• Internal Revenue Stamps (canceled or uncanceled)
  • Selective Service or Draft Papers
  • Bonds or Other Certificates of Indebtedness

• Checks or Drafts Issued by Governmental Agencies
  • Stock Certificates
  • Motor Vehicle Licenses and Certificates of Title
  • Copyrighted Works/Works of Art without Permission of Copyright Owner

Disclaimers

• The information in this document is subject to change without notice.
- CANON INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED HEREIN, INCLUDING WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OF USE, OR NON-INFRINGEMENT. CANON INC. SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM THE USE OF THIS MATERIAL.

About This Manual

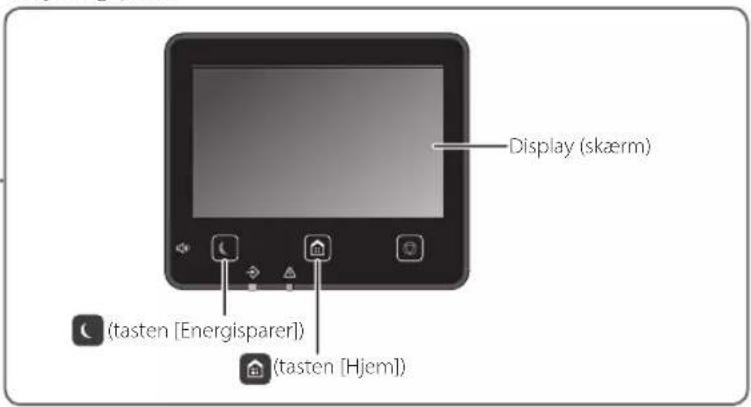

Keys and Buttons Used in This Manual

The following symbols and key names are a few examples of how keys to be pressed are expressed in this manual.

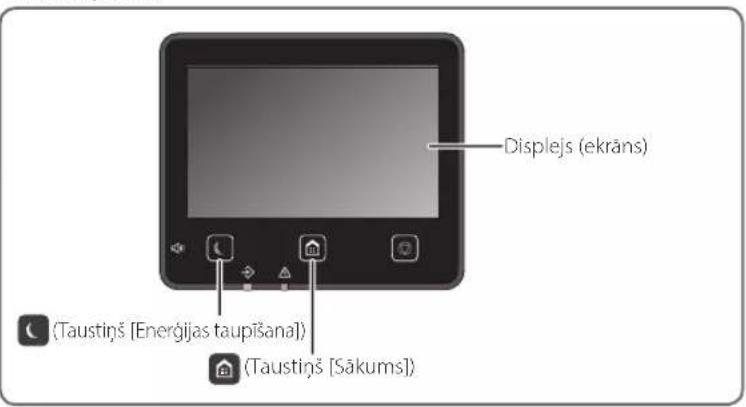

• Operation panel keys: [Key icon] Example:
• Display:
- Buttons and items on the computer display: [Preferences]

Illustrations and Displays Used in This Manual Illustrations and displays used in this manual are which of MF449x unless specified.

Trademarks

Mac is a trademark of Apple Inc. Microsoft, Windows, Windows Vista, Windows Server, Internet Explorer, Excel, and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Other product and company names herein may be the trademarks of their respective owners.

Third Party Software

This Canon product (the "PRODUCT") includes third-party software modules. Use and distribution of these software modules, including any updates of such software modules (collectively, the "SOFTWARE") are subject to license conditions (1) through (9) below.

(1) You agree that you will comply with any applicable export control laws, restrictions or regulations of the countries involved in the event that this PRODUCT including the SOFTWARE is shipped, transferred or exported into any country.
(2) Rights holders of the SOFTWARE retain in all respects the title, ownership and intellectual property rights in and to the SOFTWARE. Except as expressly provided herein, no license or right, expressed or implied, is hereby conveyed or granted by rights holders of the SOFTWARE to you for any intellectual property of rights holders of the SOFTWARE.

(3) You may use the SOFTWARE solely for use with the PRODUCT.

(4) You may not assign, sublicense, market, distribute, or transfer the SOFTWARE to any third party without prior written consent of rights holders of the SOFTWARE.

(5) Notwithstanding the foregoing, you may transfer the SOFTWARE only when (a) you assign all of your rights to the PRODUCT and all rights and obligations under the license conditions to transferee and (b) such transferee agrees to be bound by all these conditions.

(6) You may not decompile, reverse engineer, disassemble or otherwise reduce the code of the SOFTWARE to human readable form.
(7) You may not modify, adapt, translate, rent, lease or loan the SOFTWARE or create derivative works based on the SOFTWARE.
(8) You are not entitled to remove or make separate copies of the SOFTWARE from the PRODUCT.
(9) The human-readable portion (the source code) of the SOFTWARE is not licensed to you.

Notwithstanding (1) through (9) above, the PRODUCT includes third-party software modules accompanying the other license conditions, and these software modules are subject to the other license conditions.

Please refer to the other license conditions of third-party software modules described in Appendix of Manual for the corresponding the PRODUCT. This Manual is available at https://oip.manual.canon/.

By using the PRODUCT, you shall be deemed to have agreed to all applicable license conditions. If you do not agree to these license conditions, please contact your service representative.

V_181009

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

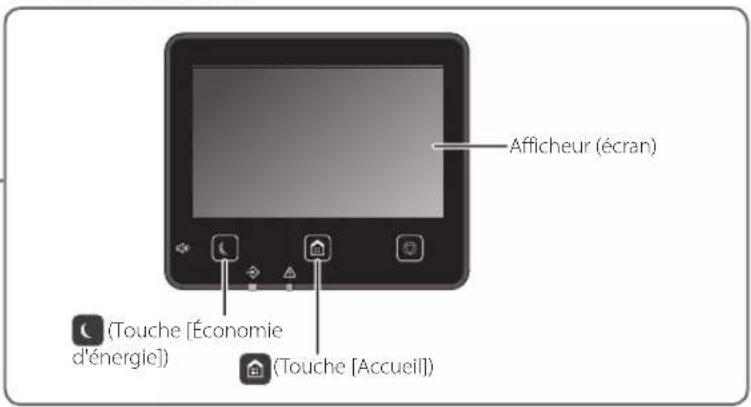

Panneau de commande

m = 311
m = 311
m = 311
m = 311
m = 311

2 8.5 A4 / A5 AA = 10

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

Diagram showing printer operation with zoomed-in circular annotations highlighting the printer's screen and power button.

Diagram of a device with cable connectors and a magnified inset showing cable installation detail (no text or symbols)

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Chargeur

Illustration showing a hand pressing a stack of cards with a 'no' symbol indicating prohibition or prohibition.

Cassette à papier

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Diagram showing a vehicle interior with a circular annotation highlighting a specific area, accompanied by a prohibition symbol and an inset magnified view labeled 'a'.

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in UAE MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

M100000000 UserForm Data Source Background Format OK Cancel Help Apply Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: 123456789 Name: 123456789 Name: 123456789 Name: 123456789 Name: 123456789 Name: 123456789 Name: 123456789 Name: 123456789 Name: 123457000 Name: 123457000 Name: 123457000 Name: 123457000 Name: 123457000 Name: 123457000 Name: 123457000 Name: 123457000 Name: 123467000 Name: 123467000 Name: 123467000 Name: 123467000 Name: 123467000 Name: 123467000 Name: 123467000 Name: 123467000 Name: 23467000 Name: 23467000 Name: 23467000 Name: 23467000 Name: 23467000 Name: 23467000 Name: 23467000 Name: 23467000 Name: 23475000 Name: 23475000 Name: 23475000 Name: 23475000 Name: 23475000 Name: 23475000 Name: 23475000 Name: 23475000 Name: 23475000

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Bis hierhin

4

Diagram showing printer operation with zoomed-in circular annotations highlighting key components like a light source and power button.

Diagram of a device with cable connectors and a magnified inset showing cable installation detail (no text or symbols)

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Zufuhr

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Papierkassette

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a prohibition symbol and an inset close-up of a tool, labeled 'a'

Line drawing of a hand holding a cylindrical mechanical component (no text or symbols)

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Anhang

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

Pannello operativo

Display (schermo) (tasto [Risparmio energetico]) (tasto [Schermata principale])

Scansione

Database Project Database project: [Windows\Database\Users\Balance] File Path: Status Database Name: Database Name Database Type: Category: Category Name Local Address Local Address Local Address (Local Address) Local Address (Local Address) Local Address (Local Address) Local Address (Local Address) Local Address (Local Address) Local Address (Local Address) Local Address (Local Address) Local Address (Local Address) Local Address (Local Address) Local Address (Local Address) Local Address (Local Address) Local Address (Local Address) Local Address (Local Address) Local Address (Local Address) Local Address (Local Address) Local Address (Local Address) Local Address (Local Address) Local Address (Final Address) Local Address (Final Address) Local Address (Final Address) Local Address (Final Address) Local Address (Final Address) Local Address (Final Address) Local Address (Final Address) Local Address (Final Address) Local Address (Final Address) Local Address (Final Address) Local Address (Final Address) Local Address (Final Address) Local Address (Final Address) Local Address (Final Address) Local Address (Final Address) Local Address (Final Address) Local Address (Final Address) LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress LocalAddress Logistic Logistic Logistic Logistic Logistic Logistic Logistic Logistic Logistic Logistic

Diagram illustrating mechanical assembly steps with magnified views of a component and detail view labeled 'AA'

3 Fino qui

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Fino qui

4

Diagram showing printer operation with zoomed-in views of the printer and its screen, labeled in Chinese.

Diagram of a mechanical device with two probes and a magnified inset showing cable connection (no text or symbols)

Diagram showing a person holding a device with a prohibition symbol, indicating no protection or disapproval.

Alimentatore

Illustration of a hand placing a card into a box with a prohibition symbol (no text or labels)

Cassetto carta

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a circular annotation and an open circle indicating no prohibition.

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

Panel de control

Visor (pantalla) (Tecla [Ahorro de energía]) (Tecla [Inicio])

Escaneado

Screenshot of a software interface showing a dialog box for configuring components, with options like 'Properties' and 'Details'.

Illustration of hands holding a rectangular object with an arrow indicating rotation (no text or symbols)

2

Diagram of a vehicle interior showing airflow or movement arrows, no text or symbols present

Diagram showing printer operation with zoomed-in circular annotations highlighting light and screen states

Diagram of a printer with cable connectors and a magnified inset showing the cable attachment detail (no text or symbols)

Illustration of a person holding a large electronic device with no visible text or symbols

Alimentador

Diagram showing a hand pressing a stack of documents into a box with a prohibition symbol nearby

Casete de papel

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSFR DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a circular annotation and a magnified detail labeled 'a', accompanied by a prohibition symbol.

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in UAE MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications

Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Balance Sheet Name: 10.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 File Edit View Insert Modify View Help <|vision_start|> Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Auto Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automative Tools Help Automative Tools Help Automative Tools Help Automative Tools Help Automative Tools Help Automative Tools Help Automative Tools Help Automative Tools Help Automative Tools Help Automative Tools Help Automative Tools Help Automative Tools Help Automative Tools Help Automative Tools Help Automative Tools Help Automative Tools Help Automative Tools Help Automative Tools Help Automative Tools Help Automative Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automotive Tools Help Automplane Tool Help Automplane Tool Help Automplane Tool Help Automplane Tool Help Automplane Tool Help Automplane Tool Help Automplane Tool Help Automplane Tool Help Automplane Tool Help Automplane Tool Help Automplane Tool Help Automplane Tool Help Automplane Tool Help Automplane Tool Help Automplane Tool Help Automplane Tool Help Automplane Tool Help Automplane Tool Help Automplane Tool Help Automplane Tool Help Automplane Taxis Support 12.345.769.866.644.625.625.625.625.625.625.625.625.625.625.625.625.625.625.625.625.625.625.625.625.625.625.625.625.625.62

Per obtenir details

"Ajuda" al controlador d'impressora

1 Extraieu el casset de paper.

2 8.5 A4 / A5 AA = 10

3 Fins aquí

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Fins aquí

4

Diagram showing printer operation with zoomed-in circular annotations highlighting light and screen states

Diagram of a printer with cable connectors and a magnified inset showing cable attachment (no text or symbols)

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Alimentador

Illustration of a hand holding two cards with a warning symbol (no text or labels)

Casset de paper

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a circular annotation and a magnified view labeled 'a', accompanied by a prohibition symbol.

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

Eragiketa panela

Pantalla ([Energia aurrezlea] ezabatu tekla) ([Hasiera] ezabatu tekla)

Eskaneatzen

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Honaino

4

Diagram showing printer operation with zoomed-in circular annotations highlighting light and screen states

Diagram of a device with cable connectors and a magnified inset showing cable connection (no text or symbols)

NO F02-2609 ↑ →

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Elikagailua

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Paperaren tiradera

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Diagram showing a device interior with a circular component and a magnified view of internal components, including a prohibition symbol and labeled point 'a'.

Makina garraiatzean

Line drawing of a hand holding a cylindrical mechanical component (no text or symbols)

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in UAE MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

Painel de operações

File Options to Export Sub-Project to Export File Edit View Insert Help Browse... Save As... Delete Remove As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Para detalhes

2 8.5 A4 / A5 AA = 10

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

Diagram of a vehicle interior showing airflow or movement arrows, no text or symbols present

Diagram showing printer operation with zoomed-in circular annotations highlighting the printer's screen and power button.

Diagram of a printer with a magnified inset showing cable insertion (no text or symbols)

Se o problema persistir, consulte o Manual do utilizador.

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Alimentador

Illustration of a hand pressing a stack of paper sheets with a prohibition symbol (no text or labels)

Gaveta de papel

CLASS 1 LASER PRODUCT LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1 APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1 APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a circular annotation and a circled detail labeled 'a', accompanied by a prohibition symbol.

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

Πίνακας λειτουργίας

2 8.5 A4 / A5 AA = 10

Illustration of hands holding a rectangular object with an arrow indicating rotation (no text or symbols)

2

Diagram showing printer setup with zoomed-in circular icons and a close-up of the device's screen, likely illustrating a camera or display system.

Diagram of a printer with cable connectors and a magnified inset showing the cable attachment (no text or symbols)

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Τροφοδότης

Diagram showing a hand pressing a stack of documents with a prohibition symbol nearby

Συρτάρι χαρτιού

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS

Technical diagram showing a mechanical component with a prohibition symbol and a magnified detail labeled 'a'

Line drawing of a hand holding a cylindrical mechanical component (no text or symbols)

Regulatory information for users in Jordan

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

Παράρτημα

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

Betjeningspanel

Display (skærm) (tasten [Energisparer]) (tasten [Hjem])

Scanning

2 8.5 A4 / A5 AA = 10

3 Op hertil

4 Skub papirbakken ind i maskinen.

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Op hertil

4

Diagram showing printer operation with zoomed-in circular annotations highlighting light and screen states

Diagram of a device with connectors and a magnified inset showing cable connection (no text or symbols)

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Fremfører

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Papirbakke

- Sæt ikke din hånd ind i maskinen, mens papirbakken er taget ud, da dette kan medføre personskade.

Energisparer-tast

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a circular annotation and a magnified detail labeled 'a', accompanied by a no-smoking symbol.

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

Bedieningspaneel

Display (scherm) (toets [Energiebesparing]) (toets [Start])

Scannen

Properties Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design Form design

2 8.5 A4 / A5 AA = 10

3 Tot hier

4 Schuif de papierlade in de machine.

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Tol hier

4

Diagram showing printer operation with zoomed-in circular annotations highlighting light and screen states

Diagram of a printer with cable connectors and a magnified inset showing the cable connection (no text or symbols)

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Invoer

Illustration of a hand pressing a stack of cards into a box with a prohibition symbol (no text or labels)

Papierlade

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a circular annotation and a magnified inset highlighting a specific feature labeled 'a'.

Line drawing of a hand holding a cylindrical mechanical component (no text or symbols)

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in UAE MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications

Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Add to the following: Description: Importing Microsoft Excel Edit: Properties: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name:

2 8.5 A4 / A5 → → → →

3 Opp hit

4 Skyv papirskuffen inn i maskinen.

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Opp hit

4

Diagram showing printer operation with zoomed-in circular annotations highlighting light and screen states

Diagram of a printer with cable connectors and a magnified inset showing the cable attachment (no text or symbols present)

Se bruksanvisningen hvis problemet vedvarer.

Illustration of a person holding a large electronic device with a prohibition symbol (no text or labels present)

Mater

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Papirskuff

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a circular annotation and two magnified views labeled 'a' and 'b', including a prohibition symbol.

Når du transporterer maskinen

Line drawing of a hand holding a cylindrical mechanical component (no text or symbols)

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Upp till hit

4 SHEV

Diagram showing printer operation with zoomed-in circular annotations highlighting light and screen states

Diagram of a printer with cable connectors and a magnified inset showing internal components (no text or symbols)

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Matare

Illustration of a hand pressing a stack of cards on a tray, with a prohibition symbol nearby (no text or labels)

Papperslåda

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER TUOTE

LASERPRODUKT KLASS 1

CAUTION WARNING WARNING VORNIGHT WARNING VORNIGHT WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Exception

OVIKTIGT!

Diagram showing a vehicle interior with a circular annotation and a magnified view of the engine compartment, including a prohibition symbol and labeled point 'a'.

Bilaga

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation/Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 16.51 dBm

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Tâhân asti

4

Diagram showing printer operation with zoomed-in circular annotations highlighting the printer's screen and power button.

Diagram of a printer with a close-up view showing cable connections (no text or symbols)

Illustration of a person holding a large electronic device with no visible text or symbols

Syöttölaite

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Paperikasetti

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Diagram showing a vehicle interior with a circular component and a magnified view of the engine compartment, including a prohibition symbol and labeled point 'a'.

Line drawing of a hand holding a cylindrical mechanical component (no text or symbols)

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC, SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

Панель управления

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

Diagram showing printer operation with zoomed-in circular annotations highlighting light and screen states

Diagram of a printer with cable connectors and a magnified inset showing the cable attachment (no text or symbols)

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Устройство подачи

Diagram showing a hand holding two cards with a explosion effect and a prohibition symbol

Кассета для бумаги

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS

Technical diagram showing a mechanical component with a circular annotation and a magnified detail labeled 'a', accompanied by a prohibition symbol.

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in UAE MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

Приложение

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

Панель керування

Copy Copy Ratio 100% Paper Density Number of Copies A4 ±0 1 3-Slice MF N in T: 0.0 Reset Start Other Settings Status Monitor

Fax [phone]:00AM Specify a destination. Enter Dest. Speech Destination TX/RX Settings 1 ABC 3 LDF March 4 FLS 6 MIND Pause 7 RBY 8 WNYA Next Call * New 0 # Address Book Next Status Monitor

2 8.5 A4/A5 AA = 10

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

Diagram showing printer operation with zoomed-in circular annotations highlighting light and screen states

Diagram of a printer's internal structure with cable connectors and a magnified inset showing detail (no text or symbols)

Paper jammed. Press the button and open the front cover. Previous 1/7

End of Cartridge Lifetime Press the button and open the front cover. Previous 1/4

NO FV2-2600 ↑ →

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Пристрій подавання

Illustration of a hand placing a card into a box with a prohibition symbol (no text or labels)

Шухляда для паперу

CLASS 1 LASER PRODUCT LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a circular annotation and a magnified view of internal components, including a prohibition symbol and label 'a'.

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

Vadības panelis

2 8,5 A4/A5 M M M

3 Lidz šai atzimei

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

Diagram showing printer operation with zoomed-in circular annotations highlighting light and screen states

Diagram of a device with cable connectors and a magnified inset showing connection details (no text or symbols)

Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To use the machine safely, always pay attention to these warnings.

A UZMANĪBU!

F02-2609 ↑ →

Illustration of a person holding a device with a no-smoking symbol (no text or labels present)

Padevējs

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Papīra atvilkte

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Diagram showing a vehicle interior with a circular component and a magnified view of the engine compartment, including a prohibition symbol and labeled point 'a'.

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating a location (no text or symbols)

Valdymo skydelis

2 8.5 A4 / A5 → A4 = 10

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

Diagram showing printer operation with zoomed-in circular annotations highlighting key components

• Ar tinkamai prijungtas maitinimo laidas?

Diagram of a printer with cable connectors and a magnified inset showing cable attachment (no text or symbols)

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Tiektuvas

Illustration of a hand pressing a stack of cards into a box with a prohibition symbol (no text or labels)

Popieriaus stalčius

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing mechanical assembly with no-smoking symbol and magnified detail view labeled 'a'

Priedas

Perkeliant aparata

Kad perkeldami aparato nesugadintumete, atlikite toliau nurodytus veiksmus.

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating a measurement or alignment (no text or symbols present)

Juhtpaneel

2 8.5 A4 / A5 AA = 10

3 Kuni silani

4 Sisestage paberisahtel seadmesse.

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Kuni siiani

4

Diagram showing printer operation with zoomed-in circular annotations highlighting light and power components

Diagram of a device with cable connectors and a magnified inset showing cable connection (no text or symbols)

NO F02-2609 ↑ Warning/Warning

Illustration of a person holding a large electronic device with no visible text or symbols

Söötur

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Paberisahtel

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Diagram showing a vehicle interior with a circular component and a magnified view of the interior, including a prohibition symbol and labeled point 'a'.

Seadme transportimine

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating a detail (no text or symbols)

Panel sterujący

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Do lego poziomu

4 4.1 燃气管

Diagram showing printer operation with zoomed-in circular annotations highlighting light and screen states

Diagram of a printer with cable connectors and a magnified inset showing the cable connection (no text or symbols)

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Podajnik

Illustration showing a hand pressing a stack of cards into a box with a prohibition symbol nearby

Szuflada na papier

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS

Technical diagram showing a mechanical component with a circular annotation and a magnified view of internal components, including a prohibition symbol and label 'a'.

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in UAE MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

Dodatek

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

Ovládací panel

Displej (obrazovka) (Tlačitko [Spořič energie]) (Tlačitko [Domů])

Skenování

Product Info Design Tools Importing Properties & Options Add Remove Edit Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View Edit View

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Až sem

4

Diagram showing a printer with two circular insets highlighting the camera and its screen, likely illustrating a camera or display setup.

Diagram of a printer with cable connectors and a magnified inset showing the cable attachment (no text or symbols present)

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Podavač

Illustration of a hand holding two cards with a warning symbol (no text or labels)

Zásuvka na papír

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a circular hole and a magnified inset highlighting a specific feature labeled 'a'.

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power, 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

Obslužný panel

Displej (obrazovka) (Kláves [Šetrič elektrickej energie]) (Kláves [Úvod])

Skenovanie

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Až potiaľ

Diagram of a vehicle interior showing airflow or movement with arrows indicating direction (no text or symbols)

Diagram showing printer application setup with zoomed-in circular annotations highlighting the printer's screen and control panel.

Diagram of a printer with cable connectors and a magnified inset showing the cable attachment detail (no text or symbols present)

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Podávač

Illustration of a hand pressing a stack of cards into a box with a prohibition symbol (no text or labels)

Zásobník na papier

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Diagram showing a device interior with a circular component and a magnified view of the internal structure, including a prohibition symbol and label 'a'.

Pri preprave zariadenia

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://www.canon-europe.com/ce-documentation Wireless LAN Specifications

Frequency band(s):2412-2472MHz

Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating a measurement or alignment (no text or symbols present)

Upravljalna plošča

Zaslon (tipka [Varčevanje energije]) (tipka [Domov])

Skeniranje

2 8.5 A4 / A5 AA = 10

3 Do tukaj

4 Vstavite predal za papir v napravo.

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Do tukaj

Diagram of a vehicle interior showing airflow or movement arrows, no text or symbols present

Diagram showing printer operation with zoomed-in circular annotations highlighting the camera icon and power button

Diagram of a printer's internal structure with a magnified inset showing cable connection (no text or symbols)

Illustration of a person holding a large electronic device with no visible text or symbols

Podajalnik

Illustration of a hand pressing a stack of cards into a box with a prohibition symbol (no text or labels)

Kaseta za papir

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a circular annotation and a circled detail, accompanied by a prohibition symbol and labeled section 'a'.

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

Upravljačka ploča

Zaslon (Gumb [Usteda energije]) (Gumb [Početni zaslon])

Skeniranje

1. Postavite izvornik.
2. Pritisnite 🏠 i odaberite .
3. Odaberite vrstu skeniranja i unesite potrebne informacije.
4. Odaberite , ili .

Vrste skeniranja

■ Pohrani na računalu
■ Pohrani na memorijski uređaj USB
■ Pošalji e-poštu/l-Faks
■ Pošalji na datotečni poslužitelj

Za skeniranje s računala

■ MF Scan Utility

Skensnaj Odaberite tip skena. Rakumalo USB memory E-pola H-Falec Dastinka Nadar status

Za detalje

„Skeniranje“ u Korisničkom vodiču

Kopiranje

1. Postavite izvornik.
2. Pritisnite 📄 a zatim odaberite .
3. Po potrebi odredite postavke kopiranja.
4. Upišite željeni broj kopija.
5. Odaberite .

Korisne funkcije kopiranja

File Edit View Insertion Add Subdivided Options: Selected (Select) or Selected (Delete) Name: C:\Users\Documents\Documents\Options Export: Export Type: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date: Export Date:

Za detalje

„Help" (Pomoć) na

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Do ovdje

Diagram of a vehicle interior showing airflow or movement arrows, no text or symbols present

5 Navedite veličinu i vrstu papira sukladno zaslonu.

Ako je došlo do problema

Diagram showing printer operation with zoomed-in circular annotations highlighting light and screen states

Diagram of a printer with cable connectors and a magnified inset showing cable connection (no text or symbols)

Ako problem i dalje postoji, pogledajte Korisnički vodič.

Došlo je do zaglavljivanja papira

Uklonite zaglavljeni papir u skladu s uputama na zaslonu.

Papir zagjavljen. Pritisnite gumb i otvorite prednji pcklopac. Prethod. 1/7

No F02-2609

• Pazite da na kopirno staklo ne ispuštate teške predmete, npr. rječnike. Na taj način možete oštetiti kopirno staklo te se ozlijediti.
• Ne prenosite uređaj s postavljenom bilo kojom ladicom za papir ili dodatnim ulagaćem papira. U protivnom uređaj može pasti i uzrokovati nastanak ozlijede.

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Ulagac

Illustration of a hand pressing a stack of cards with a prohibition symbol (no text or labels)

Ladica za papir

- Nemojte stavljati ruke u uređaj kada je ladica za papir uklonjena jer može doći do ozljede.

Gumb Energy Saver (Ušteda energije)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a vehicle interior with a circular component and a magnified view of the engine compartment, including a prohibition symbol and labeled point 'a'.

Prijenos uređaja

Line drawing of a hand holding a cylindrical mechanical component (no text or symbols)

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

Kezelőpanel

Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties Properties

Részletekért lásd

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 Eddig a jelig

4 4.500mm

Diagram showing printer application setup with zoomed-in circular annotations highlighting key components like a light source and power button.

Diagram of a printer's internal structure with a magnified inset showing cable connection (no text or symbols)

Illustration of a person holding a device with a no-smoking symbol (no text or labels present)

Adagoló

Illustration of a hand pressing a stack of cards into a box with a prohibition symbol (no text or labels)

Papírfiók

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a circular inset highlighting a specific feature, accompanied by a prohibition symbol and an inset magnified view labeled 'a'.

Line drawing of a hand holding a cylindrical mechanical component (no text or symbols)

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

Panoul de operare

2 8.5 A4 / A5 → A4 = 10

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

Diagram of a vehicle interior showing airflow or movement arrows, no text or symbols present

Diagram showing printer operation with zoomed-in circular annotations highlighting key components

Diagram of a printer with cable connectors and a magnified inset showing the cable attachment (no text or symbols present)

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Alimentatorul

Illustration showing a hand pressing a stack of cards into a box with a prohibition symbol nearby

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a circular feature and a magnified view labeled 'a', accompanied by a prohibition symbol.

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

Работен панел

Дисплей (екран) (Клавиш [Пестене на енергия]) (Клавиш [Начало])

Сканиране

2 8.5 A4 / A5 AA = 10

3 До това ниво

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

2

3 До това ниво

4

Diagram showing printer operation with zoomed-in circular annotations highlighting the screen and power button

Diagram of a printer with a magnified inset showing cable penetration (no text or symbols)

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Подаващо устройство

Illustration showing a hand holding two cards with a warning symbol indicating no prohibition.

Касета за хартия

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Приложение

Diagram showing a vehicle interior with a circular component and a magnified view of the engine compartment, including a prohibition symbol and labeled point 'a'.

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a screen and dotted line indicating alignment (no text or symbols)

İşletim Paneli

Ekran ([Enerji Tasarrufu] anahtarı) ([Ana Ekran] tuşu)

Tarama

2 8.5 A4 / A5 A4 = 10

3 Buraya

Illustration of hands holding a rectangular object with an arrow indicating rotation (no text or symbols)

2

3 Buraya

Diagram of a vehicle interior showing airflow or movement with arrows indicating direction (no text or symbols)

Diagram showing printer operation with zoomed-in circular annotations highlighting key components like a brightness light and control panel.

Diagram of a printer with cable connectors and a magnified inset showing the cable attachment detail (no text or symbols present)

Illustration of a person holding a device with a prohibition symbol (no text or labels present)

Besleyici

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Kağıt çekmecesi

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Diagram showing a vehicle interior with a circular component and a magnified view of the interior, including a prohibition symbol and label 'a'.

Makineyi taşırken

Line drawing of a hand holding a mechanical component (no text or symbols)

Regulatory information for users in Jordan

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

File Edit View Insert Help View 100% Import View 100% Export File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit View Insert Help File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Window File Edit Document

Diagram showing printer operation with zoomed-in circular annotations highlighting key components like a light source and power button.

Diagram of a printer with screwdriver and magnified detail showing internal components (no text or symbols)

Regulatory information for users in Jordan

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a hand holding a handgun, no text or symbols present

Copy Copy Rate 100% Paper Density A4 ±0 Number of Copies 1 2 Print. OFF New to: OFF Reset Start Other Settings Status Monitor

Fax [phone]:00AM Specify a destination. Enter Dest. 1 2 ABC 3 OFF Next Address Book Reset 7 8 9 Next Door Status Monitor Enter Date 0 # OK Finish OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK Ok

File Edit Options New Document - Exporting / Download / Print & View Format Properties View Print Add Export Edit Paste Paste Type Paste Type Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count Paste Count

    subgraph Section 1
        F["8.5 A4/A5"]
        G["8.5 A4/A5"]
        H["8.5 A4/A5"]
    end

    subgraph Section 2
        I["11 A4"]
        J["11 A4"]
        K["11 A4"]
        L["11 A4"]
    end

    subgraph Section 3
        M["11 A4"]
        N["11 A4"]
        O["11 A4"]
        P["11 A4"]
    end

    subgraph Section 4
        Q["11 A4"]
        R["11 A4"]
        S["11 A4"]
        T["11 A4"]
    end

    subgraph Section 5
        U["11 A4"]
        V["11 A4"]
        W["11 A4"]
        X["11 A4"]
    end

    subgraph Section 6
        Y["11 A4"]
        Z["11 A4"]
        AA["11 A4"]
        AB["11 A4"]
    end

    subgraph Section 7
        AC["11 A4"]
        AD["11 A4"]
        AE["11 A4"]
        AF["11 A4"]
    end

    subgraph Section 8
        AG["11 A4"]
        AH["11 A4"]
        AI["11 A4"]
        AJ["11 A4"]
    end

    subgraph Section 9
        AK["11 A4"]
        AL["11 A4"]
        AM["11 A4"]
        AN["11 A4"]
    end

    subgraph Section 10
        AO["11 A4"]
        AP["11 A4"]
        AQ["11 A4"]
        AR["11 A4"]
    end

    subgraph Section 11
        AS["11 A4"]
        AT["11 A4"]
        AU["11 A4"]
        AV["11 A4"]
    end

    subgraph Section 12
        AW["11 A4"]
        AX["11 A4"]
        AY["11 A4"]
        AZ["11 A4"]
    end

    subgraph Section 13
        BA["11 A4"]
        BB["11 A4"]
        BC["11 A4"]
        DA["11 A4"]
    end

    subgraph Section 14
        BE["11 A4"]
        BF["11 A4"]
        BG["11 A4"]
        BH["11 A4"]
    end

    subgraph Section 15
        BI["11 A4"]
        BJ["11 A4"]
        BK["11 A4"]
        BL["11 A4"]
    end

    subgraph Section 16
        BM["11 A4"]
        BN["11 A4"]
        BO["11 A4"]
        BP["11 A4"]
    end

    subgraph Section 17
        BOA["11 A4"]
        BHA["11 A4"]
        BIR["11 A4"]
        CAH["11 A4"]
    end

    subgraph Section 18
        CB["11 A4"]
        CC["11 A4"]
        CD["11 A4"]
        CE["11 A4"]
    end

    subgraph Section 20
        CF["11 A4"]
        GH["11 A4"]
        GHB["11 A4"]
        GHN["11 A4"]
    end

    subgraph Section 22
        GF["11 A4"]
        GHB["11 A4"]
        GHN["11 A4"]
        GHN
    end

    subgraph Section 23
        GHN
    end

    subgraph Section 25
        GHN
    end

    subgraph Section 27
        GHN
    end

    subgraph Section 29
        GHN
    end

    subgraph Section 30
        GHN
    end

    subgraph Section 32
        GHN
    end

    subgraph Section 35
        GHN
    end

    subgraph Section 37
        GHN
    end

    subgraph Section 39
        GHN
    end

    subgraph Section 40
        GHN
    end

    subgraph Section 42
        GHN
    end

    subgraph Section 45
        GHN
    end

    subgraph Section 47
        GHN
    end

    subgraph Section 50
        GHN
    end

    subgraph Section 52
        GHN
    end

    subgraph Section 55
        GHN
    end

    subgraph Section 57
        GHN
    end

    subgraph Section 60
        GHN
    end

    subgraph Section 62
        GHN
    end

    subgraph Section 65
        GHN
    end

    subgraph Section 67
        GHN
    end

    subgraph Section 70
        GHN
    end

    subgraph Section 72
        GHN
    end

    subgraph Section 75
        GHN
    end

    subgraph Section 77
        GHN
    end

    subgraph Section 79
        GHN
    end

    subgraph Section 80
        GHN
    end

    subgraph Section 82
        GHN
    end

    subgraph Section 85
        GHN
    end

    subgraph Section 87
        GHN
    end

    subgraph Section 89
        GHN
    end

    subgraph Section 90
        GHN
    end

    subgraph Section 92
        GHN
    end

    subgraph Section 95
        GHN
    end

    subgraph Section 97
        GHN
    end

    subgraph Section 99
        GHN
    end

Paper jammed. Press the button and open the front cover. Previous 1/7

تعويض کارetriج تونر

End of Cartridge Lifetime Press the button and open the front cover. Previous 1/4

Diagram showing printer operation with zoomed-in view and control buttons, labeled in Chinese

Diagram of a printer with a magnified inset showing cable insertion (no text or symbols)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Diagram of a refrigerant unit with a prohibition symbol above it, showing internal components and a dashed line indicating a drop or stroke (no text or labels present)

Technical line drawing of a mechanical component with a circular annotation highlighting a feature (no text or symbols present)

Technical diagram showing a mechanical assembly with a circular inset view and labeled point 'a' (no text or symbols beyond label)

Illustration of a hand pressing a stack of cards on a tray, with a prohibition symbol nearby (no text or labels)

کشوى کاغذ

Illustration of a hand inserting into a device with internal components (no text or symbols)

Line drawing of a hand holding a handgun (no text or symbols)

Regulatory information for users in Jordan

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF449x / MF446x / MF445dw / MF443dw includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

One Canon Park, Melville, NY 11747, U.S.A.

CANON EUROPA N.V.

Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands

2F Jinbao Building No.89, Jinbao Street,

Dongcheng District, Beijing 100005, PRC

CANON SINGAPORE PTE LTD

1 Fusionopolis Place, #15-10, Galaxis, Singapore

138522

CANON AUSTRALIA PTY LTD

Building A, The Park Estate, 5 Talavera Road,

Macquarie Park, NSW 2113, Australia

CANON GLOBAL WORLDWIDE SITES

https://global.canon
