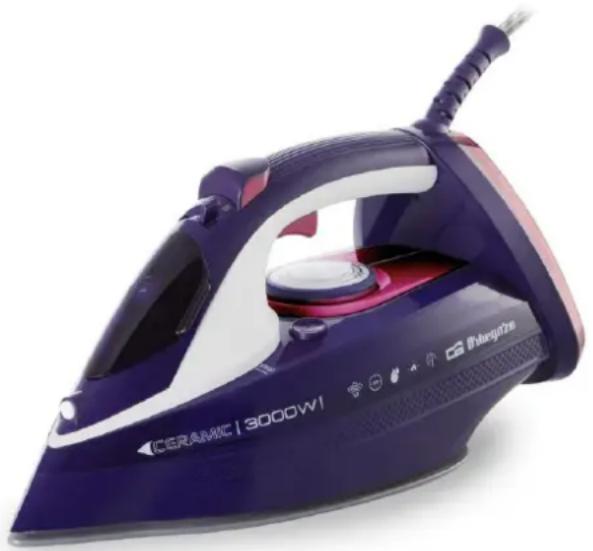

SV 3000 - Iron Orbegozo - Free user manual and instructions

Product Type	Iron
Brand	Orbegozo
Model	SV 3000
Power Supply	220-240 V ~ 50-60 Hz
Power	3000 W
Water Tank Capacity	Approximately 250 ml
Functions	Dry ironing, variable steam, steam burst, spray, self-cleaning
Temperature Setting	Yes, adjustable thermostat
Soleplate Type	Smooth soleplate (not specified)
Weight	Approximately 1.2 kg
Dimensions (L x W x H)	Approximately 30 x 12 x 15 cm
Safety	Hot surface, do not leave unattended, unplug before filling
Maintenance	Clean with soft cloth, descaling via self-cleaning function
Warranty	Legal warranty, see Orbegozo website
Use	Household only

Frequently Asked Questions - SV 3000 Orbegozo

How to fill the water tank?

Unplug the iron, set the steam control to minimum, remove the filling opening cover and pour tap water. Do not add chemicals.

How to use the steam function?

Turn the steam control to minimum, set the thermostat to the desired position (., .. or ...). When the indicator goes out, turn the steam control to the desired position. Steam is produced.

What to do if the iron no longer produces steam?

Check the water level in the tank. If the tank is full but there is no steam, perform a self-cleaning to remove limescale.

How to clean the iron?

Unplug and let it cool. Clean the surfaces with a damp soft cloth. For the soleplate, use cotton soaked in a mild descaling mixture. Never use metal objects.

How to use the self-cleaning function?

Fill the tank halfway. Place the iron upright, plug it in and set the thermostat to maximum. Wait for the indicator to go out. Unplug, place the iron in the sink, press and hold the self-cleaning button for about a minute until the tank is empty.

Can I use tap water?

Yes, it is recommended to use tap water. Do not use distilled or scented water, as this may damage the appliance.

What to do if the power cord is damaged?

If the power cord is damaged, contact an authorized technical service to replace it. Do not use the appliance.

Can the iron be left on unattended?

No, never leave the iron plugged in unattended. Unplug it after use and place it on its heel.

How to adjust the temperature for different fabrics?

Use the thermostat: position . for synthetic fabrics, .. for wool and silk, ... for cotton and linen. Always start with the lowest temperatures.

Where to find the complete manual?

The complete manual is available for free download on the website notice-facile.com or on the Orbegozo official website at www.orbegozo.com.

USER MANUAL SV 3000 Orbegozo

FÉR A VAPEUR - MANUEL D'INSTRUCTIONS

FERRO DE ENGOMAR A VAPOR - MANUAL DE INSTRUÇÉS

PLANXA A VAPOR - MANUAL D'INSTRUCTIONS

SV 3000

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

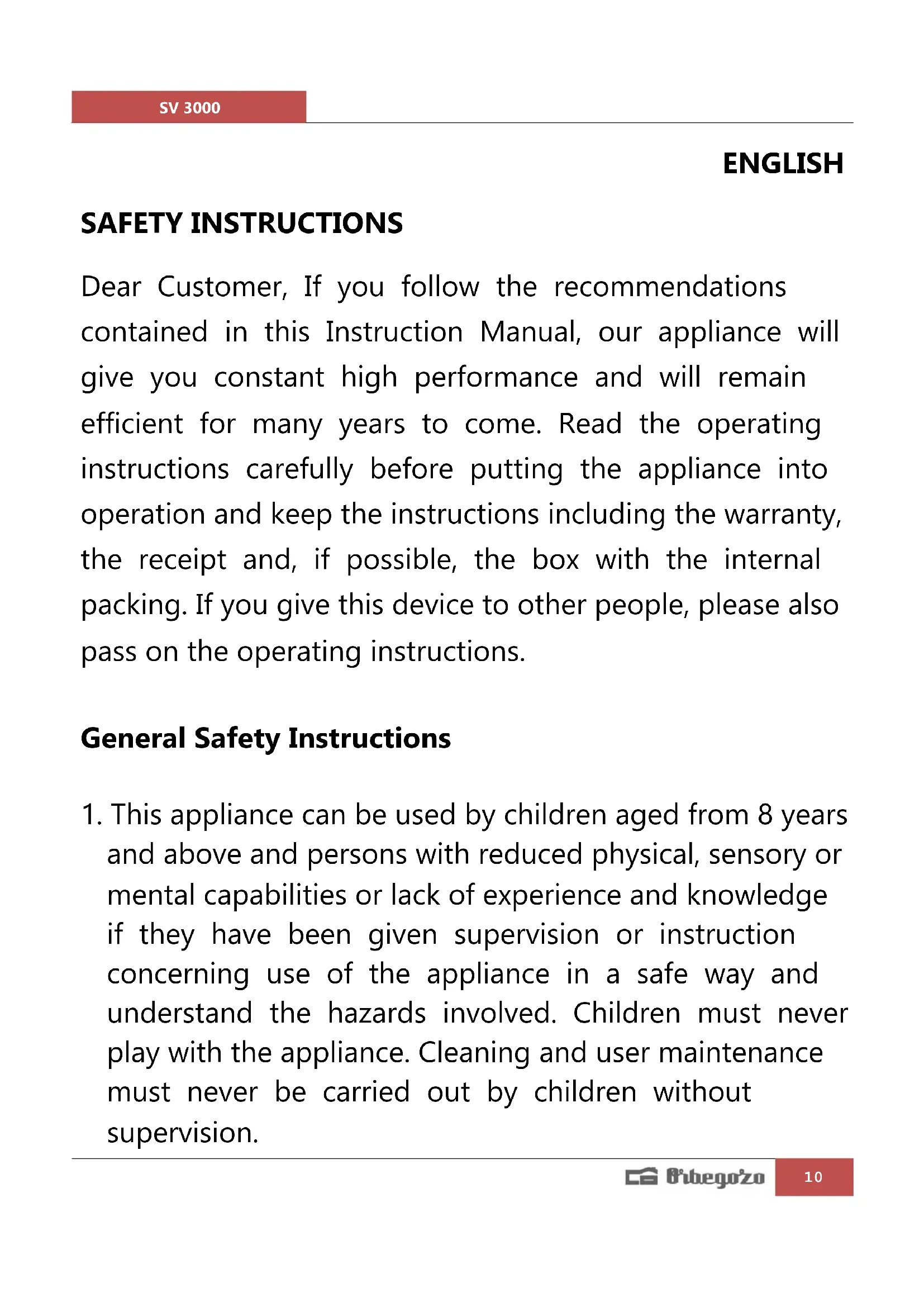

Dear Customer, If you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come. Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find in our website: www.orbegozo.com
14. WARNING: In case of misuse, there is a risk of possible injury.

Other specific safeguards

The iron must not be left unattended while it is connected to the supply mains.
- Remove the plug from the socket before filling the appliance with water.
. The filling hole should not be open during operation
. The appliance must be used and placed on a stable surface.
- When placed on its stand, make sure that the surface on which the stand is placed is stable.
. The iron should not be used if it has been dropped, if there are visible signs of damage or if it is leaking water.
- Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
. ATTENTION. Hot surface.

The surface can become hot during operation The soleplate of the iron can become extremely hot and may cause burns if touched.

• Do not allow the cord to come into contact with the soleplate when it is hot.

• When you have finished ironing, when you clean the appliance, when you fill or empty the water tank and also when you leave the iron even for a short while: set the steam control to position O, put the iron on its heel and remove the mains plug from the wall socket.

FILLING WATER

1. Before filling water, please pull out the plug first.
2. Set the steam control to the minimum position.
3. Pull down the cover of water filling mouth, and then fill water. Water tank is 450ml capacity
4. Important: fill only the tank with water. Do not add chemicals products or perfumes.

SPRAYING

Press the spraying button, water will be sprayed out from the spraying nozzle. At that time, you should keep enough water in the water tank.

STEAM IRONING

1. Use steam ironing, turn the steam control to minimum position and set the temperature control at the "..." or "... position.
2. After the indicator goes out, turn the steam control to the suitable position, steam will be sprayed, ironing can start.

BURSTING STEAM

This function proportions extra steam for eliminating wrinkles.

• Press the steam blast button. Wait a few seconds until vapour penetrates the fibres of the garment before pushing the button again. For optimum steam quality, do not apply more than three successive blasts.
• The spray button has to be pressed repeatedly to release the first spray

DRY IRONING

Turn the steam control to minimum position, set the temperature control to the suitable position, you can dry ironing.

SELF CLEANING

It is important to self-clean the appliance at least once a month to remove calcium and any other built-up minerals inside the iron.

• Fill the water tank up to half with water
• Place the iron in a vertical position, plug in to the mains and select the maximum temperature.
• Leave the appliance to heat up until the pilot light indicates that it has reached its consigned temperature.
• Unplug the appliance and place in the sink.
• Press the self-clean button, and keep it pressed down.
• Let the water flow out through the steam vents in the base, while lightly shaking the appliance.
• Release the button after a minute or when the tank becomes empty.
• Leave the iron in the vertical position until it has cooled.

CERAMIC SOLEPLATE

1. Always unplug the device and let it cool down completely before
2. To remove build up scales in the steam holes, use a cotton wool tip moistened with mild descaling solution.
3. To avoid damage to the soleplate, never use any sharp object or metal utensil to scrap the soleplate
4. Use a soft damp cloth to clean the housing of the device

STORAGE

After using, pull out the plug, pour out the remaining water, turn the steam control to minimum, turn the temperature control to "min", let the iron cool down, put the iron on the safe and dry place vertically.

MAIN TECHNICAL PARAMETERS

Appliance	Voltage	Frequency	Power
SV 3000	220-240 V (~)	50-60Hz	3000 W

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin"

symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-technica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
