Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Technical diagram of a hair dryer with numbered parts for identification and assembly reference.

Line drawing of a mechanical device with no visible text or symbols

Correcto

Line drawing of a mechanical component or device with no visible text or symbols

Incorrecto

Line drawing of a vintage steam iron (no text or symbols)

FIGURA 3

Line drawing of a steam iron with an arrow indicating motion (no text or symbols)

Line drawing of a steam iron being placed into a container with a paper, showing motion direction (no text or symbols)

Line drawing of a hand using a steam iron to lift a jacket, with an arrow indicating motion (no text or symbols)

Read and follow these instructions carefully. Keep this manual for future reference.

General:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.
14. WARNING: In case of misuse, there is a risk of possible injury.

Specific:

• The iron must not be left unattended while it is connected to the supply mains.
• Remove the plug from the socket before filling the appliance with water.
• The appliance must be used and placed on a stable surface.

• When placed on its stand, make sure that the surface on which the stand is placed is stable.

• The iron should not be used if it has been dropped, if there are visible signs of damage or if it is leaking water.

• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
• ATTENTION. Hot surface.

The surface can become hot during operation

• Make sure that the mains voltage is the same as that indicated on the type plate on the appliance.
• Always turn the temperature-control dial to 'min' before putting the plug in the wall socket or removing the plug from the socket.
• Touching hot metal parts, hot water or steam can cause burns. Take care when touching hot parts of the steam generator and iron.
• Never fill the water tank with hot water, essence, vinegar, starch, descaler, fabric softener, or other chemical reagent.

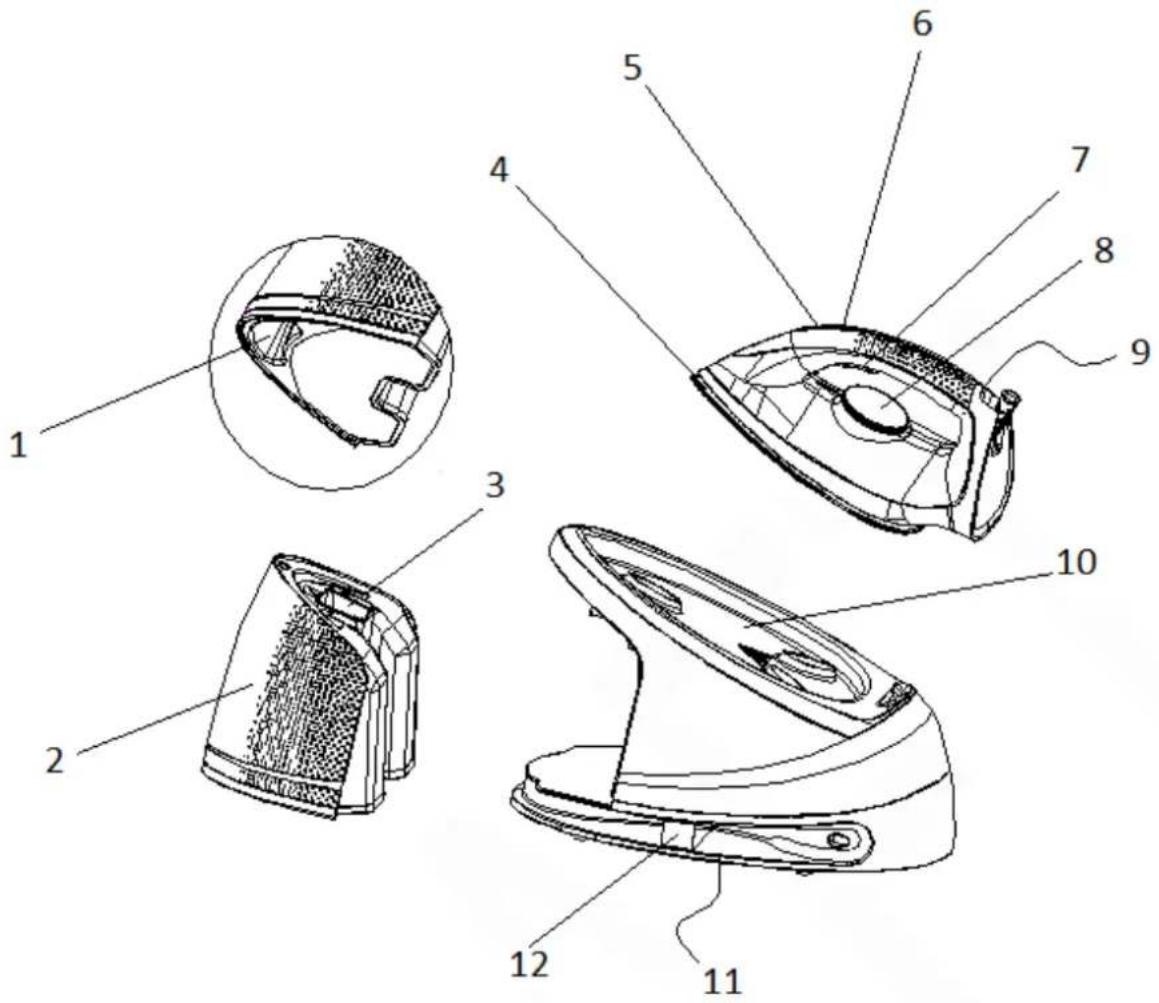

Know your ironing center

Technical diagram of a hair dryer with numbered parts for identification and assembly reference.

N°	Name
1	Tank handle
2 Water tank
3	Filling opening
4	Sole
5 Temperature indicator
6	Cleaning button with indicator
7	Steam sprayer
8	Temperature dial
9	Iron
10	Thermal insulation support
11	Unit base
12	Cable tie

Filling opening

Fill the reservoir with water through the opening. Make sure not to exceed the maximum.

Temperature dial

Turn the dial to adjust the temperature based on the item to be ironed.

Temperature indicator

When the iron is heating up the indicator will light. When the iron reaches the desired temperature it will turn off.

Steam sprayer

When the temperature indicator goes out, lightly press the steam spray and it will come out through the soleplate. When you release the spray the iron will be used for dry ironing.

Steam jet

The steam jet can be activated by pressing the steam nozzle twice continuously.

Self-cleaning

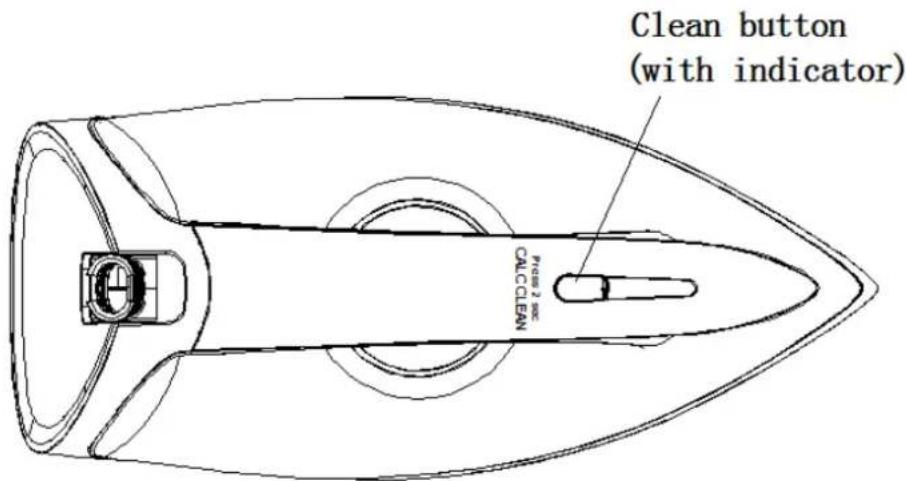

Clean button (with indicator) CALC CLEAN

• The iron should be cleaned when the indicator lights up. Before you start, prepare a heat-resistant container with a capacity of more than 300ml to collect the excess water, then put the iron in the container.
• Press the cleaning button for two seconds. When you hear the sound, stay away from the iron to avoid being burned by the high temperature steam during the process. The iron will go into cleaning

mode and the indicator will flash and a beep will sound. After 3 minutes, the process will be complete and the iron will be in full use condition.

NOTES

For a better cleaning process make sure the temperature dial is set to the maximum.

Dial de temperatura

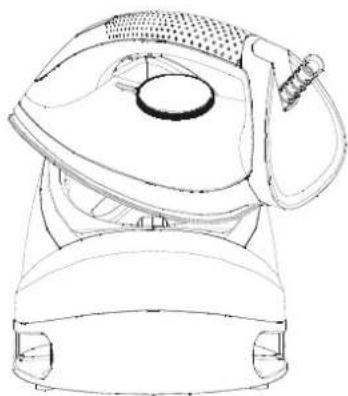

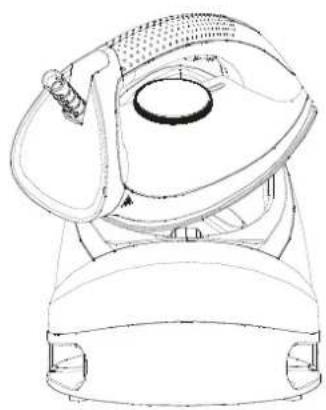

CORRECT STORAGE IN THE INSULATING BASE

When the iron is on the insulating base, it must be placed correctly. (Figure 3)

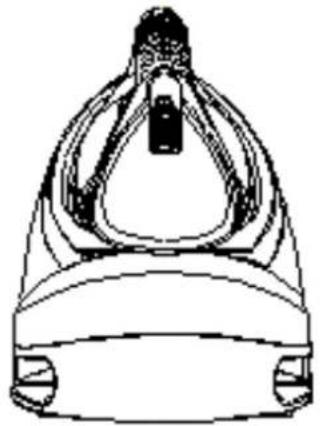

Wrong placement

Line drawing of a steam iron machine (no text or symbols)

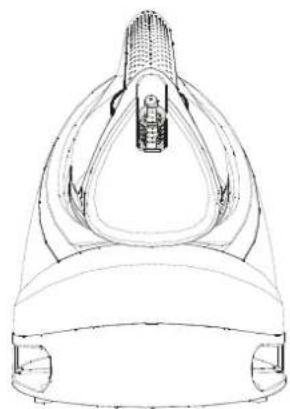

Correct placement

Technical line drawing of a mechanical component with no visible text or symbols

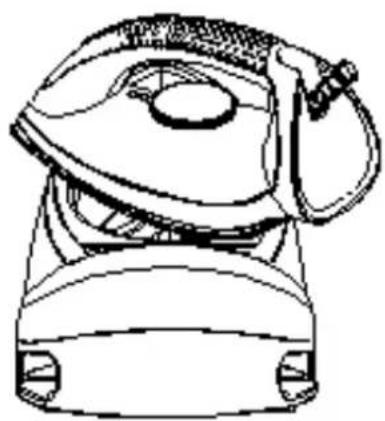

Wrong placement

Line drawing of a steam iron with mesh head and handle (no text or symbols)

FIGURE 3

UTILIZATION

This product has two options: You can dry or steam iron:

Dry ironing

1. Place the iron on the insulating base
2. Connect the cable and the temperature indicator will begin to illuminate.
3. Turn the temperature dial to your desired position, which will depend on the type of fabric. You will find the section "Ironing tips" below to help you with this. The temperature of the soleplate begins to rise and the temperature indicator will remain on.
4. When the temperature indicator turns off, it means that it has reached the selected temperature and you can start ironing.

ATTENTION: Never touch the soleplate until it has cooled down!

Steam ironing

1. Place the iron on the insulating base.
2. Grasp the handle of the tank and pull horizontally. Fill the tank with water through the opening and put the tank back in place (FIG 4). Preferably use softened water. The maximum capacity of the tank is 1.2L. The water level should not exceed the maximum.

Grasp the water tank handle

Line drawing of a steam iron with a hand pointing to it, showing no text or symbols.

Remove the water tank horizontally

Line drawing of a steam iron with internal components and airflow direction arrow (no text or symbols)

Fill the water tank with water

Replace the water tank

Line drawing of a hand holding a steam iron, with no text or symbols present

1. Plug in the device and select the required temperature on the dial.
2. When the temperature indicator lights up the iron will begin to heat up.
3. After a few minutes the temperature indicator will turn off, indicating that the soleplate has reached the desired temperature. You can now steam iron.
4. Press the steam nozzle lightly. Steam will come out of the soleplate continuously.

NOTE: There may be a drip when the temperature is lower than 2nd power. It is normal.

1. If you need to activate the "STEAM JET" function to remove stubborn creases, press the sprayer twice (cannot be used twice in a row, you must wait a few seconds).

2. After ironing, unplug the appliance from the mains. The sole will remain hot. Never touch it with your hand, put it on the base until it cools down.

PRECAUTIONS

1. Do not touch the soleplate before it cools down.
2. Never steam at another person.
3. Do not activate the steam function when the iron is on the base.

CLEANING AND MAINTENANCE

Before cleaning, disconnect the appliance from the mains:

1. Clean debris and other dirt from the soleplate with a damp cloth or non-abrasive cleaning fluid.

NOTE: Do not use chemicals, steel, wood, or abrasive liquids to clean the soleplate.

1. Wipe the top of the iron with a damp cloth. Wipe the drops off the insulating base with a dry cloth.
2. Clean the inside of the appliance following the instructions in the Self-cleaning section.

NOTES:

1. If the appliance continues to pour water after the CLEAN function is activated, press the steam nozzle to put it into cleaning mode.
2. If the cleaning indicator continues to flash and the appliance does not enter CLEANING mode, make sure the temperature dial is set to maximum.
3. When you do not use the appliance for a long period of time, empty the water tank, turn the dial to minimum.

IRONING TIPS

• Always check if the garment to be ironed has an ironing label. If so, follow those instructions.
• The iron heats up much faster than it cools down. Therefore, you should start by ironing items that require a lower temperature such as those made with synthetic fiber.
• If the material to be ironed consists of several types of fibers, you must always choose the lowest recommended temperature among all the fibers.
• Silk and other shiny fabrics must be ironed inside.

- Velvet and other shiny textures should be ironed in one direction only with little pressure applied. Keep the iron moving at all times.

- 100% wool garments should be ironed with steam, preferably at maximum power and with a dry cloth as a mat.

- Never iron on zippers or rivets, as it will damage the sole.

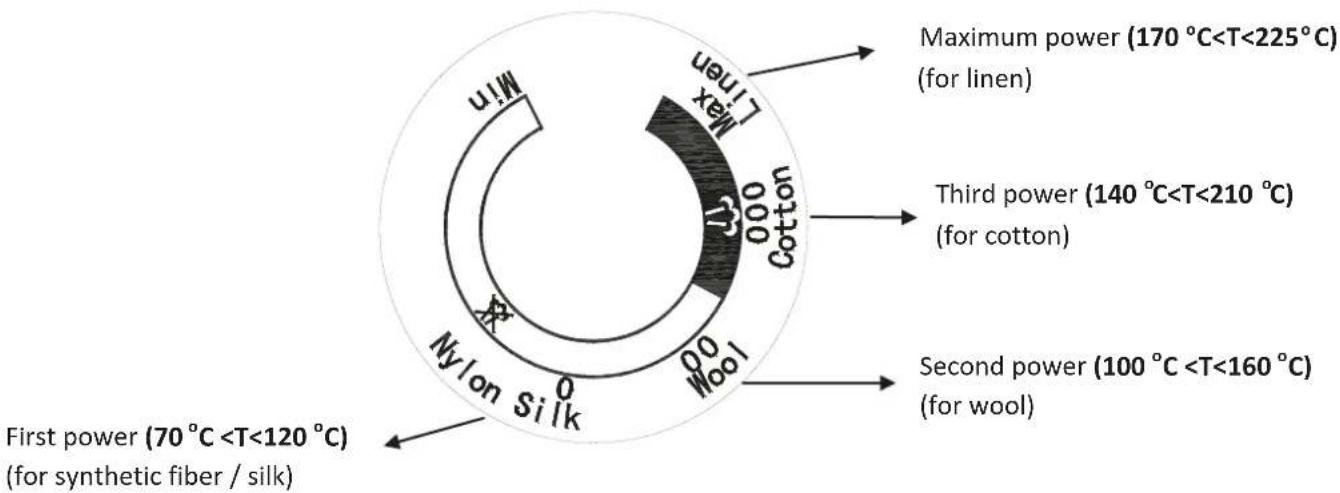

Setting Temperature ( °C) Fabric
The first setting	70Acetate, elastane, polyamide, polypropylene	Acetate, elastane, polyamide, polypropylene
The second setting	100Cupro, polyester, silk	Cupro, polyester, silk
The third setting	140Triacetate, viscose, wool	Triacetate, viscose, wool
Maximum	170Cotton, flax	Cotton, flax

Disposal of old electrical appliances.

The European directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on

human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

CONSIGNES DE SECURITE

Technical diagram of a hair dryer with numbered parts for identification and assembly reference.

Line drawing of a mechanical device with no visible text or symbols

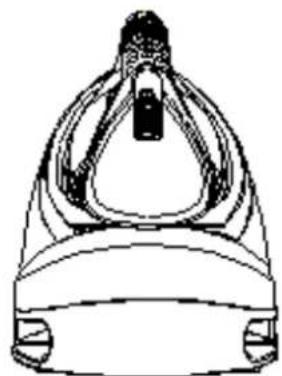

BON PLACEMENT

Line drawing of a mechanical component with no visible text or symbols

MAUVAIS PLACEMENT

Line drawing of a vintage steam iron (no text or symbols)

FIGURE 3

AVANT LA PREMIÈRE UTILISATION

Line drawing of a steam iron with an arrow indicating motion (no text or symbols)

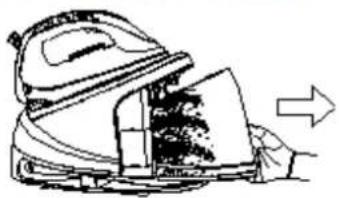

RETIRER LE RÉSERVOIR D'EAU HORIZONTALEMENT
