USER MANUAL SV 2250 Orbegozo

FÉR A VAPEUR - MANUEL D'INSTRUCTIONS

FERRO DE ENGOMAR A VAPOR - MANUAL DE INSTRUÇÕES PLANXA A VAPOR - MANUAL D'INSTRUCCIONS

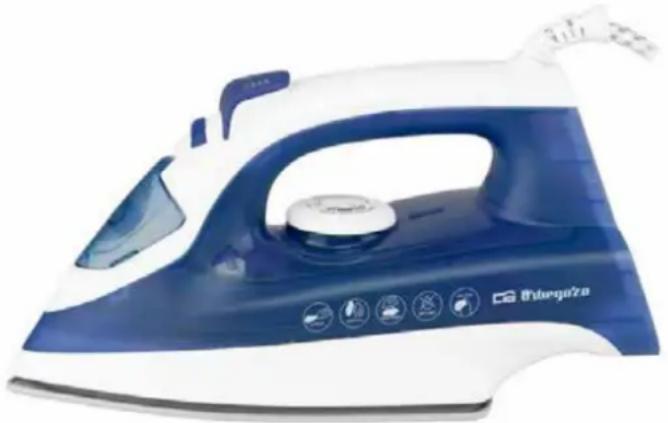

Blue and white steam iron with control panel and buttons (no visible text or symbols)

SV 2250

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

A B C D E F G H I J Bluegrazo

INSTRUCCIONES GENERALES

Dear Customer, If you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come. Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com
14. WARNING: In case of misuse, there is a risk of possible injury.

Other specific safeguards

. The iron must not be left unattended while it is connected to the supply mains.

- Remove the plug from the socket before filling the appliance with water.

. The filling hole should not be open during operation

- The appliance must be used and placed on a stable surface.

- When placed on its stand, make sure that the surface on which the stand is placed is stable.

• The iron should not be used if it has been dropped, if there are visible signs of damage or if it is leaking water.

- Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.

. ATTENTION. Hot surface.

The surface can become hot during operation

The soleplate of the iron can become extremely hot and may cause burns if touched.

- Do not allow the cord to come into contact with the soleplate when it is hot.

- When you have finished ironing, when you clean the appliance, when you fill or empty the water tank and also when you leave the iron even for a short while: set the steam control to position O, put the iron on its heel and remove the mains plug from the wall socket.

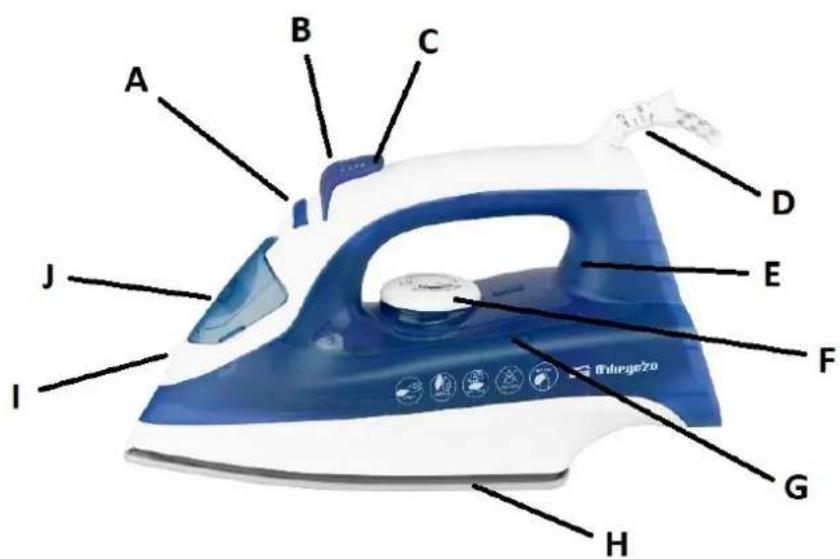

DESCRIPTION OF PARTS

A	Steam and self-cleaning regulator	F	Temperature regulator
B	Steam button	G	Water tank
C	Spray button	H	Ceramic-coated soleplate
D	Power cord	I	Spray nozzle
E	Pilot light	J	Filling cap

A B C D E F G H I J Bluegozo

GENERAL INSTRUCTIONS

When using the iron for the first time, you will notice a slight emission of smoke and some noise resulting from the expansion of plastic materials. This situation is completely normal and will disappear after a short period of time. We recommend sliding the iron over an old cloth before using it for the first time.

PREPARATION FOR IRONING

Separate the clothes to be ironed according to the international symbols on the labels (see box). If they do not have them, depending on the type of fabric.

Start ironing the garments that require a lower temperature, this way you will reduce the waiting time (the iron takes less time to heat up than it does to cool down) and eliminate the risk of burning the fabrics.

Label symbol Fabric class Temperature control
	Synthetic	●Low temperature
	Silk - Wool	●●Medium temperature
	Cotton - Linen	●●●High temperature
	IMPORTANT: This garment should not be ironed

STEAM IRONING

Filling the water tank:

1. Before filling the tank, unplug the iron.
2. Set the steam control to minimum.
3. Open the water filler cap.
4. Place the iron in a vertical position to facilitate water entry and avoid overflows.
5. Pour the water slowly through the filling valve using the measuring cup without exceeding the maximum level.
6. Close the filler cap again

Temperature selection::

1. Put the iron in an upright position.
2. Plug the cord into the electrical outlet.
3. Set the temperature regulator according to the international symbol on the garment label (see table above). The pilot light warns that the iron is heating up. Wait until this light goes off before proceeding with ironing.

ATTENTION! During the ironing process, the light comes on at intervals indicating that the selected temperature is being maintained. If you lower the thermostat after ironing at high temperatures, do not start ironing until the indicator light comes on again.

Steam selection:

The amount of steam is adjusted with the steam regulator.

Move the regulator to a position between minimum and maximum depending on the amount of steam required and the selected temperature.

CAUTION! The iron releases steam continuously if you hold it horizontally. You can stop the continuous steam output by positioning the iron vertically or by moving the steam output control to the position

As indicated on the temperature regulator and in the initial table, you can only use steam at the highest temperatures. If the selected temperature is too low, water will drip through the soleplate.

BLOW OF STEAM AND VERTICAL IRONING

Press the steam button to generate a powerful burst of steam that can penetrate the fibers and remove stubborn wrinkles. Wait briefly before activating the steam button again.

By pressing the steam button at intervals, vertical ironing is also possible (curtains, hanging garments, etc.).

WARNING! The steam expulsion function can only be used at high temperatures.

Stop steam emission when the temperature indicator light comes on. Restart ironing when the indicator light goes off again.

DRY IRONING

To iron without steam, follow the instructions in the "Steam Ironing" section, leaving the steam outlet control button (3) in position .

SPRAY FUNCTION

Press the spray button, water will be sprayed from the spray nozzle. For this there must be enough water in the tank.

Make sure there is water in the tank. Press the spray button slowly for a dense spray, and quickly for a light

spray.

CAUTION! For delicate fabrics, it is recommended to moisten the garment beforehand by pressing the spray button, or by placing a damp cloth between the garment and the iron. To avoid stains on fabrics, do not use the spray button on silk or synthetic fabrics.

SELF-CLEANING

We recommend carrying out this cleaning every 10-15 days.

To use this function follow the following instructions:

- Fill the water tank to the maximum indicated level (MAX) and set the steam outlet control to

position

• Place the temperature regulator in the maximum position and wait for the light to go off.
• Unplug the appliance from the electrical outlet and hold the iron horizontally over the sink, press the self-cleaning button and let all the water, steam and impurities come out.
• When the soleplate has cooled, you can clean it with a damp cloth.

IRONING TIPS

It is recommended to use the lowest temperatures for garments that have unusual finishes, such as sequins or embroidery. For mixed fabrics (e.g. 40% cotton, 60% synthetic), set the thermostat to the temperature corresponding to the material that requires the least heat.

If you do not know the composition of the garment, determine the most suitable temperature by performing a test in a hidden corner on the wrong side of the garment. Start with a low temperature and gradually increase until you reach the appropriate heat.

Avoid ironing areas with sweat marks or other stains, as the heat of the iron sets these imperfections in the fabric, making them difficult to remove later. The "gluing" function (elbow pads, patches, knee pads, etc.) is most effective with dry ironing at a moderate temperature, as excess heat could burn the material and cause yellow stains.

To prevent marks on shiny silk, wool, or synthetic garments, iron these garments inside out. For shiny velvet, iron in one direction, following the grain, and avoid pressing the iron against the garment.

Overloading the washing machine can result in increased wrinkling of clothing. This also occurs when the spin function operates at high revolutions. Some fabrics are easier to iron if they are not completely dry; For example, silk should always be ironed damp.

CLEANING

1. Always unplug the device and allow it to cool completely before cleaning.
2. To remove limescale buildup in the steam holes, use a cotton swab moistened with a vinegar and water solution.
3. To avoid damaging the plate, never use sharp objects or metal utensils to scrape it.
4. Use a soft, damp cloth to clean the device chassis.

STORAGE

After using the iron, unplug it, discard any excess water, set the steam control to minimum, set the temperature control to minimum, allow the iron to cool, and place it upright in a safe, dry place.

PARÁMETROS TÉCNICOS PRINCIPALES

Modelo	Voltaje	Frecuencia	Potencia
SV 2250	220-240 V (~)	50/60Hz	2200 W

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin”

symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
