Product Type	Steam Iron
Brand	Orbegozo
Model	SV 2800
Dimensions (approx.)	30 x 15 x 15 cm
Weight (approx.)	1.2 kg
Power Supply	220-240 V ~ 50-60 Hz
Power	2000 W (estimated)
Soleplate	Ceramic coating
Water tank	Capacity not specified (approx. 300 ml)
Main functions	Steam ironing, dry ironing, steam shot, spray, vertical ironing
Steam adjustment	Variable from min to max
Anti-drip system	Yes, automatic
Anti-scale system	Permanent resin filter
Self-cleaning	Yes, CLEAN button
Spray nozzle	Yes
Power cord	Detachable (not specified, can be wrapped around the heel)
Adjustable temperature	Yes, with thermostat
Safety	Do not leave unattended, hot surface, keep cord out of reach of children
Maintenance	Clean soleplate with damp cloth after cooling, use cotton swab with vinegar for steam holes
Storage	Empty tank, store upright on heel
Warranty	Legal according to country, see terms on Orbegozo website
Spare parts	Not specified, contact customer service
Repairability	Contact an authorized professional

Frequently Asked Questions - SV 2800 Orbegozo

How to use the iron for the first time?

During first use, you may notice slight smoke and normal noises due to plastic expansion. Slide the iron over an old cloth before using it.

How to fill the water tank?

Unplug the iron, set the steam control to minimum, open the cap, place the iron upright and pour water slowly without exceeding the MAX level.

What temperature to choose for each fabric?

Use the thermostat according to symbols: ● low for synthetics, ●● medium for wool/silk, ●●● high for cotton/linen. Iron low-temperature fabrics first.

How to use the steam function?

Set the steam regulator between min and max. The iron releases continuous steam in horizontal position. For a powerful steam shot, press the steam button (usable only at high temperature).

What to do if the iron drips instead of producing steam?

The anti-drip system activates automatically at low temperature to prevent dripping. If you iron at too low temperature, water may leak. Increase temperature or switch to dry mode.

How to clean the iron?

Unplug and let it cool. Clean the soleplate with a damp cloth. For steam holes, use a cotton swab soaked in a vinegar-water mixture. Never use metal objects.

What is the self-cleaning (CLEAN) button for?

Fill the tank to MAX, set temperature to maximum, wait for the light to turn off, unplug, hold the iron horizontally over a sink and press CLEAN to expel water and impurities. Do this every 10-15 days.

How to store the iron after use?

Set temperature and steam to Off, unplug, empty the tank, let it cool completely, wrap the cord around the heel and store it upright in a dry place.

Is the iron safe for children?

Keep the iron and its cord out of reach of children under 8 years. The soleplate becomes very hot. Never leave the iron plugged in unattended.

Where to find spare parts or after-sales service?

Contact Orbegozo customer service via https://orbegozo.com/asistencia-tecnica/ . Keep your receipt for legal warranty.

USER MANUAL SV 2800 Orbegozo

FÉR A VAPEUR - MANUEL D'INSTRUCTIONS

FERRO DE ENGOMAR A VAPOR - MANUAL DE INSTRUÇÕES PLANXA A VAPOR - MANUAL D'INSTRUCCIONS

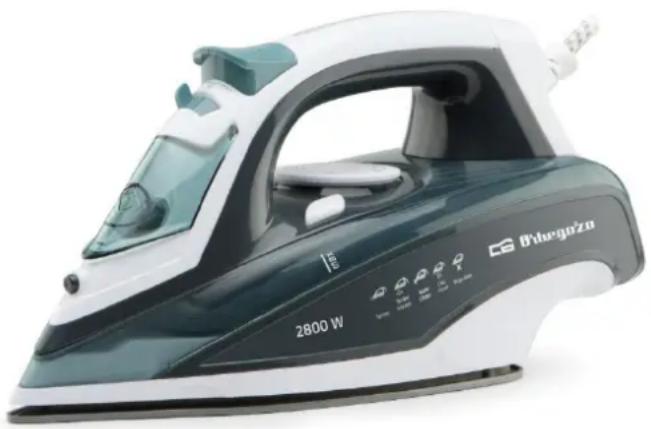

Exterior view of a modern electric iron with visible brand and power rating (no text or symbols on the device itself)

SV 2800

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Dear Customer: If you follow the recommendations included in this instruction manual, your appliance will offer you consistently high performance and operate correctly for many years.

Before using this appliance, read the instruction manual carefully and keep it, including the warranty, the receipt, and, if possible, the shipping carton with the inner packaging. If you transfer the appliance to a third party, also provide the instruction manual.

GENERAL

1. This appliance can be used by children aged 8 years and over and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given appropriate supervision or training concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. Children should be supervised to ensure that they do not play with this appliance.

3. Keep the appliance and its cable out of the reach of children under 8 years of age.

4. CAUTION: For the safety of your children, do not leave packaging material (plastic bags, cardboard, polyethylene, etc.) within their reach.

5. If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service, or similarly qualified personnel in order to avoid a hazard.

6. Never disconnect by pulling on the cable.

7. Do not operate if the cord or plug is damaged or if you notice that the appliance is not working properly.

8. Do not handle the appliance with wet hands.

9. Do not immerse the appliance in water or any other liquid.

10. Before cleaning, make sure the appliance is disconnected.

11. The appliance must be installed in accordance with national regulations for electrical installations.

12. This appliance is for domestic use only.

13. If you need a copy of the instruction manual, you can find it on our website: www.orbegozo.com

14. WARNING: In case of misuse, there is a risk of possible injury.

Other specific precautions

• The iron should not be left unattended while connected.
• The power cord plug must be removed from the power outlet before filling the water tank.
• The iron should be used and left on a stable surface.
• When placing the iron on its stand, make sure that the surface on which the stand is placed is stable.
• The iron is not intended for use if it has been dropped, if there are visible signs of damage, or if it is leaking liquid.
• Keep the iron and its cord out of reach of children under 8 years of age when it is plugged in or cooling down.
• CAUTION: Hot surface. The surface may become hot during operation. The soleplate of the iron can become very hot and, if touched, may cause burns.
• Do not allow the power cord to come into contact with the soleplate when it is hot.
• When you have finished ironing, when cleaning the appliance, when filling or emptying the water tank, or when leaving the iron even for a moment, set the steam control to the O position, place the iron on its support base, and unplug it from the mains.

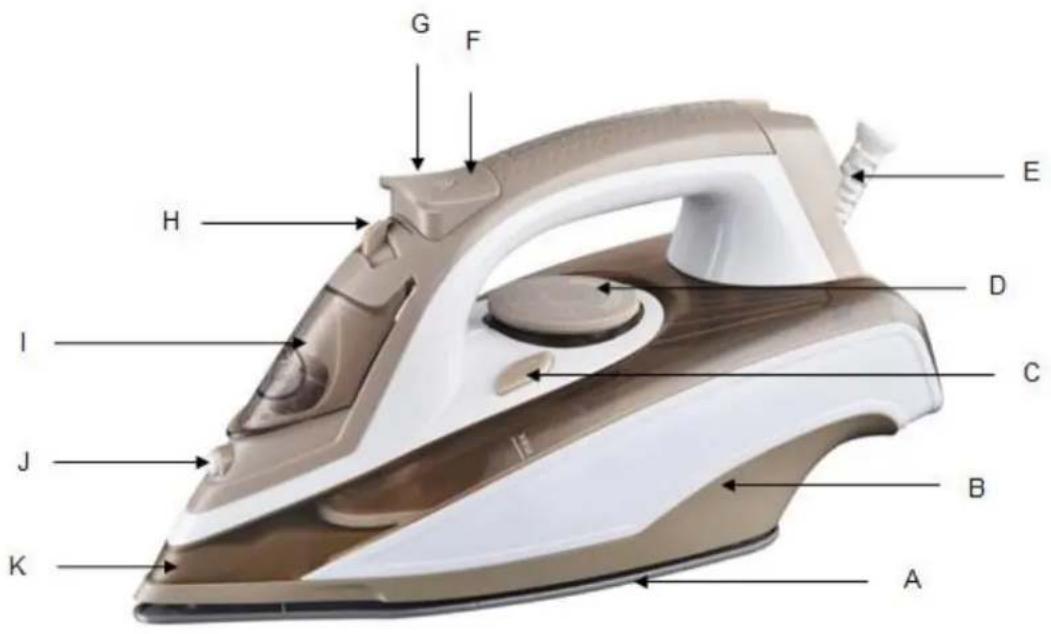

DESCRIPTION OF THE PARTS

A Ceramic coated sole

B Heated skirt

C Self-cleaning button

D Temperature regulator

E Power cable

F Spray button

G Steam button

H Steam regulator

I Filler cap

J Spray nozzle

K Water tank

GENERAL INSTRUCTIONS

When using the iron for the first time, you may notice slight smoke and some noises caused by the expansion of the plastic materials. This is completely normal and will disappear after a short time. We recommend running the iron over an old cloth before using it for the first time.

PREPARATION FOR IRONING

Sort items to be ironed according to the international symbols on the labels (see box). If they don't have any, sort them according to the type of fabric.

Start ironing garments that require a lower temperature. This will reduce waiting time (the iron takes less time to heat up than it does to cool down) and eliminate the risk of burning the fabric.

Label symbol	Knitting class	Temperature control
	Synthetic	●Low temperature
	Wool – Silk	●●Average temperature
	Cotton – Linen	●●●High temperature
	IMPORTANT: This garment should not be ironed.

STEAM IRONING

Filling the water tank:

1. Before filling the tank, unplug the iron.
2. Set the steam control to the lowest setting.
3. Open the water filler cap.
4. Place the iron in a vertical position to facilitate water entry and prevent overflow.
5. Pour the water slowly through the filling line using the measuring cup without exceeding the maximum level.
6. Close the filler cap again

Temperature selection:

1. Place the iron in a vertical position.

2. Plug the cable into the electrical outlet.

3. Adjust the temperature regulator according to the international symbol on the garment label (see table above). The indicator light indicates that the iron is heating up. Wait until this light goes out before ironing.

ATTENTION! During the ironing process, the indicator light will come on intermittently, indicating that the selected temperature is being maintained. If you lower the thermostat after ironing at high temperatures, do not start ironing until the indicator light comes back on.

Steam selection:

The amount of steam is adjusted with the steam regulator.

Move the regulator to a position between minimum and maximum depending on the amount of steam required and the selected temperature.

CAUTION! The iron releases steam continuously if held horizontally. You can stop the continuous steam output by positioning the iron vertically or moving the steam output control to the position.

As indicated on the temperature regul highest temperatures. If the temperature

nd in the table above, you can only use steam at the ected is too low, water will drip through the soleplate.

STEAM BLOW AND VERTICAL IRONING

Press the steam button to generate a powerful burst of steam capable of penetrating the fibers and removing tough wrinkles. Wait briefly before activating the steam button again.

By pressing the steam button at intervals, vertical ironing (curtains, hanging garments, etc.) is also possible.

WARNING! The steam release function can only be used at high temperatures.

Stop steaming when the temperature indicator light comes on. Restart ironing when the indicator light goes off again.

DRY IRONING

To iron without steam, follow the instructions in the "Steam Ironing" section, leaving the steam output control button (3) in the "Off" position.

SPRAYING FUNCTION

Press the spray button, and water will spray out of the spray nozzle. There must be enough water in the tank to do this.

Make sure there is water in the tank. Press the spray button slowly for a dense spray, and quickly for a light spray.

CAUTION! For delicate fabrics, we recommend pre-damping the garment by pressing the spray button or

placing a damp cloth between the garment and the iron. To avoid staining fabrics, do not use the spray button on silk or synthetic fabrics.

SELF-CLEANING

We recommend doing this cleaning every 10-15 days.

To use this feature follow the instructions below:

- Fill the water tank to the maximum level indicated (MAX) and set the steam output control to the position

- Set the temperature regulator to the maximum position and wait for the light to go out.

- Unplug the appliance from the electrical outlet and hold the iron horizontally over the sink, press the self-cleaning "CLEAN" button and allow all water, steam, and impurities to drain out.

- Once the sole has cooled, you can clean it with a damp cloth.

ANTI-CAL SYSTEM

A special resin filter inside the water tank softens the water and prevents limescale buildup on the water heater. The resin filter is permanent and does not need to be replaced.

Note: Do not use chemical additives, perfumed substances, or descaling agents. Failure to comply with these rules will void the warranty.

ANTI-DRIP SYSTEM

With the anti-drip system you can perfectly iron even the most delicate fabrics.

Always iron these fabrics at a low temperature. The iron may cool to the point where steam no longer escapes, but instead drops of boiling water may leave marks or stains. In these cases, the Anti-Drip system automatically activates to prevent steam from escaping, so you can iron the most delicate fabrics without the risk of damaging or staining them.

WHEN YOU FINISH IRONING

1. Set the temperature control dial to the "OFF" position.
2. Unplug the appliance from the mains.
3. Empty the water tank (do this after each use) and allow the iron to cool completely.
4. Wrap the cable around the heel support.
5. To protect the soleplate, place the steam iron upright on its heel.

IRONING TIPS

It's recommended to use the lowest temperatures for garments with unusual finishes, such as sequins or embroidery. For mixed fabrics (e.g., 40% cotton, 60% synthetic), set the thermostat to the temperature corresponding to the material that requires the least heat.

If you don't know the composition of the garment, determine the most suitable temperature by testing a hidden corner on the back of the garment. Start with a low temperature and gradually increase until you reach the appropriate temperature.

Avoid ironing areas with sweat marks or other stains, as the heat of the iron sets these imperfections into the fabric, making them difficult to remove later. "Taping" items (elbow patches, patches, knee pads, etc.) are most effective with dry ironing at a moderate temperature, as excessive heat can burn the material and cause yellow stains.

To prevent marks on silk, wool, or shiny synthetic garments, iron them inside out. For shiny velvet, iron in one direction, following the grain, and avoid pressing the iron against the garment.

Overloading the washing machine can result in increased wrinkling of clothes. This also occurs when the spin function is operating at high speeds. Some fabrics are easier to iron if they are not completely dry; for example, silk should always be ironed while damp.

CLEANING

1. Always unplug the device and let it cool completely before cleaning it.
2. To remove limescale buildup from the steam holes, use a cotton swab moistened with a solution of vinegar and water.
3. To avoid damaging the plate, never use sharp objects or metal utensils to scrape it.
4. Use a soft, damp cloth to clean the device chassis.

STORAGE

After using the iron, unplug it, discard any excess water, set the steam control to the lowest setting, set the temperature control to the lowest setting, allow the iron to cool, and store it upright in a safe, dry place.

ELIMINATION OF THE APPLIANCE OLD

In base to the Rule European 2012/19/EU of Waste of devices Electrical and Electronics (WEEE), the household appliances old people No they can be thrown in the regular municipal containers; they must be collected selectively to optimize the recovery and recycling of the components and materials that the constitute, and reduce he impact in the health human and he environment. He symbol of the cube of trash crossed out HE brand about all the products for remember to the consumer the obligation of separate them for collection Selective. The consumer should contact the local authority or the seller for information regarding the correct elimination of his household appliance old.

STATEMENT OF ACCORDANCE:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the directive Compatibility Electromagnetics 2014/30/EU.

WARRANTY

This appliance is covered by the legal warranty in accordance with current legislation from the date of purchase. Please retain the purchase receipt to claim your warranty claim. To find the service center nearest to you, please contact us via the following web link: https://orbegozo.com/asistencia-tecnica/

For any questions, concerns, or incidents, you can contact us via our email address on the main page of this manual or through our technical support service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable components or those that have deteriorated due to improper use. It also accepts no liability if the owner has technically modified the appliance. See the legal terms on our website.

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, or for perishable components or components that have deteriorated due to improper use. It also accepts no liability if the owner has technically modified the appliance. (See the legal terms on our website.)
