USER MANUAL KHF 695 900 S AMICA

Simple line drawing of a kitchen chimney with steam rising (no text or symbols)

OKP6655S / KHF 695 600 S / SKZ 67 XBG

OKP9655S / KHF 695 900 S / SKZ 97 XBG

OKP8655S / KHF 695 800 S / AH0129

EN- Table of contents

NOTES ON SAFETY 8

UNPACKING 11

DISPOSAL OF OLD APPLIANCE 11

OPERATION 12

COOKER HOOD CONTROLS 12

OFF-TIMER 13

GESTURE CONTROL 13

OTHER IMPORTANT INFORMATION CONCERNING THE OPERATION OF THE HOOD 16

CLEANING AND MAINTENANCE 17

MAINTENANCE 17

GREASE FILTER 17

ACTIVATED CHARCOAL FILTER 17

LIGHT 17

WARRANTY AND AFTER SALES SERVICE 18

WARRANTY 18

PL- Spis treści

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA 20

ROZPAKOWANIE 24

USUWANIE ZUŻYTYCH URZĄ DZEŃ 24

OBSŁUGA 25

STEROWANIE OKAPEM 25

TIMER (OPÓŻNIONE WYŁĄCZENIE OKAPU) 26

STEROWANIE GESTAMI 26

INNE WAŻNE INFORMACJE DOTYCZĄCE OBSŁUGI OKAPU 29

CZYSZCZENIE I KONSERWACJA 30

KONSERWACJA 30

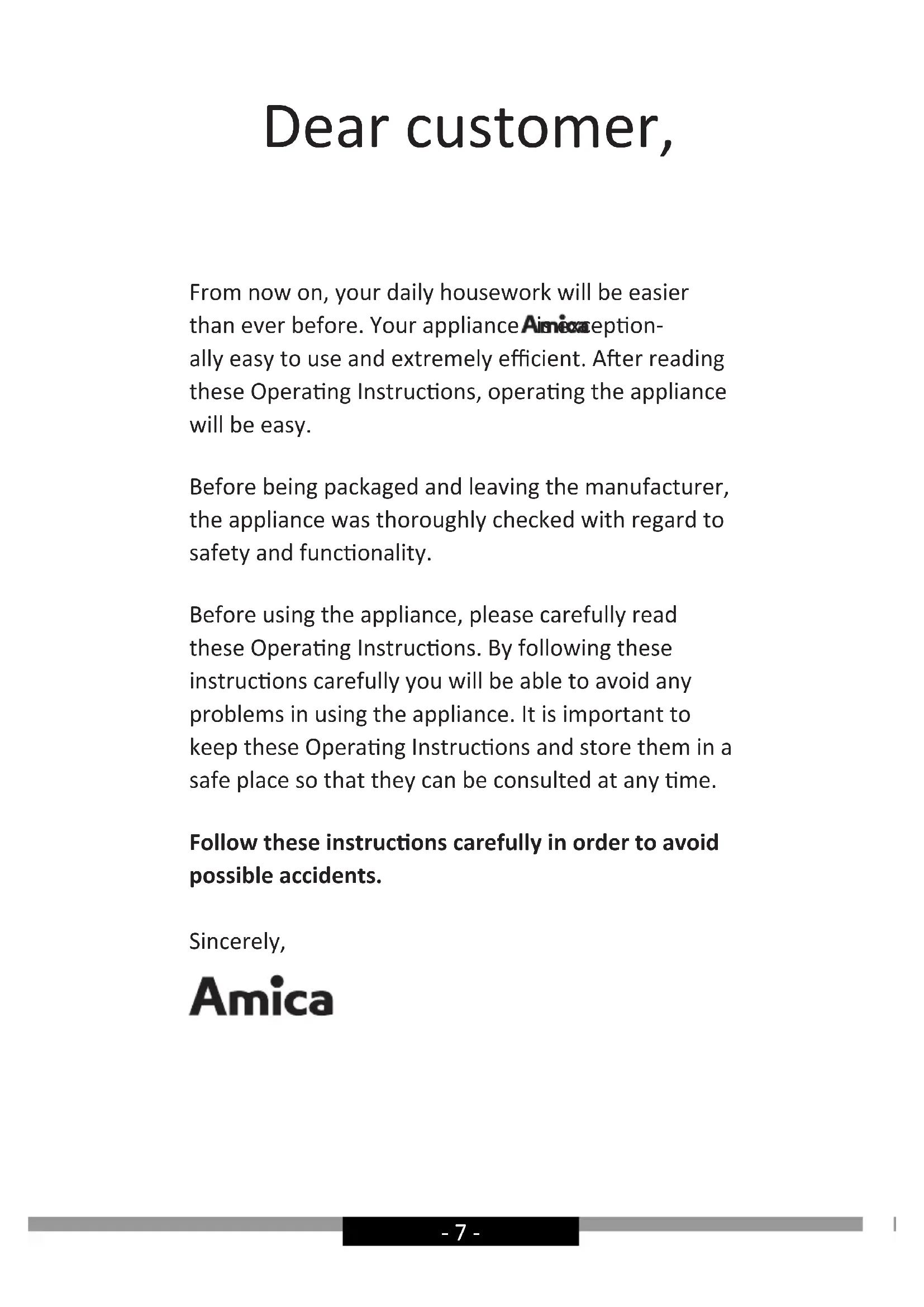

From now on, your daily housework will be easier than ever before. Your appliance Air*optionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

NOTES ON SAFETY

• Before using the appliance, please carefully read this manual!
• The appliance is designed for household use only.
• The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.
• The manufacturer shall not be liable for any damage or fire caused by the appliance resulting from failure to follow instructions in this manual.
• Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.
• Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The length of the duct (usually a pipe of ∅ 120 or 150 mm) should not be longer than 4-5 m. An air extraction duct is also required for telescopic and furniture hoods in absorption mode.
• Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane (Mainly in chimney cooker hoods).
• The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.
• Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the

wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

• For details of the installation distance above an electric hob please refer to product technical sheet. If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).
• Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

- When cooking on fat, supervise the pans constantly, because overheated fat can ignite.

- Unplug the appliance before any cleaning, replacing the filter or repair work.

- Cooker hood grease filter should be cleaned at least once a month, because the filter saturated with fat is flammable.

- Ensure adequate ventilation (air flow) if other equipment such as liquid fuel stoves or heaters are operated in the room in addition the cooker hood. When the cooker hood is simultaneously operated with burning appliances requiring adequate fresh air from the room to work properly, their safe operation is possible if under pressure around these appliances is a maximum of 0.004 mbar (this does not apply when the cooker hood is used as an odour filter)

- Do not lean on the hood.

- The hood should be cleaned regularly both inside and out (AT LEAST ONCE A MONTH, following the indications concerning maintenance provided in this manual)..Failure to adhere to the rules concerning cleaning the hood and replacing filters results in a fire risk.

- If the power cord is damaged it should be replaced by a specialised service centre.

- Ensure that it is possible to disconnect the ap-

pliance from the mains by removing the plug or switching off the bi-polar switch.

• This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety.
• Particular attention should be paid not to allow unaccompanied children to use the appliance.
• Make sure voltage indicated on the nameplate corresponds to the local mains supply voltage.
• Before use, extend and straighten the power cord.
• Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.
• Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. Do not connect the appliance to the mains until assembly is complete.
• Do not operate your kitchen hood without the aluminium grease filters.
• It is strictly forbidden to cook dishes under on an open flame (flambé) under your kitchen hood.
• Always strictly adhere to regulations issued by the competent local authorities regarding the technical and safety requirements for fume extraction.
• Failing to tighten bolts and fasteners in accordance with these instructions may endanger life and health.
• Hanging kitchen hoods operate only in air circulation / odour absorber mode
• WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

UNPACKING

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed with no visible text or labels

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

OPERATION

Cooker hood controls

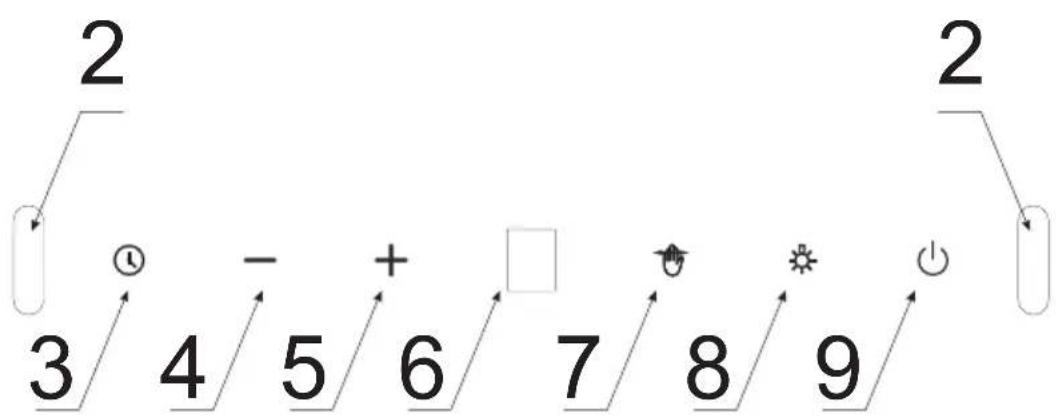

Control Panel is shown in Figure 4, for reference it is also shown below:

This appliance features gesture control:

1 2 3 456789 1 2

1. Gesture sensors for switching the light on/off
2. Gesture sensors for fan speed control

The control panel is equipped with touch controls: Control functions are described below:

3- Off-Timer sensor
4- Reduce fan speed sensor
5- Increase fan speed sensor
6- Display
7- Gesture control management sensor
8- Light control sensor
9- StandBy mode sensor

When you plug in your appliance, will be shown on the display for a fraction of a second, then the display will go off. Only the gesture control sensor is illuminated on the control panel. Touch to activate the appliance — the pictogram will light up

When activated, touch +to start the fan.

Available fan speeds:

• Low speed (1). Use this speed when cooking a little food with hardly any fumes.
• Medium speeds (2 - 3). Use this speed when cooking multiple dishes at the same time with moderate amount of fumes.
• Turbo ( )— use this speed when frying or grilling with large amount of fumes.

Use the + and sensors to increase or reduce fan speed.

Note: The Turbo speed is active only for 5 minutes (the dot on the display flashes), then the fan speed will be reduced. Turbo speed operation is time limited. By activating the Turbo speed again and again, you can use it for a maximum of 30 minutes (including the Turbo off intervals if shorter than 5 minutes). After this time, Turbo speed will not be available for the next 30 minutes — during this time, the maximum possible fan speed is 3.

To turn off the fan, touch — repeatedly until fan speed is reduced to zero, or touch.

Touch ✦ to turn the lighting on. Touch ✦ again to turn the lighting off. The lighting operates independently of the on/off sensor.

Off-Timer

Use Off-Timer to turn off the hood after a specified time. Use Off-Timer to filter the fumes out of the air after cooking. The Off-Timer can be set to 5, 10 or 15 minutes. Touch Ⓛto activate the Off-Timer at any time. The sensor will flash and the display will show . Now use the - and + sensors to select the Off-Timer delay:

Display indication Delay time [min]
8	15
8	10
8	5

Touch Ⓛ to confirm your Off-Timer setting (according to the above table). A flashing dot will appear by the fan speed on the display and the sensor will flash. Touch Ⓛ to deactivate the Off-Timer at any time — the dot by the fan speed and Ⓛ will stop flashing.

Gesture control

When you plug in your appliance gesture control is active and indicator is on. Touch to turn off the gesture control. Touch again to reactivate gesture control.

You can use gestures to control the fan speed and lighting. When gesture control is active, you can also control the appliance using the touch sensors.

Gesture control works correctly when you move your open hand about 5 cm from the surface of the control panel.

Note: Depending on the function you want to activate you need to move your hand near the sensors (Figure 4, item 1, or Figure 4, item 2). The area over which to move your hand is marked on the figures presented below in this manual.

When activating a certain function (such as turbo speed) requires multiple hand gestures, reposition your hand for another gesture away from the control panel to avoid triggering the motion sensors). Hand movements must not be too fast. Preferably, a single gesture should take about 1 second.


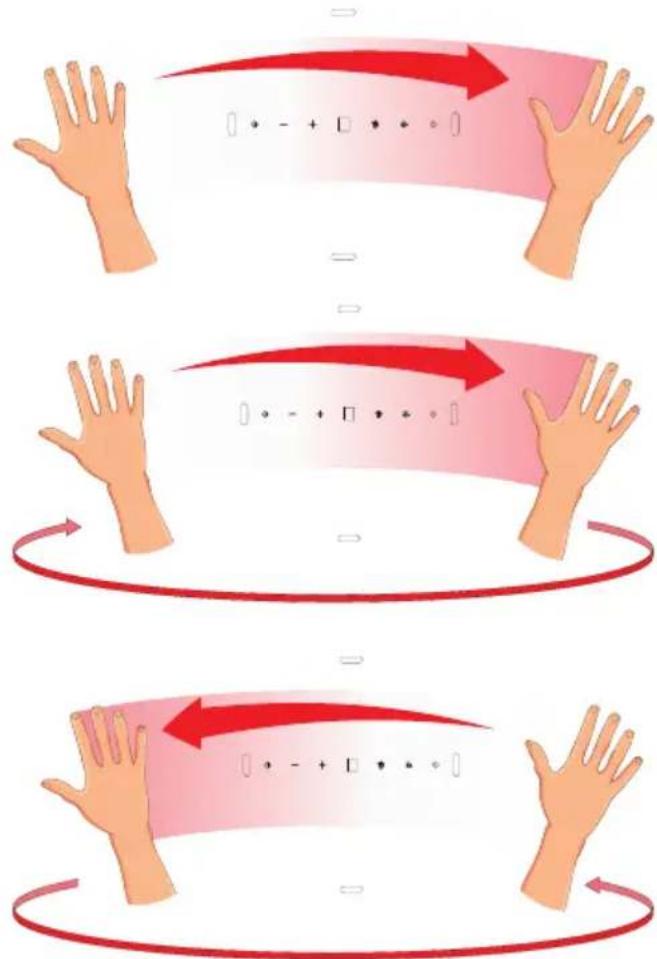

To activate the appliance, move your hand from left to right. The display will show ☐

To turn on the fan or increase fan speed, move your hand from left to right several times in standby mode. The display will show the current fan speed after each hand gesture.

To turn off the fan or reduce fan speed, move your hand from right to left several times in standby mode until the display shows ☐ Move your hand one more time and the appliance will turn off (gesture control will still be active)

Illustration showing three stages of a human forearm with red arrows indicating movement or force direction, labeled with symbols like '↓' and directional arrows.

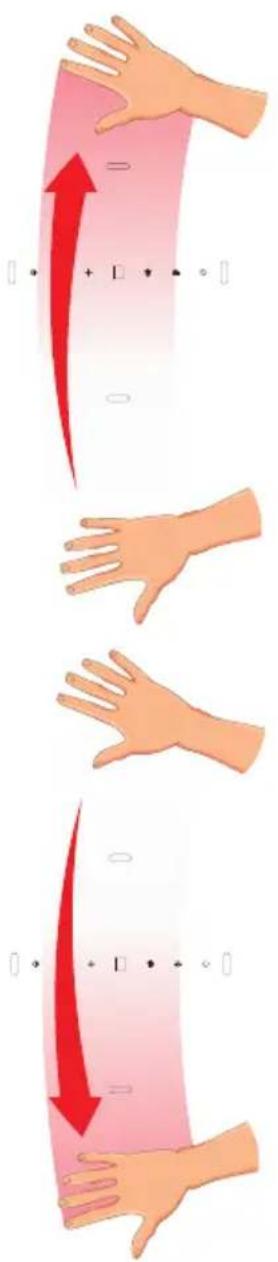

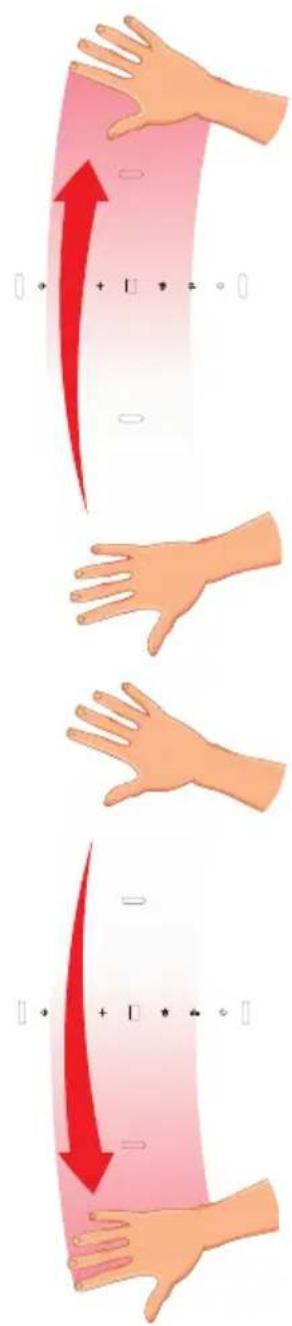

Move your hand from the bottom up to turn on the lighting

Move your hand from the top to bottom to turn off the lighting

Other important information concerning the operation of the hood

Operation in air circulation / odour filter mode. In this mode, the filtered air returns to the room through the outlets. Install activated charcoal filter in this setting. It is recommended to install the air guide (available depending on the model, mainly in chimney cooker hoods).

Air extraction operation: When cooker hood operates in extraction mode, air is discharged outside through an extraction duct. Remove activated charcoal filter in this setting. The cooker hood is connected to the air outlet opening using a rigid or flexible extraction duct with a diameter of 150 or 120 mm, and the appropriate clamps, which must be purchased at a hardware store. The appliance should be installed by a qualified installer.

Fan speed: Lowest and medium fan speed is used in normal conditions and less intense odours, while the highest speed is used only when cooking odours are very intense, such as during frying or grilling.

Note (applies to universal hoods only): Due to the design of universal hoods you need to manually change the mode of operation. See Figure 8 for instructions on how to change the mode.

Note (only applies to telescopic and in-built kitchen hoods): Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Note: Hanging kitchen hoods operate only in air circulation / odour absorber mode

CLEANING AND MAINTENANCE

Maintenance

Regular maintenance and cleaning of the appliance will ensure trouble-free operation of the cooker hood and extend its life. Especially make sure that the grease filter and activated charcoal filter are replaced according to manufacturer's recommendations.

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.
• It is recommend to use a damp cloth and a neutral detergent.

Note: After several washes in the dishwasher, the colour of the aluminium filter may change. The change of colour does not indicate improprieties or the necessity to change it.

Grease filter

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

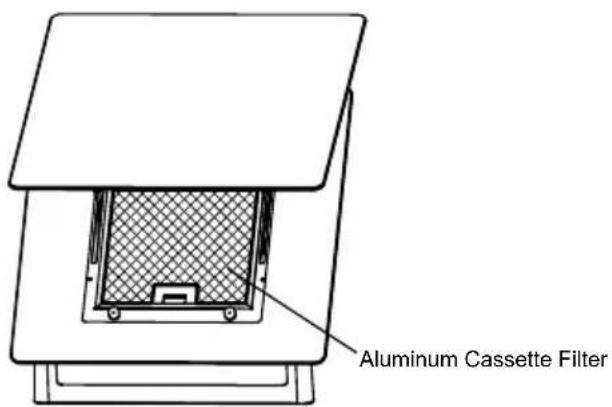

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Activated charcoal filter

Charcoal filter is used only when the cooker hood is not connected to the ventilation duct. Activated charcoal filter can absorb odours until saturated. Charcoal filter is not suitable for washing or regeneration and should be replaced at least once every two months or more frequently if the appliance is used intensively.

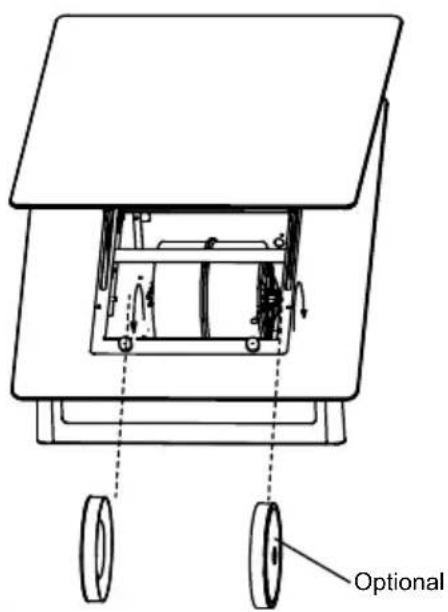

Dismantling of charcoal filter is shown on Figure 6.

Light

Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance. See Figure 7 for details how to replace lights. If there is no such figure in this manual, please contact authorised service to replace the lighting module.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. Repairs should be carried out by a qualified technician only.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

Szanowny Kliencie

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Illustration showing three-step hand massage technique with red arrows indicating direction and pressure points

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Illustration showing three-step hand massage technique with red arrows indicating direction and pressure points

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Diagram illustrating hand movement with red arrows and symbols, showing two scenarios of motion or force on fingers.

Diagram illustrating hand movement with a red arrow and circular motion path, showing finger positions and directional arrows.

Illustration showing three-step hand massage technique with red arrows indicating direction and pressure points

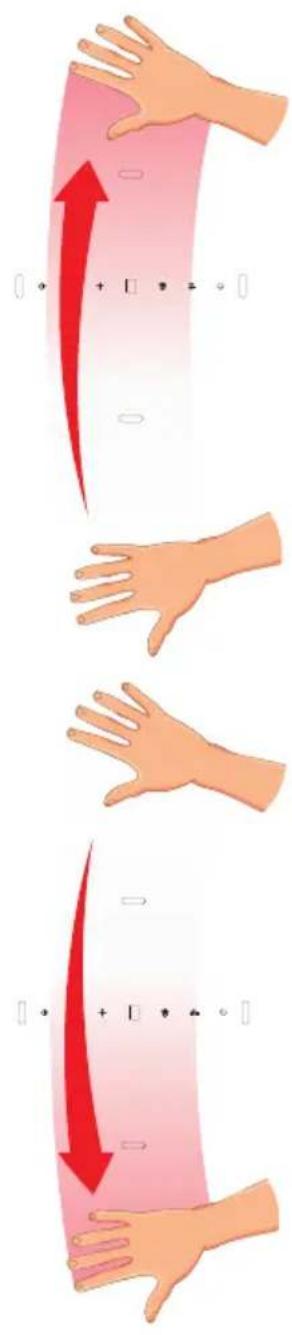

Ked' chcete zapnút osvetlenie, presuňte dlaň zdola hore.

Ked' chcete osvetlenie vypnút, presuňte dlaň zhora dole.

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing waste or discharge (no text or numbers present)

Diagram illustrating hand movement with a red arrow and circular motion path, showing positions of fingers and a curved trajectory.

Illustration showing three-step hand massage technique with red arrows indicating direction and pressure points

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no visible text or labels

Diagram illustrating hand movement with red arrows and symbols, showing two scenarios of motion or force on fingers.

Diagram illustrating hand movement with a red arrow and numbered positions, possibly indicating motion or positioning.

Illustration showing three-step hand massage technique with red arrows indicating direction and pressure points

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Diagram illustrating hand movement with red arrows and symbols, showing two scenarios of motion or force on fingers.

Illustration of two hands reaching toward a curved red arrow with a grid of icons, no text or symbols present

Illustration showing three-step hand massage technique with red arrows indicating direction and pressure zones

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Uređaj je za vrijeme transporta za- štićen od oštećenja. Nakon vađenja uređaja iz pakiranja molimo Vas da elemente ambalaže uklonite na način koji ne ugrožava okoliš.

Svi materijali korišteni za pakiranje nisu štetni za okoliš, 100% materijala je prikladno za rečikliranje, stoga su označeni odgovarajućim simbolom.

Pozor! Elemente pakiranja (polietilenske vrećice, komadjići stiropora itd.) prilikom uklanjanja amba-laze držati daleko od djece.

ZBRINJAVANJE POTROŠENIH UREĐAJA

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Ovaj uređaj je označen u skladu s europskom uredbom 2012/19/EU. Oznaka na proizvodu pokazuje da ovaj proizvod nakon njegovog životnog vijeką ne može biti tretiran kao obični kućanski otpad.

Korisnik ima obvezu ovaj proizvod predati na odgovarajuće sabirno mjesto za recikliranje potrošene električne i elektroničke opreme. Ustanove za prikupljanje ovakvog otpada, uključujući lokalne sabirne točke, kupovna mjesta, opcinske jedinice, stvaraju odgovarajući sustav koji omogućava zbrinjavanje ovakve opreme.

Pravilno odlaganje potrošene električne i elektroničke opreme sprećava potencijalne negativnę posljedice za okoliš i ljudsko zdravlje, koje inače mogu biti uzrokovane neodgovarajućim odlaganjem i preradom ovog proizvoda.

UPORABA

Upravljanje napom

Za aktiviranje režima StandBy dlan pomaknuti s lijeve na desnu stranu. Na zaslonu se pojavljuje

Za uključivanje turbine uređaja ili povećavanje brzine, u režimu StandBy nekoliko puta pomaknuti dlan s lijeve na desnu stranu. Zaslon prikazuje trenutnu brzinu nakon svakog pokreta ruke.

Za isključivanje turbine uređaja ili smanjenje brzine, u režimu StandBy nekoliko puta pomaknuti ruku s desne na lijevu stranu, dok se na zaslonu ne pojavi. Još jednom pomaknuti ruku, napa se potpuno isključuje (funkcija upravljanja pokretima je još uvijek aktivna)

Illustration showing three-step hand massage technique with red arrows indicating direction and movement

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with no visible text or labels

Diagram illustrating hand movement with red arrows and symbols, showing two scenarios of motion or force on fingers.

Da bi aktivirali način StandBy, dlan premaknite od leve proti desni. Na ekranu se pojavi 8.

Diagram illustrating hand movement with a red arrow and circular motion path, showing directional movement of fingers around a curved line.

Illustration showing three-step hand massage technique with red arrows indicating direction and pressure points

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Illustration of two hands holding a curved object with a red arrow indicating rotation or movement (no text or symbols)

Illustration showing three-step hand massage technique with red arrows indicating direction and pressure points

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram illustrating hand movement and rotation process with red arrows indicating direction and symbols

Diagram illustrating hand movement with a red arrow and numbered positions, possibly indicating motion or positioning.

Illustration showing three-step hand massage technique with red arrows indicating direction and pressure zones

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Diagram illustrating hand movement with red arrows and symbols, showing two scenarios of motion or force application.

Diagram illustrating hand movement with red arrows and a numbered sequence, possibly indicating motion or positioning.

Illustration showing three-step hand massage technique with red arrows indicating direction and pressure zones

GARANTIE, NACHVERKAUFSERVICE

Garantie

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Diagram illustrating hand movement with a red arrow and circular motion path, showing positions of fingers and a numbered sequence.

Illustration showing three-step hand massage technique with red arrows indicating direction and pressure points

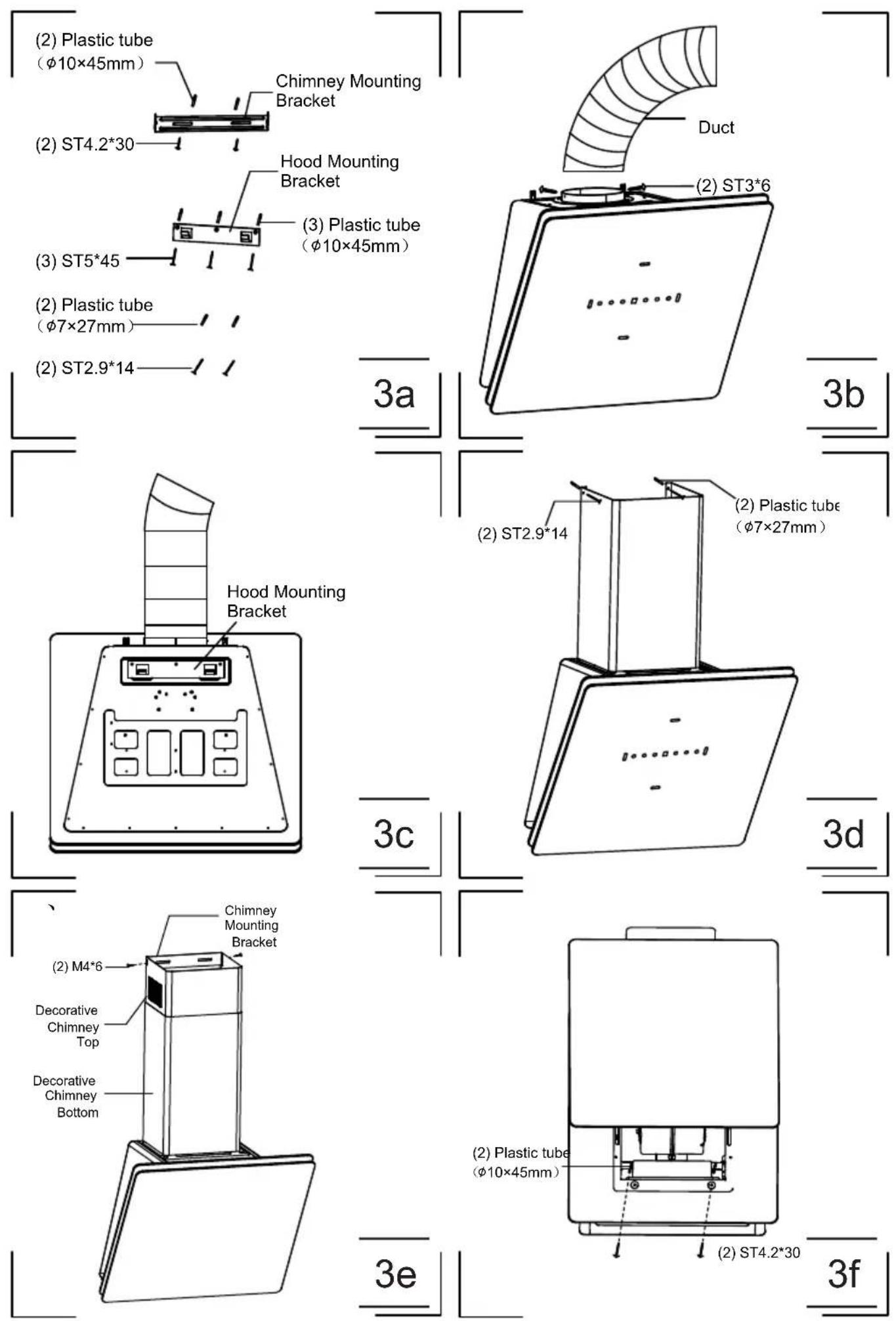

CONDUIT CARBON FILTER

h = 650mm h = 650mm h = 650mm h = 450mm h h 1

1

1

4

Aluminum Cassette Filter

Optional

5
6

Amica S.A.

ul . Mickiewicza 52 / 64-510 Wronki tel. [phone] / fax [phone]

www.amica.pl

Amica International GmbH

Lüdinghauser Str. 52

D-59387 Ascheberg

Tel: 0 25 93 - 95 67-0

www.amica-group.de
