USER MANUAL AOV20 BESTRON

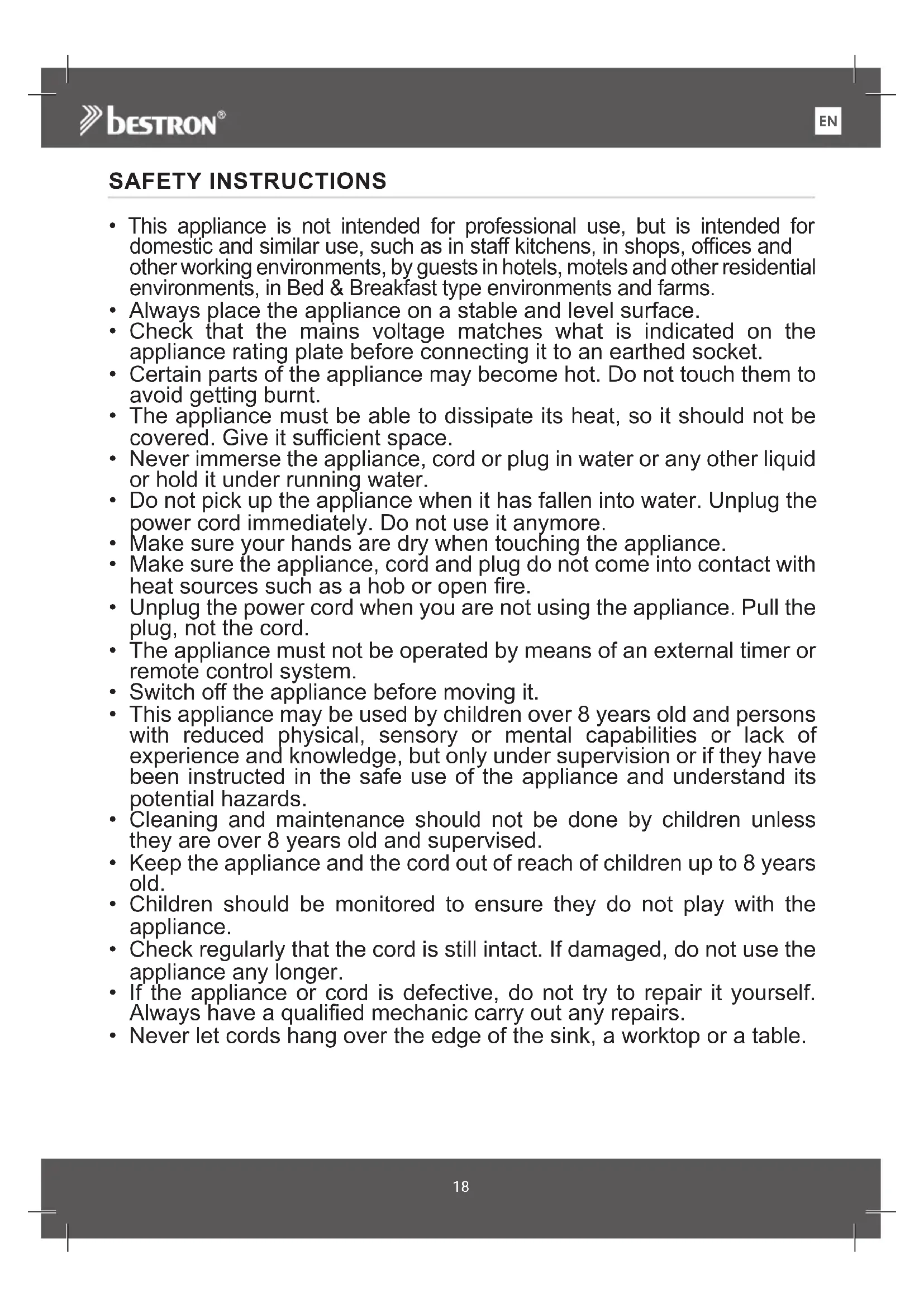

• This appliance is not intended for professional use, but is intended for domestic and similar use, such as in staff kitchens, in shops, offices and other working environments, by guests in hotels, motels and other residential environments, in Bed & Breakfast type environments and farms.
  Always place the appliance on a stable and level surface.
• Check that the mains voltage matches what is indicated on the appliance rating plate before connecting it to an earthed socket.
• Certain parts of the appliance may become hot. Do not touch them to avoid getting burnt.
• The appliance must be able to dissipate its heat, so it should not be covered. Give it sufficient space.
• Never immerse the appliance, cord or plug in water or any other liquid or hold it under running water.
• Do not pick up the appliance when it has fallen into water. Unplug the power cord immediately. Do not use it anymore.
• Make sure your hands are dry when touching the appliance.
• Make sure the appliance, cord and plug do not come into contact with heat sources such as a hob or open fire.
• Unplug the power cord when you are not using the appliance. Pull the plug, not the cord.
• The appliance must not be operated by means of an external timer or remote control system.
• Switch off the appliance before moving it.
• This appliance may be used by children over 8 years old and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, but only under supervision or if they have been instructed in the safe use of the appliance and understand its potential hazards.
• Cleaning and maintenance should not be done by children unless they are over 8 years old and supervised.
• Keep the appliance and the cord out of reach of children up to 8 years old.
• Children should be monitored to ensure they do not play with the appliance.
• Check regularly that the cord is still intact. If damaged, do not use the appliance any longer.
• If the appliance or cord is defective, do not try to repair it yourself. Always have a qualified mechanic carry out any repairs.
• Never let cords hang over the edge of the sink, a worktop or a table.

ADDITIONAL SAFETY INSTRUCTIONS

• Be careful when using the appliance outdoors.
• Never use the appliance in damp or wet locations.
• Thoroughly clean the appliance after use (see Cleaning and Maintenance).
• Make sure there is sufficient free space around the appliance (at least 10cm ), as well as above the appliance (at least 30cm ).
• The oven's glass door becomes hot during use. Therefore, always use the handle to open and close the door.
• Use the removal tool to remove the baking tray, the grille or the roasting spit from the hot oven.
• Do not place the following items on top of the appliance: cardboard, plastic, paper, candles or flammable objects.
• Do not place heavy objects on the oven door when it is open.
• Carefully remove the baking tray when it contains hot juices or fat.
• Avoid water coming into contact with the oven door during or shortly after use. This may cause the glass to break.
• Do not place the appliance near a gas ring or another heat source, nor immediately next to an electrical fan. They may have a negative effect on the appliance's Temperature control.

ENVIRONMENT

Dispose of packaging material such as plastic and cardboard boxes in the designated containers.

• Do not dispose of this product as normal domestic waste at the end of its life, but hand it in at a collection point for the reuse of electric and electronic equipment. Look for the symbol on the product, the user instructions or the packaging showing the type of waste.
• The materials can be used as indicated. By helping us reuse and process the materials or otherwise recycle the old equipment, you will be making an important contribution towards the protection of the environment.
• Your municipality can tell you where to find the designated waste collection point in your neighbourhood.

SERVICE

In the unlikely event of a malfunction, please contact Bestron's service department: www.bestron.com/service

OPERATION - General information

The below description goes with the image on page 2.

1. Housing
2. Spacer
3. Power cord and plug
4. Ventilation slots
5. Temperature setting
6. Function setting
7. Time setting

8. On/Off indicator light

9. Heating elements
   10.Doorhandle
   11.Door

10. Baking tray/grille removal tool
    13.Bakingtray
    14.Grille
    15.Gridheights
11. Interior lighting

OPERATION - Before using for the first time

1. Remove the packaging.
2. Clean all the accessories to remove any residue that may be left from the manufacturing process (see "Cleaning and maintenance"). Dry them thoroughly.
3. Turn on the top and bottom heating elements for 15 minutes at the highest Temperature with the door open. This will remove any packaging odour from the appliance.

ATTENTION:

• The appliance may emit a little smoke and a characteristic smell when you switch it on for the first time. This is normal, and will soon stop. Make sure the appliance has sufficient ventilation.

OPERATION - Grill

You can use the grill for food that must be heated, not fried and is large enough not to fall through the grill. The grill can also be used when you want to grill with both top and bottom heat.

OPERATION - Baking tray

The baking tray is used for fine food that really needs to be fried. The heat from the bottom element causes the baking tray to heat up witch will provide cooked food.

OPERATION - Functions (see image 2 on page 2)

1. Off
2. Top heat
3. Bottom heat
4. Top heat / Bottom heat

OPERATION - Preheating

It is not necessary to preheat the oven. In certain cases, however, you may achieve a better result if the oven is preheated, for example, for meat that must be cooked medium rare or when baking a cake.

Potato Dish Scale or grid at height	b 220 degrees Top/bottom 30	min
Oven Fries Scale at height b 200 d	degrees Top/bottom 10 min
Chicken	Scale at height a	200 degrees	Top	60 min
Pizza (ready-to-eat)	Grid at height b	230 degrees Top/bottom 7 min
Pizza (with homemade dough)	Scale at height b	200 degrees	Bottom	20 min
Pasties	Scale at height a	200 degrees	Top	40 min
Apple pie	Grid at height b	230 degrees Top/bottom 25 min
Cake	Grid at height a or b	200 degrees	Top	40 min
Cookies	Scale at height b	170 degrees	Top	20 min

Some baking times for the most common baking dishes.

Please note that these times are approximations and may vary depending on quantity, quality and personal preference. If baking instructions are noted on the food's packaging we advise you to follow these in order to get the best results.

OPERATION - Baking (see image 3 on page 2)

1. Open the oven door (11).
2. Place the baking tray (13) with the food at the desired height in the grooves in the oven.
3. Close the oven door.
4. Use the temperature setting (5) to set the required temperature.
5. Rotate the function setting (6) to the setting
6. Use the timer setting (7) to set the baking time. The amount of time required depends on the type and quantity of food. The On/Off indicator (8) will be lit.
7. Bake the food until it is cooked.The oven will turn itself off automatically and a sound signal will be heard once the baking time has elapsed. The On/Off indicator light will go out.
8. Wear oven gloves
9. Open the oven door. Take care! The door is hot.
10. Use the removal tool to remove the baking tray from the oven.
11. Close the oven door.
12. Remove the food from the baking tray (13) and put it on a plate. Take care! The food is hot.
    13 Once you have finished, rotate the function setting to and remove the plug (3) from the plug socket.

ATTENTION:

• If the food is ready but the baking time has not yet elapsed, you can turn off the oven by rotating the function setting to . The timer will continue, but the oven will no longer be heated.

OPERATION -Grilling (see image 4 on page 2)

You can use the grill function to give fish, poultry and oven dishes a golden brown crust.
1. Open the oven door (11).
2. Place the baking tray (13) in the bottom groove in the oven. The baking tray will collect any juice and fat whilst grilling and prevent the juice and fat from getting on the bottom heating element (15 a, b, c).
3. Place the grille with the food in the middle or top grooves in the oven.
4. Leave the oven door slightly open so as to allow the air to circulate.
5. Use the temperature setting (5) to set the required Temperature.
6. Rotate the function setting (6) to the setting
7. Use the timer setting (7) to set the grilling time. The amount of time required depends on the type and quantity of food. The On/Off indicator (8) will be lit.
8. Grill the food until it is cooked. The oven will turn itself off automatically and a sound signal will be heard once the grilling time has elapsed. The On/Off indicator light will go out.
9. Wear oven gloves
10. Open the oven door. Take care! The door is hot.
11.Use the removal tool to remove the grille with the food from the oven.
12. Remove the food from the grille and put it on a plate. Take care! The food is hot.
13. Use the removal tool to remove the baking tray from the oven. Take care! Any juice and fat on the baking tray will be hot!
14. Close the oven door.
15.Once you have finished grilling, rotate the function setting to and remove the plug from the plug socket.

ATTENTION:

• If the food is ready but the grilling time has not yet elapsed, you can turn off the grill by rotating the function setting to . The timer will continue, but the grill will no longer be turned on.

CLEANING AND MAINTENANCE

Clean the appliance every time after use.

1. Remove the plug from the wall socket and allow the appliance to cool down completely.
2. Use warm water with a small amount of washing-up liquid to clean the baking tray, the grille, the roasting spit and the removal tool. Rinse the items with plenty of water and dry them thoroughly.
3. Use a damp cloth to clean the interior and exterior of the oven and the door. Dry them thoroughly.
4. Place all the items back in the oven and store the oven

ATTENTION:

• Make sure the plug has been removed from the plug socket before cleaning the appliance.
• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.
• Never immerse the appliance, the power cord or the plug in water or any other fluid.

Technical Specifications
Model AOV20
Mains 220-240V
Frequency (Hz) 50/60
Safety Class 1
Power (Watt) 1300
Noise (dB(A)) -
Max. Capacity -
Maximum continuous operating time (KB) -
Dimensions (L x W x H) (cm) 45,5x36,5x30
Cable length (cm) 86

• Be careful when using the appliance outdoors.
• Never use the appliance in damp or wet locations.
  Thoroughly clean the appliance after use (see Cleaning and Maintenance).
• Make sure there is sufficient free space around the appliance (at least 10cm ), as well as above the appliance (at least 30cm ).
• The oven's glass door becomes hot during use. Therefore, always use the handle to open and close the door.
• Use the removal tool to remove the baking tray, the grille or the roasting spit from the hot oven.
• Do not place the following items on top of the appliance: cardboard, plastic, paper, candles or flammable objects.
• Do not place heavy objects on the oven door when it is open.
• Carefully remove the baking tray when it contains hot juices or fat.
• Avoid water coming into contact with the oven door during or shortly after use. This may cause the glass to break.
• Do not place the appliance near a gas ring or another heat source, nor immediately next to an electrical fan. They may have a negative effect on the appliance's Temperature control.

AMBIENTE

5.Regulator temperature

6.Regulator funkcji

7.Regulator czasu

DODATNE SIGURNOSNE UPUTE

• Budite oprezni kada koristite uredai na otvorenom.
  Nikada nemoite koristiti uredai na vlaznim ili mokrim miestima.
• Temeljito očistite urežaj nakon upotrebe (pogledajte Čišćenje i odžavanie).
• Provjerite ima li dovoljno slobodnog prostora.oko uredaja (najmanje 10 cm), kao i iznad uredaja (najmanie 30~cm
• Staklena vrata pećnice postaju vruća tijekom uporabe. Stoga uvijek koristite ručku za otvaranje i zatvaranje vrata.
• Koristite alat za uklanjanje kako biste skinuli lim za pečenje, resetku ili ražani za pečenie iz yruče pećnice.
• Ne stavljaje sljedece predmete na uredaj: karton, plastiku, papir, svijece ili zapaliye predmete.
• Ne stavliaite teške predmete na otvorena vrata pećnice.
• Pažlijo vžadite lim za pečenie kada sadrži yruče sukove ili masnoću.
• Izbjegavajte kontakt vode s vratima pećnice tijekom ili nedugo nakone uporabe. ToMZe uzrokovati pucanje stakla.
• Nemojte postavljati uredaj blizu plinske ploce ili drugog izvora topline, niti negosredno uz elektrici ventilator. Oni mogu imati negativan ucinak na kontrolu temperature uredaja.

OKOLIS

DALSIE BEZPECNOSTNÉ POKNY

CLEANING AND MAINTENANCE

Clean the appliance every time after use.
