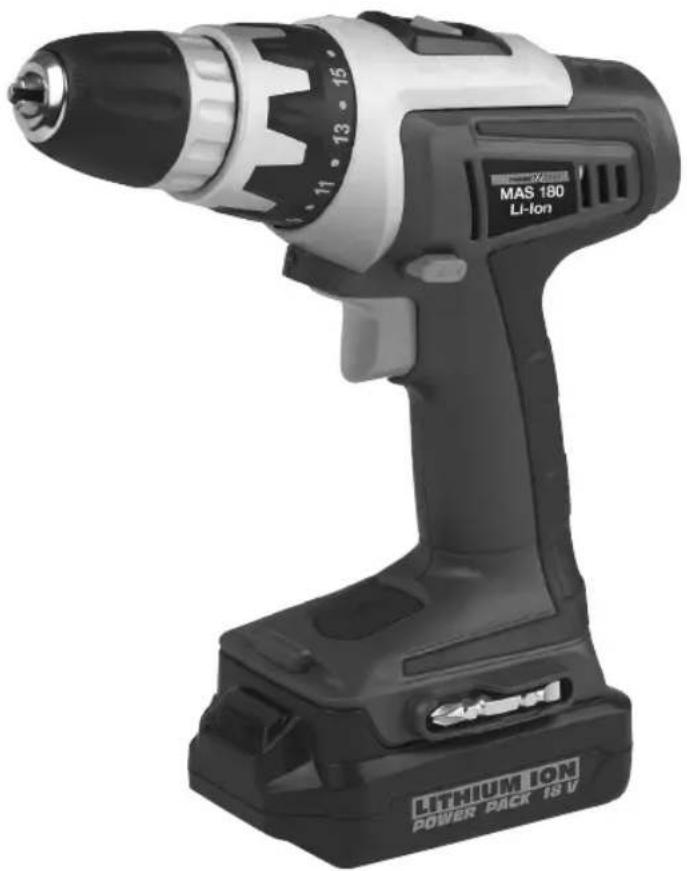

Product type Cordless drill/driver
Brand Meister Craft
Model MAS 180 LiIon
Battery voltage 14.4 V (Li-Ion)
Battery capacity 1400 mAh
Charging time Approximately 3 to 5 hours
No-load speed 0-400 rpm (1st) / 0-1200 rpm (2nd)
Max. torque 30 Nm
Drilling capacity (wood) Up to 23 mm
Drilling capacity (aluminum) Up to 8 mm
Chuck diameter Max. 10 mm (keyless chuck)
Torque setting 16+1 positions
Weight Approximately 1.5 kg (with battery)
Charger power supply 100-240 V~, 50-60 Hz, 12 W

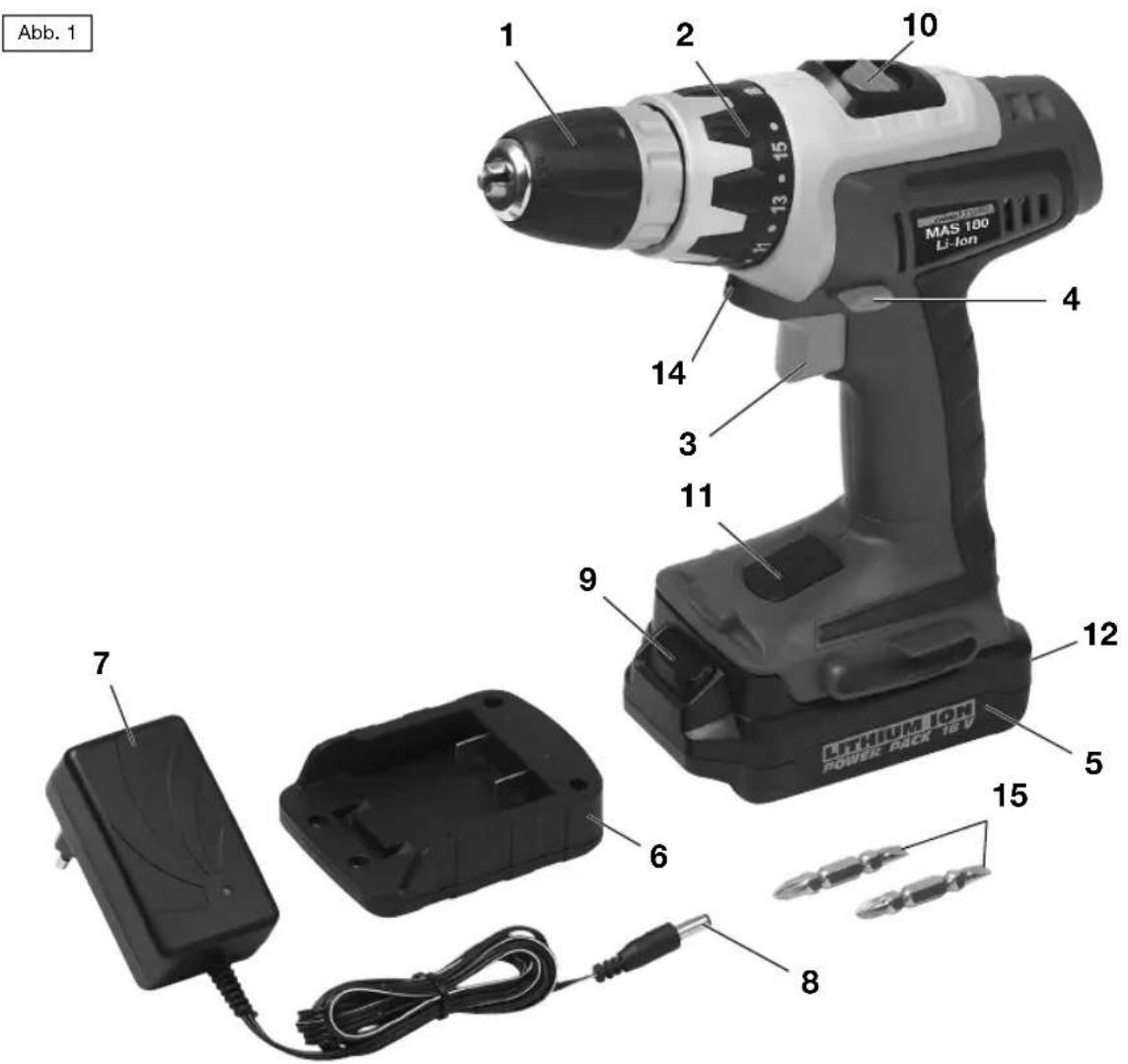

Package contents Drill, 1 battery, charger, power adapter, 2 bits 45 mm, carrying case, user manual, warranty certificate
Main functions Drilling in wood and metal, screwdriving, forward/reverse, LED light, battery charge indicator
Maintenance and cleaning Clean the housing with a damp cloth, no solvents. Fully discharge and recharge the battery every two months.
Safety Rotation brake, overload protection, automatic shutdown in case of jamming
Repairability Repair only by authorized after-sales service, use of original spare parts
General information Household use, conforms to EN 60745 standards, CE declaration

Frequently Asked Questions - MAS 180 LiIon Meister Craft

How to charge the battery of the Meister Craft MAS 180 LiIon drill?
Insert the battery into the charging station, plug the power adapter into a 100-240 V outlet. The LED changes from green to red during charging, then returns to green when charging is complete (approximately 3 to 5 hours). Only charge with the supplied charger.
What is the maximum rotational speed of the drill?
The drill has two speeds: 0-400 rpm (1st) for screwdriving, and 0-1200 rpm (2nd) for drilling. Switching is done at a standstill via the SPEED switch.
How to adjust the torque setting?
Use the torque selector (2) with 16+1 positions. Turn it to preselect the desired torque. The 'drill' position disables torque adjustment.
Can I use drill bits with a diameter larger than 10 mm?
No, the keyless chuck accepts a maximum diameter of 10 mm. Use bits with a shank of 10 mm or less.

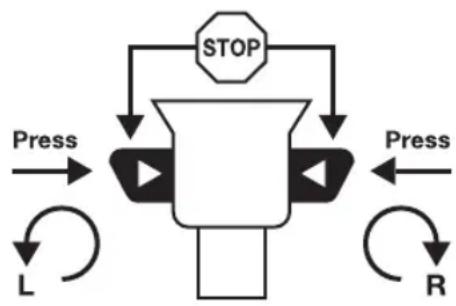

How to reverse the rotation direction?
Use the right/left switch (4) above the trigger. Position R for tightening, L for loosening. Only switch when the motor is at a standstill.
What to do if the drill stops suddenly?
The automatic shutdown may be due to excessive torque or overload. Release the trigger, remove the battery, check the tool. Wait a few minutes before using again.
How to maintain the drill and battery?
Clean the housing with a damp cloth, no solvents. Fully discharge and recharge the battery every two months to preserve its capacity. Store in a dry place below 40°C.
Can I use the drill for drilling concrete or masonry?
No, intended use includes drilling in wood and metal only. Use in masonry is not recommended and could damage the tool.
Where can I find spare parts or get my drill repaired?
Contact Meister Craft after-sales service. Use only original spare parts. Opening the device voids the warranty.
Is the battery interchangeable with other Meister Craft models?
It is recommended to use only the supplied battery (14.4 V / 1400 mAh) to avoid any risk of fire or damage. Do not mix with other models.
