USER MANUAL IAN 311827 Meradiso

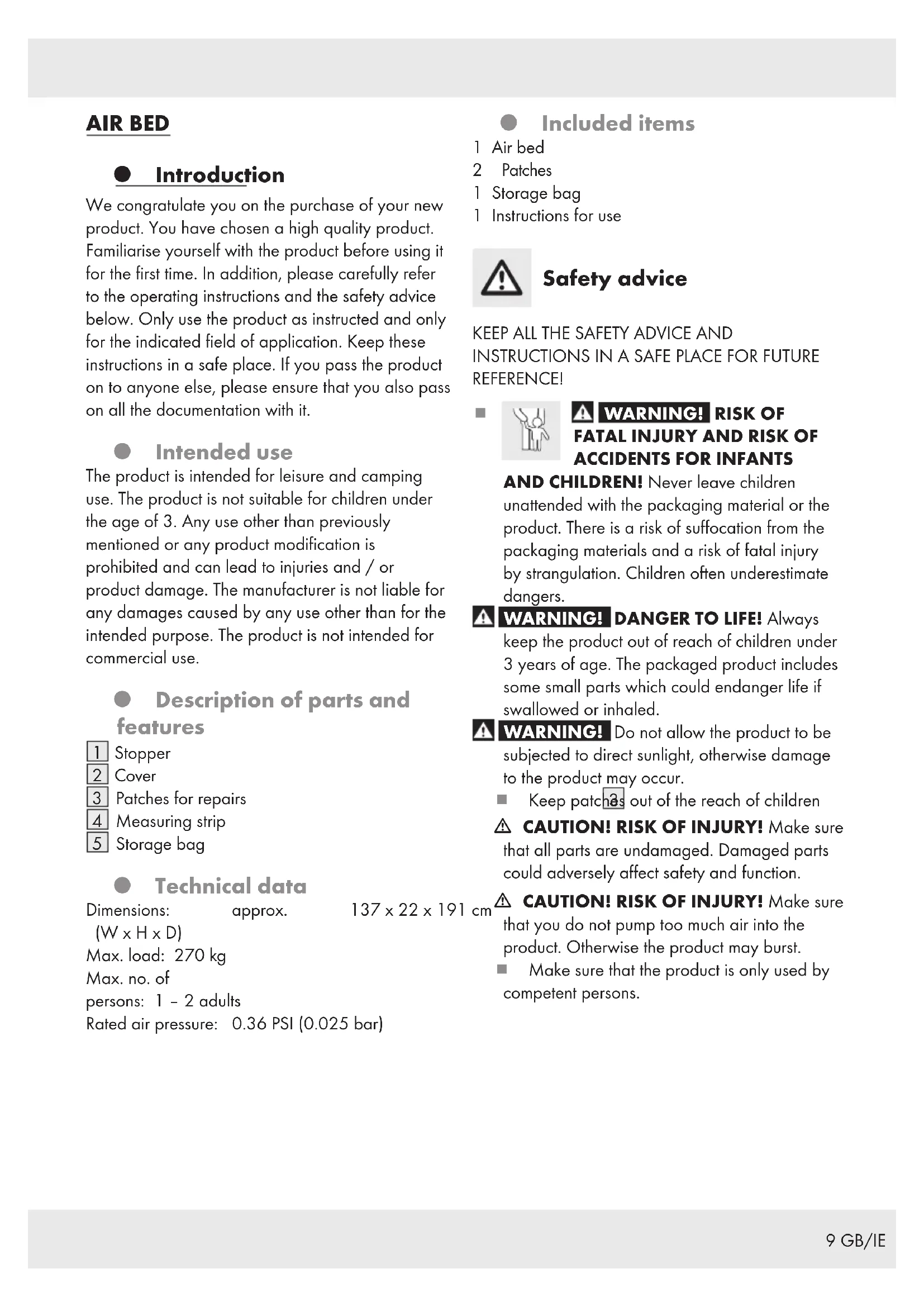

Storage bag Technical data Dimensions: approx. 137 x 22 x 191 cm (W x H x D) Max. load: 270 kg Max. no. of persons: 1 – 2 adults Rated air pressure: 0.36 PSI (0.025 bar) Included items 1 Air bed 2 Patches 1 Storage bag 1 Instructions for use Safety advice

KEEP ALL THE SAFETY ADVICE AND

AND CHILDREN! Never leave children unattended with the packaging material or the product. There is a risk of suffocation from the packaging materials and a risk of fatal injury by strangulation. Children often underestimate dangers. WARNING! DANGER TO LIFE! Always keep the product out of reach of children under 3 years of age. The packaged product includes some small parts which could endanger life if swallowed or inhaled. WARNING! Do not allow the product to be subjected to direct sunlight, otherwise damage to the product may occur. Keep patches

out of the reach of children m CAUTION! RISK OF INJURY! Make sure that all parts are undamaged. Damaged parts could adversely affect safety and function. m CAUTION! RISK OF INJURY! Make sure that you do not pump too much air into the product. Otherwise the product may burst. Make sure that the product is only used by competent persons.10 GB/IE m CAUTION! RISK OF INJURY! Do not use this product as a swimming aid. Keep flocked surface of airbed away from moisture. Do not use the product in water. m CAUTION! Keep away from fire. Otherwise damage to the product can result. m CAUTION! RISK OF POISONING AND RISK OF DAMAGE TO PROPERTY! Do not light a fire in the vicinity of this product and keep it away from heat sources. Please make sure that this product is placed on a level surface and not on any sharp or pointed objects. Otherwise damage to the product can result. Do not wash the product in the washing machine. m CAUTION! Ensure that the load placed on the product does not exceed 160 kg. Otherwise personal injury and / or damage to the product may result. Always use a suitable pump adapter with the air valve. Failure to observe this advice may result in damage to the air valve. Operation Pumping up the product Note: Before using the product for the first time, check it carefully for holes, porous places and seams that are not airtight. Recommendation: Pump the product up and leave it alone for one day. Let a new product air outside in fresh air for a couple of days. m CAUTION! Inflatable plastic products react sensitively to the cold and hot. That is why you should never use the product when the ambient temperature falls to below 15 °C and rises above 40 °C. Otherwise damage to the product may result. Note: Basically, only an adult should be responsible for pumping the airbed up. Make sure that you do not pump too much air into the product. On no account should you use a compressor. Stop the process when resistance increases during pumping and the seams start to stretch. Otherwise the material might tear. Only use manual pumps and / or pumps specifically designed for use with inflatable plastic products. Roll the product out first and then check for holes, tears, and other damage (see. Fig. A). Note: You will need a pump with conical adapter with a diameter of approx. 17.5 mm for the screw valve to inflate the product (see. Fig. B). Turn the cover

anti- clockwise off the air valve in order to open it (see Fig. B I). Pump up the product. IMPORTANT! Keep in mind that air temperature and weather conditions can affect the air pressure inside inflatable products. In cold weather the product behaves as if it has less air pressure in it because the air inside contracts. Under these conditions you may have to add air. In hot weather the air inside expands. Under these conditions you may have to remove air in order to avoid overfilling. Hold a ruler line at least 10 cm long up to the measuring strip

. The rated pressure is reached as soon as the measuring strip

is 10 cm long (see Fig. D). The ruler is not included with the product. Stop the process as soon as the airbed is fully inflated. If necessary let a little air escape. Turn the cover

clockwise onto the air valve to close it.11 GB/IE Deflating the air mattress Turn the stopper

anti-clockwise to open the air valve (see Fig. B II). Let all the air out of the product. Slowly fold up the product (see Fig. A). Note: Ensure that the product is completely dry before you fold it up. Maintenance Mending the airbed Note: Minor damage may be repaired using the supplied repair patch. Have any major damage carried out at a specialist repair shop. First let the air out of the product (see “Deflating the air mattress“). Clean the damaged area with alcohol. Abrade the area around the site of the damage with fine sandpaper. Cut a piece out of the plastic film of the repair patch

Note: Make sure that the repair patch largely overlaps the edges of the leak. Place the repair patch

onto the damaged part. Press the repair patch firmly down onto the leak. You may have to place a heavy object onto the relevant area. Wait for 24 hours before you pump up the product again. Cleaning and care Do not under any circumstances use corrosive or abrasive cleaning agents. These may damage the surface of the product. Clean the flocked surface of the product using a brush. Clean the plastic surfaces with water and / or a little mild soap solution. Do not expose the product to extreme weather conditions such as extreme temperature, wind and rain. Do not allow the product to be subjected to frost. Ensure that the inside and outside of the product are completely dry if you intend to store it indoors for a long period. Failure to observe this advice could result in the build-up of mildew and mould. Fold up the product with the flocked surface on the inside. Store the product in dark, dry place – out of reach of children. The ideal storage temperature is between 10 and 20 °C. Make sure that the stopper

is shut if you want to store the product for any length of time. Do not allow sharp objects to come into contact with the product while it is in storage. Never powder the product with talcum. Disposal The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.12 GB/IE Warranty The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below. The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly. The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e. g. batteries) or for damage to fragile parts, e. g. switches, rechargeable batteries or glass parts.13 FR/BE
