IAN 114256 - Air bed Meradiso - Free user manual and instructions

Product type	Inflatable air bed
Brand	Meradiso
Model	IAN 114256
Dimensions (L x W x D)	Approx. 137 x 22 x 191 cm
Maximum load	160 kg
Number of persons	1-2 adults
Nominal inflation pressure	0.36 PSI (0.025 bar)
Use	Leisure and camping
Delivery contents	1 inflatable bed, 2 repair patches, 1 storage bag, 1 instruction manual
Material	Plastic (PVC)
Maintenance	Clean with soapy water, brush the flocked surface, do not machine wash
Repair	Small repairs possible with included patches; for major damage, contact a specialist
Storage	Store in a dry place, ideal temperature 10-20°C, cap closed
Safety - Children	Do not leave children unattended, keep children under 3 away
Safety - Use	Do not use as a flotation aid, avoid heat sources and flames
Inflation	Use a hand pump, not a compressor
Deflation	Open the valve and let the air escape

Frequently Asked Questions - IAN 114256 Meradiso

How to inflate the air bed?

Unfold the bed and check for any holes. Open the valve by unscrewing the cap counterclockwise. Use a hand pump (not a compressor) to inflate until the seams are tight. Stop when the measuring band reaches 10 cm in length. Close the valve.

How to know when the pressure is sufficient?

Place a 10 cm minimum ruler against the measuring tape. When the tape reaches 10 cm in length, the nominal pressure is reached. Be careful not to overinflate to avoid damaging the bed.

Can I use a compressor to inflate the bed?

No, never use a compressor. Only use a hand pump or a pump specifically designed for inflatable products. A compressor could overinflate and burst the bed.

What to do if the air bed leaks?

Completely deflate the bed. Clean the damaged area with alcohol, then roughen it with fine sandpaper. Cut a piece from the provided repair patch, larger than the leak, and apply it by pressing firmly. Let dry for 24 hours before reinflating.

How to clean the air bed?

For the flocked surface, brush it with a soft brush. For plastic surfaces, use water or mild soapy water. Do not machine wash the bed and do not use caustic or abrasive products.

Can I use the bed in water as a floating mattress?

No, the bed is not designed as a flotation aid. Do not use it in water and keep it away from moisture.

What are the safety precautions for children?

Never leave children unattended with the bed or its packaging. Risk of suffocation or choking from small parts. Keep children under 3 years old away.

What is the maximum weight capacity?

The maximum weight is 160 kg. Do not exceed this load to avoid injury or damage to the product.

How to store the bed after use?

Ensure the bed is completely dry inside and outside. Deflate by opening the valve, fold it with the flocked surface inside. Store in a dry, heat-protected place, ideally between 10 and 20°C. Close the cap for long-term storage.

What to do if the bed is exposed to extreme temperatures?

In cold weather (below 15°C), air contracts and the bed may lose pressure: add air. In hot weather (above 40°C), air expands: release some air. Do not inflate at extreme temperatures to avoid damaging the material.

USER MANUAL IAN 114256 Meradiso

Operation and Safety Notes

SE

Komfortluftmadrass

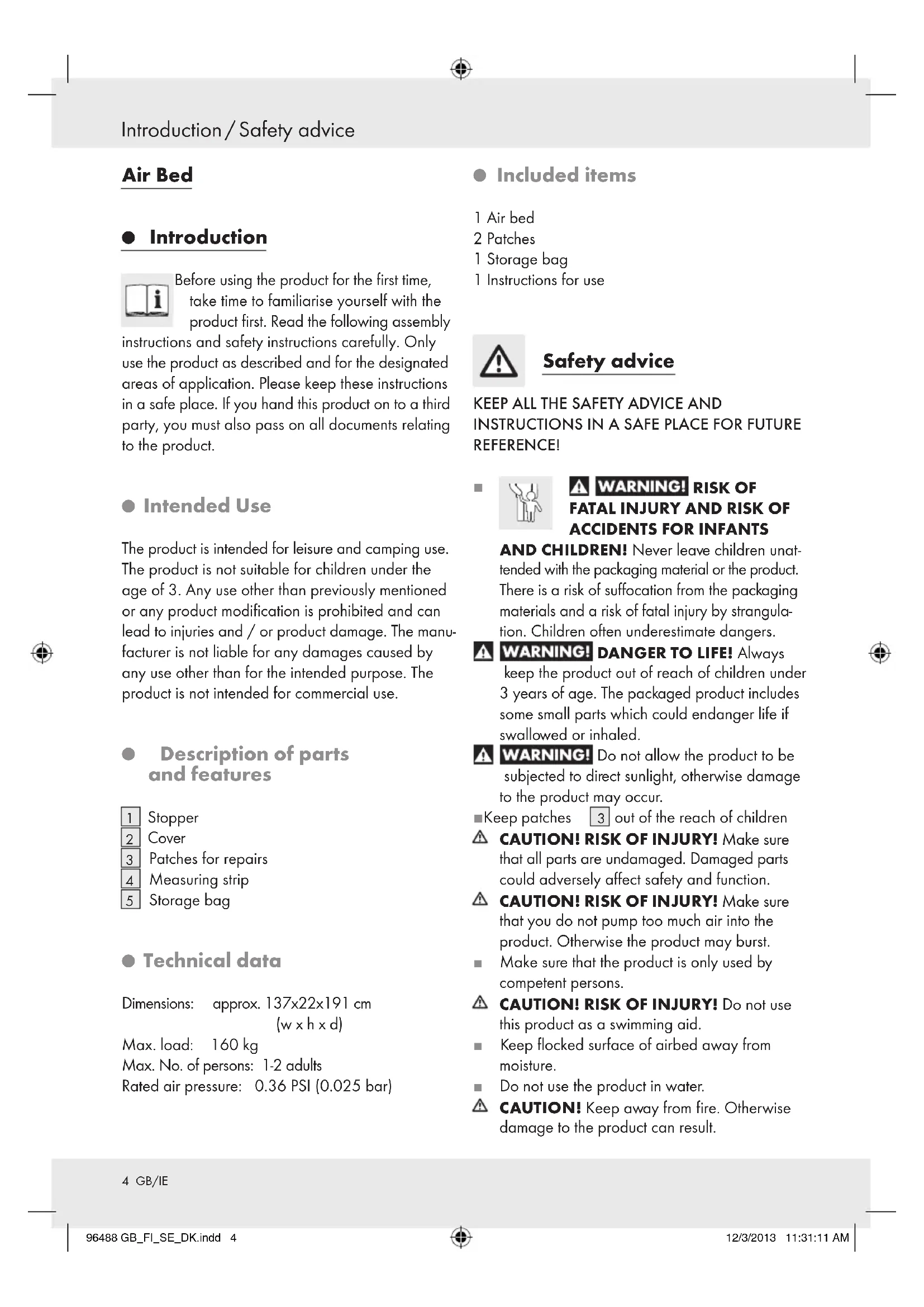

GB/IEOperation and Safety NotesPage 4

Before using the product for the first time, take time to familiarise yourself with the product first. Read the following assembly

instructions and safety instructions carefully. Only use the product as described and for the designated areas of application. Please keep these instructions in a safe place. If you hand this product on to a third party, you must also pass on all documents relating to the product.

Intended Use

The product is intended for leisure and camping use. The product is not suitable for children under the age of 3. Any use other than previously mentioned or any product modification is prohibited and can lead to injuries and / or product damage. The manufacturer is not liable for any damages caused by any use other than for the intended purpose. The product is not intended for commercial use.

Description of parts and features

1

Stopper

2

Cover

3

Patches for repairs

4

Measuring strip

5

Storage bag

Technical data

Dimensions: approx. 137x22x191 cm (w x h x d)

Max. load: 160 kg

Max. No. of persons: 1-2 adults

Rated air pressure: 0.36 PSI (0.025 bar)

- Included items

1 Air bed
2 Patches
1 Storage bag
1 Instructions for use

Safety advice

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

WARNING! RISK OF FATAL INJURY AND RISK OF ACCIDENTS FOR INFANTS

AND CHILDREN! Never leave children unattended with the packaging material or the product. There is a risk of suffocation from the packaging materials and a risk of fatal injury by strangulation. Children often underestimate dangers.

WARNING! DANGER TO LIFE! Always keep the product out of reach of children under 3 years of age. The packaged product includes some small parts which could endanger life if swallowed or inhaled.

WARNING! Do not allow the product to be subjected to direct sunlight, otherwise damage to the product may occur.

Keep patches 3 out of the reach of children

CAUTION! RISK OF INJURY! Make sure that all parts are undamaged. Damaged parts could adversely affect safety and function.

CAUTION! RISK OF INJURY! Make sure that you do not pump too much air into the product. Otherwise the product may burst.
Make sure that the product is only used by competent persons.
CAUTION! RISK OF INJURY! Do not use this product as a swimming aid.
- Keep flocked surface of airbed away from moisture.
Do not use the product in water.
CAUTION! Keep away from fire. Otherwise damage to the product can result.

CAUTION! RISK OF POISONING AND RISK OF DAMAGE TO PROPERTY! Do

not light a fire in the vicinity of this product and keep it away from heat sources.

Please make sure that this product is placed on a level surface and not on any sharp or pointed objects. Otherwise damage to the product can result.
Do not wash the product in the washing machine.
CAUTION! Ensure that the load placed on the product does not exceed 160kg . Otherwise personal injury and/or damage to the product may result.
Always use a suitable pump adapter with the air valve. Failure to observe this advice may result in damage to the air valve.

Operation

- Pumping up the product

Note: Before using the product for the first time, check it carefully for holes, porous places and seams that are not airtight.

Recommendation: Pump the product up and leave it alone for one day. Let a new product air outside in fresh air for a couple of days.

CAUTION! Inflatable plastic products react sensitively to the cold and hot. That is why you should never use the product when the ambient temperature falls to below 15^ and rises above 40^ . Otherwise damage to the product may result.

Note: Basically, only an adult should be responsible for pumping the airbed up. Make sure that you do not pump too much air into the product. On no account should you use a compressor. Stop the process when resistance increases during pumping and the seams start to stretch. Otherwise the material might tear. Only use manual pumps and / or pumps specifically designed for use with inflatable plastic products.

Roll the product out first and then check for holes, tears, and other damage (see. Fig. A).
Turn the cover 2 of the stopper 1 anti-clockwise off the air valve in order to open it (see

Fig. B I).

Pump up the product.

IMPORTANT! Keep in mind that air temperature and weather conditions can affect the air pressure inside inflatable products. In cold weather the product behaves as if it has less air pressure in it because the air inside contracts. Under these conditions you may have to add air. In hot weather the air inside expands. Under these conditions you may have to remove air in order to avoid overfilling.

Hold a ruler line at least 10cm long up to the measuring strip 4. The rated pressure is reached as soon as the measuring strip 4 is 10cm long (see Fig.D). The ruler is not included with the product.
Stop the process as soon as the airbed is fully inflated. If necessary let a little air escape.
Turn the cover 2 of the stopper 1 clockwise onto the air valve to close it.

- Deflating the air mattress

Turn the stopper anti-clockwise to open the air valve (see Fig. B II).
Let all the air out of the product.
Slowly fold up the product (see Fig. A).

Note: Ensure that the product is completely dry before you fold it up.

- Maintenance

Mending the airbed

Note: Minor damage may be repaired using the supplied repair patch. Have any major damage carried out at a specialist repair shop.

First let the air out of the product (see "Deflating the air mattress").
Clean the damaged area with alcohol.
Abrade the area around the site of the damage with fine sandpaper.
Cut a piece out of the plastic film of the repair patch 3.

5GB/IE

Maintenance / Cleaning and care / Disposal

Note: Make sure that the repair patch largely details of how to dispose of your worn-out overlaps the edges of the leak.

Place the repair patch 3 onto the damaged part.
Press the repair patch firmly down onto the leak. You may have to place a heavy object onto the relevant area.
Wait for 24 hours before you pump up the product again.

- Cleaning and care

Do not under any circumstances use corrosive or abrasive cleaning agents. These may damage the surface of the product.
Clean the flocked surface of the product using a brush.
Clean the plastic surfaces with water and / or a little mild soap solution.
Do not expose the product to extreme weather conditions such as extreme temperature, wind and rain.
Do not allow the product to be subjected to frost.
Ensure that the inside and outside of the product are completely dry if you intend to store it indoors for a long period. Failure to observe this advice could result in the build-up of mildew and mould.
- Fold up the product with the flocked surface on the inside.
Store the product in dark, dry place - out of reach of children.
The ideal storage temperature is between 10 and 20^
Make sure that the stopper 1 is shut if you want to store the product for any length of time.
Do not allow sharp objects to come into contact with the product while it is in storage.
Never powder the product with talcum.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for

6 GB/IE
