Product type	Decorative LED light star
Brand	Melinera
Model	IAN 60116
Use	Indoor and outdoor, decorative (not room lighting)
Power supply	Power adapter 220-240 V~, 50-60 Hz, output 4.5 V =, 3.6 W
LED type	6 non-replaceable LEDs, 0.15 W each
Total power	3.6 W
Protection rating	IP44 (protected against water splashes)
Protection class	II (double insulation)
Permissible ambient temperature	-21 °C to +40 °C
Cable length	Approx. 10 m
Integrated timer	6 hours on / 18 hours off, automatic daily repeat
Delivery contents	1 light star with power supply and eyelet, 1 lampshade, 1 power adapter, 1 instruction manual
Lampshade material	Plastic (not specified)
Dimensions	Not communicated
Weight	Not communicated
Cleaning	Dry, lint-free cloth; do not immerse
Repairability	LEDs non-replaceable; cable non-replaceable; no user-serviceable parts
Warranty	3 years
After-sales service France	Tel.: [phone], email: [e-mail]
After-sales service Belgium	Tel.: [phone], email: [e-mail]

Frequently Asked Questions - IAN 60116 MELINERA

How to install the LED light star?

Remove the packaging. Connect the cable to the power adapter, tighten the union nut. Open the lampshade, insert the LEDs from the top, close the lampshade and lock with the plastic hooks. Hang by the eyelet on a support suitable for the weight. Plug in the power adapter.

How to use the timer function?

After plugging in the product, press the Timer button (2). The button lights up. The timer turns the product on for 6 hours, then off for 18 hours, and repeats this cycle daily. To deactivate, press the button again.

Can the LEDs be replaced?

No, the LEDs are not replaceable. When they reach the end of their life, the entire product must be replaced.

How to clean the light star?

First unplug the product. Clean with a dry, lint-free cloth. Do not use water or liquid products to avoid any risk of electric shock.

Can this light star be used outdoors?

Yes, the IP44 rating allows outdoor use, protected against water splashes. Also suitable indoors. Operating temperature from -21 °C to +40 °C.

What is the power consumption?

The total power is 3.6 W. Even when off, the power adapter consumes a very small amount of electricity as long as it is plugged in.

Is there a warranty?

Yes, the product has a 3-year warranty from the date of purchase. Keep the receipt. The warranty covers material and manufacturing defects, but not normal wear nor damage due to misuse.

How to dispose of the light star?

Do not dispose of the product in household waste. Take it to a collection point for electronic waste. The packaging (cardboard, plastics) is recyclable.

What to do in case of malfunction?

Contact the after-sales service at the indicated numbers. In France: 0800904879 (toll-free) or [e-mail]. Have your receipt and the reference number IAN 60116 ready.

Can I use the star with another power adapter?

No, use only the supplied power adapter (model JT-DC4.5V3.6W-H4-IP44). Using another adapter voids the warranty and may be dangerous.

USER MANUAL IAN 60116 MELINERA

LED-LEUCHTSTERN / LED STAR LIGHT / ÉTOILE LUMINEUSE LED

DE AT CH

LED-LEUCHTSTERN

Operation and safety notes

NL BE

LED-STERLICH

GB/IE Operation and safety notes Page 9

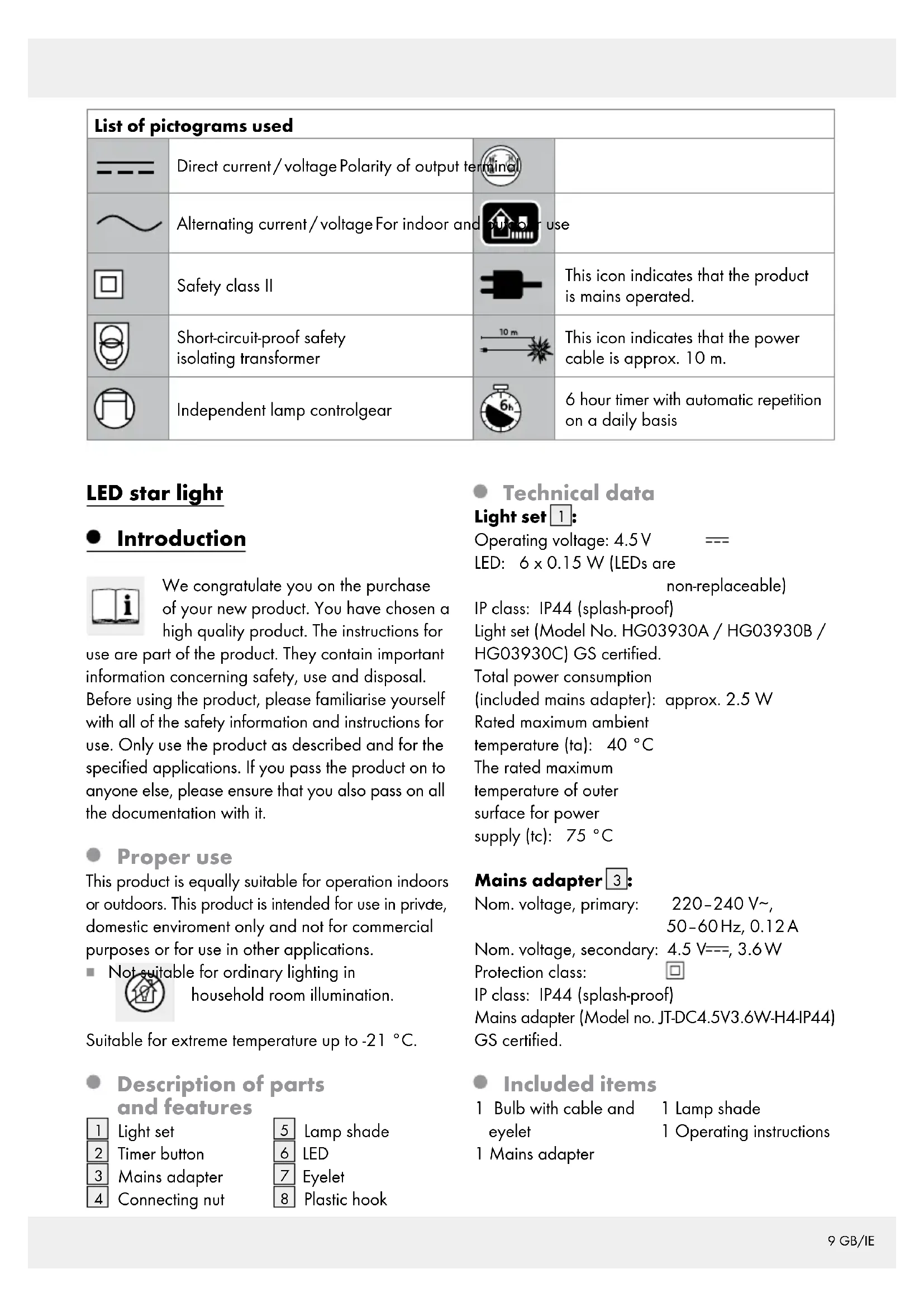

List of pictograms used
---	Direct current/voltage Polarity of output terminal
~	Alternating current/voltage For indoor and use
	Safety class II		This icon indicates that the product is mains operated.
	Short-circuit-proof safety isolating transformer	10 m	This icon indicates that the power cable is approx. 10 m.
	Independent lamp controlgear	6h	6 hour timer with automatic repetition on a daily basis

LED star light

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for

use are part of the product. They contain important information concerning safety, use and disposal.

Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper use

This product is equally suitable for operation indoors or outdoors. This product is intended for use in private, domestic enviroment only and not for commercial purposes or for use in other applications.

Not suitable for ordinary lighting in

household room illumination.

Suitable for extreme temperature up to -21^

Description of parts and features

1

Light set

2

Timer button

3

Mains adapter

4

Connecting nut

5

Lamp shade

LED

Eyelet

Plastic hook

Technical data

Light set 1:

Operating voltage: 4.5V

LED: 6 × 0.15 W (LEDs are

non-replaceable)

IP class: IP44 (splash-proof)

Light set (Model No. HG03930A / HG03930B /

HG03930C) GS certified.

Total power consumption

(included mains adapter): approx. 2.5 W

Rated maximum ambient

temperature (ta): 40^ C

The rated maximum

temperature of outer

surface for power

supply (tc): 75^ C

Mains adapter 3:

Nom. voltage, primary: 220-240 V~

50-60Hz, 0.12A

Nom. voltage, secondary: 4.5V = -3.6W

Protection class:

IP class: IP44 (splash-proof)

Mains adapter (Model no. JT-DC4.5V3.6W-H4-IP44)

GS certified.

- Included items

1 Bulb with cable and

1 Lamp shade

eyelet

1 Operating instructions

1 Mains adapter

Safety information

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

DANGYONING!

DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the product at all times.

Ensure that the product is installed by suitably experienced or qualified persons only.

This product is not a toy. It does not belong in the hands of children. Children are not able to appreciate the dangers associated with using the product.
This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

CAUTION! RISK OF OVERHEATING! Do not operate the product inside the packaging.

Do not pull the product cable and make sure it is laid down properly so that no one walks or trips over it.
The product can be used on all surfaces officially classified as being of "normal flammability".
Do not attach any other objects to the product.

Avoid the danger of death from electric shock!

Before use, ensure that the mains voltage available is the same as the required operating voltage for the product (220-240 V~).
Before connecting the product to the mains you should always check the product and the mains adapter for any damage.
Never use the product if you discover that it is damaged in any way.
This products external flexible tube is non-replaceable. Hence if it becomes damaged you must dispose of the entire product.
This product does not contain any parts which can be serviced by the user. The LEDs cannot be replaced.
Only use the product with the supplied mains adapter for the type (Model No. JT-DC4.5V3.6W-H4-IP44); all warranty claims will otherwise expire.
Never open any of the electrical parts or insert any kind of object into them.
Protect the mains cable from sharp edges, mechanical loads and hot surfaces.

Do not install with sharp fasteners or nails.

Always unplug the mains adapter from the socket before installation, dismantling or cleaning.
Never touch the product's plug or the product itself with wet hands.
The product must not be electrically connected to another set of lights.
If the product is not in use for any length of time (e.g. holidays), disconnect them from the power supply.
If you have any questions about the product or are unsure about any of its aspects, please seek the advice of an electrical equipment specialist.
The product is only suited for use with the included mains adapter (Model No. JT-DC4.5V3.6W-H4-IP44).

Please note that the mains adapter continues to draw a small amount of power even if the product is turned off as long as the mains adapter is plugged into a power outlet. To switch the product off completely, unplug the mains adapter from the socket.

The LEDs are not replaceable.
If the LEDs fail at the end of their lives, the entire product must be replaced.

Use

Note: Remove all packaging materials from the product.

Insert the plug on end of the product into the socket of the mains adapter 3. Please screw down the connecting nut 4 clockwise.
Unfold the lamp shade 5 gently and leave a gap.
Insert the Lef from above into the lamp shade 5 (see Fig. A-D).
Close the lamp shade completely, so that the shape of star form.
Insert the two plastic holes into small holes beside the opening and twist 90 degree to lock the lamp shade 5.
Use the eye to hang up the product. Note: The hang up location should be appropriate for the weight of the product.
insert the mains adapter 3 into the mains socket.
The light is switched on.
Pull the mains adapter out of the mains socket to switch off the light set 1.

- Timerfunction

To switch on the timer function, press the timer button 2 after the product is connected to the socket of power supply. The timer button 2 will light up when the timer function is activated.
The product lights glow permanently for 6 hours and will be followed by a subsequent pause of 18 hours. Afterwards, the product will light up again at its designated turn on time for 6 hours followed by a subsequent pause of 18 hours.
To switch off the timer function, press the timer button 2 again and the light of the timer but- ton 2 will be turned off.

- Cleaning and care

CAUTION! DANGER OF ELECTRIC SHOCK! First pull the mains adapter 3 out of the mains socket.

CAUTION! DANGER OF ELECTRIC SHOCK!

For reasons of electrical safety the product must never be cleaned with water or other liquids or immersed in water.

Do not use any solvents, petrol or similar items. This would damage the product.
Only a dry, lint-free cloth should be used for cleaning.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]
