USER MANUAL IAN 309488 MIOMARE

Assembly, operating and safety instructions

NL BE

WASTAFELARMATUUR

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Intended use Page 12
Parts description. Page 12
Technical Data Page 12
Scope of delivery.. Page 12

Safety information.. Page 12

Installation

Operation

Start-up.. Page 14
Using the Eco function (water saving effect) Page 14

Maintenance and cleaning.. Page 14

Maintaining and cleaning the tap . Page 14
Replacing the cartridge

Disposal

Information Page 15

Potability of tap water.. Page 15

Warranty and Service.. Page 15

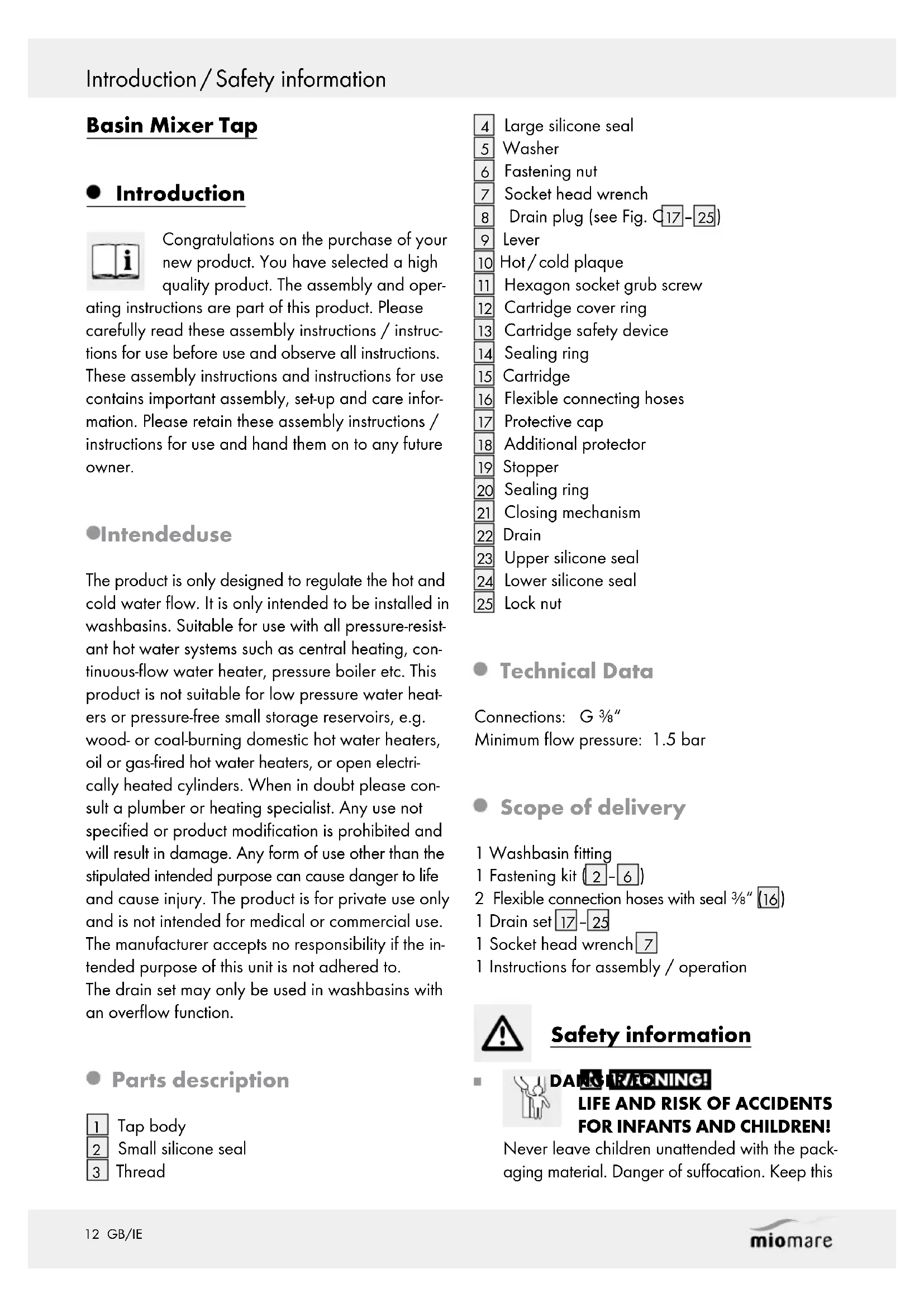

Basin Mixer Tap

Introduction

Congratulations on the purchase of your new product. You have selected a high quality product. The assembly and oper

ating instructions are part of this product. Please carefully read these assembly instructions / instructions for use before use and observe all instructions. These assembly instructions and instructions for use contains important assembly, set-up and care information. Please retain these assembly instructions / instructions for use and hand them on to any future owner.

Intendeduse

The product is only designed to regulate the hot and cold water flow. It is only intended to be installed in washbasins. Suitable for use with all pressure-resistant hot water systems such as central heating, continuous-flow water heater, pressure boiler etc. This product is not suitable for low pressure water heaters or pressure-free small storage reservoirs, e.g. wood- or coal-burning domestic hot water heaters, oil or gas-fired hot water heaters, or open electrically heated cylinders. When in doubt please consult a plumber or heating specialist. Any use not specified or product modification is prohibited and will result in damage. Any form of use other than the stipulated intended purpose can cause danger to life and cause injury. The product is for private use only and is not intended for medical or commercial use. The manufacturer accepts no responsibility if the intended purpose of this unit is not adhered to. The drain set may only be used in washbasins with an overflow function.

- Parts description

1 Tap body
2 Small silicone seal
3 Thread

4 Large silicone seal
5 Washer
6Fastening nut
7 Socket head wrench
8 Drain plug (see Fig. C17-25)
9 Lever
10 Hot/cold plaque
11 Hexagon socket grub screw
12 Cartridge cover ring
13 Cartridge safety device
[14] Sealing ring
15 Cartridge
16 Flexible connecting hoses
17 Protective cap
18 Additional protector
19 Stopper
20 Sealing ring
[21] Closing mechanism
22 Drain
23 Upper silicone seal
24 Lower silicone seal
25 Lock nut

- Technical Data

Connections: G 3 / 8

Minimum flow pressure: 1.5 bar

- Scope of delivery

1 Washbasin fitting
1 Fastening kit [2-6]
2 Flexible connection hoses with seal 3 / 8'' (16)
1 Drain set 17-25
1 Socket head wrench
1 Instructions for assembly / operation

Safety information

DA

LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Never leave children unattended with the packaging material. Danger of suffocation. Keep this

product well away from children. This product is not a toy.

BEWARE OF ELECTRIC SHOCK!

Leaking or water discharge can lead to life-threatening danger due to electric shock. Carefully check that all connections are watertight. Also ensure that all wires of electric appliances are correct and have been securely installed.

CAUTION! RISK OF INJURY! Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly could lead to injury. Please note that washers and gaskets are wear parts and therefore will need to be replaced from time to time. Damaged parts could impact safety and function.
CAUTION! DAMAGE TO THE ARTICLE! Please have all installations performed by skilled individuals.
- Be sure all seals are correctly seated.
SCALDINGRISK! When adjusting the hot water temperature be sure the water temperature is not too high.
WARNING DANGER OF SCALDING! Hot water that has collected in the washbasin can cause scalding. Let the water cool before you use the drain set.
CAUTION! Be careful not to revere the hot / cold water plaque 10. The correct placement is: left = red (hot), right = blue (cold).
Please note all seals are wear items and will therefore need to be replaced over time.
Any leakage or sudden escape of water can cause considerable damage to buildings and property. All connections must therefore be checked carefully to ensure that they are tight.
Familiarise yourself prior to installation with all local conditions, e.g. water connections and shut-off device.
The product is only suitable for use in rooms with a temperature above 0^

Installation

Note: Familiarise yourself with the product prior to assembly. Carefully read the following assembly instructions and safety advice. In the event of incorrect installation, all warranty claims - particularly in relation to subsequent damage - are excluded.

CAUTION! Before you start installation turn off the water supply at the mains. Otherwise injuries and/or property damage may occur.
CAUTION! Do not twist the connection hoses or place them under tension.

Note: this step requires a cross-tip screwdriver, a slotted screwdriver and a spanner SW 10 mm.

Proceed as follows:

Place the small silicone sea inside the groove on the base of the tap fitting.
Screw the thread 3 into the tap fitting.
Screw the two flexible connection hoses16 hand tight into the designated threaded rods inside the tap body of the tap fitting.

Note: The two flexible connection hoses 16 are colour coded. The flexible connection hose 16 being screwed into the left borehole on the tap body is the hot water hose with the red marking, the flexible connection hose 16 being screwed into the right borehole is the cold water hose with the blue marking.

CAUTION! Be sure to only tighten the flexible connection hoses hand tight. Do not use pliers or a wrench. The product may otherwise be damaged.
Insert the bathroom tap with the connection hoses 16 into the receiving hole of the wash-basin. Make sure that the connecting hoses 16 are running straight and are not being clamped.
Place the large silicone sea 4 and the washer 5 on the thread 3.
Screw the fastening nut 6 and the large silicone seal 4 under the washbasin.
Remove the protective cap 17 and the additional protector 18. Insert the drain 22 with the upper silicone seal 23 into the drain of the washbasin.
Check that the drain set is working properly.
To stop the water flow, operate the drain set by pressing the stopper 19.

Installation/Operation/Maintenance and cleaning

To drain the water, press the stopper 19 again from above.
Check the seals inside the swivel nuts on the flexible connection hoses 16.
Screw the flexible connection hoses 16 to the angle valves. Be sure to correctly install the flexible connection hoses 16 to the cold- / hot water hoses - left flexible connection hose 16 to the hot water connection, left angle valve, and the right flexible connection hose 16 to the cold water connection, right angle valve.

Operation

- Start-up

After the initial commissioning, carefully check all connections for leaks.

Check the operation of the fitting. To do so, swing the handle into all permissible positions.

Using the Eco function (water saving effect)

The cartridge in this washbasin tap has an Eco function. When you move the tap lever you will notice a slight resistance. This function limits the water flow to approx. 6 l/min. This allows you to save up to 50% more water.

Tilt the tap lever until you notice a slight resistance.
To increase the flow rate, exert slight pressure on the tap lever until you overcome the resistance.
Open the main water supply.
Lift the handle 9 and swing it to the right or left in order to regulate the speed or temperature of the water.

Hot water:

Swing the handle to the left.

Cold water:

Swing the handle to the right.

- Maintenance and cleaning

- Maintaining and cleaning the tap

Please note that sanitary taps require special care and attention. Therefore, please follow the instructions:

When cleaning, never use petrol, solvents, aggressive cleansers or hard cleaning brushes etc. These could damage the surface of the product.
Dry your fitting with a cloth after every use to prevent any lime deposits.
Clean the product with a damp, soft cloth and a mild cleaning agent if required.

Non-observation of the above care advice can be expected to result in damage to the surfaces of the product. This will inevitably invalidate the guarantee.

- Replacing the cartridge

A cartridge 15 is a wear part that needs replacing according to the hardness and / or degree of contamination of the water. This becomes evident when the handle 9 becomes difficult to move. A new cartridges 15 can be obtained from the listed service office.

Note: this step requires an open-end spanner SW 25 mm or fitting pliers.

Proceed as follows to replace the cartridge 15:

Shut off the main water supply. Allow any remaining water in the pipework to drain.
Remove the hot/cold plaque 10 by adjusting the handle to the highest position and inserting a flat object between the edge of the hot/cold plaque 10 and the outside of the handle.

Note: use light pressure to carefully push the Information

hot/cold plaque 10 outward so as not to scratch the surface.

Loosen the hexagon socket grub screw 11 with the socket head wrench by turning it counter-clockwise.

CAUTION! Do not unscrew the hexagon socket grub screw completely. Only loosen this as far as is necessary to easily remove the lever.

Remove the handle 9.
Unscrew the cartridge covering ring [12], do not use pliers or a spanner. Otherwise the product could be damaged.
Loosen the cartridge safety device 13 inside using fitting pliers or a 25mm open-end spanner and pull the entire cartridge 15 out of the tap fitting.
Insert the new cartridge into the fitting in the same manner.

Note: be sure the seal under the cartridge 15 is correctly seated. Make sure that the guides are in the corresponding holes.

Reassemble all the above parts. Tighten the cartridge lock nut using fitting pliers or an open-end spanner SW 25 mm while simultaneously securing the fitting from twisting. This will achieve tightness and ensure the handle is not difficult to move.

CAUTION! Be careful not to revere the hot/ cold water plaque 10. The correct placement is: left = red (hot water), right = blue (cold).

Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

- Potability of tap water

Please consult your local authorities on the potability of water in your town / municipality.

The following general recommendations apply to the potability of tap water:

Let the water run freely for a short time if it has been stagnating in the pipework for more than four hours. Do not use any of this stagnant water in the preparation of food or for drinking. This applies particularly as far as babies and infants are concerned. Otherwise health concerns can arise. Fresh water can be readily distinguished from stagnant water as fresh water is noticeably cooler as it leaves the pipe.
- Do not use stagnant water from chromium-plated pipework to prepare food, for drinking, or for personal hygiene if you are allergic to nickel. This water may contain high quantities of nickel and trigger an allergic reaction.
- Do not use water from lead pipework for preparing food baby food and / or to prepare foods during pregnancy. Lead dissolves in drinking water and is particularly damaging to the health of babies and young children.

Warranty and Service

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 5 years from the date of purchase. Should this product show any fault in materials or manufacture within 5 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location.

Warranty and service

This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Customer service

(Call charges are in accordance with the fixed line rates of your telephone provider)

Tel. [phone] (from abroad)

Please have the receipt and item number, e.g.

IAN 12345 ready as your proof of purchase when making an enquiry.
