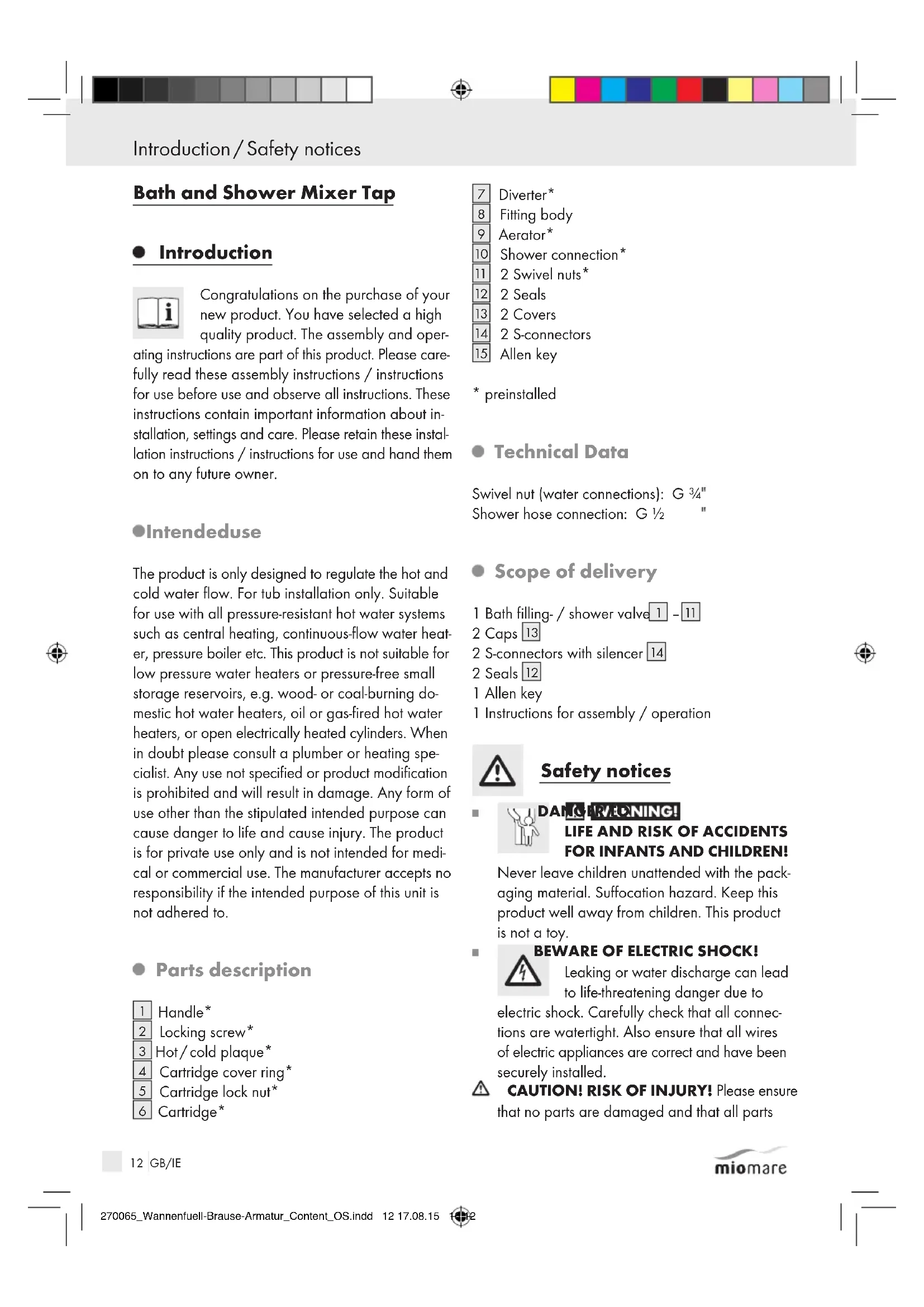

Introduction / Safety notices

Bath and Shower Mixer Tap

- Introduction

Congratulations on the purchase of your new product. You have selected a high quality product. The assembly and operating instructions are part of this product. Please carefully read these assembly instructions / instructions for use before use and observe all instructions. These instructions contain important information about installation, settings and care. Please retain these installation instructions / instructions for use and hand them on to any future owner.

Intendeduse

The product is only designed to regulate the hot and cold water flow. For tub installation only. Suitable for use with all pressure-resistant hot water systems such as central heating, continuous-flow water heater, pressure boiler etc. This product is not suitable for low pressure water heaters or pressure-free small storage reservoirs, e.g. wood- or coal-burning domestic hot water heaters, oil or gas-fired hot water heaters, or open electrically heated cylinders. When in doubt please consult a plumber or heating specialist. Any use not specified or product modification is prohibited and will result in damage. Any form of use other than the stipulated intended purpose can cause danger to life and cause injury. The product is for private use only and is not intended for medical or commercial use. The manufacturer accepts no responsibility if the intended purpose of this unit is not adhered to.

- Parts description

1 Handle*
2 Locking screw*
3 Hot/cold plaque*
4 Cartridge cover ring*
5 Cartridge lock nut*
6 Cartridge*

7 Diverter*
8 Fitting body
9 Aerator*
10 Shower connection*
11 2 Swivel nuts*
12 2 Seals
13 2 Covers
14 2 S-connectors
15 Allen key

* preinstalled

- Technical Data

Swivel nut (water connections): G 3/4"

Shower hose connection: G 1/2

- Scope of delivery

1 Bath filling- / shower valve 1 - 11

2 Caps 13

2 S-connectors with silencer 14

2 Seals 12

1 Allen key

1 Instructions for assembly / operation

Safety notices

目

DANGEMONING!

LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Never leave children unattended with the packaging material. Suffocation hazard. Keep this product well away from children. This product is not a toy.

■

BEWARE OF ELECTRIC SHOCK!

Leaking or water discharge can lead to life-threatening danger due to

electric shock. Carefully check that all connections are watertight. Also ensure that all wires of electric appliances are correct and have been securely installed.

△

CAUTION! RISK OF INJURY! Please ensure

that no parts are damaged and that all parts

12 GB/IE

miomare

Safety notices / Installation / Operation

are correctly assembled. Incorrect assembly could lead to injury. Please note that the seals are wear parts and must be changed from time to time. Damaged parts could impact safety and function.

• Be sure all seals are correctly seated.
  ■ SCALDINGRISK! When adjusting the hot water temperature be sure the water temperature is not too high.

⚠️CAUTION! Ensure that the hot / cold water plaque 3 has been attached the right way round. The correct position is as follows: left = red (hot water) right = blue (cold water).

CAUTION! DAMAGE TO THE ARTICLE!

Please have all installations performed by skilled individuals.

• Please note that the seals are wear parts and must be changed from time to time.
  ■ Any leakage or sudden escape of water can cause considerable damage to buildings and property. All connections must therefore be checked carefully to ensure that they are tight.
• Familiarise yourself prior to installation with all local conditions, e.g. water connections and shut-off device.
  The product is only suitable for use in rooms in which a temperature above 0 °C is maintained.

●Installation

Note: Familiarise yourself with the product prior to assembly. Carefully read the following assembly instructions and safety advice. In the event of incorrect installation, all warranty claims - particularly in relation to subsequent damage - are excluded.

■ CAUTION! Before you start installation turn off the water supply at the mains. Otherwise injuries and / or property damage may occur.

- Connecting the fitting

Note: this step requires an SW 30 mm open-end spanner and sealing tape.

Note: cover any parts which will be screwed with a damp cloth or plastic clamps. This will prevent scratches.

miomare

Follow these steps:

- Wrap sealing tape around the roughened threaded part ( 12 " thread) of the S-connectors 14.

Note: sealing tape not included.

☐ Screw the S-connectors 14 with the sealed threaded parts into the wall connectors.
☐ Horizontally align the screwed in S-connectors 14 with the spacing guide for the fitting.
☐ By hand, tightly screw the caps 13 onto the S - connectors 14 to the wall.
☐ Insert the seals 12 into the swivel nuts 11 and screw the fitting body 8 with the swivel nuts 11 onto the S-connectors 14.

●Connectingaccessories (shower hose and shower head)

Note: Shower hose and shower head are not included in delivery.

Note: Cover any parts which will be screwed with a damp cloth or plastic clamps. This will prevent scratches.

☐ Connect a standard shower hose to the shower connector 10.
- Connect a standard shower head to the shower hose.

Note: Also refer to the assembly instructions for the accessories.

Operation

- Start-up

After the initial commissioning, carefully check all connections for leaks.

☐ Check the operation of the fitting. To do so, swing the handle 1 into all permissible positions.
Note: If the tap has not been used for a long period, flush the pipes thoroughly to avoid stagnation and build-up of residue.
- Open the main water supply.

13 GB/IE

Operation/Maintenance and Cleaning/Disposal

☐ Lift the handle 1 and swing it up and down in order to regulate the speed or temperature of the water.

Hot water:

Swing the handle 1 to the left.

Cold water:

Swing the handle 1 to the right.

Note: When the mixer tap is open, pull the diverter button 7 upward in order to switch to the shower function

Depress the diverter button 7 in order to end the shower function.

Note: Upon closing the mixer tap the shower function is automatically ended.

● Maintenance and Cleaning

● Maintaining and cleaning the tap

Please note that sanitary taps require special care and attention. Therefore, please follow the instructions:

■ Never clean with petrol, solvents or harsh cleaners or hard cleaning brushes, etc. These can damage the product surface.
- Dry your fitting with a cloth after every use to prevent any lime deposits.
☐ Clean the shower valve with a damp, soft cloth and, if necessary, mild detergent.

Non-observance of the above care advice can be expected to result in damage to the surfaces of the product. This will inevitably invalidate the guarantee.

● Replacing the cartridge

A cartridge 6 is a wear part that needs replacing according to the hardness and / or degree of contamination of the water. This becomes evident when the handle 1 becomes difficult to move.

A new cartridges 6 can be obtained from the listed service office.

Note: This step requires an open-end spanner SW 27 mm or fitting pliers.

Proceed as follows to replace the cartridge 6:

☐ Shut off the main water supply. Allow any remaining water in the pipework to drain.
☐ Remove the hot / cold plaque 3 by adjusting the handle to the highest position between the rim and the hot / cold plaque 3 and the outside of the handle 1.

Note: Use light pressure to carefully push the hot/cold plaque 3 outward so as not to scratch the surface.

☐ Loosen the locking screw 2 with an Allen key, turning it counter-clockwise.

CAUTION! Do not completely unscrew the locking screw 2. Only loosen this as far as is necessary to remove the handle 1.

□ Remove the handle 1.

☐ Unscrew the cartridge covering ring 4, do not use pliers or a spanner. Otherwise the product could be damaged.

☐ Loosen the cartridge locknut 5 below with the fitting pliers or an open-ended spanner SW 27 mm and remove the entire cartridge 6 from the fitting body 8.

Place the new cartridge 6 into the body of the tap 8 in exactly the same way.

Note: Be sure that the seal under the cartridge is correctly in place. Make sure that the guides are in the corresponding holes.

☐ Reassemble all the above parts. Tighten the cartridge lock nut 5 using fitting pliers or an open-end spanner SW 27 mm while simultaneously securing the fitting from twisting. This will achieve tightness and ensure the handle is not difficult to move.

CAUTION! Be careful not to reverse the hot / cold water plaque 3. The correct position is as follows:

left = red (hot water)

right= blue (cold water).

- Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Disposal/Information/Warranty and Service

Contact your local refuse disposal authority for more details on how to dispose of your worn-out product.

Information

- Potability of tap water

☐ Find out about the potability of your mains water supply. Your local water authority or water supply company will be able to inform you.

The following general recommendations apply to the potability of tap water:

- Let the water run freely for a short time if it has been stagnating in the pipework for more than four hours. Do not use any of this stagnant water in the preparation of food or for drinking. This applies particularly as far as babies and infants are concerned. Health concerns may otherwise arise. Fresh water can be readily distinguished from stagnant water as fresh water is noticeably cooler as it leaves the pipe.

Do not use stagnant water from chromium-plated pipework to prepare food, for drinking, or for personal hygiene if you are allergic to nickel. This water may contain high quantities of nickel and trigger an allergic reaction.

Do not use water from lead pipework for preparing food baby food and / or to prepare foods during pregnancy. Lead dissolves in drinking water and is particularly damaging to the health of babies and young children.

● Warranty and Service

The warranty period is three years and begins on the day of purchase. Please keep your receipt as proof of purchase.

However, if defects do occur during the warranty period, after first contacting service the defective fitting may be returned freight forward to the service address specified. You will then receive a new or repaired fitting free of charge.

After the warranty period has expired you may also send the defective fitting to the address specified for repair. Repairs made after the expiration of the warranty period are subject to payment.

Note: Eisl Sanitär GmbH will replace defective fittings or supply the respective replacement parts free of charge within the warranty period. Eisl Sanitär GmbH is unable to refund the purchase price for defective fittings.

This warranty does not limit your legal rights.

The warranty period will not be extended by repairs made under warranty. This applies also to replaced and exchanged parts. Complaints are often initiated by difficulties encountered during use. Many of these complaints can be resolved by telephone or email. Please contact the service address set up for you before filing a warranty claim for the fitting with the manufacturer:

GB:

Eisl Sanitär GmbH

* Free of charge number

IE:

Eisl Sanitär GmbH

* Free of charge number

IAN 270065

Please have the receipt and item number, e.g. IAN 12345 ready as your proof of purchase when making an enquiry.

15 GB/IE

Warranty and Service

Product description:

Bath and Shower Mixer Tap

Eisl sanitary No.

NI023DISE-LIDL2
