USER MANUAL CC039 BUFFALO

UK Table of Contents

Safety Tips 1

Introduction 1

Pack Contents 1

Operation 2

Seasoning the Hot Plate 2

Making Crepes 2

Cleaning, Care & Maintenance 2

Troubleshooting 3

Technical Specifications 3

Electrical Wiring 3

Compliance 4

NL Inhoudsopgave

Veiligheidstips 5

Inleiding 5

Verpakkingsinhoud 5

Werking 6

1. Specifications techniques 11

Raccordement electrique 11

Conformité 12

• Position the appliance on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:

Health and Safety at Work Legislation
BS EN Codes of Practice
Fire Precautions
- IEE Wiring Regulations
Building Regulations

DO NOT immerse the appliance in water.
DO NOT touch the top of the appliance when in use. Surfaces are hot!
DO NOT obstruct or cover the appliance in any way when in use.
DO NOT use an extension cable to power the appliance.
- Always switch off the appliance, disconnect the power supply and allow to cool before cleaning or carrying out maintenance.
- Always switch off and disconnect the power supply to the appliance when not in use.
- Keep all packaging away from children. Dispos of the packaging in accordance to the regulations of local authorities.
- If the power cord is damaged, it must be replaced by a BUFFALO agent or a recommended qualified technician in order to avoid a hazard.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• BUFFALO Crepe Maker

Wooden Spreader

Wooden Spatula

• Instruction Manual

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

Operation

The appliance can be turned On or Off using the Temperature knob on the base.

Seasoning the Hot Plate

1. Before using for the first time the cooking surface needs to be seasoned. This will create a 'non-stick' surface on the hot plate.
2. Ensure the cooking surface is clean.
3. Brush the surface with cooking oil.
4. Connect the appliance to the mains power supply.
5. Set the thermostat to 110^ and turn the appliance On. The power indicator light turns on.
6. Once the appliance reaches temperature the power indicator light turns off.
7. Turn the appliance Off and allow to cool before wiping away any excess oil.
8. The appliance is now ready to use. Repeat as necessary throughout the life of the appliance.

Making Crepes

1. Connect the appliance to the mains power supply.
2. Set the Temperature knob to the desired temperature. The power indicator light comes on.
3. Once the appliance reaches the set temperature the power indicator light turns off.
4. Pour the required amount of batter mixture on to the hot plate.

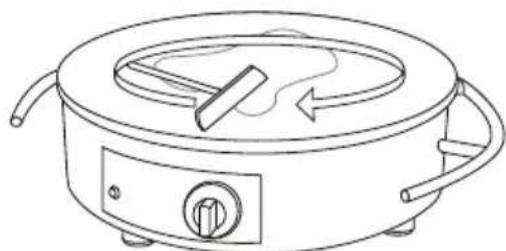

5. Spread the mixture in a circular motion around the hotplate with the spreader [Fig. 1].
6. Cook on one side before flipping with the spatula to cook the other side of the crepe.

Fig. 1

Cleaning, Care & Maintenance

• A BUFFALO dealer or qualified technician should carry out repairs if required.
• Always switch off the appliance, disconnect the power supply and allow to cool before cleaning or performing maintenance.
• If necessary wipe the exterior with a soft cloth and warm soapy water.
• Dry thoroughly after cleaning.

Troubleshooting

If your BUFFALO appliance develops a fault, please check the following table before making a call to the Helpline.

Fault Probable Cause Action
The appliance is not working	The appliance is not switched on	Check the appliance is plugged in correctly and switched on
	Safety cut out has activated Allow	unit to cool before pushing reset switch (located on underside of unit)
	Plug and lead are damaged Call BUFFALO agent or qualified technician
	Fuse in the plug has blown Replace the plug fuse
	Power supply Check power supply
	Internal wiring fault Call BUFFALO	agent or qualified technician
	Heating element has expired Call BUFFALO agent or qualified technician

Technical Specifications

Model	Voltage Power	Current		Cooking Surface Diameter	Temperature Range	Dimensions h x w x d (mm)	Weight
CC039	230V 50Hz	2900W	12.6A	410mm	60-300°C	140 X 550 X 456	17.6kg

Electrical Wiring

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.

Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Veiligheidstips

DECLARATION OF CONFORMITY

• Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärgung • Dichiarazione di conformità •

• Declaración de conformidad - Declaração de conformidade - Überensstämmlseförsakran
  Overensstemmelseserklaering • Konformitetserklaring • Selvitys vaatimustenmukaisuudesta •

EMC Council Directive 89/336/EEC

LVD Directive 2006/95/EEC

EN 60335-2-38:2003, EN60335:-

1:2002+A11:2004+A1:2004+A12:2006+A2:2006,

EN 50366:2003+A1:2006, EN 55014-1:2006

EN 55014-2:1007+A1:2001, EN 61000-3-2:2006,

EN61000-3-3:1995+A1:2001+A2:2005

BUFFALO

Fourth Way

Avonmouth

Bristol

BS11 8TB

United Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
