Product type	Professional crepe maker / waffle iron
Brand	Buffalo
Model	GF256
Voltage	230 V, 50 Hz
Power	2000 W
Current	8.7 A
Dimensions (H x W x D)	400 x 305 x 235 mm
Weight	20 kg
Temperature range	60 °C to 300 °C
Digital timer	From 1 second to 15 minutes
Preset programs	6 programs (30 s, 1 min, 1 min 30, 2 min, 2 min 30, 3 min)
Plate material	Steel with non-stick coating
Drip tray	Yes, removable for cleaning
Adjustable thermostat	Yes
Power and heating indicator	Yes
End of cooking audible alarm	Yes
Power supply	Grounded wall plug
Usage	Indoor only
Cleaning	Damp cloth, do not immerse
Maintenance	Regular descaling, no steel wool
Safety	Do not use by untrained persons, unplug before cleaning
Repairability	Repairs by Buffalo agent or qualified technician

Frequently Asked Questions - GF256 BUFFALO

What foods can be cooked with the Buffalo GF256 crepe maker?

This crepe maker allows cooking crepes, galettes, waffles, pancakes, eggs, meats or vegetables. Thanks to its temperature range from 60 °C to 300 °C, it is suitable for a wide variety of preparations.

How to use the digital timer?

Press START/STOP to start or stop the timer. Use the UP and DOWN buttons to set the duration (from 1 second to 15 minutes). The timer has 6 preset programs accessible via the PROGRAM button. At the end of the time, an audible alarm sounds.

What is the ideal temperature for cooking crepes?

The recommended temperature for crepes is generally between 185 °C and 200 °C. Set the thermostat to this range and wait for the indicator to turn off before pouring the batter.

How to clean the crepe maker after use?

Let the appliance cool down, then clean the plates with a damp cloth soaked in warm soapy water. Never use steel wool or abrasive products. The drip tray can be removed and washed in warm soapy water.

Why does the power indicator not light up?

Check that the appliance is plugged in and the switch is in the on position. If the indicator remains off, this may indicate a burnt bulb or an electrical problem. Contact a qualified technician.

Can metal utensils be used on the plates?

No, to preserve the non-stick coating, use only utensils made of wood, silicone, or heat-resistant plastic. Metal scrapers may damage the surface.

What to do if the appliance heats slowly?

Clean the cooking plates thoroughly to remove carbonized residues. If the problem persists, the heating element may be defective and requires intervention by a Buffalo certified technician.

Can the appliance be used by inexperienced persons?

This appliance is intended for professional use. Persons with reduced capabilities or without experience must be supervised and trained by a responsible person. Never leave children unattended.

How to perform the initial seasoning of the plates?

Before first use, brush the plates with cooking oil, set the thermostat to 110 °C, and let it heat until the indicator turns off. Let it cool, then wipe off excess oil. The appliance is then ready.

What are the preset timer programs?

The 6 programs are: 30 seconds, 1 minute, 1 minute 30 seconds, 2 minutes, 2 minutes 30 seconds, and 3 minutes. You can customize each program from 1 second to 15 minutes using the UP and DOWN buttons.

USER MANUAL GF256 BUFFALO

Exterior view of a BUFFALC commercial waffle grater with open lid and control panel (no text or symbols on main body)

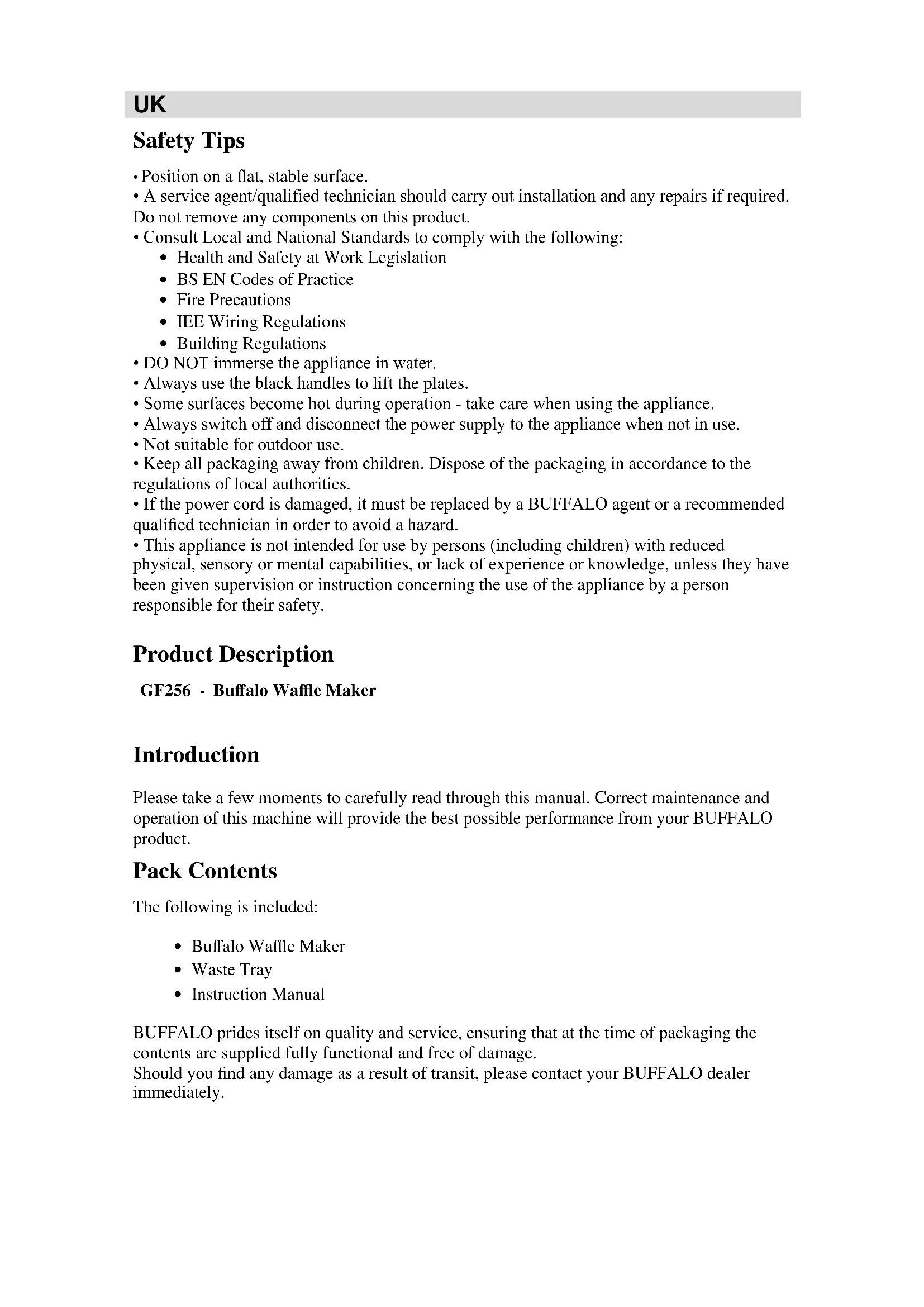

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:
  • Health and Safety at Work Legislation
  • BS EN Codes of Practice
• Fire Precautions
• IEE Wiring Regulations
  • Building Regulations

- DO NOT immerse the appliance in water.

• Always use the black handles to lift the plates.

- Some surfaces become hot during operation - take care when using the appliance.

- Always switch off and disconnect the power supply to the appliance when not in use.

- Not suitable for outdoor use.

- Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local authorities.

- If the power cord is damaged, it must be replaced by a BUFFALO agent or a recommended qualified technician in order to avoid a hazard.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

Product Description

GF256 - Buffalo Waffle Maker

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• Buffalo Waffle Maker
• Waste Tray
• Instruction Manual

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

Telephone Hotline: [phone] (UK)

Seasoning

The cooking plate surfaces need to be 'seasoned' before using for the first time.

1. Ensure the cooking surfaces are clean.
2. Brush the surfaces with cooking oil.
3. Set the thermostat(s) to 110^ C and turn the appliance On. The power indicator light turns on.
4. Once the appliance reaches temperature the power indicator light turns off.
5. Turn the appliance Off and allow the to cool before wiping away any excess oil.
6. The appliance is now ready to use.

Operation

1. Close the plates.

NOTE It may be necessary to slightly grease the plates with cooking oil before cooking depending on the foodstuff.

1. Set the thermostat(s) to the desired temperature (60°C-300°C) and turn the appliance On. The power indicator light(s) turn on.

NOTE: 185°C is suitable for general waffle cooking.

1. The power indicator light(s) turn Off when the appliance has reached the set temperature.
2. Lift the top plate and place the waffle mix on the bottom plate.
3. Lower the top plate.

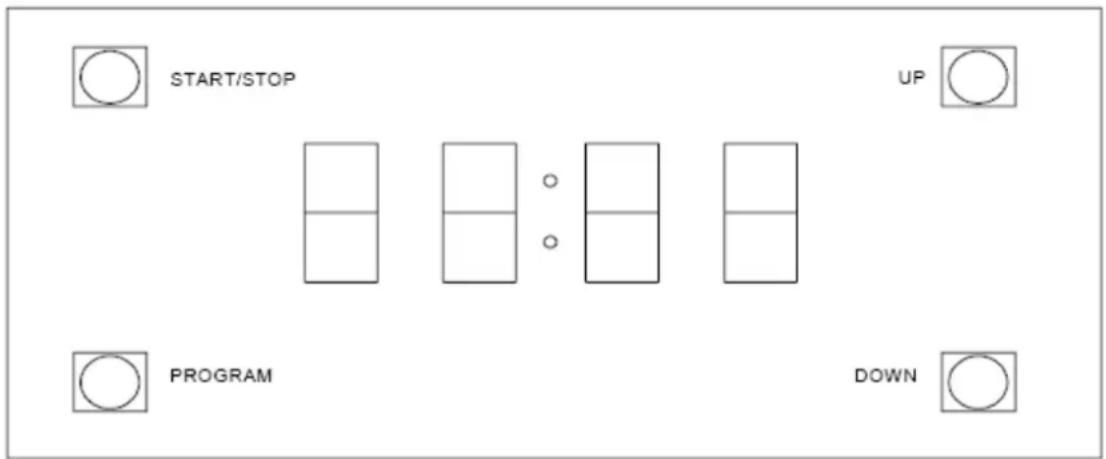

Using the Timer

START/STOP UP PROGRAM DOWN

The digital timer with audible alarm can be set from 1 second to 15 minutes.

NOTE: The timer provides an audible alarm after the set time expires. It provides no electrical control over the unit.

START/STOP: Press START/STOP to start timer, press again to stop. The timer will provide an audible alarm after the set time. The alarm will beep 10 times and the display will continue to flash until timer is reset (press the START/STOP button)

UP: Press UP to add extra time

DOWN: Press DOWN to reduce time

PROGRAM: There are a total of 6 programmable timer settings. The default factory program settings are given below.

Program	1	2	3	4	5	6
Factory Preset Time	00:30	01:00	01:30	02:00	02:30	03:00

To change the length of a program select the program you want to change by scrolling using the PROGRAM button. Adjust the program time by using the UP and DOWN buttons. Press START/STOP to commence the count down. The new program time will be automatically stored.

NOTE: If the unit is left without power for more than 24hrs the timer settings will revert to the factory defaults.

Cleaning, Care and Maintenance

If grease is permitted to accumulate, it will begin to carbonise into a hard substance that is extremely difficult to remove. To prevent this follow the cleaning steps below:

• Always turn Off the appliance and disconnect from the power supply before cleaning.
• Allow the appliance to cool before cleaning but for best results clean the plates when they are still slightly warm.
• Use warm, soapy water and a damp cloth to clean the exterior of the appliance.
• Take care when using scrapers to remove cooking residues as they can damage the cooking surface.
  • Dry thoroughly after cleaning.
• A BUFFALO dealer or qualified technician should carry out repairs if required.

NOTE: IT IS VITAL THAT THE COOKING SURFACE IS RE-SEASONED AFTER SCOURING.

WARNING: DO NOT USE STEEL WOOL AS IT MAY LEAVE SHARDS THAT COULD CONTAMINATE FOOD.

Trouble Shooting

If your BUFFALO appliance develops a fault, please check the following table before making a call to the Helpline.

Fault	Probable Cause	Action
The unit is not working	The unit is not switched on	Check the unit is plugged in correctly and switched on
	Plug and lead are damaged	Call BUFFALO agent or qualified technician
	Fuse in the plug has blown	Replace the plug fuse
	Power supply	Check power supply
	Internal wiring fault	Call BUFFALO agent or qualified technician
Appliance does not reach set temperature	Faulty thermostat	Call BUFFALO agent or qualified technician
	Faulty element	Call BUFFALO agent or qualified technician
Appliance heats up but indicator light does not come on	Bulb has expired	Call BUFFALO agent or qualified technician
Power indicator light comes on but appliance does not heat up	Faulty element	Call BUFFALO agent or qualified technician
	Faulty thermostat	Call BUFFALO agent or qualified technician
	Thermostat set Incorrectly	Check thermostat
Appliance slow to heat up	Cooking surface not clean	Clean cooking surface
	Faulty element	Call BUFFALO agent or qualified technician

Technical Specifications

Model	Voltage	Power	Current	DimensionsH X W X D (mm)	Weight(Kg)
GF256	230v 50hz	2000W	8.7A	400 x 305 x 235	20

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard. The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.

Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Veiligheidstips

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità • - Declaración de conformidad • Declaração de conformidade

Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento:

Application of Council Directives(s)

Toepassing van Europese Richtlijn(en) • Application de la/des directive(s) du Conseil • Anwendbare EU-Richtlinie(n) • Applicazione delle Direttive • Aplicación de la(s) directiva(s) del consejo • Aplicação de directiva(s) do Conselho:

Standards

Standaarden • Normes • Normen • Standard • Estándares • Normas:

EMC Directive 2004/108/EC

LVD Directive 2006/95/EC

WEEE Directive 2002/96/EC

EN 60335-2-38:2003+A1:2008, EN60335-1:2002

+A1:2004+A11:2004+A12:2006+A2:2006

+A13:2008, EN62233:2008

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
