USER MANUAL WS 1704 ADE

Icon of a person using a laptop inside a circle (no text or symbols)

Illustration of a sun and clouds against a dark background with a small tree on the ground (no text or symbols)

Illustration of a sky with clouds and a small figure, no text or symbols present

Illustration of a storm scene with raindrops and clouds on a dark background (no text or symbols)

Illustration of raindrops falling on a beach with clouds and a small tree (no text or symbols)

Illustration of a storm scene with clouds and trees against a dark sky (no text or symbols)

22089 Hamburg, Germany

22089 Hamburg, Germany

CE

Garantie

Symbol of a trash bin crossed with two crossed arms, no text or labels present

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

You have chosen to purchase a high-quality product from the brand ADE, which combines intelligent functions with an exceptional design. With this weather station, you will always have a variety of weather and temperature data available at a glance. The many years of experience of the brand ADE ensures a high technical standard and proven quality.

We wish you much enjoyment and success while monitoring and examining your weather data.

Your ADE Team

Scope of Delivery

• Weather stations consist of:
  -Base station
  -Wireless outdoor sensor
• Mains adaptor for base station
• Batteries:
  -2 x LR6 (AA) for base station
  -2 x LR03 (AAA)/1.5 V for wireless outdoor sensor
• Operating Manual

Table of Contents

Scope of Delivery 46

General Information....49

Intended Use....50

Safety 50

Your wireless weather station provides 55

Base station 56

Front view 56

Rear view....57

Side view (operating buttons)....58

Wireless outdoor sensor 60

Start-up 61

Wireless outdoor sensor....61

Base station....62

Starting signal reception 63

Checklist when data is missing in the display......64

Setting the time and date manually ....65

Starting signal reception manually 66

Choosing a location 67

Use additional wireless sensors 69

About the time signal transmitter DCF77 .... 71

Display indicators of the base station....72

Time and calendar indicator 72

Weather data 73

Weather forecast and weather trend....74

Temperature and humidity trend 75

Air pressure indicator....76

Lunar phase indicator....76

Comfort indicator....77

Saved weather data....77

Temperature and frost alarm 78

Alarm....80

Setting the alarm time 80

Switching the alarm function on/off....80

Being awakened 80

Other functions....81

Display illumination 81

Charging function via USB....81

Change temperature measuring unit......82

Switching between summer and winter time......82

Battery change indicator....82

Cleaning....83

Fault/Remedy 83

Technical Data 84

Declaration of Conformity 86

Guarantee 87

Disposal 87

About this manual

This operating manual describes how to safely use and care for your products. Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well. Failure to observe the recommendations in this operating manual can lead to injuries or damage to your product.

Explanation of symbols

This symbol, combined with the word DANGER, warns against serious injury.

This symbol, combined with the word WARNING, warns against moderate and mild injuries.

This symbol, combined with the word NOTE, warns against material damage.

This symbol signifies additional information and general advice.

-Pull the protective film off the display.

Intended Use

• The weather station – consisting of a base station and wireless outdoor sensor – displays various weather data (air pressure, temperature, etc.) pertaining to the near environment. The weather station makes a weather forecast on the basis of the measured weather data.
• Furthermore, the weather station displays the date, time, and lunar phases and is also equipped with an alarm.
• The weather station is unsuited to commercial use in weather forecasting or in taking meteorological measurements.

Safety

- This device can be used by children 8 years of age and older, as well as by persons with reduced physical, sensory, or mental capabilities or lacking experience and/or knowledge, if they are being supervised or have been instructed in the safe use of the device and understand the dangers that may arise.

- The device and the mains adaptor must be kept away from children younger than 8 years.

• Cleaning and maintenance by the user must not be carried out by children unless they are 8 years of age or older and are being supervised.
• Children must be supervised to ensure that they do not play with the device.
• The wireless weather station and mains adaptor must not be submerged in water or other liquids. Risk of electric shock! You should therefore not use the base station of the wireless weather station in the vicinity of sources of moisture, such as wash basins.
• Only use the supplied mains adaptor and replace it only with one of the same type. The mains adaptor may only be used in dry indoor spaces and must be protected from moisture.

Danger for children

• Batteries, when swallowed, can be life-threatening.
  You should therefore store the weather station, wireless outdoor sensor, and batteries out of reach of small children. If a battery is swallowed, medical assistance must be sought immediately.
• Keep children away from packaging material and other small parts included in the scope of delivery. Risk of choking if swallowed.

Danger from electricity (when using the mains adaptor)

• Connect the device to a correctly installed socket that has a voltage corresponding to that described under "Technical Data".
• Ensure that the socket is easily accessible, so that the mains adaptor can be pulled out quickly if necessary.
• Do not use the wireless weather station if the mains adaptor or mains adaptor cable are damaged.
• Do not cover the mains adaptor with curtains, newspapers, etc., and ensure sufficient ventilation. The mains adaptor can become hot.
• Completely uncoil the mains adaptor cable before connecting it. In doing so, take care to keep the cable from being damaged by sharp corners or hot objects.
• Pull the mains adaptor out of the socket:

-before cleaning the wireless weather station,

-if, during operation, there appears to be interference, during a storm.

-When doing so, always pull on the plug, not on the cable.

• Do not make any modifications to the item or to the connection cable. Only allow repairs to be carried out at a specialist workshop, since inexpertly repaired devices can present hazards to the user.
• Do not replace the mains adaptor cable. When the cable or mains adaptor is damaged, it must be disposed of and replaced with a mains adaptor of the same type.

Risk of injuries

• Attention: Risk of explosion if batteries are improperly used. Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited.
• Avoid contact of the battery fluid with skin, eyes, and mucosa. If you do come into contact with the fluid, you must immediately flush the affected areas thoroughly with clean water and promptly see a doctor.

Note on material damage

• Protect the base station and outdoor sensor from dust, impacts, extreme temperatures and direct sunlight.
• Protect the base station from moisture. Position the base station exclusively in a dry, closed room.
• The wireless external sensor is protected against moisture, it must however be protected from direct exposure to moisture, e.g. rain.
• Remove the batteries from the base station and outdoor sensor once they have been consumed or when you are no longer using the weather station. You will thus avoid damage that may result from the leakage of battery acid.
• Do not expose the batteries to any extreme conditions, e.g. by storing them on heaters or under direct sunlight. Increased risk of leakage!

• Clean the battery and device contacts, as needed, before inserting the battery.

• Always replace all batteries of the base station or wireless outdoor sensor at the same time.

• Only insert batteries of the same type; do not use different types or used and new batteries with each other.
• Do not make any modifications to the device. Only allow repairs to be carried out at a specialist workshop and pay attention to the guarantee conditions.
• Do not under any circumstances use hard, scratching, or abrasive cleaning agents or the like in order to clean the weather station. Doing so may scratch the surfaces.

Your wireless weather station provides

Weather station

• Large, clear, LED colour display
• Precise time through the reception of the DCF77 time signal (manual time adjustment possible)
  ■ 12- or 24-hour display
• Perpetual calendar with date and time indicator
• Indoor and outdoor temperature indicator in °C/°F
• Indoor and outdoor humidity indicator in percentage
• Alert at too-high and/or too-low outdoor temperature, for which upper and lower limits can be individually defined
• Weather trend and temperature trend indicator
• Humidity indicator with 24-hour history
• Memory function for max and min data of temperature and humidity
• Animated symbols for weather forecast
• Lunar phase indicator
• Comfort indicator
• Alarm
• USB charging function for smartphones, MP3 players, and the like
• Battery and mains operation possible (base station)

Wireless outdoor sensor

- Range of up to 60 metres (on open ground)

Base station

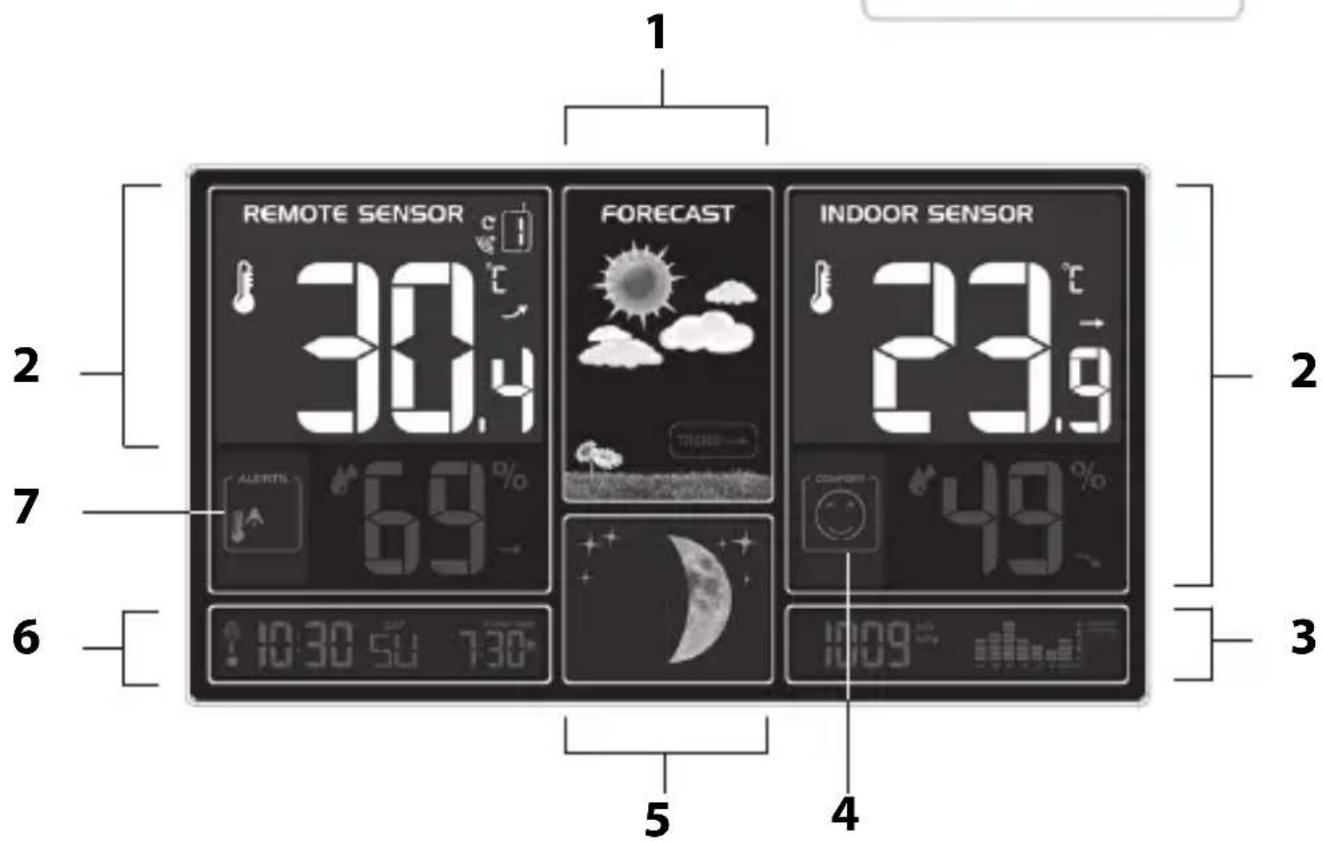

Front view

JANETHA SENSOR 30.4 6.9 23.9 JANETHA SENSOR 12.30/2017 1:00

REMOTE SENSOR 30.4 FORECAST 23.9 INDOOR SENSOR 1 2 7 6 69% 10:30 50 7:30 10:09 5 4 3

1 see "Weather forecast and weather trend"
2 see "Weather data"
3 see "Air pressure indicator"
4 see "Comfort indicator"
5 see "Lunar phase indicator"
6 see "Time and calendar indicator"
7 see "Temperature and frost alert"

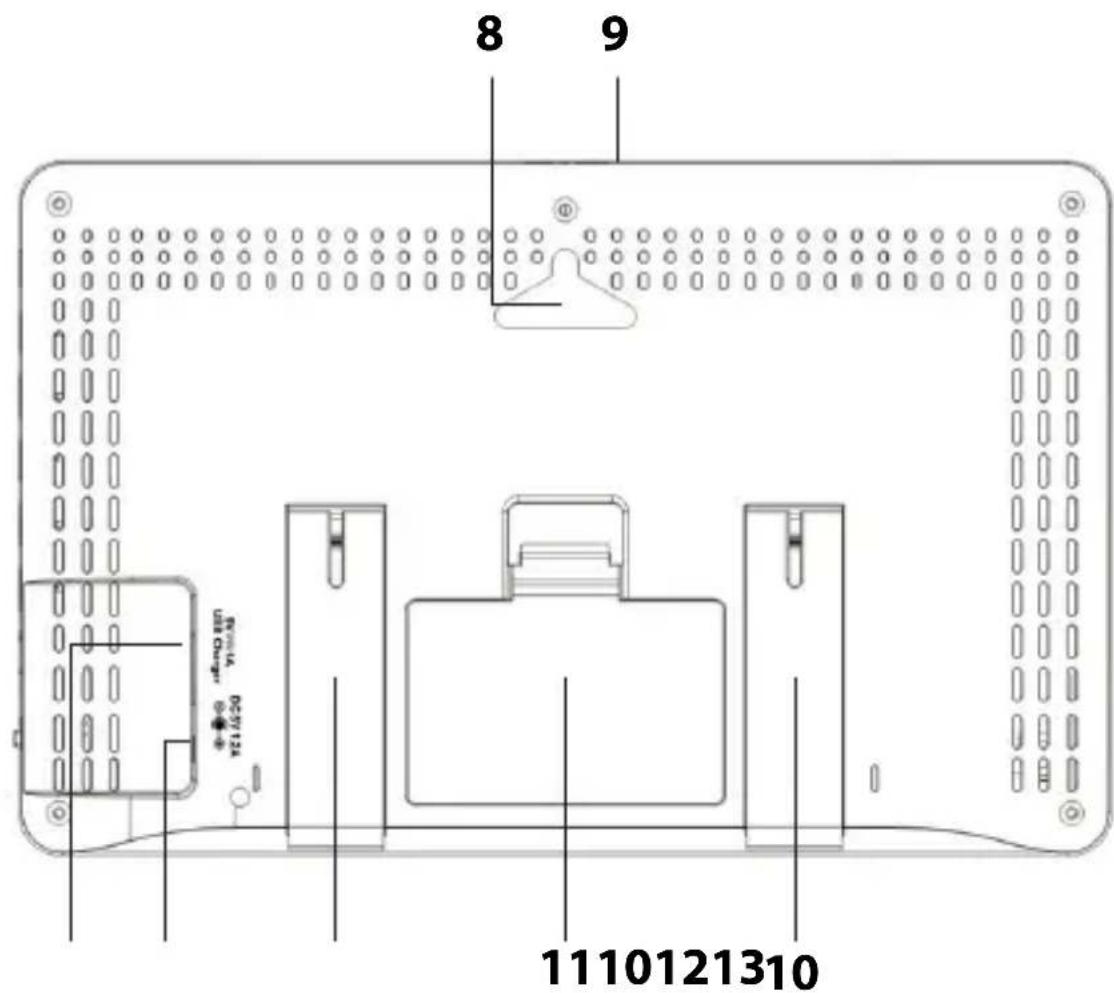

Rear view

8 9 1110121310

8 Hanging loop
9 Sensor field ⚙ / z ^z

• Switch on the display light
• Activate snooze function

10 Fold out support foot

11 Battery compartment (2x LR6, 1.5 V)
12 DC 5V 1.2A connection socket for mains adapter
13 USB connection socket for external charging (smartphone, MP3 player etc.)

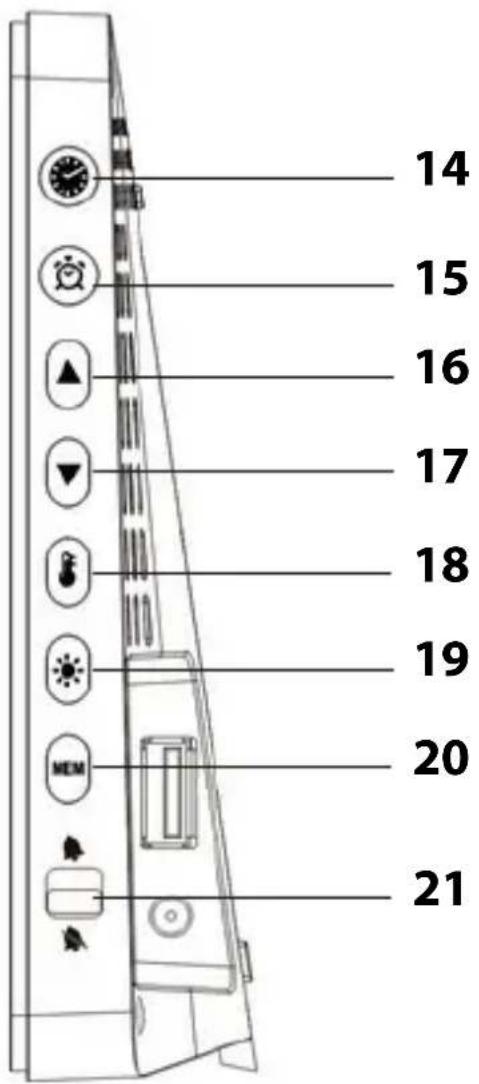

Side view (operating buttons)

14 15 16 17 18 19 20 21

14 Button

• Enable manual setting mode
• Save changed settings
• Switch between second and date display

15 Button 📤

• Setting the alarm time
• Switch between alarm time and date display

16 Button ▲

• Adjust values (increase)
• Switch between °C and °F
• Manually starting/interrupting signal reception to the time signal transmitter

17 Button ▼

• Adjust values (decrease)
• Call up data of the individual wireless outdoor sensors
• Start signal reception to the wireless outdoor sensor manually

18 Button

• Activate temperature alarm
• Set temperature limits for temperature alarm

19 Button

• Set display brightness (5 steps)
• Change air pressure unit

20 MEM button

- Display/delete saved MIN/MAX data

21 ON/OFF button

- Switch the alarm function on/off

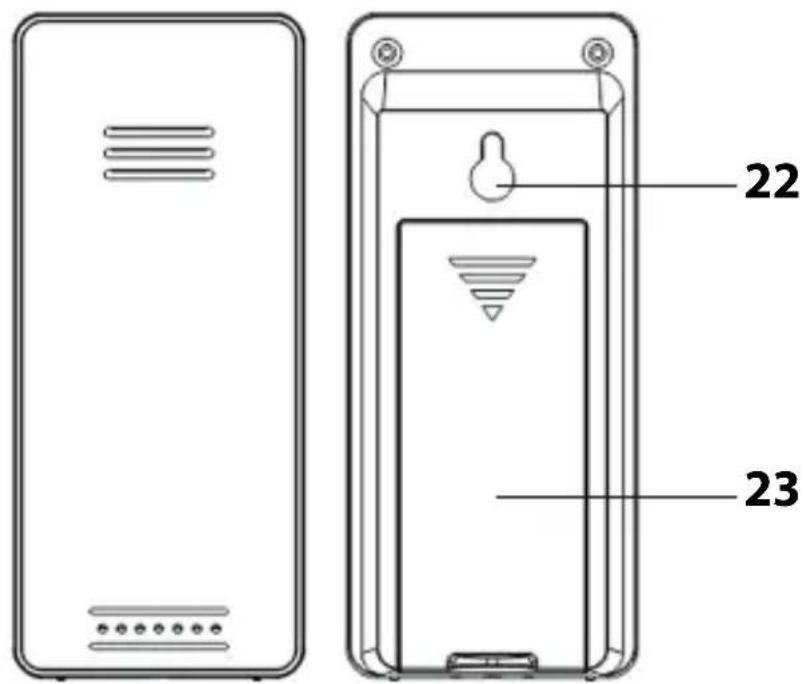

Wireless outdoor sensor

22 23

22 Hanging loop
23 Battery compartment (2x LR03, 1.5 V)

• Proceed according to the order listed below and first insert the batteries into the wireless outdoor sensor. Only then can the weather station function without flaws.
• Do not use rechargeable batteries, since their voltage is too low (only 1.2 V instead of 1.5 V). This affects, among other things, the precision of the measurements.
• Where possible, use alkaline rather than zinc-carbon batteries. Alkaline batteries last longer, especially at low outdoor temperatures.

Wireless outdoor sensor

1. Remove the battery compartment cover on the rear side of the outdoor sensor by pressing with a little force on the imprinted arrow. Slide the battery compartment cover in the direction of the arrow, away from the outdoor sensor.
2. Insert 2 batteries of type LR03 (AAA)/1.5 V as depicted on the bottom of the battery compartment. Pay attention to the correct polarity of the batteries (+/-).
3. Slide the battery compartment cover back into place on the outdoor sensor.

Base station

You can operate the wireless weather station with the mains adaptor or with batteries.

If the wireless weather station is connected to a mains socket, then it operates via mains power, even when the batteries are inserted in the device. Remove discharged batteries from the battery compartment, since they can leak.

NOTE on material damage

- For operation via mains power, use only the mains adaptor delivered with the weather station.

Current mode

1. Plug the plug of the supplied mains adapter into the DC 5V 1.2A connection socket of the base station.
2. Plug the mains adaptor into a socket that has a voltage corresponding to that described under "Technical Data".
3. Wait approx. 30 minutes. The base station requires this time to collect all weather data and to receive radio signals from the time signal transmitter.

Battery operation

1. Push in a bit the closing flap towards battery compartment cover and remove the cover of the battery compartment.

2. Insert 2 batteries of the type LR6 (AA)/1.5 V as depicted on the bottom of the battery compartment. Pay attention to the correct polarity (+/-).

3. Put the battery compartment cover back in place.

4. Wait approx. 30 minutes. The base station requires this time to collect all weather data and to receive radio signals from the time signal transmitter.

Starting signal reception

When the base station is energised, all displays are shown for a brief moment. Furthermore, the display is briefly lit up and a beep sounds.

The device then switches to receiving-mode, during which the number of radio waves indicates the quality of the reception: The more radio waves shown on the display, the better is the reception.

During signal reception to the time signal transmitter all buttons are disabled (except for ▲).

As soon as the signals from the time signal transmitter and wireless outdoor sensor have been received in sufficient strength, the respective data is permanently shown in the display.

Time signal transmitter:	Time and DateRadio tower symbol
Wireless outdoor sensor:	outdoor temperatureHumidity
Base station: indoor	temperatureHumidity

From now on, the weather station automatically switches to receiving-mode multiple times each night. During this process, the displayed time is compared with that received from the time signal transmitter and, if necessary, corrected.

If no sufficiently strong signal has been received,

the base station aborts the receiving process after a few minutes and the radio-tower symbol goes out. The receiving process is started again at a later point in time. In this case, the time proceeds as usual (beginning with the start time of "00:00").

Data from the wireless outdoor sensor are transmitted continuously several times per minute.

Checklist when data is missing in the display

No data display from the time signal transmitter

1. Check whether the location of the base station is suitable, see "Choosing a location".

2. Restart reception manually, see "Manually starting signal reception".

3. Wait until the base station automatically switches back to reception at a later time. The reception is usually better at night.

4. Manually perform the settings if reception is not possible at your location, see "Setting the time and date manually".

No data display from the wireless outdoor sensor

1. Check whether you have inserted the batteries correctly.

2. Check whether the location of the wireless outdoor sensor is suitable, see "Choosing a location".

3. Press and hold ▼ to manually start signal reception to the outdoor sensor.

Setting the time and date manually

If there is more than approx. 20 seconds between two pushes of a button, the setting process automatically ends and you will have to repeat it.

1. Press and hold the ⚙ button until the indicator for the 12- and 24-hour time format blinks on the display.
2. Using the ▲ and ▼ buttons, set the desired time format ("12 hr" or "24 hr").

3. Press ⚙ in order to save the settings. On display "00".

4. By the ▲ or ▼ button, select your time zone (the proper setting for the most countries of Europe is "00").

5. Proceed as previously described.

-Press the ▲ or ▼button to set the desired value.
-Press 📧 to save the settings.

1. Carry out the following settings:

-Hours
-Minutes
-Date format (Day/Month or Month/Day)
-Year
-Month
-Day
-Language (relates exclusively to the weekday indicator)

1. Finally, press ⚙ to conclude the procedure.

Starting signal reception manually

If the radio signal symbol to the left is no longer displayed, the radio signals from the time signal transmitter are no longer being received. The time indicator nevertheless continues precisely.

-Press and hold the ▲ button until the radio signal symbol is displayed again. The signal reception is thus started manually.

Pay attention to the following:

• If the reception was not successful, the reception symbol fades out after a few minutes and the time on the display continues normally.
• Upon successful signal reception, the base station adjusts itself to the time of the time signal transmitter. If you have already carried out manual time and date settings, these will be automatically adjusted.

Choosing a location

NOTE on material damage

• Protect the base station and wireless sensor from dust, impacts, extreme temperatures and direct sunlight.
• Protect the base station from moisture. Position the base station exclusively in a dry, closed room. The wireless sensor is protected against moisture, but must be protected from direct exposure to moisture, e.g. rain.

Signal reception between the base station and wireless outdoor sensor

• The maximum distance between the base station and the outdoor sensor is 60 metres. This range is, however, only possible with “direct line of sight”.
• Protective construction materials such as reinforced concrete reduce or inhibit signal reception between the base station and outdoor sensor.
• Devices such as TVs, cordless phones, computers, and fluorescent tubes can likewise disrupt signal reception.
• Do not place the base station and the outdoor sensor directly on the ground. This limits the range.
• At low temperatures in winter, the performance of the outdoor sensor batteries can markedly decrease. This reduces the transmission range.

Signal reception between the base station and time signal transmitter

• Maintain distance from TV sets, computers, and monitors. Also, base stations from cordless phones should not be located in immediate proximity to the weather station.
• The reception is generally better at night. If the base station did not have reception during the day, it may well be that the signal will be immediately and fully received at night.
• Depending on your location, it can infrequently happen that the base station receives signals from another time signal transmitter or even alternately from two time signal transmitters. This is not a fault in the device. In this case you should change the location of the base station.
• The weather, e.g. a heavy storm, can cause interference with the reception.
• Temporary shutoffs of the transmitter can sometimes happen, e.g. because of maintenance work.

Setting up the base station

The base station has two fold out support feet and a suspension eyelet on the back panel.

- Set up the base station as close to a window as possible. Here, the reception will generally be best.

Setting up the wireless outdoor sensor

The wireless outdoor sensor has a suspension eyelet on the back panel.

- Place or hang the outdoor sensor at a position where it is protected from the direct influence of the weather (rain, sun, wind, etc.). Suitable locations are, for example, under an awning or in a carport.

Use additional wireless sensors

The base station is supplied with a wireless sensor.

However, you can operate it with up to three outdoor sensors.

For more information or priced order please use the following email address: [e-mail].

• The outdoor sensors can be situated in different spaces or outdoors.
• Every sensor must be allocated its own number (= no. of the transmission channel).

Procedure:

1. Place the base station and wireless sensors close together.
2. Remove the battery compartment cover on the rear side of the outdoor sensor.
3. For each outdoor sensor, set a unique channel using the switches. Sensor included in delivery uses by default channel 1, so select channel 2 for the second and channel 3 for the third sensor.
4. Insert two batteries of the type indicated on the base. Pay attention to the correct polarity (+/-).

5. Put the battery compartment cover back in place.

6. Using the ▼ button, select the corresponding outdoor sensor (1, 2 or 3) in order to have its data displayed.

- You can also repeatedly press the button, until, next to channel indication of the respective wireless outdoor sensor is displayed. This is a sign that the data from the outdoor sensors will automatically be called up and displayed in succession.

- If the channel number is not displayed after inserting the batteries, press the TX button for the respective wireless sensor. This way, the weather data is transmitted directly to the base station.

Then you can install the new wireless outdoor sensor on the appropriate location.

About the time signal transmitter DCF77

The radio-controlled clock integrated into the weather station receives its radio signal from the DCF77 time signal transmitter. This broadcasts the precise and official time of the Federal Republic of Germany on the long-wave frequency of 77.5 kHz.

The transmitter is located in Mainflingen near Frankfurt am Main and, with its range of up to 2000 km, supplies the majority of radio-controlled clocks in western Europe with the necessary radio signals.

As soon as the base station is supplied with current (batteries or mains power), it switches to receiving mode and searches for the signal from the DCF77 transmitter. If the time signal is received in sufficient strength, the display shows the date and time.

The base station switches on multiple times daily and synchronises the time with the radio signal from the DCF77 transmitter. In the event the signal is not received, e.g. during a strong storm, the device continues to run precisely and then switches to receiving mode again at the next scheduled time.

Display indicators of the base station

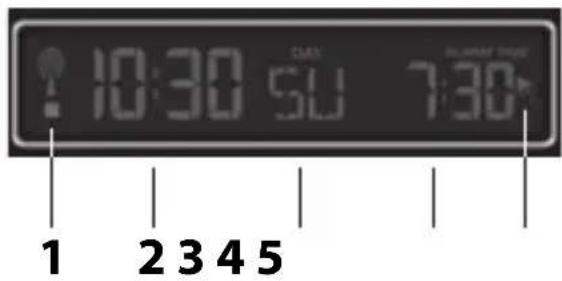

Time and calendar indicator

10:30 5:1 7:30 1 2 3 4 5

1 Symbol for signal reception from time signal transmitter
2 Current time in 12- or 24-hour format For the time indication in 12-hour format, "PM" is displayed in the afternoon.
3 Current day of the week
4 · Set alarm time or

• day and month or
• second indication

Default indication is day and month. Select current indication by the 🔊 and ⏻ buttons.

5 Alarm is activated, see "Alarm"

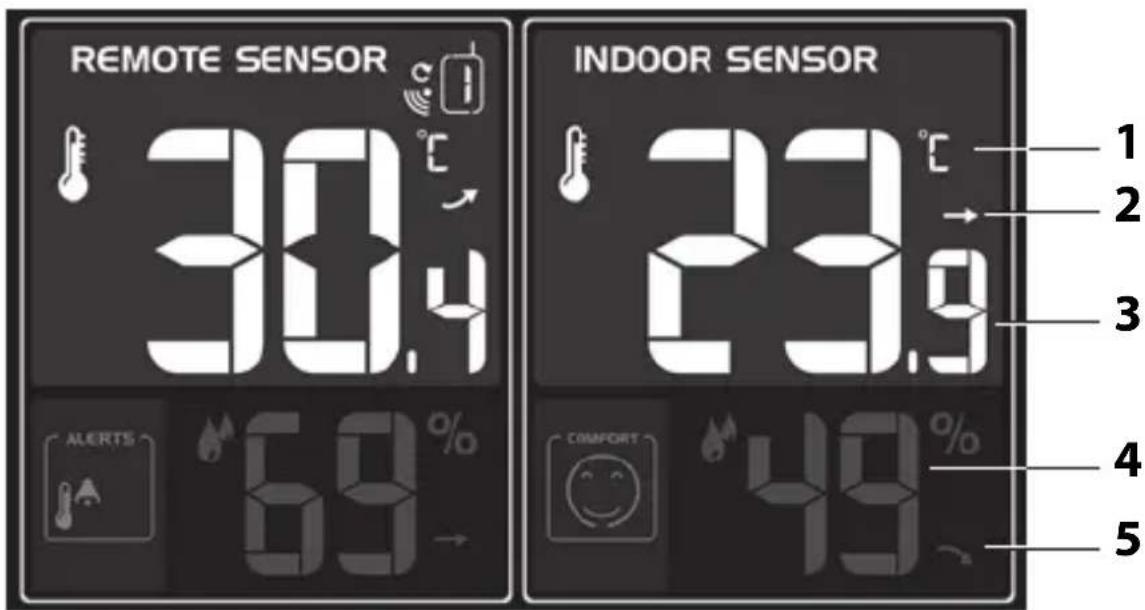

Weather data

REMOTE SENSOR 30.4 INDOOR SENSOR 29.9 1 2 3 4 5 69% 69% COMFORT 49%

Information displayed for the outdoor (REMOTE SENSOR) and indoor area (INDOOR SENSOR) are largely identical.

1 Temperature unit (°C or °F)
2 Temperature trend, see "Temperature and humidity trend"
3 Temperature in degrees Celsius or Fahrenheit
4 Humidity in percentage
5 Trend for humidity, see "Temperature and humidity trend"

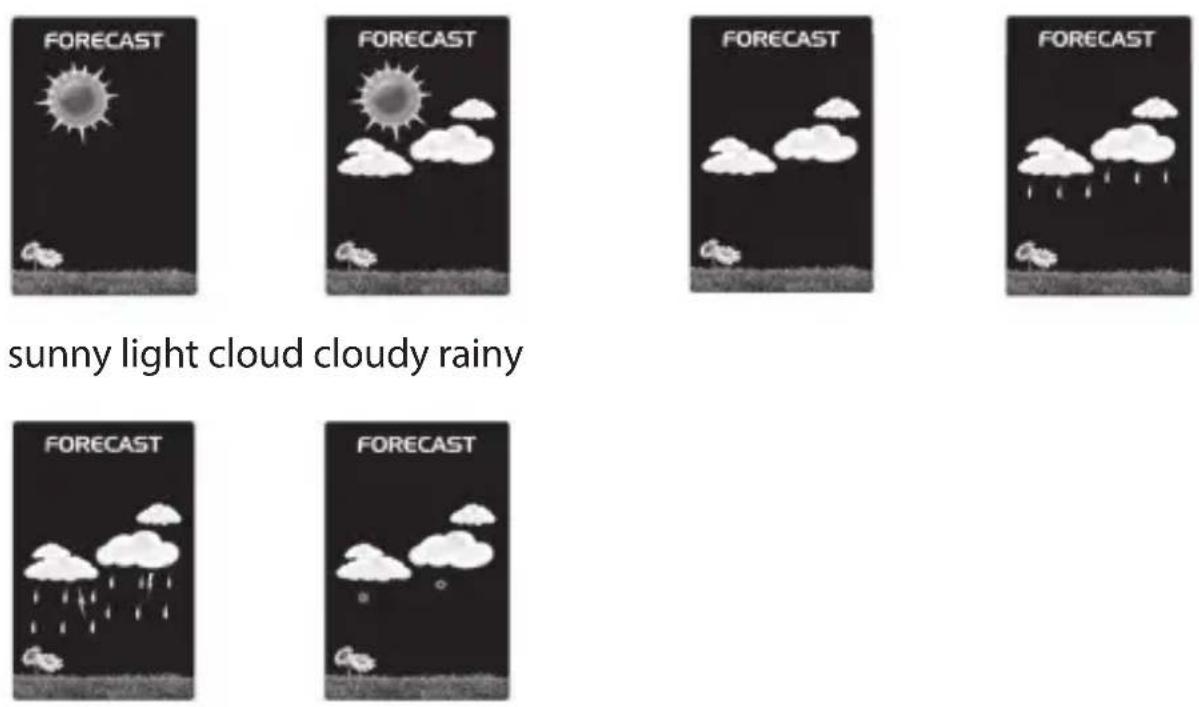

Weather forecast and weather trend

After start-up, the information can still not be used for weather forecasting for approximately 12 hours, since the weather station needs this time to collect and analyse the weather data.

The weather forecast is based on the collected data and the measured air pressure changes.

The forecast pertains to the region around the weather station with a radius of approx 30 to 50 km, for a period of 12 to 24 hours.

The accuracy of the weather forecast lies around 75%.

The weather symbols indicate the weather developing in the next 8 hours, not the current weather.

heavy rain snowfall

In conjunction with the air pressure trend, further weather interpretations are possible.

rising air pressure

constant air pressure

falling air pressure

Two examples:

• Weather forecast shows rain, the air pressure is falling off quickly and steeply >> strong rain is probable.
• Weather forecast shows rain, the air pressure has risen in the last 12 hours but in the last 3 hours as fallen off somewhat >> light rain is probable.

Temperature and humidity trend

For the temperature and air humidity values measured by the base station and wireless outdoor sensor the trend is displayed in the form of an arrow:

rising

constant

falling

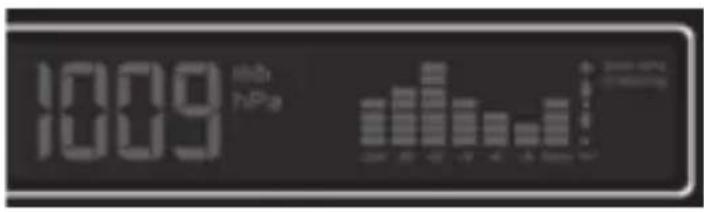

Air pressure indicator

1009 mb hPa 2020-074 (2020-074) (2020-074)

The currently prevailing air pressure is displayed in the selected measurement units.

Air pressure history for the recent 24 hours is displayed beside to the right.

Changing measurement units:

1. Press and hold the ⚙ button until the measurement unit of the air pressure starts flashing.
2. Set by the ▲ or ▼button the desired measurement unit (mb HPa or InHg).
3. Press ⚙ to confirm the setting.

Lunar phase indicator

The displayed lunar phases are automatically updated with the date.

new moon waxing crescent half-moon

waxing gibbous

full moon waning gibbous half-moon

waning crescent

Comfort indicator

The comfort indicator consists of temperature (T) and humidity (L). Values are measured by the base station.

T: very pleasant

L: very pleasant

T: pleasant

L: pleasant

T: a little too cool or warm

L: a little too dry or wet

T: too cold or warm

L: considerably too dry or wet

T: much too cold or hot

L: much too dry or wet

Saved weather data

Using the MEM button, you will get the highest and lowest temperature and humidity values for the last 24 hours displayed.

• Press 1x: MAX values are displayed
• Press 2x: MIN values are displayed
• Press 3x: normal display indicator

In order to delete the saved values:

- Press and hold the MEM button for approx. 3 seconds until the displayed values are deleted.

Temperature and frost alarm

General information

• Using temperature alarm, you can monitor the temperature range. If the upper or lower temperature limit is over- or underrun, you are warned by visual and acoustic signals.
• You can set the temperature limits yourself. Default setting: -20 to 60°C.
• If you have several wireless outdoor sensors in use, you can set a temperature range for each outdoor sensor individually.

Setting temperature range

1. Only if you have several wireless outdoor sensors are connected with the base station: Using the ▼button, select the desired sensor (mind the channel indication).
2. Press and hold the ⚙ button until an arrow and "Hi" start flashing in display.
3. Using the ▲ and ▼ buttons, adjust the upper temperature limit.
4. Press 🖼 in order to save the entry.
5. Using the ▲ and ▼ buttons, adjust the lower temperature limit.
6. Then press 📄.

Activate temperature alarm

-Press the 🎨button 1x to activate the temperature alarm.

Once the temperature limit is reached, the warning signal sounds and "ALERTS" and the temperature indication start blinking. Press any button to switch off the warning tones.

• If the temperature exceeds the preset temperature upper limit, "Hi" is blinking additionally in the display.
• If the temperature is lower than the preset temperature lower limit, "LO" is blinking additionally in the display.

Blinking remains active until...

• ... the preconditions for the temperature alarm exist or
• ... you press the button once: "ALERTS" goes out and blinking of the temperature stops.

Frost alert

When the temperature alarm is active (see previous step), the frost alarm is automatically active too.

If an ice symbol is shown in the display, the measured outdoor temperature is in the range from -1^ to 3^ ( 30^ to 37^ ).

Even if the frost alarm is not displayed, the risk of frost or glaze ice always exists at temperatures around the freezing point.

Setting the alarm time

1. Press once.

ALARM TIME is shown in the display.

1. Hold down ⚙️ for a few seconds until the alarm hour indicator blinks.

2. Using the ▲ and ▼ buttons, set the desired alarm hour.

3. Press 📋.

The minute indicator for the alarm time blinks on the display.

1. Using the ▲ and ▼ buttons, set the desired alarm minute.

2. Finally, press 🔒 to save the settings.

Switching the alarm function on/off

- Set the alarm function on (ON) and off (OFF) by the lower switch. As soon as the alarm symbol is displayed, the alarm function is activated.

Being awakened

At the set time you will be woken by an alarm signal, which will become more intense as the waking time increases.

Switching the alarm off completely

-Press any button on the base station (except to stop the alarm.

Auto-stop function

If you do not press a button, the alarm switches off automatically after 2 minutes. After 24 hours, the alarm will be triggered again.

Repeat alarm (snooze function)

-Tap the sensor field once, when the alarm signal sounds.

The alarm signal is muted and ⚠️ and z ^z are flashing.

After 5 minutes, the device switches on again and wakes you up again. This procedure can be repeated multiple times.

Other functions

Display illumination

Battery operation

-Tap the sensor field to switch on the display illumination for approx. 15 seconds.

Mains operation

If you operate the base station using the mains adaptor over the mains supply, the display is permanently lit.

-Press repeatedly the ⚙ button to select one of the five different brightness levels.

Charging function via USB

Via the USB socket on the rear side of the base station, you can charge devices such as smartphones or MP3 players when the base station is being operated via mains power.

Pay attention to the manufacturer's instructions for the device you are connecting.

-Connect the USB socket and the external device using a USB cable (not included).

Change temperature measuring unit

-Press the ▲button to display the temperature in °Celsius or °Fahrenheit.

Switching between summer and winter time

Switching between summer and winter time, or vice versa, takes place automatically with good time signal reception. When daylight saving time is active, the display shows "DST" (Daylight Saving Time).

Battery change indicator

Both base station and wireless outdoor sensor has its individual battery replacement indication.

If the symbol is shown in the display, you need to replace the batteries of the base station (INDOOR SENSOR) or wireless outdoor sensor (REMOTE SENSOR) with new ones.

Proceed as described in "Start-up".

Pay attention to the following:

• Only use the type of battery that is specified in the "Technical Data".
• Always exchange all of the batteries at the same time.
• Dispose of batteries in an environmentally appropriate way (see “Disposal”).

Cleaning

1. During operation via the mains: Pull the mains adaptor plug out of the base station.
2. Using a lightly dampened cloth, wipe the base station and wireless outdoor sensor clean, as needed.
3. Dry the device completely before you reconnect it with the mains adaptor.

Fault/Remedy

Fault Possible Cause
The DCF77 signal for the time cannot be received.	· Check the chosen location.· Start the signal reception manually, if necessary.· Adjust the time manually.
Temperature indication of the outdoor sensor appears too high.	· Check whether the outdoor sensor is exposed to direct sunlight.
Instead of showing the measured values for temperature or humidity, the display shows H.HH or LL.L.	· The values lie above or below the measurement range.
The indicator is illegible, the function is unclear, or the values are obviously false.	Reset the weather station to the original delivery state.
The base station is not receiving signals from the wireless sensor.	Ensure that no electrical sources of interference are located in the vicinity of the wireless sensor or of the base station.Check the batteries in the sensor.Move the base station closer to the sensor, or vice versa.
The time differs by exactly one, two, three, etc. hours.	You have probably set an incorrect time zone.

Technical Data

Base station

Model: Weather Station WS 1704

Input:

5V = 1.2 A

Batteries:

2x LR6 (AA), 1.5 V

Measuring range

-Temperature: 0^ C - 50^ C ( 32^ F - 122^ F)

-Air pressure: 600 hPa/mb-1100 hPa/mb

or 17.72 inHg-32.50 inHg

or 450.0 mmHg-825.0 mmHg

-Humidity: 20% - 95%

Wireless outdoor sensor

Batteries: 2x LR03 (AAA)/1.5 V ---

Measuring range:

-Temperature: -20 °C - 60 °C (-4 °F - 140 °F)

-Air pressure: like base station

-Humidity: like base station

Transmission frequency: 433.92 MHz

Max. Transmission power: + 10 dBm

Range: approx. 60 metres (open terrain)

Mains adaptor

Input: 100-240 V\~, 50/60Hz

Output: 5 V = /1.2 A

Protection class: || ||

Distributor: Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Our products are constantly being developed and improved. For this reason, design and technical modifications are possible at any time.

Declaration of Conformity

We, Waagen-Schmitt GmbH, hereby declare that the weather station WS1704 conforms to Directives 2014/53/EU, 2014/35/EU and 2011/65/EU.

The full text of the EU Declaration of Conformity is available at the following Internet address:

www.ade-germany.de/doc

This declaration loses its validity if modifications are made to the product without our approval.

Hamburg, March 2018

Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

C€

Guarantee

Dear Valued Customer,

The company Waagen-Schmitt GmbH guarantees for 2 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange.

In the event of a guarantee claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.

Disposal

Disposing of the packaging

Dispose of the packaging with similar materials. Put cardboard with waste paper, films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Symbol of a trash bin crossed with two crossed arms, no text or labels present

Devices must not be disposed of in normal household waste

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Recyclable and disposable batteries do not belong in household waste

All batteries must be handed in at a collection point in your community, suburb, or at the retailer. Such batteries can thus be disposed of in an environmentally friendly way.

Weather forecast illustration showing sun, clouds, and a small cloud on a dark background (no text or symbols)

Illustration of a cartoon character with cloud-like shapes against a dark background, no text or symbols present.

FORECAST

Illustration of raindrops falling on a beach with a 'FORECAST' text above (no other symbols or text)

Illustration of a cartoon character with clouds and a small figure on a ground, against a dark background (no text or symbols)

$$ 2 \times L R 0 3 (A A A) / 1, 5 V = $$

Rango de medida:

-Temperatura:

$$ - 2 0 ^ {\circ} \mathrm{C} - 6 0 ^ {\circ} \mathrm{C} (- 4 ^ {\circ} \mathrm{F} - 1 4 0 ^ {\circ} \mathrm{F}) $$

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Station de base....146

Vue de face....146

Illustration of a sunny landscape with clouds and a small figure, labeled 'FORECAST' at the top (no other text or symbols)

Black-and-white illustration of a landscape with clouds and a small figure, no text or symbols present.

Illustration of weather with raindrops and a small cloud on a ground (no text or symbols)

Illustration of raindrops falling on a dark ground with clouds and raindrops (no text or symbols)

Illustration of a storm scene with clouds and rain on a dark background (no text or symbols)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Illustration of a sunny landscape with clouds and a small tree on the ground, labeled 'FORECAST' above (no other text or symbols)

Illustration of a sky with clouds and a small tree on the ground, labeled 'FORECAST' at the top (no other text or symbols)

Illustration of a rain scene with clouds and raindrops over a grassy field, no text or symbols present.

sereno poco nuvoloso nuvoloso pioggia

Illustration of raindrops falling on a ground with a cloud and tree, labeled 'FORECAST' (no other text or symbols)

Illustration of a landscape with clouds and a small tree on a grassy field under a 'FORECAST' label (no other text or symbols)

pioggia forte neve

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Symbol of a trash bin crossed with no text or labels

Illustration of raindrops falling on a dark ground with a small cloud nearby (no text or symbols)

Illustration of a sky with clouds and raindrops against a dark background (no text or symbols)

22089 Hamburg, Germany

22089 Hamburg, Germany

C€

Gwarancja

Szanowni Państwo,

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)
