USER MANUAL OV 124 ECG

1. User memory code
2. Female/Male
3. Water Index (%)
4. Fat/muscle mass/bones index (%)
5. Indication of obesity degree
6. Height unit
7. Age
8. Unit of weight
9. Calories unit

FR

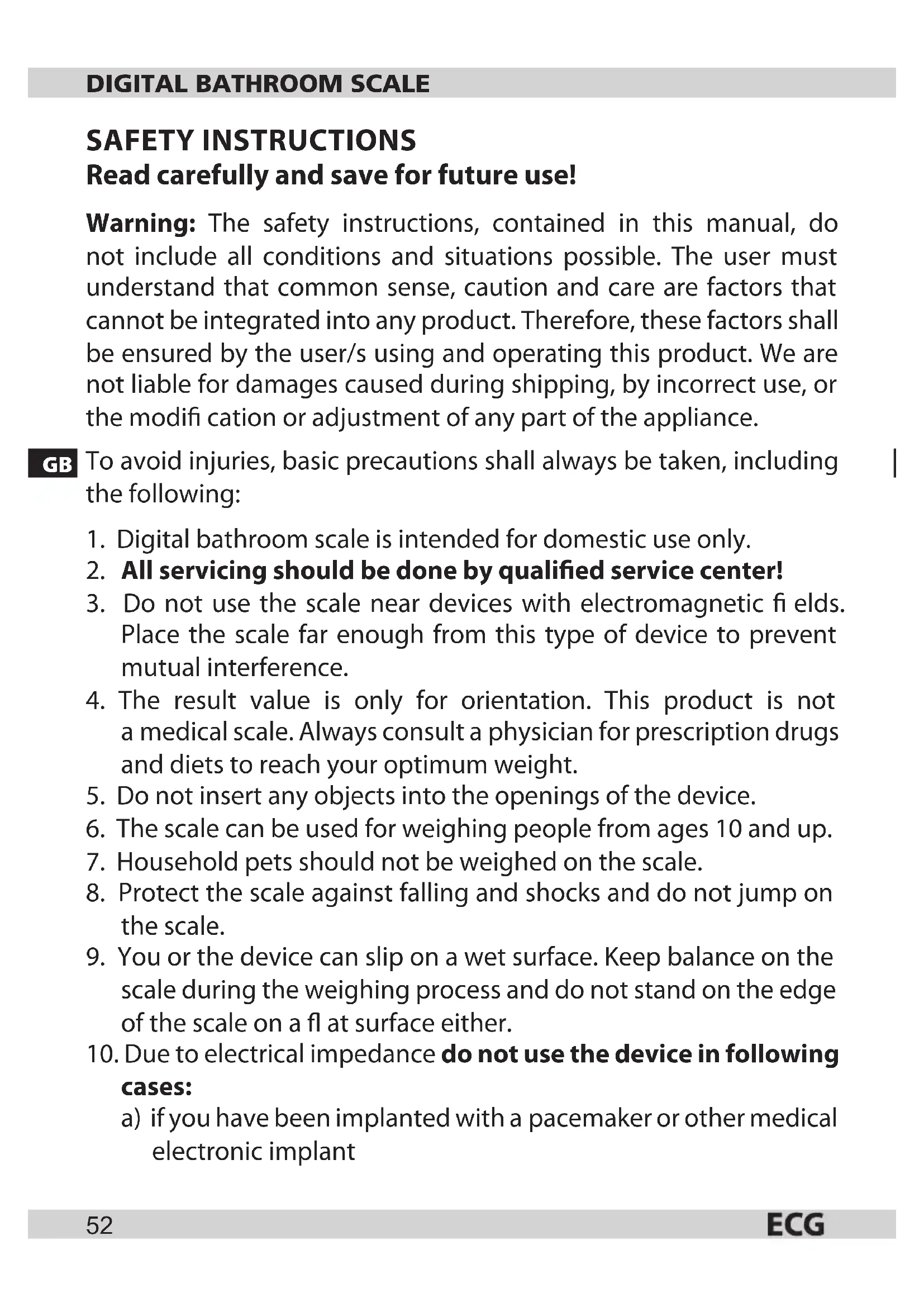

Read carefully and save for future use!

Warning: The safety instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this product. We are not liable for damages caused during shipping, by incorrect use, or the modification or adjustment of any part of the appliance.

GB To avoid injuries, basic precautions shall always be taken, including the following:

1. Digital bathroom scale is intended for domestic use only.
2. All servicing should be done by qualified service center!
3. Do not use the scale near devices with electromagnetic fields. Place the scale far enough from this type of device to prevent mutual interference.
4. The result value is only for orientation. This product is not a medical scale. Always consult a physician for prescription drugs and diets to reach your optimum weight.
5. Do not insert any objects into the openings of the device.
6. The scale can be used for weighing people from ages 10 and up.
7. Household pets should not be weighed on the scale.
8. Protect the scale against falling and shocks and do not jump on the scale.
9. You or the device can slip on a wet surface. Keep balance on the scale during the weighing process and do not stand on the edge of the scale on a flat surface either.
10. Due to electrical impedance do not use the device in following cases:

a) if you have been implanted with a pacemaker or other medical electronic implant

b) if you have cardiac problems and illness
c) during pregnancy
d) if you are having dialysis
e) if you have fever
f) if you suffer from osteoporosis
g) if you have edema or swelling
h) if you have had exercise lasting longer than 10 hours
i) your heart rate is below 60 beats per minute

1. Use the scale only in accordance with the instructions contained in this manual.
2. The manufacturer is not liable for damages caused by the improper use of this device.
3. This appliance is not intended for use by persons (including children) whose physical, sensory or mental disability or lack of experience and knowledge prevents them from using the appliance safely, if they are not supervised or were not instructed regarding use of the appliance by a person responsible for their safety. Child supervision is essential to prevent them from playing with the appliance.

Do not immerse in water!

Attention

1. Always remove shoes and socks before weighing.
2. We recommend weighing yourself every day at the same time.
3. The results of the weighing may be misleading after an intense exercise, diet or at extremely high temperatures.

4. Measured data on fat, water and muscle mass may have significant deviation in these individuals:

5. children younger than 10 years and adults older than 100 years (they can use the device only for basic measurements of body weight).
   adults over 70 years of age.

6. persons engaged in fitness or professional athletes.

OPERATING INSTRUCTIONS

Properties and parameters

High precision tensometric sensor.
- Multifunction mode: index measurement of fat, water, muscle and bone and calculation of the recommended intake of calories.
Built-in memory for 12 different users.
- Selectable basic weighing mode (skipping parameters settings): Automatic weighing when stepping on the scale and adding weight when reweighing.
- Low battery and overload indicator.

Buttons functions

GB

SET Switching on the scale and advance to the next parameter (please see setting personal parameters)

Each pressing increases the parameter value after each step. Holding down the button will speed up the increase of value.
Each pressing decreases the parameter value after each step. Holding down the button will speed up the decrease of value.

Battery inserting / replacement

1. First, remove from the new batteries contact the insulating foil.
2. Open the battery compartment cover on the bottom of the scale.
3. Remove the empty battery.
4. Insert new battery and close the battery space cover. Make sure the polarity is correct.

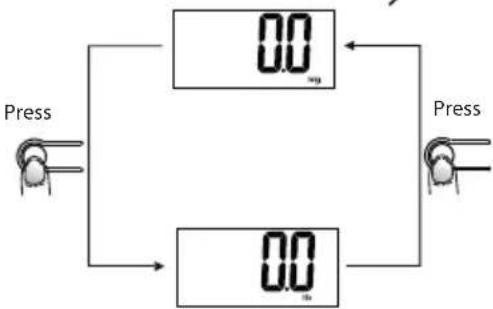

Setting the weight unit

On the bottom of the scale is the button for unit change, see picture. Press this conversion button to change the weight units. When the scale is off, press the conversion button, the LCD display shows the current unit of weight. Press again to switch to the required unit. After selecting the preferred unit, the scale shuts down automatically after 20 seconds. The next time you turn on the scale, weight will be displayed in the newly selected units.

• When setting units of weight to lb, the of height will default to feet / inches.
• When setting units of weight to kg, the height units will default to centimetres. Note: The default measurement system of the scale depends on the region.

Automatic weight measurement (Without parameters setting)

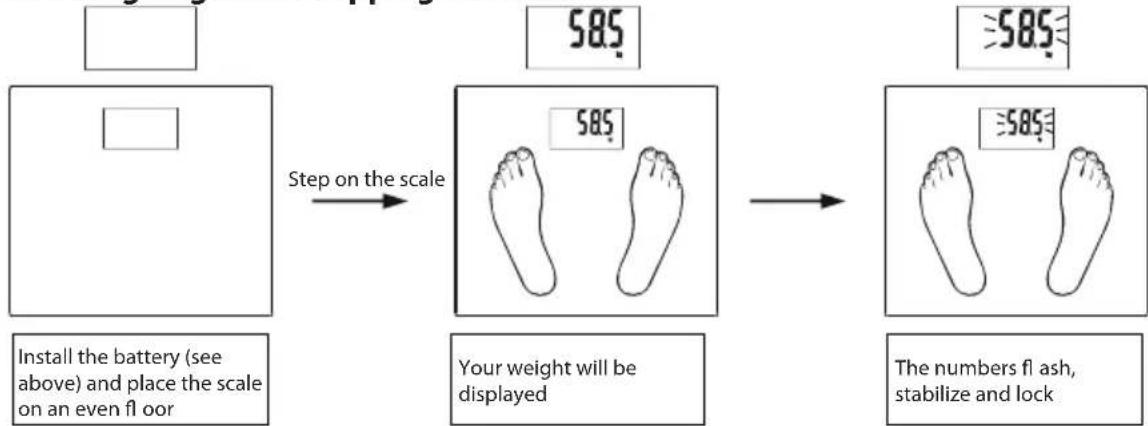

Automatic weighing when stepping on the scale

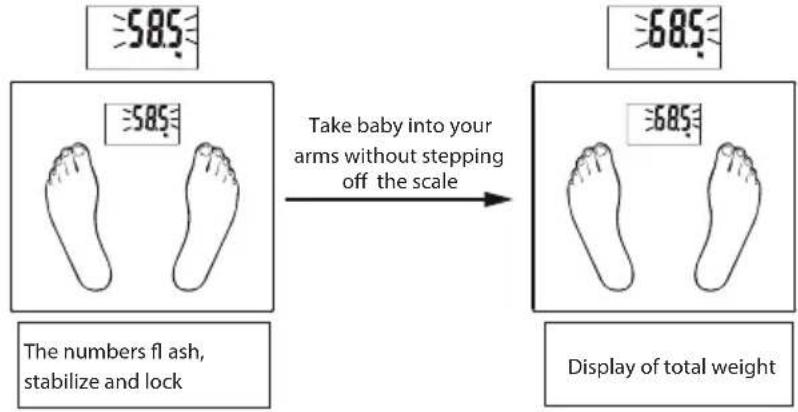

Adding weight

The weighed object must weigh more than 2kg . If you want to find e.g. the weight of your baby, weigh yourself first (wait until the numbers stabilize), then without stepping off the scale, take the baby in your arms. The numbers start flashing, then they stabilize and the resulting weight stabilizes. Subtracting your own weight from the newly obtained value will give you the weight of your child.

GB

Measurement of body fat, water, muscle mass, bones and calories

Measurement principles

Through human body pass electric signals of a certain frequency, whereby the impedance of body fat is higher than the impedance of muscle or other human tissues. The device generates an alternating electrical current with safe frequency and low voltage. Using the analysis of biological resistance, impeding the passage of the current through the human body (impedance of various tissues, fats and muscles), the percentage of the body fat in human organism is derived from the differences in resistance.

About the percentage of body fat

This index is an indicator of the percentage of body fat in the human body.

The fat content in the body should be maintained around certain level, excess body fat impairs metabolic processes and thus increases the risk of various diseases.

Physical fitness table according to fat/water content

Age	Fat proportion (F)	Water proportion (F)	Fat proportion (M)	Water proportion (M)	Physical fitness	Indication of obesity degree
≤30	4.0-16.0 % 66.0-57.8 % 4.0-11.0% 66.0-61.2 % too thin					mm
	16.1-20.5 % 57.7-54.7 % 11.1-15.5 % 61.1-58.1 % thin					mm
	20.6-25.0 % 54.6-51.6 % 15.6-20.0 % 58.0-55.0 % normal					mm
	25.1-30.5 % 51.5-47.8 % 20.1-24.5 % 54.9-51.9 % obese					mm
	30.6-60.0 % 47.7-27.5 % 24.6-60.0 % 51.8-27.5 % heavily obese					mm
>30	4.0-20.0 % 66.0-55.0 % 4.0-15.0% 66.0-58.4 % too thin					mm
	20.1-25.0 % 54.9-51.6 % 15.1-19.5 % 58.3-55.3 % thin					mm
	25.1-30.0 % 51.5-48.1 % 19.6-24.0 % 55.2-52.3 % normal					mm
	30.1-35.0 % 48.0-44.7 % 24.1-28.5 % 52.2-49.2 % obese					mm
	35.1-60.0 % 44.6-27.5 % 28.6-60.0 % 49.1-27.5 % heavily obese					mm

Note: The values stated in this table are merely for orientation purposes.

(1) Setting personal data

1. After you insert the battery and turn it on the first time, the default parameters are set to following values:

Memory Sex Height Age
1 Male 165 cm 25

1. Parameters can be set within the following range:

Memory Sex Height Age
1 ~ 12 Male/Female 100 ~ 250 cm 10 ~ 100

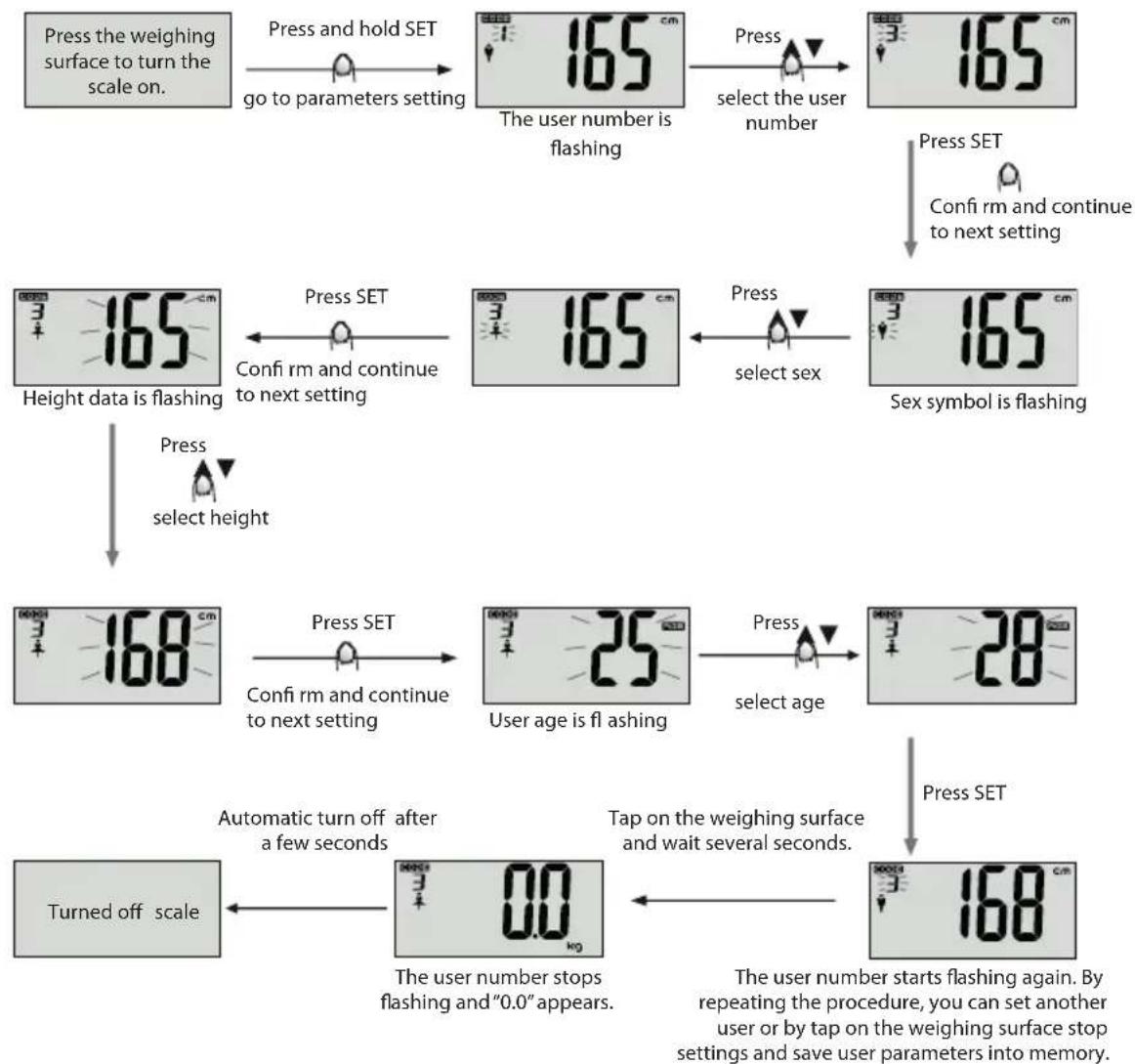

3. Setting parameters

Example: User no. 3, a woman, 168~cm , 28 years can set her personal data as follows:

GB

Note:

• When you interrupt entering data for a few seconds, the already specified parameters are automatically stored in memory and the display shows "0", which means that you can start measuring body fat content.
  If during the parameters input the display shows "0", you can press and hold SET to return to the personal data setting mode and enter the user number, sex, height and age.

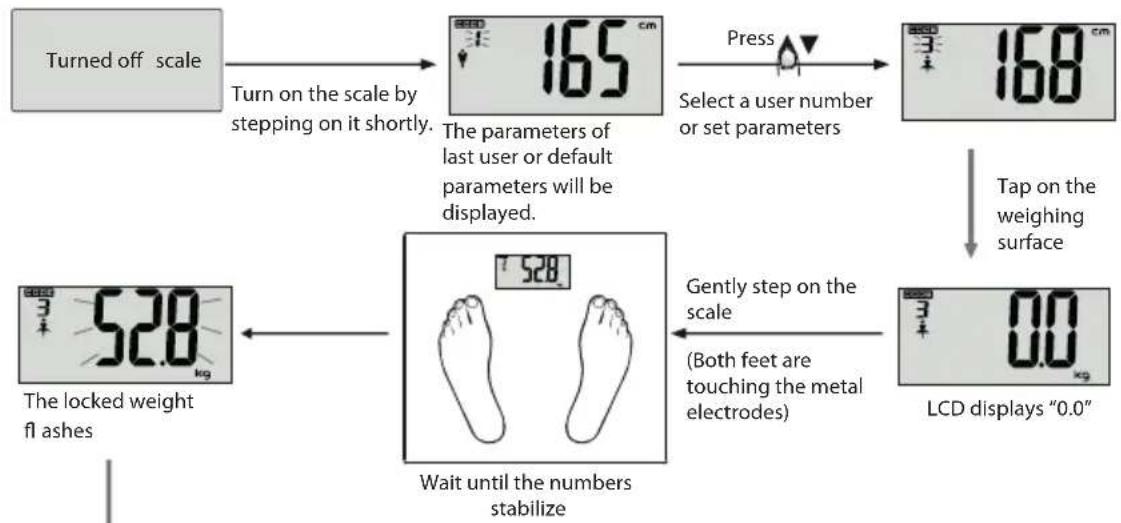

(2) measuring the physical data

Turn the scale on by briefly pressing on it, then press and hold the button SET and using the arrows select the user number. After a short while, when the user number stops flashing, step on the scale. (Make sure that the feet touch the metal electrodes on the weighing surface. Otherwise, it will not be possible to measure the body fat.) To ensure accuracy, remove shoes and socks before stepping on the scale.

Example: User no. 3, female, 168 cm, 28 years can measure herself as follows:

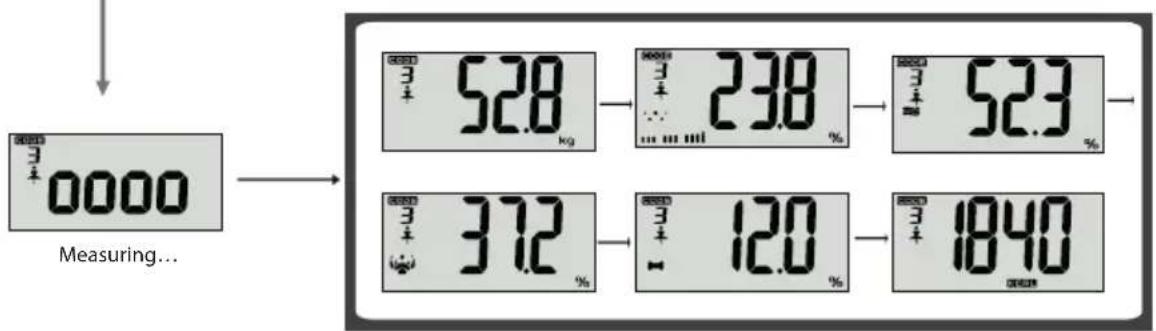

Measurement results will be displayed and the measured values will be saved in memory for later comparison. The data on the display repeat in cycles: Weight: 52,8kg Bar graph of fat Fat proportion 23,8%

Water proportion 52.3% Muscle mass proportion 37.2% Bones proportion 12% Calories 1840.

Automatic switching off

(3) Calling up the last measured values

Turned off scale	Press SET		Press
	turn on the scale	Parameters of the last user or default parameters	select the user number
			Wait 6 seconds

Press enter the previous measurements recall mode

The last measured data of the user will be displayed. Press for quick transition between screens

Repeat 3x and then the scale turns off automatically.

Turned off scale

DISPLAY RANGE

Item Index	Weight Fat	(%) Water (%)		Muscle mass (%)	Bones (%) Calories
Index range	-- 4.0% ~ 60.0%		27.5% ~ 66.0%	20.0% ~ 56.0%	2.0% ~ 20.0%
Scale resolution	0.1 kg 0.2 lb	0.1% 0.1%	0.1% 0.1% 1kCal

Notes on the calories

Calorie is an energy unit.

Calories and energy use

The displayed value indicates the energy you need according to your weight, height, age and sex to maintain everyday metabolism and ensure normal activities.

Calories and weight loss

Calories intake control combined with appropriate exercise is an effective method for losing weight. The principle is very simple. Once daily energy intake is insufficient to meet energy expenditure of the organism, the stored sugars and fats start to break down to make their burning cover the energy consumption of the organism. The resulting effect is weight loss.

WARNING

Empty battery

The battery is low, replace with a new battery.

Overload

Overload - exceeding the maximum workload of the scale. Please get off the scale to prevent damage.

Percentage of body fat too low

The percentage of body fat is too low. Eat more nutritious food and take care of yourself well.

Percentage of body fat too high

The percentage of body fat is too high. Keep an eye on your diet and exercise more.

Repeated weighing

If the letter "C" appears on the scale after getting off, it means an error occurred during the weighing process. Please repeat the weighing/ measuring process.

MAINTENANCE AND CLEANING

• The scale surface becomes slippery when wet. Keep it dry!
• Stand still while weighing yourself.
• Do not expose the scale to impacts, shocks and do not allow the scale to fall to the ground.
• The scale is an accurate device which must be carefully handled.
• Use a damp towel to clean the scale and make sure no water gets inside the scale. DO NOT USE chemical cleaning agents/agents with abrasive effect. Do not immerse the device into water!
• Use the scale in a cool room with dry air.
• Keep the scale in a level position.
• If you do not manage to switch the scale on, check if the battery is inserted and if it is not empty. Insert the battery again or replace the battery.
  If the display shows an error or if the scale does not switch off for a long time, please, remove the battery for about 3 seconds and then reinsert it. If this does not resolve the problem, please ask your vendor for advice on how to fix your issue.

GB

Auto power on Attention: Danger of slipping on

wet surface!

TECHNICAL SPECIFICATIONS

Maximum capacity 150kg

Measuring resolution 100g / 0,1%

Power: 1 × 3V lithium battery CR 2032 (included)

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard - deliver to scrapyard. Packing foil, PE bags, plastic elements - throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg.cz.

Changes in text and technical parameters reserved.
