LBB240POV - Wine cellar LE CHAI - Free user manual and instructions

Product type	Serving and storage wine cellar
Brand	Le Chai
Model	LBB240POV
Maximum capacity	25 bottles (Bordeaux type 0.75 L)
Dimensions (W x D x H)	592 x 559 x 595 mm
Weight	42 kg
Power supply	220-240 V ~ 50 Hz
Climate class	ST (ambient temperature 16 °C to 38 °C)
Installation type	Built-in (see installation diagram)
Defrost	Automatic (No Frost)
Interior lighting	TriColor LED (white, orange, blue) with monochrome and dynamic modes
Temperature range	Upper zone: 5°C to 10°C; Lower zone: 15°C to 20°C (adjustable per degree)
Temperature display	Digital display with °C/°F selection and brightness adjustment
Push-to-open function	Yes (on some models) – opening by light pressure
Door opening direction	Reversible (left/right) – manual with instructions
Door type	UV-treated glass door
Ventilation modes	Silent (F0) and DynaClima (F1 half-time, F2 full-time)
Anti-vibration system	Compressor on silent blocks and polyurethane insulation
Humidification system	Water tray optional depending on model (humidity maintenance)
Alarms	Temperature alarm (out of range), door open alarm (>60 s)
Temperature memory	Yes – retains settings after power outage
Cleaning and maintenance	Clean with a soft cloth and mild detergent; dust the condenser
Spare parts and repairability	Parts available for 7 years; manufacturer warranty 5 years
Compliance	European directives 2014/35/EU and 2014/30/EU

Frequently Asked Questions - LBB240POV LE CHAI

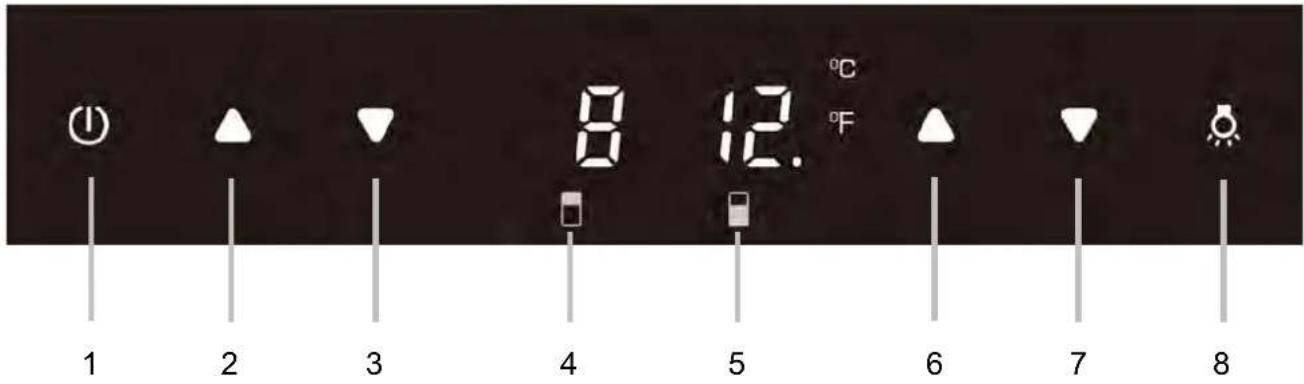

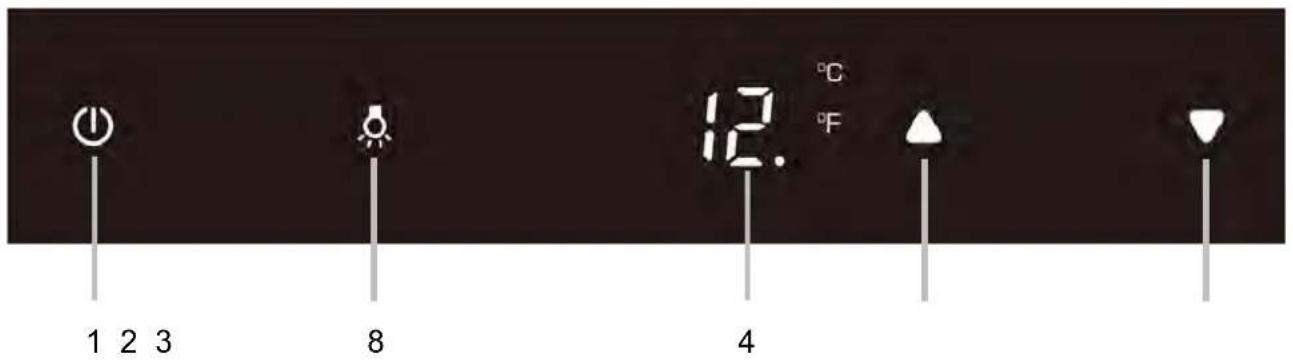

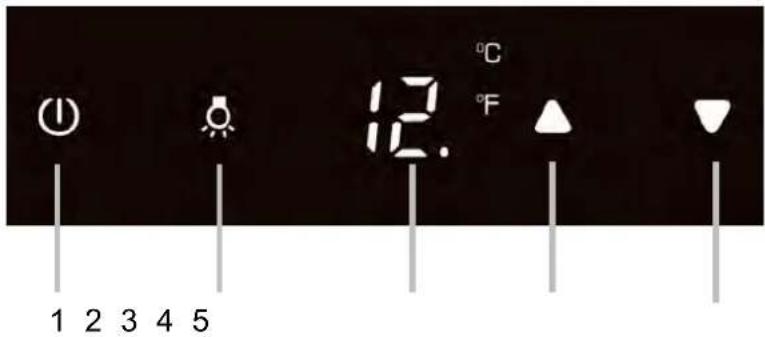

How to adjust the temperature of the Le Chai LBB240POV wine cellar?

Use the ▲ and ▼ buttons on the control panel. Each press changes the temperature by one degree. The upper zone adjusts from 5°C to 10°C, the lower zone from 15°C to 20°C. After selection, the display flashes for 5 seconds then confirms.

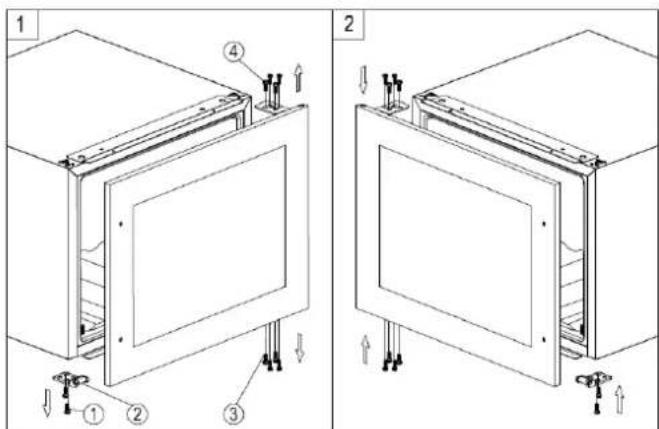

Can I change the door opening direction?

Yes, the door is reversible. Unplug the appliance, remove the hinges, move the lower hinge pin, install the upper hinge on the other side, then rotate the door 180° and secure it. Refer to the manual for detailed steps.

How to activate the push-to-open function?

The function is active by default. To open, gently push the door at the upper left (right hinge) or upper right (left hinge) and release. The door opens 2 to 5 cm. If sensitivity is not set correctly, adjust the screw at the top center of the door.

What to do if the audible alarm sounds?

The alarm may indicate a temperature out of range, an open door, or a fault. Check the door closure, ambient temperature, and loading. Press the Power button to stop the audible alarm. The display flashes until the set temperature is restored.

How to clean the interior of the cellar?

Unplug the appliance. Remove the shelves and wash them with warm water and a mild, odorless detergent. Clean the interior walls with a soft sponge and soapy water. Rinse and dry thoroughly. Never use abrasive products or scrapers.

How many bottles can I store in the LBB240POV model?

The maximum capacity is 25 Bordeaux-type bottles of 0.75 liters. In practice, the number may vary depending on bottle shape and arrangement. Do not overload to ensure good air circulation.

Can the LED lighting be changed?

No, the LEDs are not user-replaceable. In case of failure, contact after-sales service. The LED lifespan is designed to last the life of the appliance.

Why does the displayed temperature not match the actual temperature?

During first use or after a large restock, the temperature may take a few hours to stabilize. Check that the door is properly closed, ventilation is not blocked, and ambient temperature is within 16°C to 38°C.

How to change the ventilation mode?

Hold the UP button for 5 seconds, then press POWER three times. Use UP/DOWN to choose: F0 (silent), F1 (DynaClima half-time), or F2 (DynaClima full-time). Confirm with POWER, then hold UP for 5 seconds to exit.

What to do if the push-to-open system does not work?

Check that the push rod is not blocked. Unplug the appliance for 10 seconds then plug back in to reset. Ensure the sensitivity adjustment screw is correctly set (turn counterclockwise to increase sensitivity). Do not force the door.

USER MANUAL LBB240POV LE CHAI

Installation Page 15

Modèle	Site web	QR-code
LM78	https //eprel.ec.europa/qr/346449
LMN78	https //eprel.ec.europa/qr/346452
LB160	https //eprel.ec.europa/qr/346379
LBN160	https //eprel.ec.europa/qr/346387
LB340	https //eprel.ec.europa/qr/346388
LBN340	https //eprel.ec.europa/qr/346398

LB720V	https //eprel.ec.europa/qr/731088
LBN720V	https //eprel.ec.europa/qr/731092
LBN458PO https //eprel.ec.europa/qr/346434
LBN458POP https //eprel.ec.europa/qr/1136797
LMB180POV	https //eprel.ec.europa/qr/347207
LMN180POV	https //eprel.ec.europa/qr/347216
LBB240POV	https //eprel.ec.europa/qr/346401
LBN240POV	https //eprel.ec.europa/qr/346410
LBN240POVP https //eprel.ec.europa/qr/1136800
LBB460POV	https //eprel.ec.europa/qr/346614
LBN460POV https //eprel.ec.europa/qr/346430
LBN460POVP https //eprel.ec.europa/qr/1136796

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Technical diagram of a refrigerator with numbered labels pointing to different compartments and storage areas.

Technical diagram of a refrigerator with numbered labels pointing to different compartments and parts.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments and features.

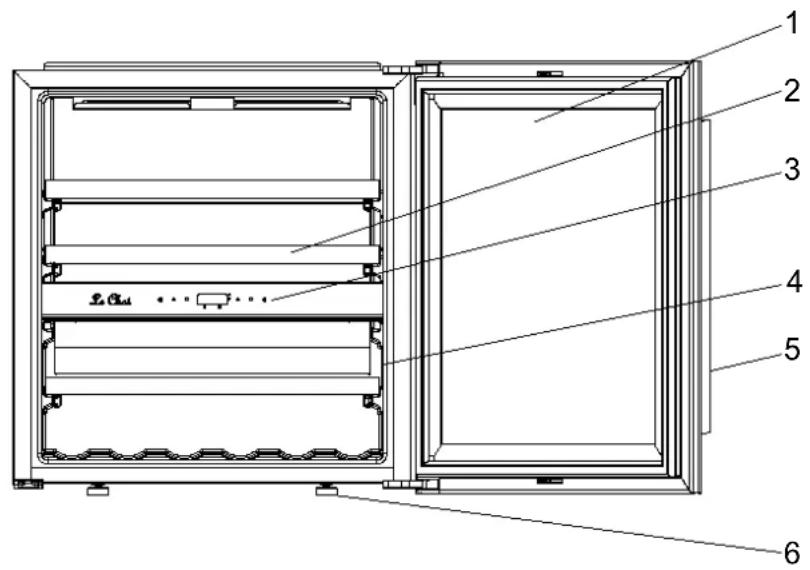

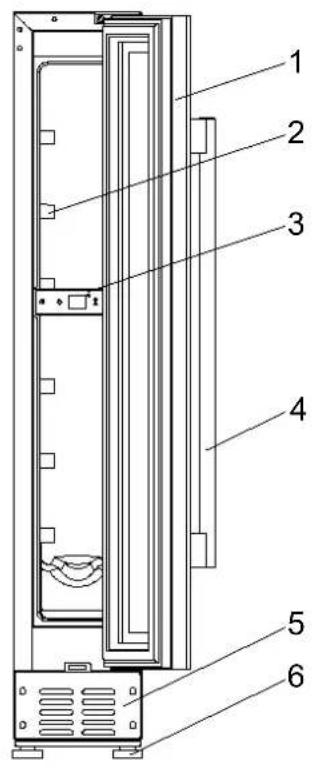

LMN180POV / LMB180POV

1 2 3 4 5 6 La Chel

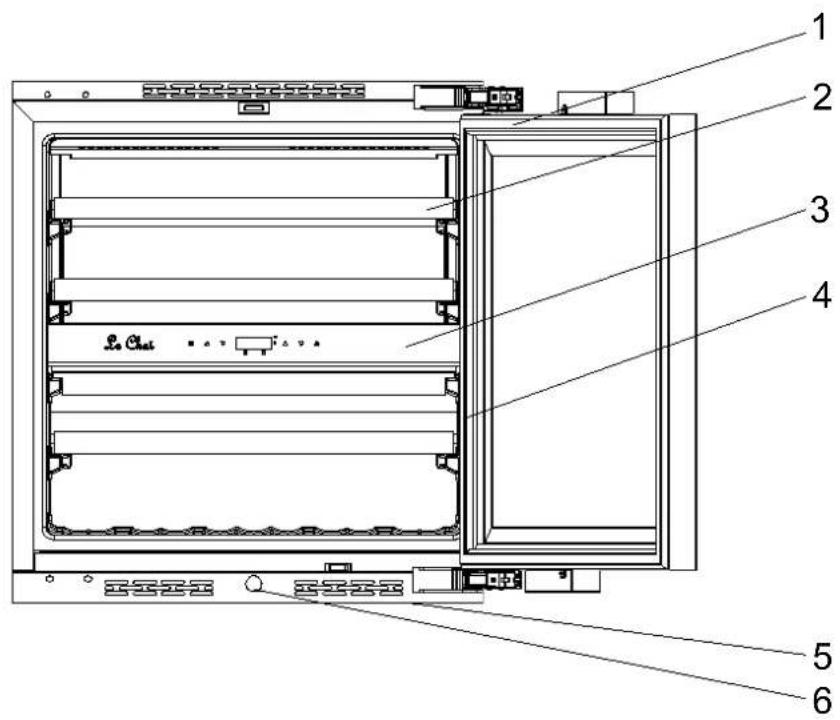

Technical diagram of a refrigerator internal structure with numbered labels pointing to components

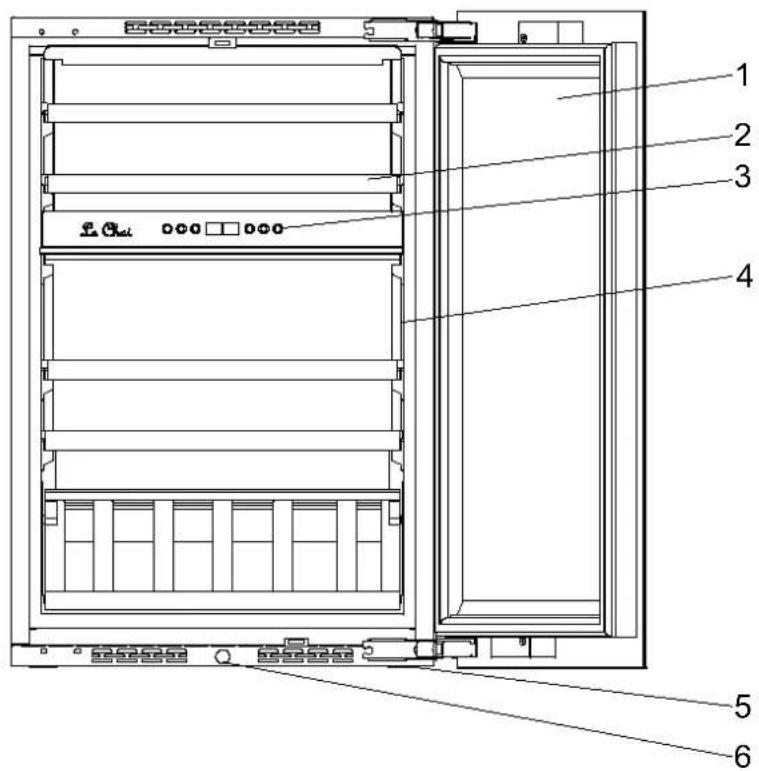

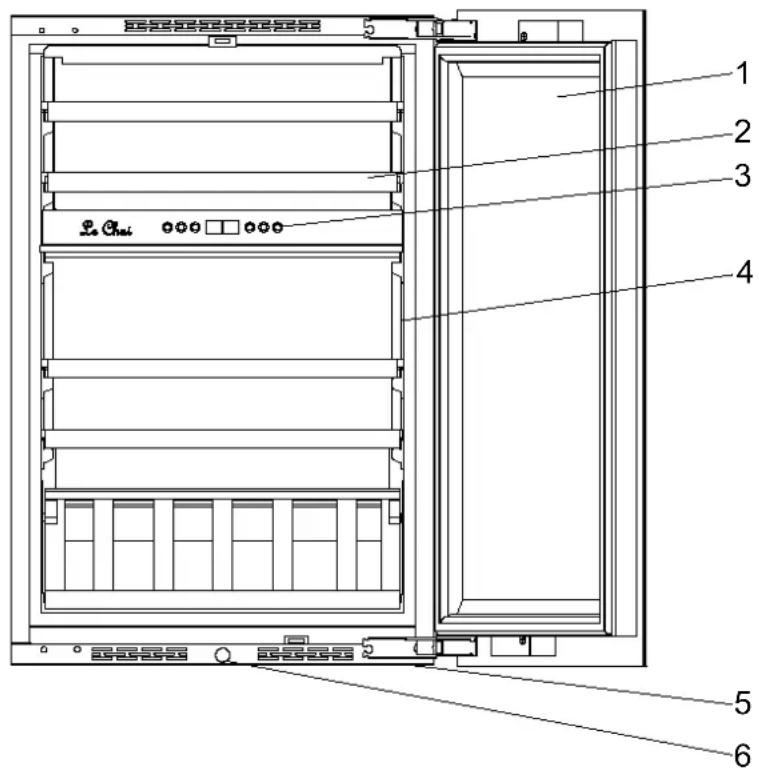

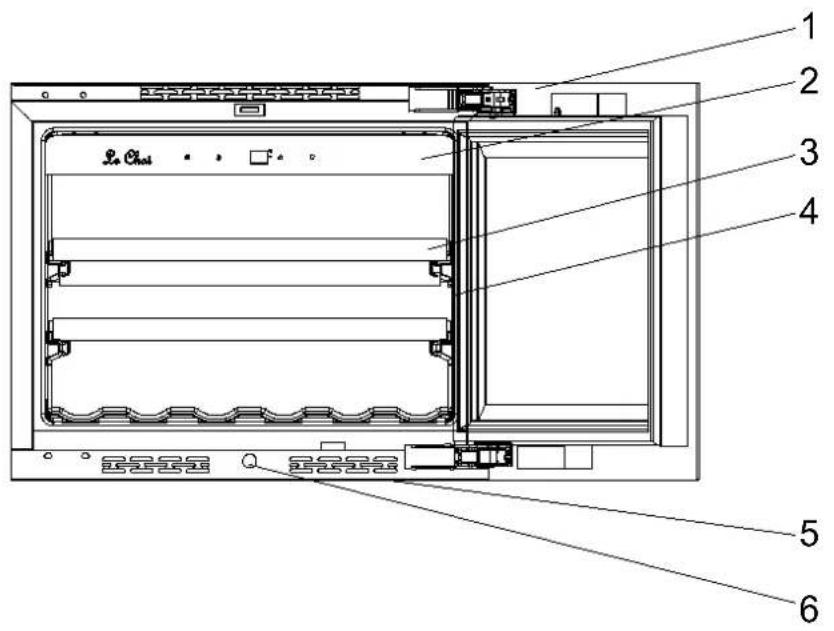

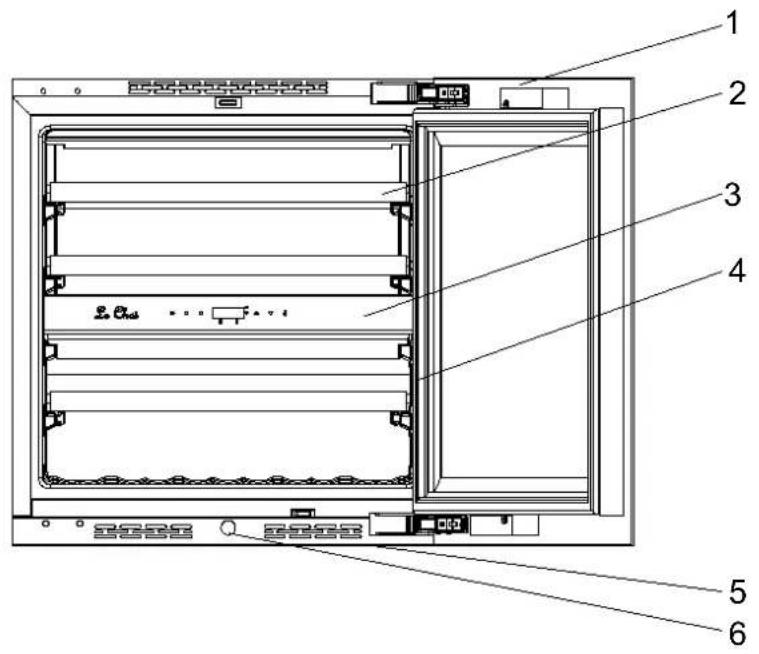

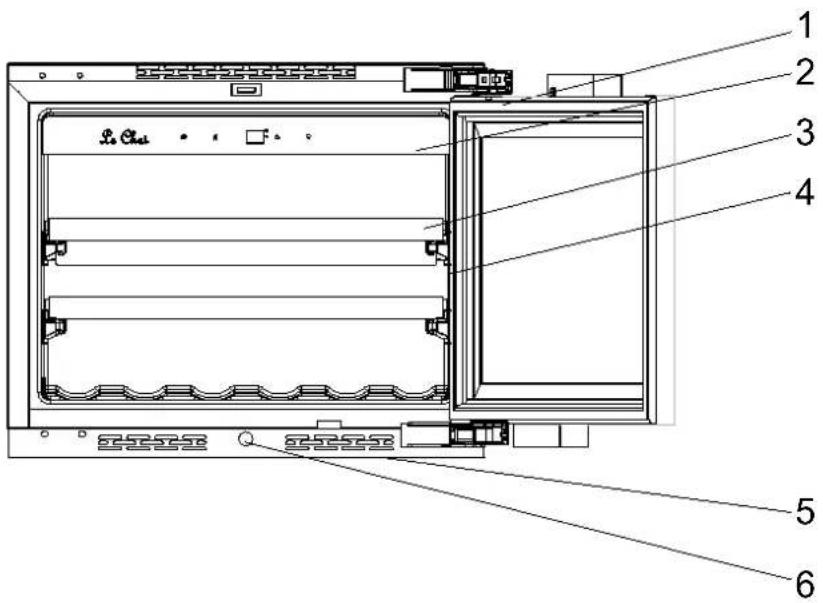

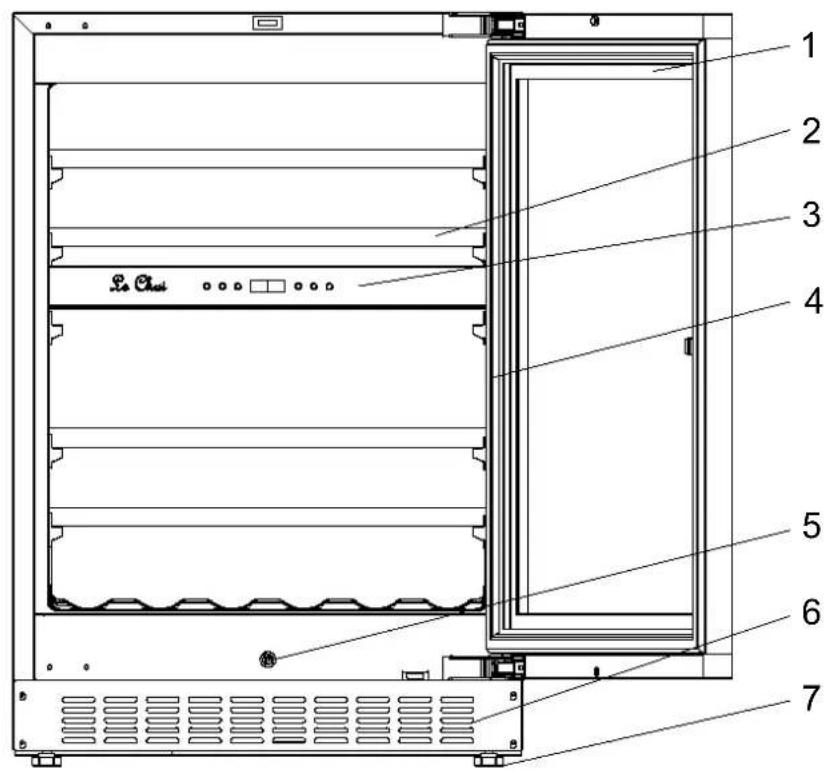

LBB240POV / LBN240POV

Technical diagram of an internal rack unit with numbered components for identification

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

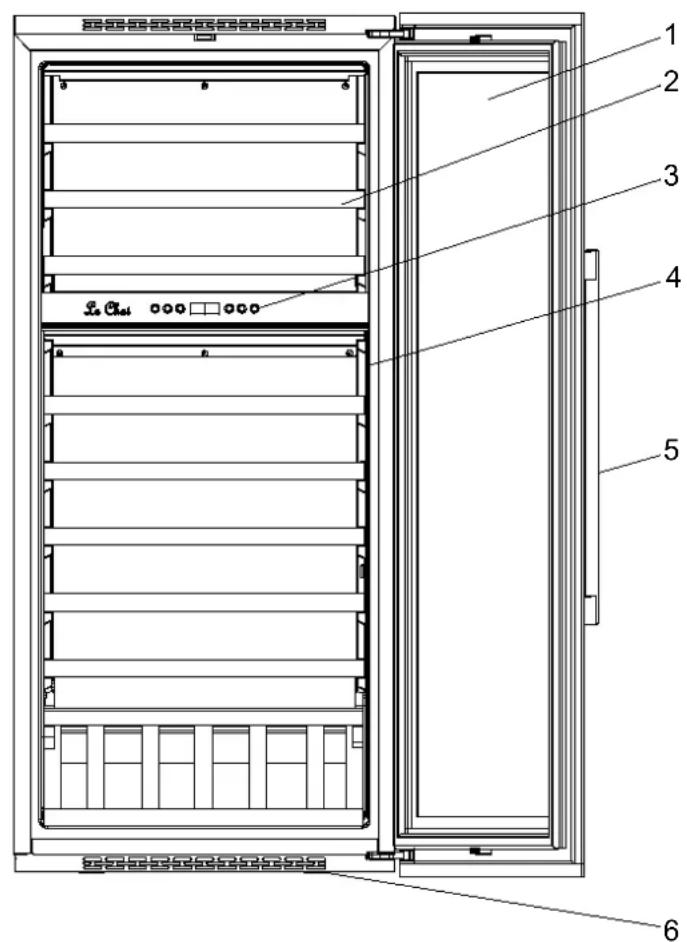

LBB460POV / LBN460POV

1 2 3 4 5 6

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments.

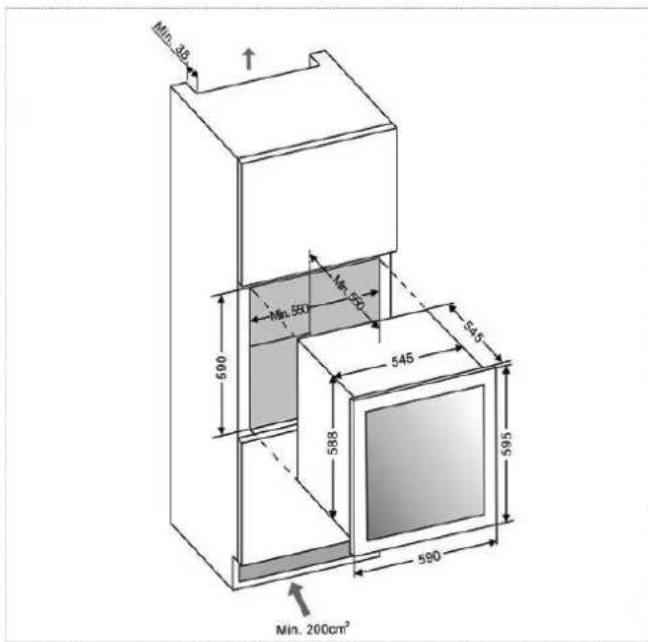

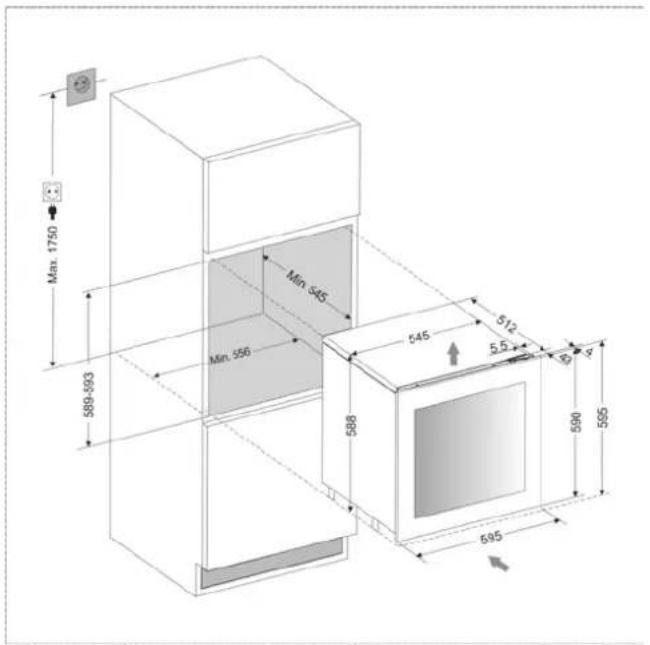

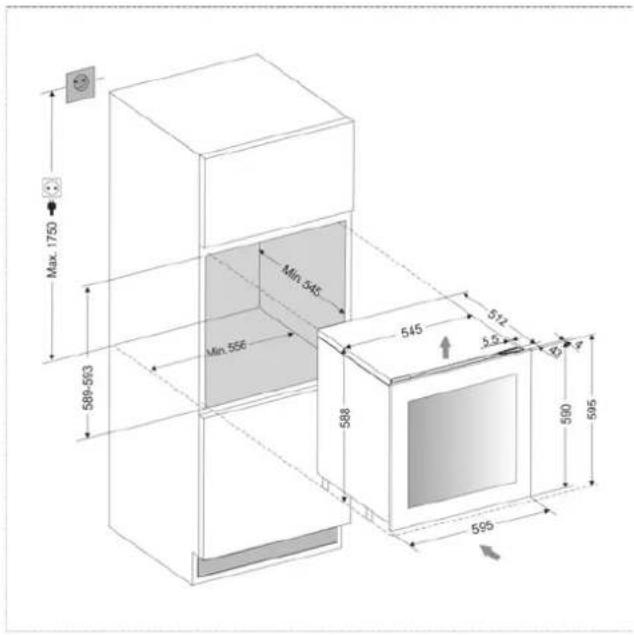

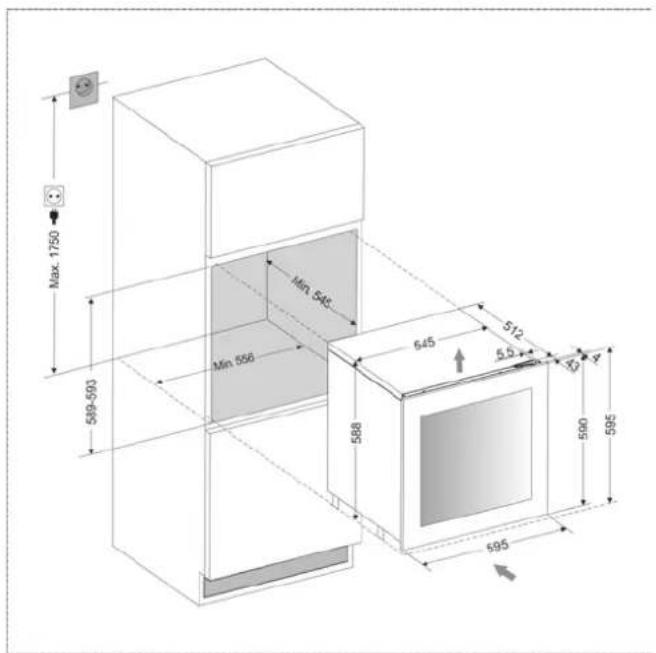

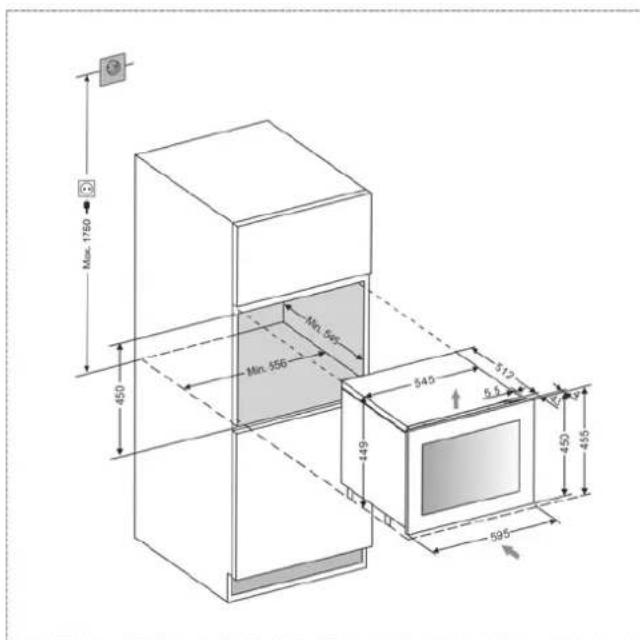

LBB240POV / LBN240POV

Max. 1750 Min. 545 Min. 596 545 512 5.5 35 590 595 588 589-593

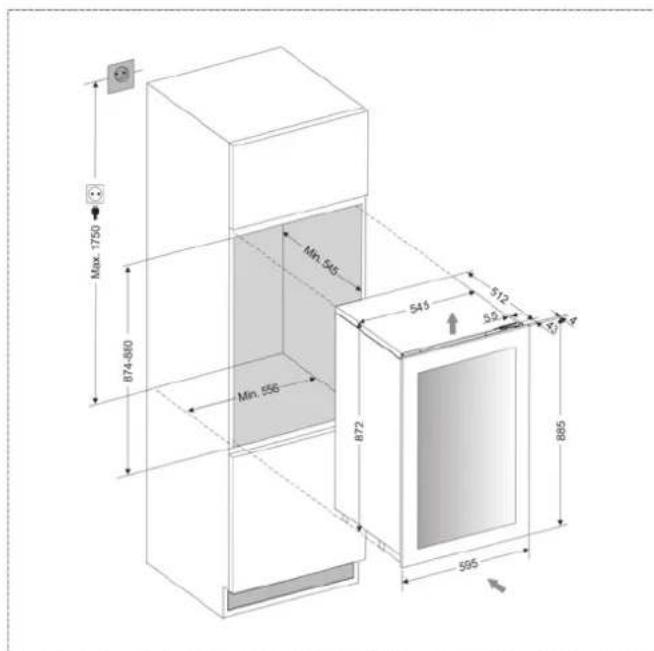

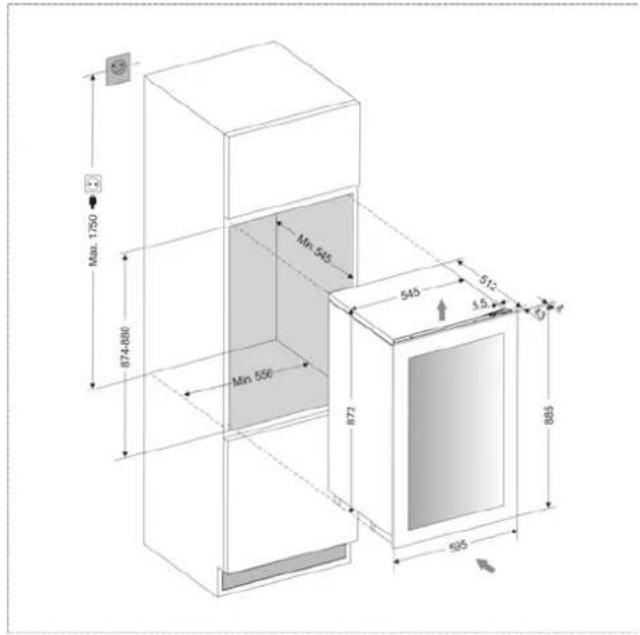

LBB460POV / LBN460POV

Max 1750 874.680 Min. 545 Min. 556 872 545 512 5.5 32 885 545

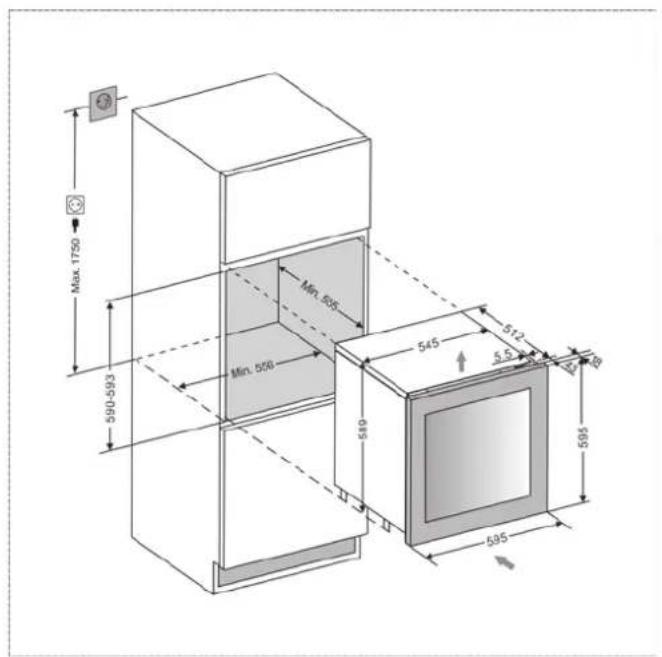

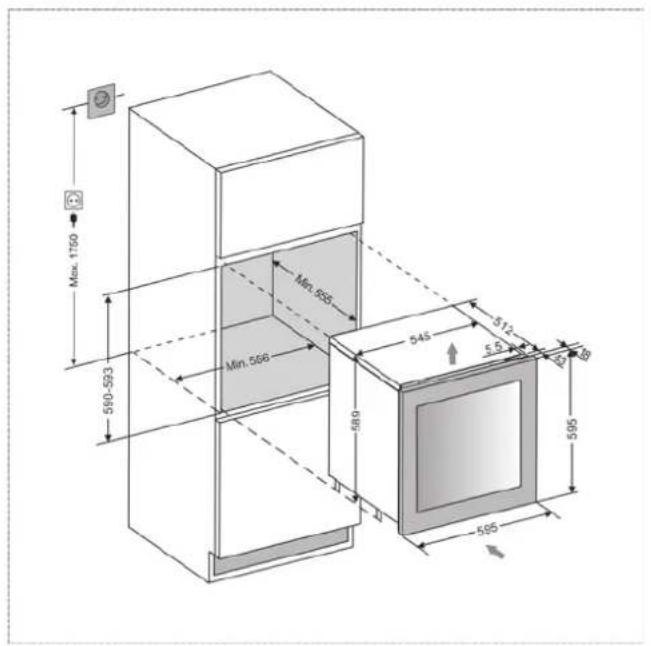

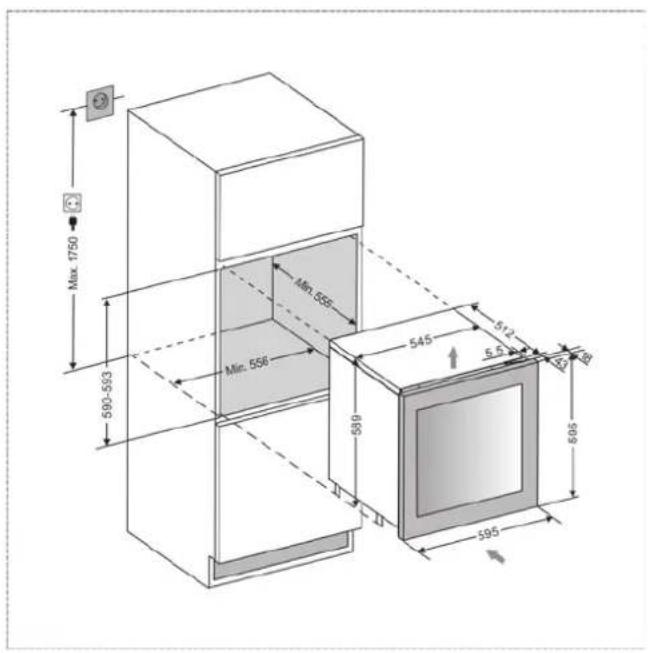

LBN240POVP

Max. 1750 590-593 Min. 556 546 512 5.5 589 595 605

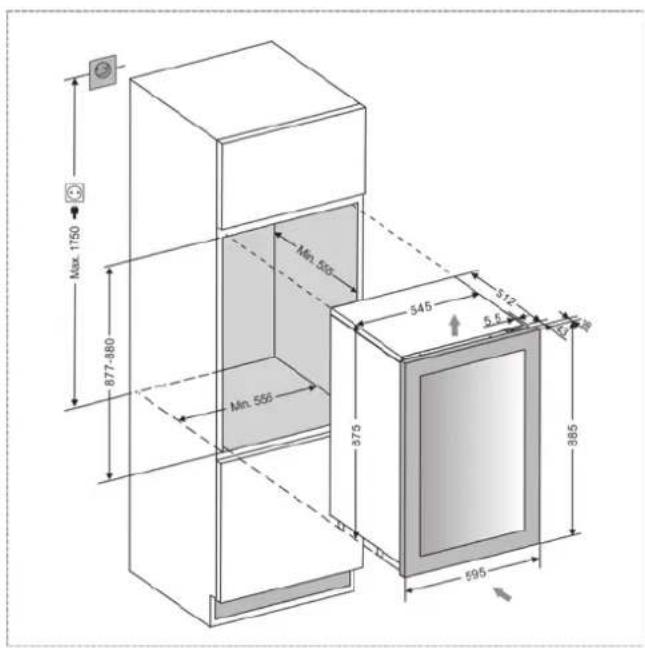

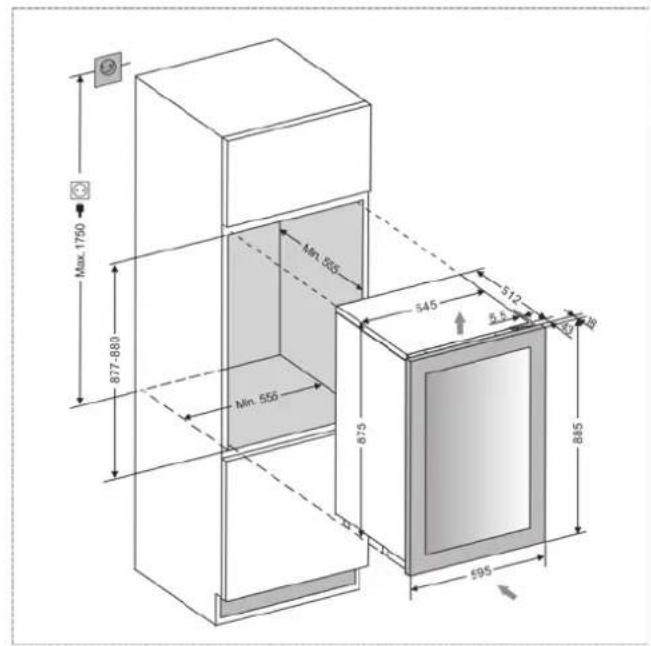

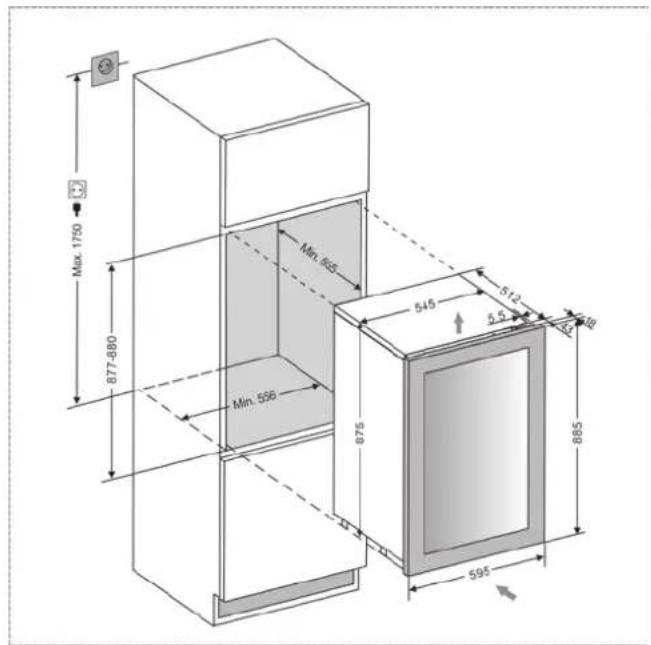

LBN460POVP

Max. 1750 877-889 Min. 556 545 512 5.5 32 885 595 876

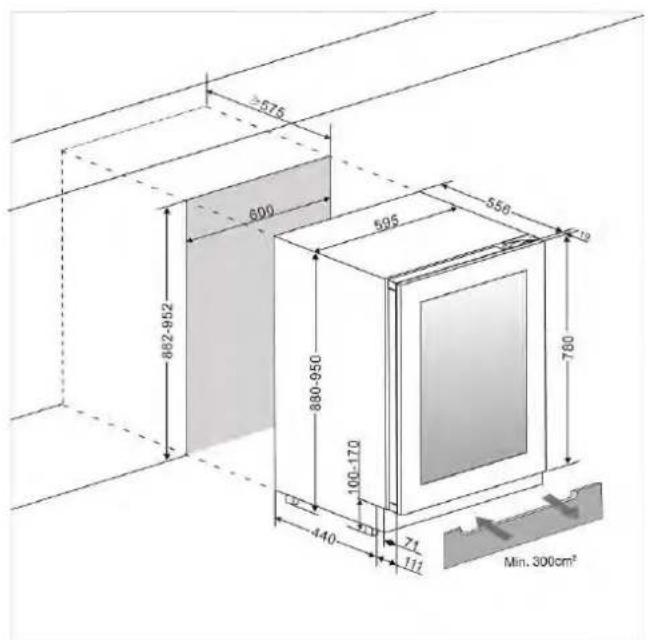

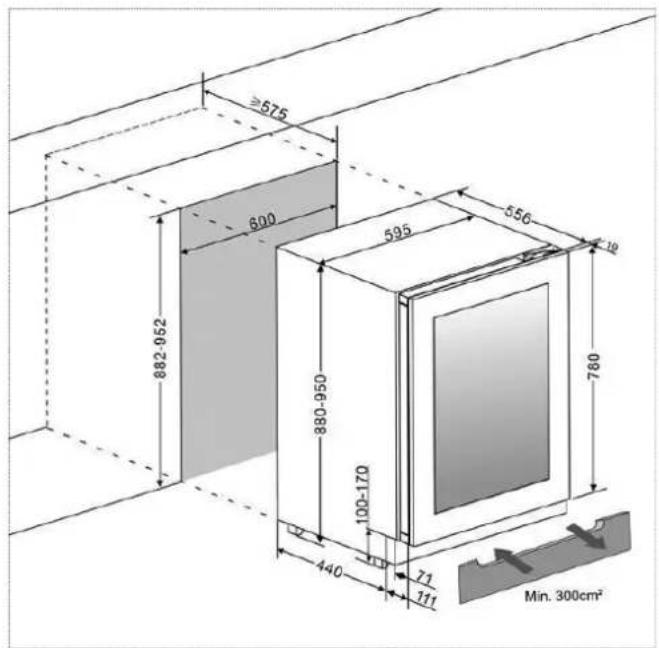

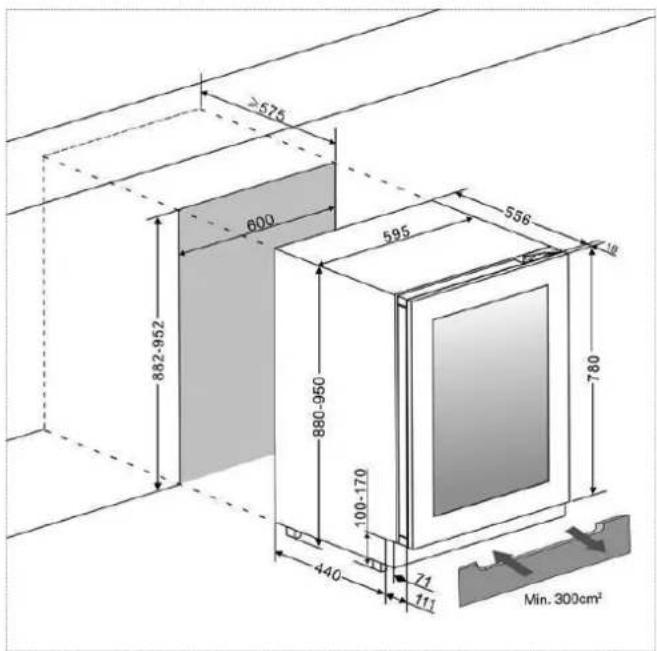

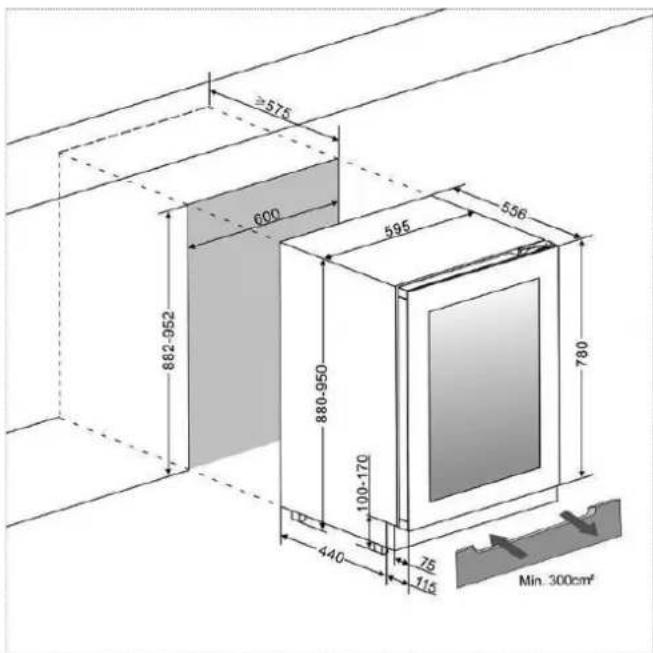

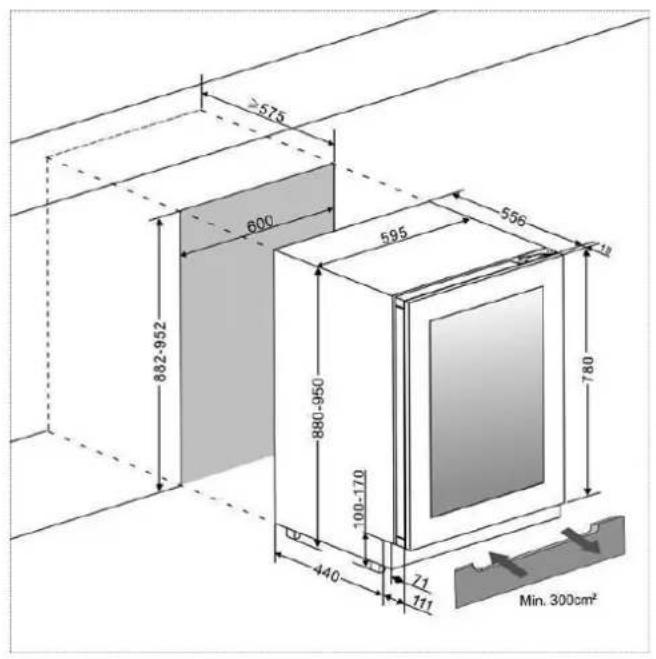

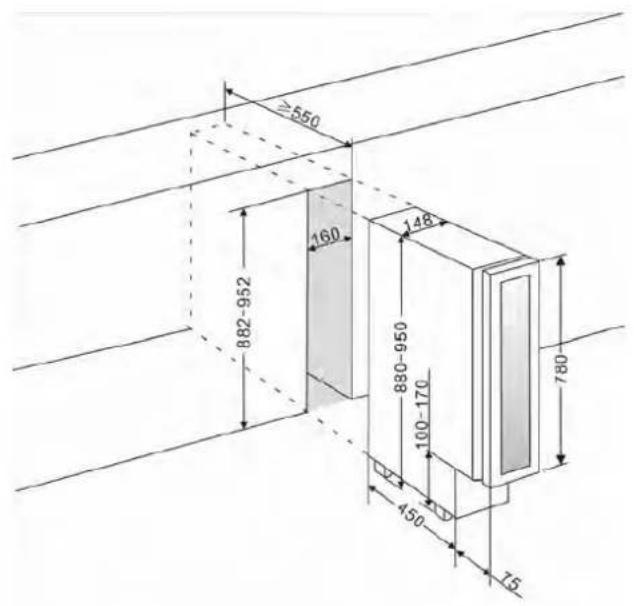

LBN458POP

≥575 600 882-952 880-950 100-110 440 595 556 780 71 711 Min. 300cm²

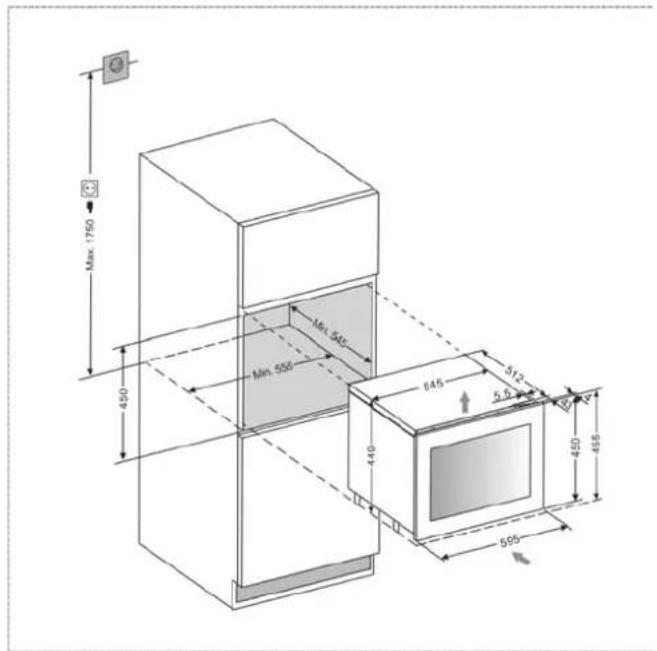

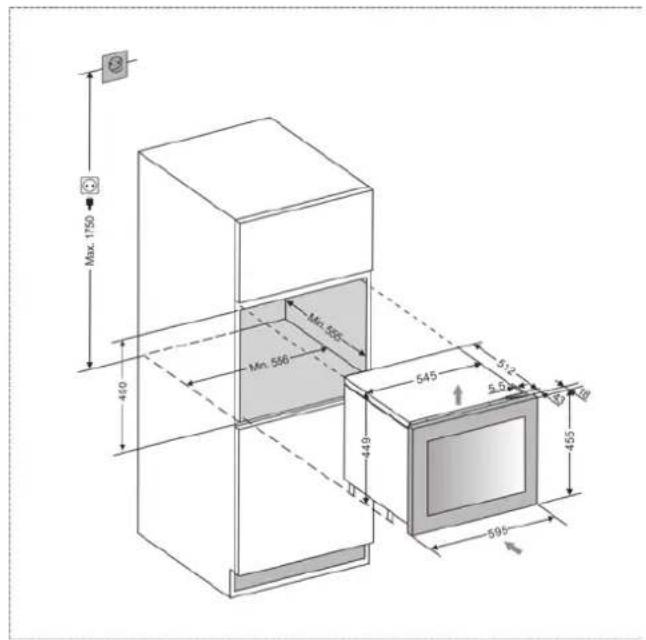

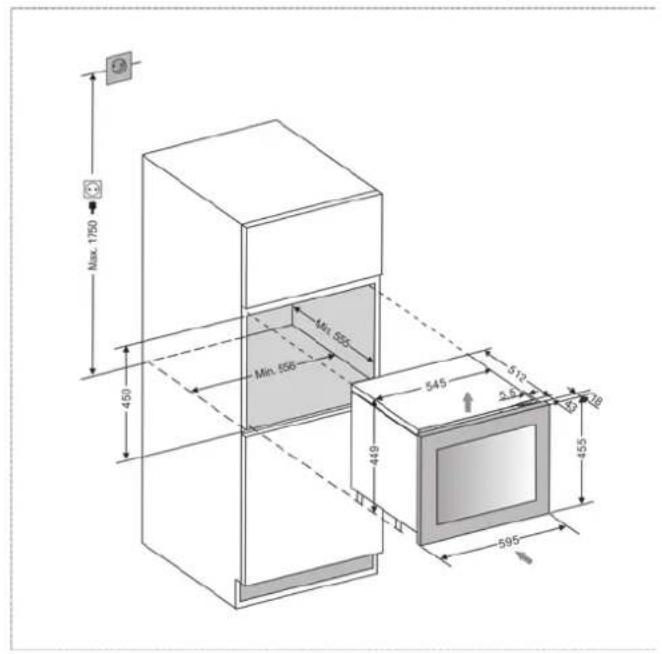

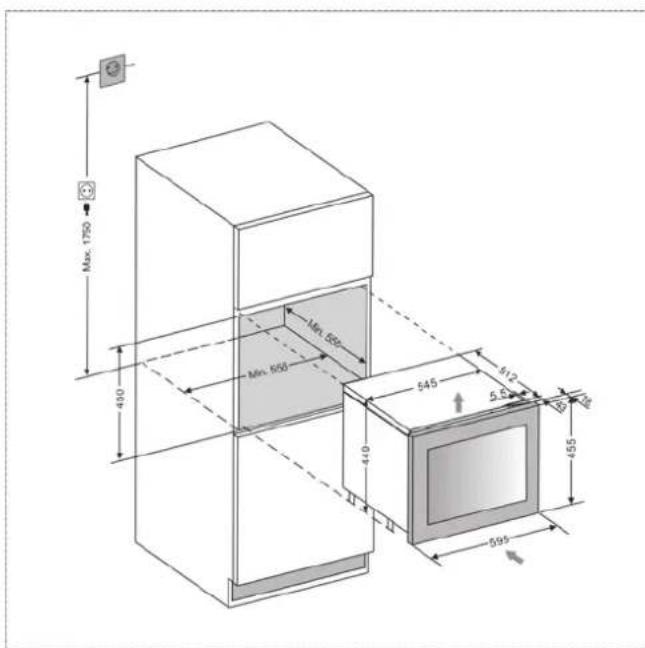

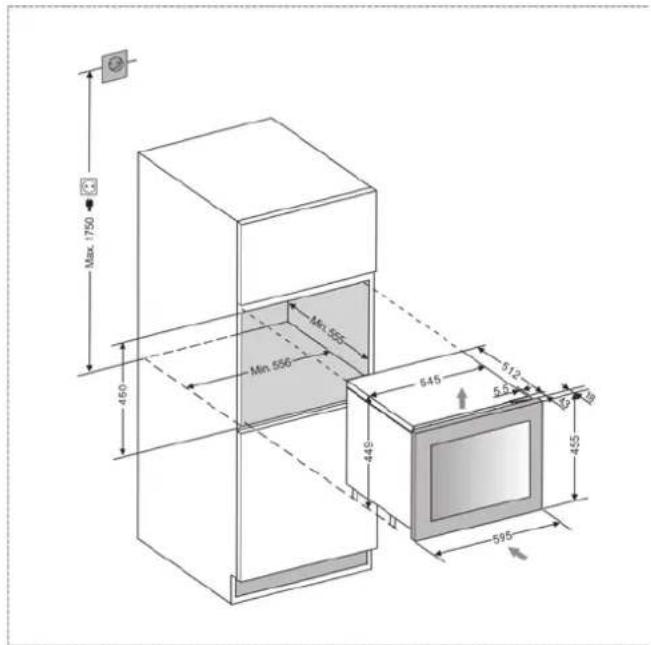

LMN180POVP

Max. 1750 450 Min. 556 549 512 2.4 38 449 455 595

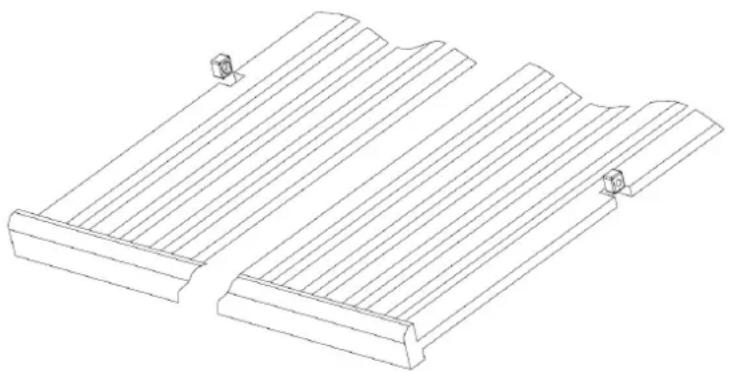

Technical line drawing of two parallel slatted metal brackets with mounting holes (no text or symbols)

Simple line drawing of a rolling wheel with an angular arrow indicating motion (no text or symbols)

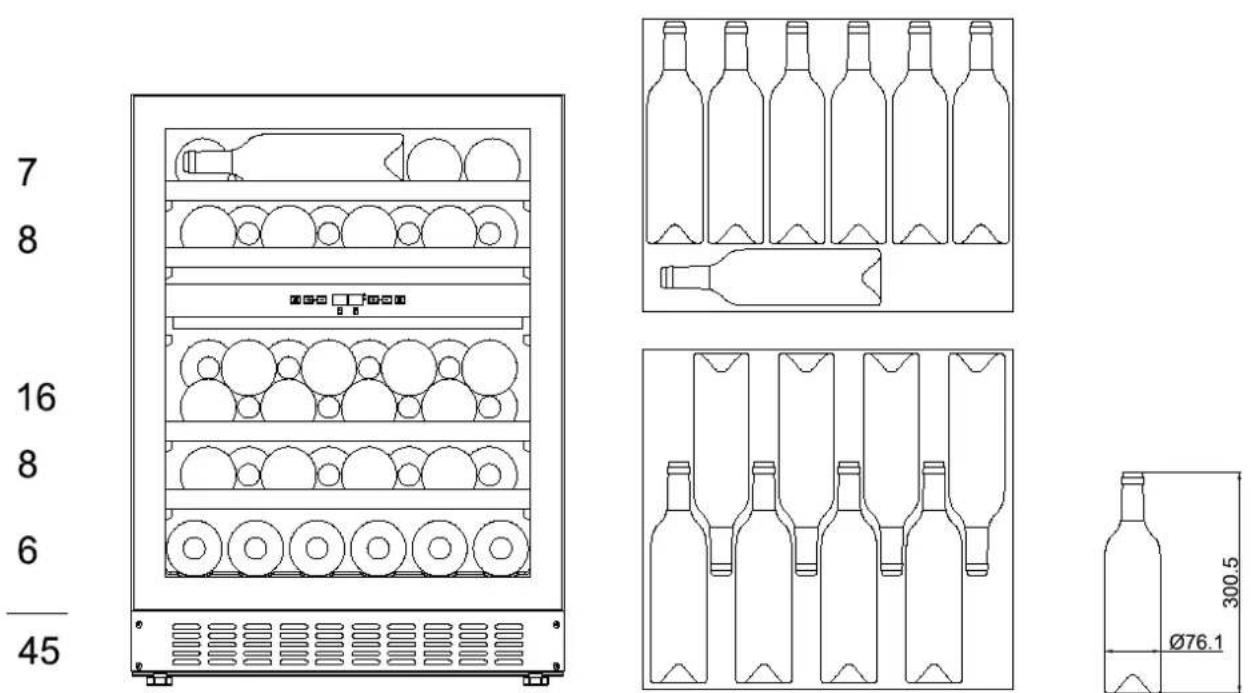

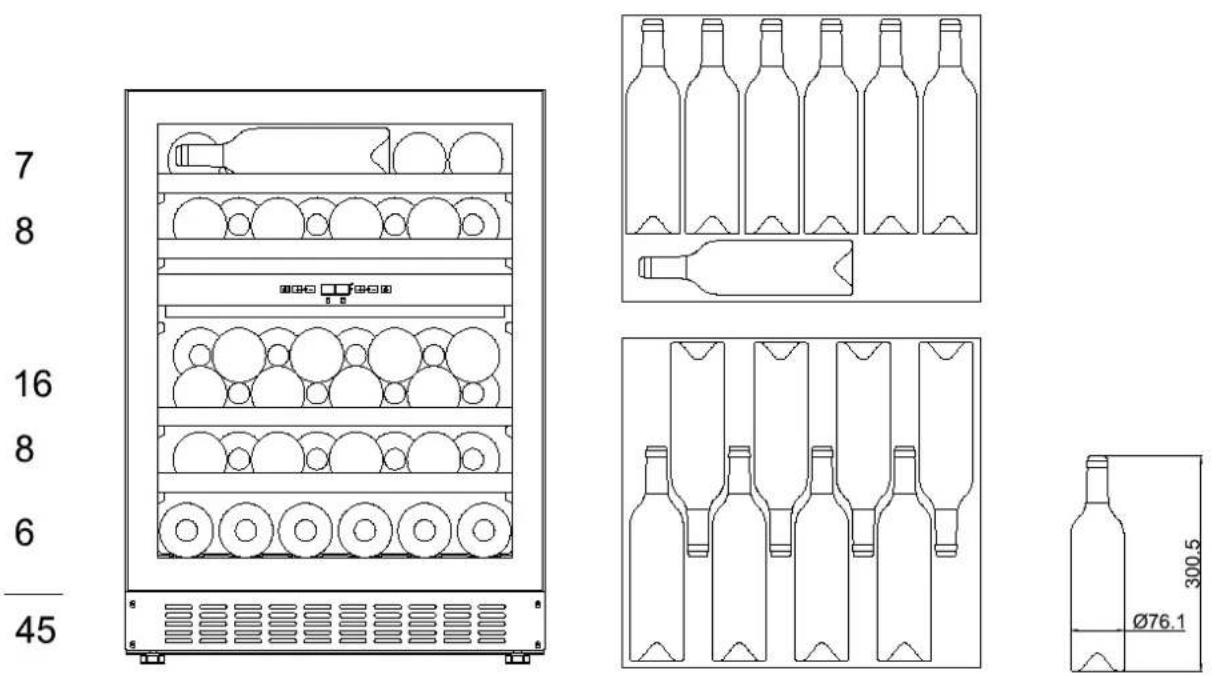

Line drawing of a multi-level rack-mounted refrigerator with circular compartments and ventilation grilles (no text or symbols)

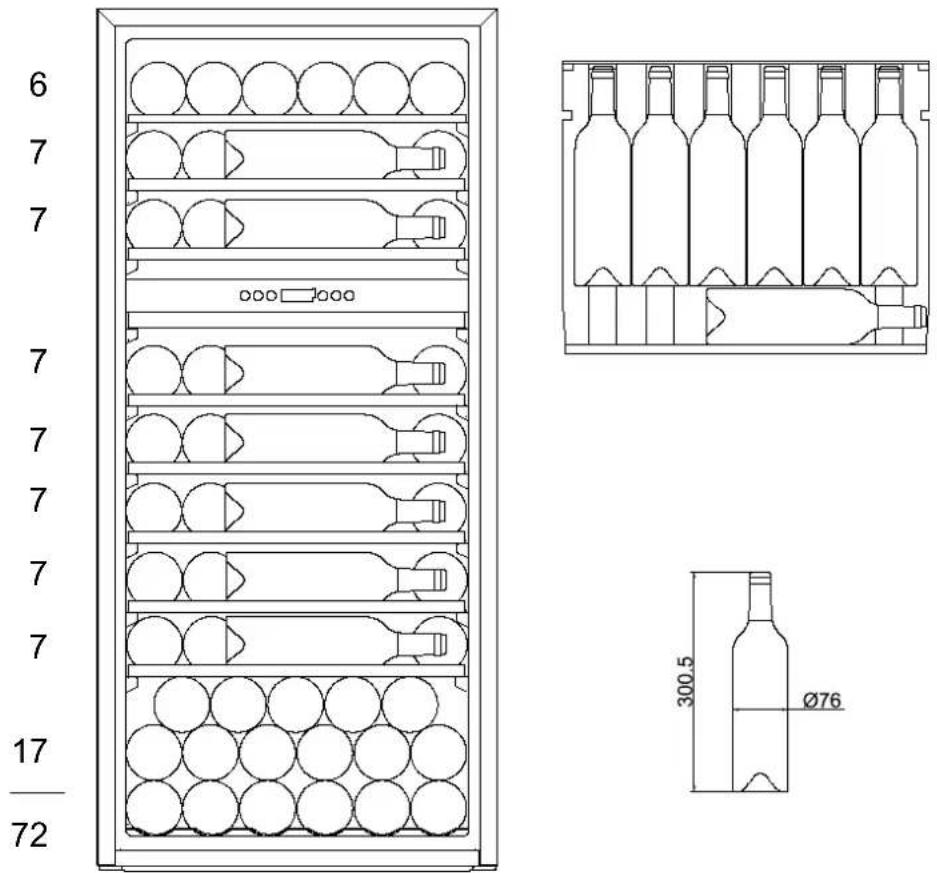

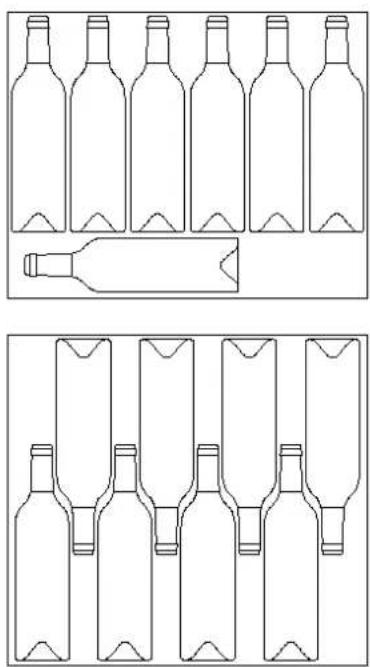

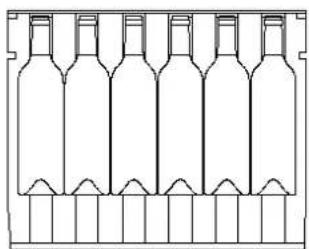

Line drawings of wine bottles arranged in two rows, one with a plastic bottle placed inside (no text or symbols)

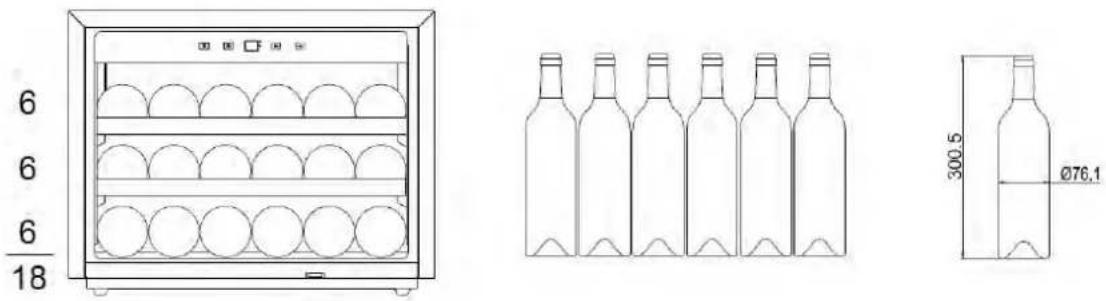

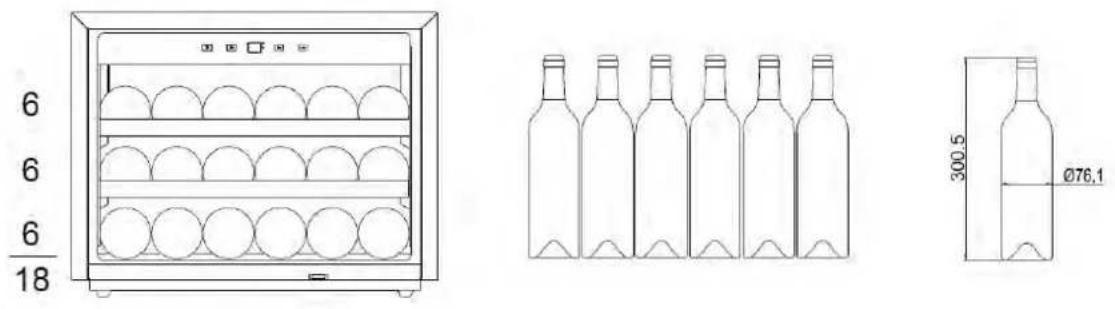

LMN180POV / LMB180POV / LMN180POVP : 18 bouteilles Max

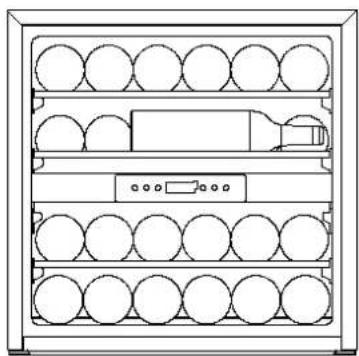

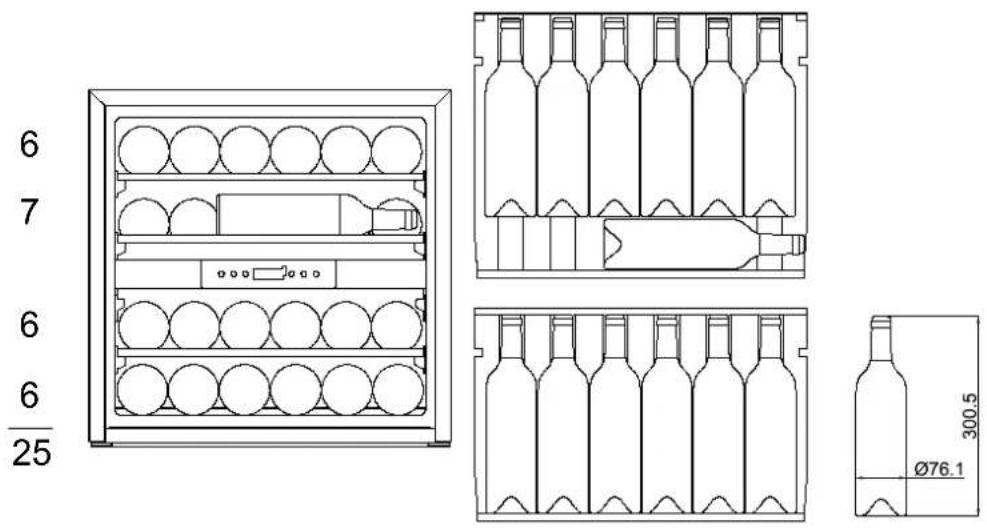

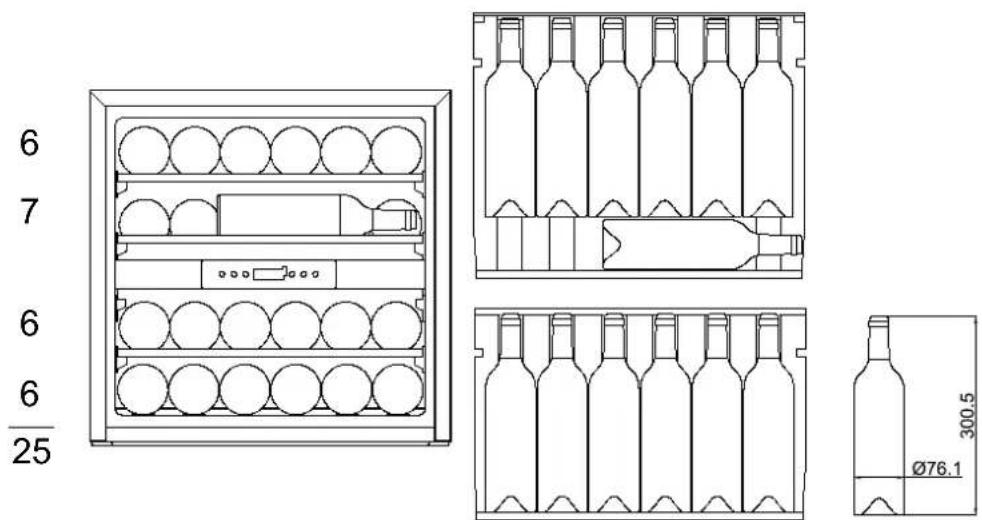

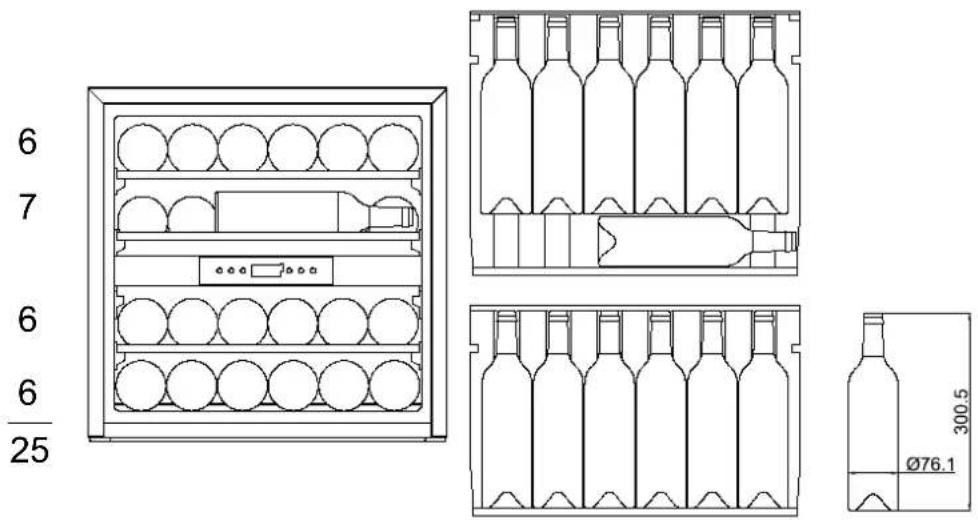

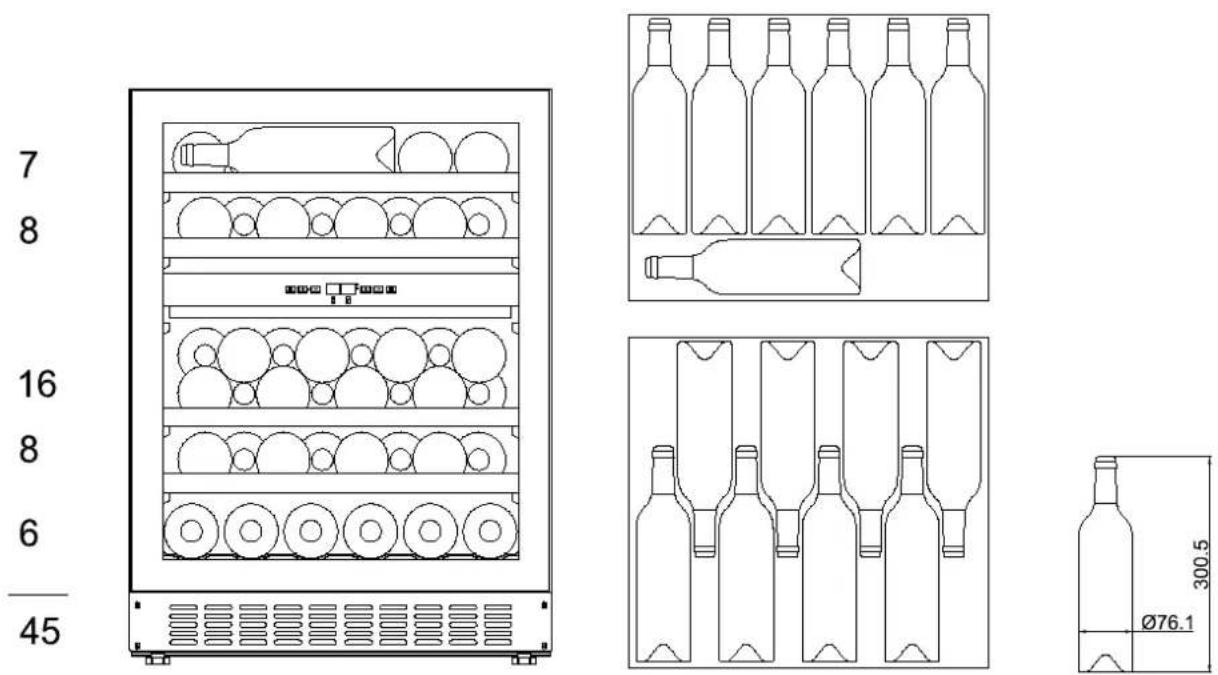

LBB240POV / LBN240POV / LBN240POVP : 25 bouteilles Max

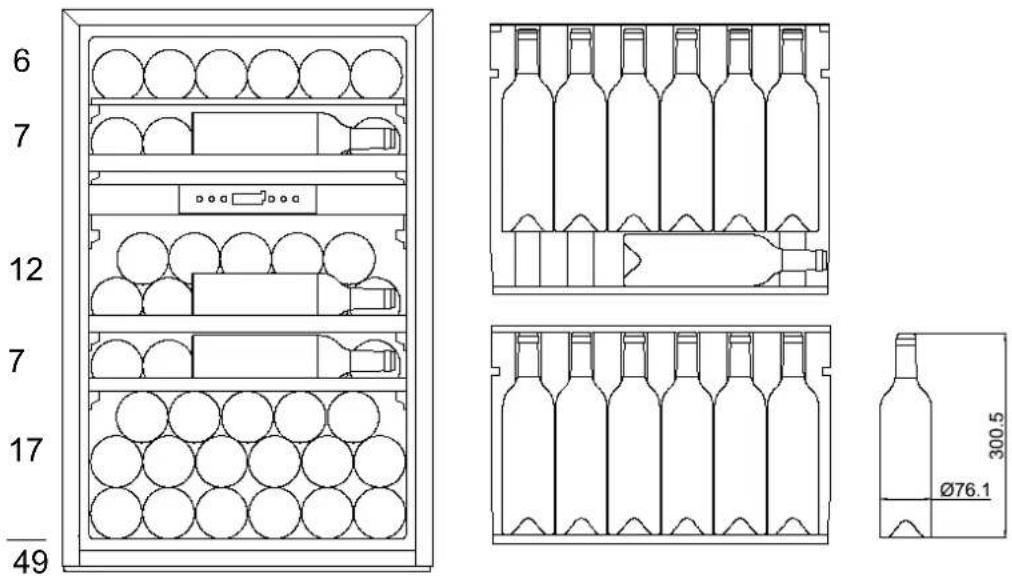

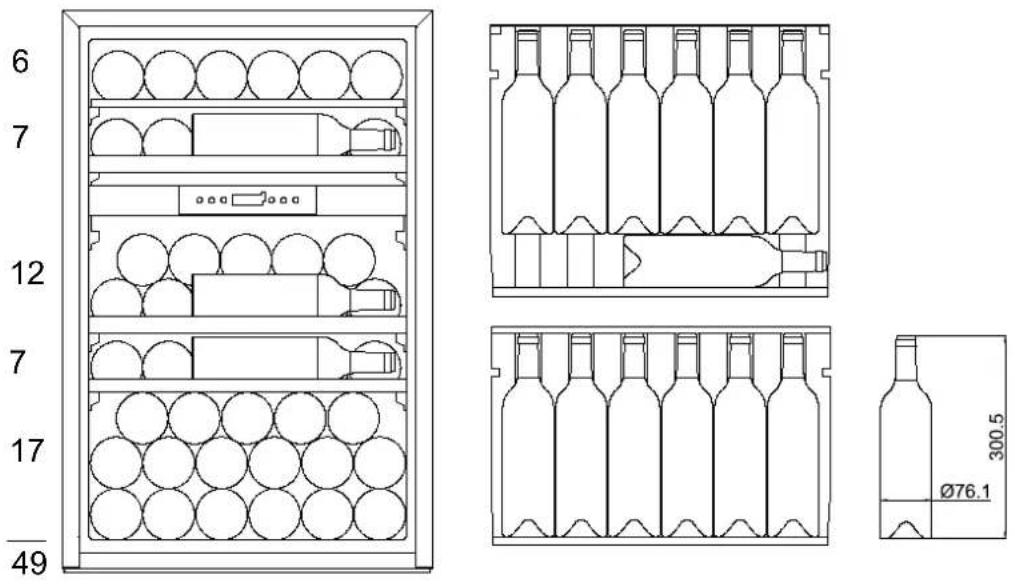

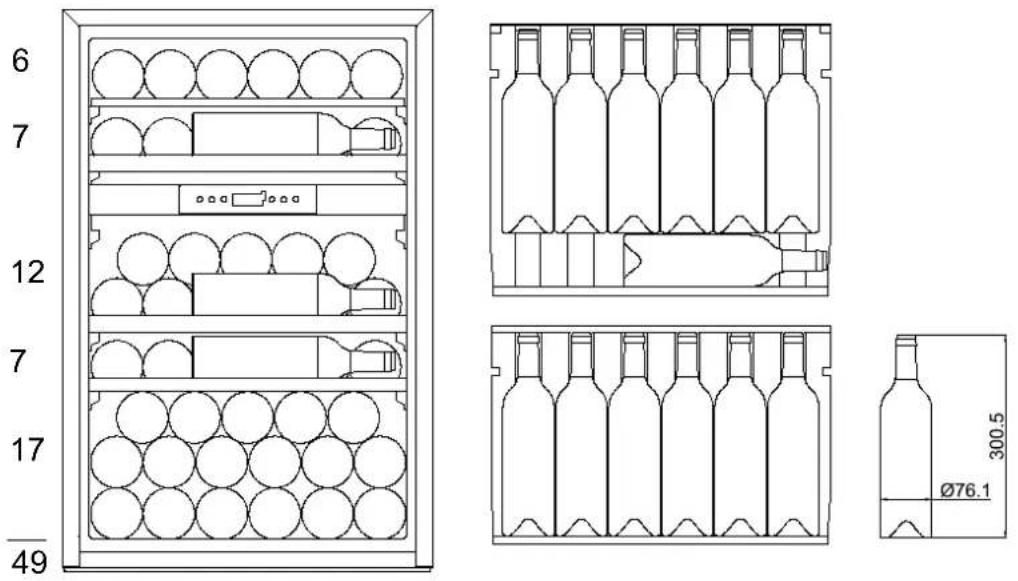

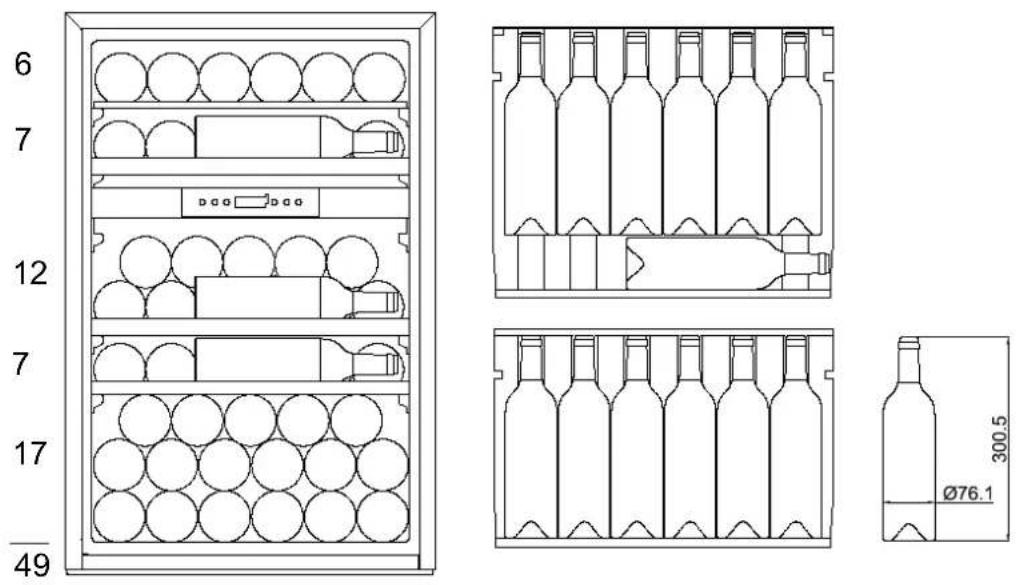

LBB460POV / LBN460POV / LBN460POVP: 49 bouteilles Max

UTILISATION

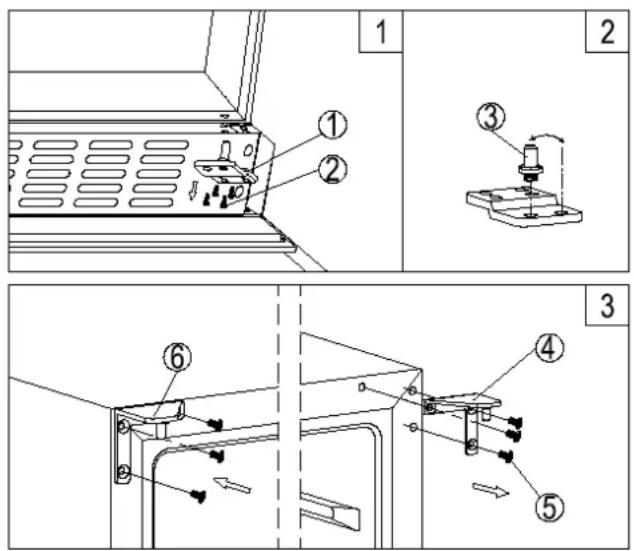

LM78/LMN78 et LB160/LBN160

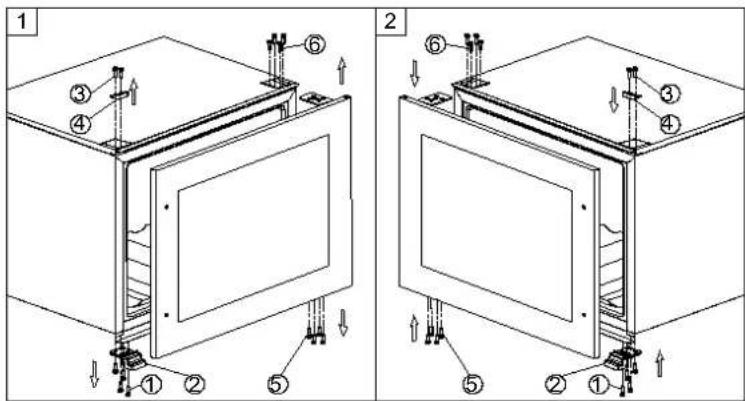

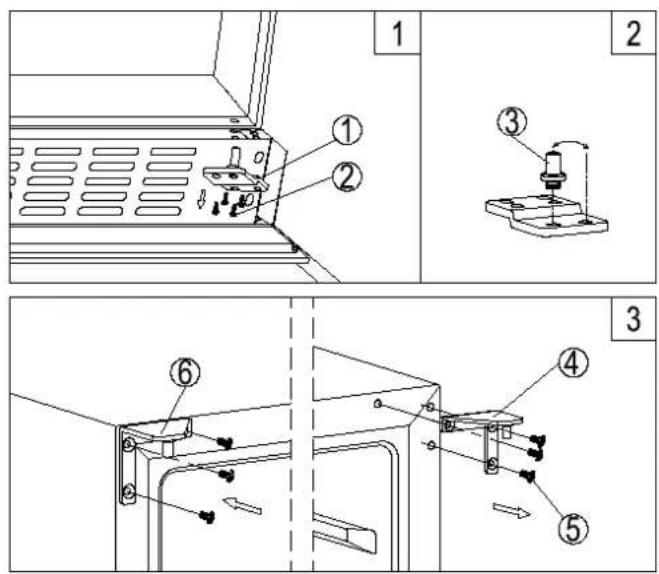

Technical diagram showing six labeled mechanical assembly steps with numbered components and directional arrows indicating movement or force.

Technical diagram showing two views of a door frame assembly with numbered components and directional arrows indicating movement or force.

Technical diagram showing two views of a door frame assembly with numbered components and directional arrows indicating assembly steps.

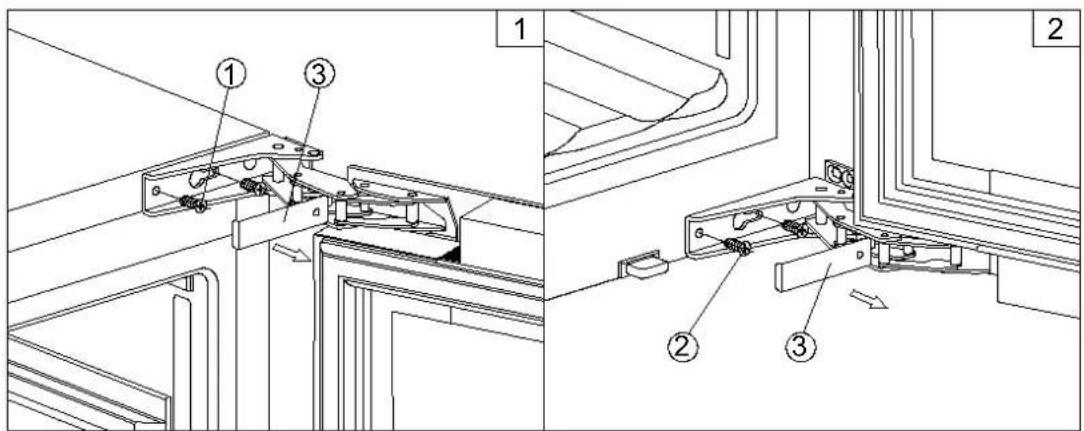

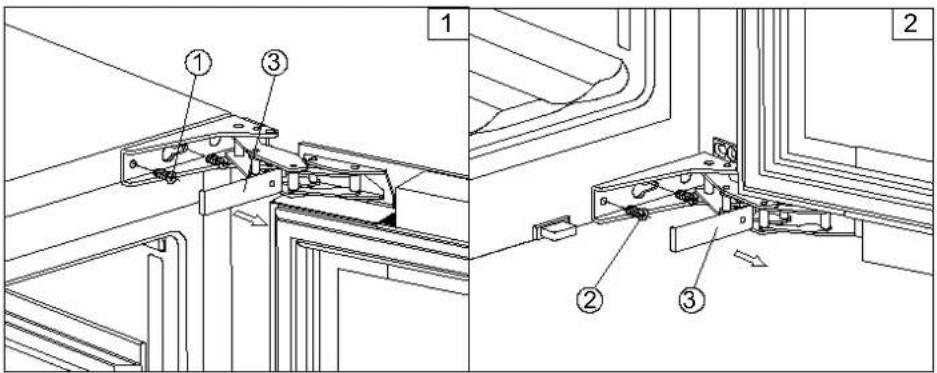

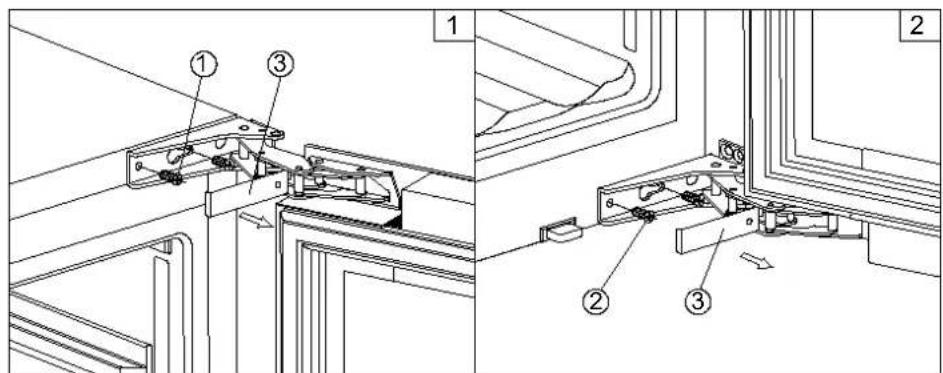

LMB180POV, LMN180POV, LMN180POVP, LBB240POV, LBN240POV, LBN240POVP, LBB460POV, LBN460POV, LBN460POVP, LBN458PO et LBN458POP

Technical diagram showing three labeled mechanical components (①, ②, ③) in a structural assembly, with arrows indicating movement or assembly.

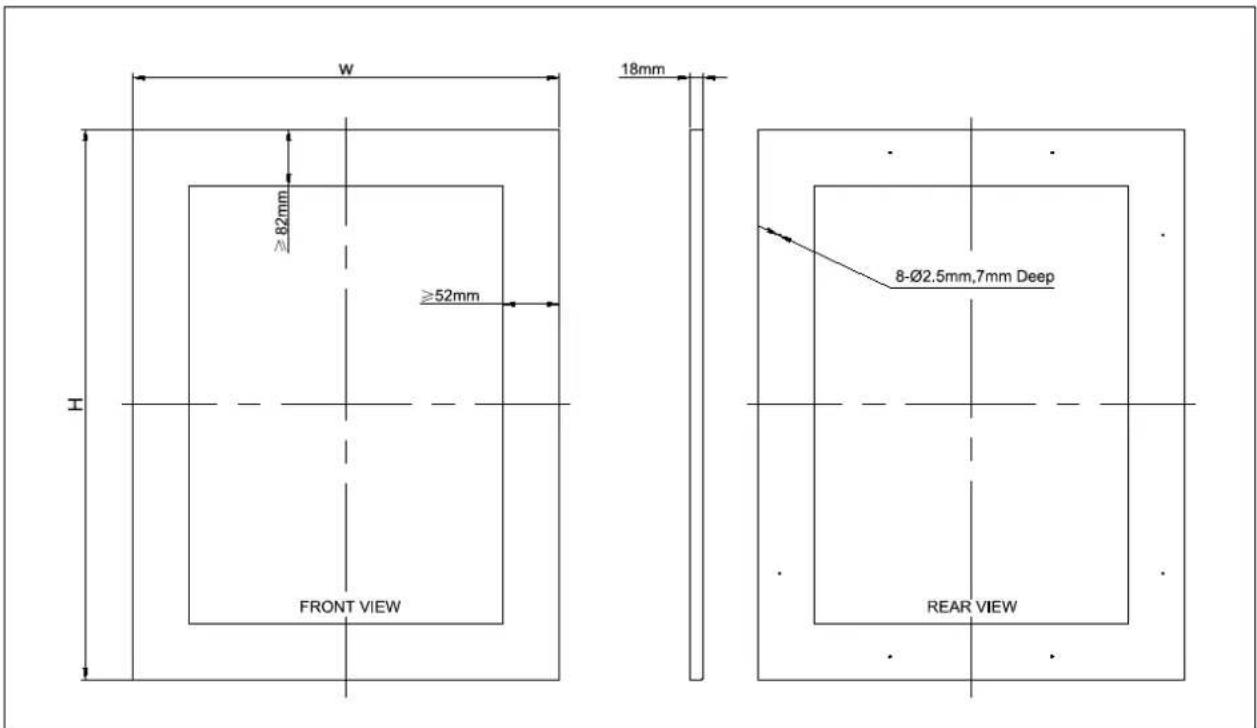

W ≥82mm ≥52mm 18mm H FRONT VIEW 8-Ø2.5mm,7mm Deep REAR VIEW

Technical diagram showing four views of a window frame with labeled components and dimension lines

LMN180POVP, LBN240POVP and LBN460POVP

A	B	C	D	E
455mm	155mm	150mm	51.5mm	46.5mm
595mm	157.5mm	152.5mm	54mm	49mm
715mm	169.5mm	169.5mm	66mm	66mm
885mm	155mm	155mm	51.5mm	51.5mm
1234mm	155mm	155mm	51.5mm	51.5mm
1784mm	155.5mm	155.5mm	52mm	52mm

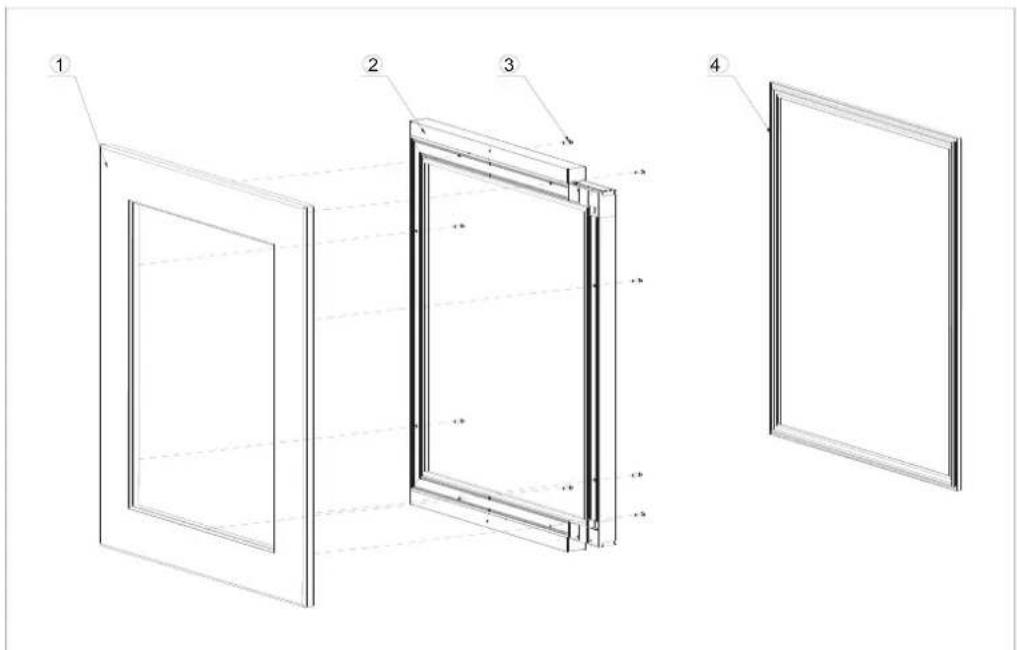

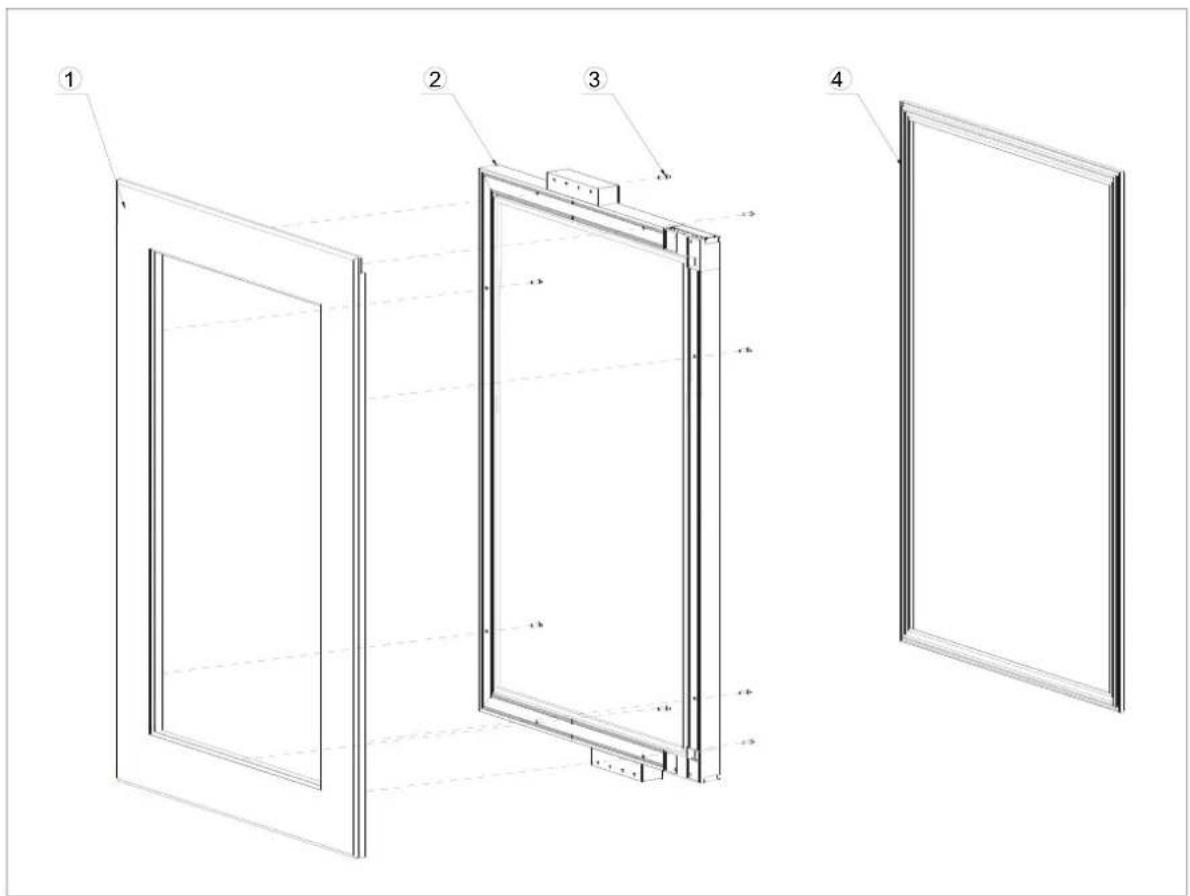

Technical diagram of a door frame assembly with numbered components and dimension annotations

GARANTIE

Modelo	website	QR-code
LM78	https //eprel.ec.europa/qr/346449
LMN78	https //eprel.ec.europa/qr/346452
LB160	https //eprel.ec.europa/qr/346379
LBN160	https //eprel.ec.europa/qr/346387
LB340	https //eprel.ec.europa/qr/346388

LBN340	https //eprel.ec.europa/qr/731088
LB720V	https //eprel.ec.europa/qr/731092
LBN720V	https //eprel.ec.europa/qr/471233
LBN458PO https //eprel.ec.europa/qr/346434
LBN458POP https //eprel.ec.europa/qr/1136797
LMB180POV	https //eprel.ec.europa/qr/347207
LMN180POV	https //eprel.ec.europa/qr/347216
LBB240POV	https //eprel.ec.europa/qr/346401
LBN240POV	https //eprel.ec.europa/qr/346410
LBN240POVP https //eprel.ec.europa/qr/1136800
LBB460POV	https //eprel.ec.europa/qr/346614
LBN460POV	https //eprel.ec.europa/qr/346430
LBN460POVP https //eprel.ec.europa/qr/1136796

Technical diagram of a refrigerator internal structure with numbered components

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Technical diagram of a refrigerator with numbered components for identification

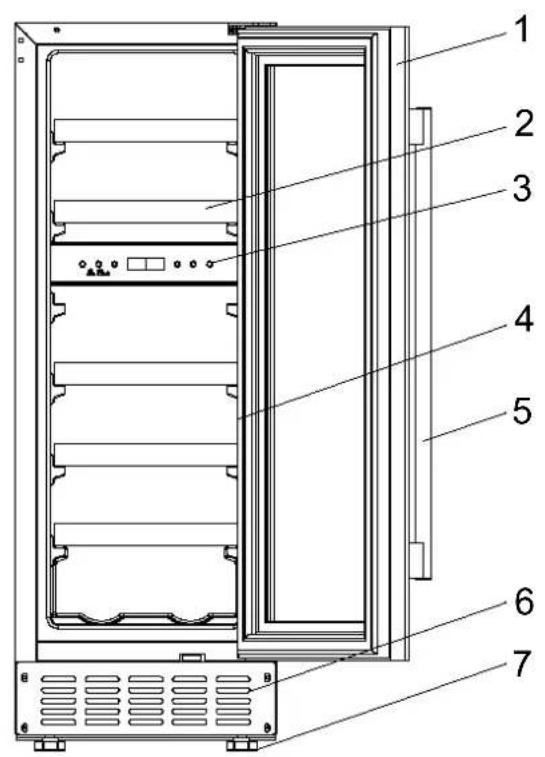

LMN180POV / LMB180POV

Technical diagram of a device rear panel with numbered labels pointing to internal components.

Technical diagram of a computer rack with numbered components for identification

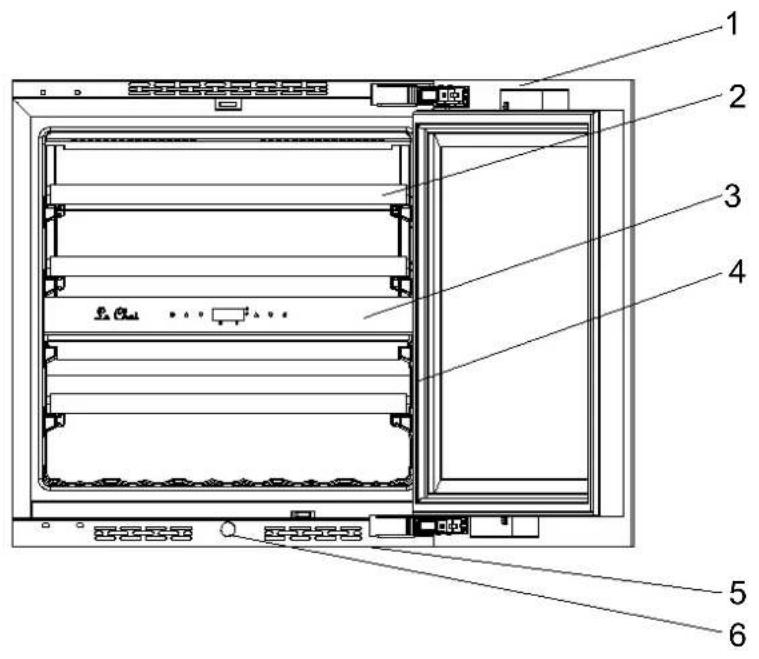

LBB240POV / LBN240POV

Technical diagram of an internal rack or storage unit with numbered components labeled 1 through 6.

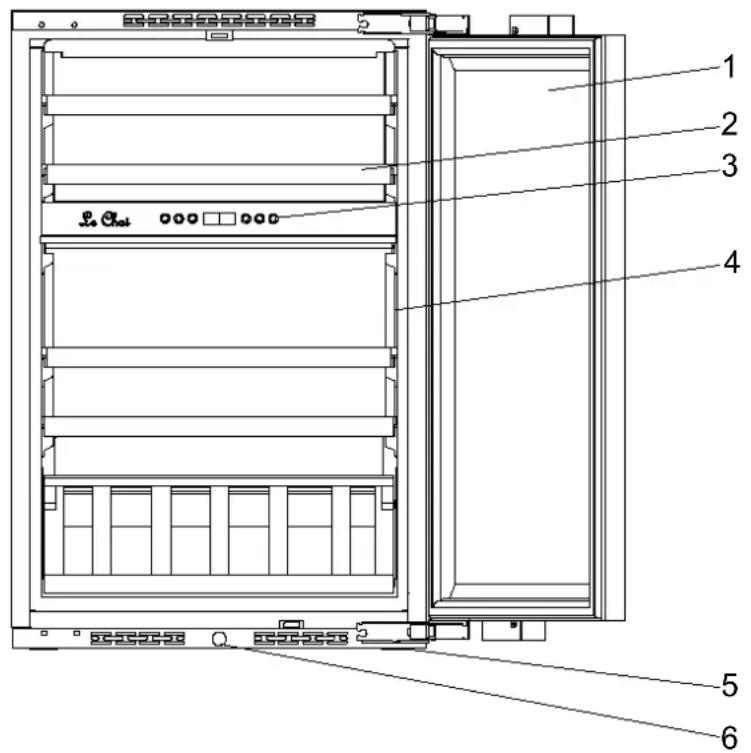

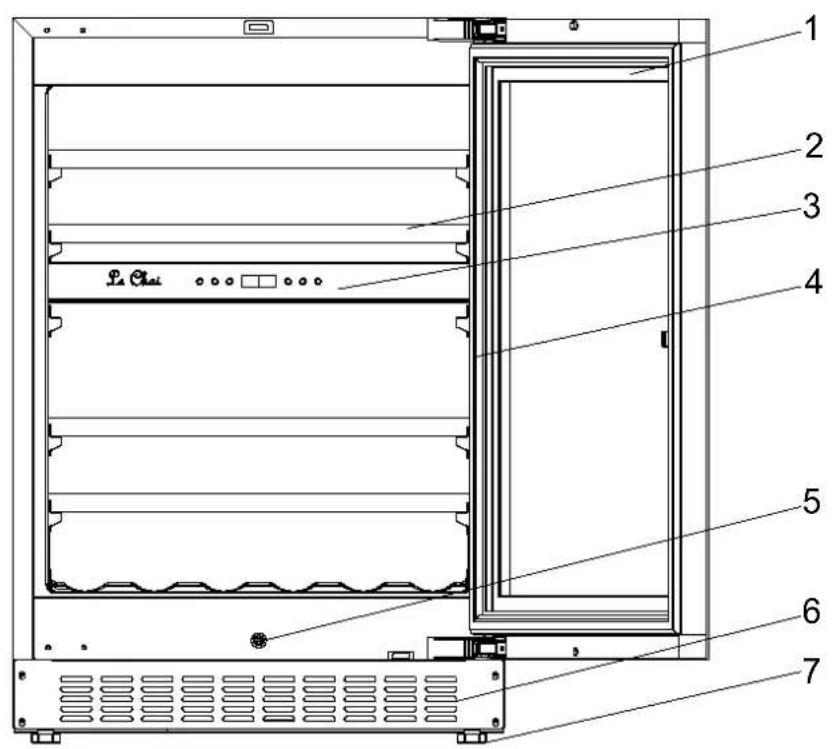

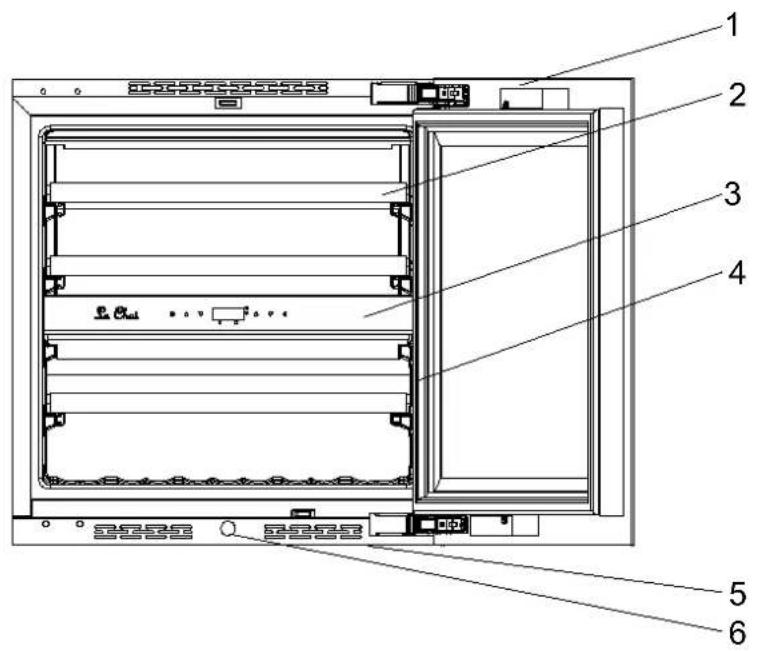

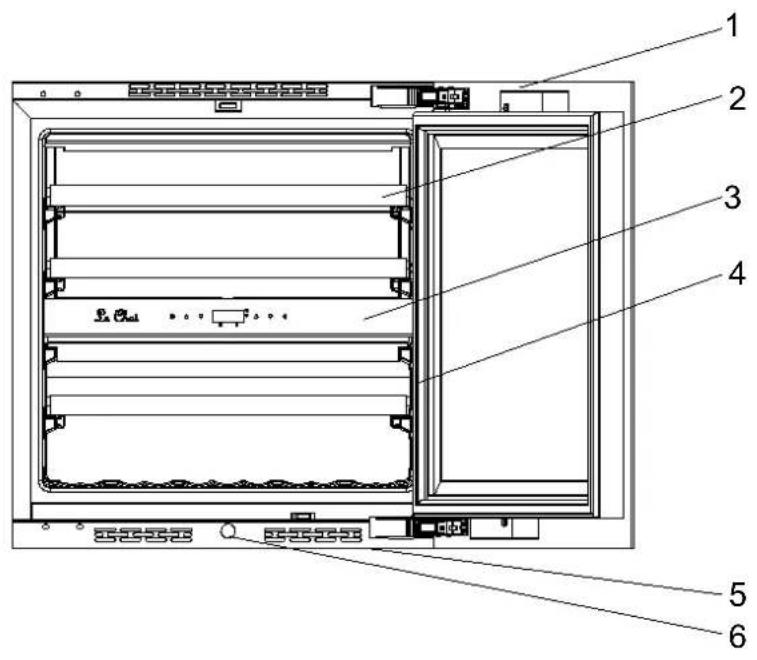

1 – Puerta de cristal

2 - Bandejas

3 – Panel de mandos

4 - Luz

5 – Ventilacion

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

1 – Puerta de cristal

2 - Bandejas

3 – Panel de mandos

4 - Luz

5 – Ventilacion

LBB460POV / LBN460POV

1 2 3 4 5 6

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments.

LMN180POV / LMB180POV

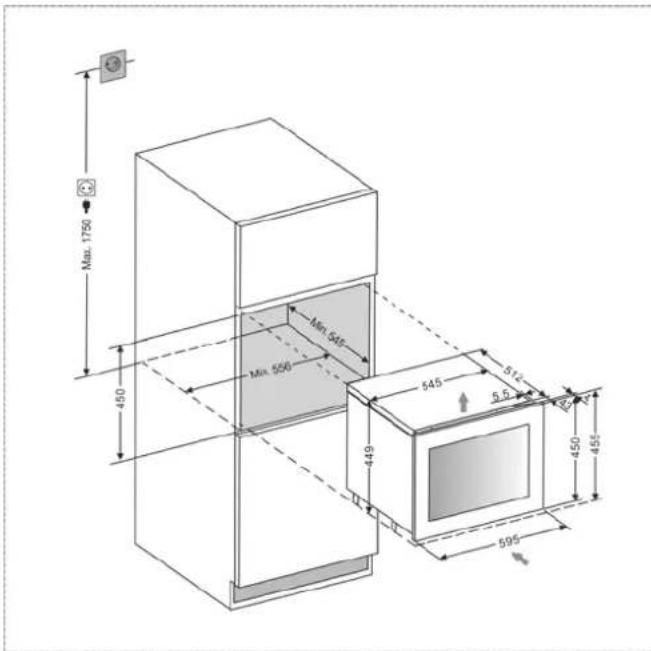

Max. 1750 450 Min. 556 Min. 542 645 512 5.0 440 450 455 595

LBB240POV / LBN240POV LBB460POV / LBN460POV

Min. 1750 Min. 545 Min. 556 589-593 588 546 512 5.5 590 555 695

Max. 1750 874-880 Min. 545 345 512 56 872 885 595

LBN240POVP LBN460POVP

Max. 1750 590-593 Min. 506 545 512 5.5 595 535

Mix 1750 877-880 Min. 565 545 512 5.5 49 Min. 556 875 885 595

LBN458POP

≥575 600 882-952 595 556 10 880-950 100-170 440 71 111 780 Min. 300cm²

LMN180POVP

Max. 1750 460 Min. 555 Min. 556 445 545 612 534 455 595

Conexión a la red

Technical line drawing of two parallel slatted metal components with mounting holes (no text or symbols)

Simple line drawing of a rolling object with an arrow indicating rotation (no text or symbols)

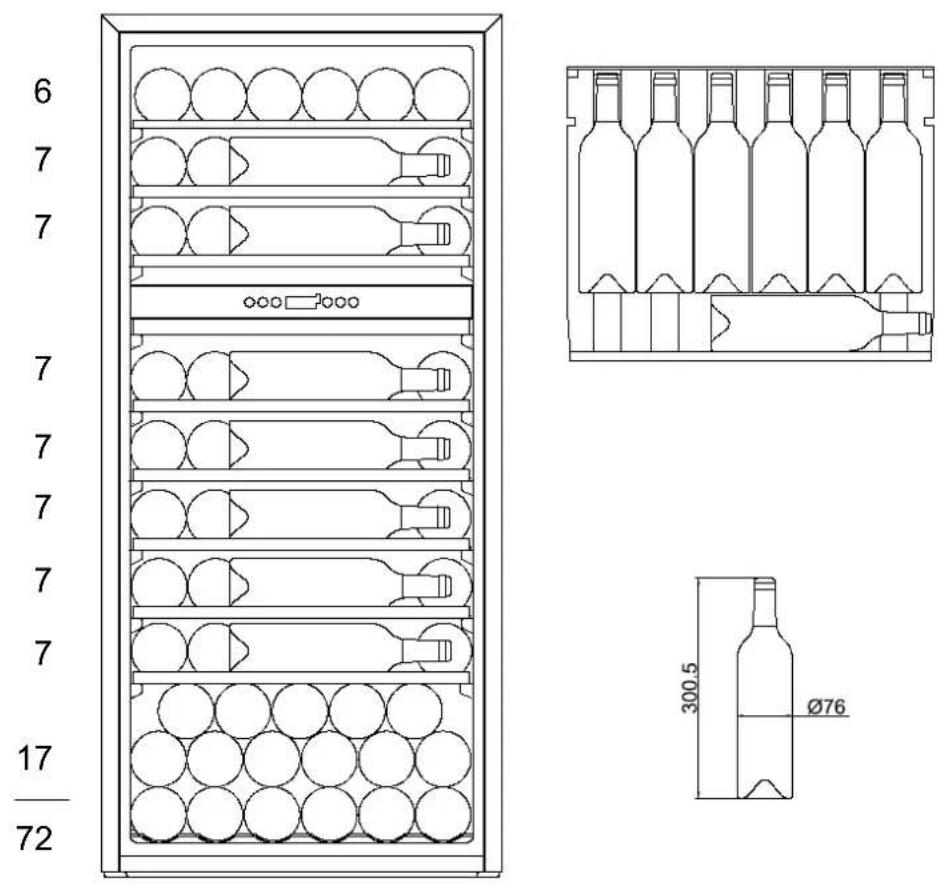

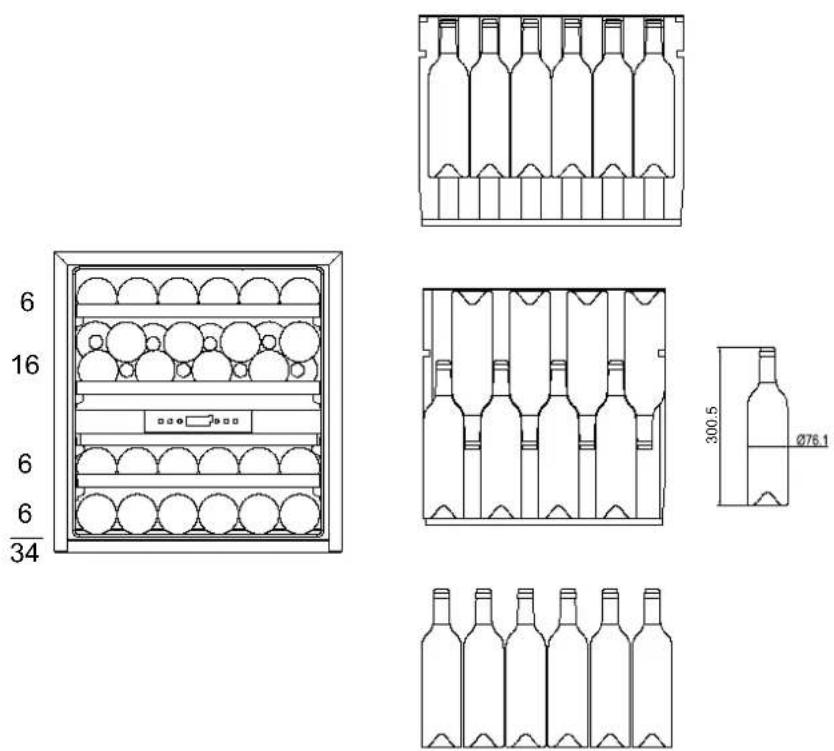

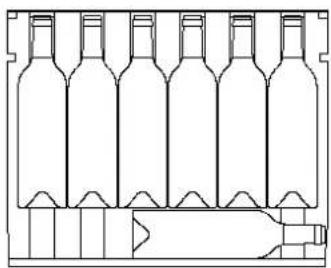

CARGA

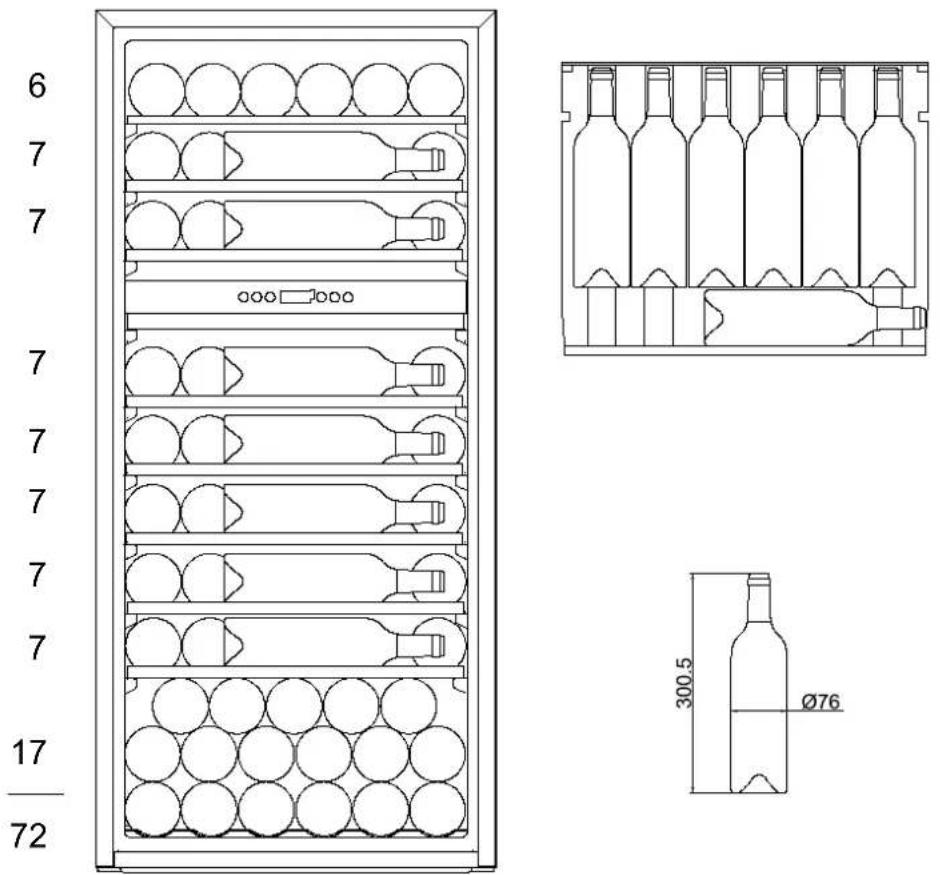

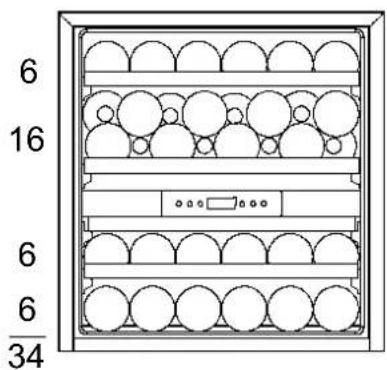

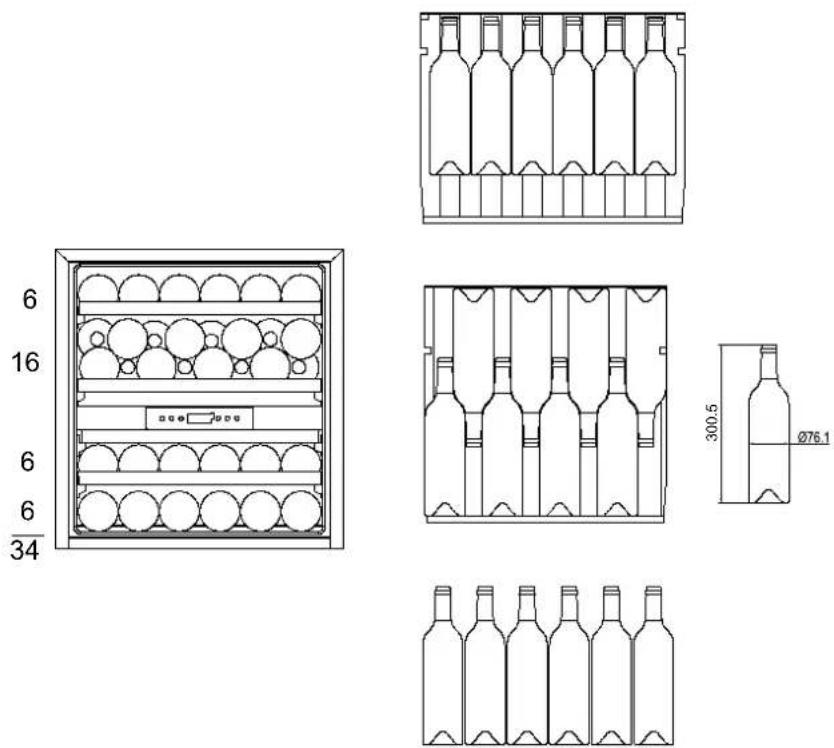

LB340 / LBN340 :34 botellas Max

LB720V / LBN720V :72 botellas Max

LMN180POV / LMB180POV / LMN180POVP : 18 botellas Max

LBB240POV / LBN240POV / LBN240POVP : 25 botellas Max

6 7 6 6 25

Diagram of a multi-tiered rack or storage unit with circular compartments and a central device (no text or symbols)

Line drawing of a wine bottle holder with multiple bottles and a plastic bottle (no text or symbols)

Line drawing of a six-cylinder wine bottle arranged in a row (no text or symbols)

UTILIZACIÓN

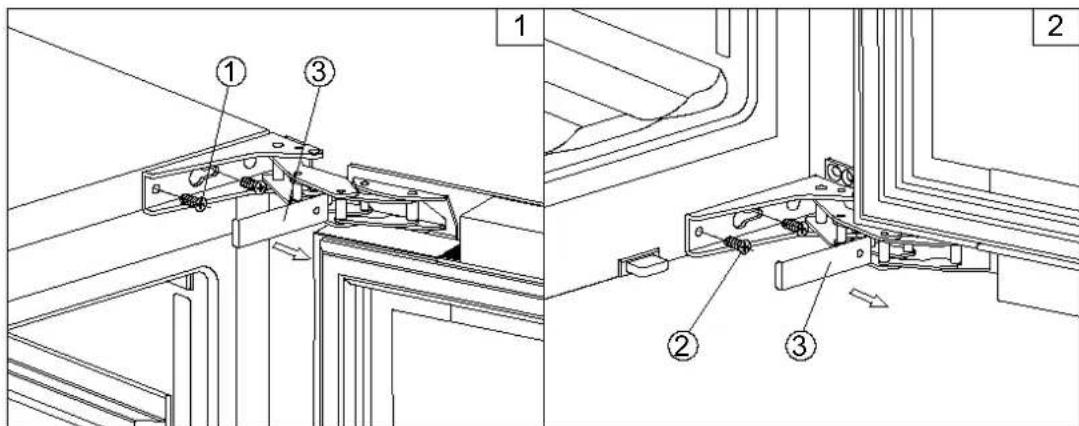

Technical diagram showing exploded and assembled views of a device with numbered components and labeled parts

Technical diagram showing two views of a door frame assembly with numbered components and directional arrows indicating assembly steps.

Technical diagram showing two views of a door frame assembly with numbered components and directional arrows indicating assembly steps.

LMB180POV, LMN180POV, LMN180POVP, LBB240POV, LBN240POV, LBN240POVP, LBB460POV, LBN460POV, LBN460POVP, LBN458PO et LBN458POP

Technical diagram showing three labeled mechanical components (①, ②, ③) in a structural assembly, with directional arrows indicating movement.

W ≥82mm ≥52mm 18mm H Vista frontal 8-Ø2.5mm,7mm Profundo Vista trasera

NOTA:

Technical diagram showing four views of a window frame with labeled components and dimension lines

LMN180POVP, LBN240POVP and LBN460POVP

A B C D E 455mm 155mm 150mm 51.5mm 46.5mm 595mm 157.5mm 152.5mm 54mm 49mm 715mm 169.5mm 169.5mm 66mm 66mm 885mm 155mm 155mm 51.5mm 51.5mm 1234mm 155mm 155mm 51.5mm 51.5mm 1784mm 155.5mm 155.5mm 52mm 52mm SECTION A-A SCALE 1:2 SECTION B-B SCALE 1:2 SECTION A- B R4mm ≥75mm R5mm R4mm ≥90mm R4mm ≥90mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R4mm R8-Ø3.2mm,7mm Deep REAR VIEW FRONT VIEW

NOTA:

Technical diagram of a door frame assembly with numbered components and dimension lines

GARANTIA

Modell	website	QR-code
LM78	https //eprel.ec.europa/qr/346449
LMN78	https //eprel.ec.europa/qr/346452
LB160	https //eprel.ec.europa/qr/346379
LBN160	https //eprel.ec.europa/qr/346387
LB340	https //eprel.ec.europa/qr/346388

LBN340	https //eprel.ec.europa/qr/346398
LB720V	https //eprel.ec.europa/qr/731088
LBN720V	https //eprel.ec.europa/qr/731092
LBN458PO https //eprel.ec.europa/qr/346434
LBN458POP https //eprel.ec.europa/qr/1136797
LMB180POV	https //eprel.ec.europa/qr/347207
LMN180POV	https //eprel.ec.europa/qr/347216
LBB240POV	https //eprel.ec.europa/qr/346401
LBN240POVP https //eprel.ec.europa/qr/1136800
LBN240POV	https //eprel.ec.europa/qr/346410
LBB460POV	https //eprel.ec.europa/qr/346614
LBN460POV https //eprel.ec.europa/qr/346430
LBN460POVP https //eprel.ec.europa/qr/1136796

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Technical diagram of a refrigerator with numbered components for identification

LMN180POV / LMB180POV

Technical diagram of an electronic device with numbered components for identification

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

LBB240POV / LBN240POV

Technical diagram of a server rack with numbered components for identification

Technical diagram of an internal refrigerator with numbered labels pointing to different compartments or parts.

LBB460POV / LBN460POV

1 2 3 4 5 6

Technical diagram of a server rack with numbered components for identification

LBN458PO LMN180POV / LMB180POV

≥575 600 882-952 595 556 860-950 100-170 440 75 175 780 Min. 300cm²

Max. 1750 450 460 480 500 510 520 530 540 550 560 570 580 590

LBB240POV / LBN240POV

Max 1750 Min 345 Min 306 589-593 588 545 512 5.5 590 595 595

LBB460POV / LBN460POV

Max. 1750 874-689 Min. 556 872 545 512 5.5 30 885 595

LBN240POVP LBN460POVP

Max. 1750 Min. 566 590-593 589 545 512 56 595 595

Max. 1750 877-885 Min. 556 545 512 5.6 32 Min. 556 875 885 595

LBN458POP

≥575 600 882-952 595 556 19 880-950 100-170 440 71 111 780 Min. 300cm²

LMN180POVP

Max. 1750 450 Min. 556 545 512 55 485 595

Netzanschluss

Technical line drawing of two rectangular metal profiles with mounting holes (no text or symbols)

Simple line drawing of a circular object on a rectangular base with an angular arrow indicating motion (no text or symbols)

Technical diagram showing exploded and assembled views of a device with numbered components and labeled parts

Technical diagram showing two views of a door frame assembly with numbered components and directional arrows indicating assembly steps.

Technical diagram showing two views of a door frame assembly with numbered components and directional arrows indicating assembly steps.

LMB180POV, LMN180POV, LMN180POVP, LBB240POV, LBN240POV, LBN240POVP, LBB460POV, LBN460POV, LBN460POVP, LBN458PO und LBN458POP

Technical diagram showing three labeled mechanical assembly steps with numbered components

Technical diagram showing four views of a window frame with numbered components and dimension lines

LMN180POVP, LBN240POVP and LBN460POVP

A B C D E 455mm 155mm 150mm 51.5mm 46.5mm 595mm 157.5mm 152.5mm 54mm 49mm 715mm 169.5mm 169.5mm 66mm 66mm 885mm 155mm 155mm 51.5mm 51.5mm 1234mm 155mm 155mm 51.5mm 51.5mm 1784mm 155.5mm 155.5mm 52mm 52mm SECTION A-A SCALE 1:2 SECTION B-B SCALE 1:2 FRONT VIEW

HINWEIS:

Technical diagram of a door frame assembly with numbered components and dimension lines

GARANTIE

BUILT-IN WINE PRESERVATION CABINET

LM78 / LMN78 - 7 bottles max

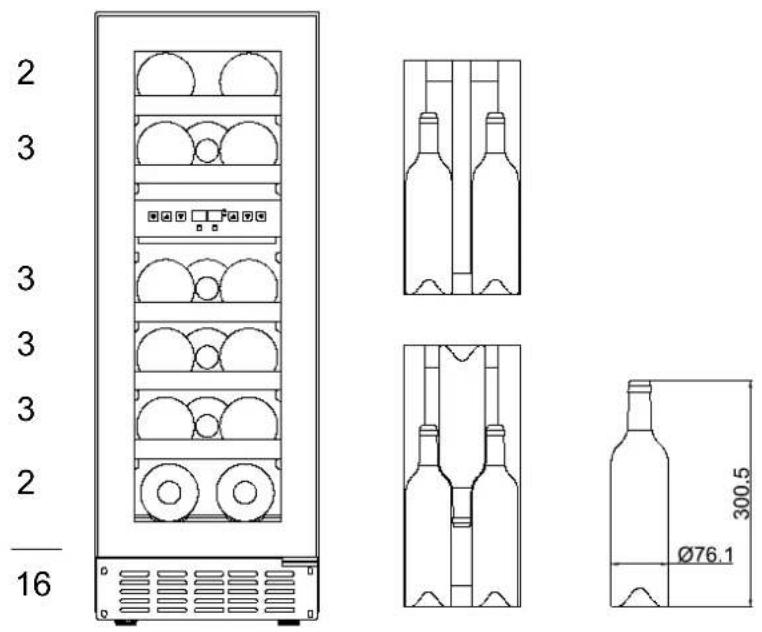

LB160 / LBN160 - 16 bottles max

LB340 / LBN340 - 34 bottles max

LB720V / LBN720V - 72 bottles max

LBN458PO / LBN458POP - 45 bottles max

LMB180POV / LMN180POV / LBN180POVP - 18 bottles max

LBB240POV / LBN240POV / LBN240POVP - 25 bottles max

LBB460POV / LBN460POV / LBN460POVP - 49 bottles max

TABLE OF CONTENTS

Introducing the wine cabinet	Page 109
Important warnings and tips	Page 115
Setting up the cabinet	Page 119
Specific information	Page 122
Usage	Page 128
Care of your cabinet	Page 132
Troubleshooting	Page 133
Changing door opening side	Page 134
Glass overlay door guide	Page 136
Guarantee	Page 139

This device complies with European Directive requirements:

2014/35/EU pertaining to electrical safety

2014/30/EU pertaining to electromagnetic compatibility

CE

TECHNICAL AND ENERGY CHARACTERISTICS

Brand: LE CHAI	ModelsLM78 / LMN78(7 bottles Max)	ModelsLB160 / LBN160(16 bottles Max)	LB340 / LBN340(34 bottles Max)	Models ModelsLB720V / LBN720V(72 bottles max)
Voltage/Frequency 22	0-240V~ 50Hz
Size (L*W*H) (mm)	148 x 570 x 880	295 x 615 x 820	590 x 608 x 595	590 x 595 x 1234
Weight	20 kg	27 kg	36 kg	68 kg
Defrosting	No-Frost
Climate class	ST : This device is designed for use at ambient temperatures between 16°C and 38°C
Installation type	Built-in

Brand: LE CHAI	ModelsLBN458PO / LBN458POP(45 bottles Max)	ModelsLMN180POV / LMB180POV / LBN180POVP(18 bottles max)	ModelsLBB240POV / LBN240POV / LBN240POVP(25 bottles max)	ModelsLBB460POV / LBN460POV / LBN460POVP(49 bottles max)
Voltage/Frequency 220-240V~ 50Hz
Size (L*W*H) (mm)	595 x 556 x 880	592 x 559 x 455	592 x 559 x 595	592 x 559 x 885
Weight	52 kg	33 kg	42 kg	54 kg
Defrosting No frost
Climate class	ST: This device is designed for use at ambient temperatures between 16°C et 38°C
Installation type	Built-in

The cabinet is exclusively designed for storing wine.

The product information fiche according to regulation 2019/2016 / EU is available via

Model	Website	QR-code
LM78	https //eprel.ec.europa/qr/346449
LMN78	https //eprel.ec.europa/qr/346452
LB160	https //eprel.ec.europa/qr/346379
LBN160	https //eprel.ec.europa/qr/346387
LB340	https //eprel.ec.europa/qr/346388

LBN340	https //eprel.ec.europa/qr/346398
LB720V	https //eprel.ec.europa/qr/731088
LBN720V	https //eprel.ec.europa/qr/731092
LBN458PO https //eprel.ec.europa/qr/346434
LBN458POP https //eprel.ec.europa/qr/1136797
LMB180POV	https //eprel.ec.europa/qr/347207
LMN180POV	https //eprel.ec.europa/qr/347216
LBB240POV	https //eprel.ec.europa/qr/346401
LBN240POV	https //eprel.ec.europa/qr/346410
LBN240POVP https //eprel.ec.europa/qr/1136800
LBB460POV	https //eprel.ec.europa/qr/346614
LBN460POV https //eprel.ec.europa/qr/346430
LBN460POVP https //eprel.ec.europa/qr/1136796

INTRODUCING THE WINE CABINET

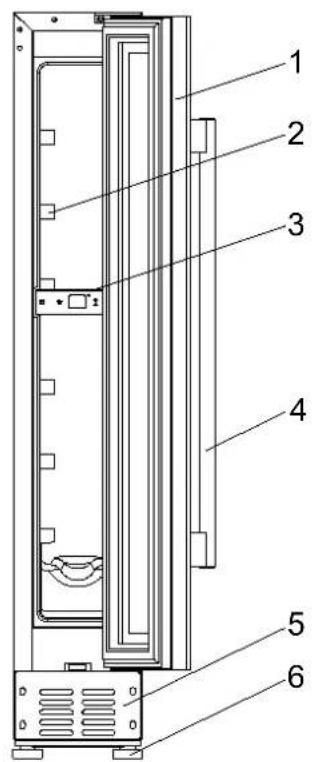

LM78 / LMN78

Technical diagram of a refrigerator internal structure with numbered components

1 - Glass door
2 – Shelves
3 - Control Panel
4 - Handle
5 – Ventilation
6 - Legs

LB160 / LBN160

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments.

1 - Glass door
2 - Shelves
3 - Control Panel
4 - Lights
5 - Handle
6 – Ventilation
7 - Legs

INTRODUCING THE WINE CABINET

LB340 / LBN340

Technical diagram of a refrigerator with numbered components for identification

1 - Glass door
2 – Shelves
3 – Control Panel
4 - Lights
5 - Handle
6 - Legs

LB720V / LBN720V

1 2 3 4 5 6

1 - Glass door
2 – Shelves
3 - Control Panel
4 – Lights
5 - Handle
6 – Ventilation

INTRODUCING THE WINE CABINET

LBN458PO

1 2 3 4 5 6 7

1 - Glass door
2 - Shelves
3 – Control Panel
4 - Lights
5 - Push rod
6 – Ventilation
7 - Legs

LBN458POP

1 2 3 4 5 6 7 S_{o} C_{out}

1 - Glass door
2 - Shelves
3 – Control Panel
4 – Lights
5 - Push rod
6 – Ventilation
7 - Legs

INTRODUCING THE WINE CABINET

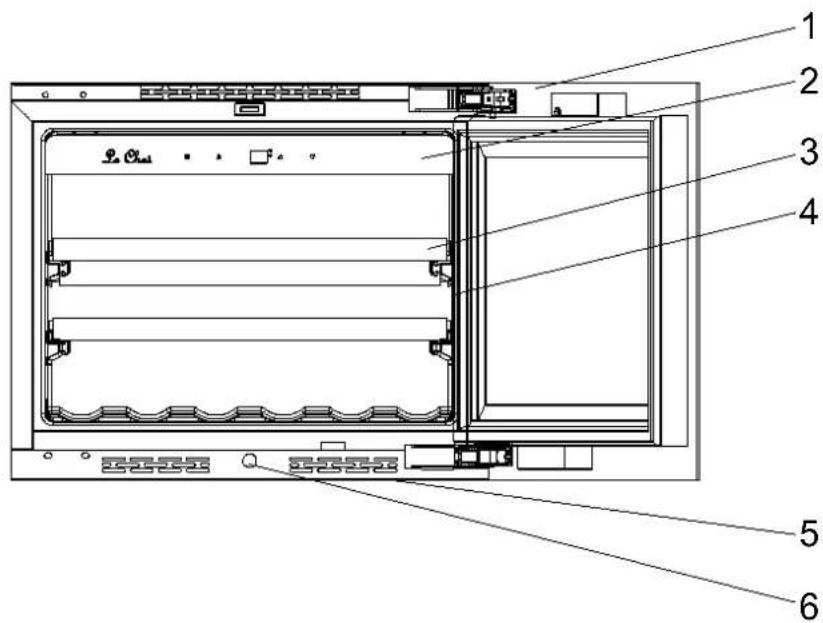

LMN180POV / LMB180POV

1 2 3 4 5 6 La Chel

1 - Glass door
2 - Control Panel
3 - Shelves
4 - Lights
5 - Ventilation
6 - Push rod

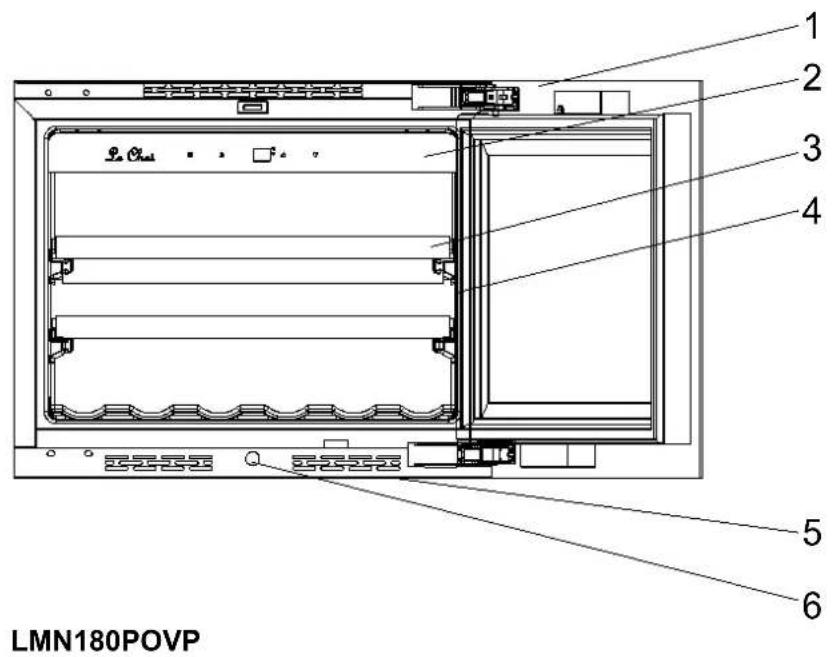

LMN180POVP

1 2 3 4 5 6

1 - Glass door
2 - Control Panel
3 - Shelves
4 - Lights
5 – Ventilation
6 - Push rod

INTRODUCING THE WINE CABINET

LBB240POV / LBN240POV

Technical diagram of a rack-mounted refrigerator with numbered components labeled 1 through 6

1 - Glass door
2 - Shelves
3 - Control Panel
4 – Lights
5 – Ventilation
6 - Push rod

LBN240POVP

1 2 3 4 5 6 La Chat

1 - Glass door
2 - Shelves
3 - Control Panel
4 – Lights
5 – Ventilation
6 - Push rod

INTRODUCING THE WINE CABINET

LBB460POV / LBN460POV

1 2 3 4 5 6

1 - Glass door
2 – Shelves
3 - Control Panel
4 - Lights
5 – Ventilation
6 - Push rod

LBN460POVP

1 2 3 4 5 6

1 - Glass door
2 - Shelves
3 - Control Panel
4 - Lights
5 – Ventilation
6 - Push rod

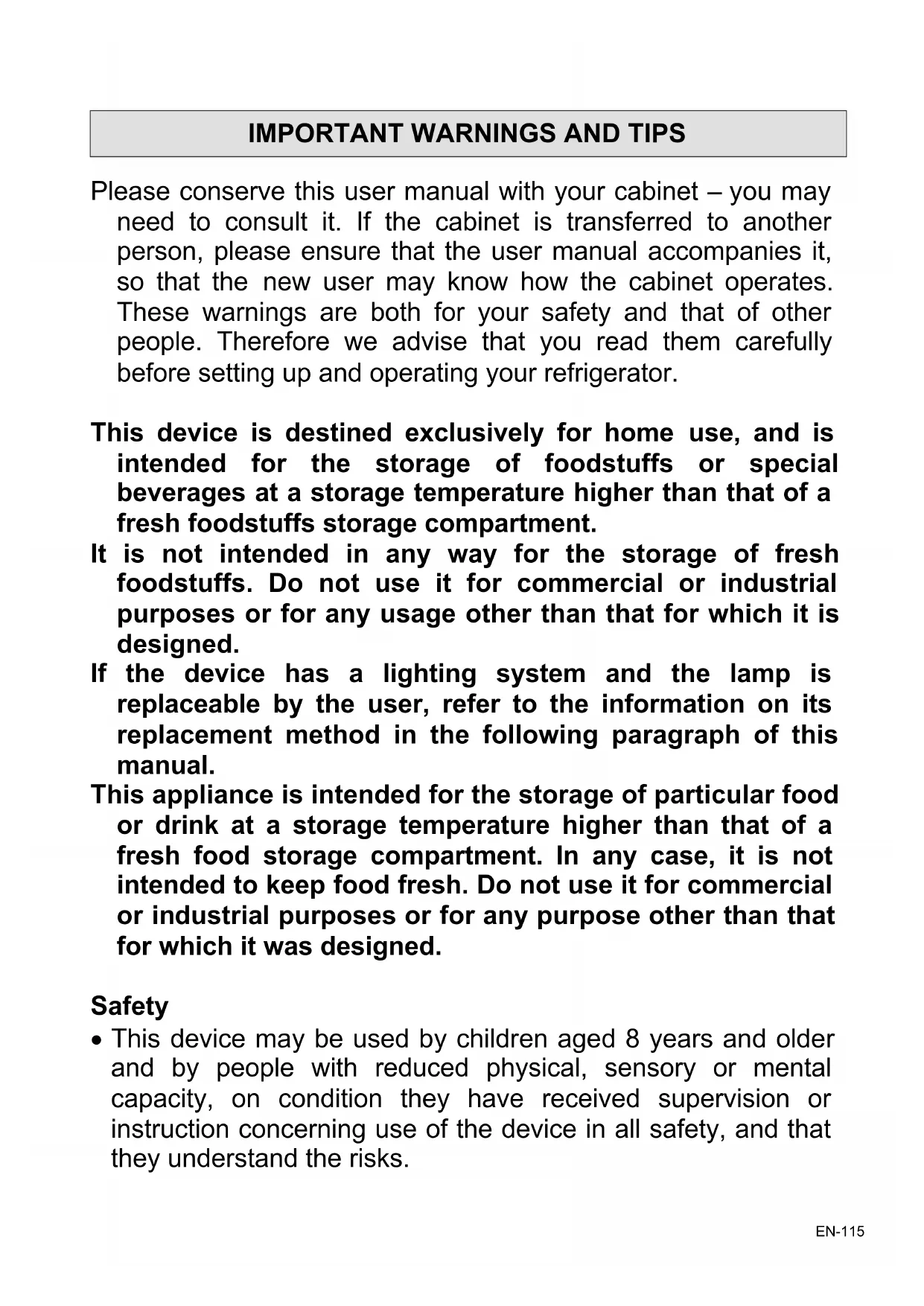

IMPORTANT WARNINGS AND TIPS

Please conserve this user manual with your cabinet – you may need to consult it. If the cabinet is transferred to another person, please ensure that the user manual accompanies it, so that the new user may know how the cabinet operates. These warnings are both for your safety and that of other people. Therefore we advise that you read them carefully before setting up and operating your refrigerator.

This device is destined exclusively for home use, and is intended for the storage of foodstuffs or special beverages at a storage temperature higher than that of a fresh foodstuffs storage compartment.

It is not intended in any way for the storage of fresh foodstuffs. Do not use it for commercial or industrial purposes or for any usage other than that for which it is designed.

If the device has a lighting system and the lamp is replaceable by the user, refer to the information on its replacement method in the following paragraph of this manual.

This appliance is intended for the storage of particular food or drink at a storage temperature higher than that of a fresh food storage compartment. In any case, it is not intended to keep food fresh. Do not use it for commercial or industrial purposes or for any purpose other than that for which it was designed.

Safety

- This device may be used by children aged 8 years and older and by people with reduced physical, sensory or mental capacity, on condition they have received supervision or instruction concerning use of the device in all safety, and that they understand the risks.

• Children should not be allowed to play with the device.
- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
- Always disconnect the device's electricity supply before cleaning it; before defrosting it, before changing the illuminating lamp; before moving the device or before cleaning the floor underneath it. Cleaning and care by the user should not be done by children unless under supervision.
- WARNING: Do not damage the refrigeration circuit.
- WARNING: Do not use electrical equipment inside the foodstuffs storage compartment, unless it is of a type recommended by the manufacturer.
- WARNING: Do not use mechanical tools or other means to speed up defrosting, unless they are recommended by the manufacturer.
- WARNING: Keep the cabinet's ventilation openings clear in the enclosure or the built-in space around the cabinet.
- WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
- Do not connect the device to a power supply without overload protection (protected by an electrical fuse).
- Never use power-strips or extension cords to connect the device to the mains.
- This device is not destined for use with an outside timer or remote control system or any device that switches it on automatically.
- Do not use the device to store explosive substances such as aerosols that contain flammable propulsion gas.
- After installing the cabinet, ensure that it is not resting on the power cord.

• If the power cord is damaged, it must be replaced by the manufacturer, by customer care service, or by similarly qualified personnel in order to prevent electrical hazards.
• The device is heavy; be careful when moving it.
• If your cabinet was laid down in a horizontal position during transportation, wait 48 hours before operating it.
• In the event of accidental liquid spillage (broken bottles or other) on electrical components (motor or other), immediately unplug the device from the mains.
• Ensure that you put your cabinet in a place that can support its weight when loaded (1 bottle containing 75 cl weighs approximately 1.3 kg).
• Your cabinet must be placed on a level surface. If you have placed it on a rug or on carpeting, insert a support beneath it.
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• This refrigeration appliance is not suitable for freezing foodstuffs.

Servicing – repairs

• It is dangerous to modify or attempt to modify the characteristics of the device.
• If it breaks down, do not try to repair the device yourself. Repairs made by unqualified personnel can cause damage. Contact your dealer's Customer Care Service.

Refrigerant

Warning; Risk of fire / flammable materials.

The refrigerant gas contained in this device is isobutane (R 600a), it is low-polluting but is flammable.

• When transporting and installing the device, take care not to damage any part of the refrigerating circuit.
  -Do not use a pointed or sharp edged tool to defrost the device.
  -Do not use any electrical devices inside the cabinet.

If the refrigerating circuit is damaged:

• Do not allow any open flame near the device.
• Avoid sparks – do not switch on any electrical appliances or lamps nearby.
• Immediately ventilate the room.

Disposal

This device carries the selective waste sorting symbol for electrical and electronic equipment disposal. This means that the product must be picked up by a selective collection system in compliance with European Directive 2012/19 EU so that it will either be recycled or dismantled in an environment-friendly way.

For more information please contact your local or regional government.

Electronic products that are not properly and selectively recycled are potentially dangerous for the environment and for human health because they contain dangerous substances.

This device contains flammable foaming agents. When the refrigerator reaches the end of its life cycle, it must be disposed of in a suitable place, where refrigerators can be recycled. For this purpose please contact your town hall or municipality. Under no circumstances must the refrigerator be disposed of in public areas.

SETTING UP THE CABINET

If this device, which uses magnetic door closing, replaces a device equipped with a spring closing system, we advise you to destroy the spring closing system before disposing of the old device. will prevent children from locking themselves inside it and endangering their lives.

Location

Place your cabinet well away from heat sources (heater, cooker, direct sunlight). For proper operat the device, the ambient room temperature should be between +16°C and -(83°C ST). Outside these limits, the device will not operate properly.

- Ensure that air can circulate freely behind the device: do not place it too close to a wall, in or avoid noise from vibration. Ensure that air can circulate freely all around the device. Insufficient ventilation will lead to poor operation and increased energy consumption.

Leave at least 3 cm of empty space between the back of the wine cellar and the wall (Does not self-ventilated models).

- The device must be installed in such a way that the electric plug is accessible. After the cabinet, make sure that it is not resting on the power cord.

- Level the device by using the 4 adjustable feet.

Built-in

Below the built-in dimensions to use before installing in the best condition this appliance

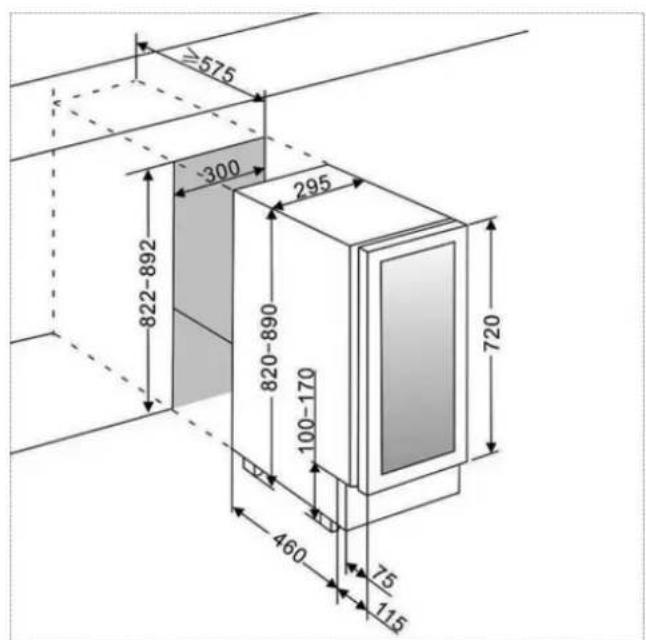

LM78 / LMN78 LB160 / LBN160

≥550 160 148 882-952 880-950 100-170 780 450 15

≥575 300 295 822-892 820-890 100-170 460 75 115 720

LB340 / LBN340

Min. 38 500 Min. 550 14 25 545 588 595 590 Min. 200cm²

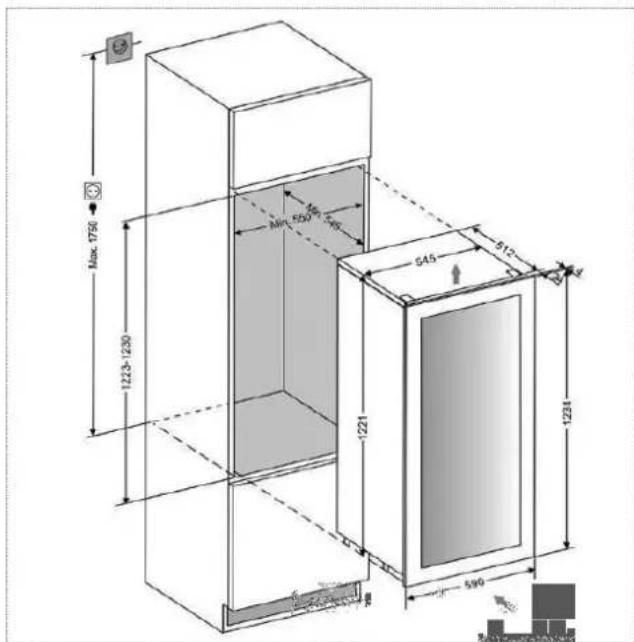

LB720V / LBN720V

Max: 1750 123-1230 Min: 550 645 512 1221 6 590

LBN458PO

≥576 600 882-952 880-950 100-170 440 75 115 595 556 780 Min. 300cm²

LMN180POV /LMB180POV

Max. 1750 450 Min. 356 Min. 556 449 545 512 5.1 453 455 595

LBB240POV / LBN240POV

Max. 1753 589-593 Min. 545 Min. 556 588 545 512 5.5 30 590 595 595

LBB460POV / LBN460POV

60 Max. 1,50 874-880 Min. 545 545 612 5.5 877 885 Min. 550 695

LBN240POVP

Max 1750 Min 556 Min 556 545 512 5.6 595 595 589 589 590-591

LBN460POVP

Max. 1750 877.680 Min. 555 Min. 556 876 546 512 5.5 48 885 595

≥575 600 882-952 890-950 100-170 440 71 111 556 760 Min. 300cm²

Max. 1750 460 Mn. 556 Mn. 558 449 545 5.12 5.04 455 595

Connecting the power supply

Your cabinet is designed for operation with 230 V single-phase.

It must be connected to a wall socket equipped with earthing and protected by a 10 A fuse in compliance with the standard NF C15-100 and in compliance with your electricity supplier's prescriptions.

SPECIFIC INFORMATION

-We recommend that you install your wine cabinet in a temperate room.

- If the inside light remains on, please note that the inside temperature will be higher.

- Temperature inside the wine cabinet may vary depending on the type and the number of bottles contained.

- In order to keep your wines at a stable temperature, avoid leaving the door open for long periods.

-Do not install your wine cabinet close to a heat source; avoid direct sunlight.

- In order to guarantee your safety, and to prevent your wine being spoilt, do not place the cabinet in humid locations.

- Do not store perishable foodstuffs inside your wine cabinet.

-The wine cabinet is not designed for use in a garage, outside, or in the open air.

-The following (approximate) temperatures are recommended for wine drinking:

• Great Bordeaux wines – Red 16 – 17°C
• Great Burgundy wines – Red 15 – 16°C
• Great vintages dry white wines 14 – 16°C
• Red wines, fruity wines, young wines 11 – 12°C
  ○ Rosé wines from Provence, early-to-market wines 10 – 12°C
• Dry white wines and local red wines 10 – 12°C
  ○ Local white wines 8 – 10°C
  ○ Champagnes 7 - 8°C
  ○ Liqueur wines 6°C

-Temperature stability is of the greatest importance when storing wine.

-Exposure to light, vibrations, temperature variations or humidity can spoil the wine.

The cooling system

According to specialists, the ideal temperature for wine storage is around 12 ^ , in the range of 10 ^ to 14 ^ . Do not confuse with the operating temperature, which varies depending on the specificity of each type of wine from 5 to 18 ^ .

It is especially important to avoid sudden temperature changes. Designed by specialists, for wine lovers, this device, unlike the single refrigerator, electronically ensures constant average temperature control.

The anti-vibration system:

The compressor is equipped with special shock (silent-blocks) and the inner tank is isolated from the body by a thick layer of polyurethane foam. These features can prevent the transmission of vibrations to the wines.

The humidification system:

This device is equipped with a tray (depending on model) which maintains the correct level of humidity. If the humidity is too low, fill the tank level to 34 of its capacity. Check the water level time to time and add water if necessary. Make sure the tank always contains water.

The tray is placed on the shelf under the fan at the bottom to provide a minimum humidity.

Be careful to control the water level if you store your wines for a long time and you do not dedicate the unit to their implementation at operating temperature only (with rapid rotations of your bottles).

The UV system:

The light accelerates aging of your wines. In full doors cellars, the wines are naturally immune subject of course limited openings). This model glass door was subject of a particular treatment, which filters harmful ultraviolet rays; the wines are perfectly safe.

Defrost:

This product does not produce frost (No-Frost). There is no frost or ice; so, no operation is required to remove it.

Shelves

To prevent damage to the door seal, make sure the door is open before pulling the shelves to install or remove the bottles.

For easier access to the contents of shelves you need to slide the shelf outward about 1/3 however they are designed with a stop on each side to prevent the bottles from falling.

To remove or position the shelves, move the shelf to the position where the notch of the wooden shelf is exactly under the plastic rack stop and then lift it up and out.

Technical line drawing of two parallel slatted metal components with mounting holes (no text or symbols)

DOOR OPENING MECHANISM (PUSH-AND-OPEN DOOR FUNCTION) (on some models)

The push-and-open door function (if your model supplied with it) is activated when the unit is powered. To open the door, push the door slightly inwards on the top left position for the right hinge model (the top right position for the left hinge model) and then release it again. The unit will beep once to confirm the action. The door will be opened approx.2\~7cm by the push rod. Then the door can be fully open manually. The push rod will return to its initial position after 3 seconds automatically. And the unit will beep once again and it is ready for next opening action.

NOTE:

- The door will close again automatically after approx. 3 seconds if it has not been fully opened manually for models with automatic door closing function.

• Do not block the door or hold on it while it is opening. If the door is blocked or held during opening, the door opening mechanism and the door will be damaged. The loud and repeated cracking noises will be heard.
• Do not push the push rod in or hold on to it during closing. If the push rod is blocked during closing, it will no longer be able to reach its initial position. In the initial position, the push rod is flush with the front of control panel. In order to set the push rod back in its initial position, disconnect the appliance from the mains, wait for approx. 10 seconds and plug it back in again. The push rod will return to its initial position.
• The system is not triggered immediately after the door is closed. Allow 3 seconds and try again. This is not a system failure.

The door on the unit is sensitive to pressure. The pressure sensitivity to open the door is possible to adjust as following steps:

• Open the door.
• Rotate the screw on the top middle of door counterclockwise to increase the sensitivity and clockwise to decrease the sensitivity.
• Close the door and check if it is correctly adjusted. Rotating the screw counterclockwise too much can cause the door to open automatically even without pushing or just closing the door hard. In reverse rotating the screw clockwise too much can cause the door not to open even with heavy pushing.

Simple line drawing of a rolling object with an arrow indicating rotational motion (no text or symbols)

LOADING

The maximum number of bottles that can be loaded into the cabinet are for information only; this information is not contractual; it provides a means for rapidly estimating the size of the device.

The information comes from tests carried out using standard bottles; in reality, in extreme conditions it would be possible to load a greater number of bottles without racks, but a "diverse wine cellar" is used in many different ways; the daily use of a wine cabinet means that it must carry fewer bottles. Therefore you will probably load fewer bottles then the given maximum numbers.

How to load and care for your wine cabinet:

Here we see 4 types of 75 cl bottles, Burgundy and Bordeaux, of different sizes.

There are many other types, with various volumes and of all shapes.

Note the different ways they are stored depending on the height and diameter of the bottles as well as the interleaving method used.

For better conservation and avoid food waste

To avoid spoiling the wine, it is important that the temperature remains stable in the cavity, avoid frequently opening the door and blocking the interior vents.

To avoid the appearance of mold, please avoid having too much humidity in the cavity.

Loading for Max capacities

The maximum number of stored bottles is based on standard Bordeaux bottles containing 0.75 L.

LM78 / LMN78

Max capacity is 7 bottles, 1 per floor, it is recommended to put the cap at the bottom of the device.

LB160 / LBN160 :16 bottles Max

LB340 / LBN340 :34 bottles Max

LB720V / LBN720V :72 bottles Max

LBN458PO / LBN458POP : 45 bottles Max

LMN180POV / LMB180POV / LMN180POVP: 18 bottles Max

LBB240POV / LBN240POV / LBN240POVP: 25 bottles Max

USAGE

Starting up the device

Once the wine cabinet is properly installed, we advise that you clean the inside using warm water with a low concentration of dish washing liquid. Do not use abrasives or scouring powder; they may scratch the surface finish.

USAGE

CAUTION! Wine cabinets are intended only for storing and preserving wine.

IMPORTANT: Your wine cabinet is ideally suitable for holding Bordeaux type bottles of 0.75 L capacity. It can contain larger bottles; however care must be taken that they do not prevent the door from closing properly.

- When closing the door ensure that it does not touch any of the bottles.

- If you load several bottles at a time, it will take longer before the cabinet reaches the desired temperature.

- In order to avoid damaging the door seal, ensure that the door is fully open before moving the racks along the compartment rails.

Adjusting the temperature

Single Zone Control Strip with TriColor Light Button

1 2 3 8 12.0 °C 4 °F

Dual zone control panel with TriColor Light button

1 2 3 4 5 6 7 8 8 12.°C °F

1. ON/OFF button
2. et 3. Single/upper zone temperature setting

3. Temperature display of single/upper zone

4. Temperature display of lower zone

5. et 7. Lower zone temperature setting
6. Light button

Single zone control panel without TriColor Light button

1 2 3 4 5 12. °C °F

1. ON/OFF button

2. Light button

3. Temperature display

4. & 5. Temperature setting

POWER

To turn the appliance off, press and hold the key 1 for 5 seconds until temperature display goes out. To turn the appliance on, press and hold the key 1 for 1 second until temperature display lights up.

NOTE: Pressing the key once can switch off the audible alarm when the alarm is on.

UP

To increase (warm) the set temperature by 1^ C or 1^ F.

DOWN

To decrease (cool) the set temperature by 1^ C or 1^ F.

LIGHT

To turn the interior light on/off, lightly touch and hold the LIGHT key for 5 seconds. The interior light indicator will light up or go out to confirm the selection.

The interior light indicator is the dot at the bottom right of the display.

DISPLAY

Display the digital temperature and service indicators. Part 4 is for the UPPER temperature zone and 5 is for the LOWER temperature zone.

Setting the Temperature Control

When the unit is plugged in for the first time, the unit will power up automatically to the preset defaults.

The preset temperature of single zone units at the factory is 12^ C ( 54^ F).

The preset temperature of dual zone units at the factory for UPPER temperature zone is 8^ C ( 46^ F) and for LOWER temperature zone is 12^ C ( 54^ F).

You can touch the left side UP and DOWN keys to control the internal temperature of the UPPER temperature zone and touch the right side UP and DOWN keys to control the internal temperature of the LOWER temperature zone. When you touch either key at the first time, the display will show the last temperature set previously.

IMPORTANT: The temperature set for the LOWER temperature zone must always be just as high as or higher than that in the UPPER temperature zone.

The temperature that you desire to set will increase 1^ C or 1^ F if you press the UP key once, on the contrary the temperature will decrease 1^ C or 1^ F if you press the DOWN key once. The display flashes while you make the setting.

After the temperature has been set, the display shows the current inner temperature of the particular temperature zone.

To view the set temperature at any time, press the UP or DOWN key, the set temperature will temporarily flash in the display for 5 seconds. Then the display shows the current inner temperature again.

SETTINGS MODE

Certain settings on the wine cellar can only be selected in settings mode. At the same time in settings mode only the UP and DOWN keys of lower zone are valid for dual zone and three zone units.

°F/°C Selection

• Lightly touch and hold the UP key for 5 seconds.
• Use the UP and DOWN keys to select the temperature display setting in Fahrenheit or Celsius degree.
• Touch the POWER key to confirm your selection.

- Touch and hold the UP key for 5 seconds to leave settings mode. Otherwise the appliance exits settings mode automatically after approximately one minute.

Display Brightness

• Lightly touch and hold the UP key for 5 seconds and then touch the POWER key once.
• Use the UP and DOWN keys to select the brightness of the display. The factory default setting is d1.d0: off

d1: dimmest setting

d2: medium setting

d3: brightest setting

• Touch the POWER key to confirm your selection.
• Touch and hold the UP key for 5 seconds to leave settings mode. Otherwise the appliance exits settings mode automatically after approximately one minute.

Interior Lighting Brightness

• Lightly touch and hold the UP key for 5 seconds and then touch the POWER key twice.
• Use the UP and DOWN keys to select the brightness of the interior lighting. The factory default setting is L3.

L0: off (when the door is closed or open)

L1: dimmest setting
L2: medium setting
L3: brightest setting

• Touch the POWER key to confirm your selection.
• Touch and hold the UP key for 5 seconds to leave settings mode. Otherwise the appliance exits settings mode automatically after approximately one minute.

Fan Mode

• Lightly touch and hold the UP key for 5 seconds and then touch the POWER key three times.
• Use the UP and DOWN keys to select the fan mode. The factory default setting is F0.

F0: Silent mode - Energy saving mode

F1: Dynamic Cooling mode - half time
F2: Dynamic Cooling mode - full time

• Touch the POWER key to confirm your selection.
• Touch and hold the UP key for 5 seconds to leave settings mode. Otherwise the appliance exits settings mode automatically after approximately one minute.

Audible Tones

• Lightly touch and hold the UP key for 5 seconds and then touch the POWER key four times.
• Use the UP and DOWN keys to select the audible tones. The factory default setting is S1.

S0: sensor tone ON, alarm tone OFF
S1: sensor tone ON, alarm tone ON
S2: sensor tone OFF, alarm tone OFF
S3: sensor tone OFF, alarm tone ON

• Touch the POWER key to confirm your selection.
• Touch and hold the UP key for 5 seconds to leave settings mode. Otherwise the appliance exits settings mode automatically after approximately one minute.

TEMPERATURE MEMORY FUNCTION

In the event of a power interruption (power surge, breaker switch, etc.), the unit remembers the previous temperature settings. When the power is recovered, the cabinet temperature will go back the same setting temperature as before the power interruption.

TEMPERATURE ALARM

An audible alarm will sound if the temperature in one of the zones rises or falls outside the temperature range. The relevant temperature display will flash at the same time. The temperature the appliance is set at determines the temperature the appliance recognizes as being too warm or too cool. The audible alarm will sound and the temperature display will flash:

• When you switch the appliance on, if the temperature inside the appliance is very different from the temperature set.
• When there has been a lengthy interruption to the power supply.
• When too many items have been put into the unit at one time. Or too much ambient air flowed in when rearranging and removing storage items.
• When the door is not been closed tightly.
• The appliance is faulty.

The audible alarm will be automatically silenced and the temperature display stops flashing when the set temperature is reached again. However, if the noise disturbs you, you can switch the audible alarm off before this if you wish by pressing the POWER key once. The alarm will stop. The relevant

temperature display continues to flash until the set temperature has been reached. The display then lights up constantly, and the alarm system is fully active again.

DOOR ALARM

If the door has been left open for more than 60 seconds, the audible alarm will sound. Closing the door or pressing the POWER key once can switch off the audible alarm.

INTERIOR LIGHT / TriColor

The interior light makes it easy to view your wine labels and enhances the display of your collection. Touching and holding the LIGHT mark for 5 seconds toggles between 2 modes of operation for the internal lights: functional (default) mode and showcase mode. If you are in functional (default) mode, the lights will turn on only when the door is open. If you are in showcase mode, the lights will be on whether or not the door is open. The unit is equipped with a LED light fitting system. To change the LED light fitting pls contact the service department.

NOTE: Please use only the original LED light fittings provided by the manufacturer.

Select the color of the interior lighting orange, white and blue by touching the LIGHT key. Touch the LIGHT key to switch between single color mode and dynamic color mode. In dynamic color mode, the interior lighting will start to cycle through the 3 available colors. Touching the LIGHT key once when the desired color is on, your interior light will be changed to that color. To return to dynamic color mode, touch the LIGHT key again.

DYNAMIC COOLING / SILENT MODE

The appliance has two different running modes. In Silent mode once the required temperature is reached, the appliance will run without the fan. In Dynamic Cooling mode the fan cycles on and off to circulate the air even after the required temperature is reached. This ensures consistent humidity and temperature distribution in the wine cellar, creating perfect conditions for long term storage.

Using the dynamic mode increases the level of noise in operation

Note

• If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the Wine cooler will not start.
• When you use the Wine cooler for the first time or restart the Wine cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the Wine cooler is running for a few hours everything will be back to normal.

CARE OF YOUR CABINET

DEFROSTING

Defrosting of your wine cabinet is fully automatic. It requires no action on your part.

During operation, you may notice condensation drops forming on the rear inside wall of the cabinet. They will be eliminated during automatic defrosting.

CLEANING

Before any cleaning, unplug the device from the mains.

Never use abrasives or a scraper sponge when cleaning the inside or the outside of your wine cabinet.

• Remove all accessories (racks, etc.). Wash them using lukewarm water to which has been added a gentle unscented detergent (dish washing liquid for example); rinse with bleach water and carefully dry off.
• Wash the inside walls in the same way; pay particular attention to the rack supports
• Wash the door seal as well as under the seal.
• Plug the wine cabinet into the mains.

From time to time, dust off the condenser under the device; accumulated dust may reduce the efficiency of your wine cabinet.

In the event of a prolonged absence, empty and clean out the device; maintain the door slightly open during the period of non-use.

REPLACING THE ILLUMINATING LAMP

The device uses light emitting diodes (LEDs). This type of diode cannot be changed by the user. The life cycle of the LEDs is long enough so that they do not need to be changed. If however, in spite of the care taken by the manufacturer, the LEDs do fail, please contact your Customer Care Service for any repair.

TROUBLESHOOTING

You can resolve many of the problems that may arise without having to call Customer Care Service. Please try the suggestions below.

PROBLEM POSSIBLE CAUSE
No operation	Check your installation's power supplyCheck your circuit breakerA fuse has blown
Not cold enough	Check the setting temperatureAmbient temperature requires readjustment of the temperaturesThe door is open too oftenThe door is not closed properlyThe door seal is not air-tightThere is not enough space around the device
No interior lightNo display on the LCD screen	Contact your Customer Care Service
There appears to be a loud noise	Check the device levellingVerify that a piece of paper or part of the packaging has not remained stuck in the device.
The door does not close properly	Check the device levellingThe seal is in poor repairThe feet have "moved"
The light (LED) does not come on	The control panel is not workingPrinted circuit problemMains plug problemContact your Customer Care Service
LED display error	Poor displayThe temperature value is not shownContact your Customer Care Service
The fans are not working	Control Panel to be replaced by your Customer Care Service

CHANGING DOOR OPENING SIDE

This appliance has reversible doors but is delivered with a right hinged door. The left hand hinge kit comes with the unit (in the box), should you wish to reverse the hinge on your unit.

For your safety, please unplug appliance before doing this operation.

WARNING: Use extreme caution with the articulated hinges. The hinge is self-closing and many pinch points exist prior to built-in installation.

LM78, LMN78, LB160 and LBN160

1. Remove the bottom hinge (1) by unscrewing the four lock screws (2). Be careful to hold the glass door firmly after removing the screws. (Fig. 1)
2. Gently pull down to remove the glass door from the right top hinge and place it on a padded surface to avoid the risk of damage. Then remove the right top hinge (4). (Fig. 3)
3. Unscrew and transfer the hinge pin (3) of the bottom hinge to the opposite side. (Fig. 2)
4. Pop out the cover caps on the left side of cabinet and use them to cover the screw holes on the right hand side.
5. Screw the alternative left top hinge (6), included in the fittings, on the left hand side of cabinet. (Fig. 3)
6. Rotate the door 180^ and relocate the door to the designated position. Then screw the bottom hinge assembly on the left designated position and tighten it after the door is leveled.

LB340 and LBN340

1. Remove the glass door by unscrewing the eight lock screws 3 and 4. Be careful to hold the glass door firmly after removing the screws and place it on a padded surface to avoid the risk of damage.
2. Unscrew and transfer the door supporter 2 to the opposite side.
3. Rotate the glass door 180^ and refit the glass door to the opposite side. Then screw and tighten it after the door is leveled.

LB720V and LBN720V

Technical diagram showing two views of a cabinet or enclosure with numbered components and directional arrows indicating assembly or installation.

1. Remove the glass door by unscrewing the eight locking screws (5) and (6). Be sure to hold the glass door firmly after removing the screws and place it on a padded surface to avoid possible damage.
2. Loosen the screws (1) and (3) then transfer the door bracket (2) and the decorative cover (4) to the opposite side.
3. Rotate the glass door 180° and replace the glass door on the opposite side. Then screw and tighten it once the door is leveled.

LMB180POV, LMN180POV, LMN180POVP, LBB240POV, LBN240POV, LBN240POVP, LBB460POV, LBN460POV, LBN460POVP, LBN458PO and LBN458POP

Technical diagram showing three labeled mechanical components in a structural assembly, with numbered annotations for each component.

1. Remove the cover cap (3) and then remove the glass door by unscrewing the four screws (1) and (2). Be careful to hold the glass door firmly after removing the screws and place it on a padded surface to avoid the risk of damage.
2. Pop out the cover caps on the left side of cabinet and use them to cover the screw holes on the right hand side.
3. Rotate the glass door 180^ and refit the glass door to the opposite side. Then screw and tighten it after the door is leveled.

GLASS OVERLAY DOOR GUIDE

LBN458POP

1. Door Panel Preparation

Depending on the wine cellar model prepare the overlay panel to the dimensions shown below. Then attach the handle to the overlay panel by using the flat head screws and drive the screws flush with the panel if needed.

W ≥82mm ≥52mm 18mm FRONT VIEW 8-Ø2.5mm,7mm Deep REAR VIEW

NOTE:

1. H = Height of door + 2mm, W = Width of door + 4mm.
2. Weight of the overlay panel should not exceed 10 kilograms.
3. It is important to ensure that all drilled holes are drilled to the correct depth in order to avoid splits in the wood when hardware is installed.
4. Drill the handle installation holes in the overlay panel according to the handle you are planning to use.

2. Door Panel Installation

• Remove the door gasket (4) completely from glass door (2). Start in a corner and pull outward. This may take some force. Set gasket down on a flat surface for later installation.
• Attach the wood overlay panel (1) on the glass door (2) by using the eight wood screws ST4x30 Type AB Philips (3).
  • Install the wood overlay glass door on the unit as normal.

Technical diagram showing four views of a window frame with labeled components and dimension lines

LMN180POVP, LBN240POVP and LBN460POVP

1. Door Panel Preparation

Depending on the wine cellar model prepare the overlay panel to the dimensions shown below. Then attach the handle to the overlay panel by using the flat head screws and drive the screws flush with the panel if needed.

A B C D E 455mm 155mm 150mm 51.5mm 46.5mm 595mm 157.5mm 152.5mm 54mm 49mm 715mm 169.5mm 169.5mm 66mm 66mm 885mm 155mm 155mm 51.5mm 51.5mm 1234mm 155mm 155mm 51.5mm 51.5mm 1784mm 155.5mm 155.5mm 52mm 52mm SECTION A-A SCALE 1:2 SECTION B-B SCALE 1:2 SECTION A- B 172.8mm 172.8mm SECTION B- B 34.3mm 8-Ø3.2mm,7mm Deep REAR VIEW A' A' FRONT VIEW

NOTE:
1. Weight of the overlay panel should not exceed 10 kilograms.
2. It is important to ensure that all drilled holes are drilled to the correct depth in order to avoid splits in the wood when hardware is installed.

1. Drill the handle installation holes in the overlay panel according to the handle you are planning to use.

2. Door Panel Installation

• Remove the door gasket (4) completely from glass door (2). Start in a corner and pull outward. This may take some force. Set gasket down on a flat surface for later installation.
• Attach the wood overlay panel (1) on the glass door (2) by using the eight wood screws ST4x32 Type AB Philips (3).
  • Install the wood overlay glass door on the unit as normal.

Technical diagram of a door frame assembly with numbered components and dimension annotations

GUARANTEE

Repairs and spare parts available

The manufacturer's warranty is applicable for this device for a period of 5 years.

In the event of a malfunction during this period, any request for support must be made to the after-sales service of your dealer.

Outside the warranty period, any information regarding professional repair services or ordering original spare parts may be obtained by contacting your dealer.

In accordance with the Ecodesign Regulation, spare parts will be available for at least 7 years from the date of purchase of your device.

Le Chai

GEBRUIKSHANDLEIDING

INBOUWBARE WIJNKAST

LM78 / LMN78 - 7 flessen max

LB160 / LBN160 - 16 flessen max

LB340 / LBN340 - 34 flessen max

LB720V / LBN720V - 72 flessen max

LBN458PO / LBN458POP - 45 flessen max

LMB180POV / LMN180POV / LBN180POVP – 18 flessen

maxLBB240POV / LBN240POV / LBN240POVP - 25 flessen max

LBB460POV / LBN460POV / LBN460POVP - 49 flessen max

INHOUD

Model	Website	QR-code
LM78	https //eprel.ec.europa/qr/346449
LMN78	https //eprel.ec.europa/qr/346452
LB160	https //eprel.ec.europa/qr/346379
LBN160	https //eprel.ec.europa/qr/346387
LB340	https //eprel.ec.europa/qr/346388

LBN340	https //eprel.ec.europa/qr/346398
LB720V	https //eprel.ec.europa/qr/731088
LBN720V	https //eprel.ec.europa/qr/731092
LBN458PO https //eprel.ec.europa/qr/346434
LBN458POP https //eprel.ec.europa/qr/1136797
LMB180POV	https //eprel.ec.europa/qr/347207
LMN180POV	https //eprel.ec.europa/qr/347216
LBB240POV	https //eprel.ec.europa/qr/346401
LBN240POV	https //eprel.ec.europa/qr/346410
LBN240POVP https //eprel.ec.europa/qr/1136800
LBB460POV	https //eprel.ec.europa/qr/346614
LBN460POV https //eprel.ec.europa/qr/346430
LBN460POVP https //eprel.ec.europa/qr/1136796

PRESENTATIE VAN HET TOESTEL

LM78 / LMN78

Technical diagram of a refrigerator internal structure with numbered components

Diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Technical diagram of a refrigerator with numbered components for identification

LMN180POV / LMB180POV

LMN180POVP

Technical diagram of an open refrigerator with numbered labels pointing to internal components

LBB240POV / LBN240POV

Technical diagram of a server rack with numbered components for identification

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

LBB460POV / LBN460POV

1 2 3 4 5 6

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

LMN180POV / LMB180POV

Max. 1750 450 Min. 566 Min. 548 545 512 5.5 449 450 452 595

LBB460POV / LBN460POVLBB240POV / LBN24

Max. 1750 Min 545 Min 556 589-593 588 645 512 5.5 590 595 595

Max. 1750 874-860 Min. 565 545 512 59 4 Min. 556 872 595 885

LBN240POVP

Max. 1750 590-563 Min. 556 545 512 5.5 595 595

LBN460POVP

Max. 1150 877-880 Min. 555 545 512 5.6 Min. 555 375 385 595

LBN458POP

≥575 600 882-952 880-950 100-170 440 71 111 556 780 Min. 300cm²

LMN180POVP

Max. 1750 430 Min. 550 Min. 550 440 545 912 5.6 455 595

Technical line drawing of two rectangular metal profiles with mounting holes (no text or symbols)

"PUSH TO OPEN" AUTOMATISCH DEUR OPENINGSSYSTEEM (op sommige modellen)

Simple line drawing of a ball rolling down an arrow on a rectangular block (no text or symbols)

Front view line drawing of a multi-level rack-mounted refrigerator with circular compartments and control panel (no text or symbols)

Two identical line drawings of wine bottles with no text, numbers, or symbols present.

LB340 / LBN340 :34 flessen Max

6 16 6 6 34

Line drawing of six identical bottles arranged in a row, no text or symbols present

Pure line drawing of a mechanical component or housing with no text, numbers, or symbols

Line drawing of six identical empty wine bottles arranged in a row (no text or symbols)

LB720V / LBN720V :72 flessen Max

6 7 7 7 7 7 7 7 17 72

LBN458PO / LBN458POP : 45 flessen Max

7 8 16 8 6 4

LMN180POV / LMB180POV / LMN180POVP: 18 flessen Max

LBB240POV / LBN240POV / LBN240POVP: 25 flessen Max

LBB460POV / LBN460POV / LBN460POVP : 49 flessen Max

GEBRUIK

Ingebruikname

S0: sensortoon AAN, alarmtoon UIT

S1: sensortoon AAN, alarmtoon AAN
S2: sensortoon UIT, alarmtoon UIT
S3: sensortoon UIT, alarmtoon AAN

Technical diagram showing exploded and assembled views of a device with numbered components and labeled parts

Technical diagram showing two views of a door frame assembly with numbered components and directional arrows indicating assembly steps.

Technical diagram showing two views of a door frame assembly with numbered components and directional arrows indicating assembly steps.

LMB180POV, LMN180POV, LMN180POVP, LBB240POV, LBN240POV, LBN240POVP, LBB460POV, LBN460POV, LBN460POVP, LBN458PO en LBN458POP

Technical diagram showing three labeled mechanical assembly steps with numbered components

Technical diagram showing four views of a window frame with numbered components and directional arrows indicating flow or placement.

LMN180POVP, LBN240POVP and LBN460POVP

A B C D E 455mm 155mm 150mm 51.5mm 46.5mm 595mm 157.5mm 152.5mm 54mm 49mm 715mm 169.5mm 169.5mm 66mm 66mm 885mm 155mm 155mm 51.5mm 51.5mm 1234mm 155mm 155mm 51.5mm 51.5mm 1784mm 155.5mm 155.5mm 52mm 52mm SECTION A-A SCALE 1:2 SECTION B-B SCALE 1:2 FRONT VIEW

OPMERKING:

Technical diagram of a door frame assembly with numbered components and dimension lines

GARANTIE
