USER MANUAL Split 618 Pro MARMITEK

Package content 1x Split 618 Pro splitter 1x quick guide 1x power adapter Split 618 Pro 8-port splitter Connect one source to eight screens - 4K60hz - EDID management - Downscaler ProSafety instructions Please read these instructions thoroughly before you use the device and keep them for future reference.

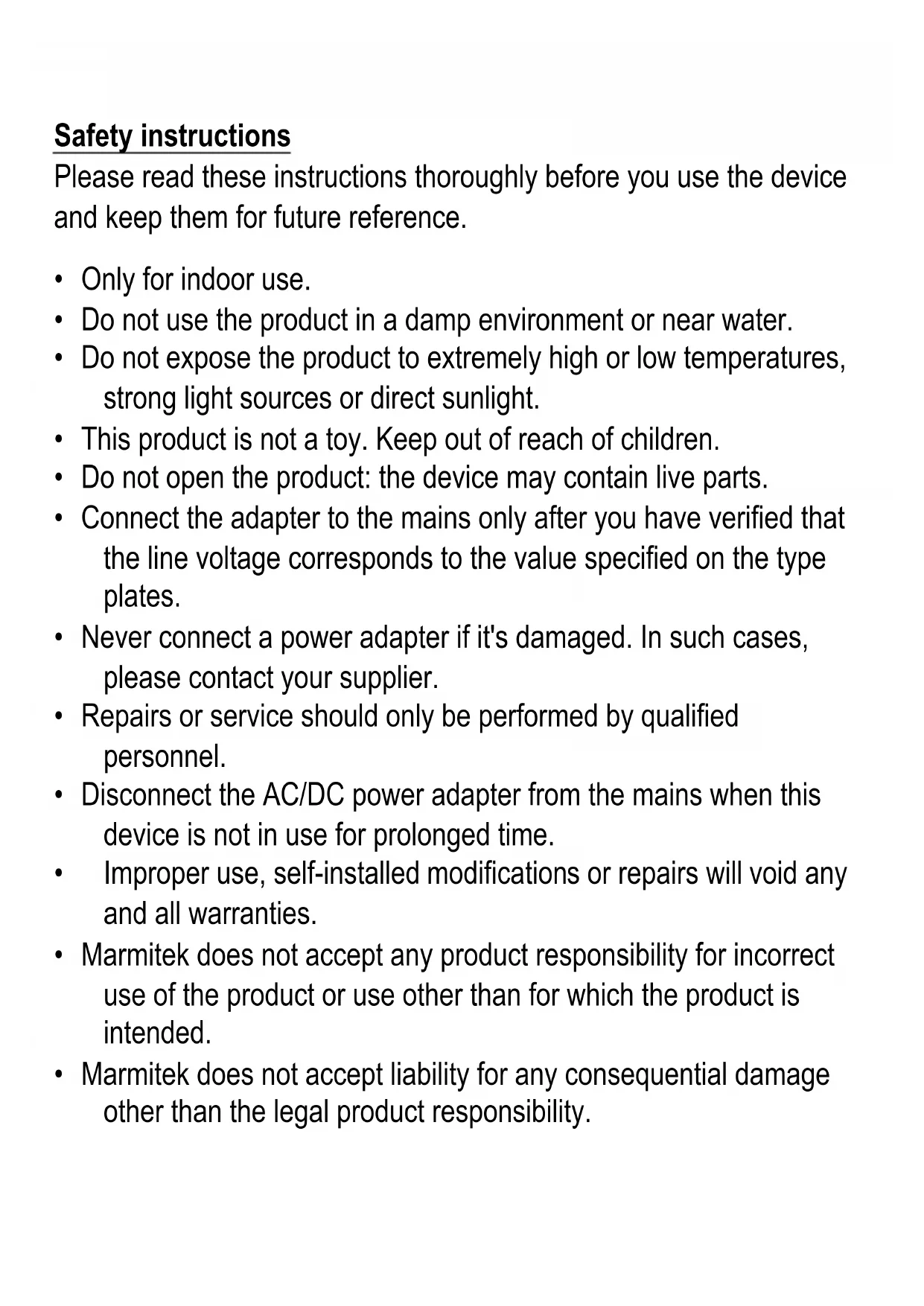

• Only for indoor use.

• Do not use the product in a damp environment or near water.

• Do not expose the product to extremely high or low temperatures, strong light sources or direct sunlight.

• This product is not a toy. Keep out of reach of children.

• Do not open the product: the device may contain live parts.

• Connect the adapter to the mains only after you have verified that the line voltage corresponds to the value specified on the type plates.

• Never connect a power adapter if it's damaged. In such cases, please contact your supplier.

• Repairs or service should only be performed by qualified personnel.

• Disconnect the AC/DC power adapter from the mains when this device is not in use for prolonged time.

• Improper use, self-installed modifications or repairs will void any and all warranties.

• Marmitek does not accept any product responsibility for incorrect use of the product or use other than for which the product is intended.

• Marmitek does not accept liability for any consequential damage other than the legal product responsibility.Introduction Congratulations on your purchase of the Marmitek Split 618 Pro! This active HDMI splitter connects 8 TVs or projectors with a single HDMI source. Unlike passive HDMI splitters, it can do this without any loss of signal or encryption, while maintaining optimal image quality. It's also ideal for use with HDMI Extenders, for example, to another room. The Split 618 Pro supports Ultra HD (4k), Full HD (1080p) and all 3D formats, making it suitable for all your existing and future equipment. All our products are designed and manufactured to the highest quality requirements. Please read this manual first and follow the instructions in order to fully enjoy the possibilities of this product. Benefits

• Allows video and audio from your digital TV decoder, satellite receiver, game console or Blu-ray player to be simultaneously displayed on 8 TVs or projectors.

• Enjoy the latest Ultra HD content and watch Netflix or a Blu-ray movie in 4K, while maintaining ultimate contrast and beautiful colours.

• Eliminates the need to change HDMI cables if you want to watch films or play games on another TV.

• With built-in repeater and equalizer to correct any signal loss.

• If required, set the HDMI output's maximum video resolution using the unique EDID switch.

• Supports HDCP 2.2 for playing protected 4K Ultra HD contentHDMI properties

• Supports all 3D formats (suitable for use with your own 3D equipment)

• Deep Color 36-bit (billions instead of millions of colours, better reproduction of subtle differences in gradation and a higher contrast ratio).

• Supports Dolby Atmos, Dolby Vision, and DTS:X and other common audio formats. Set contents 1 x HDMI splitter 1 x Power adapter 1 x User manual Getting started Before installation:

• Turn off all devices (TV and HDMI sources) before connecting them to the Split 618 Pro. If a device cannot be turned off, please remove the plug from the socket.

• Only use High Speed HDMI® certified cables for the best picture and sound quality. Using too much force to connect or disconnect the HDMI cables may damage them.

• Please be careful when connecting your HDMI cables. These damage easily.Installation Use an HDMI cable to connect the HDMI source (such as a game console, Blu-ray player or digital TV decoder) to the HDMI port marked "Input". Use an HDMI cable to connect the TV or projector to the HDMI ports marked “Output”. Preferably, connect the TV or projector with the highest resolution (e.g. UltraHD) to "Output 1" and those with a lower resolution (e.g. Full HD) to "Output 2". Connect the power adapter to the "DC 12V" input and insert the plug into the socket. Use EDID EDID stands for Extended Display Identification Data and is used for communication between HDMI sources and TVs, enabling you to determine the supported display resolutions and audio formats. The HDMI source requests this information from the TV and determines the best resolution or audio format. When using multiple TVs (TVs or projectors), the best resolution and audio format that is supported by all connected TVs is determined. This may cause problems in some situations, for example, when one of the connected sources or TVs does not fully support EDID.EDID Auto or Copy 1 Use the EDID button to choose the following options:

• AUTO: automatically detects the highest possible common image resolution and audio format that is supported by both TVs. Sound and image will be displayed on both TVs.

• COPY 1: only detects the resolution and audio format of the display connected to "Output 1". This prevents problems with playing, for example, 3D or UltraHD (4k). Tip: In standard situations, always use the automatic setting, which will result in sound and image on all connected TVs. With manual settings, no image or sound may be displayed on one or more TVs if the appropriate setting is not supported Product details Technical specifications Connections HDMI input: 1x HDMI (19-pin female) HDMI output: 8x HDMI (19-pin female) HDMI cable length: max. 15 metres Video Supported resolutions: 4K (4096x2160)@24/30/50/60Hz, 480i~1080p@50/60Hz,1080p@120Hz and 3D@1080p/60Hz. Supported PC resolutions: max. QSXGA (2560x2048@60Hz). HDMI standards HDMI 2.0b, HDR, EDID, DVI, all 3D formats and Deep Color 36-bit. HDCP standards: HDCP 2.2 and HDCP 1.4Colour formats: RGB and YCbCr 4:4:4, 4:2:0 or 4:2:2. Colour depth: max. 36-bit. Throughput speed: max.18 Gbit/s. Clock frequency: max. 600 MHz. Audio HDMI audio formats: DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos, DTS:X, Dolby Digital/ AC3, DTS 5.1 and PCM stereo. Housing Dimensions (H x W x D): 243 x 102 x 16 mm Weight: 570 g Environment Ambient temperature: +0 to +40° C Humidity : 20% to 90% Power External power adapter: 100-240VAC @50-60Hz, 12VDC @ 1A Specifications: may change without prior notice.Frequently asked questions (FAQs) No (or poor) image and sound If you experience poor or no picture after connecting the HDMI splitter, please try to identify the problem by connecting the devices to your TV, monitor or projector one by one. This allows you to determine whether the problem is with the HDMI sources, the HDMI cables, the HDMI splitter or the TV.

• Make sure the power adapter is connected and plugged in.

• For the best picture and sound quality, only use High Speed HDMI® certified cables.

• Do not use HDMI cables longer than those specified in the technical data.

• Check the HDMI cables and/or connectors for damage.

• Both the HDMI source and your TV should fully support HDMI.

• Check that your HDMI sources and TV support HDCP 2.2 (High Bandwidth Digital Content Protection) copy protection. Incorrect 3D display

• Please check whether the HDMI source is set to display 3D and/or it is set to automatic.

• Both the HDMI source and your HDTV should support the same 3D formats.

• Please check that 3D is displayed correctly by connecting the HDMI source directly to the HD display with an HDMI cable. Do you have other questions that have not been resolved by the above information? Please go to www.marmitek.comDeclaration of Conformity Hereby, Marmitek BV declares that this Split 618 Pro is in compliance with the essential requirements and other relevant provisions of the following Directives: Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast) Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits. Directive 2011/65/EU of the European Parliament and of the Council of 15 November 2017 amending Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment. Commission Regulation (EU) 2019/1782 of 1 October 2019 laying down Ecodesign requirements for external power supplies pursuant to Directive 2009/125/EC of the European Parliament and of the Council and repealing Commission Regulation (EC) No 278/2009. You can read the full Declaration of Conformity at http://www.marmitek.com/en/declarations-of-conformity/ Marmitek BV - PO Box 4257 - 5604 EG Eindhoven - The Netherlands www.marmitek.comVeiligheidsinstructies Lees deze instructies goed door voordat u het apparaat gebruikt en bewaar het voor toekomstig gebruik.
