USER MANUAL PHYUC_02 Physa

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Ultrasonic cleaner
Model	PHY- UC_01	PHY- UC_02
Supply voltage [V~] / frequency [Hz]	230V~/50Hz
Rated power [W].	35	70
Capacity [I]	0.75	1.2
Ultrasound frequency [kHz]	40	40
Internal dimensions of the tank [cm]	15 x 13 x 5	17 x 13 x 6.5
Dimensions (width x depth x height) [mm]	14.5 x 17.5 x 20	16 x 20 x 23
Weight [kg]	1.2	1.8

1. General Description

The manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To ensure the long and reliable operation of the device, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE	The product complies with applicable safety standards.
	Read the manual before use.
	Recyclable product.
	CAUTION! or WARNING! or REMEMBER! describing a given situation (general warning sign).
	Wear ear protection. Exposure to noise may cause hearing loss.
	CAUTION! Risk of electric shock!
	Safety class II equipment with double insulation.
	Caution! Hot surface can cause burns!
	For indoor use only.

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

2. Safety of use

CAUTION!

Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury or death.

The term "device" or "product" in the warnings and the description of the instructions refers to Ultrasonic cleaner

2.1. Electrical safety

a) The plug of this device must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b} Do not touch the device with wet or damp hands.
c) Do not use the cord in an unintended manner. Never use it to carry the device or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges, or moving parts. Damaged or tangled cords increase the risk of electric shock.
d) Do not use the unit if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.
e) To avoid electric shock, do not immerse the cable, plug, or the device itself in water or other liquid. Do not use the appliance on wet surfaces.
f) CAUTION - DANGER TO LIFE! When cleaning or using the appliance, never immerse it in water or other liquids.
g) Do not use the appliance in rooms with very high humidity / in the immediate vicinity of water tanks!

2.2. Safety in the workplace

a) Keep the work area tidy and well-lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing, and use common sense when using the unit.
b) Do not use the unit in an explosive area, for example in the presence of flammable liquids, gases or dust. The unit produces sparks that can ignite dust or fumes.
c) If you find any damage or irregularities in the operation of the unit, immediately turn it off and report it to an authorized person.
d) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department.
e) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own!
f) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment.
g) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the unit.)
h) Use the unit in a well-ventilated area.
i) Check the condition of the safety stickers regularly. Replace them if they are illegible.

j) Keep these instructions for use for future reference. If the product is to be handed over to a third party, hand it over with this user manual.
k) Keep packaging components and small installation parts out of the reach of children.
I) Keep the device away from children and animals.
m) When using this product together with other devices, also follow the other instructions for use.

Remember! Keep children and other bystanders safe while operating the appliance.

2.3. Personal safety

a) Do not operate this device if you are tired, ill, or under the influence of alcohol, drugs, or medication that could impair your ability to operate the device.
b) The device is not intended to be used by persons (including children) with reduced mental, sensory, or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device.
c) The unit may be operated by persons who are physically fit, capable of operating it, and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
d) Use caution and common sense when operating this unit. A moment's inattention during the operation may result in serious personal injury.
e) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
f) The product is not a toy. Children should be watched to ensure that they do not play with the appliance.
g) Keep cleaners away from your eyes and skin. Do not ingest or inhale them!
h) Cavitation murmurs are produced during ultrasonic cleaning. Therefore, when operating the device continuously, ear muffs should be worn within a 2-meter radius for hearing protection.

2.4. Safe use of the product

a) Do not use the device if the ON/OFF switch does not function properly (does not turn on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.
b) Unplug the unit before making adjustments, changing accessories, or putting it away. This precaution reduces the risk of accidental start-up.
c) Keep unused product out of the reach of children and anyone unfamiliar with the device or this manual. Products are dangerous when used by inexperienced users.
d) Keep the product in good working order. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, return the device for repair before use.
e) Keep the product out of the reach of children.
f) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
g) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.
h) Do not move, shift, or rotate the device while in operation.
i) Do not leave the device switched on unattended.
j) Clean the device regularly to prevent permanent dirt build-up.
k) The product is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
I) Do not start up an empty unit.
m) Do not tamper with the device to alter its performance or design.
n) Keep the unit away from sources of fire and heat.
o) Do not overload the device.
p) Do not block the ventilation openings of the unit!
q) Do not immerse body parts or living beings in the bath of the device, especially when cleaning with ultrasound, do not touch the cleaning liquid.
r) Do not operate the device without the cleaning fluid.
s) Do not fill the ultrasonic bath with hot water. The temperature of the liquid should not exceed 60^ .

t) Do not put cleaned items that contain aggressive contaminants such as acids, and chlorine ions into the bathtub!
u) Do not use any flammable agents for ultrasonic cleaning (e.g. gasoline, solvents) and other chemicals that contain or emit chlorine ions (certain disinfectants, household cleaners, and dishwashing agents).
v) Do not clean cell phones, watch dials, items of clothing, or items made of leather, wood, and easily faded materials.
w) Do not pour the solution over the "MAX" scale.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. Caution and common sense are advised when using the product.

3. Instructions for use

The device is designed to remove operating dirt on the surfaces of objects, tools, and functional parts of machines.

The device is intended for home use.

The user is responsible for any damage resulting from misuse.

3.1. Product overview

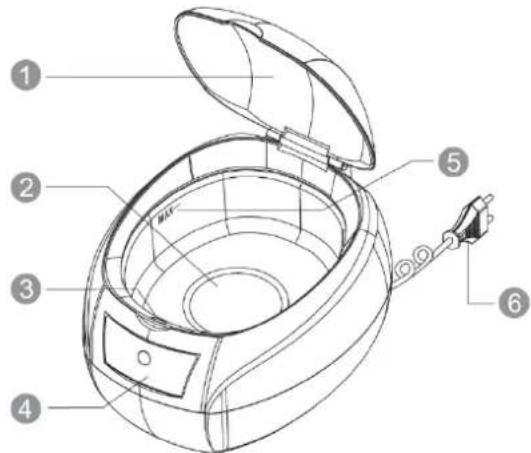

3.1.1. PHY-UC_01

1 - Cover
2-Tank
3-Casing
4- Control panel
5 - Indication of maximum fluid level
6 - Power cord

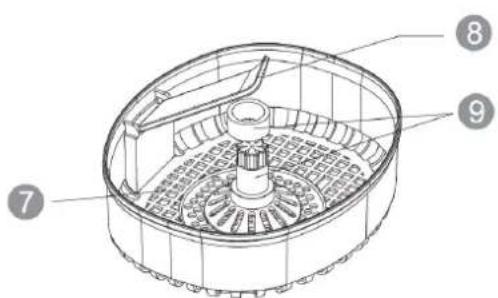

7 - Plastic basket
8 - Stand for watches
9 - CD stand

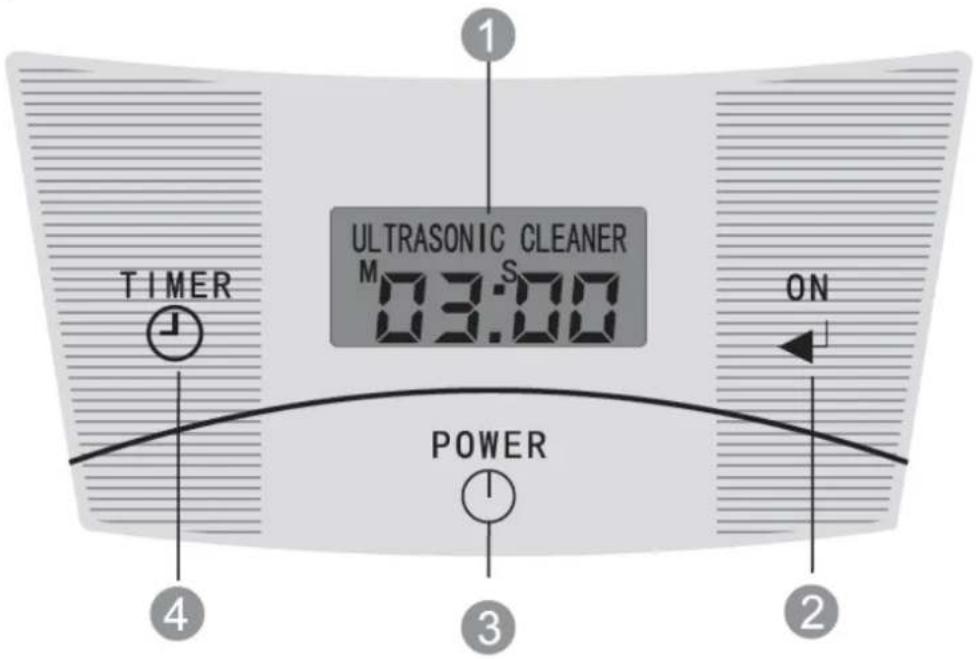

Control panel:

1 - Display
2 - Device operation switch
3 - Main power switch
4-TIMER

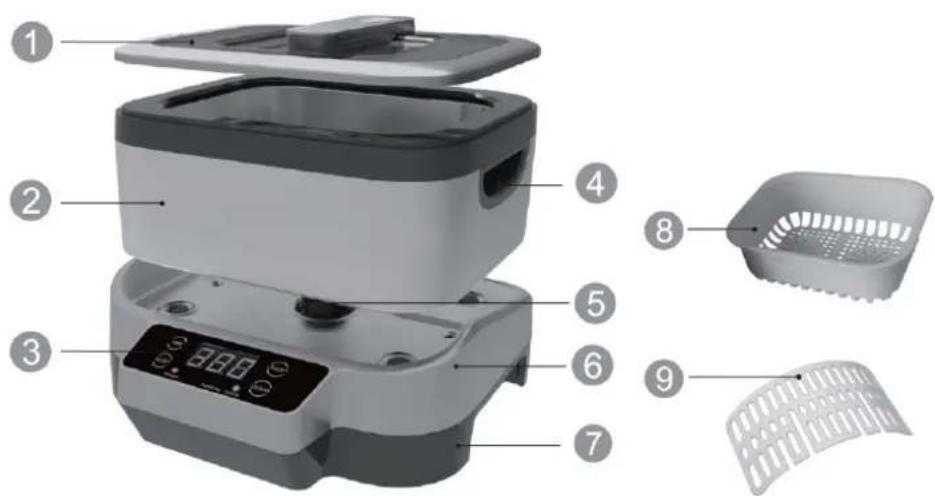

3.1.2. PHY-UC_02

1 - Cover
2-Tank
3- Control panel
4- Handle
5 - Electric switch
6-Base
7-Carrying handle
8 - Plastic basket
9 - Stand for watches

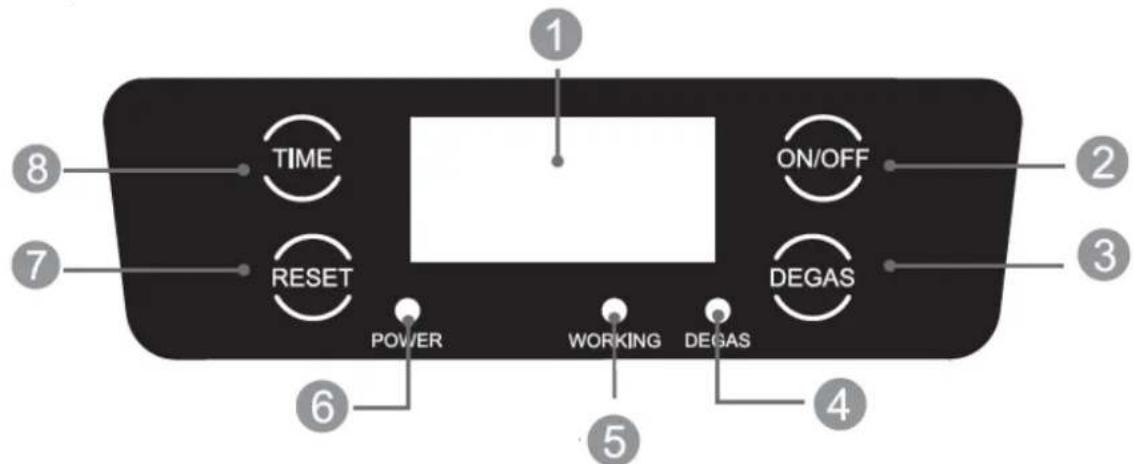

Control panel:

1 - Display
2 - Main switch
3 - Degassing function switch
4 - Degassing function indicator
5- Device operation indicator
6 - Device power indicator
7-Reset button
8 - Device operation time setting button

3.2. Preparation for operation

POSITIONING OF THE UNIT

The ambient temperature must not exceed 40^ and ambient humidity should not exceed 85% . Place the unit in a way that ensures good air circulation. Maintain a minimum clearance of 10~cm from any wall of the unit. Keep the unit away from any hot surfaces. Always operate the unit on a level, stable, clean, fireproof, and dry surface and out of the reach of children and persons with impaired mental, sensory, and intellectual functions. Place the unit in such a way that the main plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

3.3. Working with the unit

3.3.1. PHY-UC_01

Open the lid and fill the tank with cleaning fluid or water. Place the items to be cleaned in the tank - they should be completely covered with liquid so that the liquid level does not exceed the MAX marking in the tank.

CAUTION! Operating the device without liquid or water may damage it!

Close the cover and connect the device to the power supply.

Press the POWER button, the display will turn on.

Use the TIMER timer button to set the desired operating time of the unit in minutes: 01:30, 03:00, 04:30, 06:00, and 07:30.

After selecting the working time, press the ON button, the screen will display a countdown and the machine will start working. If there is a need to pause the operation, press the ON button; if there is a need to turn it off, press the POWER button directly. When the countdown reaches 00:00, the unit automatically stops working.

Immediately disconnect the plug from the power supply after cleaning. Then remove the item and pour out the liquid/water from the tank and wipe it.

If storing the device for a long time, make sure there is no liquid/water inside.

Do not put a clock face or cell phone in the tank for cleaning.

Do not wash frames or art products made of shell or turtle shells with this device.

Any loose inserts may come off during the cleaning process. Do not clean the product if it has not been inserted properly.

Do not wash clothes, leather, wood, and other easily faded products with this machine.

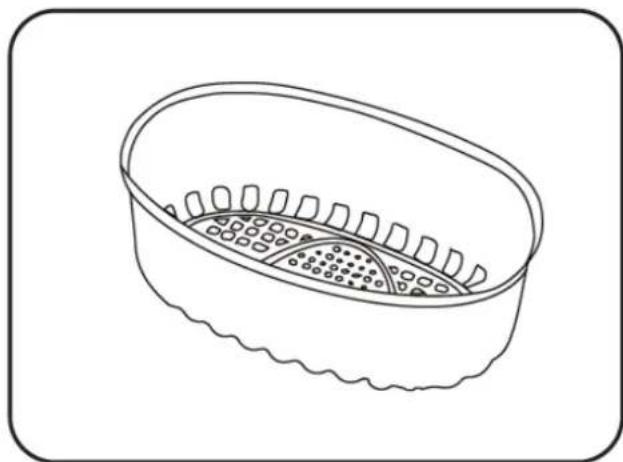

Basket:

When cleaning small items, items can be placed in the basket and then put the basket into the tank, which can reduce friction between the items and the wall of the inner tank.

Caution:

The basket is specially designed for small items, as the basket will absorb about 30% of the ultrasonic wave, so this will influence the cleaning effect. In this case, if the basket is used to clean the contents, use a cleaning fluid designed for use with ultrasonic washers.

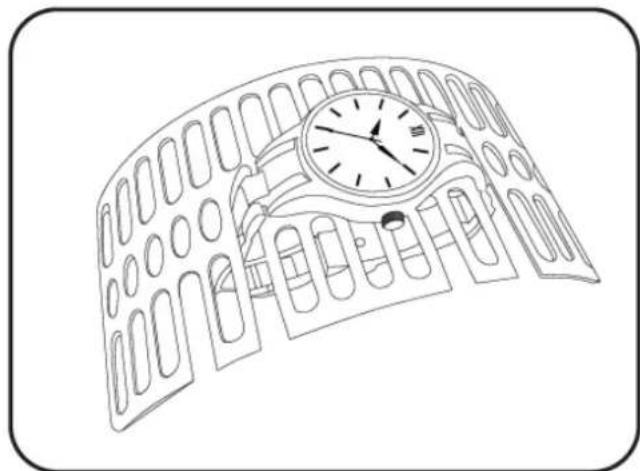

Watch stand:

Secure the watch with the bracelet on the stand. Then dip the bracelet part in the water. Similarly, the rack will also absorb ultrasonic waves, when cleaning, it is advisable to add a few drops of detergent or use a cleaning liquid designed for use with ultrasonic washers.

Note: Watches belong to precision machines, do not put the whole watch in water, just clean the parts of the bracelet.

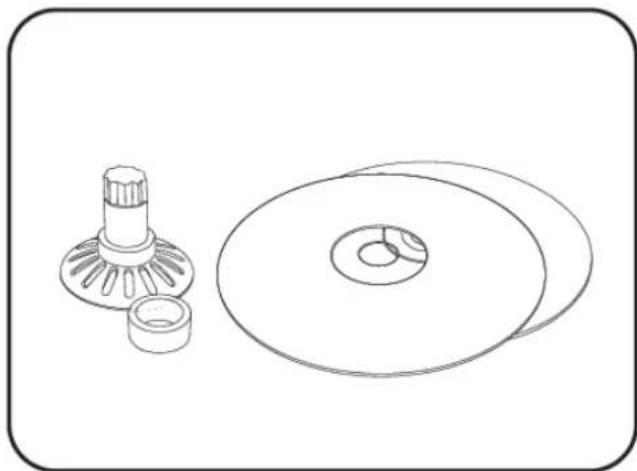

CD stand:

It is recommended to use a CD rack, then, immerse it in water/liquid. You can clean 2 pieces at the same time (to be separated with a small wheel).

3.3.2.PHY-UC_02

Open the lid and fill the tank with cleaning fluid or water. Place the items to be cleaned in the tank - they should be completely covered with liquid so that the liquid level does not exceed the MAX marking in the tank.

CAUTION! Operating the device without liquid or water may damage it!

Close the cover and connect the device to the power supply. The device's display and power light will turn on.

Use the TIMER button to set the desired operation time of the unit in seconds: 90, 180, 280, 380, 480.

The RESET button pauses cleaning at any time or resets the timer to 180 seconds.

DEGAS button (degassing) When this mode is activated, the device operates intermittently. This will remove air, including carbon dioxide, from the liquid. As a result, more cavitation bubbles are produced, which increases the cleaning efficiency.

Immediately disconnect the plug from the power supply after cleaning. Then remove the item and pour out the liquid/water from the tank and wipe it.

If storing the device for a long time, make sure there is no liquid/water inside.

Do not put a clock face or cell phone in the tank for cleaning.

Do not wash frames or art products made of shell or turtle shells with this device.

Any loose inserts may come off during the cleaning process. Do not clean the product if it has not been inserted properly.

Do not wash clothes, leather, wood, and other easily faded products with this machine.

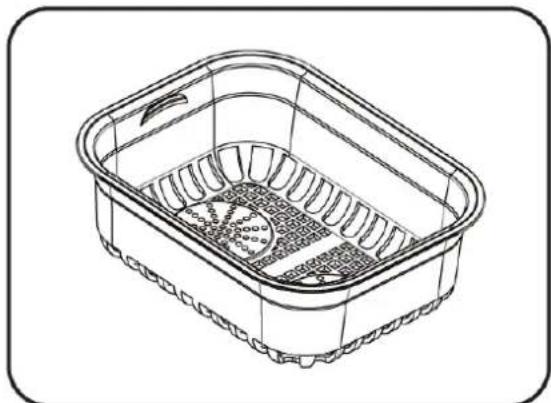

Basket:

When cleaning small items, items can be placed in the basket and then put the basket into the tank, which can reduce friction between the items and the wall of the inner tank.

Caution:

The basket is specially designed for small items, as the basket will absorb about 30% of the ultrasonic wave, so this will influence the cleaning effect. In this case, if the basket is used to clean the contents, use a cleaning fluid designed for use with ultrasonic washers.

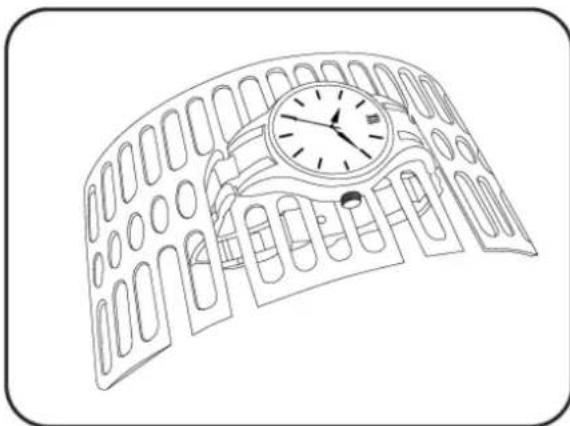

Watch stand:

Secure the watch with the bracelet on the stand. Then dip the bracelet part in the water. Similarly, the rack will also absorb ultrasonic waves, when cleaning, it is advisable to add a few drops of detergent or use a cleaning liquid designed for use with ultrasonic washers.

Note: Watches belong to precision machines, do not put the whole watch in water, just clean the parts of the bracelet.

3.4. Application example

Items		Recommended cleaning time
Glasses and glass	Glasses, sunglasses, watch bracelets etc.	1-3 minutes
Jewelry	Necklaces, rings, earrings, bracelets etc.
Daily use	Electric shaver heads, razor blades, dentures, combs, toothbrushes, etc.
Small metal parts	Watch parts, ancient coins, badges, machine nozzles, etc.	3-5 minutes
Metal cutlery	Forks, spoons, knives, etc.

3.5. Cleaning and maintenance

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use.
b) Use only non-corrosive cleaning agents for cleaning the surfaces.
c) After each cleaning, all the parts should be dried well before the unit is used again.
d) Do not spray the unit with a stream of water or immerse it in water.
e) Make sure that no water enters through the ventilation openings in the casing.
f) Perform regular inspections of the unit checking technical fitness and any damages.

g) Use a soft cloth for cleaning.
h) Do not use sharp and/or metal objects (e.g. wire brush or metal spatula) for cleaning as they may damage the surface of the appliance material.

DISPOSAL OF USED UNITS.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions, or packaging. The materials used in this appliance are recyclable according to their marking. By reusing, recycling, or applying other forms of use of waste machines, you make a significant contribution to the protection of our environment.

Your local administration will provide you with information about the appropriate disposal point for used appliances.

Characteristicas techniques

For the disposal of the device please consider and act according to the national and local rules and regulations.
