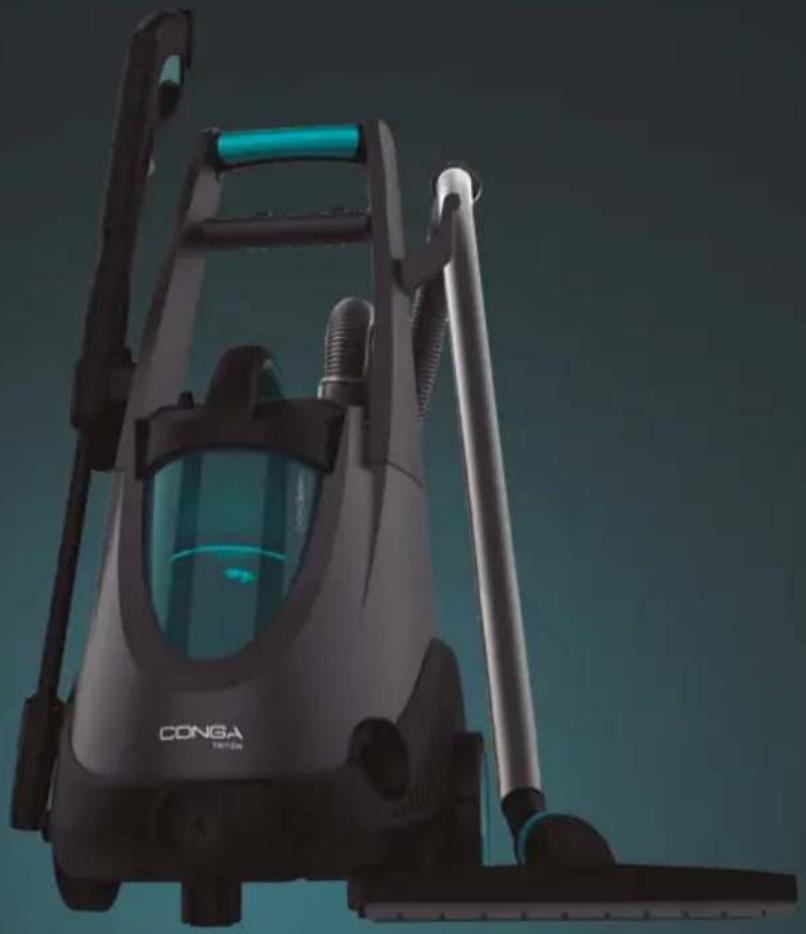

USER MANUAL Conga Triton 5000 UltraClean & Car CECOTEC

1. Parts and components 49

5. Cleaning and maintenance 54

8. Disposal of old electrical appliances 57

9. Technical support and warranty 57

SAFETY INSTRUCTIONS Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users. Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded. Remove by the plug, do not pull on the cord. This product is designed only for household use. All current-conducting parts in the working area must be protected against jet water. Turn o and disconnect the device from the power supply when not in use and before cleaning. Do not use the appliance for other than intended use. Do not operate the appliance at temperatures below 0 ºC. Never touch the mains plug or the socket with wet hands. Stay alert, always watch what you are doing during operation. Do not operate the machine when fatigued or under the inuence of alcohol or drugs. Never leave the appliance unattended while in use. Always unplug the appliance when not in use and before cleaning. Allow it to cool down before disassembling parts. The use of accessories or utensils not recommended by Cecotec may cause re, electrical shock or injury. Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid, nor expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance. Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the ocial Technical Support Service of Cecotec in order to avoid any type of danger. Do not use outdoors, near a gas or electric hob, in heated ovens or near open ames. Check important components, such as high pressure hose, hand spray gun and safety installations, for damage prior to every operation. Immediately replace damaged components. Do not operate appliance with damaged components. Do not twist, bend, strain, or damage the power cord in any way. Protect it from sharp edges and heat sources. Do not let it touch hot surfaces. Do not let the cord hang over the edge of the working surface or countertop. Always unplug the appliance after being used. Take extreme precaution when moving any appliance containing hot food, water, oil or other liquids. Do not point the high-pressure hose towards people or animals to avoid injuries. The appliance has been designed for use with the cleaning agent supplied or recommended by Cecotec. The use of the other cleaning agents or chemicals may adversely aect the safety of the appliance. An unsuitable electrical extension cable can be hazardous. Only use an electrical extension cable which has been approved and labeled for this purpose and has an adequate cable cross- section outdoors: 1 - 10 m: 1.5 mm

. Always fully unreel the extension cable from the cable drum. Do not use the appliance within range of persons unless they wear protective clothing. Wear appropriate Personnel Protection Equipment (PPE) while operating the appliance. The mains plug and the coupling of an extension cable must be watertight and must never lie in water. Moreover, the coupling may never lie on the ground. The use of cable reels that ensure that the sockets are at least 60 mm above the ground is recommended. Do not pull the cord to unplug. Keep o from ovens and stoves, etc.CONGA TRITON 5000 ULTRACLEAN & CARCONGA TRITON 5000 ULTRACLEAN & CAR

Do not vacuum sharp objects. Don’t wrest, tramp and haul the hose. Keep hair, loose clothing, ngers, and other parts of the body away from the openings and moving parts of the appliance. Do not use the device to pick up ammable or combustible liquids, such as gasoline, matches, or use in areas where they may be present. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. Do not use without dust bag and/or lters in place. Do not use the device in explosive atmospheres. Do not spray ammable liquids. Never draw in uids containing solvents or undiluted acids and solvents! This includes petrol, paint thinner and heating oil. The spray mist is highly inammable, explosive and poisonous. Do not use acetone, undiluted acids and solvents, as they corrode the materials used on the appliance. Never use the product with inammable or toxic liquids, or liquids with characteristics incompatible with its proper operation. In accordance to current regulations, the appliance must never be used on the drinking water net without a system separator. Ensure that the connection of your building water installation on which the high pressure cleaner is operated is equipped with a system separator pursuant. Water that has own through backow preventers is considered to be non-potable. High-pressure hoses, ttings and couplings are important for the safety of the appliance. Only use high-pressure hoses, ttings and couplings recommended by the manufacturer. To ensure applicable safety, use only original spare parts from the manufacturer or approved by the manufacturer. Switch the product o and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation. Discharge residual pressure before disconnecting the hose from the product. Check before each use, and at regular intervals, that all metal fasteners are tight and the product’s components are in good condition. Inspect for broken or worn parts. The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision. This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Do not allow children to play with the appliance. Children shall not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.CONGA TRITON 5000 ULTRACLEAN & CARCONGA TRITON 5000 ULTRACLEAN & CAR

8. Pressure water trigger gun

9. High-pressure hose hook

10. High-pressure hose

13. Built-in soap tank

17. Liquids and solids suction base

23. Accessory for upholstery

24. Accessory for corners

25. Drying accessory

Take the product out of the box. Remove all packaging material. Make sure all parts and accessories are included, and check that there are no visible signs of damage. In case there are, contact the ocial Technical Support Service of Cecotec.CONGA TRITON 5000 ULTRACLEAN & CARCONGA TRITON 5000 ULTRACLEAN & CAR

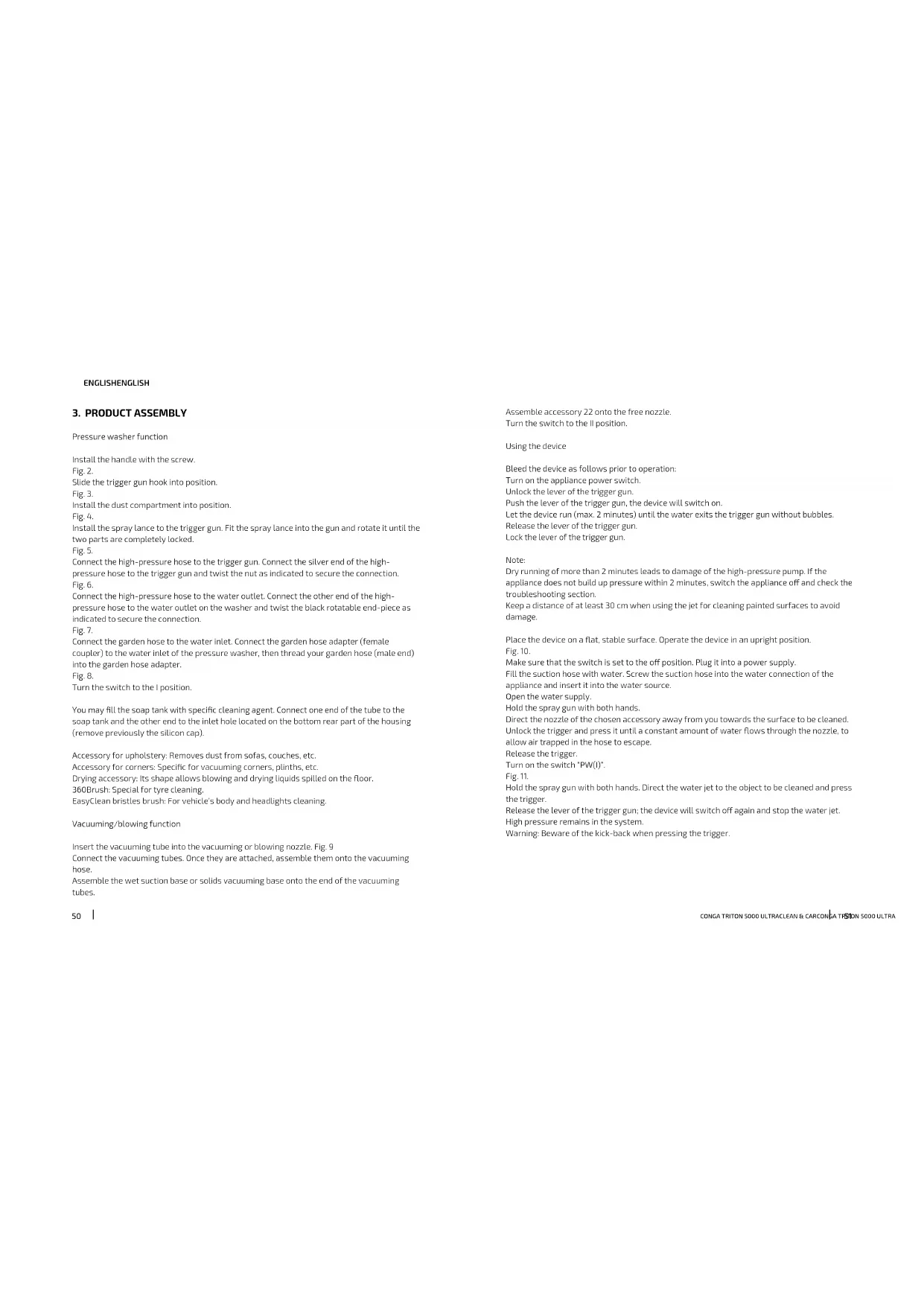

Pressure washer function Install the handle with the screw. Fig. 2. Slide the trigger gun hook into position. Fig. 3. Install the dust compartment into position. Fig. 4. Install the spray lance to the trigger gun. Fit the spray lance into the gun and rotate it until the two parts are completely locked. Fig. 5. Connect the high-pressure hose to the trigger gun. Connect the silver end of the high- pressure hose to the trigger gun and twist the nut as indicated to secure the connection. Fig. 6. Connect the high-pressure hose to the water outlet. Connect the other end of the high- pressure hose to the water outlet on the washer and twist the black rotatable end-piece as indicated to secure the connection. Fig. 7. Connect the garden hose to the water inlet. Connect the garden hose adapter (female coupler) to the water inlet of the pressure washer, then thread your garden hose (male end) into the garden hose adapter. Fig. 8. Turn the switch to the I position. You may ll the soap tank with specic cleaning agent. Connect one end of the tube to the soap tank and the other end to the inlet hole located on the bottom rear part of the housing (remove previously the silicon cap). Accessory for upholstery: Removes dust from sofas, couches, etc. Accessory for corners: Specic for vacuuming corners, plinths, etc. Drying accessory: Its shape allows blowing and drying liquids spilledon the oor. 360Brush: Special for tyre cleaning. EasyClean bristles brush: For vehicle’s body and headlights cleaning. Vacuuming/blowing function Insert the vacuuming tube into the vacuuming or blowing nozzle. Fig. 9 Connect the vacuuming tubes. Once they are attached, assemble them onto the vacuuming hose. Assemble the wet suction base or solids vacuuming base onto the end of the vacuuming tubes. Assemble accessory 22 onto the free nozzle. Turn the switch to the II position. Using the device Bleed the device as follows prior to operation: Turn on the appliance power switch. Unlock the lever of the trigger gun. Push the lever of the trigger gun, the device will switch on. Let the device run (max. 2 minutes) until the water exits the trigger gun without bubbles. Release the lever of the trigger gun. Lock the lever of the trigger gun. Note: Dry running of more than 2 minutes leads to damage of the high-pressure pump. If the appliance does not build up pressure within 2 minutes, switch the appliance o and check the troubleshooting section. Keep a distance of at least 30 cm when using the jet for cleaning painted surfaces to avoid damage. Place the device on a at, stable surface. Operate the device in an upright position. Fig. 10. Make sure that the switch is set to the o position. Plug it into a power supply. Fill the suction hose with water. Screw the suction hose into the water connection of the appliance and insert it into the water source. Open the water supply. Hold the spray gun with both hands. Direct the nozzle of the chosen accessory away from you towards the surface to be cleaned. Unlock the trigger and press it until a constant amount of water ows through the nozzle, to allow air trapped in the hose to escape. Release the trigger. Turn on the switch “PW(I)”. Fig. 11. Hold the spray gun with both hands. Direct the water jet to the object to be cleaned and press the trigger. Release the lever of the trigger gun; the device will switch o again and stop the water jet. High pressure remains in the system. Warning: Beware of the kick-back when pressing the trigger.CONGA TRITON 5000 ULTRACLEAN & CARCONGA TRITON 5000 ULTRACLEAN & CAR

Note: If connection is made to a potable water system, the system shall be protected against backow. This high-pressure cleaner is designated with a rated input current. The intended use of this product covers the cleaning of vehicles, buildings, terraces, facades and garden equipment. It has been designed to be used with clean water and biodegradable chemical detergents. Likewise, the product can be used to clean paving slabs or rain gutters. This product may not be used to clean clothing, shoes and other textiles. Be aware of kick-back: Hold with both hands. Safety devices Power switch The appliance switch prevents unintentional operation of the appliance. Trigger gun lock This lock locks the lever of the trigger gun and prevents the inadvertent start of the appliance. Pressure switch If the lever on the trigger gun is released, the pressure switch turns o the pump and the high-pressure jet is stopped. If the lever is pulled, the pump is turned on again. Motor protection switch The motor protection switch turns o the device if the power consumption is high. Personal protective equipment Wear protective clothing and safety goggles to protect against splash back containing water or dirt. During the use of high-pressure cleaners aerosols can develop. Inhaling aerosols can cause health damage. Operation with soap Note: Follow the instructions of the used detergent’s manufacturer. Remove the cap of the clean soap bottle. Gently pull the soap bottle out of its storage position. Fill the tank with detergent designed specically for use with pressure washers. Push the detergent bottle with the opening pointing downwards into the connection for the hose clean detergent. Recommended cleaning method Spray the detergent sparingly on the dry surface and allow it to react, but not to dry. Spray o loosened dirt with the high-pressure hose. After operation with soap Remove the hose clean detergent bottle from the intake and close it with the lid. For storage, put the detergent bottle into the retainer with the cap pointing up. Vacuum cleaner operation Make sure that the switch is set to the o position. Plug it into a power supply. Adjust the air ow as indicating below: Open the air ow block, suck power will come down. Fig. 12. Turn on the switch “VAC(II)”. The device is ready to vacuum. Interrupting operation Release the lever of the trigger gun. Lock the lever of the trigger gun. Place the trigger gun with the spray lance into the parking position. During long breaks (more than 5 minutes), also turn the appliance o using the power switch. Finish operation Release the lever of the trigger gun. Turn o the appliance switch. Disconnect the device from the power supply. Note: Only separate the high-pressure hose from the trigger gun or the device when there is no pressure in the system. Turn o the tap. Press the lever of the trigger gun to release any remaining pressure in the system. Release the lever of the trigger gun. Lock the lever of the trigger gun. Note: When disconnecting the supply or high-pressure hose, warm water may leak from the connection. Disconnect the device from the power supply. Transporting it by hand Switch the product o and disconnect it from the water and power supply. Pull out the transport handle until it audibly snaps into place. Attach transportation guards, if applicable. Pull the appliance by its transport handle.CONGA TRITON 5000 ULTRACLEAN & CARCONGA TRITON 5000 ULTRACLEAN & CAR

ENGLISH ENGLISH Transporting it in vehicles Prior to horizontal transport, close the cap of the soap bottle. Tilt the product towards you until it balances on the wheels. Then move it by its transportation handle. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles. Secure the appliance against shifting and tipping over.

5. CLEANING AND MAINTENANCE

Turn o and disconnect the device from the power supply before cleaning or repairing it. Use a soft, damp cloth to clean the device’s surface. Do not immerse the appliance in water or other liquid. Do not use abrasive cleaners or scouring pads to clean the product. Clean the sieve in the water connection regularly. Remove coupling from the water connection and rinse with warm water to prevent any foreign matter from clogging the pump. Fig. 13. Clean the nozzle with the needle clean-out tool provided. Remove the spray lance from the gun. Remove any dirt from the nozzle hole and rinse. Fig. 14. The sieve must not be damaged. Pull the sieve out using at pliers. Clean the sieve under running water. Reinsert the sieve into the water connection. Cleaning the dust bag Press the locking block and push the front part to open the dust compartment. Press the automatic release button to empty the dust in the dust compartment. Fig. 15. Storage Park the machine on an even surface. Remove the spray lance from the gun. Push the disconnection button on the trigger gun and pull the high-pressure hose out of the trigger gun. Place the trigger gun in its storage position. Place both spray lances in the storage for the spray lance compartment. Place the lance nozzle towards the bottom. Coil the high-pressure hose and hang it over the hose storage. Store the mains connection in the accessory compartment. Store the device and all its parts out of the reach of children. The ideal storage temperature is between 10 °C and 30 °C. Store the device indoors to prevent the water in the unit from expanding under freezing conditions. Use the original package for storage or cover the product with a suitable cloth or enclosure to protect it against dust. The high-pressure hose is specially constructed with reinforced walls it can be easily damaged and should be stored carefully. Do not kink the hose. Do not drive vehicles over the hose. Do not expose the hose to sharp edges or corners. Frost protection Appliances and accessories that are not completely drained can be destroyed by frost. Completely drain appliance and accessories and protect them against frost. To avoid damage: Disconnect the appliance from the water supply. Remove the spray lance from the gun. Turn on the appliance power switch. Push the lever of the trigger gun until no more water is escaping. Release the lever of the trigger gun. Lock the lever of the trigger gun. Turn o the appliance switch. Store the appliance and the entire accessories in a frost-free room.CONGA TRITON 5000 ULTRACLEAN & CARCONGA TRITON 5000 ULTRACLEAN & CAR

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), species that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately. Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

9. TECHNICAL SUPPORT AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual. The warranty will not cover the following situations: The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault

Problem Cause Solution The device does not work The device is not plugged in. Defective socket. Blown fuse. Defective extension cord. Plug in the device. Try another socket. Replace fuse. Switch o other machines. Try without the extension cord. Fluctuating pressure Pump sucking air. Valves dirty, worn out or stuck. Pump seals worn out. Check that hoses and connections are airtight. Clean the device. Contact the ocial Technical Support Service of Cecotec. The device stops working Incorrect mains voltage. Thermal sensor activated. Nozzle partially blocked. Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded. Leave the device for 5 minutes to cool down. Clean the nozzle. Machine pulsating Air in inlet hose. Inadequate supply of mains water. Nozzle partially blocked. Water lter blocked. Hose kinked. Allow the device to run with open trigger until regular working pressure resumes. Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded. Avoid using long, thin hoses. Clean the nozzle or the lter. Straighten out hose. Machine starts, but no water comes out. Pump/hoses or accessory frozen. No water supply. Water lter/nozzle blocked. Wait for pump/hoses or accessory to thaw. Connect inlet water. Clean the lter/nozzle.CONGA TRITON 5000 ULTRACLEAN & CARCONGA TRITON 5000 ULTRACLEAN & CAR
