USER MANUAL CM 500 GRAEF

Operating Instructions

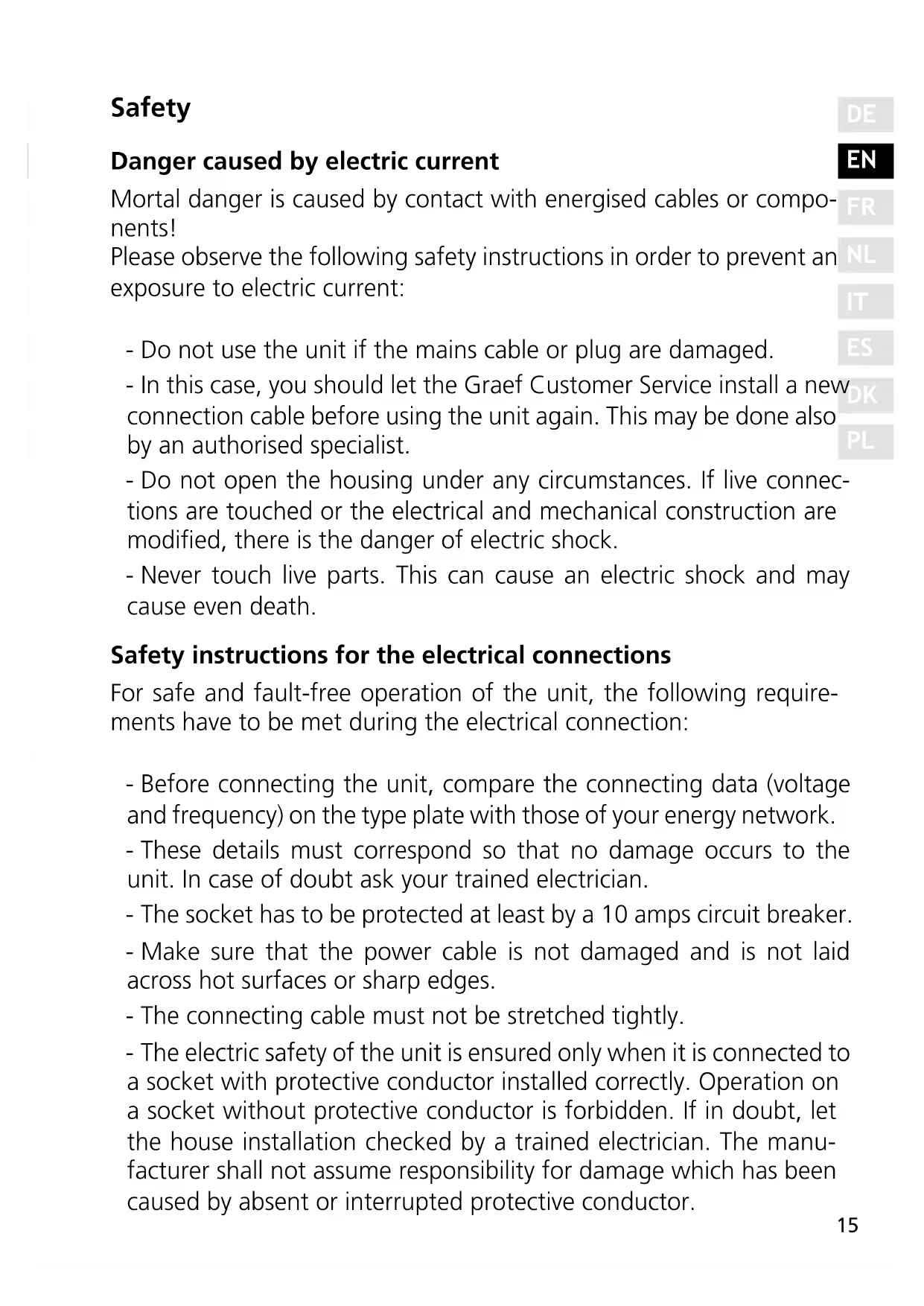

Safety Danger caused by electric current Mortal danger is caused by contact with energised cables or compo- nents! Please observe the following safety instructions in order to prevent an exposure to electric current: - Do not use the unit if the mains cable or plug are damaged. - In this case, you should let the Graef Customer Service install a new connection cable before using the unit again. This may be done also by an authorised specialist. - Do not open the housing under any circumstances. If live connec- tions are touched or the electrical and mechanical construction are modied, there is the danger of electric shock. - Never touch live parts. This can cause an electric shock and may cause even death. Safety instructions for the electrical connections For safe and fault-free operation of the unit, the following require- ments have to be met during the electrical connection: - Before connecting the unit, compare the connecting data (voltage and frequency) on the type plate with those of your energy network. - These details must correspond so that no damage occurs to the unit. In case of doubt ask your trained electrician. - The socket has to be protected at least by a 10 amps circuit breaker. - Make sure that the power cable is not damaged and is not laid across hot surfaces or sharp edges. - The connecting cable must not be stretched tightly. - The electric safety of the unit is ensured only when it is connected to a socket with protective conductor installed correctly. Operation on a socket without protective conductor is forbidden. If in doubt, let the house installation checked by a trained electrician. The manu- facturer shall not assume responsibility for damage which has been caused by absent or interrupted protective conductor.16 General safety instructions This unit is in conformity with the safety instructions mentioned here- inbefore. However, incorrect handling may lead to injury and dam- age. For safe handling of this unit, please observe the following safety instructions:

• Before using the unit check for any external visible damage of the housing, the connection cable and plug. Do not operate a dam- aged unit.

• Repairs may be carried out only by an expert or by Graef after-sales service. Incorrect repairs may cause considerable hazards for the user. In addition, any claim under guarantee is forfeited.

• A repair of the unit during the guarantee period may be carried out by Graef after-sales service only as otherwise there is no claim under guarantee in case of subsequent damage.

• Defective parts must be replaced by original spare parts only. It is only with these parts that the safety requirements are met.

• This unit may be used by persons with reduced physical, sensory or mental abilities or deciencies in experience and knowledge, if they are supervised or have been instructed in the safe use of the unit, and in addition understand the resulting dangers.

• Children must not use this device. The unit and the connecting ca- ble must not get within the reach of children.

• Children should be supervised in order to make sure that they do not play with this unit.

• In the absence of supervision and prior to assembly, during cleaning disconnect the unit from the mains.

• The unit is not intended to be used with an external timer or a sep- arate remove control.

• This unit is intended for use in households and similar use, such as: Staff kitchens in shops and ofce; in agricultural estates; by guests in hotels, motels and other living quarters; in bed and breadfast boarding houses.

• Always disconnect the connection cable by using plug; do not pull the connecting cable.

• Always disconnect the appliance from the supply if it is left unat-17

tended and before assembling, disassembling or cleaning

• If the supply cord is damaged, it must be replaced by the manu- facturer, its service agent or similarly qualied persons in order to avoid a hazard.

• Switch off the appliance and disconnect from supply before chang- ing accessories or approaching parts that move in use.

• Never touch the plug with moist hands.

• Never carry the unit by its power cable.

• The socket has to be easily accessible so that the power cable can be removed easily in case of emergency.

• Never transport the unit during operation.

• In the absence of supervision and prior to assembly, during cleaning disconnect the unit from the mains.

• This unit is suitable for grinding coffee bean exclusively.

• Packaging materials must not be used for playing. There is a danger of suffocation.

• Do not attempt to grind ground coffee again.

• A single grinding process should not exceed a duration of 1 minute. Requirements on the installation location For safe and fault free operation of the unit, the following require- ments of the installation location have to be met: - The unit has to be placed on a solid, at, horizontal, and non-slip- ping surface with a sufcient weight-carrying capacity. - Make sure that the unit cannot topple over. - Choose the location in such a way that children cannot reach the blade of the unit or the supply lines. - Never use the unit outdoors, and always keep it in a dry place. - The unit is not designed for installation in a wall or a built-in cup- board. - Do not set up the unit in a hot, wet or moist environment. - The socket has to be easily accessible so that the power cable can be removed easily in case of emergency.18 Product overview Lid

Upper grinding mechanism

Lower grinding mechanism

Grinding ring for setting a degree of grinding

Rotary knob for selection of cups

Coffee grounds container

General aspects Dear Customer, You have made a good choice by buying this professional coffee grinder. You have purchased a highly appreciated quality product. We would like to thank you for buying this machine and wish you a lot of fun with your new coffee grinder. Information on these operating instructions These operating instructions provide important information on putting into oper- ation, safety, intended use and the care of the coffee grinder (hereinafter referred to as “unit”). The operating instructions shall have to be available at the unit at all times. The instructions have to be read and applied by every person who deals with

• Fault correction and/or

• Or is instructed to clean the unit. Keep these operating instructions and pass them on to the next owner along with the unit. These operating instructions cannot take into consideration every conceivable use. For further information or in case of problems which are not dealt with or not dealt with sufciently in these instructions, please get in touch with Graef customer ser- vice or your specialist dealers. Intended use This unit is not intended for commercial use. Use the unit for grinding coffee beans only. Another or any exceeding use shall not be con- sidered intended. This unit is intended for use in a household. The unit can cause dangers, if is not used as intended.

• Use the unit exclusively as intended.

• Observe the procedures described in these operating instructions. Claims of any kind caused by damage by unintended use shall be excluded. The risk shall be borne sole by the operator.20 Limitation of liability All technical information, data and notes on the installation, the operation and the care contained in these operating instructions correspond to the last status before printing, and are rendered under consideration of our previous experience and to the best of knowledge. No claims may be derived from the particulars, illustrations and descriptions in these instructions. The manufacturer shall not assume any liability for damage caused by:

• Non-observation of the instructions

• technical modications

• Use of unapproved spare parts. Translations shall be carried out to the best of knowledge. We shall not assume any liability for translation mistakes. The original German text only shall be binding. Warning messages and symbols In these operating instructions, the following warning messages, signal words and symbols are used: This signal symbol / word indicates a hazard with average risk level which, if not prevented, may result in death or a severe injury. This signal symbol / word indicates a hazard with low risk level which, if not pre- vented, may results in slight to moderate injury. This signal work warns against potential material damage. This symbol provides additional information on operation.21

Unpacking the unit When unpacking the unit, proceed as follows:

1. Remove the unit from the box.

2. Remove the packaging parts.

3. Remove any stickers on the unit (do not remove the type plate).

Prior to rst use Clean all parts as described in the chapter titled “Cleaning and care”.

• Place the coffee bean container on the unit.

• Press the coffee bean container down and turn clockwise (approx. 30 deg.).

• Open the outlet of the coffee bean container by using the sliding closure. Operation Setting of degree of grinding The grain size of the coffee grounds can be varied by means of the different set- tings of the grinding degree. Precise data on the grinding degree cannot be given as many different factors play a role, such as type of coffee / bean, room temperature, personal taste, etcetera.

• Select a ner grind setting for Espresso. The grinding degree setting 0-20 is used as a guide value.

• For lter coffee, select a medium grind setting. The recommended value is the 20-60 grind setting.

• Select a coarse grind setting for French Press. Grinding degree setting 60-140 is used as a guide value. Note:

• The ner the grinding degree, the longer the grinding process.

• In case of a ner grinding degree, the coffee can stick together in the grinding mechanism.

• If the grinding mechanism blocks, cautiously tap on the coffee bean container. Grinding coffee for lter coffee

1. Insert the plug into the socket.

2. Fill the coffee bean container with coffee beans.

Use whole coffee beans only.

3. Set requested grinding degree.

4. Select the desire number of cups.22

5. Set the switch to

6. Place the coffee grounds container or coffee lter below the outlet.

9. Press the Start/Stop button.

10. Switch the unit off.

Grinding coffee directly into the lter holder

1. Use the large or the small lter holder retainer as requested.

2. Set requested grinding degree.

3. Hold the group handle into the group handle bracket.

4. Set the switch to

5. Press the group handle against the contact switch. The grinding process will

start automatically.

6. As soon as the lter holder is sufciently lled, pull it back. The grinding pro-

cess will stop automatically. Cleaning Old coffee remaining in the unit may lead to oxidation. This affects the result of the preparation and an unpleasant and unpalatable taste may develop. The unit should always be in a well-kept condition in order to ensure a perfect result at all times. Depending on the frequency of use, clean the unit at least once a week. Before cleaning, remove the power plug.

1. Use a soft and moist cloth to clean the outer surfaces of the unit. Use a mild

detergent in case of heavy soiling.

2. Close the outlet of the coffee bean container by using the sliding closure. Turn

the coffee bean container anti-clockwise and remove it.

3. Place the unused beans in an airtight container so keep the avour.

4. Clean the coffee bean container and the coffee grounds container in warm

water using a little washing-up liquid.

5. Afterwards, dry the containers well.

Cleaning the grinding mechanism

• Remove the power plug.

• Remove the coffee bean container as described in the chapter titled “Cleaning”.

• Turn the grinding ring to the coarsest degree.

• Turn the upper grinding mechanism anti-clockwise and remove it.

• Clean the lower and upper grinding mechanism with the brush enclosed.

• Place the upper grinding mechanism back in again and turn it clockwise until it is tight.

• Place the coffee bean container on the unit again.

• Turn the grinding ring to the requested grinding degree.23

• Precise recommendations for grinding degree settings cannot be provided due to various factors. ➞ Beans / types of beans react differently (oily, old, freshly ground et cetera). ➞ The personal taste plays a role as well. ➞ Choose a ner grinding degree setting for Espresso. ➞ Choose a medium grinding degree setting for lter coffee. ➞ Choose a coarse grinding degree setting for French Press. ➞ Room temperature / air humidity have an effect on the coffee beans.

• The following serves as standard values: When the correct setting of degree of grinding has been made, the coffee grounds start clumping slightly. Smaller to medium-sized balls are formed which spread again when dropping out. The cof- fee grounds have a ne feel.

• It is very important to nd the right grinding degree for preparing coffee (ex- traction time). In case of a wrong grinding degree, the coffee cannot be extract- ed in an ideal way and is then either under or over extracted.

• However, there is no “perfect grinding degree”. Everyone should nd his or her grinding degree according to his or her taste preferences.

• The setting of the grinding degree should also take into consideration the con- tact pressure and the dosage as well as the roasting degree of the bean used. Some test grinds are necessary here. For this reason the contact pressure and the dosage should be kept constant; the grinding degree should be attuned.

• It may happen that the grinding degree has to be corrected after some time because the quality, the moisture content and the freshness of the bean de- pends very much on the surroundings. This can be corrected quickly by trying out and adapting the grinding degree and/or contact pressure if the Espresso runs into the cup too quickly or too slowly, for example. After-sales service If your unit is defective, please contact your specialist dealer or the Graef customer service on +49 2932 9703688 or write an e-mail to us at service@graef.de24 Disposal Disposal of the packaging The packaging protects the unit against transport damage. The packag- ing materials are selected according to the environmental compatibility and disposal-related aspects and can therefore be recycled. The return of packaging into the material cycle saves raw material and reduces the waste volume. Dispose of the packaging material no longer needed at collection points for the “Green Dot” recycling system (in Germany). If possible, keep the original packaging during the guarantee period of the unit in order to be able to pack the unit correctly in case of guarantee. Disposal of the unit At the end of its service life, this product cannot be disposed of in nor- mal domestic waste. The symbol on the product and in the operating instructions point out to this fact. Reuse the materials according to their marking. With the reuse, recycling or other forms of recycling of old equipment, you make an important contribution to the protection of our environment. Please ask your municipal administration for the dis- posal point. Warranty For this product, we assume 24 months manufacturer warranty for defects, which are due to production or material defects. Your legal warranty claim in conformity with Section 439 et seq. of the German Civil Code (BGB) shall remain unaffected by this regulation. The guarantee does not cover any damage which is caused by in- correct handling or use as well as defects which only slightly inuence the function or the value of the unit. We do not assume any liability for damage caused by lack of or insufcient maintenance. In this case, the warranty will become null and void as well. Moreover, transport damage provided we are not responsible shall be ex- cluded from the claims under guarantee. Guarantee shall be ruled out for damage, the repair of which has not been carried out by us or one of our representations. In case of justied complaints, we shall repair the defective product or replace it by a product without defects at our discretion.25
