Simply Invents BL522D - Blender TEFAL - Free user manual and instructions

Product type	Blender
Brand	Tefal
Model	Simply Invents BL522D
Bowl material	Glass
Maximum capacity	1.2 litres
Speeds	3 (0, 1, 2, Pulse)
Crushed ice function	Yes, dedicated button
Ice-stick accessory	Yes (depending on model)
Power supply	220-240 V, 50/60 Hz (estimated)
Power	Not specified (estimated 500-700 W)
Dimensions (L x W x H)	Not specified
Weight	Not specified
Cord length	Not specified
Cleaning	Bowl and accessories dishwasher safe; motor base wiped with a damp cloth
Safety	Bowl lock, sharp blades (precautions), auto shut-off if overloaded (estimated)
Warranty	Standard manufacturer warranty (according to conditions)
Country of manufacture	Not specified
Usage	Domestic use only
Spare parts	Available via authorized after-sales service
Repairability	Repair by authorized center recommended

Frequently Asked Questions - Simply Invents BL522D TEFAL

How to use the crushed ice function?

Place 12 to 15 ice cubes in the glass bowl (without adding water). Press the Ice Crush button (C) in quick succession without holding the button down continuously.

What is the maximum capacity of the bowl?

The maximum capacity is 1.2 litres. Never exceed this level to avoid overflow.

What to do if my blender does not work?

First check that the power cord is plugged in and the outlet works. Make sure the bowl is correctly positioned on the motor base (A), the speed selector (B) is set to a position other than 0, and the bowl is not filled above the maximum level. If the problem persists, contact an authorized after-sales service.

Can I put the motor base in the dishwasher?

No, the motor base (A) must never be immersed in water. Clean it with a damp cloth and dry it thoroughly. Only the glass bowl and accessories go in the dishwasher.

How to use the Ice-stick?

Fill the reservoir (E1) with coarse salt up to the indicated level, then with cold water. Screw the handle (E2) on tightly and shake to dissolve the salt. Place in the freezer for at least 12 hours. Then insert the frozen Ice-stick through the lid opening to cool your preparations. You can also use it as a pestle for mixing.

Can I blend hot ingredients?

No, never pour liquids or ingredients whose temperature exceeds the limit indicated in the instructions. When blending hot ingredients, keep your hands away from the lid to avoid burns.

How to clean the blades?

The blades are very sharp. Handle them with care. You can put them in the dishwasher or rinse them under running water. Never put your fingers near the blades during cleaning.

Can the blender be used by children?

This appliance is not intended for use by children without supervision. Children should be supervised to ensure they do not play with the appliance. Persons with reduced capabilities should be supervised.

What accessories are included?

The appliance comes with a glass bowl (D), a lid with measuring cap (D1), a blade unit (D3), and depending on the model, an Ice-stick (E) consisting of a reservoir and a handle.

What to do if the power cord is damaged?

If the cord or plug is damaged, do not use the appliance. The cord must be replaced by the manufacturer, an authorized center, or a qualified person to avoid any danger.

USER MANUAL Simply Invents BL522D TEFAL

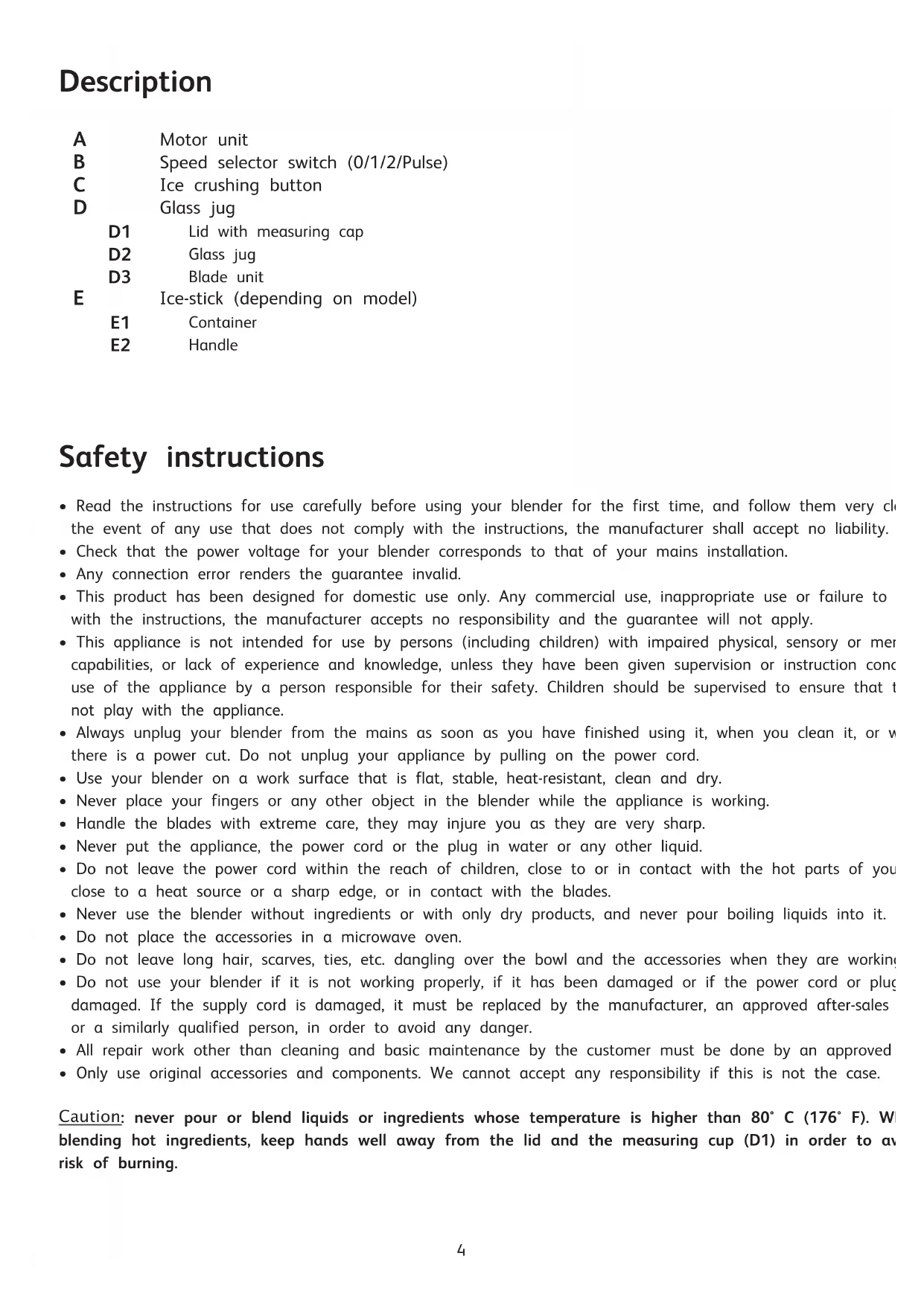

D1 Lid with measuring cap
D2 Glass jug
D3 Blade unit

E Ice-stick (depending on model)

E1 Container
E2 Handle

Safety instructions

• Read the instructions for use carefully before using your blender for the first time, and follow them very closely. The event of any use that does not comply with the instructions, the manufacturer shall accept no liability.
• Check that the power voltage for your blender corresponds to that of your mains installation.
• Any connection error renders the guarantee invalid.
• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• This appliance is not intended for use by persons (including children) with impaired physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that it is not play with the appliance.
• Always unplug your blender from the mains as soon as you have finished using it, when you clean it, or with there is a power cut. Do not unplug your appliance by pulling on the power cord.
• Use your blender on a work surface that is flat, stable, heat-resistant, clean and dry.
• Never place your fingers or any other object in the blender while the appliance is working.
• Handle the blades with extreme care, they may injure you as they are very sharp.
• Never put the appliance, the power cord or the plug in water or any other liquid.
• Do not leave the power cord within the reach of children, close to or in contact with the hot parts of you close to a heat source or a sharp edge, or in contact with the blades.
• Never use the blender without ingredients or with only dry products, and never pour boiling liquids into it.
• Do not place the accessories in a microwave oven.
• Do not leave long hair, scarves, ties, etc. dangling over the bowl and the accessories when they are working
• Do not use your blender if it is not working properly, if it has been damaged or if the power cord or plug damaged. If the supply cord is damaged, it must be replaced by the manufacturer, an approved after-sales or a similarly qualified person, in order to avoid any danger.
• All repair work other than cleaning and basic maintenance by the customer must be done by an approved
• Only use original accessories and components. We cannot accept any responsibility if this is not the case.

Caution: never pour or blend liquids or ingredients whose temperature is higher than 80^ C (176° F). W blending hot ingredients, keep hands well away from the lid and the measuring cup (D1) in order to a risk of burning.

Using the blender for the first time

• Before using the blender for the first time, clean all accessories (D & E) in hot soapy water (except for the motor unit (A): see "Cleaning" §). Rinse and dry them carefully. Handle the blades with extreme care.
• Ensure that all packaging has been removed before using the blender.

Using the blender

• Lock the blade holder (D3) onto the glass jug (D2) by giving it a quarter turn anti-clockwise (1a, 1b).
• Place the blender jug (D) onto the motor unit (A) (1c).
• Place the food to be blended into the glass jug (D2), starting with the liquid ingredients first, never exceeding the maximum level (1.2 litre).
• Plug the appliance in, turn it on and choose the speed most suitable for your preparation using the speed switch (B).
• To stop the appliance, turn the speed selector switch (B) to 0.

The lid and its measuring cap (D1) must always be properly fitted when the appliance is working. To add ingredients while the blender is operating, insert them through the feeder hole in the lid.

Ice crushing

• Put some ice cubes into the glass jug (D) (12 to 15 ice cubes). There is no need to add water.
• Press the "Ice Crush" button (C) in quick succession but do not hold the button down.

Using the ice stick (E) (depending on model)

This accessory enables you to cool mixtures down, or keep them cool.

• Fill the container (E1) with coarse salt right up to the level indicated inside (2a). Then fill it with cold water (2b).
• Screw the handle (E2) of the container on very tightly (2c) and shake until the salt dissolves.
• Place the ice stick (E) in the deep freezer, preferably in an upright position, until the salt water mixture has frozen (12 hours minimum).
• Make your preparation in the blender, and then introduce the frozen ice stick (E) through the feeding hole in the lid. This will keep your mixture cooler.
• You can also use the ice-stick as a mixing stick to help mix up your preparations, by introducing it through the feeder hole in the lid.

Cleaning

• Unplug the blender and remove all the accessories.
• Wipe the motor unit (A) down with a damp cloth. Dry carefully.
• Never plunge the motor unit (A) under water.
• Rinse the glass (D) under running water, along with its accessories.
• Handle the blades with extreme care as they are very sharp.
• All the accessories are dishwasher-safe.

What to do if my blender doesn't work?

Start by checking the power cord and plug, then check:

• that the blender (D) is properly fitted onto the motor unit (A).
• that the speed selector switch (B) is in the right position.
• that the glass jug (D) has not been overfilled above the maximum level (1.2 litre)

Your appliance still does not work?

• Contact an approved service centre (see the list in the service booklet).

Recycling

Environment protection first !

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

HELPLINE:

If you have any product problems or queries, please contact our Customer Relations Team first for expert hel advice:

0845 602 1454 - UK

[phone] - Ireland

or consult our website - www.tefal.co.uk
