USER MANUAL SR103DMX IMG STAGE LINE

Before switching on ...

We wish you much pleasure with your new "img Stage Line" unit. Please read these operating instructions carefully prior to operating the unit. Thus, you will get to know all functions of the unit, operating errors will be prevented, and yourself and the unit will be protected against any damage caused by improper use. Please keep the oper ating instructions for later use.

The English text starts on page 8.

DMX IN, DMX OUT: . . . XLR, 3-polig

Pin 1 = Masse

Pin 2 = DMX-Signal -

Pin 3 = DMX-Signal +

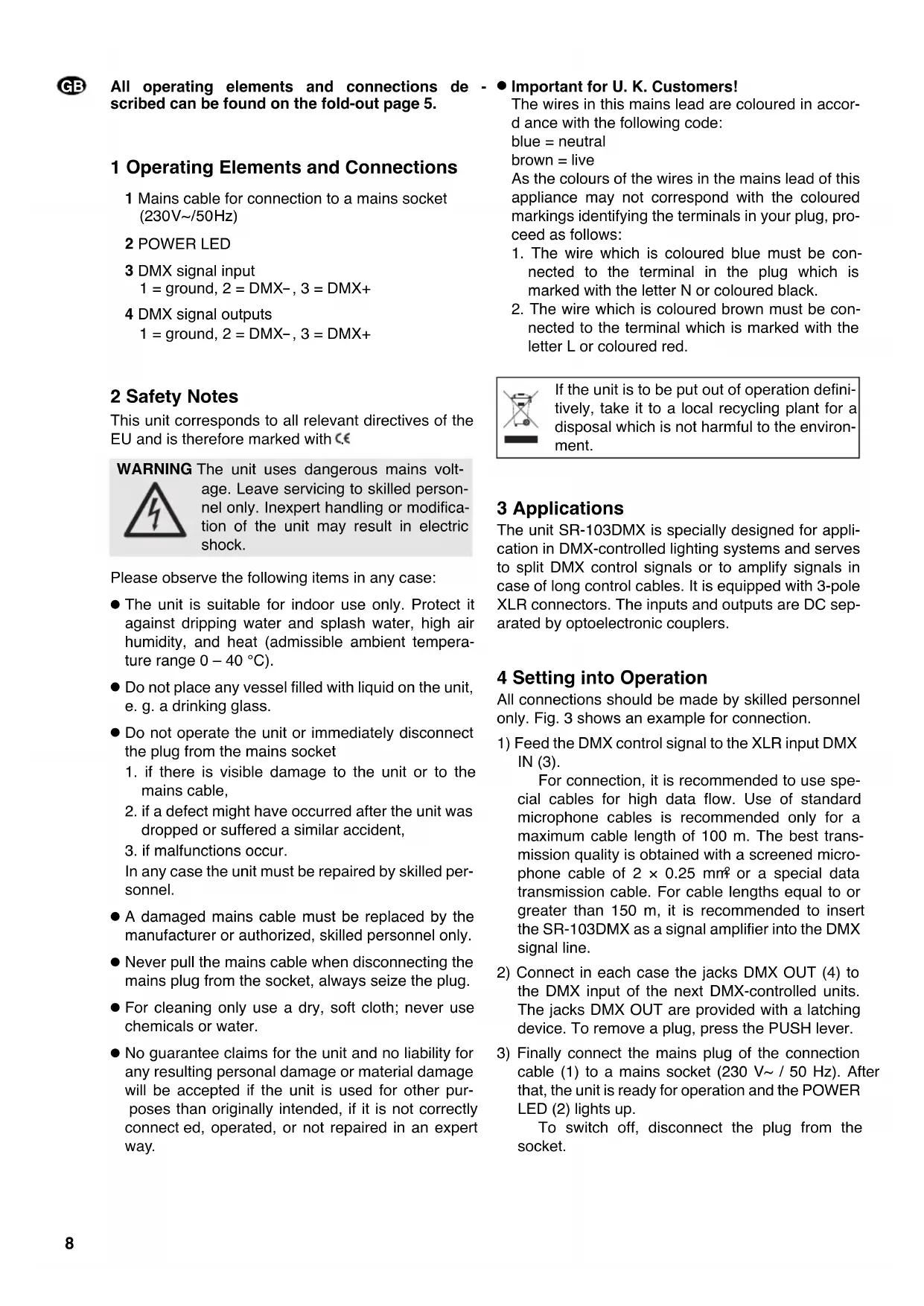

1 Operating Elements and Connections

1 Mains cable for connection to a mains socket (230V / 50Hz)
2 POWER LED
3 DMX signal input

$$ 1 = \text {g r o u n d}, 2 = \text {D M X} -, 3 = \text {D M X} + $$

4 DMX signal outputs

$$ 1 = \text {g r o u n d}, 2 = \text {D M X} -, 3 = \text {D M X} + $$

2 Safety Notes

This unit corresponds to all relevant directives of the EU and is therefore marked with

WARNING

The unit uses dangerous mains voltage. Leave servicing to skilled personnel only. Inexpert handling or modification of the unit may result in electric shock.

Please observe the following items in any case:

• The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity, and heat (admissible ambient temperature range 0 - 40^ ).
• Do not place any vessel filled with liquid on the unit, e. g. a drinking glass.

• Do not operate the unit or immediately disconnect the plug from the mains socket

• if there is visible damage to the unit or to the mains cable,

• if a defect might have occurred after the unit was dropped or suffered a similar accident,
• if malfunctions occur.

In any case the unit must be repaired by skilled personnel.

• A damaged mains cable must be replaced by the manufacturer or authorized, skilled personnel only.
• Never pull the mains cable when disconnecting the mains plug from the socket, always seize the plug.
• For cleaning only use a dry, soft cloth; never use chemicals or water.

• No guarantee claims for the unit and no liability for any resulting personal damage or material damage will be accepted if the unit is used for other purposes than originally intended, if it is not correctly connect ed, operated, or not repaired in an expert way.

• Important for U. K. Customers!

The wires in this mains lead are coloured in accordance with the following code:

blue = neutral

brown = live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

1. The wire which is coloured blue must be connected to the terminal in the plug which is marked with the letter N or coloured black.
2. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

If the unit is to be put out of operation definitively, take it to a local recycling plant for a disposal which is not harmful to the environment.

3 Applications

The unit SR-103DMX is specially designed for application in DMX-controlled lighting systems and serves to split DMX control signals or to amplify signals in case of long control cables. It is equipped with 3-pole XLR connectors. The inputs and outputs are DC separated by optoelectronic couplers.

4 Setting into Operation

All connections should be made by skilled personnel only. Fig. 3 shows an example for connection.

1) Feed the DMX control signal to the XLR input DMX IN (3).
For connection, it is recommended to use special cables for high data flow. Use of standard microphone cables is recommended only for a maximum cable length of 100m . The best transmission quality is obtained with a screened microphone cable of 2× 0.25mm^2 or a special data transmission cable. For cable lengths equal to or greater than 150m , it is recommended to insert the SR-103DMX as a signal amplifier into the DMX signal line.
2) Connect in each case the jacks DMX OUT (4) to the DMX input of the next DMX-controlled units. The jacks DMX OUT are provided with a latching device. To remove a plug, press the PUSH lever.
3) Finally connect the mains plug of the connection cable (1) to a mains socket (230V /50Hz) .After that, the unit is ready for operation and the POWER LED (2) lights up.

To switch off, disconnect the plug from the socket.

5 Specifications

Power supply: 230 V~/50 Hz /5 VA

Ambient temperature: . . . 0 - 40 °C

Dimensions: 105 × 40 × 115 mm

Weight: 480 g

Connections

DMX IN, DMX OUT: . . . XLR, 3 poles

pin 1 = ground

pin 2 = DMX signal -

pin 3 = DMX signal +

Subject to technical modification.

Dimensions: 105 × 40 × 115 mm

Poids: 480 g

Branchements

DMX IN, DMX OUT: .. XLR 3 pôles

Pin 1 = masse

Pin 2 = signal DMX -

Pin 3 = signal DMX +

DMX IN, DMX OUT: . . . XLR, a 3 poli

Pin 1 = massa

DMX IN, DMX OUT: . . . XLR, 3-polig

Pin 1 = massa
