USER MANUAL PKHAP 20Li A1 PARKSIDE

Translation of the original instructions

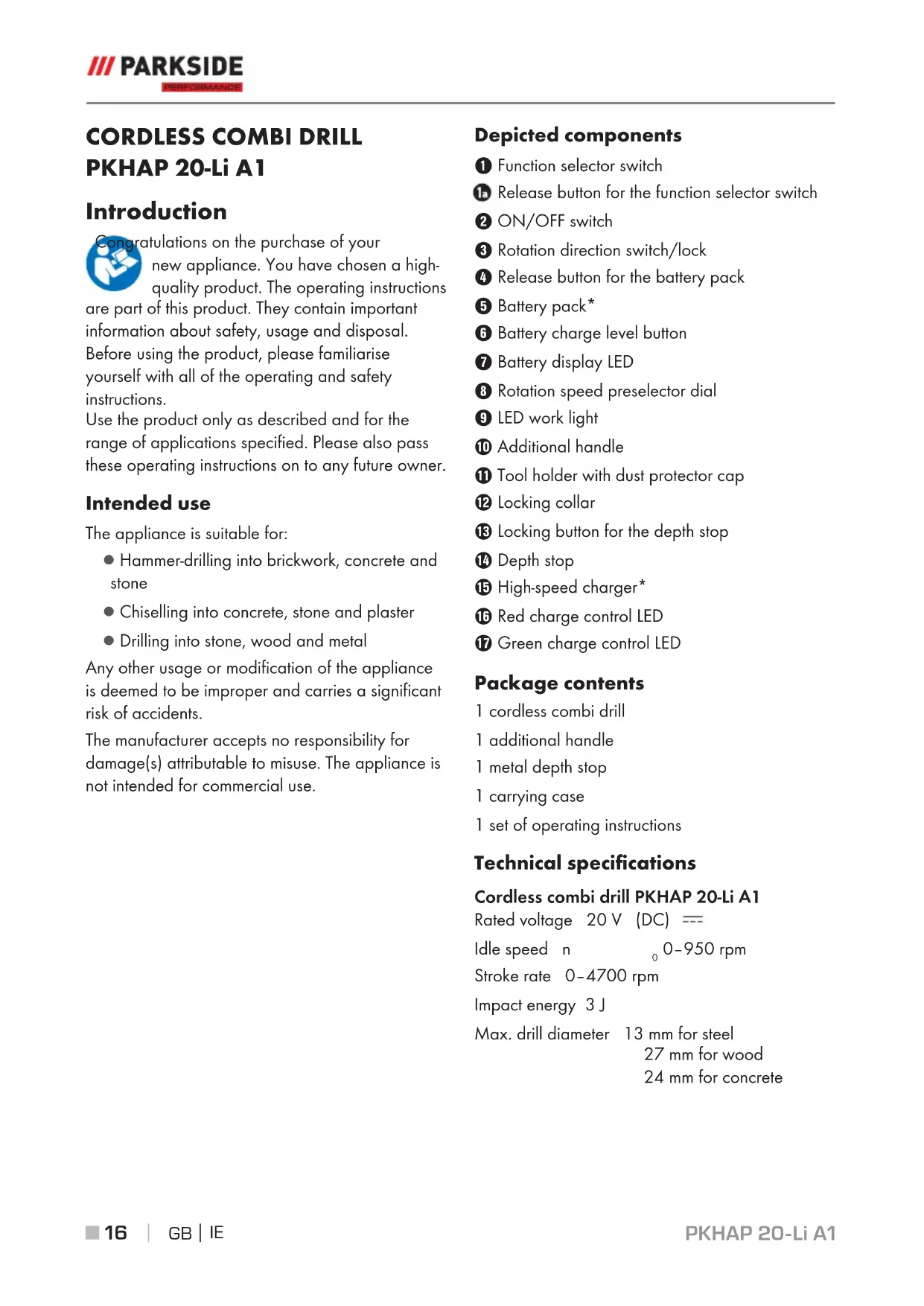

PKHAP 20-Li A1 Introduction Congratulations on the purchase of your new appliance. You have chosen a high- quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner. Intended use The appliance is suitable for: ▯ Hammer-drilling into brickwork, concrete and stone ▯ Chiselling into concrete, stone and plaster ▯ Drilling into stone, wood and metal Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse. The appliance is not intended for commercial use. Depicted components Function selector switch Release button for the function selector switch ON/OFF switch Rotation direction switch/lock Release button for the battery pack Battery pack* Battery charge level button Battery display LED Rotation speed preselector dial LED work light Additional handle - Tool holder with dust protector cap 3 Locking collar ! Locking button for the depth stop . Depth stop 0 High-speed charger* 6 Red charge control LED 1 Green charge control LED Package contents 1 cordless combi drill 1 additional handle 1 metal depth stop 1 carrying case 1 set of operating instructions Technical specifications Cordless combi drill PKHAP 20-Li A1 Rated voltage 20 V (DC) Idle speed n

 17 ■ Battery PAP 20 A3* Type LITHIUM ION Rated voltage 20 V (DC) Capacity 4 Ah (80Wh) Cells 10 High-speed battery charger PLG 20 A3* INPUT Rated voltage 230–240 V

, 50 Hz (AC) Rated power consumption 120 W Fuse (internal) 3.15 A T3.15A OUTPUT Rated voltage 21.5 V (DC) Rated current 4.5 A Charging time approx. 60 min Protection class II / (double insulation)

• BATTERY AND CHARGER ARE NOT INCLUDED ATTENTION! Hot surface. There is a risk of burns. Noise emission value Noise measurement value determined in accord- ance with EN 60745. The A-rated noise level of the power tool is typically as follows Hammer-drilling Sound pressure level L

= 93.6 dB(A) Uncertainty K = 3 dB Sound power level L

= 104 dB(A) Uncertainty K = 3 dB Total vibration value Total vibration values (vector total of three direc- tions) determined in accordance with EN 60745: Hammer-drilling (main handle)

WARNING! ► The vibration level specified in these instruc- tions has been measured in accordance with the standardised measuring procedure specified in EN 60745 and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate. The vibration level varies depending on the use of the power tool and may, in some cases, be higher than the value specified in these instructions. NOTE ► Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load). General power tool safety warnings WARNING! ► Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery operated (cordless) power tool. IB_337406_PKHAP20LiA1_LB8.indb 17 10.08.20 15:35PKHAP 20-Li A1 ■ 18

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmos- pheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of elec- tric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entan- gled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD re- duces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewel- lery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. IB_337406_PKHAP20LiA1_LB8.indb 18 10.08.20 15:35PKHAP 20-Li A1

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that can- not be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many acci- dents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits, etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Use and handling of the cordless

electrical power tool a) Charge a rechargeable battery using only the charger recommended by the manufac- turer. There is a risk of fire if a battery charger designed for a particular type of battery is used with other batteries. b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire. c) When they are not being used, store recharge- able battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire. d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek addi- tional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns. e) Do not use a damaged or modified battery. Damaged or modified batteries may behave unexpectedly and cause fires, explosions or pose a risk of injury. f) Do not expose a battery to fire or excessively high temperatures. Fire or temperatures in excess of 130°C (265°F) can cause an explosion. g) Follow all instructions regarding charging and never charge the battery or the cordless tool outside of the temperature range given in the operating instructions. Incorrect charging or charging outside of the permissible tempera- ture range can destroy the battery and increase the risk of fire. IB_337406_PKHAP20LiA1_LB8.indb 19 10.08.20 15:35PKHAP 20-Li A1 ■ 20

CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries. Protect the rechargea- ble battery from heat, e.g. from continuous exposure to sunlight, fire, water and mois- ture. There is a risk of explosion.

a) Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. b) Never try to repair damaged batteries. Main- tenance of batteries should only be carried out by the manufacturer or an approved customer service centre. Appliance-specific safety instructions for hammer drills ■ Wear hearing protection. Exposure to loud noise can lead to hearing loss. ■ Use the additional handles supplied with the appliance. Loss of control can lead to injuries. ■ Hold the appliance by the insulated handles when you are carrying out work during which the deployed tool may come into contact with concealed power cables or its own power cable. Contact with a live wire may electrify exposed metal parts of the tool and could give the operator an electric shock.

Wear a dust mask. WARNING! TOXIC DUST! ► Working with the tool can produce harmful/ toxic dusts which represent a health hazard for the person operating the appliance and for anyone else in the vicinity. ■ CAUTION, POWER CABLES! DANGER! Ensure that you are not likely to contact power, gas or water supply lines when you are working with the power tool. If necessary, check with a service line detector before you start to cut or drill into a surface. Original accessories/auxiliary equipment ■ Use only the accessories and additional equip- ment that are specified in the operating instruc- tions and are compatible with the appliance. Safety guidelines for battery chargers ■ This appliance may be used by chil- dren aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under super- vision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised. The charger is suitable for indoor use only. WARNING! ■ To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person. IB_337406_PKHAP20LiA1_LB8.indb 20 10.08.20 15:35PKHAP 20-Li A1

 21 ■ Before use Charging the battery pack (seefig.A) CAUTION! ► Always unplug the appliance before you remove the battery pack from or connect itto the charger. ■ Never charge the battery pack when the ambient temperature is below 10°C or above 40°C. ♦ Connect the battery pack to the high-speed battery charger0 (see fig. A). ♦ Insert the power plug into the socket. The control LED6 lights up red to indicate that the appliance is charging. ♦ The green LED1 indicates that the charging process is complete and the battery pack is ready. ♦ Push the battery pack into the appliance. Attaching/disconnecting the battery pack to/from the appliance Attaching the battery pack ♦ Push the rotation direction switch into the middle position (lock). Allow the battery pack to click into the handle. Removing the battery pack ♦ Press the release button and remove the battery pack. Checking the battery charge level ♦ Press the battery charge level button to check the charge level of the battery. The status/remaining charge will be shown on the battery display LED as follows: RED/ORANGE/GREEN = maximum charge/ performance RED/ORANGE = medium charge/performance RED = low charge – charge the battery Use Additional handle NOTE ► For safety reasons, you should never use this appliance without the additional handle attached. ♦ Remove the additional handle by turning it in a clockwise direction (see fold-out page). ♦ Turn the additional handle to the desired position. ♦ Fix the additional handle in the new position by turning it anticlockwise. Depth stop ♦ Push the locking button for the depth stop! and keep it pushed in. ♦ Insert the depth stop. into the additional handle. ♦ Ensure that the toothing on the depth stop. is facing downwards. ♦ Pull the depth stop. out until the distance between the tip of the drill and the tip of the depth stop corresponds with the required drilling depth. ♦ Release the locking button for the depth stop! to lock the depth stop. IB_337406_PKHAP20LiA1_LB8.indb 21 10.08.20 15:35PKHAP 20-Li A1 ■ 22

Tool/chuck ♦ Place the tool in the tool holder- so that it rotates until it locks automatically. ♦ Check that the tool is properly locked by pulling it. The system has radial play because of the design. Removing a tool ♦ Pull the locking collar3 backwards and remove the tool. Operation Select operating mode WARNING! ► Do not press the function selector switch until the appliance has come to a complete standstill. Switching between functions while the tool is still rotating can damage the appliance. Function selector switch ♦ Press and hold the release button on the function selector switch. Turn the function selector switch so that the required symbol engages at the arrow mark: Function Symbol Drilling Hammer drilling Chisel position adjustment Chiselling Adjusting the chisel position You can rotate the tool to the required position for chiselling using this function. ♦ Turn the function selector switch to the position. ♦ Turn the tool in the tool holder- to the re- quired position. ♦ Turn the function selector switch to the position for the chiselling function. Preselecting the rotation speed You can use the rotation speed preselector dial to preselect the rotation speed. Level 1 (low rota- tion speed) up to level 6 (high rotation speed). Work out the correct settings by carrying out a test: – Level 3–6: high speed: for hammer drilling/ chiselling in concrete or stone – Level 1–3: low speed: for drilling in steel or wood Switching on and off Switching the appliance on ♦ Press the ON/OFF switch. Switching the appliance off ♦ Release the ON/OFF switch. Changing the direction of rotation ♦ Change the direction of rotation by pressing the rotation direction switch towards the left or right. IB_337406_PKHAP20LiA1_LB8.indb 22 10.08.20 15:35PKHAP 20-Li A1

 23 ■ Maintenance and cleaning WARNING! RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance. The appliance is maintenance-free. ■ The appliance must always be kept clean, dry and free from oil or grease. ■ Use a soft, dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic. ■ Never allow liquids to get into the appliance. ■ Clean the tool holder- regularly. ♦ To do this, pull the locking collar3 backwards and pull the dust protector cap off the tool holder-. ♦ Before fitting a tool into the tool holde-, grease it lightly. ■ If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage environment is cool and dry. NOTE ► Replacement parts not listed (such as batteries, switches) can be ordered via our Service hotline. WARNING! ■ If the connecting cable needs to be replaced, this must be carried out by the manufacturer or an authorised representative in order to avoid safety hazards. Disposal The packaging is made from environ- mentally friendly material and can be disposed of at your local recycling plant. Do not dispose of power tools in your normal domestic waste! European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environ- mentally compatible manner. Do not dispose of batteries in your normal household waste! Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or appliance to a nearby collection facility. Please consult your local authorities regarding suitable disposal of worn out power tools/battery packs. Dispose of the packaging in an envi- ronmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packag- ing material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites. Your local community or municipal authorities can provide information on how to dispose of the worn-out product. The product is recyclable, subject to extended producer responsibility and is collected separately. IB_337406_PKHAP20LiA1_LB8.indb 23 10.08.20 15:35PKHAP 20-Li A1 ■ 24

Kompernass Handels GmbH warranty Dear Customer, This appliance has a 5-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within 5 years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the 5-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your prod- uct will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. The X20V Team Series battery packs are guaran- teed for 3 years from the date of purchase. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accord- ance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instruc- tions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres. The warranty period does not apply to ■ Normal reduction of the battery capacity overtime ■ Commercial use of the product ■ Damage to or alteration of the product by the customer ■ Non-compliance with safety and maintenance instructions, operating errors ■ Damage caused by natural hazards IB_337406_PKHAP20LiA1_LB8.indb 24 10.08.20 15:35PKHAP 20-Li A1

 25 ■ Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (e.g.IAN12345) available as proof of pur- chase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be pro- vided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com. This QR code will take you directly to the Lidl ser- vice page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 337406_2001. NOTE ► For Parkside and Florabest tools, please send us only the defective item without the acces- sories (e.g. battery, storage case, assembly tools, etc.). WARNING! ► Have the appliances repaired by the Ser- vice Centre or a qualified electrician and only using genuine replacement parts.This will ensure that the safety of the appliance is maintained. ► Always ensure that the power plug or the mains cable is replaced only by the manu- facturer of the appliance or by an approved customer service provider.This will ensure that the safety of the appliance is maintained. Service Service Great Britain Tel.: 0800 404 7657 E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: kompernass@lidl.ie IAN 337406_2001 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

Translation of the original Conformity Declaration We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, Germany, hereby declare that this product complies with the following standards, normative documents and EC directives: Machinery Directive (2006/42/EC) EMC (Electromagnetic Compatibility) (2014/30/EU) RoHS Directive (2011/65/EU)*

• The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the decla- ration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances. Applied harmonised standards EN 60745-1:2009/A11:2010 EN 60745-2-6:2010 EN 60335-1:2012/A2:2019 EN 60335-2-29:2004/A11:2018 EN 62233:2008 EN 55014-1:2006/A2:2011 EN 55014-1:2017 EN 55014-2:1997/A2:2008 EN 55014-2:2015 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 50581:2012 Type designation of machine: Cordless combi drill PKHAP 20-Li A1 Year of manufacture: 06–2020 Serial number: IAN 337406_2001 Bochum, 22/06/2020 Semi Uguzlu - Quality Manager - We reserve the right to make technical changes in the context of further product development. IB_337406_PKHAP20LiA1_LB8.indb 26 10.08.20 15:35PKHAP 20-Li A1

 27 ■ Ordering a replacement battery If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone. Due to limited stocks, this item may sell out in a relatively short time. NOTE ► Online ordering of replacement parts is not possible in all countries. In this case, please contact the Service hotline. Telephone ordering Service Great Britain Tel.: 0800 404 7657 Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., peak · 0,06 EUR/Min., off peak) To ensure that your order is processed swiftly, have the article number of your appliance to hand (e.g. IAN 337406) in case of questions. The article number can be found on the type plate or the title page of these instructions. IB_337406_PKHAP20LiA1_LB8.indb 27 10.08.20 15:35PKHAP 20-Li A1 ■ 28
