ABCDV160SY - Tumble drier CANDY - Free user manual and instructions

Product type	Vented tumble dryer
Brand	Candy
Model	ABCDV160SY
Drying capacity (cotton)	6 kg maximum
Drying capacity (synthetics)	3 kg maximum
Drum volume	115 litres
Height	85 cm
Width	60 cm
Depth	60 cm
Energy class	C
Drying programmes	Adjustable drying time, anti-crease pre-ironing programme
Options	Delicate drying (DELICATES button)
Ventilation type	Evacuation via hose (diameter 95 mm, max length 1.8 m)
Lint filter	With maintenance indicator light
Earthing	Mandatory
Door opening	Pull
Warranty	12 months (parts and labour)
After-sales service	GIAS Service
Filter cleaning	After each drying cycle
Drum cleaning	Wipe with a damp cloth after use, leave the door open

Frequently Asked Questions - ABCDV160SY CANDY

How to correctly install the Candy ABCDV160SY tumble dryer?

Install the dryer in a well-ventilated room, at least 12 mm from walls. Do not install the appliance in a bathroom. Use the supplied ventilation hose to expel warm moist air to the outside. Ensure the hose is not bent and does not exceed 1.8 m in length.

What is the maximum drying capacity?

The maximum capacity is 6 kg for cotton and 3 kg for synthetics. Do not overload the drum to ensure even drying.

How to clean the lint filter?

Pull the filter upwards, open it, remove the lint with a soft brush or your fingers, then close and replace it. Clean the filter after each cycle to maintain efficiency.

What does the lit filter maintenance indicator mean?

The indicator lights up when the lint filter is clogged or when the ventilation hose is blocked or kinked. Clean the filter and check the hose to resolve the issue.

Why is drying too long or are clothes not dry enough?

Check that you have selected the correct drying time, that the clothes were well spun, that the filter is clean, that the drum is not overloaded, and that the ventilation hose is not obstructed. If you used the DELICATES mode, the temperature is lower.

What types of clothes should not be dried in this appliance?

Do not dry items made of rubber, foam rubber, plastics, fabrics treated with dry cleaning liquids, wool, silk, delicate fabrics, nylon stockings, garments with metal decorations, sports shoes, or bulky items like sleeping bags.

How to use the pre-ironing programme?

Turn the DRYING TIME dial to the pre-ironing symbol. The dryer will heat the load for 9 minutes then cool it for 3 minutes, which relaxes wrinkles and makes ironing easier.

What to do if the dryer does not start?

Check that the appliance is plugged in and the socket works, the door is properly closed, the fuse has not blown, and you have pressed the START button after setting the drying time.

How to clean the exterior and interior of the dryer?

Unplug the appliance before any cleaning. Wipe the exterior and door with a soft damp cloth. Do not use abrasive products. Wipe the inside of the drum after use and leave the door open to air out.

What is the warranty period and how to benefit from after-sales service?

The warranty is 12 months from the date of purchase. To benefit from the service, contact GIAS Service (France: 18400 LUNERY). Keep the proof of purchase. Warranty repairs include free parts and labour, but travel costs are borne by the buyer.

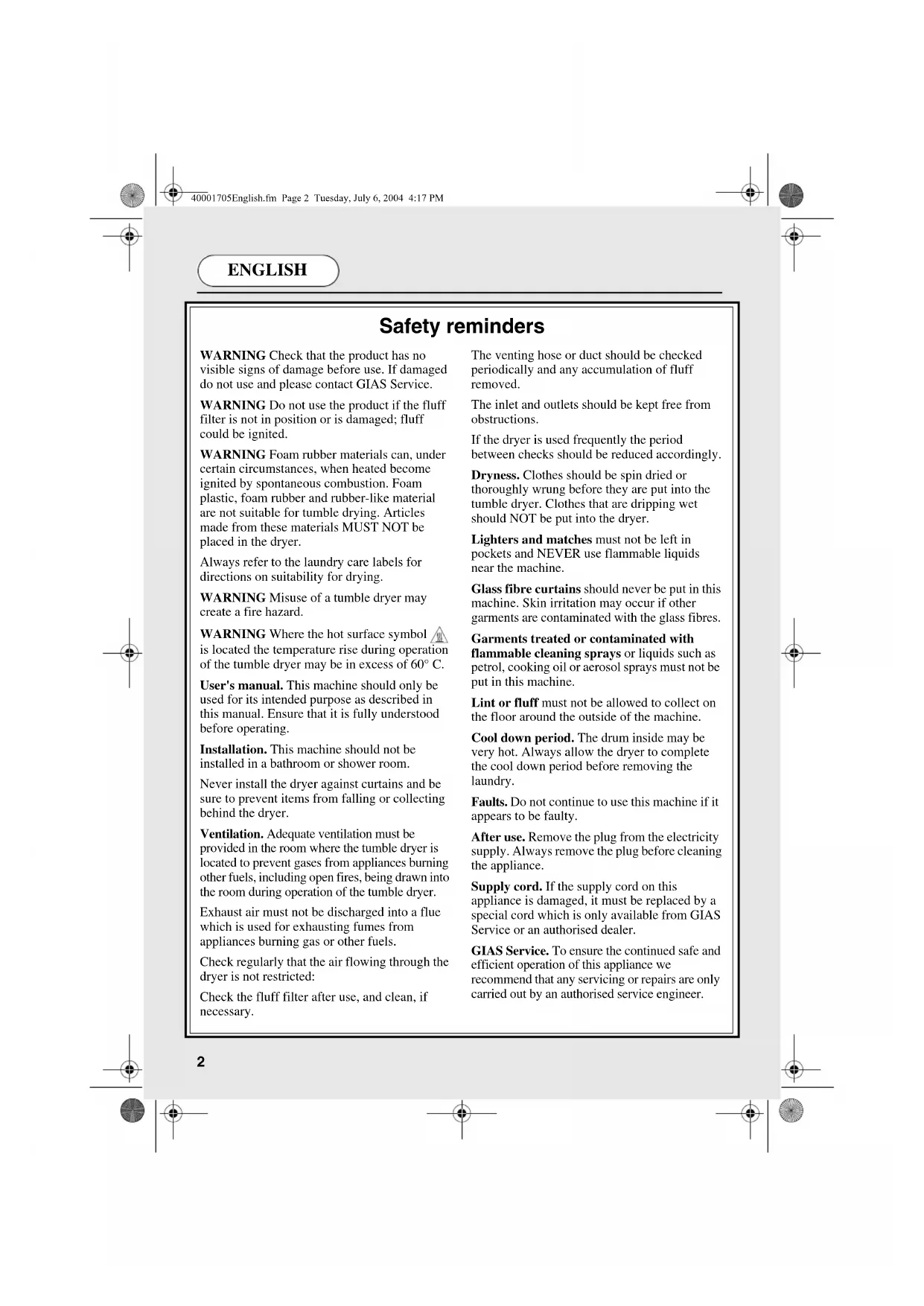

USER MANUAL ABCDV160SY CANDY

WARNING Check that the product has no visible signs of damage before use. If damaged do not use and please contact GIAS Service.

WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.

WARNING Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Foam plastic, foam rubber and rubber-like material are not suitable for tumble drying. Articles made from these materials MUST NOT be placed in the dryer.

Always refer to the laundry care labels for directions on suitability for drying.

WARNING Misuse of a tumble dryer may create a fire hazard.

WARNING Where the hot surface symbol is located the temperature rise during operation of the tumble dryer may be in excess of 60^ .

User's manual. This machine should only be used for its intended purpose as described in this manual. Ensure that it is fully understood before operating.

Installation. This machine should not be installed in a bathroom or shower room.

Never install the dryer against curtains and be sure to prevent items from falling or collecting behind the dryer.

Ventilation. Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.

Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

Check regularly that the air flowing through the dryer is not restricted:

Check the fluff filter after use, and clean, if necessary.

The venting hose or duct should be checked periodically and any accumulation of fluff removed.

The inlet and outlets should be kept free from obstructions.

If the dryer is used frequently the period between checks should be reduced accordingly.

Dryness. Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. Clothes that are dripping wet should NOT be put into the dryer.

Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.

Glass fibre curtains should never be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.

Garments treated or contaminated with

flammable cleaning sprays or liquids such as petrol, cooking oil or aerosol sprays must not be put in this machine.

Lint or fluff must not be allowed to collect on the floor around the outside of the machine.

Cool down period. The drum inside may be very hot. Always allow the dryer to complete the cool down period before removing the laundry.

Faults. Do not continue to use this machine if it appears to be faulty.

After use. Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance.

Supply cord. If the supply cord on this appliance is damaged, it must be replaced by a special cord which is only available from GIAS Service or an authorised dealer.

GIAS Service. To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised service engineer.

ENGLISH

Safety reminders 2 Opening the door 6

Electrical requirements 3 Filter 6

Ventilation requirements 4 Drying guide 7

Preparing the load 5 Controls & indicators 8

Clothes preparation 5 Operation 9

Maximum drying weight 5 Cleaning the dryer 10

Sorting the load 5 Technical specification 10

Do not tumble dry 5 Trouble shooting 11

Energy saving 5

PLEASE READ THESE INSTRUCTIONS THOROUGHLY

This appliance must be operated in accordance with the instructions given in this manual. It is for domestic use only in drying household textiles and garments where a water solution has been used in the cleaning process. It MUST NOT be used with dry cleaning fluids. For your safety, this dryer must be correctly installed.

If there is any doubt about installation, call GIAS Service for advice.

Before using the tumble dryer for the first time:

• please read this instruction book thoroughly.
• remove all items packed inside drum.
• wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

IMPORTANT: This dryer must only be used for drying household textiles and garments where a water solution has been used for the cleaning process.

DO NOT tumble dry fabrics treated with dry cleaning fluids.

Electrical requirements

WARNING!

ELECTRICITY CAN BE EXTREMELY DANGEROUS. THIS APPLIANCE MUST BE EARTHED.

This appliance is fitted with a moulded-on non-rewireable plug.

The plug should be accessible for disconnection after the appliance has been installed.

IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:

Blue NEUTRAL

Brown

Green-and-yellow EARTH

If the supply cord on this appliance is damaged, it must be replaced by a special cord which is only available from GIAS Service or an authorised GIAS Dealer.

ENGLISH

Installation and Ventilation requirements

prevailing winds to ensure back-draughts do not reduce the drying performance.

If the dryer is installed under a worktop or built-in, it is essential to use the venting hose to carry the hot moist air away from the dryer otherwise re-circulation of the moist air will prevent the dryer from working efficiently.

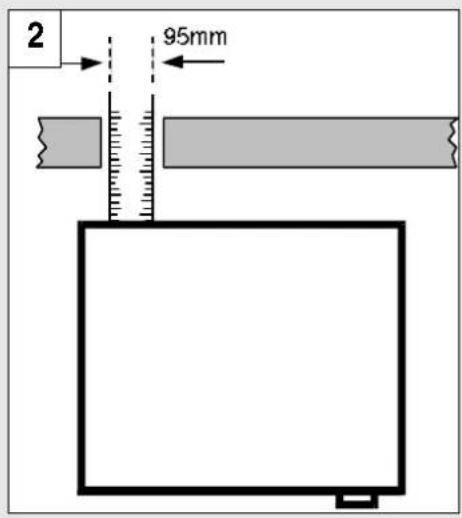

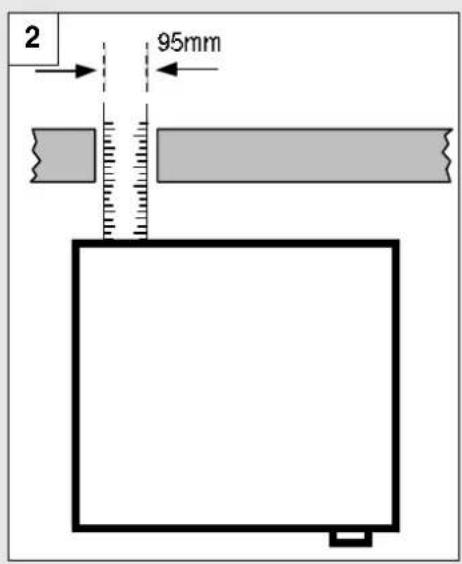

The hose may be fitted through a wall or through an open door or window (fig. 2). The hose is 95mm (3.75 inches) in diameter and will extend up to 1.8 metres (6 feet).

Venting hoses longer than 1.8 metres (6 feet) are not recommended as the dryer performance will be reduced.

Ensure that the venting hose is not kinked as this will prevent the dryer from working efficiently.

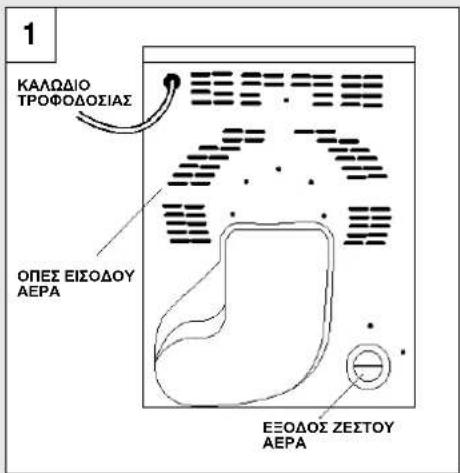

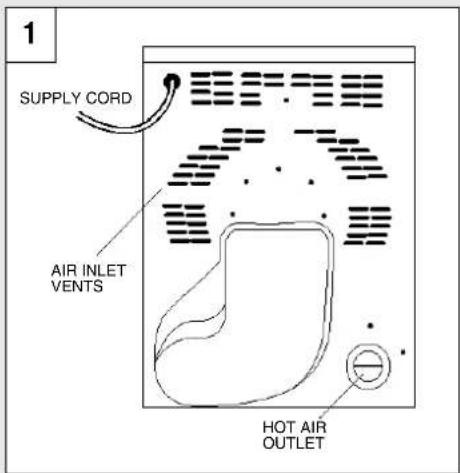

IMPORTANT: This dryer must be installed such that the air inlets and outlets are not restricted (fig. 1).

There should be a gap of at least 12mm (0.5 inches) between the sides and rear of the machine and the surrounding walls and cabinets.

To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed.

NEVER install the dryer up against curtains.

Prevent items from falling or collecting between the sides and rear of the dryer as these may obstruct the air inlet and outlets.

A venting hose is supplied with this tumble dryer.

The use of the venting hose to exhaust hot air to the external atmosphere is strongly recommended to ensure maximum drying efficiency. Protect the external outlet from

ENGLISH

Preparing the load

Before using the dryer for the first time wipe the inside of the drum and door with a damp cloth.

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.

Clothes preparation

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do not overload the drum, particularly when drying large items, otherwise, the laundry may stick to the drum and not dry evenly.

Maximum drying weight

Cottons Max. 6kg
Synthetics Max. 3kg

Sort the load as follows:

A) By care symbols

On the collar or inside seam:

Suitable for tumble drying.
Tumble drying at high temperature.
Tumble drying at low temperature only.

DO NOT tumble dry.

B) By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

C) By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

D) By drying level

• Sort into: iron dry, cupboard dry, etc.
  For delicate articles press the DELICATES' button (A) to select low drying temperature.

Do not tumble dry:

Woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc.

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

Energy saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spindried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS try to dry the maximum weight of laundry, this will save time and electricity.

NEVER exceed the maximum weight, this will waste time and electricity.

ALWAYS check that the filter is clean before every drying cycle.

NEVER put dripping wet items into the tumble dryer, this may damage the appliance.

ENGLISH

Opening the door

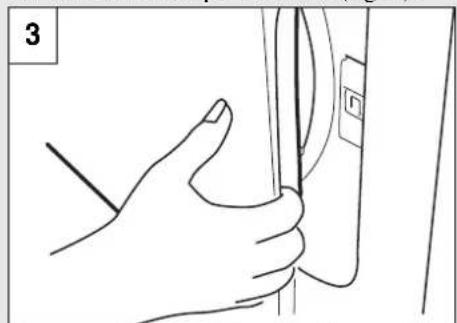

Pull on handle to open the door (fig. 3).

To restart the dryer, close the door and press the ON' button (1)

WARNING! WHEN THE TUMBLE DRYER IS IN USE THE DRUM AND DOOR MAY BE VERY HOT.

Filter

IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

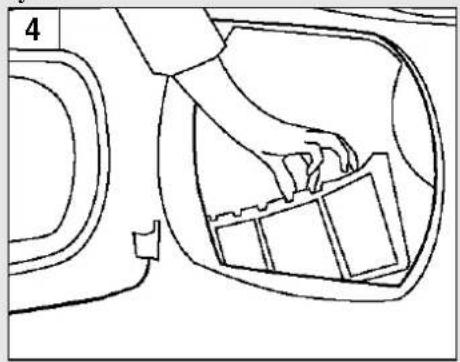

1. Pull the filter upwards (fig. 4).

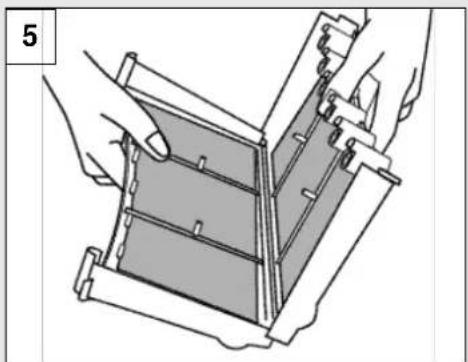

2. Open filter as shown (fig. 5).

1. Gently remove lint using a soft brush or your fingertips.
2. Snap the filter together and push back into place.

Filter Care Indicator (

Lights when the filter needs cleaning. If the laundry is not drying check that the filter is not clogged. The indicator will also light when the venting hose is blocked or kinked.

ENGLISH

Drying guide

The table shows approximate drying times, depending on the type of fabric and dampness of the clothes.

COTTON (2)

HEAT SETTING HEAVY LOAD MEDIUM LOAD LIGHT LOAD

SYNTHETICS

HIGH 120-140 Min 70-80 Min 30-50 Min

ACRYLICS

LOW-70-80 Min 30-40 Min

LOW-50-65 Min 20-30 Min

PRE-IRON PROGRAM: RELAXES CREASES - EASIER TO IRON

REMEMBER: During the last 10 minutes the load is always tumbled in cool air.

For delicate fabrics select the 'DELICATES' button (for all Drying Programmes. This reduces the drying temperature to protect your garments.

ENGLISH

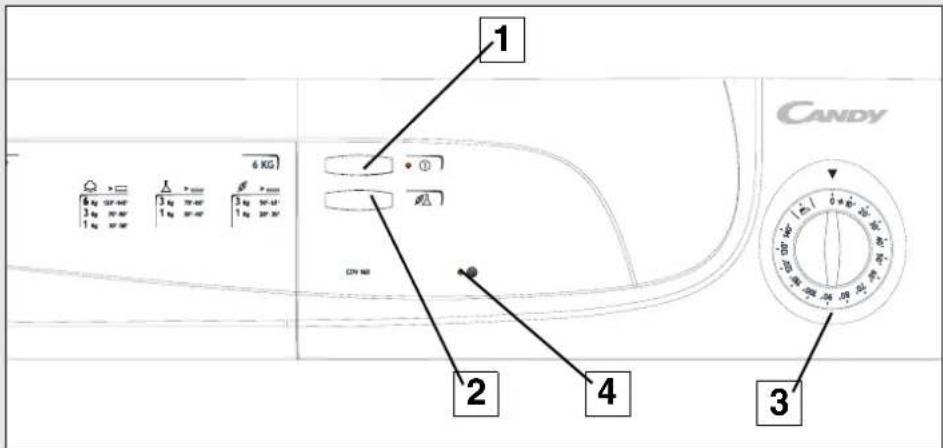

Control panel and indicator lights

1. 'ON' button and indicator - press to switch on, the indicator will light (①).
2. 'DELICATES' button - press to reduce the heat level for delicate items, press again to select high temperature (0).

HIGH Heat setting

LOW Heat setting

1. 'DRYING TIME' dial - selects drying time or pre-ironing option.
2. FILTER CARE' indicator lights when filter needs cleaning ( ).

ENGLISH

Operation

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.
2. If drying delicate items press the 'DELICATES' button to reduce the heat level. Press again on completion, to select high temperature.

HIGH Heat setting LOW Heat setting

1. Turn 'DRYING TIME' dial until the required drying time aligns with the symbol .

The PRE-IRONING setting shown by the symbol on the 'DRYING

TIME' dial provides a conditioning and anti-crease function. The dryer will heat the load for 8 minutes followed by a 2 minute cool down period and is especially good for garments which may have been left for some time prior to ironing, in a linen basket for example. Garments may also become stiffened when dried outside on a washing line or inside on radiators. The PRE-IRONING process relaxes the creases in the fabric making ironing quicker and easier.

1. Gently close the door pushing it slowly until you hear the door 'click' shut.

2. Press the 'ON' button. The indicator will light and the drying cycle begins.

3. The load is dried by tumbling in thermostatically controlled warm air. Cool air is used for the last 10 minutes to reduce creasing and cool the load ready for handling.

4. When the program is fully completed the drum will stop rotating and the dial will point to the symbol .

Open the door and remove the load.

WARNING! THE DRUM,DOOR AND LOAD MAY BEVERY HOT.

1. Clean the filter after every drying cycle to ensure maximum dryer efficiency. (See 'Filter' section.)

ENGLISH

Cleaning the dryer

IMPORTANT: Always switch off and remove the plug from the electricity supply before cleaning this appliance.

Clean the filter after every drying cycle.

After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.

Wipe the outside of the machine and the door with a soft cloth.

DO NOT use abrasive pads or cleaning agents.

To prevent the door sticking, periodically clean the door gasket with a 'non-scratch cream cleaner.'

Technical specifications

Drum capacity 115 litres

Maximum load 6kg

Height 85 cm

Width 60~cm

Depth 60~cm

Energy Label Band C

Note: For electrical data refer to the rating

label on the front of the dryer cabinet (with the door open).

ENGLISH

Trouble shooting

Should your dryer operate incorrectly, check the following points before calling for a service engineer.

Drying time is too long/clothes are not dry enough:

Have you selected the correct drying time/program? Go to page 7.
Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
- Does the filter need cleaning? Go to page 6.
Is the dryer overloaded? Go to page 5.
Is the venting hose kinked or blocked? Go to page 4.
Is the load too small? Go to page 9.
Has the DELICATES' option been selected from a previous cycle? Go to page 8.

The dryer does not operate:

Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp.
Is the plug properly connected to the mains supply?
Is there a power failure?
Has the fuse blown?
Is the door fully closed? Go to page 9.
Is the dryer switched on, both at the mains supply and at the machine? Go to page 8.
Has the drying time or the program been selected? Go to page 8.
Has the ON' button been pressed after opening the door? Go to page 6.

Filter Care Indicator on

• Does the filter need cleaning? Go to page 6.
  Is the venting hose kinked or blocked? Go to page 4.

If the supply cord on this appliance is damaged, it must be replaced by a special cord which is only available from GIAS Service or an authorised GIAS Dealer.

Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice. They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

Is found to be in working order.
- Has not been installed in accordance with the installation instructions.
- Has been used incorrectly.

FRANÇAIS

Rappels de sécurité

Marron - SOUS TENSION

Specification technique

Hoover Apparate A.G.

Boesch 21

CH-6331 Hunenberg

Periodo di garanzia

Aattnoeic toothetnons kai eepioou

EHIMANTIKO:To stcyvortpu auTo 0a npTeva tonotheiau ie tetoovrpofo 0e o i cdoai o e doai aepa va uyn ppaoovra (uk.1).

Oa npenai va unapxia eva kevo toulaayotov 12 mm avapeo oti aevupcs kai to nioo mepos tou myavmaoc kai toug yoptoixovc kai ta vtovalanta.

Tia va diaoqalotei o npaknc eaoipouc, to kevo metao ngs faoc tou unxavmaotoc ka toun patouatov a paoaetai. NOTE uyn tonotheeite to steyvntpo etoi 0ote va yyickouptivcs.

Na oovitcete 0ote va mnu npotuv ka va mnu
oukyevtpovovta avtikeeva maetov tov
nepovkau tov piow upeooc tov
oteywtnpov, kawos wata evdoexetau va
opaovu tic oodovc kua cdoovtov aepa.

To steywotnpio avtosvovodestaa ano evav cokapnto oolnaeepiouo.

HxonTou evkaunot oaiyva eapioouo TovmuapeaTov 8eTo aepa otynatmoopa ouviotata idaitcpa yia n diopalion thg meyotnc anoteaesuakotnac stoyvoua.

Na npoostatwctte tyn eotapikn ecdo an tov avemo, yua va diaopaaolstei on ta avtiorpopa

peuataeov aeuocovynaooon tov oeywnipou.

Eav to steywotipio evai totoeienve kato ano panyko apyiaic nivai cvtroaigvo, civa anapaitnntn xphon tou eukajtou oalnya eapiosuoy ia tvmuatopopaoioucootvypoa aepa eoo to steywotipio. Aiaopopetka, n eaavakokloopopia tov vpoa aopa 0a anotpepsi ty anotekeuaik laitoupyia tou steywotipiov.

O evkaantos oawhvaocnopevi too0etnei npovotac naoa antoixo,avoxtnopra napato (ek.2).O evkaantos oawhvaocxie diueppo 95 mm kau nopevi a poektaoe1 1,8 mcpa.

Hxipn sboaepov oavv eepoov mkooc yaaotpov ao 1,8 meta 8ev ouviotata, kaoc n anodooon tov oteywotpiov 0 aieothei.

Baeothei o 0ekauanos ayoyos
eapouo dev xia stpebaooai, kaocknti
tetoov 0a epipeyai tyn anotaleogatkn
lambdaopya tov steyovnpio.

EAAHNIKA

Ppoetoiia tou ooptiou twv pouxwv

Ipv ano Tnv npotn xhon tou oteywnptiou, OKoovtote to oowetepko tou tvauovkai nOptac me vya pnoavi.

Bbaowthei6o ta poxa nov npoketra va
oteywocte iiva katala yia otetywma o
oteywntpoepiobivion, onoc
kataodkvcta ano ta uubola qpvrtidacnou
peps to kaee eva touc.

PpOeToIaOiaTwv poUxWV

EeYTe Oa ta Koupiia, eepouap K.
Exov Kkioi Ka ot oToes ivai adies.
Fupote ta poxa ano tvn avanoo.
TOnoetne ta poxa apaa uoe a sto
touavo, etoi wte va baeawtheta ot dev th
muXctovu maTaO toc.

Mnyoepopotoveto touav,daitepa otav otyovte uayaa avtkieva,aaowc ta poya evdeexetai va kllnoov oTo Tuavok a va mnyoov ouoioupaa.

Mévióto βápos Μεγνωμαotos

Back Page.fm Page 39 Tuesday, July 6, 2004 4:17 PM

40001705 © 2001 ® REGISTERED TRADEMARK
