Contents

General notes......	9
KÄRCHER Home & Garden app......	10
Environmental protection......	10
Intended use......	10
Accessories and spare parts......	10
Scope of delivery......	10
Description of the device......	10
Safety devices......	10
Symbols on the device......	11
Assembly......	11
Initial startup......	11
Operation......	11
Transport......	12
Storage......	12
Care and service......	13
Troubleshooting guide......	13
Warranty......	13
Technical data......	13
EU Declaration of Conformity......	14

General notes

Read these original operating instructions and the enclosed safety instructions before using the device for the first

time. Proceed accordingly.

Keep both books for future reference or for future owners.

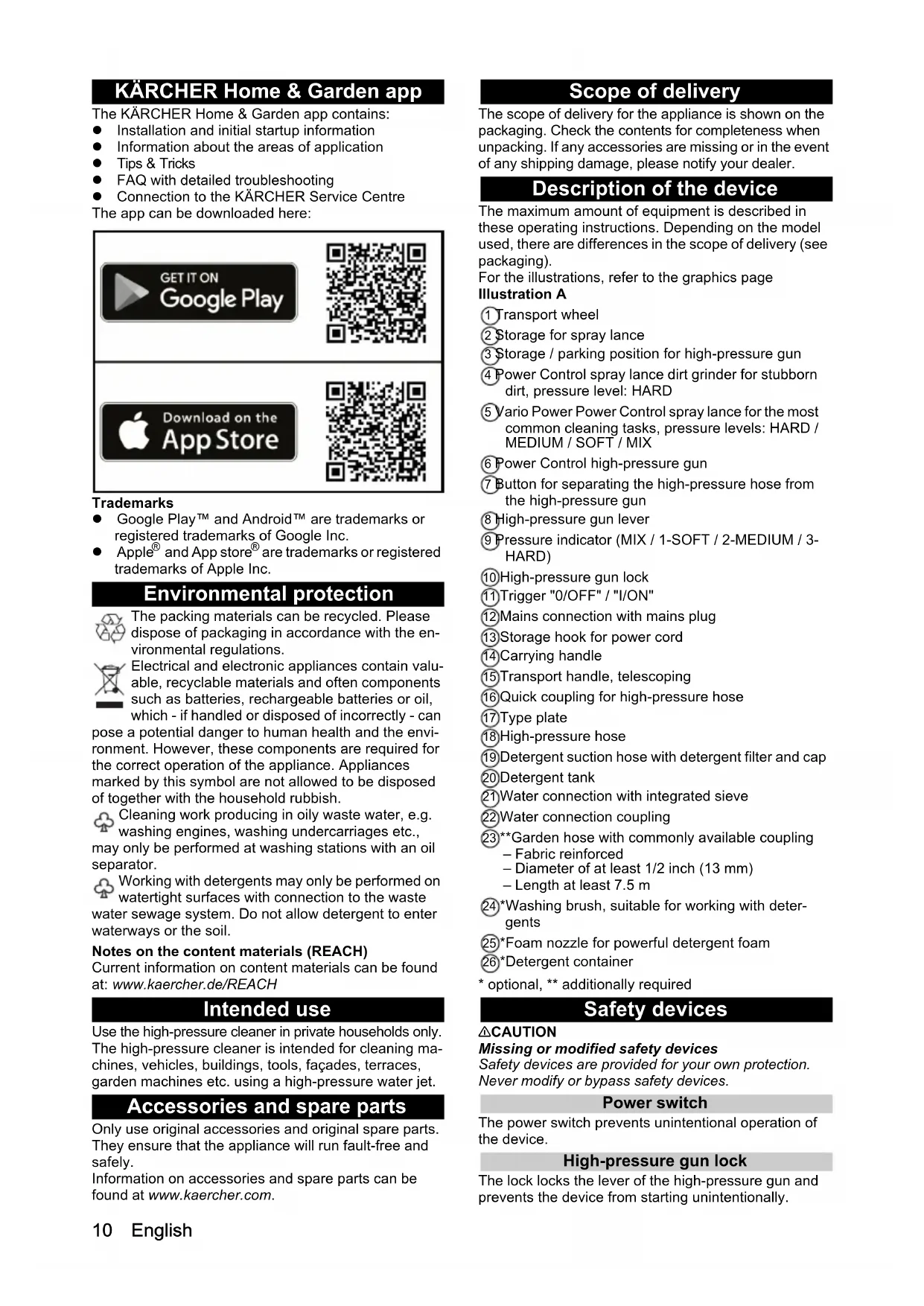

KÄRCHER Home & Garden app

The KÄRCHER Home & Garden app contains:

● Installation and initial startup information
● Information about the areas of application
- Tips & Tricks
● FAQ with detailed troubleshooting
● Connection to the KÄRCHER Service Centre

The app can be downloaded here:

GET IT ON Google Play Download on the App Store

Trademarks

• Google Play™ and Android™ are trademarks or registered trademarks of Google Inc.
• Apple® and App store® are trademarks or registered trademarks of Apple Inc.

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations. Electrical and electronic appliances contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential danger to human health and the environment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of together with the household rubbish.

Cleaning work producing in oily waste water, e.g. washing engines, washing undercarriages etc., may only be performed at washing stations with an oil separator.

Working with detergents may only be performed on watertight surfaces with connection to the waste water sewage system. Do not allow detergent to enter waterways or the soil.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.de/REACH

Intended use

Use the high-pressure cleaner in private households only. The high-pressure cleaner is intended for cleaning machines, vehicles, buildings, tools, façades, terraces, garden machines etc. using a high-pressure water jet.

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Description of the device

The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging).

For the illustrations, refer to the graphics page

Illustration A

① Transport wheel
② Storage for spray lance
③ Storage / parking position for high-pressure gun
④ Power Control spray lance dirt grinder for stubborn dirt, pressure level: HARD

⑤ Vario Power Power Control spray lance for the most common cleaning tasks, pressure levels: HARD / MEDIUM / SOFT / MIX

⑥ Power Control high-pressure gun

⑦ Button for separating the high-pressure hose from the high-pressure gun

⑧ High-pressure gun lever

⑨ Pressure indicator (MIX / 1-SOFT / 2-MEDIUM / 3-HARD)

⑩High-pressure gun lock

⑪Trigger "0/OFF" / "I/ON"

⑫Mains connection with mains plug

⑬ Storage hook for power cord

14 Carrying handle

⑮Transport handle, telescoping

⑯Quick coupling for high-pressure hose

⑰Type plate

18 High-pressure hose

⑲Detergent suction hose with detergent filter and cap

20 Detergent tank

(21) Water connection with integrated sieve

22 Water connection coupling

23**Garden hose with commonly available coupling - Fabric reinforced - Diameter of at least 1/2 inch (13 mm) - Length at least 7.5 m

24*Washing brush, suitable for working with detergents

25*Foam nozzle for powerful detergent foam

26*Detergent container

* optional, ** additionally required

Safety devices

△CAUTION

Missing or modified safety devices

Safety devices are provided for your own protection. Never modify or bypass safety devices.

Power switch

The power switch prevents unintentional operation of the device.

High-pressure gun lock

The lock locks the lever of the high-pressure gun and prevents the device from starting unintentionally.

Auto-stop function

If the lever of the high-pressure gun is released, the pressure switch turns off the pump and the high-pressure jet stops. The pump switches on again when the lever is pressed.

Symbols on the device

Do not aim the high-pressure jet may at persons, animals, live electrical equipment or the device itself.

Protect the device against frost.

The device may not be directly connected to the public drinking water network

Assembly

For the illustrations, refer to the graphics page.

Fit the supplied loose parts onto the device before starting up the device.

Fitting the wheels

1. Fasten and secure the wheels to the device. Illustration B

Installing the handles

1. Attach the transport handle.

2. Attach the carrying handle. Illustration C

Close the detergent tank

1. Close the detergent tank with the cover. Illustration D

Installing the water connection coupling

1. Screw the water connection coupling onto the water connection on the device. Illustration E

Initial startup

1. Place the device on a flat and level surface.
2. Insert the high-pressure hose into the quick coupling until it audibly latches into place. Illustration F
3. Insert the high-pressure hose into the high-pressure gun until it audibly latches into place.

Note

Take care to ensure the correct alignment of the nipple. Illustration G
4. Check for a secure connection by pulling on the high-pressure hose.
5. Plug the mains plug into a mains socket.

Water supply

For the connection values, see the type plate or chapter Technical data.

Observe the water distribution company regulations.

ATTENTION

Damage through contaminated water

Contamination in the water can damage the pump and the accessories.

KÄRCHER recommends using the KÄRCHER water filter for protection(special accessory, order number 4.730-059).

Connection to the water line

ATTENTION

Hose coupling with Aquastop on the water connection of the device

Damage to the pump

Never use a hose coupling with Aquastop on the water

connection of the device.

You can use an Aquastop coupling on the tap.

1. Plug the garden hose onto the water connection coupling.
2. Connect the garden hose to the water line.
3. Open the water tap fully.

Illustration H

Operation

ATTENTION

Pump running dry

Damage to the device

If pressure does not build up in the device after 2 minutes then switch the device off and proceed according to the instructions in chapter Troubleshooting guide.

Power Control System

The pressure indicator on the high-pressure gun shows the currently set pressure level when operating with a Power Control spray lance.

Note

The sensitivity of materials can vary greatly depending on age and condition. The recommendations are therefore not binding.

Note

When operating with surface cleaner and other accessories, the pressure indicator is not accurate.

Display Pressure level		Recommended for e.g.
	HARD Stone terraces made of paving stones or washed concrete, asphalt, metal surfaces, garden utensils (wheelbarrow, spade, etc.)
	MEDIUM Cars / motorcycles, brick surfaces, plastered walls, plastic furniture
	SOFT Wooden surfaces, bicycle, sandstone surfaces, rattan furniture
	MIX Operation with detergent

High-pressure operation

ATTENTION

Damage to painted or sensitive surfaces

Surfaces can be damaged when the jet is too close to the surface or an unsuitable spray lance is used.

Maintain a minimum spray distance of 30 cm when cleaning painted surfaces.

Do not clean car tyres, paint or sensitive surfaces such as wood with the dirt grinder.

1. Insert a spray lance into the high-pressure gun and lock it by turning it 90°.

Illustration I

1. Switch the device on ("I/ON").
2. Unlock the lever of the high-pressure gun.
3. Press the lever of the high-pressure gun. The device switches on.
4. Turn the Vario Power Power Control spray lance until the required pressure level is shown on the pressure indicator.

Operation with a washing brush

ATTENTION

Paint damage

Damage to surfaces through a dirty brush

Ensure that the washing brush is free from dirt or other particles before using it.

Note

The device operates at low pressure when using washing brushes. This means that detergent can be mixed with the water.

1. Insert the washing brush into the high-pressure gun and turn by 90° to fasten it.

Operation with detergent

⚠️DANGER

Failure to adhere to the safety data sheet

Incorrect handling of the detergent can seriously damage your health

Observe the safety data sheet of the detergent manufacturer, in particular the instructions on personal protective equipment.

Note

Detergent can only be mixed into the jet at low pressure.

Note

KÄRCHER detergents ensure fault-free operation. Ask us for a consultation, request our catalogue or our detergent information sheets.

1. Fill the detergent solution into the detergent tank. Adhere to the dosage specifications on the detergent container. Illustration J
2. Close the detergent tank with the cover. Illustration D
3. Latch the detergent tank in the device.
4. Use the Vario Power spray lance.
5. Turn the spray lance towards "MIX" until "MIX" is displayed on the high-pressure gun. The detergent solution is mixed with the water jet during operation.
6. You can optionally use the foam nozzle.

a Connect the foam nozzle to the detergent bottle. Illustration K

b Insert the foam nozzle into the high-pressure gun and turn by 90° to fasten it.

Recommended cleaning method

1. Spray the detergent sparingly on the dry surface and let it work for a while (do not let it dry).
2. Rinse off the loosened dirt with the high-pressure jet.

After operation with detergent

1. Flush the device with clear water for approx. 30 seconds.

Interrupting operation

1. Release the lever of the high-pressure gun. The device switches off when the lever is released. The high pressure in the system is retained.
2. Lock the lever of the high-pressure gun. Illustration L
3. Place the high-pressure gun with the spray lance in the parking position.
4. Switch the device off "0/OFF" during work breaks longer than 5 minutes.

Ending operation

△CAUTION

Pressure in the system

Injuries from high-pressure water escaping uncontrollably

Only disconnect the high-pressure hose from the high-pressure gun or the device when the system is fully depressurised.

1. Release the lever of the high-pressure gun.
2. Close the water tap.
3. Press the lever of the high-pressure gun for 30 seconds.

The pressure remaining in the system is discharged.

1. Release the lever of the high-pressure gun.
2. Lock the lever of the high-pressure gun.
3. Disconnect the device from the water supply.
4. Switch off the device "0/OFF".
5. Pull the mains plug out of the socket.

Transport

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during transportation.

Carrying the device

1. Lift up the device by the carrying handle, and carry it.

Pulling the device

1. Pull the transport handle out until it audibly latches into place.
2. Pull the device via the transport handle.

Transporting the device in a vehicle

1. Drain the detergent tank.
2. Secure the device against slipping and tipping over.

Storage

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during storage.

Storing the device

1. Place the device on a level surface.
2. Disconnect the spray lance from the high-pressure gun.
3. Press the separation button on the high-pressure gun and disconnect the high-pressure hose from the high-pressure gun.
4. Disconnect the high-pressure hose from the device.
5. Store the high-pressure hose on the device.
6. Store the mains connection cable and accessories on the device.

Observe the additional notes before storing the device for a long period of time, see chapter Care and service.

Frost protection

ATTENTION

Danger of frost

Incompletely emptied devices can be destroyed by frost.

Completely empty the device and accessories.

Protect the device from frost.

The following requirements must be satisfied:

● The device is disconnected from the water supply.
● The high-pressure hose is removed.

1. Switch the device on "I/ON".

2. Wait for a maximum of 1 minute until no more water escapes from the high-pressure connection.

3. Switch off the device.
4. Store the device in a frost-protected room, together with all accessories.

Care and service

△DANGER

Danger of electric shock

Injuries due to touching live parts

Switch off the device.

Remove the mains plug.

The device is maintenance-free, i.e. you do not need to perform any maintenance work.

Clean the sieve in the water connection

ATTENTION

Damaged sieve in the water connection

Damage to the device through contaminated water Check the sieve for damage before inserting it in the water connection.

If necessary, clean the sieve in the water connection.

1. Remove the water connection coupling.

2. Pull the sieve out using flat pliers.

3. Clean the sieve under running water.

Illustration M

1. Insert the sieve into the water connection.

Clean the detergent filter

Clean the detergent filter before longer periods of storage.

1. Pull the filter off the detergent suction hose.

2. Clean the filter under running water.

Illustration N

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

⚠️DANGER

Danger of electric shock

Injuries due to touching live parts

Switch off the device.

Remove the mains plug.

Device not running

1. Press the lever of the high-pressure gun. The device switches on.

2. Check that the voltage specified on the type plate corresponds to the voltage of the power source.

3. Check the mains connection cable for damage.

Device does not reach required pressure

The water supply is too low

1. Open the water tap fully.

2. Check the water inlet for an adequate flow rate.
   The sieve in the water connection is dirty.

3. Pull the sieve in the water connection out using flat pliers.

4. Clean the sieve under running water.

Air is in the device.

1. Vent the device:

a Switch on the device without a connected spray lance for a maximum of 2 minutes.
b Press the high-pressure gun and wait until the water escaping from the high-pressure gun is free of air bubbles.
c Connect the spray lance.

Strong pressure fluctuations

1. Clean the high-pressure nozzle:
   a Use a needle to remove dirt from the nozzle drill.
   b Rinse the high-pressure nozzle from the front with water.

2. Check the water supply volume.

Device leaking

1. The device leaks a small amount for technical reasons. If the leak is severe, request authorised Customer Service.

Detergent is not sucked in

1. Use the Vario Power spray lance and turn it to "MIX".
2. Clean the filter on the detergent suction hose.
3. Check the detergent suction hose for kinks.

Warranty

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Technical data

Electrical connection
Voltage	V
Phase ~ 1
Frequency Hz 50-60
Current consumption A 6
Degree of protection IPX5
Protection class II
Power protection (slow-blowing)	A 10

Water connection

Feed pressure (max.)	MPa	1,2
Input temperature (max.)	°C	40
Input amount (min.)	l/min	8

Device performance data

Operating pressure	MPa	8
Max. permissible pressure	MPa	12
Water flow rate	l/min	5,5
Maximum flow rate	l/min	6,3
Detergent flow rate	l/min	0,3
High-pressure gun recoil force	N	12

Dimensions and weights

Typical operating weight	kg	5,4
Length	mm	297
Width	mm	280
Height	mm	677

Determined values in acc. with EN 60335-2-79

Hand-arm vibration value	m/s2	<2,5
Uncertainty K	m/s2	0,6
Sound pressure level LpA	dB(A)	74
Uncertainty KpA	dB(A)	2
Sound power level LWA + K uncer- dB(A) taintyWA		90

Subject to technical modifications.

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: High-pressure cleaner

Type: 1.676-xxx

Currently applicable EU Directives

2000/14/EC

2014/30/EU

2006/42/EC (+2009/127/EC)

2011/65/EU

Harmonised standards used

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

Conformity evaluation procedure used

2000/14/EC: Appendix V

Sound power level dB(A)

Measured: 87

Guaranteed: 90

The signatories act on behalf of and with the authority of the company management.

H. Jenner

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Documentation supervisor: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2020/04/01

Contenu

2006/42/CE (+2009/127/CE)

2011/65/EU

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Responsable de la documentation : S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Download on the
App Store

Marchi

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/04/2020

Inhoud

⑪ Apparaatschakelaar "0/OFF" / "I/ON"

De watertoevoer is te klein

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2020/04/01

Download on the App Store

Marcas registradas

2006/42/CE (+2009/127/CE)

2011/65/UE

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/04/2020

Índice

2006/42/CE (+2009/127/CE)

2011/65/UE

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 01/04/2020

Indhold

Download on the
App Store

Varemærke

2006/42/EF (+2009/127/EF)

2011/65/EU

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Winnenden, 2020/04/01

Indhold

Generelle merknader 43

KÄRCHER Home & Garden-app 43

Miljøvern.... 43

Download on the
App Store

Varemerke

2006/42/EF (+2009/127/EF)

2011/65/EU

Anvendte harmoniserte standarder

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Winnenden, 2020/04/01

Innehåll

Allmän information 48

KÄRCHER Home & Garden-app 48

Miljöskydd 48

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

D-71364 Winnenden (Germany)

Tfn: [phone]

Fax: [phone]

Winnenden, 01.04.2020

Sisältö

Download on the
App Store

Tavaramerkit

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Dokumentointivastaava: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Puh.: [phone]

Download on the App Store

Εμπορικό σήμα

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Winnenden, 2020/04/01

İçindekiler

2006/42/AT (+2009/127/AT)

2011/65/AT

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 2020/04/01

Содержание

Общие указания 67

KÄRCHER Home & Garden App 67

Download on the App Store

Товарный знак

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Download on the
App Store

Védjegy

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 2020/04/01

Obsah

Download on the App Store

Ochranná známka

2006/42/ES (+2009/127/ES)

2011/65/EU

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Zmocněnec pro dokumentaci: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

Winnenden, 2020/04/01

Kazalo

Splošna navodila 81

Aplikacija KÄRCHER Home & Garden 81

Zaščita okolja 82

Namenska uporaba 82

Pribor in nadomestni deli.... 82

Obseg dobave.... 82

Opis naprave.... 82

Varnostne naprave 82

Simboli na napravi.... 83

Montaža 83

Zagon 83

Obratovanje.... 83

Transport.... 84

Skladiščenje 84

2006/42/ES (+2009/127/ES)

2011/65/EU

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Winnenden, 1. 4. 2020

Spis treści

2006/42/WE (+2009/127/WE)

2011/65/UE

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Directive UE relevante

2000/14/UE

2014/30/UE

2006/42/UE (+2009/127/UE)

2011/65/UE

Norme armonizate aplicate

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germania)

Tel.: [phone]

Fax: [phone]

Winnenden, 2020/04/01

Obsah

Všeobecné upozornenia.... 96

KÄRCHER Home & Garden App.... 96

Download on the
App Store

Ochranná známka

2006/42/ES (+2009/127/ES)

2011/65/EÚ

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01.04.2020

Sadržaj

Opće napomene.... 101

Aplikacija KÄRCHER Home & Garden...... 101

Zaštita okoliša 101

2006/42/EZ (+2009/127/EZ)

2011/65/EU

Primijenjene uskladene norme

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 620324008

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Opunomoćenik za dokumentaciju: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Njemačka)

Tel.: [phone]

Telefaks: [phone]

Winnenden, 01.04.2020.

Sadržaj

Opšte napomene.... 105

KÄRCHER Home & Garden aplikacija.... 106

GET IT ON Google Play Download on the App Store

Robna marka

• Google Play™ i Android™ su brendovi ili registrovane robne marke kompanije Google Inc.
• Apple ^ i App Store ^ su brendovi ili registrovane robne marke kompanije Apple Inc.

2006/42/EZ (+2009/127/EZ)

2011/65/EU

Primenjene harmonizovane norme

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Lice ovlašćeno za dokumentaciju: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2020/04/01

Съдържание

Общи указания 110

Приложение KÄRCHER Home & Garden ..... 110

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Виненден, 2020/04/01

Sisukord

Üldised juhised 116

KÄRCHER Home & Garden App.... 116

Keskkonnakaitse 116

Download on the App Store

Kaubamärk

⑪Seadmelüli "0/OFF" / "I/ON"

Toode: Körgsurvepesur

Tüüp: 1.676-xxx

2006/42/EÜ (+2009/127/EÜ)

2011/65/EL

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2020/04/01

Saturs

Download on the App Store

Preču zīme

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Pilnvarotais sagatavot dokumentāciju: S. Reizers (S. Reiser)

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Winnenden, 2020/04/01

Black and white line drawing of a hand giving a thumbs-up gesture (no text or symbols)

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

Icon showing a gear and wrench inside a square frame (no text or symbols)

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)

QR code image with a central logo, likely linking to a digital resource or website.
