SSPM 6 A1 - Salt/pepper mill SILVERCREST - Free user manual and instructions

Product Type	Electric salt/pepper mill
Brand	SilverCrest
Model	SSPM 6 A1
Dimensions (H x Ø)	approx. 23.3 x 5.5 cm
Weight	approx. 320 g
Power Supply	6 AAA 1.5 V batteries (Micro, LR03)
Voltage	9 V
Rated Current	1 A max
Housing Material	Plastic
Container Capacity	Approx. 100 g (depending on grain type)
Main Functions	Electric grinding, grind level adjustment, LED lighting
Intended Use	Grinding peppercorns or coarse salt
Care and Cleaning	Clean with a soft, slightly damp cloth; do not immerse, do not put in dishwasher
Safety	Do not open the housing, do not expose to heat, replace batteries observing polarity
Package Contents	Mill, 6 AAA batteries, instruction manual
Warranty	3 years
Manufacturer	TARGA GmbH, Coesterweg 45, 59494 Soest, Germany
Customer Service (France)	Phone: [phone], Email: [e-mail]
Spare Parts and Repairability	Spare parts available during warranty period; repairs by authorized service center

Frequently Asked Questions - SSPM 6 A1 SILVERCREST

How to insert batteries and fill the mill?

Hold the container (6) and turn the top part (1) counterclockwise until the arrow points to the container symbol. Remove the top part and the motor (3). Insert 6 AAA 1.5 V batteries observing polarity (+ and -). Fill the container with peppercorns or coarse salt up to the symbols. Reinsert the motor ensuring contact between contacts (4) and (5), then replace the top part by turning clockwise.

How to adjust the grind level?

Remove the protective cap (7) under the container. Turn the adjustment screw (9) counterclockwise for a coarser grind, or clockwise for a finer grind. Replace the protective cap after adjustment.

How to use the mill?

Remove the protective cap (7) under the container. Press and hold the button (2) to start the mill. The LED light (8) turns on during use. Release the button to stop. Replace the cap after use.

What to do if the mill does not work?

First check the battery status: if they are empty, replace them with new batteries of the same type (AAA 1.5 V). Ensure they are inserted with the correct polarity. If the problem persists, contact customer service.

How to clean the mill?

Use a soft, slightly damp cloth to clean the housing. For stubborn stains, add a little mild dish soap. Never immerse the mill in water and do not put it in the dishwasher. Dry all parts thoroughly. The grinder and container do not need to be cleaned.

Can I use the mill with salt or only pepper?

The mill is designed to grind peppercorns or coarse salt. Do not use other substances. Salt grains can sometimes block the mechanism due to humidity; if that happens, turn the mill upside down and press the button to release the salt.

Is the mill under warranty?

Yes, the mill comes with a 3-year warranty from the date of purchase. Keep the receipt as proof of purchase. The warranty covers material and manufacturing defects, but not normal wear or damage from improper use.

Can I use rechargeable batteries?

The manual does not explicitly recommend rechargeable batteries, but it states not to attempt to recharge non-rechargeable batteries. If you use rechargeable batteries, ensure they are AAA Ni-MH 1.2 V. Note that the voltage will be lower (7.2 V instead of 9 V) and battery life may be reduced.

How to store the mill when not in use?

Remove the batteries, empty the container, clean the mill as instructed, and store it in a dry, clean place away from heat.

What to do if the grinding mechanism is blocked?

Turn the mill upside down and press the button (2) to release stuck grains. You can also gently shake the mill. If the blockage persists, check that you are using suitable grains and that the container is not too full.

USER MANUAL SSPM 6 A1 SILVERCREST

ELECTRIC SALT OR PEPPER MILL Operating instructions and safety instructions

FR RE MOULIN A SEL/POIVRE ELECTRIQUE Mode d'explications et consignes de securite 2015 ELEKTRYCRYST AXIENK

RE ELEKTRISCHE PEPER-EN ZOUTMOLEN Handling en verglichkoorewlogen.
ELEKTRICKY MLYNEK NA SUL NEBO PEPR

ELEKTRICKY MLYBENCK NA SOLK A KORENIE Náróne pázována MlybENCK polnye

TANGA OMBH
Coordinating 45
SW104
GERMANY

https://www.targa.gmbh/downloads/conformity/337202_2001.pdf

1. Cleaning 19
2. Storing the device when not in use 19
3. Troubleshooting 19

10.1 The mill is not working 20

1. Environmental and waste disposal information 20
2. Marks of conformity 21
3. Warranty information 21

Congratulations!

By purchasing the SilverCrest SSPM 6 A1 electric salt or pepper mill, hereinafter referred to as mill, you have opted for a high-quality product.

Familiarise yourself with the mill before using it for the first time and read these operating instructions carefully. Observe the safety instructions and only use the mill in the manner described in these operating instructions and for the indicated fields of application.

Keep these operating instructions in a safe place. Hand over all documents in the event that you pass on the mill to a third party. These operating instructions are part of the product.

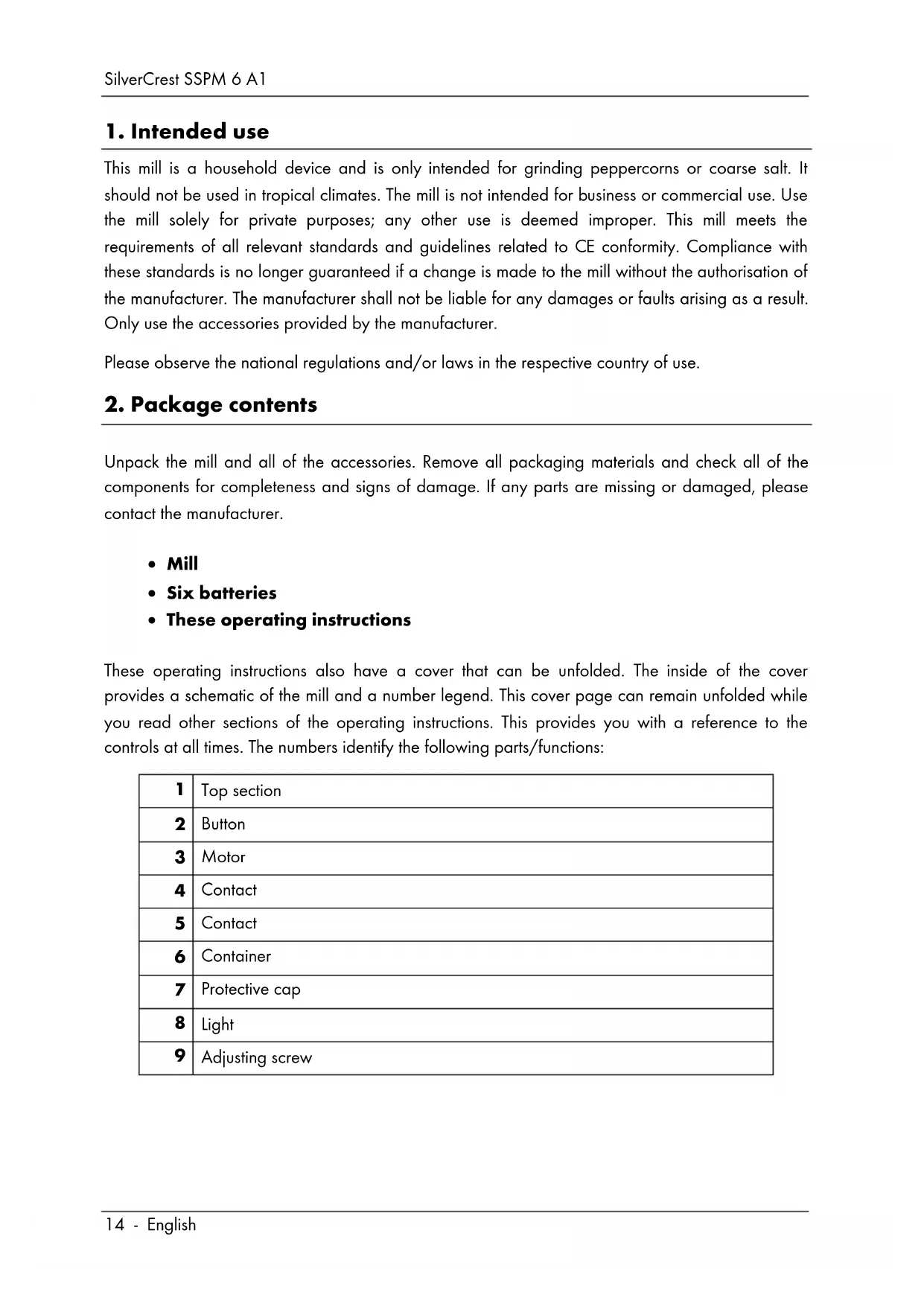

1. Intended use

This mill is a household device and is only intended for grinding peppercorns or coarse salt. It should not be used in tropical climates. The mill is not intended for business or commercial use. Use the mill solely for private purposes; any other use is deemed improper. This mill meets the requirements of all relevant standards and guidelines related to CE conformity. Compliance with these standards is no longer guaranteed if a change is made to the mill without the authorisation of the manufacturer. The manufacturer shall not be liable for any damages or faults arising as a result. Only use the accessories provided by the manufacturer.

Please observe the national regulations and/or laws in the respective country of use.

2. Package contents

Unpack the mill and all of the accessories. Remove all packaging materials and check all of the components for completeness and signs of damage. If any parts are missing or damaged, please contact the manufacturer.

Mill
Six batteries
These operating instructions

These operating instructions also have a cover that can be unfolded. The inside of the cover provides a schematic of the mill and a number legend. This cover page can remain unfolded while you read other sections of the operating instructions. This provides you with a reference to the controls at all times. The numbers identify the following parts/functions:

1	Top section
2	Button
3	Motor
4	Contact
5	Contact
6	Container
7	Protective cap
8	Light
9	Adjusting screw

3. Technical data

Manufacturer TARGA GmbH
Designation SilverCrest SSPM 6 A1
Power supply 9 V	—
Nominal current max. 1 A
Battery type Six x AAA 1.5 V (Micro, LRO3)
Dimensions (H x Ø)	approx. 23.3 x 5.5 cm
Weight approx. 320 g

The specifications and design are subject to change without notice.

4. Safety instructions

Before using the mill for the first time, please read the following instructions carefully and observe all warnings, even if you are familiar with using electronic and household devices. Keep these operating instructions in a safe place for future reference. If you give away the mill or sell it, please ensure that you also pass on these operating instructions. They are part of the mill.

Explanation of symbols used

DANGER! This icon, together with the word 'Danger', indicates an impending dangerous situation which, if not prevented, can lead to serious injuries or even death.

WARNING! This icon indicates important information for the safe operation of the mill and user safety.

This symbol denotes further information on the topic.

This icon indicates products that have been tested in relation to their physical and chemical composition and that in accordance with EC 1935/2004 have been regarded as harmless to health in terms of contact with foodstuffs.

DANGER! Personal safety!

• This mill may be used by children aged eight and over and by people with reduced physical, sensory or mental abilities or who lack experience and knowledge, provided that they are supervised or have been instructed in the safe use of the mill and understand the resulting dangers.
  Children must not play with the mill.
• User cleaning and maintenance should not be carried out by children unless they are aged 8 or over and are under supervision. The device should be kept out of the reach of children under 8 years old.

DANGER! The packaging material is not a toy. Children must not play with the plastic bags. There is a risk of suffocation.

Store the mill out of reach of children.

DANGER! Batteries

Always insert batteries with the correct polarity. When doing so, observe the label in the battery compartment. Do not try to recharge the batteries and never throw them onto a fire. Do not use different batteries (old and new, alkaline and carbon etc.) at the same time. Remove the batteries if you intend not to use the device for a longer period of time. There is a risk of explosion and leakage if the device is not used properly.

Batteries must not be opened or deformed in any way because leaking chemicals can cause injury.

Remove leaking batteries immediately in order to prevent damage to the mill. You can remove battery fluids with a dry, absorbent cloth. When doing so, wear suitable gloves! Contact with your skin must be avoided.

If it comes into contact with the skin or eyes, rinse/wash the area with plenty of water and seek medical attention.

If a battery is swallowed, you must seek medical attention immediately.

DANGER! Risk of injury!

• Never open the housing of the mill. There is a risk of injury if the device is assembled incorrectly. Furthermore, opening the housing will void your guarantee.
• The mill must not be used if it is damaged. There is a risk of injury!
• Make sure there are no naked flames (for example, burning candles) placed on or near the mill. There is a risk of fire!

WARNING! Damage to property

• Never immerse the mill in water or any other liquid. If liquid enters into the mill, remove the batteries immediately and contact the service department (see 'Warranty information' section).
• The mill must not be exposed to direct sources of heat (for example, heaters), direct sunlight or strong artificial light.

• Make sure that the mill is not exposed to excessive shocks or vibrations.

• No foreign bodies should penetrate into the device.

• The mill must not come into contact with hot surfaces.
• The mill must be filled with peppercorns and coarse salt only.
• Keep the mill clean.

5. Copyright

All contents of these operating instructions are subject to copyright law and are provided to the user solely as a source of information. Any form of copying or reproduction of data and information without the express written permission of the author is prohibited. This also concerns commercial use of the content and data. The text and illustrations correspond to the technical standards at the time of printing. Subject to alterations.

6. Before initial use

Remove the SMAS 6 A1 mill and all accessories from the packaging and check the completeness of the delivery. Keep the packaging material away from children and dispose of it in an environmentally-friendly manner.

7. Initial use

7.1 Inserting the batteries/filling the mill

• Hold the container (6) firmly and turn the top section (1) anti-clockwise until the arrow on the top section (1) is lined up with the b con on the container (6).
• Remove the top section (1) from the container (6).
• Remove the motor (3) from the container (6).
• Insert the batteries with the correct polarity (note the + and - signs). The polarity is marked on the batteries and on the battery compartment.
• Fill the container (6) with peppercorns or coarse salt. Fill the container (6) up no higher than the padlock icons and
• Place the motor (3) onto the container (6). Make sure that the contacts (4) of the motor (3) are positioned on the contacts (5) of the container (6).
• Place the top section (1) onto the container (6).
• Hold the container (6) firmly and turn the top section (1) clockwise until the arrow on the top section (1) is lined up with the con on the container (6).

7.2 Using the mill

• Remove the protective cap (7) on the bottom of the container (6).
• Keep the button (2) pressed to activate the mill. The light (8) lights up during operation.
• Replace the protective cap (7) onto the bottom of the container (6) after use.

7.3 Changing the grind setting

• Remove the protective cap (7) on the bottom of the container (6).
• Turn the adjusting screw (9) anti-clockwise slightly for a coarser grind setting.
• Turn the adjusting screw (9) clockwise slightly for a finer grind setting.
• Replace the protective cap (7) onto the bottom of the container (6).

Under some circumstances, hard peppercorns can block the mill's grinding mechanism. Grains of salt can also block the grinding mechanism because they absorb moisture or have different levels of hardness. If this happens, turn the mill upside-down and press the button (2) to release the pepper or salt from the grinding mechanism. If necessary, you can also shake the mill gently as you do so to help release the blockage.

8. Cleaning

WARNING of damage to property

Do not use any scratching or abrasive cleaning agents or abrasive objects (such as a metal scouser) for cleaning purposes. Otherwise the mill may be damaged.

Do not clean the mill and its accessories in the dishwasher, as this may cause irreparable damage.

Never immerse the mill in water or any other liquid. No liquid may enter the mill.

• Clean the housing of the mill with a soft, damp cloth, using a mild detergent for stubborn stains.
• Dry all of the parts thoroughly.
  It is not necessary to clean the grinder and the container (6).

9. Storing the device when not in use

If the mill is not going to be used for a longer period of time, store it in a safe, clean and dry place.

• Remove the batteries.
  Empty the container (6).
  Before storing the mill, clean it thoroughly as described in the previous section.

10. Troubleshooting

If the mill does not work as usual, use the following instructions to try and solve the problem. If working through the following tips does not eliminate the fault, please contact our hotline (see the 'Warranty information' section).

10.1 The mill is not working

• The batteries are dead. Please replace the batteries with new ones of the same type. Please refer to the instructions in the 'Inserting the batteries/filling the mill' section.
• The batteries were inserted incorrectly. Please refer to the instructions in the 'Inserting the batteries/filling the mill' section.

11. Environmental and waste disposal information

Devices marked with this symbol are subject to the European Directive 2012/19/EU. Electrical and electronic devices may not be put in the household waste, but must be disposed of via designated public disposal centres. By properly disposing of the old device, you can avoid environmental damage and hazards to health. Further information regarding proper disposal of the old device can be obtained from your local authority or the shop where you purchased the device.

Think about environmental protection. Used batteries do not belong in normal domestic waste. You must dispose of them at a collection point for old batteries. Please note that you should only dispose of batteries in collection containers for old batteries when they are fully discharged. If the batteries are not completely dead, you need to take precautionary measures before disposal to prevent short circuits.

Make sure the packaging is disposed of in an environmentally friendly manner. Cardboard packaging can be put out for waste-paper collection or taken to public collection points for recycling. The plastic packaging used for your device is collected by your local waste management company and disposed of in an environmentally-friendly manner.

Please note the markings on the packaging material when disposing of it, it is labelled with abbreviations (a) and numbers (b), the meanings of which are as follows:

1-7: plastic / 20-22: paper and cardboard / 80-98: composite materials

can be recycled, is subject to an extended producer responsibility and is collected separately.

12. Marks of conformity

This product fulfils the requirements specified in the applicable European and national policies. Its conformity has been verified. The declarations and documents are stored with the manufacturer.

The product complies with the requirements of the applicable national directives of the Republic of Serbia.

You can download the full EU declaration of conformity at the following link: https://www.targa.gmbh/downloads/conformity/337202_2001.pdf

13. Warranty information

Warranty of TARGA GmbH

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warranty conditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service

technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.
- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.
- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

Service

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: 800

62230

E-Mail:

[e-mail]

Phone: 8009

4409

E-Mail:

[e-mail]

IAN:337202_2001

Manufacturer

Please note that the following address is not a service address. First contact the service point stated above.

TARGA

GmbH

Coesterweg 45

59494 Soest

GERMANY
