Brand	Teka
Model	DOS 60.1 AT
Product type	Cooker hood
Width	60 cm
Operating modes	Extractor version (external evacuation) or recirculation version (internal recycling)
Controls	4 buttons: lighting ON/OFF, extractor off, minimum speed, medium speed, maximum speed
Lighting	Halogen lamp 12V - 20W max, type G4
Grease filter	Washable metal filter (in dishwasher or by hand): clean once a month
Activated carbon filter	For recirculation version only, replacement every 4 months maximum, not washable
Minimum safety distance	50 cm for electric hob, 65 cm for gas or mixed hob
Electrical connection	220-240 V, accessible wall socket or standardized circuit breaker
Power cable	Special, to be replaced by after-sales service if damaged
Evacuation connection diameter	Not specified in the manual (refer to the connection flange)
Material of the evacuation duct	Compliant with standards, smooth interior, diameter equal to flange
Domestic use	Yes, designed exclusively for domestic use
Regular maintenance	Clean inside and outside at least once a month with neutral liquid detergent
Safety instructions	Disconnect before cleaning, do not use open flame, check room ventilation when using combustion appliances simultaneously
Weight	Approximately 10 kg (estimated)
Dimensions (H x W x D)	Approximately 15 x 60 x 50 cm (estimated)

Frequently Asked Questions - DOS 60.1 AT TEKA

What is the minimum distance between the hood and the hob?

The minimum distance is 50 cm for electric hobs and 65 cm for gas or mixed hobs. If the cooking appliance instructions specify a greater distance, it must be respected.

How to clean the grease filter?

The grease filter should be cleaned once a month. It can be washed by hand with a mild detergent or in the dishwasher at low temperature and a short cycle. The dishwasher may discolor the filter but does not affect its performance.

When should the activated carbon filter be replaced?

The activated carbon filter (used only in recirculation mode) must be replaced every 4 months maximum. It cannot be washed or regenerated.

How to change the hood bulb?

First disconnect the appliance. Make sure the lamps are cold. Remove the cover with a small screwdriver, replace the defective lamp with a halogen 12V - 20W max - G4 lamp (suitable for an open lighting system). Do not touch the lamp with bare hands. Close the ceiling light by snapping it back into place.

Can I use the hood without the grease filter?

No, never use the hood without the grid properly installed. The grease filter is essential to retain grease particles and prevent fire hazards.

How to install the hood in external extraction mode?

Use an extraction duct (not supplied) with a diameter equal to that of the connection flange. The duct should have a slight upward slope (about 10°) and be as smooth as possible. Avoid unnecessary bends and changes in cross-section. Remove the carbon filter if present.

What to do if the lighting does not work?

First check that the lamps are properly inserted in their housing. If the problem persists, contact after-sales service. Remember to disconnect the appliance before any handling.

Can I use the hood simultaneously with a combustion appliance?

Yes, but the room must have sufficient ventilation. The extracted air must never be discharged into a duct used for the exhaust of fumes from combustion appliances.

How to clean the exterior of the hood?

Use a damp cloth with a neutral liquid detergent. Do not use abrasive products or alcohol. Regular cleaning (at least once a month) is recommended to prevent fire hazards.

Is the hood compatible with an induction hob?

Yes, the hood can be used with any type of hob. Simply respect the minimum safety distance: 50 cm for electric (including induction) and 65 cm for gas.

USER MANUAL DOS 60.1 AT TEKA

Isometric line drawing of a chimney with a chimney handle (no text or symbols)

Illustration of a hand holding a circular device with a screwdriver, plus a magnified view of the screen and a pointer (no text or symbols)

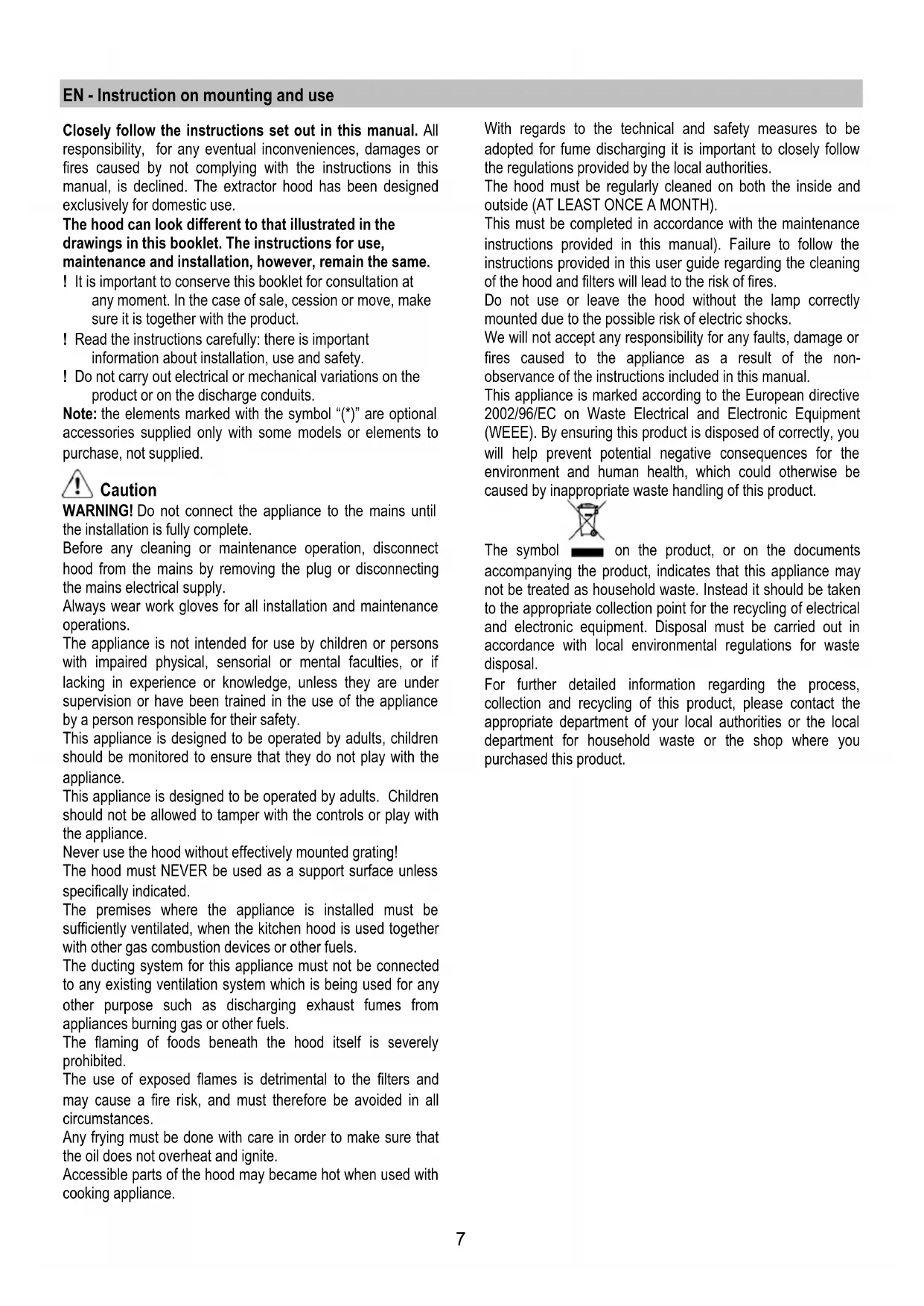

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
! Read the instructions carefully: there is important information about installation, use and safety.
! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.

Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied.

Caution

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance.

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless specifically indicated.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Use

The hood is designed to be used either for exhausting or filter version.

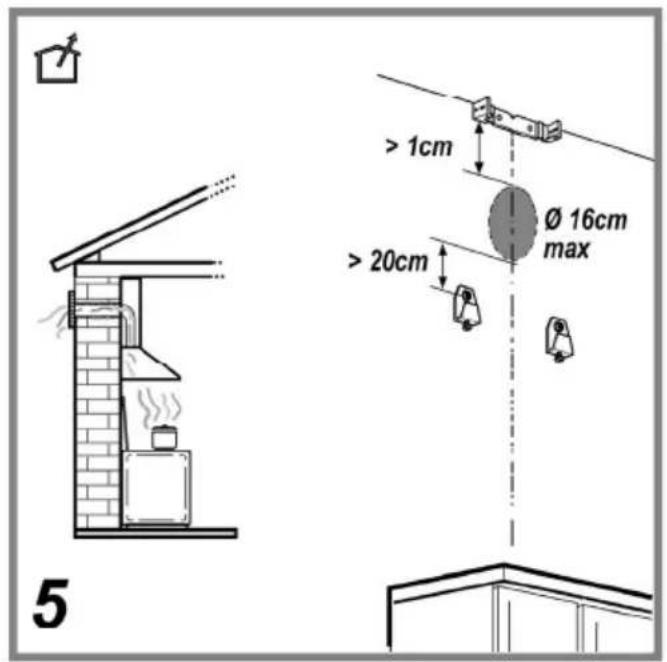

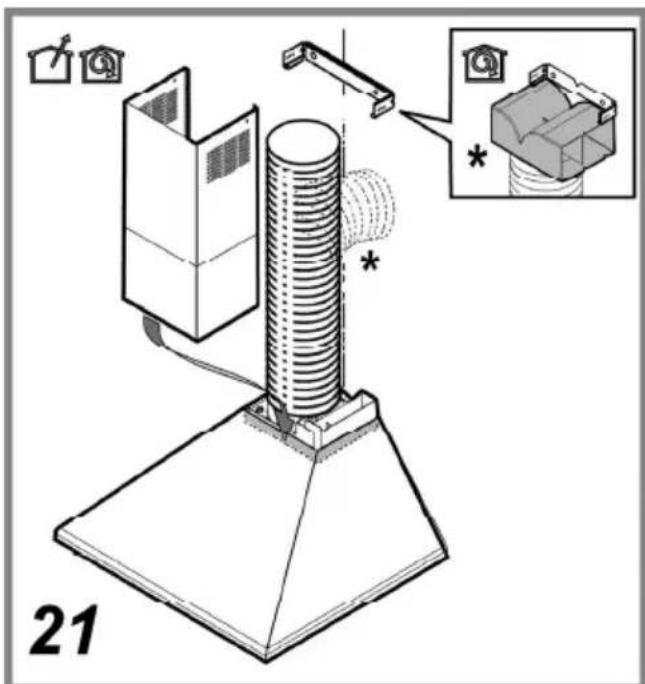

Ducting version

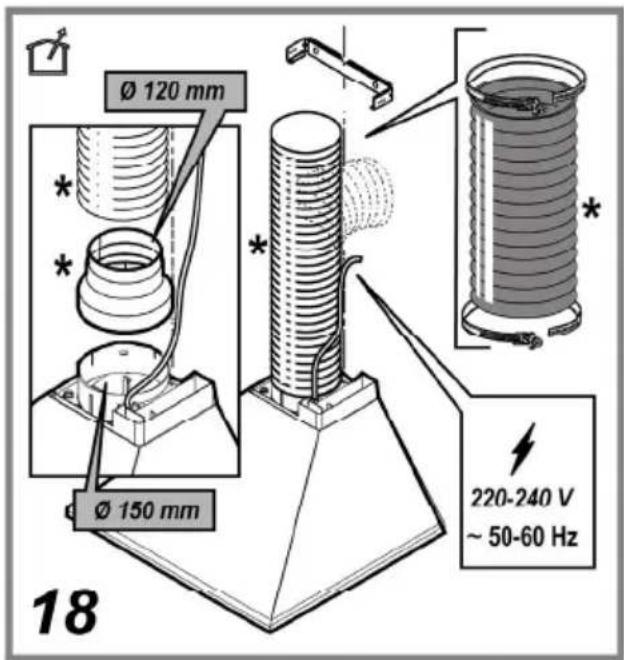

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

In the horizontal runs the exhausting pipe must be slightly slanted (about 10^ ) and directed upwards to vent the air easily from the room to the outside.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90°).
! Avoid drastic changes in the duct cross-section.
! Use a duct with an as smooth as possible inside.
! The duct must be made of certified material.

Filter version

One active charcoal filter is needed for this and can be obtained from your usual retailer.

The filter removes the grease and smells from the extracted air before sending it back into the room through the upper outlet grid.

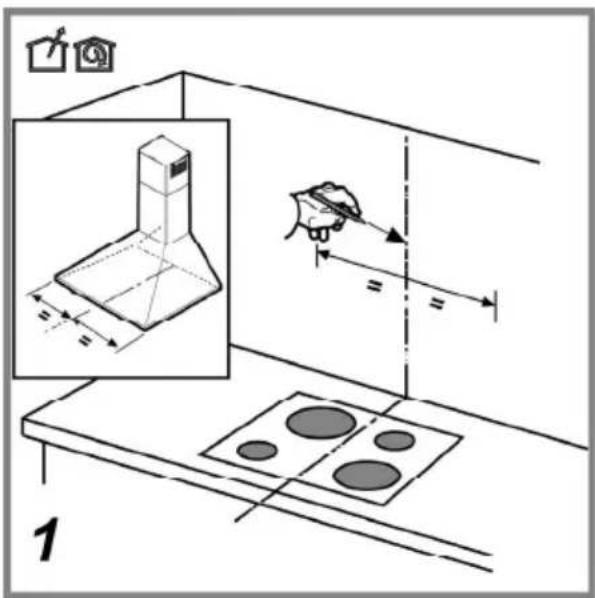

Installation

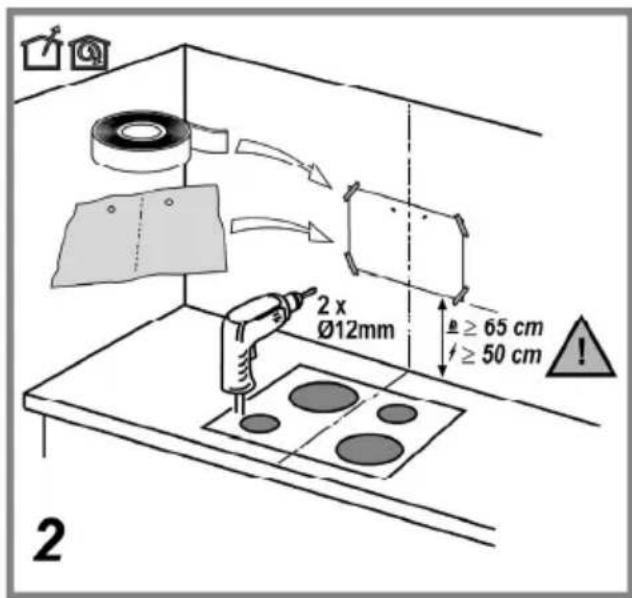

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

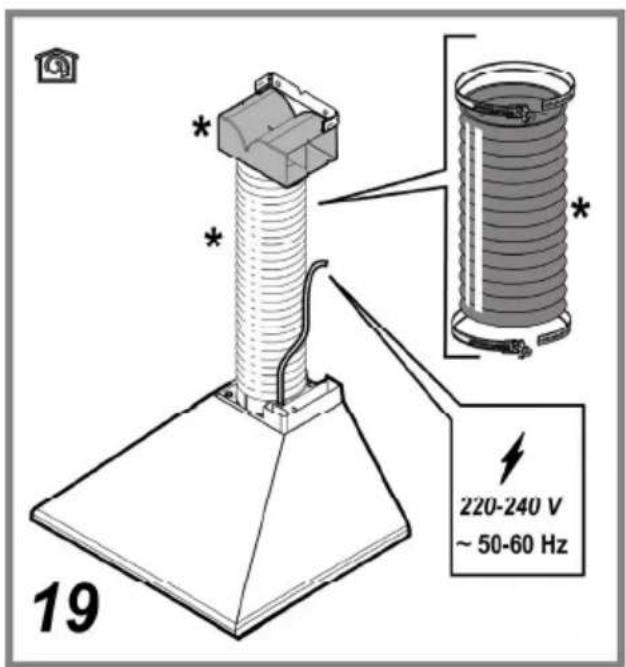

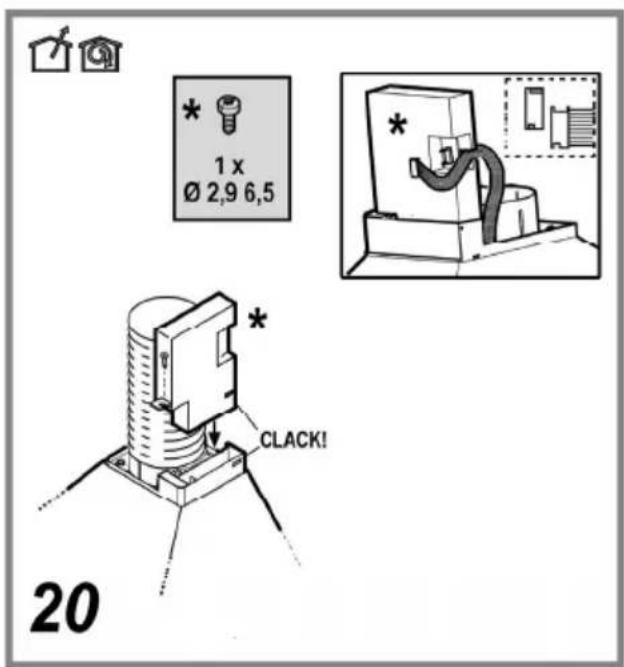

Electrical connection

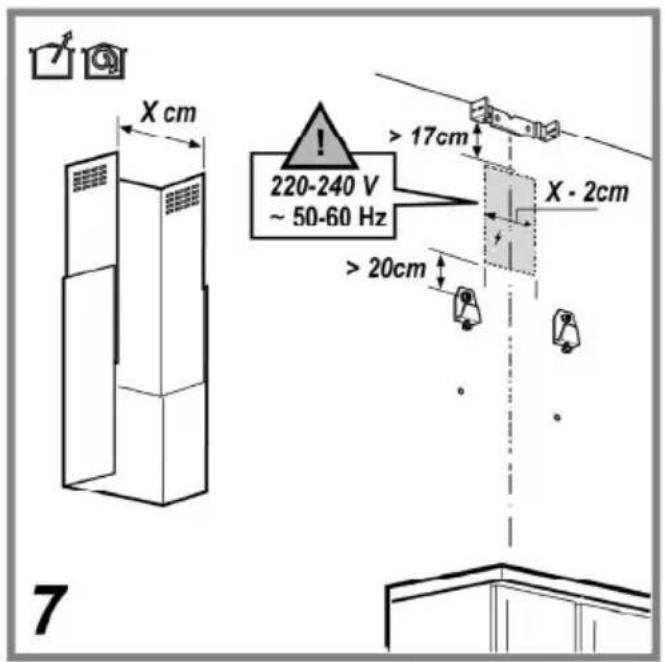

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

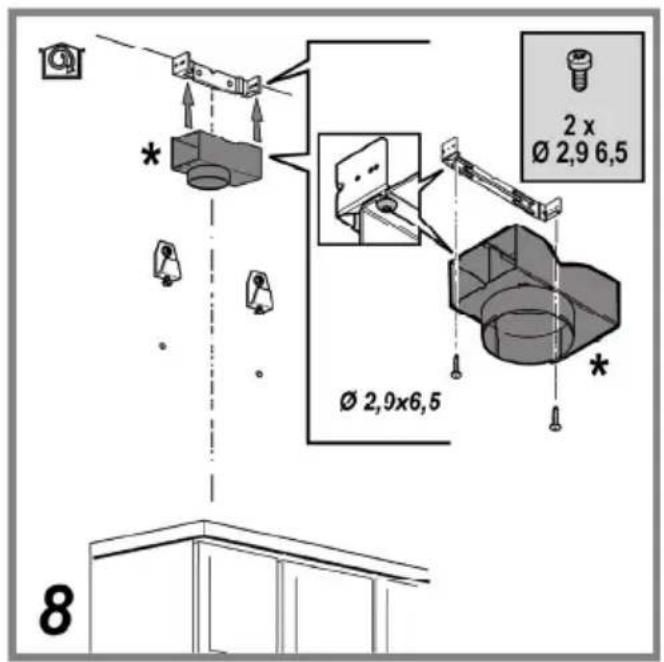

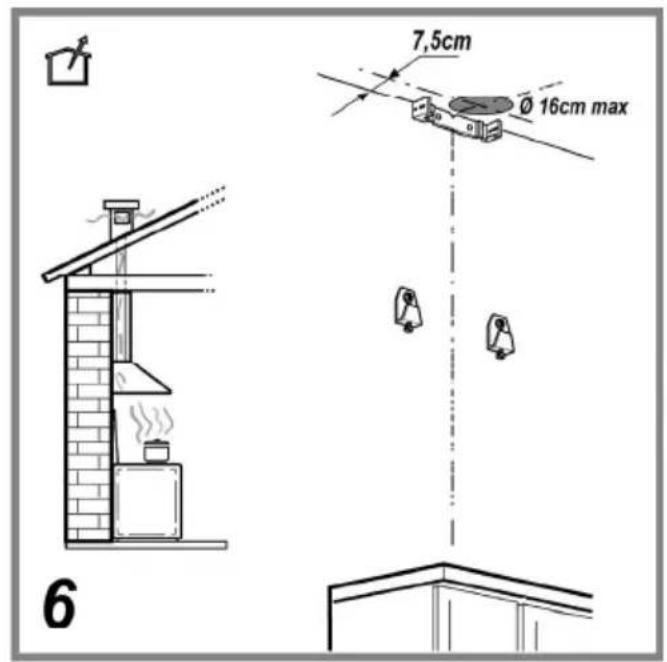

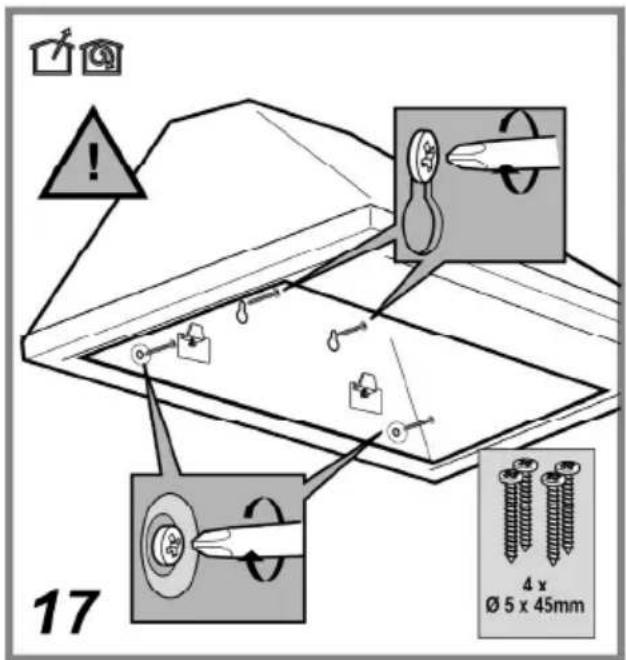

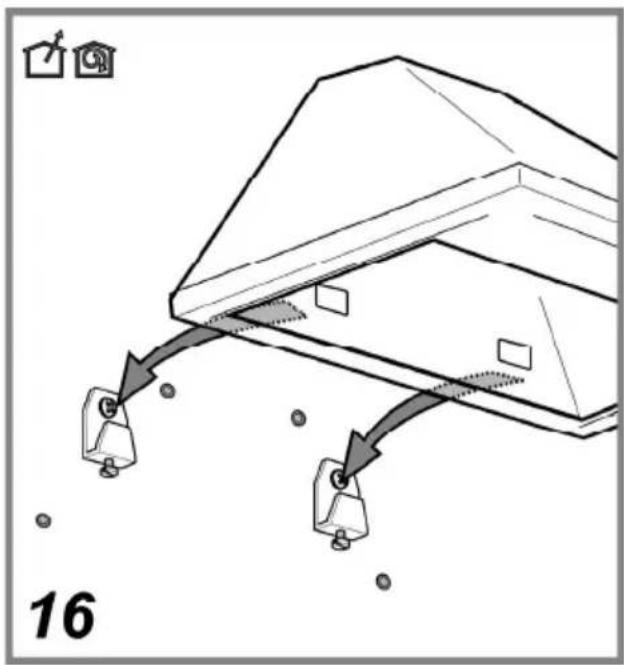

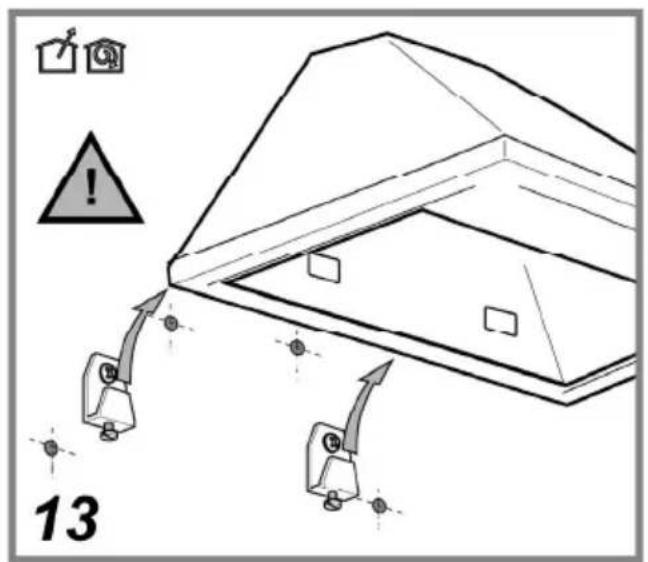

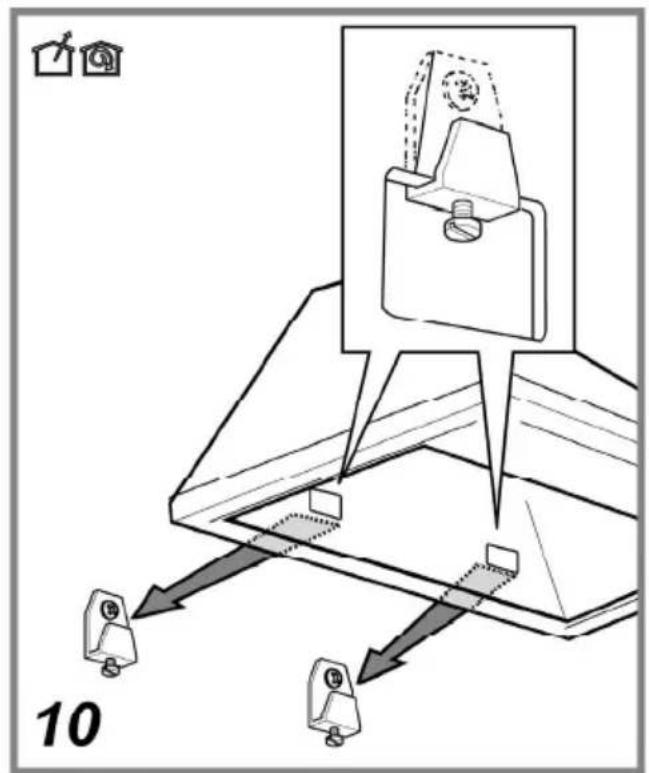

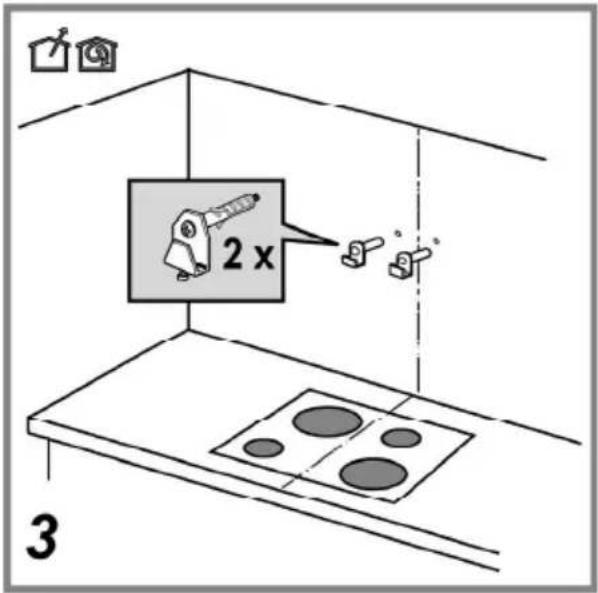

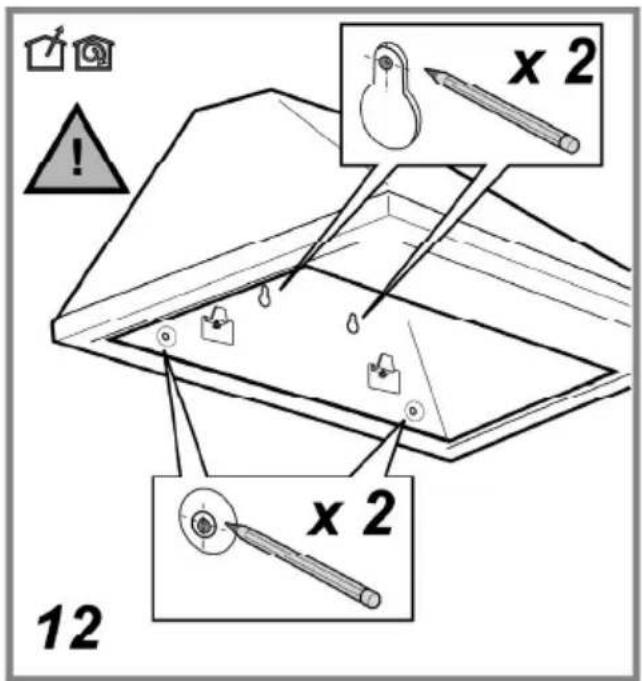

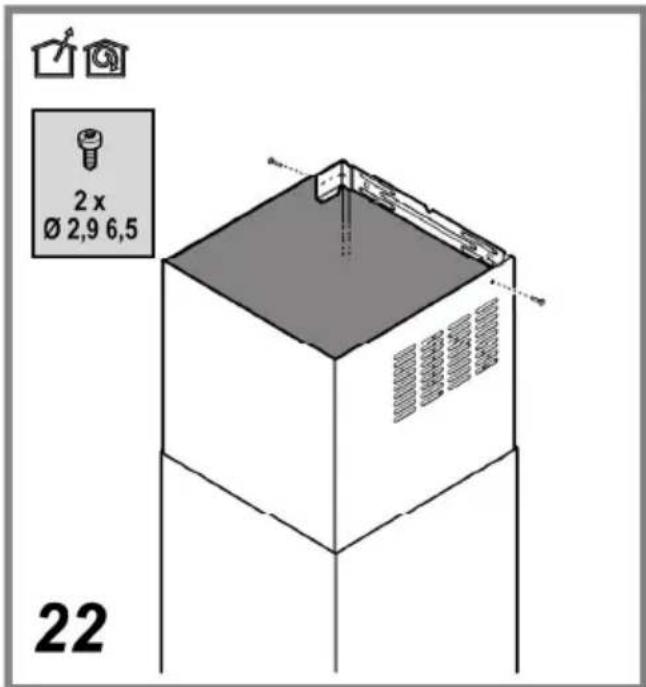

Mounting

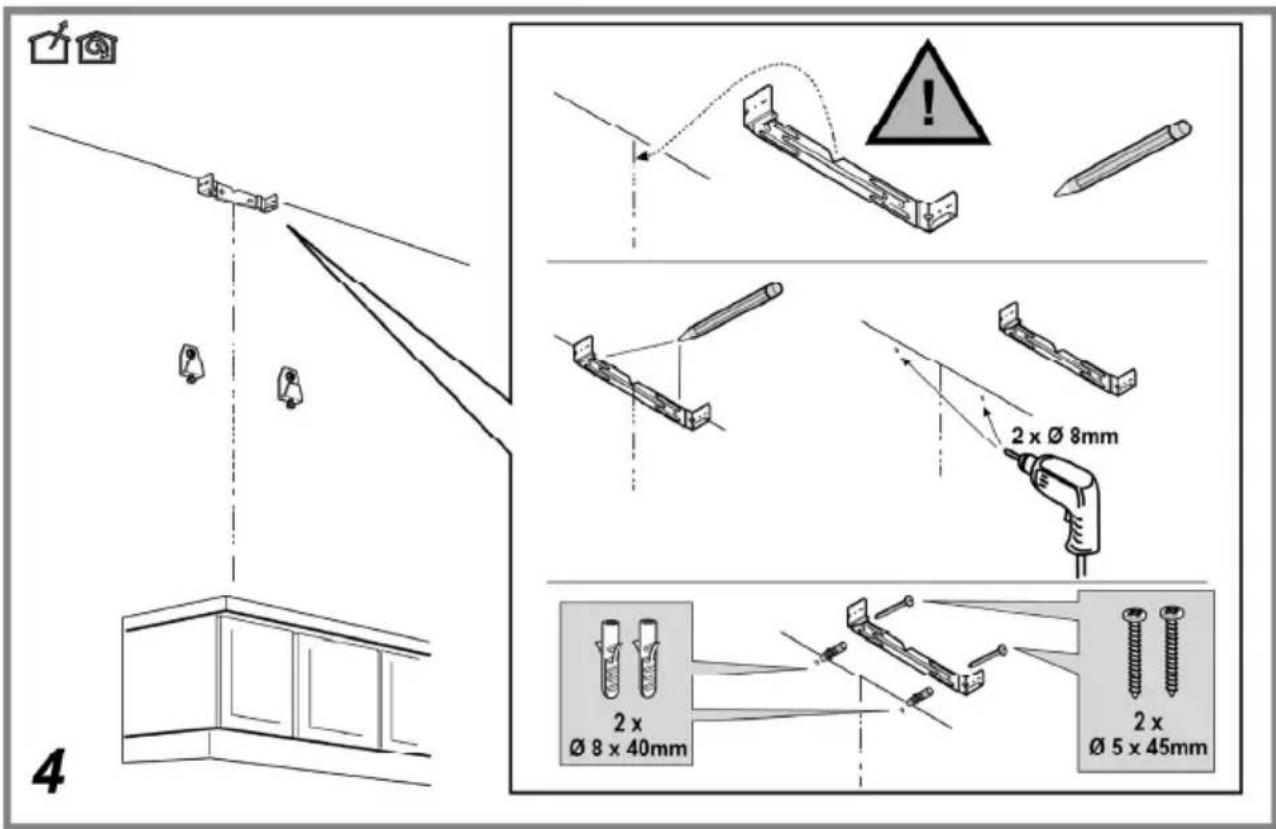

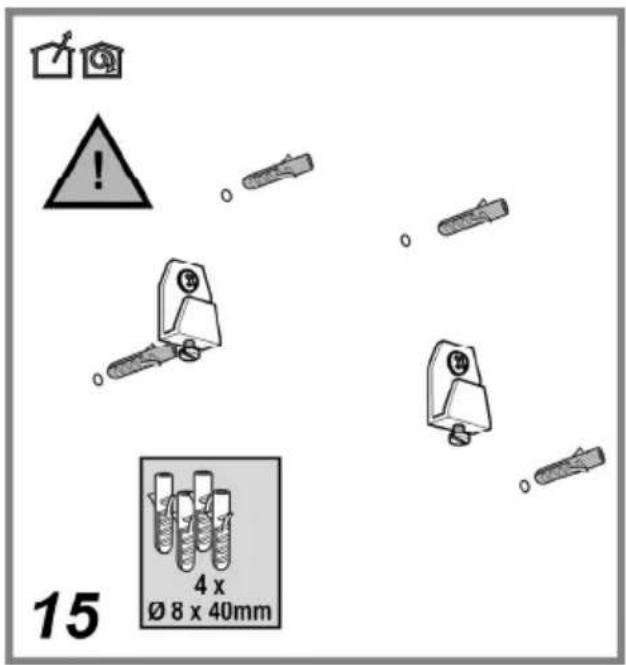

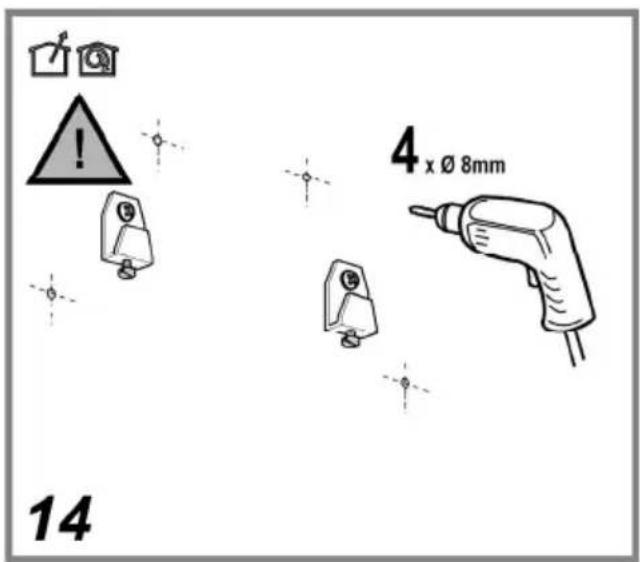

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Operation

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

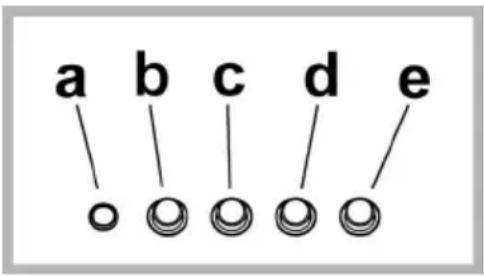

a. operating gauge.
b. on/off light switch
c. off aspiration switch
d. minimum power selection aspiration switch
e. medium power selection aspiration switch
f. maximum power selection aspiration switch

Maintenance

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.

Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Grease filter

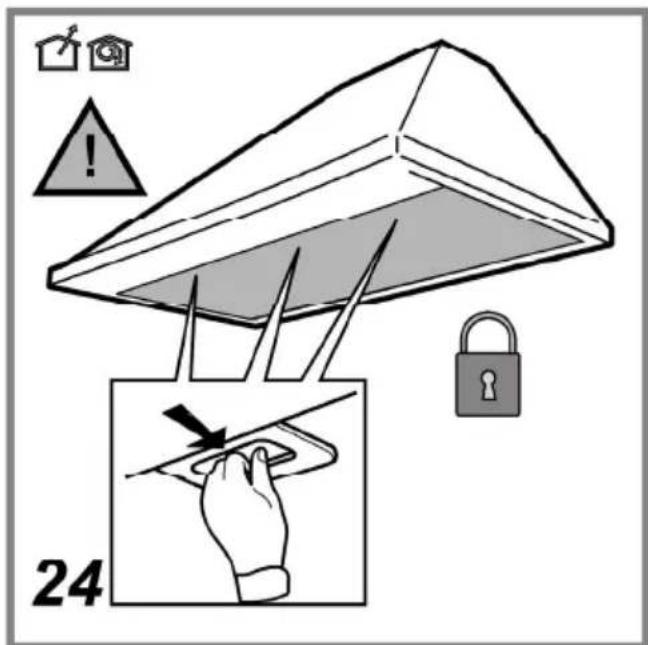

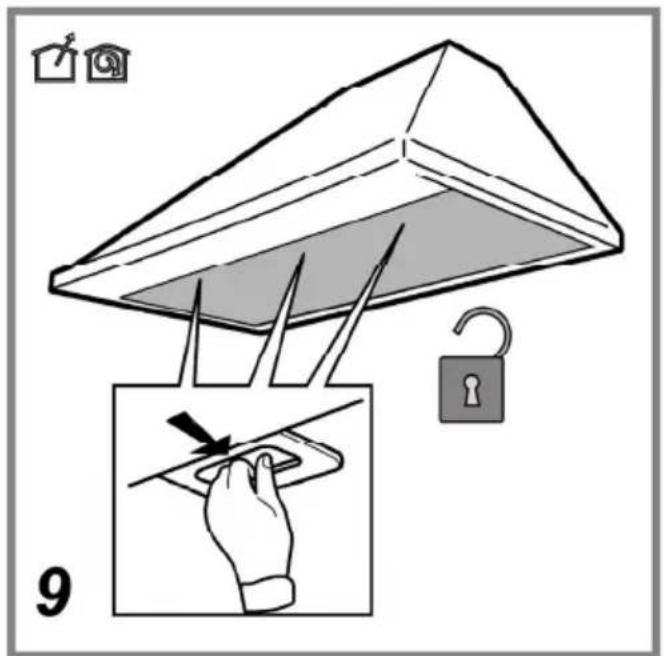

Fig. 9-24

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

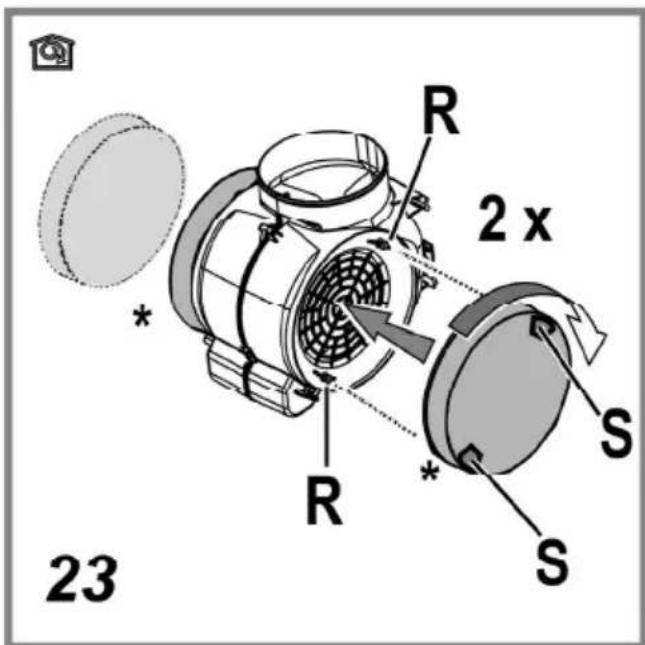

Fig. 23

It absorbs unpleasant odours caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four mounths (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity). The charcoal filter may NOT be washed or regenerated.

Remove the grease filters.

Fit the charcoalfilters over the motor.

Align the pins R on the cowl with the slots S, then turn the filter clockwise until it locks in place.

Reverse the above procedure to remove the charcoal filters.

Refit the grease filters.

Replacing lamps

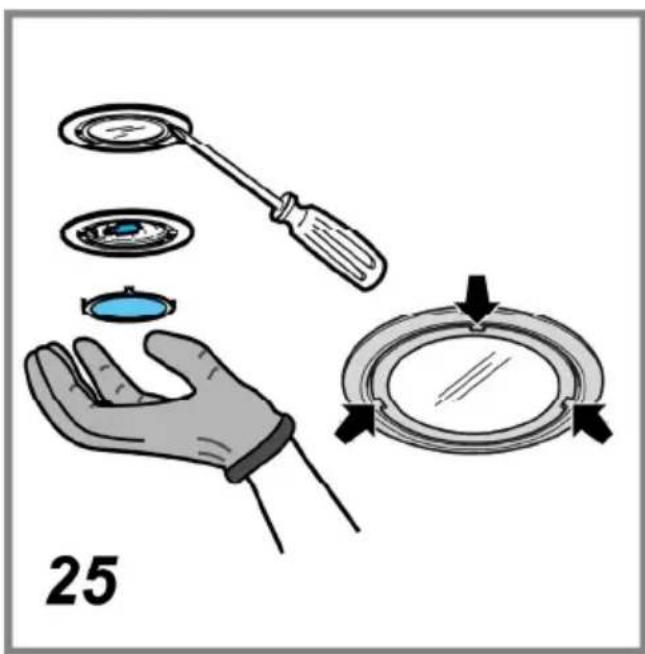

Fig. 25

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

1. Using a flat head screwdriver or equivalent tool, carefully pry loose the light cover.
2. Remove the damaged light and replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.
3. Reinstall the light cover. (it will snap shut).

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.

- Waste Electrical and Electronic Equipment (WEEE).
