USER MANUAL SSMC 600 A1 SILVERCREST

1. Overview 3
2. Intended purpose 4
3. Safety information 5
4. Items supplied 7
   5.How to use 7
5. Assembly 7
6. Operation 8

7.1 Preparing food 9
7.2 Chopping 9
7.3 Refilling during operation 9
7.4 Remove food. 9

1. Cleaning 10

8.1 Instant cleaning of the blender jug 10
8.2 Cleaning all parts of the device 10

1. Storage 11

2. Troubleshooting 11

3. Recipes 12
4. Disposal 13
5. Technical specifications 13
6. Warranty of the HOYER Handel GmbH 14

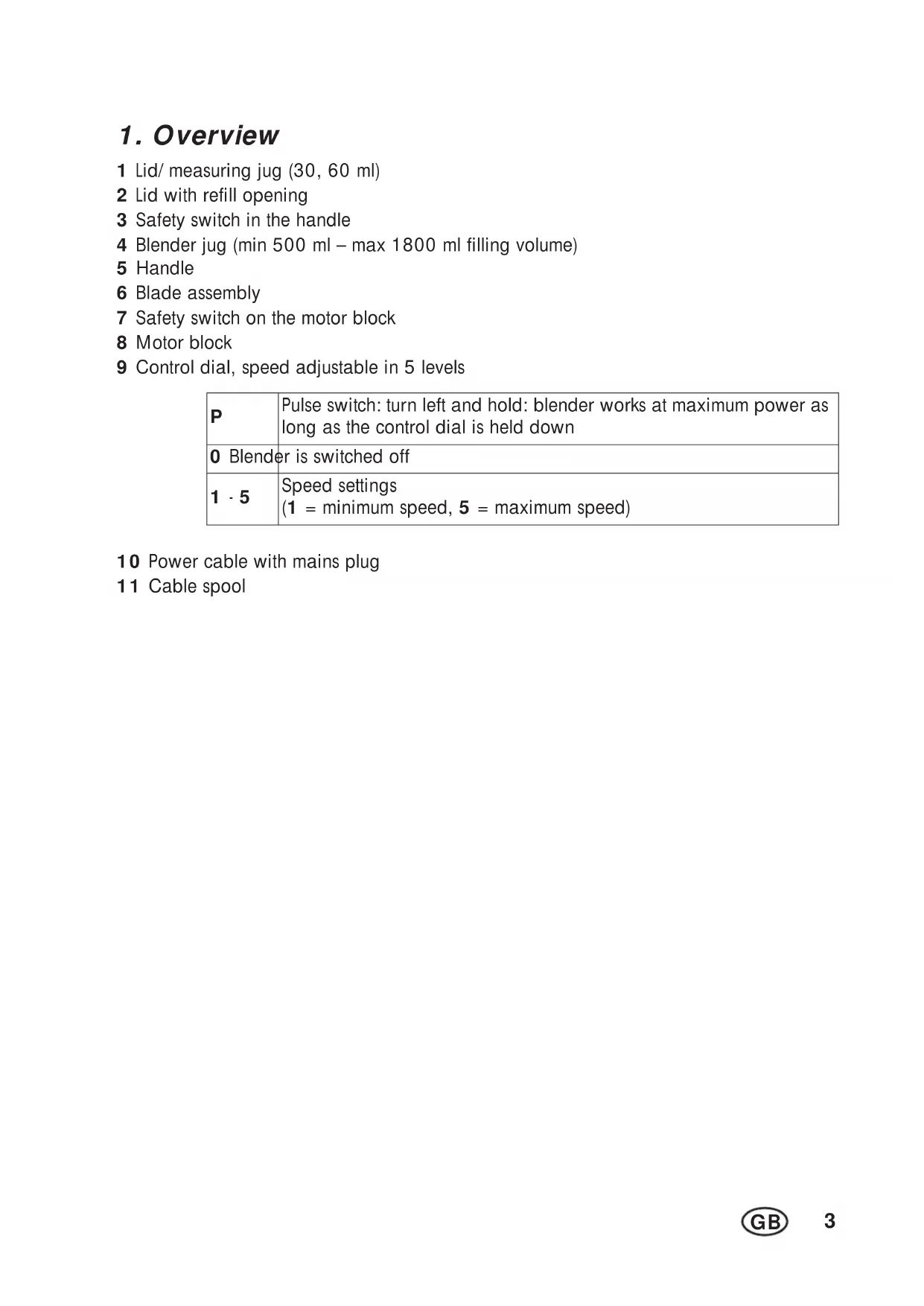

1. Overview

1 Lid/ measuring jug (30, 60 ml)
2 Lid with refill opening
3 Safety switch in the handle
4 Blender jug (min 500 ml - max 1800 ml filling volume)
5 Handle
6 Blade assembly
7 Safety switch on the motor block
8 Motor block
9 Control dial, speed adjustable in 5 levels

P	Pulse switch: turn left and hold: blender works at maximum power as long as the control dial is held down
0 Blender	is switched off
1 - 5	Speed settings(1 = minimum speed, 5 = maximum speed)

10 Power cable with mains plug
11 Cable spool

Thank you for your trust!

Congratulations on your new jug blender.

For a safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these user instructions prior to initial use.
• Above all, observe the safety information!
  The device should only be used as described in these user instructions.
• Keep these user instructions for reference.
• If you pass the device on to someone else, please include these user instructions. The user instructions are a part of the product.

We hope you enjoy your new jug blender!

2. Intended purpose

The jug blender is designed to mix whole-fruit beverages (smoothies) and to chop food and crush ice.

The device is designed for private, domestic use. The device must only be used indoors. This device must not be used for commercial purposes.

Floreseeablemisuse

WARNING! Risk of material damage!

• Do not use the device for processing especially hard foodstuffs, such as frozen food, bones, nutmeg, cereals or coffee beans.
• Thick or firm peels, (e.g. of citrus fruits, pineapple), stems and pips of stone fruits (e.g. cherries, peaches, apricots) must be removed before blending.

Symbols on your device

The food-safe material of devices with this symbol will not change the taste or smell of food.

3. Safety information

Warnings

If necessary, the following warnings will be used in these user instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

Instructions for safe operation

• This device must not be used by children.
  Children must not play with the device.
• The device and the power cable must be kept away from children.
• This device can be used by people with restricted physical, sensory or intellectual abilities or people without adequate experience and/ or understanding if they are supervised or instructed on how to use this device safely and if they are aware of the resulting hazards.
• If the mains power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or a similarly qualified specialist, in order to avoid any hazards.
• Disconnect the mains plug from the wall socket...

... when it is not supervised,
... before you assemble or disassemble the device, and
... before you clean the individual parts.

• This device is not intended to be operated using an external timer clock or a separate remote control system.
• Misuse of the device may result in injuries.

• The blades are very sharp. Be particularly careful when emptying the blender jug and when cleaning the blade assembly that you do not cut yourself. When washing manually, the water should be sufficiently clear that you can see the blades easily.
  Clean all parts and surfaces that will come into contact with food before using the device for the first time (see “Cleaning” on page 10).

• Switch the device off and pull out the mains plug from the wall socket before you exchange auxiliary or additional equipment moving in operation.

DANGER for children

Children must not play with packing material. Do not allow children to play with plastic bags. There is a risk of suffocation.
- Please ensure that children are not able to pull the device down from the work surface with the power cable.
- Keep the device out of the reach of children.

DANGER to and from pets and livestock

• Electrical devices can represent a hazard to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times.

DANGER! Risk of electric shock due to moisture

The device must never be operated in the vicinity of a bathtub, a shower, a filled washbasin or similar.
The motor block, the power cable and the mains plug must not be immersed in water or any other liquids.
- Protect the motor block against moisture, water drips and splashes.
- If liquid gets into the device (except in the container provided for this purpose), remove the mains plug immediately. Have the device checked before reusing.
- Never touch the device with wet hands.
- If the device falls into water, disconnect the mains plug immediately. Only then is it safe to retrieve the device.

DANGER! Risk of electric shock

• Only plug the mains plug into the wall socket after the device has been completely assembled.
• Only connect the mains plug to a properly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must continue to be easily accessible after the device is plugged in.
• Ensure that the power cable cannot be damaged by sharp edges or hot points. Do not wrap the power cable around the device.
  The device is not fully disconnected from the power supply, even after it is switched off. In order to fully disconnect it, pull out the mains plug.
• When using the device, ensure that the power cable cannot be trapped or crushed.
• When removing the mains plug from the wall socket, always pull the plug and never the cable.
• Disconnect the mains plug from the wall socket...
• ... if there is a fault,
• ... when you do not use the jug blender,
• ... during thunderstorms.
  Do not use the device if there is visible damage to the device or the power cable.
  To avoid any risk, do not make modifications to the device.

DANGER! Risk of injury from cutting

The blades of the blade assembly are sharp. Please be very careful when handling them.

• Switch the device off and pull out the mains plug from the wall socket before you exchange auxiliary or additional equipment moving in operation.

WARNING! Risk of material damage

• Thick or firm peels, (e.g. of citrus fruits, pineapple), stems and pips of stone fruits (e.g. cherries, peaches, apricots) must be removed before blending.
  In order to avoid damage to the device, interrupt the blending process immediately if the blades of the blade assembly do not turn at all or only with difficulty. Pull out the mains plug and investigate whether there is an obstruction in the blender jug or whether the contents are too tough. Also check whether the device is assembled correctly.
• Never mix food on an oil basis such as poppy seed or nuts (for instance for poppy seed or nut butter) for more than 60 seconds, since otherwise the motor may overheat and can be damaged.
  Do not operate the device when it is empty, as this causes the motor to overheat and may result in it being damaged.
  The device is designed for a maximum operating period of 3 minutes without interruption. After this, the device must remain switched off until it has cooled down to room temperature.
  Only use the original accessories.
• All parts except for the motor block are dishwasher-safe up to 70^ .
  Do not use any astringent or abrasive cleaning agents.
  The device is fitted with non-slip plastic suction feet. As furniture is coated with a wide array of varnishes and synthetics, and is also treated with different care products, it cannot be fully ruled out that some of these materials contain

ingredients that could attack and soften the non-slip plastic suction feet. If necessary, place a non-slip mat under the device.

4. Items supplied

1 blender jug 4 (min 500 ml - max 1800 ml filling volume)
1 motor block 8
1 lid 2
1 measuring jug (30, 60 ml) 1
1 copy of the user instructions

5. How to use

• Remove all packing material.
• Check to ensure that all parts are present and undamaged.
• Clean the device prior to its first use! (see "Cleaning" on page 10)
• Place the device on a dry, level and non-slip surface.

6. Assembly

DANGER! Risk of injury from cutting!

The blade assembly 6 is sharp. Handle it with care.
Do not insert the mains plug 10 into a wall socket until the jug blender is completely assembled.

NOTES:

• The device is equipped with two safety switches 3/7 and must be locked twice. The device can only be started when the blender jug 4 and the lid 2 are in position and locked. If it ever becomes possible to switch on the device without the blender jug 4 in position, stop using the device. Contact our Service Centre by telephone or email (see "Warranty of the HOYER Handel GmbH").

• If the blender jug 4 is removed during operation, the device will switch off automatically. Adjust the control dial 9 so that the marking is pointing to 0 in order to switch off the device before placing the blender jug 4 back on the motor block 8.

• Figure B: unwind the required length of power cable 10 from the cable spool 11.

• Place the prepared food into the blender jug 4.
• Figure C: place the blender jug 4 on the motor block 8. The arrow must point to the symbol at the bottom of the blender jug.
• Figure A: close the blender jug 4 with the lid 2.
• Figure A: rotate the lid 2 clockwise (towards the symbol) until it stops in order to firmly connect it to the blender jug 4 and close the safety mechanism 3.
• If necessary, turn the marking of the control dial 9 to 0.
• Place the measuring jug 1 into the refill opening. The small ridges on the measuring jug 1 must fit into the recesses at the edge of the refill opening.
• Turn the measuring jug 1 clockwise until it is firmly in place.
• Figure D: lock the blender jug 4 by rotating through a short distance. The arrow at the bottom of the blender jug points to the symbol. This closes the second safety mechanism 7.
• Insert the mains plug 10 into a wall socket corresponding to the technical data.

7. Operation

WARNING!

In order to avoid damage to the device, interrupt the blending process immediately if the blades of the blade assembly 6 do not turn at all or do so only with difficulty. If this happens, pull out the mains plug 10 and check whether there is something in the blender jug 4 blocking movement, or whether the food is too tough. Also check whether the device is assembled correctly.
The device is designed for a maximum operating time of 3 minutes without interruption.

After this, the device must remain switched off until it has cooled down to room temperature.

CAUTION:

Depending on the hardness and consistency of the food, do not fill the blender jug 4 up to the maximum level, as this can cause the blade assembly 6 to become blocked.

Application area

The jug blender is designed for mixing whole-fruit beverages (smoothes), chopping food and crushing ice.

7.1 Preparing food

WARNING! Risk of material damage!

• Thick or firm peels, (e.g. of citrus fruits, pineapple), stems and pips of stone fruits (e.g. cherries, peaches, apricots) must be removed before blending.

• Rinse or wash the food.

• Cut up larger food items (e.g. apples, pears) into small pieces. This will shorten the mixing time.
• If you want to add food through the refill opening in the lid 2 while working, cut the food up until it is small enough to fit through the refill opening.
• Free herbs from their stems.
• For smoothies, use a sufficient amount of liquid (mineral water, juice, milk, yoghurt).

7.2 Chopping

• To chop up food, turn the control dial 9 to the desired speed setting (1 - 5).
  To ensure safety, hold the device tightly by the closed lid 2 during operation.

7.3 Refilling during operation

Ingredients and liquids can also be added during operation via the refill opening in the lid 2.

1. Rotate the measuring jug 1 anticlockwise until it can be removed upwards.
2. Add the ingredients through the refill opening.
3. Replace the measuring jug 1 into the refill opening. The small ridges on the measuring jug 1 must fit into the recesses at the edge of the refill opening.
4. Turn the measuring jug 1 clockwise until it is firmly in place.

Harder food and crushed ice

NOTES:

• Only a maximum of 200g of nuts may be chopped up.

• Due to their exceptional hardness nut-megs may not be chopped.

• Fill food into the blender jug 4.

• To chop up harder food, repeatedly turn the control dial 9 briefly to the left, to P. The number and length of the pulses required to achieve the desired consistency will depend on the quantity and consistency of the food.

7.4 Remove food

NOTE: do not store food in the blender jug 4 or in contact with other product parts for longer than 24 hours. This also applies to storage in the refrigerator.

1. Turn the control dial 9 until the marking points to 0.
2. Once the motor has come to a complete standstill, remove the blender jug 4 from the motor block 8. To do this, turn the arrow to the symbol and then lift the blender jug 4 straight upwards.
3. To unlock, turn the lid 2 anticlockwise (towards the symbol) and then lift it off upwards.
4. Empty the blender jug 4.
5. Clean the device as soon as possible after use.

8. Cleaning

Clean the device prior to its first use!

8.1 Instant cleaning of the blender jug

1. Figure C: place the blender jug 4 on the motor block 8. The arrow must point to the symbol at the bottom of the blender jug.
2. Fill some warm water and detergent into the blender jug 4.
3. Figure A: close the blender jug 4 with the lid 2.
4. Figure A: rotate the lid 2 clockwise (towards the symbol) until it stops in order to firmly connect it to the blender jug 4 and close the safety mechanism 3.
5. If necessary, turn the marking of the control dial 9 to 0.
6. Place the measuring jug 1 into the refill opening. The small ridges on the measuring jug 1 must fit into the recesses at the edge of the refill opening.
7. Turn the measuring jug 1 clockwise until it is firmly in place.
8. Figure D: lock the blender jug 4 by rotating through a short distance. The arrow at the bottom of the blender jug points to the symbol.
9. Insert the mains plug 10 into a wall socket corresponding to the technical data.
10. Rotate the control dial 9 several times for a few seconds to the left to P and then release it.
11. Disconnect the mains plug 10 from the wall socket.
12. Once the motor has come to a complete standstill, remove the blender jug 4 upwards and away from the motor block 8.

13. To unlock, turn the lid 2 anticlockwise (towards the symbol) and then lift it off upwards.

14. Empty the blender jug 4 and rinse it with clean water.

8.2 Cleaning all parts of the device

DANGER! Risk of electric shock!

The motor block 8, the power cable and the mains plug 10 must not be immersed in water or any other liquids.

DANGER! Risk of injury from cutting!

The blades of the blade assembly 6 are sharp. Please be very careful when handling them.
For manual cleaning, the water should be sufficiently clear so that you can see the blade assembly 6 easily.

WARNING! Risk of material damage!

• Do not use any astringent or abrasive cleaning agents.
  All parts except for the motor block 8 are dishwasher-safe up to 70^

• If necessary, disconnect the mains plug 10 from the wall socket.

• Remove the blender jug 4 from the motor block 8.
• Remove the lid 2 from the blender jug 4.

The motor block 8 must not be immersed in water.

1. If necessary, wipe down the motor block 8 and the power cable 10 with a damp cloth. Ensure that the motor block 8 is completely dry before the next time it is used.

2. Clean the other parts of the device with detergent and warm water. The following parts are dishwasher-safe up to 70^ :

3. Bl e n d e r j u g 4
   Lid 2

4. Measuring jug 1

5. Allow all parts to dry completely before you put them away or use the device again.

Some cleaning tips

• Clean the device as soon as possible after use in order to prevent food remnants from drying on.
  After processing very salty or acidic types of food, you should immediately rinse the blender jug 4 thoroughly.

9. Storage

DANGER for children!

• Keep the device out of the reach of children.

DANGER!

In order to avoid accidents, the mains plug 10 must never be connected to a wall socket while in storage.

• Assemble the jug blender for storage purposes.
• Select a location where neither high temperatures nor moisture can affect the device.
• Figure B: fully wind the power cable 10 onto the cable spool 11 in the direction of the arrow.

10. Troubleshooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

DANGER! Risk of electric shock!

Do not attempt to repair the device yourself under any circumstances.

Fault	Possible causes / Action
No function	·Has the device been connected to the power supply? ·Check the connection. ·Has the blender jug 4 been positioned correctly? ·Has the lid 2 been closed correctly?
Blade assembly 6 not turning or turning with difficulty	·Switch off immediately, pull out mains plug 10 and check: - B I O C k a blender jug 4? - Food too tough or too hard?

11. Recipes

Green Smoothie

Ingredients:

2 handfuls of fresh leaf spinach
1 mango
1 banana (peeled)
2 pineapple slices
Juice from 1 lime
400 ml water
4 ice cubes

• Put all ingredients into the blender jug 4 and start the mixing process.

Tropical Smoothie

Ingredients:
200 g pineapple
1 banana (peeled)
2 kiwis (peeled)
200 ml orange juice
2 handfuls of fresh leaf spinach
- Put all ingredients into the blender jug 4 and start the mixing process.

Eye-Openers

Ingredients:
2 bananas (peeled)
1 mango
2 handfuls of fresh leaf spinach
1 tsp oil (e.g. sunflower oil)
200 ml apple juice
200 ml water
- Put all ingredients into the blender jug 4 and start the mixing process.

Honey Flip

Ingredients:
800 ml milk
8 cl black currant juice
4 tbs honey
4 egg yolks
4 ice cubes

• Put all ingredients into the blender jug 4 and start the mixing process.

Strawberry Banana Shake

Ingredients:

2 bananas (peeled)

300 g strawberries

2 packets of vanilla sugar

400 ml milk

• Put all ingredients into the blender jug 4 and start the mixing process.

Berry Dream

Ingredients:

100 g blueberries
150 g raspberries
150 g strawberries
1 banana (peeled)
150 g natural yoghurt
3 tbs oatmeal
150 ml milk

Honey to taste

• Put all ingredients into the blender jug 4 and start the mixing process.

Good Night Smoothie

Ingredients:

1 banana (peeled)
1 apple
2 tbs lemon juice
2 tbs honey
2 handfuls of fresh leaf spinach
400 ml water
- Put all ingredients into the blender jug 4 and start the mixing process.

Mango Shake

Ingredients:

500 g mango

500 ml milk

• Put all ingredients into the blender jug 4 and start the mixing process.

Raspberry Pear Smoothie

Ingredients:

2 ripe pears

300 g raspberries

400 ml water

Honey to taste

• Put all ingredients into the blender jug 4 and start the mixing process.

Peach Banana Smoothie

Ingredients:

2 bananas (peeled)
4 peaches (peeled and cored)
200 ml grapefruit juice
2 squirts of lemon juice
- Put all ingredients into the blender jug 4 and start the mixing process.

12. Disposal

This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires sep

arate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. Recycling helps to reduce the consumption of raw materials and protect the environment.

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

13. Technical specifications

Model: SSMC 600 A1

Mains voltage: 220 – 240 V ~ 50/ 60 Hz

Protection class: II

Power rating: 600 W

Max. continu-ous operation: 3 minutes

Filling volume: 500 ml – 1.800 ml

Symbols used

	The symbol identifies parts that can be cleaned in the dishwasher.
	Double insulation
	Certified Safety. Devices must comply with the generally acknowledged rules of technology and the German Product Safety Act (Produktssicherheitsgesetz - ProdSG).
CE	With the CE marking, HOYER Handel GmbH declares the conformity with EU guidelines.
	This symbol reminds you to dispose of the packaging in an environmentally friendly manner.
PAP	Recyclable materials: cardboard (except corrugated cardboard)

Subject to technical modifications.

14. Warranty of the HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us - at our discretion - free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects.

Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, batteries, lamps or other parts manufactured from glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number

IAN:302473 and the purchase receipt as a purchase verification for all inquiries.

• The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or underside of the device.
• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.
• Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.

GB Service Great Britain

Tel.: [phone] (£ 0.10/ Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/ Min., (peak))

(0,06 EUR/ Min., (off peak))

E-Mail: [e-mail]

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail](mt

CY Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

IAN:302473

Supplier

Please note that the following address is no service address. First contact the aforementioned Service Centre.

HOYER Handel GmbH

Taskoprustraße 3

DE-22761 Hamburg

GERMANY

Indhold
