USER MANUAL GNE60530DXN BEKO

EN/DA/SV 57 4803 0000/BB-1/4-EN-DA-SV Refrigerator User Manual Køleskab Brugervejledning Kylskåp Bruksanvisning GNE60530DX-GNE60530DXNPlease read this manual before using the product!Dear Customer,We'd like you to make the best use of our product, which has been manufactured in modern facilities with care and meticulous quality controls.Thus, we advice you to read the entire user manual before you use the product. In case the product changes hands, do not forget to hand the guide to its new owner along with the product.This guide will help you use the product quickly and safely.t Please read the user guide carefully before installing and operating the product.t Always observe the applicable safety instructions.t Keep the user guide within easy reach for future use.t Please read any other documents provided with the product.Keep in mind that this user guide may apply to several product models. The guide clearly indicates any variations of different models. Important information and useful tips. Risk of life and property. Risk of electric shock. The product’s packaging is made of recyclable materials, in accordance with the National Environment Legislation.

.The model information as stored in the product data base can be reached by entering following website and searching for your model identifier (*) found on energy label. https://eprel.ec.europa.eu/2 / 31 EN Refrigerator / User Manual

1. Safety and environment instructions 3

1.1.2 For models with water dispenser . . . . . . . . 4

3.9.1. Fixing external filter on the wall (Optional) 11

7. Troubleshooting 293 / 31 ENRefrigerator / User Manual

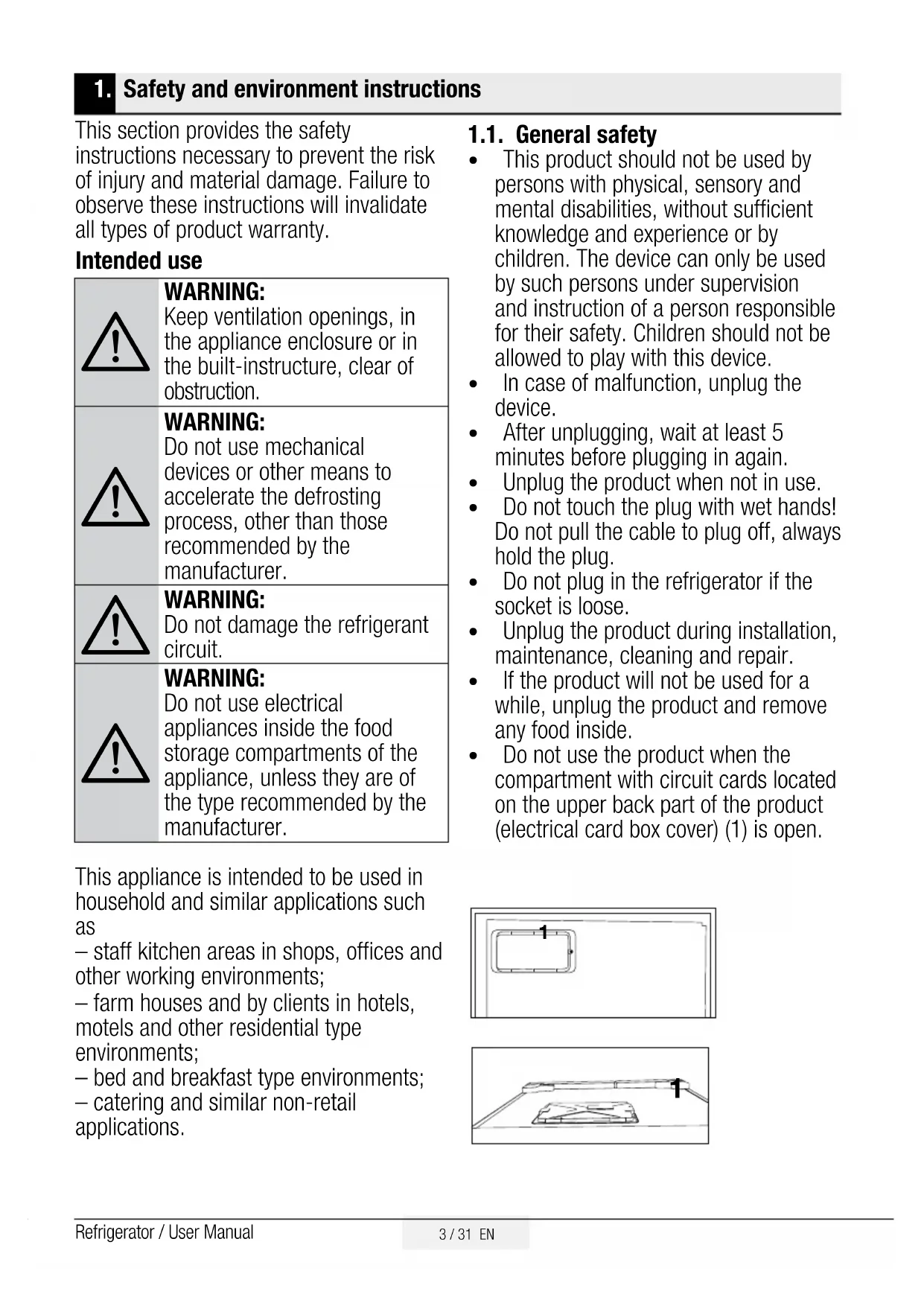

1. Safety and environment instructions

This section provides the safety instructions necessary to prevent the risk of injury and material damage. Failure to observe these instructions will invalidate all types of product warranty. Intended use

Keep ventilation openings, in the appliance enclosure or in the built-instructure, clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. This appliance is intended to be used in household and similar applications such

– staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, motels and other residential type environments; – bed and breakfast type environments; – catering and similar non-retail applications. 1.1. General safety t This product should not be used by persons with physical, sensory and mental disabilities, without sufficient knowledge and experience or by children. The device can only be used by such persons under supervision and instruction of a person responsible for their safety. Children should not be allowed to play with this device. t In case of malfunction, unplug the device. t After unplugging, wait at least 5 minutes before plugging in again. t Unplug the product when not in use. t Do not touch the plug with wet hands! Do not pull the cable to plug off, always hold the plug. t Do not plug in the refrigerator if the socket is loose. t Unplug the product during installation, maintenance, cleaning and repair. t If the product will not be used for a while, unplug the product and remove any food inside. t Do not use the product when the compartment with circuit cards located on the upper back part of the product (electrical card box cover) (1) is open.

14 / 31 EN Refrigerator / User Manual Safety and environment instructions t Do not use steam or steamed cleaning materials for cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock! t Do not wash the product by spraying or pouring water on it! Danger of electric shock! t In case of malfunction, do not use the product, as it may cause electric shock. Contact the authorised service before doing anything. t Plug the product into an earthed socket. Earthing must be done by a qualified electrician. t If the product has LED type lighting, contact the authorised service for replacing or in case of any problem. t Do not touch frozen food with wet hands! It may adhere to your hands! t Do not place liquids in bottles and cans into the freezer compartment. They may explode. t Place liquids in upright position after tightly closing the lid. t Do not spray flammable substances near the product, as it may burn or explode. t Do not keep flammable materials and products with flammable gas (sprays, etc.) in the refrigerator. t Do not place containers holding liquids on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire. t Exposing the product to rain, snow, sunlight and wind will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off. t Take care to avoid trapping any part of your hands or body in any of the moving parts inside the product. t Do not step or lean on the door, drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts. t Take care not to trap the power cable.

If the product comprises a cooling system using R600a gas, take care to avoid damaging the cooling system and its pipe while using and moving the product. This gas is flammable. If the cooling system is damaged, keep the product away from sources of fire and ventilate the room immediately.

The label on the inner left side indicates the type of gas used in the product.

1.1.2 For models with

water dispenser t Pressure for cold water inlet shall be maximum 90 psi (6.2 bar). If your water pressure exceeds 80 psi (5.5 bar), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber. t If there is risk of water hammer effect in your installation, always use a water hammer prevention equipment in your installation. Consult Professional plumbers if you are not sure that5 / 31 EN Refrigerator / User Manual Safety and environment instructions there is no water hammer effect in your installation. t Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33°F (0.6°C) minimum and 100°F (38°C) maximum. t Use drinking water only. 1.2. Intended use t This product is designed for home use. It is not intended for commercial use. t The product should be used to store food and beverages only. t Do not keep sensitive products requiring controlled temperatures (vaccines, heat sensitive medication, medical supplies, etc.) in the refrigerator. t The manufacturer assumes no responsibility for any damage due to misuse or mishandling. t Original spare parts will be provided for 10 years, following the product purchasing date. 1.3. Child safety t Keep packaging materials out of children’s reach. t Do not allow the children to play with the product. t If the product’s door comprises a lock, keep the key out of children’s reach. 1.4. Compliance with WEEE Directive and Disposing of the Waste Product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers. 1.5. Compliance with RoHS Directive t This product complies with EU WEEE Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive. 1.6. Package information t Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.6 / 31 ENRefrigerator / User Manual

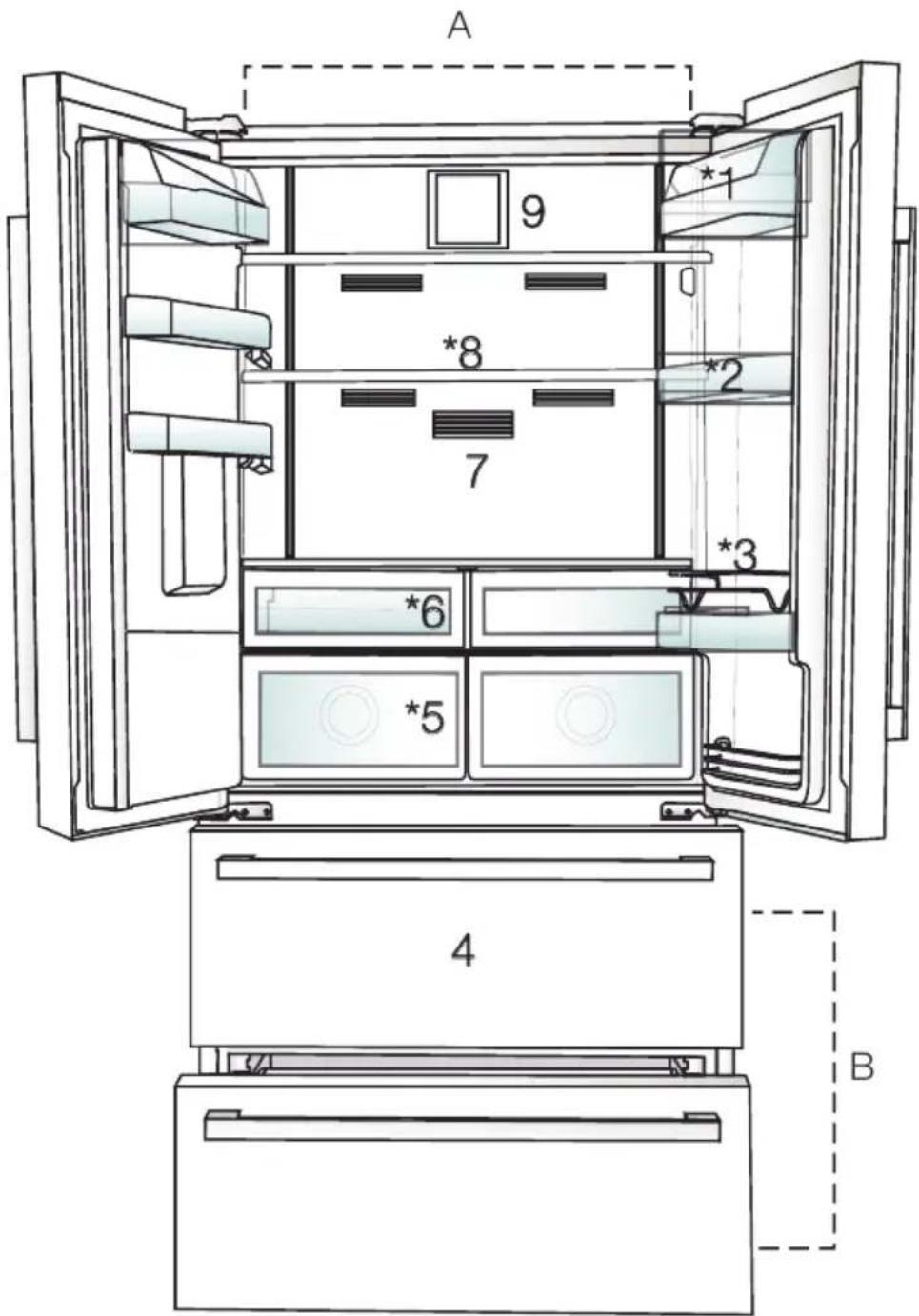

*Optional: Figures in this user guide are schematic and may not exactly match your product. If your product does not comprise the relevant parts, the information pertains to other models. A- Cooler compartment B- Freezer compartment

1. Butter-cheese shelf

2. Cooler compartment shelves

4. Frozen food storing compartments

6. Breakfast compartment

8. Adjustable glass shelves

Refrigerator / User Manual 3 Installation 3.1. Right place for installation Contact the Authorized Service for the product's installation. To ready the product for installation, see the information in the user guide and make sure the electric and water utilities are as required. If not, call an electrician and plumber to arrange the utilities as necessary.

WARNING: The manufacturer assumes

no responsibility for any damage caused by the work carried out by unauthorized persons.

must be unplugged during installation. Failure to do so may result in death or serious injuries!

WARNING: If the door span is too narrow

for the product to pass, remove the door and turn the product sideways; if this does not work, contact the authorized service. t1MBDFUIFQSPEVDUPOBGMBUTVSGBDFUPBWPJE vibration. t1MBDFUIFQSPEVDUBUMFBTUDNBXBZGSPNUIF heater, stove and similar sources of heat and at least 5 cm away from electric ovens. t%POPUFYQPTFUIFQSPEVDUUPEJSFDUTVOMJHIUPS keep in damp environments. t5IFQSPEVDUSFRVJSFTBEFRVBUFBJSDJSDVMBUJPOUP function efficiently. If the product will be placed in an alcove, remember to leave at least 5 cm distance between the product and the ceiling and the walls. t%POPUJOTUBMMUIFQSPEVDUJOFOWJSPONFOUTXJUI temperatures below -5°C. 3.2. Attaching the plastic wedges Use the plastic wedges provided with the product to provide sufficient space for air circulation between the product and the wall.

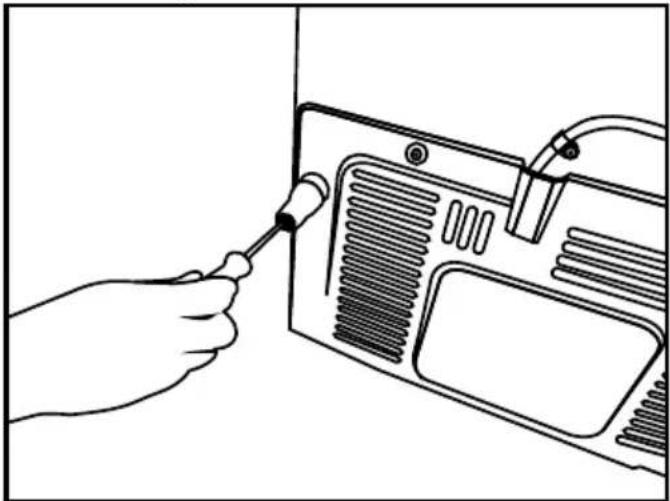

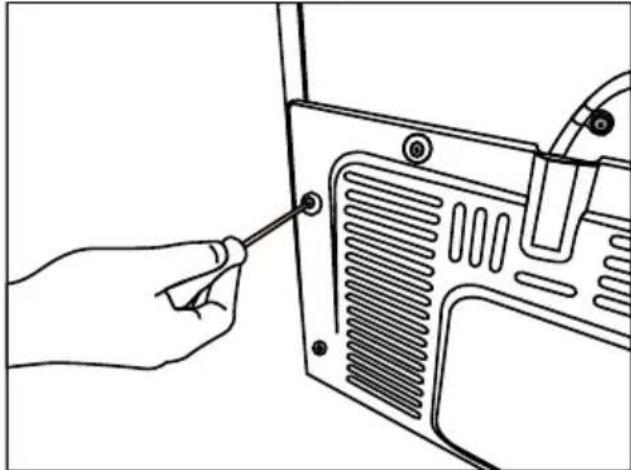

To attach the wedges, remove the screws on the product and use the screws provided with the wedges.

Attach 2 plastic wedges on the ventilation cover as shown in the figure.8 / 31 EN Refrigerator / User Manual Installation 3.3. Adjusting the stands If the product is not in balanced position, adjust the front adjustable stands by rotating right or left. 3.4. Power connection

WARNING: Do not use extension or

multi sockets in power connection.

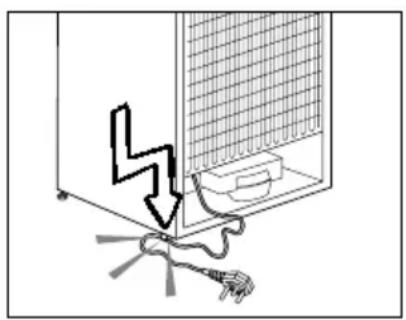

WARNING: Damaged power cable

must be replaced by Authorized Service.

When placing two coolers in adjacent position, leave at least 4 cm distance between the two units. t Our firm will not assume responsibility for any damages due to usage without earthing and power connection in compliance with national regulations. t The power cable plug must be easily accessible after installation. t Connect the refrigerator to an earthed socket with 220-240V/50 Hz voltage. The socket must comprise a 10-16A fuse. t Do not use multi-group plug with or without extension cable between the wall socket and the refrigerator. 3.5. Water connection (Optional)

WARNING: Unplug the product and

the water pump (if available) during connection. The product’s water mains, filter and carboy connections must be rendered by authorized service. The product can be connected to a carboy or directly to the water mains, depending on the model. To establish the connection, the water hose must first be connected to the product. Check to see the following parts are supplied with your product’s model:

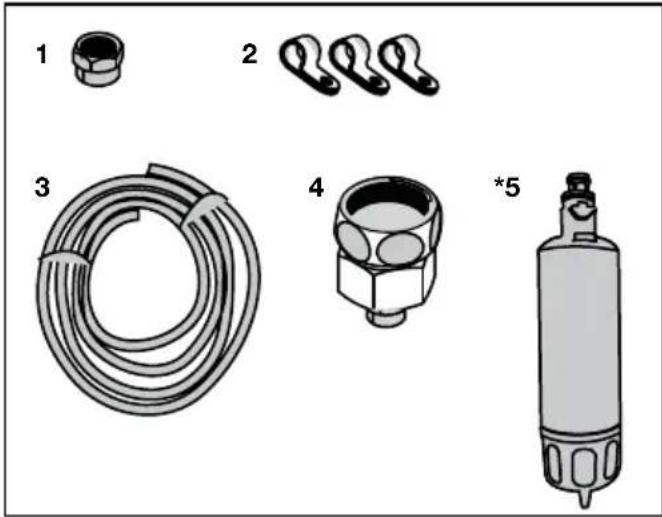

1. Connector (1 piece): Used to attach the water

hose to the rear of the product.

2. Hose clip (3 pieces): Used to fix the water

3. Water hose (1 piece, 5 meter diameter 1/4

inches): Used for the water connection.

4. Faucet adapter (1 piece): Comprises a porous

filter, used for connection to the cold water mains.

5. Water filter (1 piece *Optional): Used to

connect the mains water to the product. Water filter is not required if carboy connection is available.9 / 31 EN Refrigerator / User Manual Installation 3.6. Connecting water hose to the product To connect the water hose to the product, follow the instructions below.

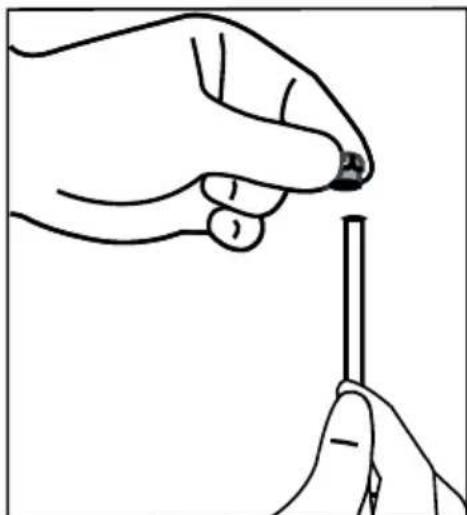

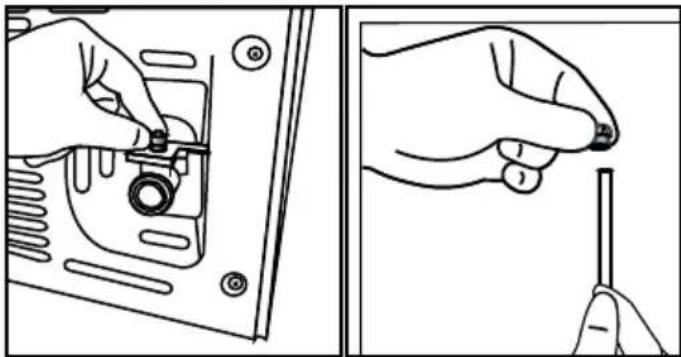

1. Remove the connector on the hose nozzle

adaptor in the back of the product and run the hose through the connector.

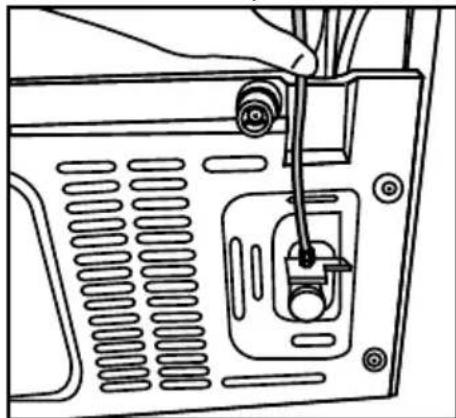

2. Push the water hose down tightly and connect

to the hose nozzle adaptor.

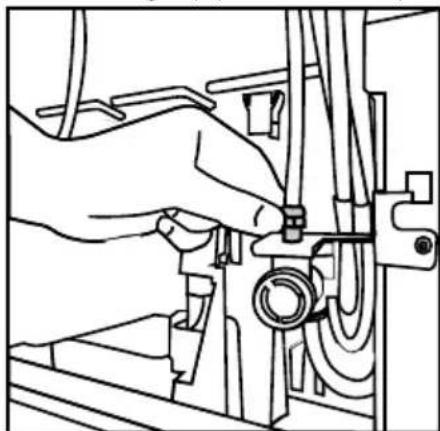

3. Tighten the connector manually to fix on the

hose nozzle adaptor. You may also tighten the connector using a pipe wrench or pliers. 3.7. Connecting to water mains (Optional) To use the product by connecting to the cold water mains, a standard 1/2” valve connector must be installed to the cold water mains in your home. If the connector is not available or if you are unsure, consult a qualified plumber.

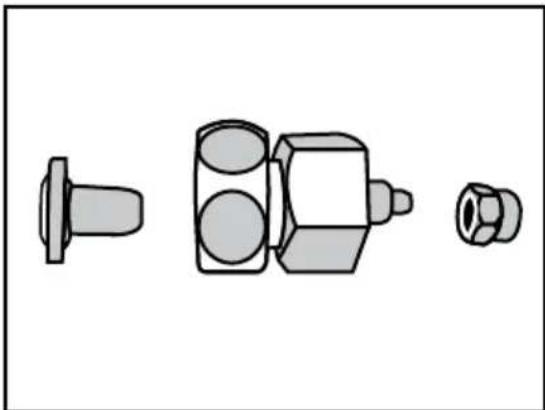

1. Detach the connector (1) from the faucet

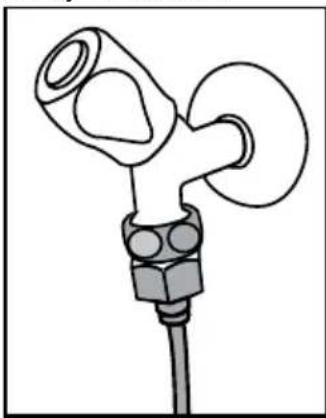

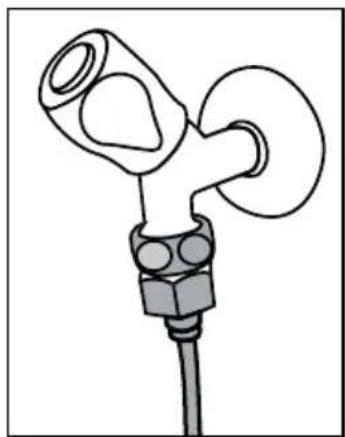

2. Connect the faucet adaptor to the water mains

3. Attach the connector around the water hose.10 / 31 EN

Refrigerator / User Manual Installation

4. Attach the connector into the faucet adaptor

and tighten by hand / tool.

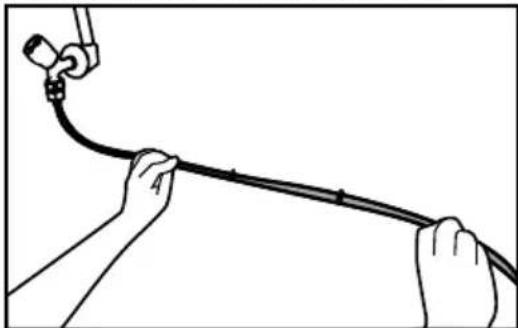

5. To avoid damaging, shifting or accidentally

disconnecting the hose, use the clips provided to fix the water hose appropriately.

make sure there is no water leak on either end of the water hose. In case of leakage, turn the valve off and tighten all connections using a pipe wrench or pliers. 3.8. For products using water carboy (Optional) To use a carboy for the product’s water connection, the water pump recommended by the authorized service must be used.

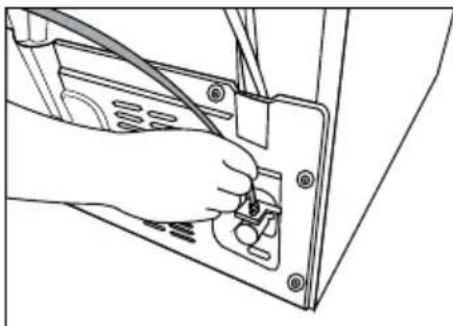

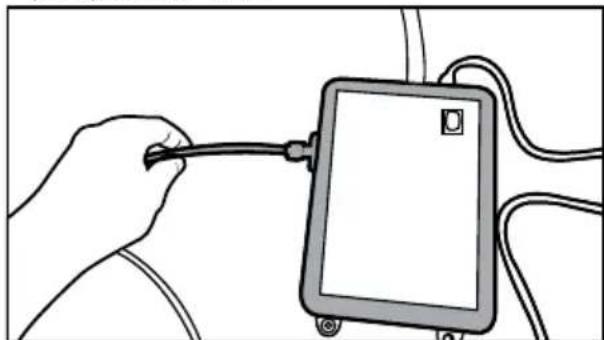

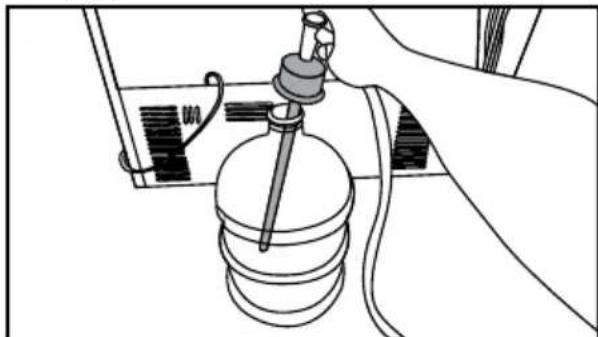

1. Connect one end of the water hose provided

with the pump to the product (see 3. 6) and follow the instructions below.

2. Connect the other end of the water hose to

the water pump by pushing the hose into the pump’s hose inlet.

3. Place and fasten the pump hose inside the

4. Once the connection is established, plug in

and start the water pump.

Please wait 2-3 minutes after starting the pump to achieve the desired efficiency.

See also the pump’s user guide for water connection.

When using carboy, water filter is not required.

(Optional) The product may have internal or external filter, depending on the model. To attach the water filter, follow the instructions below.11 / 31 EN Refrigerator / User Manual Installation

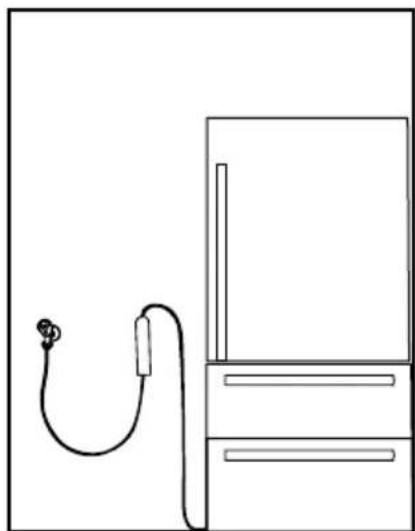

3.9.1. Fixing external filter

on the wall (Optional)

WARNING: Do not fix the filter on the

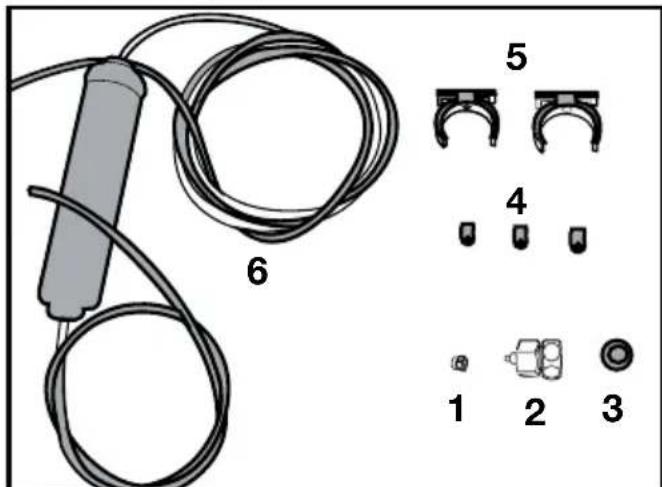

product. Check to see the following parts are supplied with your product’s model:

1. Connector (1 piece): Used to attach the water

hose to the rear of the product.

2. Faucet adapter (1 piece): Used for connection

to the cold water mains.

3. Porous filter (1 piece)

4. Hose clip (3 pieces): Used to fix the water

5. Filter connecting apparatus (2 pieces): Used to

fix the filter on the wall.

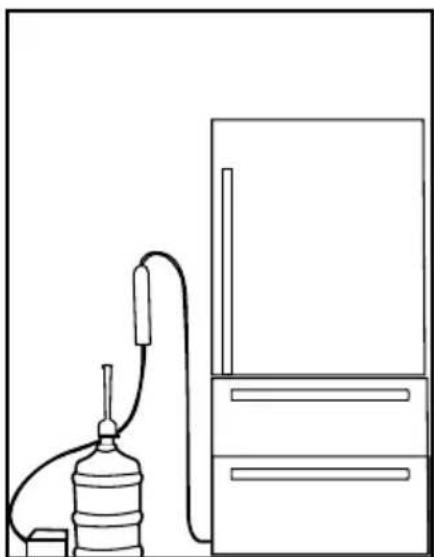

6. Water filter (1 piece): Used to connect the

mains water to the product. Water filter is not required if carboy connection is available.

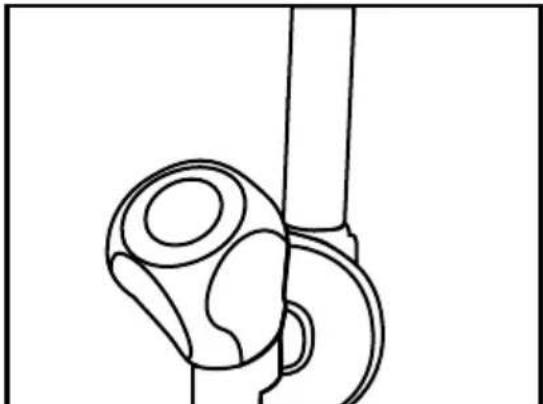

1. Connect the faucet adaptor to the water mains

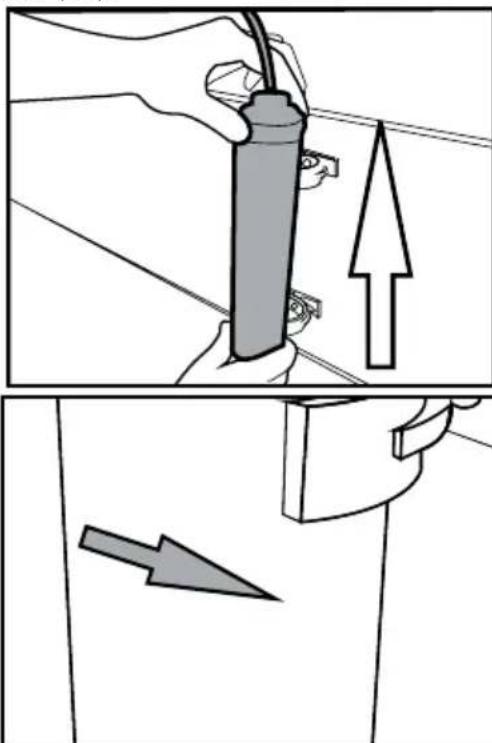

2. Determine the location to fix the external filter.

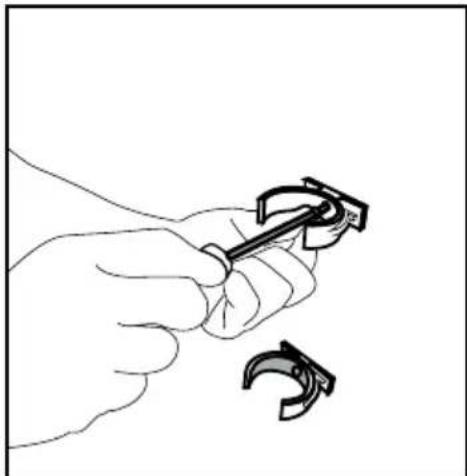

Fix the filter’s connecting apparatus (5) on the wall.

3. Attach the filter in upright position on the filter

connecting apparatus, as indicated on the label. ( 6 ).

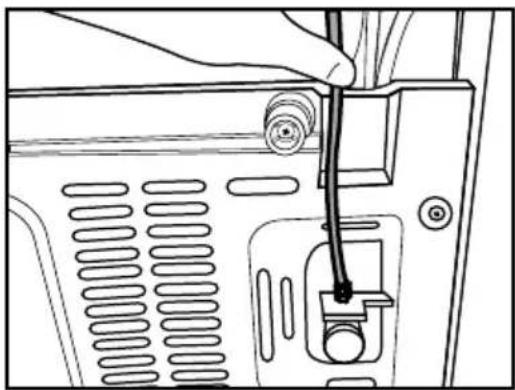

4. Attach the water hose extending from the top

of the filter to the product’s water connection adaptor (see. 3 6).12 / 31 EN Refrigerator / User Manual Installation After the connection is established, it should look like the figure below. Water line: Carboy line:

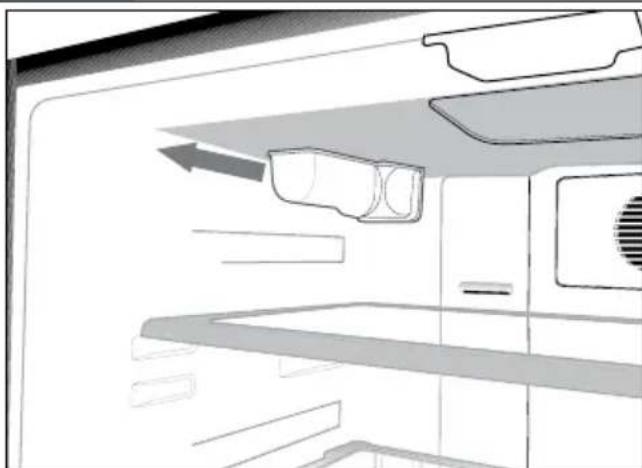

3.9.2. Internal filter

The internal filter provided with the product is not installed upon delivery; please follow the instructions below to install the filter.

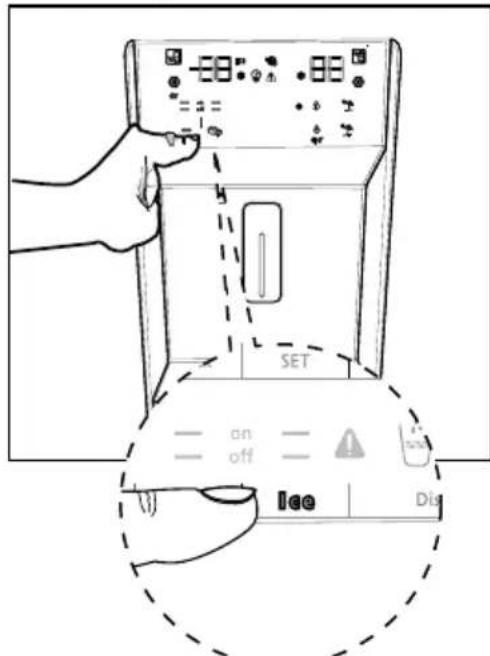

1. “Ice Off ” indicator must be active while

installing the filter. Switch the ON-OFF indicator using the “Ice” button on the screen.

2. Remove the water filter by-pass cover by

A few drops of water may flow out after removing the cover; this is normal.

3. Place the water filter cover into the

mechanism and push to lock in place.13 / 31 EN Refrigerator / User Manual Installation

4. Push the “Ice” button on the screen again to

The water filter will clear certain foreign particles in the water. It will not clear the microorganisms in the water.

The filter replacement period of your product is 6 months.14 / 31 EN Refrigerator / User Manual 4 Preparation 4.1. What to do for energy saving

Connecting the product to electronic energy-saving systems is harmful, as it may damage the product. t For a freestanding appliance; ‘this refrigerating appliance is not intended to be used as a built- in appliance. t Do not keep the refrigerator doors open for long periods. t Do not place hot food or beverages into the refrigerator. t Do not overfill the refrigerator; blocking the internal air flow will reduce cooling capacity. t To be able store maximum food in the freezer compartment of your refrigerator, the upper drawers have to be removed and placed on top of wire rack. The net volume and energy consumption values specified in the energy label of the refrigerator was tested after removing the freezer compartment’s upper shelf and the ice container which can easily be removed manually. Using the lower drawer while loading is highly recommended. t Depending on the product’s features; defrosting frozen foods in the cooler compartment will ensure energy saving and preserve food quality. t Make sure the foods are not in contact with the cooler compartment temperature sensor described below. t Since hot and humid air will not directly penetrate into your product when the doors are not opened, your product will optimize itself in conditions sufficient to protect your food. Functions and components such as compressor, fan, heater, defrost, lighting, display and so on will operate according to the needs to consume minimum energy under these circumstances. t Food must be stored in drawers inside the cooler compartment in order to provide energy saving and preserve the food in a better ambient. t Prevent direct contact between the temperature sensor in the freezer compartment and the food packages. Energy consumption may increase in case of a contact with the sensor. 4.2. First use Before using your refrigerator, make sure the necessary preparations are made in line with the instructions in “Safety and environment instructions” and “Installation” sections. t Keep the product running with no food inside for 6 hours and do not open the door, unless absolutely necessary.

A sound will be heard when the compressor is engaged. It is normal to hear sound even when the compressor is inactive, due to the compressed liquids and gasses in the cooling system. It is normal for the front edges of the refrigerator to be warm. These areas are designed to warm up in order to prevent condensation. In some models, indicator panel is dimmed automatically 5 minutes after the door is closed. It will be activated again when the door is opened or any key is pressed.15 / 31 ENRefrigerator / User Manual

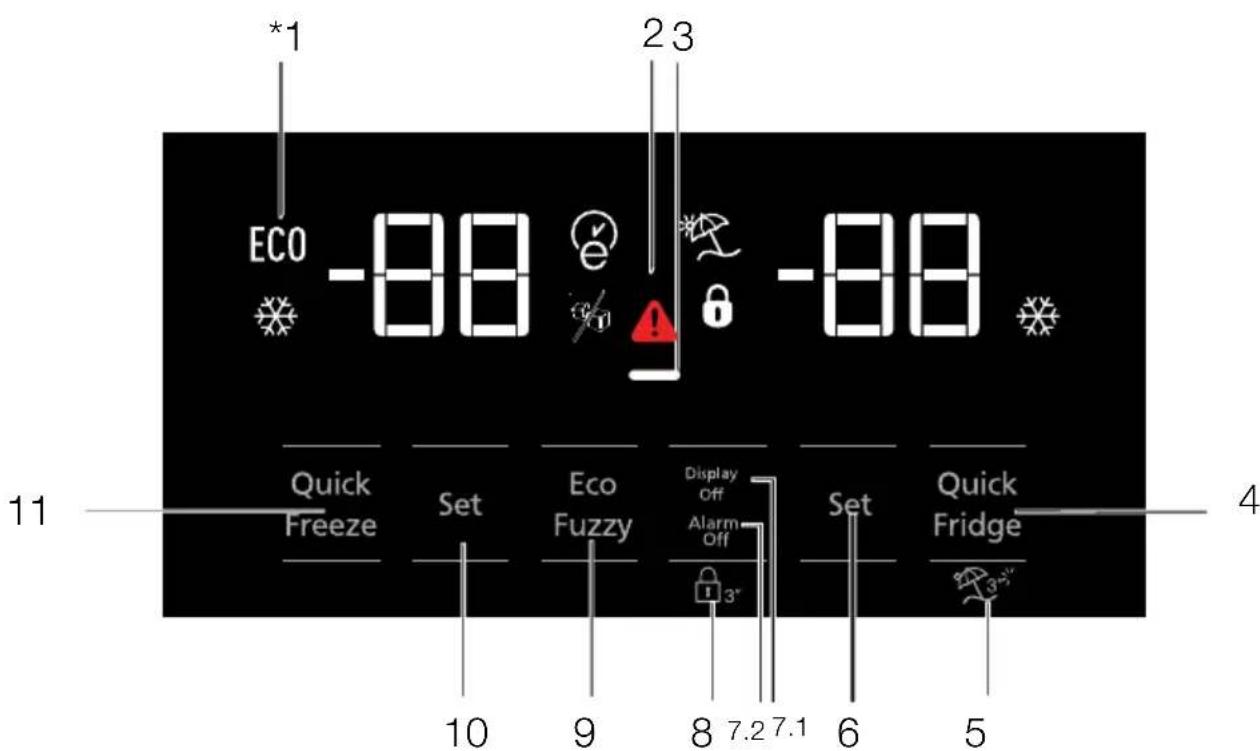

*Optional: The figures in this user guide are intended as drafts and may not perfectly match your product. If your product does not comprise the relevant parts, the information pertains to other models. 5 Using the product 5.1. Indicator panel Indicator panels may vary depending on the model of your product. Audio and visual functions of the indicator panel will assist in using the refrigerator.

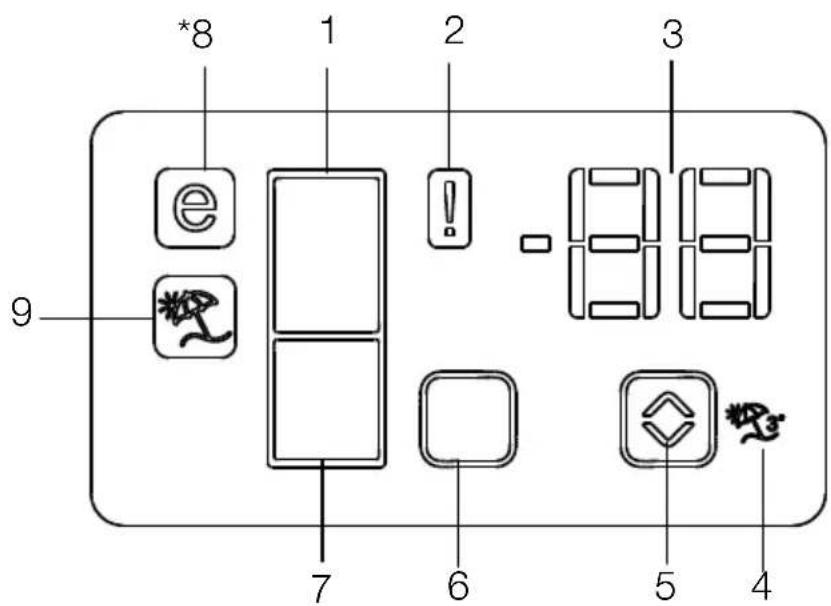

1. Cooler compartment indicator

5. Temperature adjustment button

6. Compartment selection button

7. Freezer compartment indicator

1. Cooler compartment indicator

The cooler compartment light will turn on when adjusting the cooler compartment temperature.

2. Error status indicator

This sensor will activate if the refrigerator is not cooling adequately or in case of sensor fault. When this indicator is active, the freezer compartment temperature indicator will display "E" and the cooler compartment temperature indicator will display "1, 2, 3..." etc. numbers. The numbers on the indicator serve to inform the service personnel about the fault. (

Indicates the temperature of the freezer and cooler compartments.

4. Vacation function button

To activate this function, press and hold the Vacation button for 3 seconds. When the Vacation function is active, the cooler compartment temperature indicator displays the inscription "- -" and no cooling process will be active in the cooling compartment. This function is not suitable to keep food in the cooler compartment. Other compartments will remain cooled with the respective temperature set for each compartment. Push the Vacation button ( ) again to cancel this function.

5. Temperature adjustment button

Respective compartment's temperature varies in -24°C... -18°C and 8°C...1°C ranges. (

6. Compartment selection button

Use the refrigerator compartment selection button to toggle between the cooler and freezer compartments. (

7. Freezer compartment indicator

The freezer compartment light will turn on when adjusting the freezer compartment temperature.

8. Economy mode indicator

Indicates the refrigerator is running on energy- saving mode. This indicator will be active when the temperature in the freezer compartment is set to -18°C. (

Indicates the vacation function is active. ( )17 / 31 EN Refrigerator / User Manual Using the product

*Optional: The figures in this user guide are intended as drafts and may not perfectly match your product. If your product does not comprise the relevant parts, the information pertains to other models. Indicator panel This touch-control indicator panel allows you to set the temperature without opening the door of your refrigerator. Just touch the relevant button with your finger to set the temperature.

1- High temperature / fault alert

5- Cooler compartment temperature setting

9- Freezer compartment temperature setting

1. High temperature / fault alert

This indicator ( ) will light up in case of temperature faults or fault alerts.This indicator illuminates during power failure, high temperature failures and error warnings. During sustained power failures, the highest temperature that the freezer compartment reaches will flash on the digital display. After checking the food located in the freezer compartment press the alarm off button to clear the warning.

2. Energy saving function (display off)

If the product doors are kept closed for a long time energy saving function is automatically activated and energy saving symbol is illuminated. When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be cancelled and the symbols on display will return to normal. Energy saving function is activated during delivery from factory and cannot be cancelled.

When the rapid cooling function is turned on, the rapid cool indicator will light up ( ) and the cooler com- partment temperature indicator will display the value 1. Push the Rapid cool button again to cancel this func- tion. The Rapid cool indicator will turn off and return to normal setting. The rapid cooling function will be automatically cancelled after 1 hour, unless cancelled by the user. Too cool a large amount of fresh food, press the rapid cool button before placing the food in the cooler compartment.

4. Vacation function

To activate the Vacation function, press the button for ( ) 3 seconds; this will activate the vacation mode indicator ( ). When the Vacation function is active, the cooler compartment temperature indicator displays the inscription "- -" and no cooling process will be active in the cooling compartment. This function is not suitable to keep food in the cooler compartment. Other compartments will remain cooled with the respective temperature set for each compartment. Push the vacation function button again to cancel this function

5. Cooler compartment temperature setting

After pressing the button, the cooler compartment temperature can be set to 8,7,6,5,4,3,2 and 1 respectively. (

6.1. Energy saving (display off) Pressing this button ( ) will light up the energy saving sign ( ) and the Energy-saving function will activate. Activating the energy-saving function will turn off all other signs on the display. When the energy-saving function is active, pressing any button or opening the door will deactivate the energy-saving function and the display signals will return to normal. Pressing this button ( ) again will turn off the energy-saving sign and deactivate the energy-saving function.

6.2.Alarm off warning:

In case of power failure/high temperature alarm, after checking the food located in the freezer compartment press the alarm off button to clear the warning.

Press the keypad lock button ( ) simultaneously for 3 seconds. The keypad lock sign

) will light up and the keypad lock will be activated. The buttons will be inactive when the Keypad lock is activated. Press the Keypad lock button again simultaneously for 3 seconds. The keypad lock sign will turn off and the keypad lock mode will be disengaged. Press the keypad lock button ( ) to prevent changing the refrigerator's temperature settings.

To activate the eco-fuzzy function, press and hold the eco-fuzzy button for 1 second. When this function is active, the freezer will switch to the economic mode after at least 6 hours and the economic use indicator will light up. To deactivate the ( ) eco-fuzzy function, press and hold the eco-fuzzy function button for 3 seconds.19 / 31 EN Refrigerator / User Manual Using the product The indicator will light up after 6 hours when the eco-fuzzy function is active.

9. Freezer compartment temperature setting

The temperature in the freezer compartment is ad- justable. Pressing the button will enable the freezer compartment temperature to be set at -18,-19, -20, -21, -22, -23 and -24. (

For rapid freezing, press the button; this will acti- vate the rapid freezing indicator (

When the rapid freezing function is turned on, the rapid freeze indicator will light up and the freezer compartment temperature indicator will display the value -27. Press the Rapid freeze button ( ) again to cancel this function. The Rapid freeze indicator will turn off and return to normal setting. The rapid freezing function will be automatically cancelled after 24 hours, unless cancelled by the user. To freeze a large amount of fresh food, press the rapid freeze button before placing the food in the freezer compartment.20 / 31 EN Refrigerator / User Manual Using the product

*Optional: The figures in this user guide are intended as drafts and may not perfectly match your product. If your product does not comprise the relevant parts, the information pertains to other models.

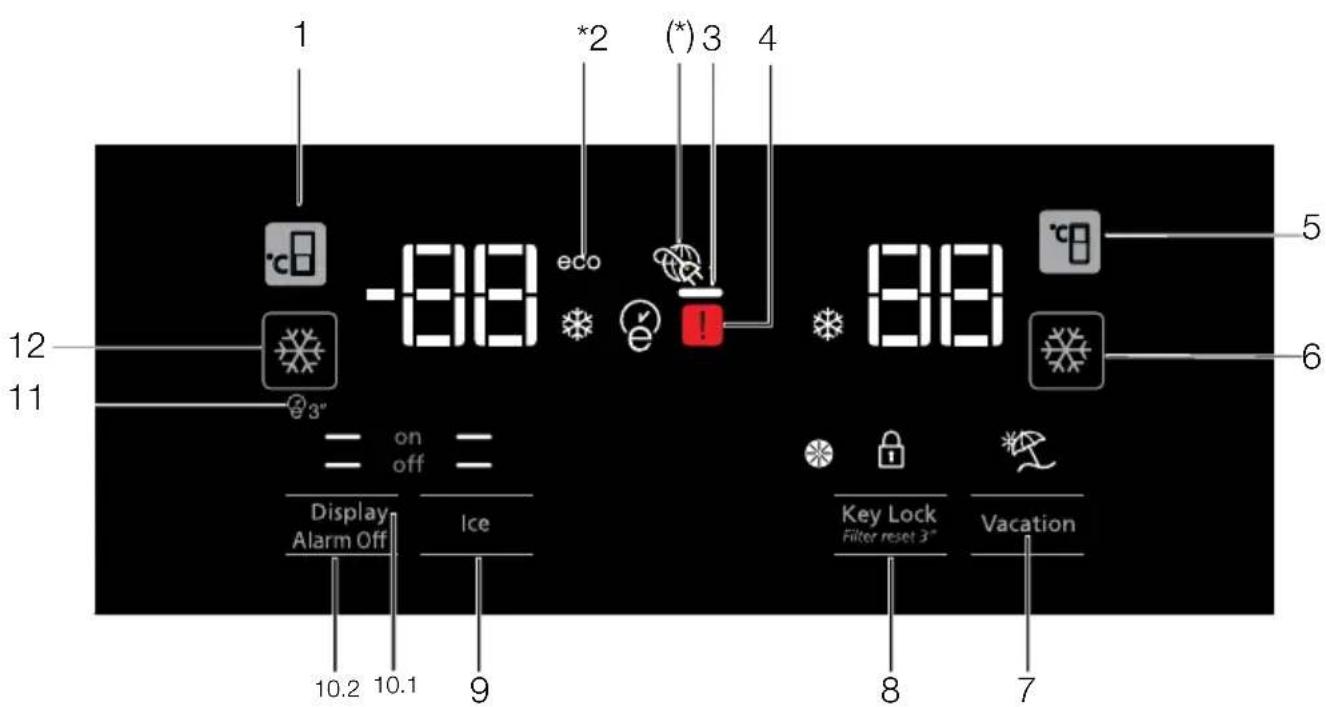

1. Freezer compartment temperature setting

4. Cooler compartment temperature setting

7. Keypad lock / filter replacing alert cancellation

8. Ice making on/off

1. Freezer compartment temperature setting

Pressing the button ( ) will enable the freezer compartment temperature to be set at -18,-19,- 20,-21 ,-22,-23,-24,-18...

2. Energy saving function (display off)

If the product doors are kept closed for a long time energy saving function is automatically activated and energy saving symbol is illuminated. When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be cancelled and the symbols on display will return to normal. Energy saving function is activated during delivery from factory and cannot be cancelled.

This sign will activate if the refrigerator is not cooling adequately or in case of sensor fault. (

When this indicator is activated, the freezer compartment temperature indicator will display "E" and the cooler compartment temperature indicator will display "1, 2, 3..." etc. numbers. The numbers on the indicator serve to inform the service personnel about the fault.

4. Cooler compartment temperature setting

After pressing the button ( ) , the cooler compartment temperature can be set to 8,7,6,5,4,3,2... respectively.

For rapid cooling, press the button; this will activate the rapid cooling indicator (

Press this button again to deactivate this function. Use this function when placing fresh foods into the cooler compartment or to rapidly cool the food items. When this function is activated, the refrigerator will be engaged for 1 hour.

6. Vacation function

When the Vacation function ( ) is active, the cooler compartment temperature indicator displays the inscription "- -" and no cooling process will be active in the cooling compartment. This function is not suitable to keep food in the cooler compartment. Other compartments will remain cooled with the respective temperature set for each compartment. Press the vacation function button again to cancel this function. (

alert cancellation Press keypad lock button ( ) to activate the keypad lock. You may also use this function to prevent changing the refrigerator's temperature settings. The refrigerator's filter must be replaced every 6 months. If you follow the instructions in the section 5.2, the refrigerator will automatically calculate the remaining period and the filter replacing alert indicator ( ) will light up when filter expires. Press and hold the button ( ) for 3 seconds to turn off the filter alert light.

8. Ice making on/off

Press the button ( ) to cancel ( ) or activate ( ) ice-making.

Press the button to cancel ( ) or activate ( ) display on/off.

9.2 Alarm off warning

In case of power failure/high temperature alarm, after checking the food located in the freezer compartment press the alarm off button to clear the warning.

), for 3 seconds to activate this function. If the door remains closed for a long time when this function is activated, the cooler section will switch to economic mode. Press the button again to deactivate this function. The indicator will light up after 6 hours when the auto eco function is active. (

) for rapid freezing. Press the button again to deactivate the function.22 / 31 EN Refrigerator / User Manual Using the product 5.2. Zero degree compartment (Optional) Use this compartment to keep delicatessen at lower temperatures or meat products for immediate consumption. Do not place fruits and vegetables in this compartment. You can expand the product's internal volume by removing any of the zero degree compartments. To remove the compartment, simply pull forth, lift up and pull out. 5.3. Vegetable bin The refrigerator's vegetable bin is designed to keep vegetables fresh by preserving humidity. For this purpose, the overall cold air circulation is intensified in the vegetable bin. Keep fruits and vegetables in this compartment. Keep the greenleaved vegetables and fruits separately to prolong their life. 5.4. Blue light/HarvestFresh *May not be available in all models For the blue light, Fruits and vegetables stored in the crispers that are illuminated with a blue light continue their pho- tosynthesis by means of the wavelength effect of blue light and thus preserve their vitamin content. ForHarvestFresh, Fruits and vegetables stored in crispers illuminated with the HarvestFresh technology preserve their vitamins for a longer time thanks to the blue, green, red lights and dark cycles, which simulate a day cycle. If you open the door of the refrigerator during the dark period of the HarvestFresh technology, the refrigerator will automatically detect this and enable the blue-green or red light to illuminate the crisper for your convenience. After you have closed the door of the refrigerator, the dark period will continue, representing the night time in a day cycle. 5.5. Description and cleaning of odour filter (Optional) Odor filter prevents unpleasant odour build-up in your product.

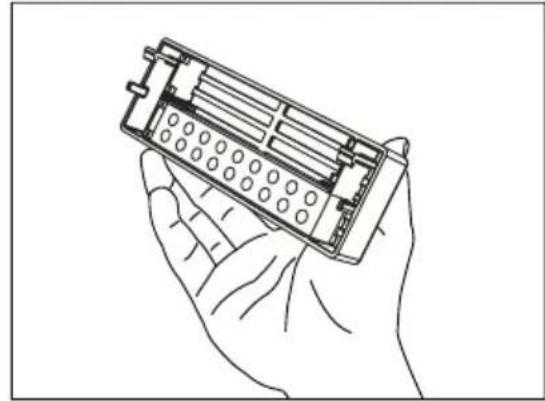

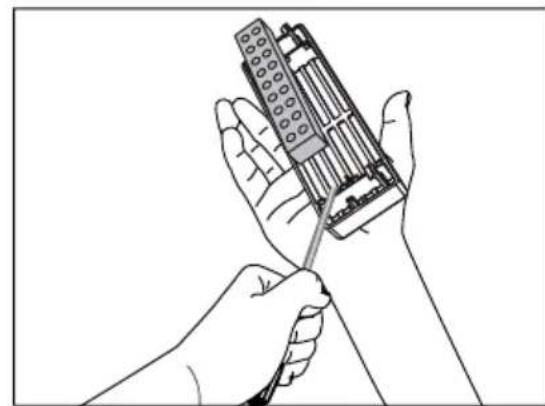

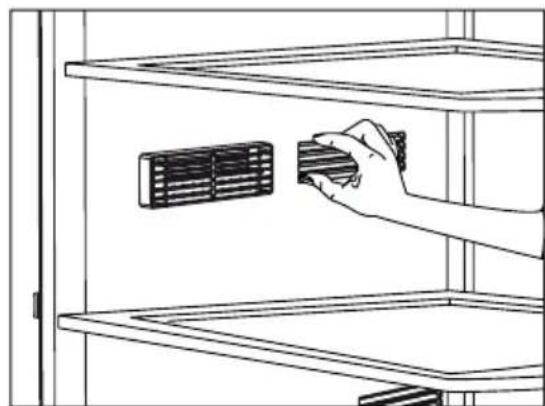

1. Pull the cover into which the odour filter is

installed downwards from the front section and remove as illustrated.

2. Leave the filter under sunlight for one day. Filter

will be cleaned during this time.

3. Install the filter back to its place.

Odor filter must be cleaned once in a year.23 / 31 EN Refrigerator / User Manual Using the product 5.8. Humidity controlled crisper (FreSHelf) (This feature is optional) Humidity rates of the vegetables and fruit are kept under control with the feature of humidity- controlled crisper and the food is ensured to stay fresh for longer. We recommend you to place the leafy vegetables such as lettuce, spinach and the vegetables which are sensitive to humidity loss, in a hori- zontal manner as much as possible inside the crisper, not on their roots in a vertical position. While the vegetables are being placed, specific gravity of the vegetables should be taken into consideration. Heavy and hard vegetables should be put at the bottom of the crisper and the lightweight and soft vegetables should be placed over. Never leave the vegetables inside the crisper in their bags. If the vegetables are left inside their bags, this will cause them to decompose in a short period of time. In case contacting with other vegetables is not preferred for hygiene concerns, use a perforated paper and other similar packaging materials instead of a bag. Do not place together the pear, apricot, peach, etc. and apple in particular which have a high level of generation of ethylene gas in the same crisper with the other vegetables and fruit. The ethylene gas which is emitted by these fruit may cause the other fruit to ripen faster and decom- pose in a shorter time. 5.6. Telescopic drawer Pay attention not to squeeze any parts of your body such as hands, feet and etc. between the movable parts while the drawer is in use in order to avoid any injury. You can remove the partition in the drawer as illustrated when you want to clean it. You can remove the drawers only for cleaning. It is not possible to group the drawers in their places after loading them with food when they are removed. 5.7. Ionizer (Optional) The ionizer system in the cooler compartment’s air duct serves to ionize the air. The negative ion emissions will eliminate bacteria and other molecules causing odour in the air.24 / 31 EN Refrigerator / User Manual Using the product 5.9. Movable middle section Movable middle section is intended to prevent the cold air inside your refrigerator from escaping outside. Sealing is provided when the gaskets on the door presses on the surface of the movable middle section while the cooler compartment doors are closed. Another reason that your refrigerator is equipped with a movable middle section is that it increases the net volume of the cooler compartment.Standard middle sections occupy some non-usable volume in the refrigerator. Movable middle section is closed when the left door of the cooler compartment is closed. It must not be opened manually. It moves under the guidance of the plastic part on the body while the door is closed. 5.10. Ice container (Optional) Ice container allows you to obtain ice from the product easily. Using the ice container

1. Remove the ice container from the freezer

2. Fill the ice container with water.

3. Place the ice container in the freezer

compartment. About two hours later, the ice is ready.

4. Remove the ice container from the freezer

compartment and bend it over the service plate. Ice cubes will easily fall down to the service plate.25 / 31 EN Refrigerator / User Manual Using the product 5.12. Ice maker The ice machine is nonremovable. There must be ice container at the bottom of the ice machine. 5.11. Ice box Please read the warnings carefully on the ice con- tainer. The ice container is used for ice collection poured ice machine. Do not put water in it to make ice as it may break. The ice container is not used for storing foods.

Warning: Do not change the location of the ice

container.26 / 31 EN Refrigerator / User Manual Using the product 5.13. Freezing fresh food t To preserve food quality, the food items placed in the freezer compartment must be frozen as quickly as possible, use the rapid freezing for this. t Freezing the food items when fresh will extend the storage time in the freezer compartment. t Pack the food items in air-tight packs and seal tightly. t Make sure the food items are packed before putting in the freezer. Use freezer holders, tinfoil and damp-proof paper, plastic bag or similar packaging materials instead of traditional packaging paper. t Mark each food pack by writing the date on the package before freezing. This will allow you to determine the freshness of each pack every time the freezer is opened. Keep the earlier food items in the front to ensure they are used first. t Frozen food items must be used immediately after defrosting and should not be frozen again. t Do not froze large quantities of food at once. Freezer Compartment Setting Cooler compartment Setting Descriptions -18°C 4°C This is the default, recommended setting. -20,-22 or -24°C 4°C These settings are recommended for ambient temperatures exceeding 30°C. Rapid Freeze 4°C Use this to freeze food items in a short time. The product will reset to previous settings when the process is completed. -18°C or colder 2°C Use these settings if you believe the cooler compartment is not cold enough due to ambient temperature or frequently opening the door. 5.14. Recommendations for storing frozen foods The compartment must be set to at least -18°C.

1. Place the food items in the freezer as quickly

as possible to avoid defrosting.

2. Before freezing, check the “Expiry Date” on

the package to make sure it is not expired.

3. Make sure the food’s packaging is not

damaged. 5.15. Deep freezer details As per the IEC 62552 standards, the freezer must have the capacity to freeze 4.5 kg of food items at -18°C or lower temperatures in 24 hours for each 100 litres of freezer compartment volume. Food items can only be preserved for extended periods at or below temperature of -18°C . You can keep the foods fresh for months (in deep freezer at or below temperatures of 18°C ). The food items to be frozen must not contact the already-frozen food inside to avoid partial defrosting.27 / 31 EN Refrigerator / User Manual Using the product Boil the vegetables and filter the water to extend the frozen storage time. Place the food in air-tight packages after filtering and place in the freezer. Bananas, tomatoes, lettuce, celery, boiled eggs, potatoes and similar food items should not be frozen. When these foods are frozen, only their nutritional value and taste shall be affected negatively. They shall not be spoiled so that they would create a risk for human health. 5.16. Placing the food Freezer compartment shelves Various frozen foods including meat, fish, ice cream, vegetables etc. Cooler compartment shelves Food items inside pots, capped plate and capped cases, eggs (in capped case) Cooler compartment door shelves Small and packed food or beverages Vegetable bin Fruits and vegetables Fresh food compartment Delicatessen (breakfast food, meat products to be consumed in short notice) 5.17. Door open alert (Optional) An audible alert will be heard if the product's door remains open for 1 minute. The audible alert will stop when the door is closed or any button on the display (if available) is pressed. 5.18. Interior light Interior light uses a LED type lamp. Contact the authorized service for any problems with this lamp. Interior light used in this product is not intended for home lighting and not suitable for such purposes. Interior lights in cooler or freezer compartments are intended to help safe and convenient food placement into the refrigerator. The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.28 / 31 EN Refrigerator / User Manual 6 Maintenance and cleaning Cleaning your fridge at regular intervals will extend the service life of the product. B WARNING: Unplug the product before cleaning it. t Never use gasoline, benzene or similar substances for cleaning purposes. t Never use any sharp and abrasive tools, soap, household cleaners, detergent and wax polish for cleaning. t For non-No Frost products, water drops and frosting up to a fingerbreadth occur on the rear wall of the Fridge compartment. Do not clean it; never apply oil or similar agents on it. t Only use slightly damp microfiber cloths to clean the outer surface of the product. Sponges and other types of cleaning cloths may scratch the surface t Dissolve one teaspoon of bi- carbonate in half litre of water. Soak a cloth with the solution and wrung it thoroughly. Wipe the interior of the refrigerator with this cloth and the dry thoroughly. t Make sure that no water enters the lamp housing and other electrical items. t If you will not use the refrigerator for a long period of time, unplug it, remove all food inside, clean it and leave the door ajar. t Check regularly that the door gaskets are clean. If not, clean them. t To remove door and body shelves, remove all of its contents. t Remove the door shelves by pulling them up. After cleaning, slide them from top to bottom to install. t Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

6.1 Avoiding bad odours

t Materials that may cause odour are not used in the production of our refrigerators. However, due to inappropriate food preserving conditions and not cleaning the inner surface of the refrigerator as required can bring forth the problem of odour. Pay attention to following to avoid this problem: t Keeping the refrigerator clean is important. Food residuals, stains, etc. can cause odour. Therefore, clean the refrigerator with bi-carbonate dissolved in water every few months. Never use detergents or soap. t Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours. t Never keep the food that have passed best before dates and spoiled in the refrigerator.

6.2 Protecting the plastic surfaces

Do not put liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of the refrigerator. If oil is spilled or smeared onto the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.29 / 31 EN Refrigerator / User Manual

Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product. The refrigerator is not working. t The power plug is not fully settled. >>> Plug it in to settle completely into the socket. t The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the fuses. Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE). t The door is opened too frequently >>> Take care not to open the product’s door too frequently. t The environment is too humid. >>> Do not install the product in humid environments. t Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders. t The product’s door is left open. >>> Do not keep the product’s door open for long periods. t The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature. Compressor is not working. t In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product’s cooling system is not balanced, which triggers the compressor thermic safeguard. The product will restart after approximately 6 minutes. If the product does not restart after this period, contact the service. t Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically. t The product is not plugged in. >>> Make sure the power cord is plugged in. t The temperature setting is incorrect. >>> Select the appropriate temperature setting. t The power is out. >>> The product will continue to operate normally once the power is restored. The refrigerator’s operating noise is increasing while in use. t The product’s operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction. The refrigerator runs too often or for too long. t The new product may be larger than the previous one. Larger products will run for longer periods. t The room temperature may be high. >>> The product will normally run for long periods in higher room temperature. t The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal. t Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product. t The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently. t The freezer or cooler door may be ajar. >>> Check that the doors are fully closed.30 / 31 EN Refrigerator / User Manual Troubleshooting t The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature. t The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>> Clean or replace the washer. Damaged / torn door washer will cause the product to run for longer periods to preserve the current temperature. The freezer temperature is very low, but the cooler temperature is adequate. t The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again. The cooler temperature is very low, but the freezer temperature is adequate. t The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again. The food items kept in cooler compartment drawers are frozen. t The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again. The temperature in the cooler or the freezer is too high. t The cooler compartment temperature is set to a very high degree. >>> Temperature setting of the cooler compartment has an effect on the temperature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient level by changing the temperature of cooler or freezer compartments. t The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently. t The door may be ajar. >>> Fully close the door. t The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. t Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product. Shaking or noise. t The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product. t Any items placed on the product may cause noise. >>> Remove any items placed on the product. The product is making noise of liquid flowing, spraying etc. t The product’s operating principles involve liquid and gas flows. >>> This is normal and not a malfunction. There is sound of wind blowing coming from the product. t The product uses a fan for the cooling process. This is normal and not a malfunction. There is condensation on the product’s internal walls. t Hot or humid weather will increase icing and condensation. This is normal and not a malfunction. t The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door.31 / 31 EN Refrigerator / User Manual Troubleshooting t The door may be ajar. >>> Fully close the door. There is condensation on the product’s exterior or between the doors. t The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced. The interior smells bad. t The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water. t Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials without free of odour. t The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product. The door is not closing. t Food packages may be blocking the door. >>> Relocate any items blocking the doors. t The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the product. t The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to bear the product. The vegetable bin is jammed. t The food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the drawer. If The Surface Of The Product Is Hot. t High temperatures may be observed between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance!Be careful when touching these areas. A WARNING: If the problem persists after following the instructions in this section, contact your vendor or an Authorised Service. Do not try to repair the product.DISCLAIMER / WARNING Some (simple) failures can be adequately handled by the end-user without any safety issue or unsafe use arising, provided that they are carried out within the limits and in accordance with the following instructions (see the “Self-Repair” section). Therefore, unless otherwise authorized in the “Self-Repair” section below, repairs shall be addressed to registered professional repairers in order to avoid safety issues. A registered professional repairer is a professional repairer that has been granted access to the instructions and spare parts list of this product by the manufacturer according to the methods described in legislative acts pursuant to Directive 2009/125/EC. However, only the service agent (i.e. authorized professional repairers) that you can reach through the phone number given in the user manual/ warranty card or through your authorized dealer may provide service under the guarantee terms. Therefore, please be advised that repairs by professional repairers (who are not authorized by Beko) shall void the guarantee. Self-Repair Self-repair can be done by the end-user with regard to the following spare parts: door handles,door hinges, trays, baskets and door gaskets (an updated list is also available in support.beko.com as of 1st March 2021). Moreover, to ensure product safety and to prevent risk of serious injury, the mentioned self-repair shall be done following the instructions in the user manual for self-repair or which are available in support.beko.com. For your safety, unplug the product before attempting any self-repair. Repair and repair attempts by end-users for parts not included in such list and/ or not following the instructions in the user manuals for self-repair or which are available in support.beko.com, might give raise to safety issues not attributable to Beko, and will void the warranty of the product.Therefore, it is highly recommended that end-users refrain from the attempt to carry out repairs falling outside the mentioned list of spare parts, contacting in such cases authorized professional repairers or registered professional repairers. On the contrary, such attempts by end-users may cause safety issues and damage the product and subsequently cause fire, flood, electrocution and serious personal injury to occur. By way of example, but not limited to, the following repairs must be addressed to authorized professional repairers or registered professional repairers: compressor, cooling circuit, main board,inverter board, display board, etc. The manufacturer/seller cannot be held liable in any case where end-users do not comply with the above. The spare part availability of the refrigerator that you purchased is 10 years. During this period, original spare parts will be available to operate the refrigerator properly The minimum duration of guarantee of the refrigerator that you purchased is 24 months. This product is equipped with a lighting source of the "G" energy class. The lighting source in this product shall only be replaced by professional repairers. Packaging sorting information Please scan the QR code which places on the outer packaging of the product to find all the information relating to the packaging and how to manage the packaging waste.Kære kunde Det er vores ønske, at du opnår den optimale effektivitet fra vores produkt, som er fremstillet på moderne anlæg med omhyggelig kvalitetskontrol. Til dette formål skal du læse hele brugervejledningen, før du tager produktet i brug og opbevare vejledningen som referencekilde. Hvis du overdrager produktet over til en anden person, skal denne vejledning medfølge sammen med produktet. Brugervejledningen garanterer hurtig og sikker brug af produktet. t Læs venligst brugervejledningen, før du installerer og bruger produktet.t Overhold altid de gældende sikkerhedsforskrifter.t Opbevar brugervejledningen let tilgængeligt for fremtidig brug. t Læs venligst alle andre dokumenter, der følger med produktet. Husk, at denne brugervejledning kan gælde for flere modeller. Vejledningen angiver tydeligt eventuelle varianter af forskellige modeller. Symboler og mærkater Følgende symboler bruges i denne vejledning:

(MULTIZONE (FLERE SONER), COOL
