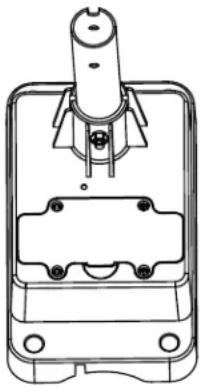

Montage Windmesser:

Technical line drawing of a mechanical component with mounting holes and a central shaft (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Technical diagram of a device housing with mounting holes and internal components (no text or symbols)

Wetterstation:

Diagram of a computer monitor rear panel showing internal components and ventilation slots (no text or labels)

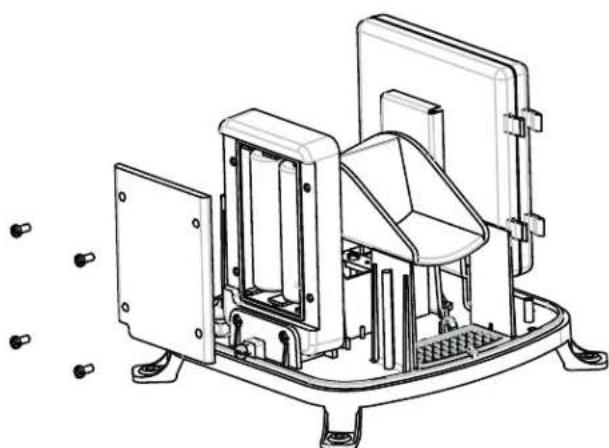

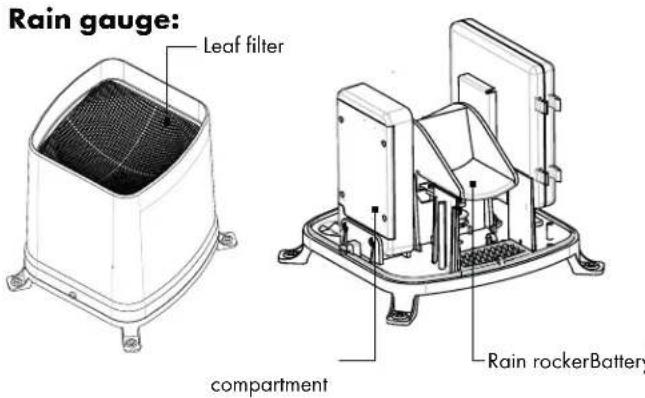

Regenmesser:

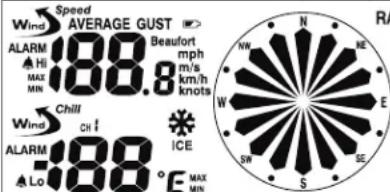

CH 3 IN -188.8°E MAX MIN 88% HEAT INDEX DEW POINT MAX MIN -188.8°E ZONE ALARM AM PM 28:88 D Zz

NFALL DAILY MONTHLY WEEKLY TOTAL 88.88 in mm

Technical line drawing of a mechanical device with no visible text or symbols

ALARM 17:16

ALARM 17:16

Wind Speed ALARM GUST 8.7 km/h

Wind Speed AVERAGE Hi 10.0 km/h

RAINFALL 6.15 TOTAL in

16:48 → 11:25 → 7:00

HEAT INDEX 26.6°C → DEW POINT 9.6°C

23.5 Regenmenge

CH d IN 188.8°E MAX MIN 88% HEAT INDEX DEW POINT MAX MIN 188.8°E

1. Introduction Page 24
2. General information Page 24
3. Intended use......Page 24
4. Technical data....Page 24
5. Safety information......Page 25
6. Scope of delivery....Page 26
7. Definition of terms....Page 26
8. Functions......Page 27
9. Commissioning......Page 27
10. Inserting and replacing batteries....Page 29
11. Device overview......Page 30
12. Preparing the wind gauge and rain gauge and registering on the weather station .....Page 32
    12.1 Calibrating the wind gauge....Page 32

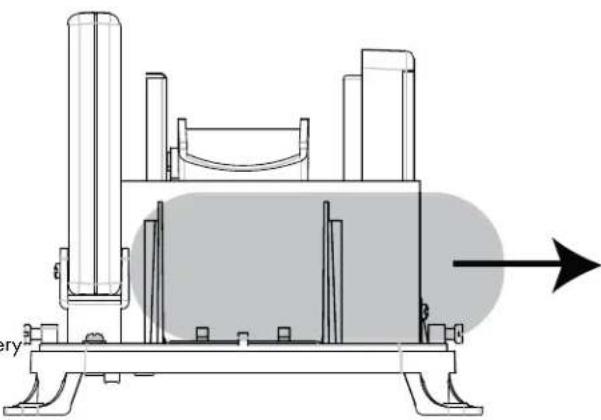

    12.2 Preparing the rain gauge....Page 32
    12.3 Automatic wind gauge and rain gauge registration on the weather station....Page 32
    12.4 Manual wind gauge and rain gauge registration on the weather station....Page 33
13. Weather station basic settings Page 33
    13.1 Setting....Page 33
    13.2 DCF-77 synchronisation Page 34
    13.3 Setting the time zone Page 34
14. Alarm function....Page 35
15. Setting the air pressure unit....Page 35
16. Air pressure adjustment....Page 36

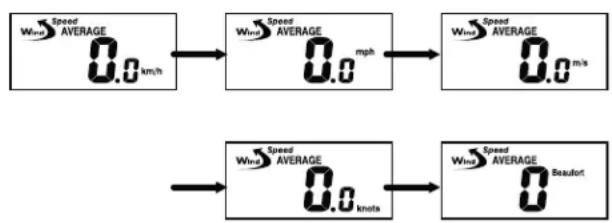

17. Setting the wind speed unit....Page 36
18. Setting the wind alarm....Page 36
19. Setting the wind chill alarm....Page 37
20. Switching the Wind Alarm and the Wind Chill Alarm on and off....Page 37
21. Setting the rain gauge unit....Page 37
22. Setting the temperature unit ......Page 37

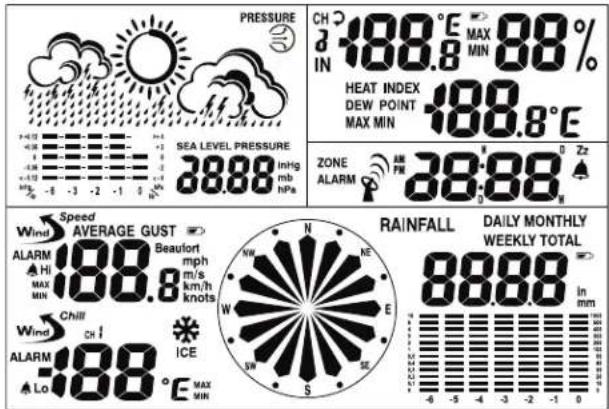

23. Display....Page 38
    23.1 Date and time......Page 38
    23.2 Time zone....Page 38
    23.3 Temperature and air humidity indoors/outdoors....Page 38
    23.4 Displaying Heat Index and Dew Point....Page 38

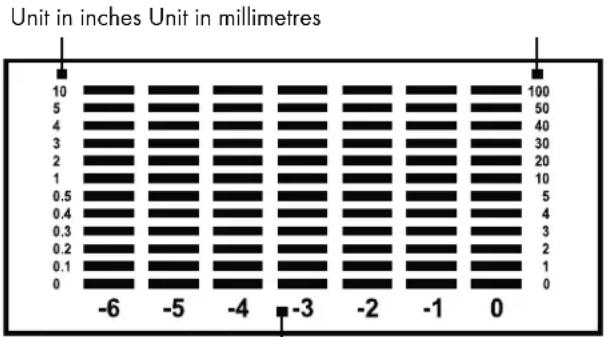

    23.5 Rainfall quantity Page 38
    23.6 Ice/frost alarm Page 39
    23.7 Wind direction Page 39
    23.8 Wind speed....Page 39

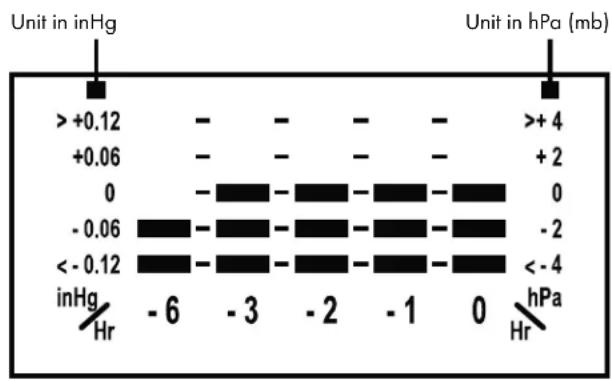

    23.9 Air pressure change....Page 40

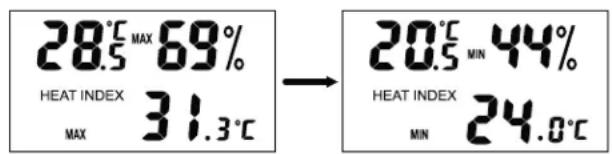

    23.10 Minimum and maximum values....Page 40
    23.11 Weather forecast....Page 40
    23.12 Weather trend......Page 40
24. Maintenance....Page 40
    24.1 Battery charge indicator Page 40
    24.2 Rain gauge leaf filter Page 41
25. Troubleshooting errors in the measuring results......Page 41
26. Cleaning Page 41
27. Disposal Page 41

Premium weather station

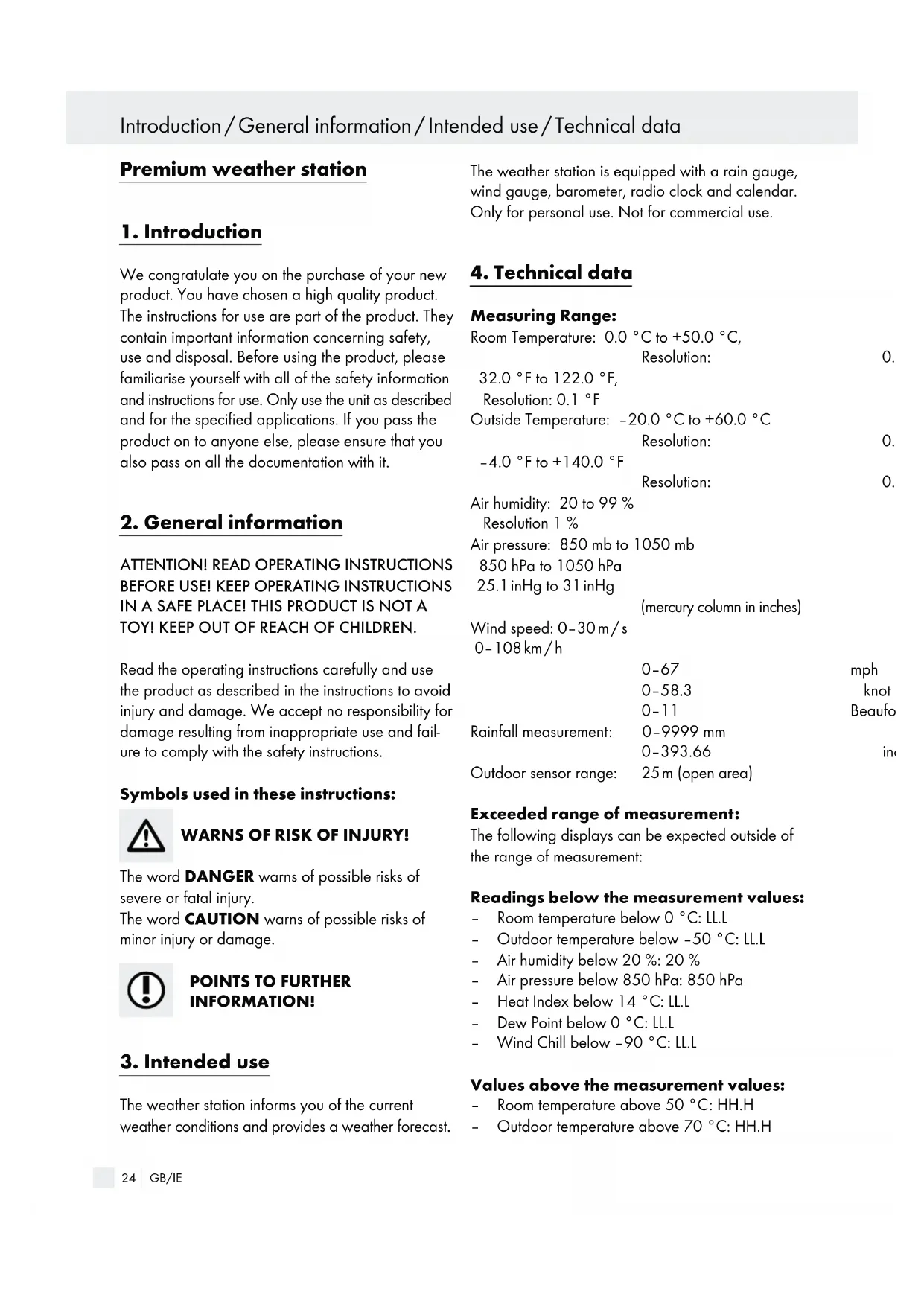

1. Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

2. General information

ATTENTION! READ OPERATING INSTRUCTIONS BEFORE USE! KEEP OPERATING INSTRUCTIONS IN A SAFE PLACE! THIS PRODUCT IS NOT A TOY! KEEP OUT OF REACH OF CHILDREN.

Read the operating instructions carefully and use the product as described in the instructions to avoid injury and damage. We accept no responsibility for damage resulting from inappropriate use and failure to comply with the safety instructions.

Symbols used in these instructions:

WARNS OF RISK OF INJURY!

The word DANGER warns of possible risks of severe or fatal injury.

The word CAUTION warns of possible risks of minor injury or damage.

POINTS TO FURTHER INFORMATION!

3. Intended use

The weather station informs you of the current weather conditions and provides a weather forecast.

The weather station is equipped with a rain gauge, wind gauge, barometer, radio clock and calendar. Only for personal use. Not for commercial use.

4. Technical data

Measuring Range:

Room Temperature: 0.0 °C to +50.0 °C,

Resolution:

0.

32.0 °F to 122.0 °F,

Resolution: 0.1 °F

Outside Temperature: -20.0 °C to +60.0 °C

Resolution:

0.

-4.0 °F to +140.0 °F

Resolution:

0.

Air humidity: 20 to 99%

Resolution 1 %

Air pressure: 850 mb to 1050 mb

850 hPa to 1050 hPa

25.1 inHg to 31 inHg

(mercury column in inches)

Wind speed: 0-30 m/s

0-108km/h

0-67

mph

0-58.3

knot

0-11

Beaufo

Rainfall measurement: 0-9999 mm

0-393.66

Outdoor sensor range: 25 m (open area)

in

Exceeded range of measurement:

The following displays can be expected outside of the range of measurement:

Readings below the measurement values:

• Room temperature below 0 °C: LL.L
• Outdoor temperature below -50 °C: LL.L
• Air humidity below 20 %: 20 %
• Air pressure below 850 hPa: 850 hPa
• Heat Index below 14 °C: LL.L
• Dew Point below 0 °C: LL.L
• Wind Chill below -90 °C: LL.L

Values above the measurement values:

• Room temperature above 50 °C: HH.H

• Outdoor temperature above 70 °C: HH.H

• Air humidity above 99 %: 99 %

• Air pressure above 1050 hPa: 1050 hPa
• Heat Index above 60 °C: HH.H
• Dew Point above 60 °C: HH.H
• Wind Chill above 60 °C: HH.H
• Rainfall quantity above 9999 mm: HHH
• Wind speed above 50 m/s: 50 m/s

WARNING!

The display becomes increasingly less clear in temperatures under approximately -20 °C. Depending on the type of battery, power limitations are to be expected at low temperatures (normally as of -20 °C). Do not place the weather station or the external sensor in direct sunlight.

CAUTION!

At temperatures above 60 °C (also depending on the type of battery), the battery acid may leak.

Power Supply:

Weather station: 6 x 1.5 V battery, type AA Wind gauge: 2 x 1.5 V battery, type AA Rain gauge: 2 x 1.5 V battery, type AA

Operating life with full batteries: approx. 90 operating days.

WARNING!

Herewith OWIM GmbH & Co. KG, Stiftsbergstraße 1, D-74167 Neckarsulm, declares that the article Premium weather station · model number: H13726, Version: 07 / 2016, fulfills the basic requirement and the other relevant requirements of 1999 / 5 / EC.

The declaration of conformity can be found under www.owim.com.

5. Safety information

Swallowing batteries could be fatal. Keep batteries and the weather station out of the reach of children. Consult a doctor immediately if a battery is swallowed.

DANGER OF INJURY!

■ Remove the batteries from the device when empty.
■ Never short-circuit the connection poles.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

CAUTION - MATERIAL DAMAGE!

■ Only use the specified battery type.
■ Ensure correct polarity.
- Check the batteries regularly for leaks.
If the device is not used for long periods of time, remove the batteries.
- Do not immerse the weather station or the external sensor in water or other liquids.
■ Follow the instructions for cleaning and storage in this manual.

6. Scope of delivery

1 START C: 5.0 E: 2.0 E: 1.0 E: 0.5 E: 0.25 E: 0.125 E: 0.0625 E: 0.03125 E: 0.015625 E: 0.0078125 E: 0.00390625 E: 0.001953125 E: 0.0009765625 E: 0.00048828125 E: 0.000344140625 E: 0.0002770703125 E: 0.00021853515625 E: 0.00017976578125 E: 0.0001348879578125 E: 0.000117443843625 E: 0.0000987767215625 E: 0.000079888965825 E: 0.0000694944834125 E: 0.00005497776175625 E: 0.0000449884853925 E: 0.00003499474769625 E: 0.00002499737884325 E: 0.000014998681767125 E: 0.000012999845883625 E: 0.0000119999734468125 E: 0.0000109999867784325 E: 0.000010199999889765625 E: 0.00001919999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a square-shaped industrial or electronic component with internal mesh structure and mounting feet (no text or symbols)

Six identical screwdrivers arranged in a row, no text or symbols visible

Six identical cylindrical objects arranged in a row, each with a central looped structure (no text or symbols visible)

Four identical cylindrical mechanical components with black and white segments, arranged horizontally (no text or symbols)

Two identical vertical cylindrical objects with circular ends, no text or symbols present

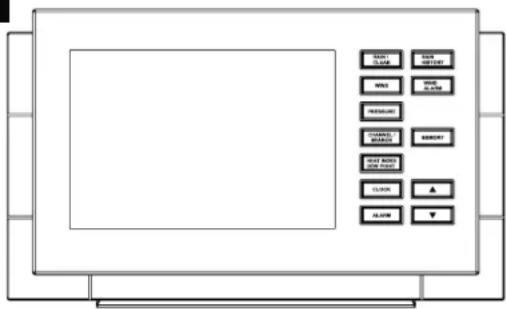

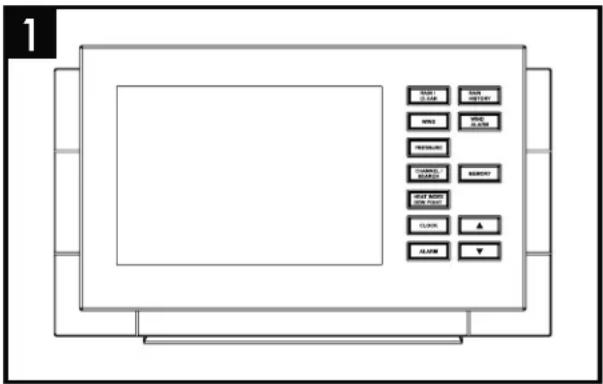

1 weather station with stand

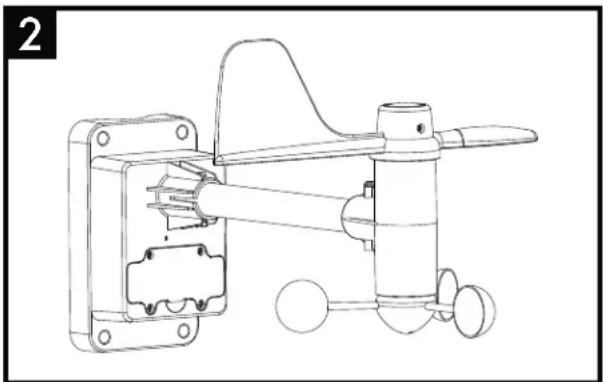

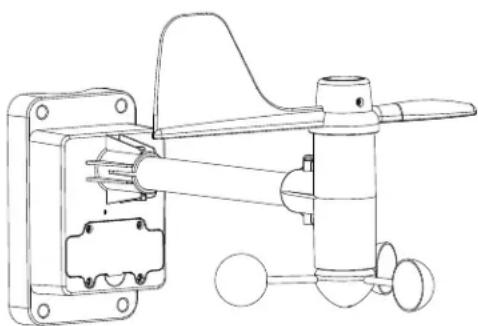

2 1 wind gauge with integrated temperature and air humidity sensor

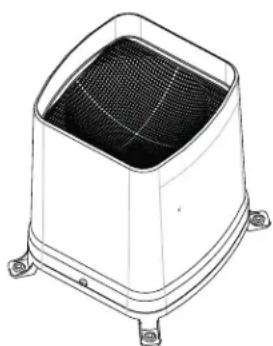

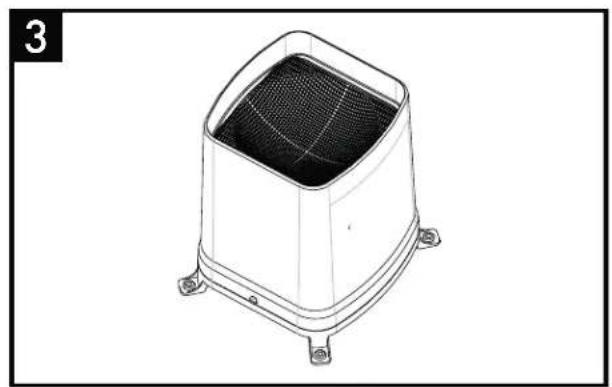

3 1 rain gauge with leaf filter
4 6 screws suitable for ∅ 5 mm dowels
5 6 dowels ∅ 5 mm
6 4 hexagonal socket head bolt M6 including 4 nuts and 8 washers
7 2 mounting clamps for wind gauge

7. Definition of terms

Dew Point:

The dew point (Dew Point) refers to the point at which the air releases water vapour in the form of fog and / or condensate.

Example: if the air is cooled down constantly and the air humidity stays the same, the relative air humidity increases to 100 %. This means that the dew point has been reached and the cooled air contains the maximum possible water vapour at this temperature.

Heat Index:

The heat index (Heat Index) is the air temperature felt on the human body taking into consideration the measured air temperature and the air humidity.

Wind Chill:

The wind chill (Wind Chill) refers to the difference between the measured (air temperature) and the temperature felt on the human body, which depends on the wind speed. The wind chill is the measurement used for wind-dependant cooling of an object. Humans feel this wind chill particularly on the face. As wind chill can only be calculated for temperatures close to or under the 0 °C limit, it is mostly replaced by the heat index for higher temperatures (Heat Index).

8. Functions

Weather station:

• Radio-controlled DCF-77 time signal reception with time display, time-zone setting
• Date display
• Alarm clock with snooze function
• Room temperature and interior humidity display with storage of the minimum and maximum measurement values
• Outside temperature and outside humidity display with storage of the minimum and maximum measured values
• Barometric pressure display
• Weather trend display
• Battery status display (weather station, wind gauge and rain gauge)
• Wind direction display
• Wind speed with wind alarm
• Dew point display (Dew Point)
• Ice/frost alert
• Precipitation display
• Wind speed and wind direction display
• Wind chill display (Wind Chill)
• Can be mounted standing or hanging
• For indoor use only

Wind gauge:

• Transmits the wind speed, temperature and humidity to the weather station on 434 MHz frequency
• Assembled on a mast of approx. 25-31 mm
• Can only be assembled in areas free from buildings, walls or other obstructions, as the measurement values will otherwise be impaired.

Rain gauge:

• Transmits rainfall quantity to the weather station on 434 MHz frequency
• Easy to stand or mount with screws on an even surface
• It is best to stand or mount the rain gauge in an areas which are not protected from rain.

CAUTION!

Comply with the following safety instructions when using the wind gauge and rain gauge:

• Never immerse the measuring devices in water or other liquids
• Never place the measuring devices in ovens or microwaves
• Never expose the measuring devices to temperatures below -20 °C or above 60 °C
• Keep the measuring device away from chemicals

9. Commissioning

WARNING!

Familiarize yourself with the weather station, wind gauge and rain gauge before assembly. The operating instructions are easier to understand if you are holding the devices in your hand while reading them.

Setting up the weather station:

The weather station comes with a pre-assembled stand, making it easy to set up the weather station in the desired position.

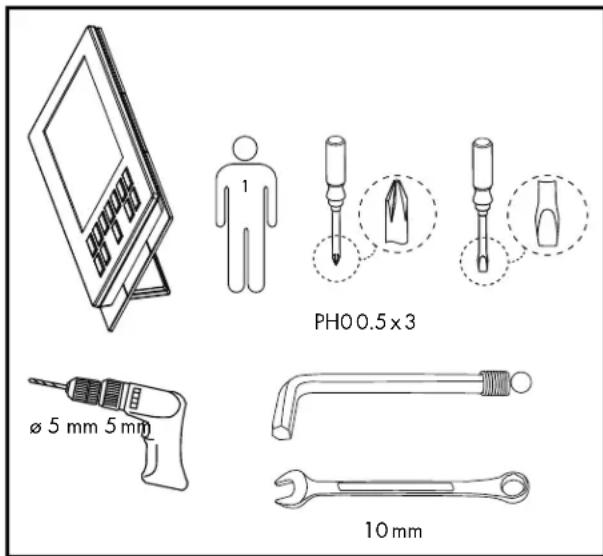

PHO 0.5 x 3 Ø 5 mm 5 mm 10 mm

Commissioning

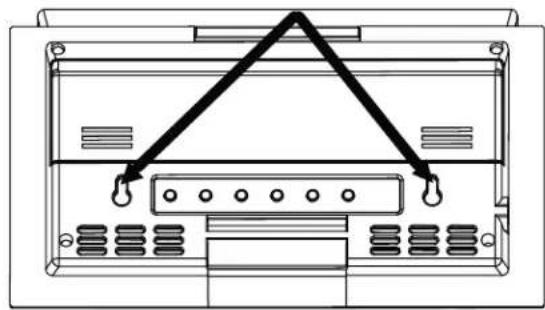

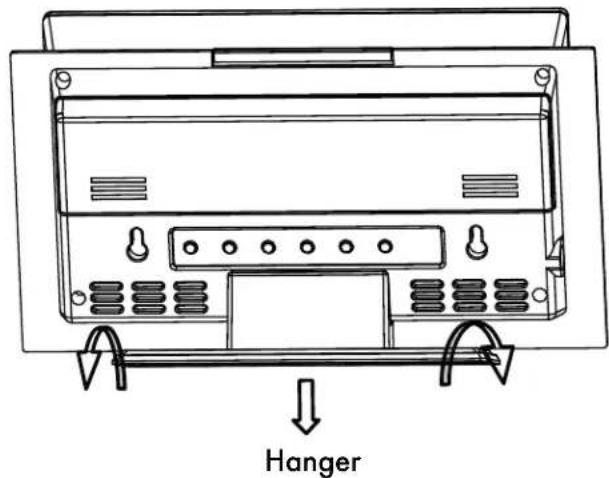

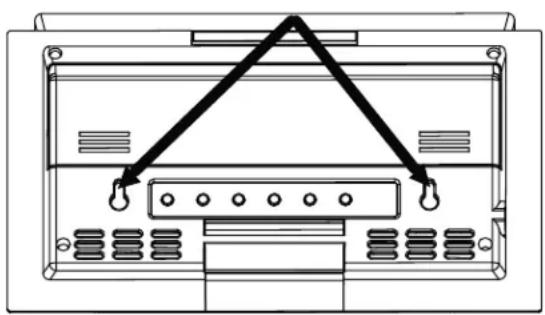

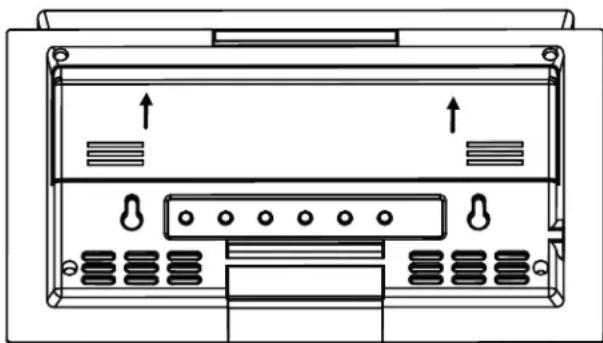

Weather station - wall mounting:

1. Mark the drill holes (horizontal distance approximately 11.3 cm) for the weather station and make sure that no electrical or water lines will be damaged before drilling the holes (ø 5 mm).
2. Push the dowel into the drilled hole until it is flush with the wall.
3. Screw the supplied screws into the dowels, allowing them to protrude slightly for the weather station to be hung on.

The pre-assembled stand can be removed from the weather station. Fold the stand downwards and pull it out of the slot. To attach again, follow the same procedure in reverse order.

Hanger

Diagram of a device rear panel with connectors and ports, no text or symbols present

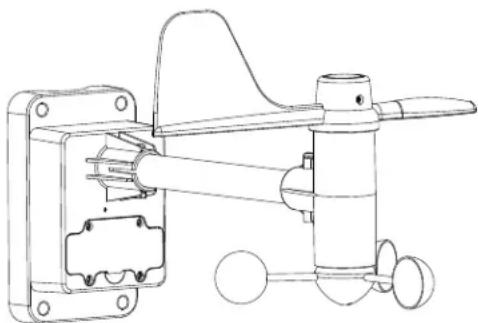

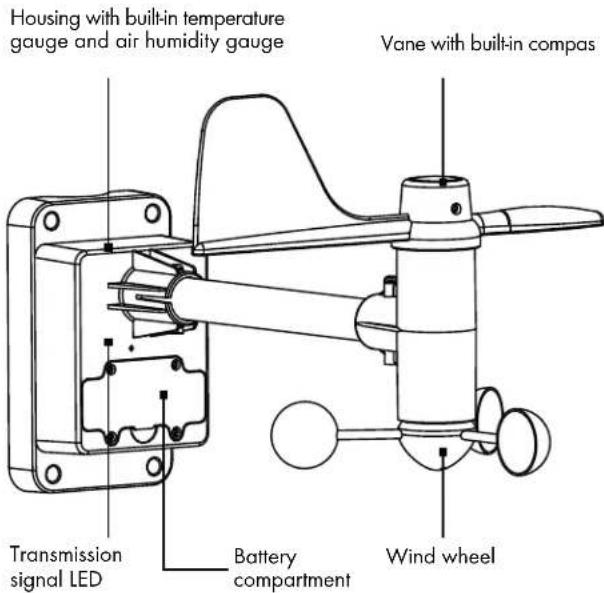

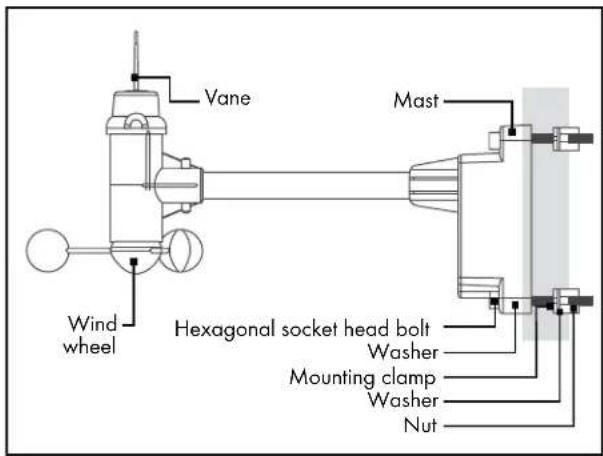

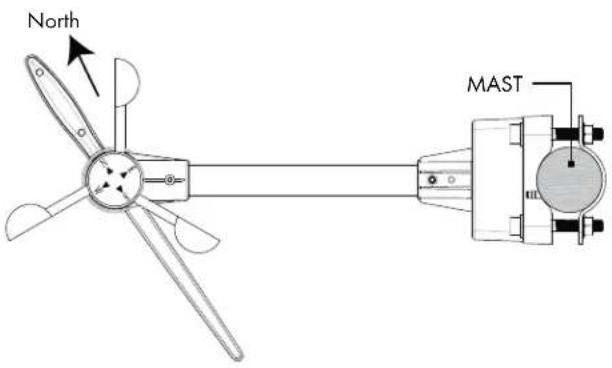

Wind gauge assembly:

Choose a suitable location for your wind gauge.

• The wind gauge must be set up outdoors.
• The wind must be able to access the wind gauge from all sides to enable the wind force and wind direction to be measured accurately.
• Ensure that the vane and the wind wheel are not blocked to guarantee accurate measurements.

- The wind gauge must be assembled within the signal transmission range. Walls reduce the transmission range. Check the signal reception on the weather station before final assembly.

Ideally, the wind gauge should be mounted on a mast or roof of a house, where the wind can act directly on the wind gauge.

A mast is required with a diameter of approx. 25-31 mm (not included) which stands stable and vertical. Mount the wind gauge as shown below with the hexagonal socket head bolt, washers, mounting screws and nuts provided. After assembly, ensure that the wind gauge is positioned horizontally with a stable hold.

The wind gauge must be positioned horizontally to guarantee accurate measurements.

Vane Wind wheel Mast Hexagonal socket head bolt Washer Mounting clamp Washer Nut

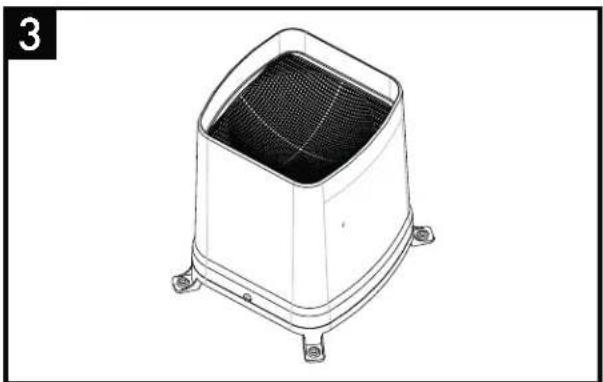

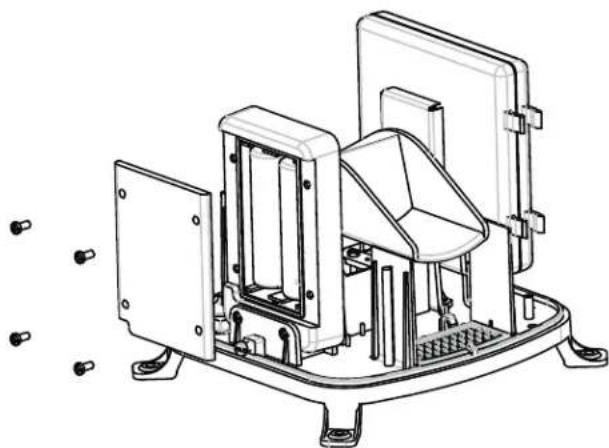

Setting up the rain gauge:

Choose a suitable location for the rain gauge.

• The rain gauge must be positioned outdoors. The device must not be impaired by objects and obstructions. Do not position under trees or next to walls.
• The rain must be able to fall on the rain gauge without obstructions to achieve an accurate rainfall measurement.
• Ensure that rain water does not accumulate under the rain gauge. It must be able to flow off freely.
• The rain gauge must be assembled within the range of the signal transmission. Walls reduce

the transmission range. Check the signal reception on the weather station before final assembly.

When you have found a suitable position, ensure that the surface is completely horizontal to guarantee accurate rainfall measurement.

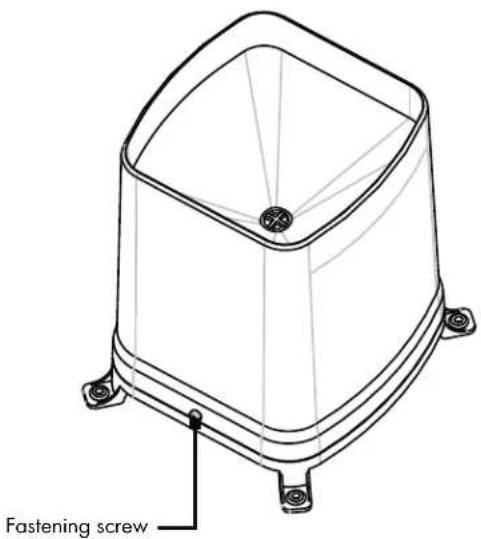

The rain gauge can simply be stood in the desired position or fixed with the screws provided.

1. Mark the drill holes using the rain gauge before drilling the holes ( 5 mm), ensure that no electrical cables or water pipes can be damaged.
2. Push the supplied dowel into the drilled hole until it is flush with the wall.
3. Fix the rain gauge with the screws provided.

10. Inserting and replacing batteries

Put the batteries first into the outdoor sensor (wind gauge / rain gauge), then into the weather station.

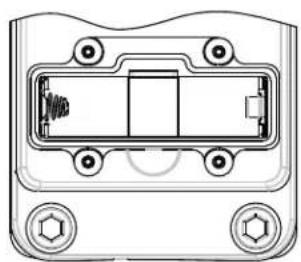

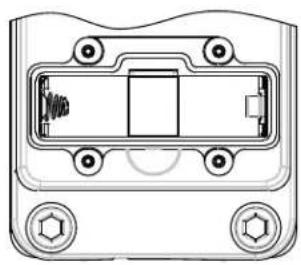

Wind gauge:

• The wind gauge must be recalibrated when using it for the first time as well as every time the battery is replaced. Please refer to section 12.1. To open the battery compartment, loosen the 4 cross-head screws on the battery compartment cover.
• Lift off the battery compartment cover.

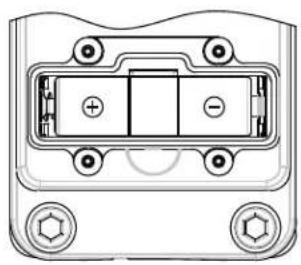

• Insert the batteries (2 x 1.5 V type AA) ensuring correct polarity. Ensure that the black strap lies under the batteries. This strap can be used to remove the batteries when they need to be replaced.
• Place the battery compartment lid on the battery compartment again. Ensure that the sealing ring on the battery compartment is positioned correctly in the recess. Only then is the battery compartment waterproof.
• Tighten the 4 screws on the battery compartment cover again.

Technical line drawing of a mechanical clamp or terminal block (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Technical diagram of a device rear panel with mounting holes and internal compartments (no text or symbols)

Weather station:

• Open the battery compartment on the rear of the weather station in the direction of the arrow.
• Insert the batteries (6 x 1.5 V type AA) ensuring correct polarity. When one of the two battery rows is full, a beep sounds.
• Place the battery compartment cover on the battery compartment to close. Push the battery compartment cover in the opposite direction to the arrows until it engages.

Diagram of a device rear panel with ports and connectors (no text or symbols)

Rain gauge:

• Use a slotted screwdriver to loosen the 2 adjacent fastening screws on the housing of the rain gauge.
• Lift the housing carefully off the base of the device.

Inserting and replacing batteries / Device overview

• To open the battery compartment, loosen the 4 cross-head screws on the battery compartment cover.
• Lift off the battery compartment cover.
• Insert the batteries (2 x 1.5 V type AA) ensuring correct polarity.
• Place the battery compartment lid on the battery compartment again. Ensure that the sealing ring on the battery compartment is positioned correctly in the recess. Only then is the battery compartment waterproof.
• Tighten the 4 screws on the battery compartment cover again.
• Place the housing carefully over the base of the device.
• Fix the housing onto the base of the device again with fastening screws.

Fastening screw

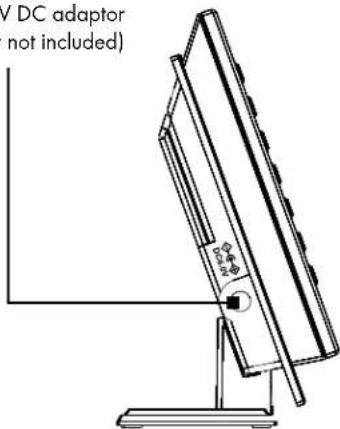

Socket for 6V DC adaptor (adaptor not included)

V DC adaptor (not included)

11. Device overview

Weather Station:

Weather forecast and air pressure

Temperature display and air humidity indoors / outdoors

Wind speed, wind direction and rainfall quantity

Time and alarm

Technical line drawing of an industrial machine with mounting flanges and internal components (no text or symbols)

Buttons - front side

Button Press once Press for	ap-prox. 3 sec.
RAIN/CLEAR Precipitationquantity day/week/month/total	Delete data
WIND Average windspeed (AVER-AGE) and gustsof wind (GUST)

Button Press	once Press for	ap-prox. 3 sec.
PRESSURE Air	pressure unit modification (inHg, mb or hPa)	Air pressure adjustment
CHANNEL/SEARCH	Channel selection (inside, outside or alternate)	Search for transmitter sensors
HEAT INDEX	Switch display between temperature felt by humans (Heat Index) and dew point (Dew Point)
DEW POINT
CLOCK Switch	display between local time, date and day of the week	Set date and time
ALARM Display	and active/deactivate alarm time	Set alarm time
RAIN HISTORY	Current precipitation display and precipitation display for the last 6 days / weeks/months
WIND ALARM	Display of Wind Alarm and Wind Chill Alarm
MEMORY Display	play of automatically saved min. and max. values for temperature, air humidity, dew temperature (Dew Point), temperature felt by humans (Heat Index), wind chill (Wind Chill) and wind speed
▲ Settings	forwards	Settings fast-forwards

Button Press	once Press for	ap-prox. 3 sec.
▼ Settings back	Settings rewind

Buttons - back side

Button Press once Press for		ap-prox. 3 sec
WIND AL	Switch the Wind Alarm and Wind Chill Alarm on and off
WIND UNIT Set the wind speed unit (Beaufort, mph, m/s, km/h or knots)
RAIN UNIT Set the rainfall quantity measurement unit (mm or inch)
	Search for the DCF-77 transmission signal
ZONE	Switch between local time and world time	Set world time
C/F	Switch from °C to °F
SNOOZE / LIGHT	Snooze function / background lighting

Device overview / Preparing the wind gauge and rain gauge and registering ...

Wind gauge:

Housing with built-in temperature gauge and air humidity gauge Vane with built-in compas Transmission signal LED Battery compartment Wind wheel

North MAST

12.2 Preparing the rain gauge

• Insert the batteries in the rain gauge (see the instructions listed under Point 10. Inserting and replacing batteries/Rain gauge).
• Remove the transport protection which holds the rain rocker.

Rain gauge: Leaf filter compartment Rain rockerBattery

Technical line drawing of a mechanical device with no visible text or symbols

12. Preparing the wind gauge and rain gauge and registering on the weather station

12.3 Automatic wind gauge and rain gauge registration on the weather station

12.1 Calibrating the wind gauge

The wind gauge must be recalibrated when using it for the first time as well as every time the battery is replaced. Follow the procedure outlined below:

• Before inserting the battery, point the vane north.
• Be sure the wind wheel and vane are not turning.
• Insert the batteries, ensuring correct polarity (see the instructions listed under Point 10. Inserting and replacing batteries / Wind gauge).
• The transmission signal LED lights up briefly. The wind gauge is now calibrated.

After inserting batteries in the wind gauge and the rain gauge, insert batteries in the weather station (see the instructions listed under Point 10. Inserting and replacing batteries / Weather station).

The weather station searches automatically for the transmission signals from the wind gauge and rain gauge. The process takes approx. 4 minutes.

12.4 Manual wind gauge and rain gauge registration on the weather station

After the batteries have been replaced in the wind gauge and rain gauges, they must be registered again on the weather station. After replacing the batteries and calibrating the wind gauge, press the CHANNEL / SEARCH button on the weather stat for approx. 5 seconds. The entry is confirmed with a confirmation tone. The measurement value displays now flash on the wind gauge and rain gauge displays. The process can take up to 4 minutes

Minutes:

Press the CLOCK button again to set the minutes. The minutes now flash on the display. Use ▲ and ▼ to set the minutes.

10:30 on

Year:

Press the CLOCK button a second time to set the year. The year now appears on the display. Use ▲ and ▼ to set the year.

13. Weather station basic settings

13.1 Setting

• 12 / 24 hour format
• Time
• Date format
• Date

2008

Date format:

Press the CLOCK button again to set the month format. The letters D (D = Day) and M (M = Month) flash in the date on the display. Use ▲ and ▼ to set

Jump to the next menu item with the CLOCK buttothe date format.

Press ▲ and ▼ to make the settings. If none of the setting buttons has been pressed for approx. 60 seconds, the weather station returns automatically to the time display.

1125 M D

12/24 hour format:

While in the time display, press the CLOCK button for press the CLOCK button again to set the month. The approximately 3 seconds to access the setting mode. month now flashes on the display. Press ▲ and ▼ to 24 h flashes on the display. Press ▲ and ▼ to switch the month.

between 24 h and 12 h display. AM / PM is displayed to the left of the time in 12 h display mode.

Month:

Press the CLOCK button again to set the month. The month now flashes on the display. Press ▲ and ▼ to set the month.

1125 M D

Hours:

Press the CLOCK button to set the hour. The hours Press the CLOCK button again to set the day. The now flash on the display. Use ▲ and ▼ to set the hourdate now flashes on the display. Press ▲ and ▼ to set the day.

-10:30

Day:

1125 M D

Press the CLOCK button again to return to the time display.

13.2 DCF-77 synchronisation

This functions sets the time and date automatically. Press to activate the synchronisation for radio-controlled DCF-77 time information.

Press and the symbol appears on the display. When the transmission signal is received, a symbol appears. If no radio waves appear, no DCF 77 reception is available in this location. If the reception is stable, the symbol is shown continuously on the display after approx. 3–5 minutes.

Press 📋 again to deactivate the DCF-77 synchronisation.

WARNING!

The displays for time and date in Central Europe are transferred via DCF-77 radio signals. The transmitter is close to Frankfurt and transmits on a transmission radius of approximately 1500 km. If your weather station receives this signal, it is not necessary to switch to and from daylight savings time.

The reception quality can be restricted by the geographical location (e.g. deep valleys) or structural conditions (e.g. behind concrete walls).

Electromagnetic fields can also have a negative influence on signal (DCF) reception. Position the weather station and the external sensor in a suitable location. Follow the instructions listed under "DCF-77 synchronisation" to switch on the transmission signal again.

13.3 Setting the time zone

You can switch between local time and the selected zone time while the time is displayed. The time zones are divided into 24 zones. You can select a time zone from +12 hours to -12 hours.

Setting the time zone:

Press and hold the ZONE button for approximately 3 seconds. A confirmation signal sounds and 0 flashes on the display.

on the display! 0

Press ▲ and ▼ to set the time zone. You can select a time zone from +12 hours to -12 hours.

-12 -12

Press the ZONE button to return to the time display. If no setting button is pressed for 60 seconds while in the time zone setting mode, the weather station automatically returns to the time display.

You can use the ZONE button to display the selected time zone. ZONE appears next to the time. By pressing the ZONE button again, you are returned to your local time.

WARNING!

When setting the time zone, use the following specifications:

Set -1 Hr.:

Atlantic, Great Britain, Ireland, Iceland, Portugal

Set 0 Hrs.:

Albania, Belgium, Bosnia-Herzegovina, Denmark, Germany, France, Gibraltar, Italy, Croatia, Liechtenstein, Luxembourg, Malta, Macedonia, Monaco, The Netherlands, Norway, Austria, Poland, San Marino, Sweden, Switzerland, Serbia, Slovakia, Slovenia, Spain (with the exception of the Canary Islands), Czech Republic, Hungary

Set +1 Hr.:

Bulgaria, Estonia, Finland, Greece, Latvia, Lithuania, Moldova, Romania, Turkey, Ukraine, Cyprus

All other time zones can be found in your Atlas or on the Internet.

14. Alarm function

To set the alarm time, press and hold the ALARM button for 3 seconds while the time is displayed. When the confirmation signal has sounded, ALARM appears on the display and the hours flash.

ALARM 17:16

Use ▲ and ▼ to set the hours.

Press the ALARM button again to jump to the minute setting. The minutes flash in the display.

ALARM 17:16

Use ▲ and ▼ to set the minutes. Press the ALARM button to return to the time display.

The alarm function is activated and appears next to the time.

17:16

Deactivating the alarm function:

Press the ALARM button twice while the time is displayed until ▲ disappears.

Press the ALARM button again to reactivate the alarm function. Press the CLOCK button to return to the time display.

If no button is pressed for approximately 20 seconds while the switch is being made, the weather station automatically returns to the time display.

Switching the alarm signal off:

The alarm signal sounds for approx. 2 minutes and flashes on the display. The alarm can be turned off prematurely by pressing the ALARM button.

10:17

Snooze function:

Press the SNOOZE / LIGHT button to pause the alarm signal for approx. 10 minutes. During this period, flashes above the time display.

10:17 Zz

The alarm signal then sounds again for approximately 2 minutes. You can interrupt the alarm signal again with the SNOOZE / LIGHT button or switch it off with the ALARM button.

15. Setting the air pressure unit

Press the PRESSURE button to switch between the units hPA (Hectopascal), mb (Millibar) and inHg (Mercury column in inches).

SEA LEVEL PRESSURE 10 13 hPa → SEA LEVEL PRESSURE 10 13 mb → SEA LEVEL PRESSURE 29.91 inHg

16. Air pressure adjustment

When batteries have been inserted in the weather station, an air pressure of 1013 hPa appears on the display. This value is pre-set. You can adjust the air pressure to suit your current location. First find out the current air pressure value, e.g. from the newspaper or Internet.

Hold the PRESSURE button down for approx. 3 seconds until you hear a confirmation tone. The air pressure value now flashes on the display. Use ▲ or ▼ to set the desired value. Press the PRESSURE button to return to the standard display. The standard display will also appear automatically if no setting button is pressed for approx. 1 minute.

SEA LEVEL PRESSURE 10 13 hPa

17. Setting the wind speed unit

The wind speed can be displayed in 5 different units.

• km / h (kilometres per hour)
• mph (miles per hour)
• m / s (meters per second)
• knots
• Beaufort

Press the WIND UNIT button on the rear side of the weather station to switch between the different units.

18. Setting the wind alarm

A wind alarm can be set for gusts (maximum speed for the last 10 minutes). Press the WIND ALARM button until ALARM and GUST appears on the display.

Wind Speed ALARM GUST 0.7 km/h

Hold the WIND ALARM button down for approx. 3 seconds until a confirmation tone sounds and the value flashes.

Wind Speed ALARM GUST 0.7 km/h

Use ▲ or ▼ to set the desired value. Press the WIND ALARM button to confirm the entry and ▲Hi appears on left next to the wind speed.

Wind Speed AVERAGE ▲ Hi 10.0 km/h

The wind alarm is now activated. Press WIND AL to deactivate the wind alarm again. Press WIND AL until disappears.

If a gust of wind reaches or exceeds the set value, a warning signal sounds for approx. 1 minute and Hi flashes in the display.

Wind Speed AVERAGE - Hi - 15.8 km/h

Press WIND ALARM to stop the alarm tone prematurely. ▲Hi flashes until the gusts of wind (over the last 10 minutes) fall below the set limit value again.

19. Setting the wind chill alarm

A Wind Chill Alarm can also be set. Press the WIND ALARM button until ALARM appears next to the Wind Chill temperature.

Wind CHILL CH I ALARM 18°C

Hold the WIND ALARM button down for approx. 3 seconds until a confirmation tone sounds and the value flashes.

Wind AlARM Chill 18°C

Use ▲ or ▼ to set the desired value. Press the WIND ALARM to confirm the entry, which then appears on left next to the Wind Chill temperature ▲Lo

Wind Chill CH 27°C Lo

The Wind Chill Alarm is now activated. Press the WIND AL button to deactivate the Wind Chill Alarm. Press WIND AL until disappears.

If the Wind Chill Temperature reaches or falls below the set value, a warning signal sounds for approx. 1 minute and ▲Lo flashes in the display.

Wind Chill CHI 10.0°C - Lo -

Press WIND ALARM to stop the alarm tone prematurely. ▲Lo flashes until the Wind Chill Temperature rises above the limit value again.

20. Switching the Wind Alarm and the Wind Chill Alarm on and off

Press the WIND AL button to switch the wind alarm and Wind Chill Alarm on and off. If the alarm is switched on, the relevant alarm symbol Hi/Lo appears.

nd Wind Chill Alarm off

arm on

hill Alarm on

nd Wind Chill Alarm on

21. Setting the rain gauge unit

You can choose between displaying the rainfall quantity in mm (millimetres) or in (inches). Press the RAIN UNIT button on the rear side of the weather station. Each time the button is pressed, the unit on the display changes.

RAINFALL 156.7 TOTAL mm

RAINFALL 6.15 TOTAL in

22. Setting the temperature unit

The temperatures can be displayed in °C (Grad Celsius) or in °F (Grad Fahrenheit). Press the C / F button on the rear of the weather station to switch between the two units. Each time the button is pressed, the unit on the display changes.

Setting the temperature unit / Display

23. Display

Background illumination:

Press the SNOOZE / LIGHT button to switch on the background illumination. After approx. 10 seconds, the background illumination switches off automatically.

23.1 Date and time

Press the CLOCK button to switch between the time, date and day of the week. If no button has been pressed for a period of approximately 20 seconds, the time display appears automatically.

16:48 → 11:25° → 7:00

Time Date Day of the week

23.2 Time zone

You can use the ZONE button to display the selected time zone. ZONE appears next to the time. By pressing the ZONE button again, you are returned to your local time.

23.3 Temperature and air humidity indoors/outdoors

Press the CHANNEL / SEARCH button to display the temperature and air humidity for indoors or outdoors. The values for indoors and outdoors can also be displayed alternately. Then, 🔒 appears on the display.

23.4 Displaying Heat Index and Dew Point

Press the HEAT INDEX; DEW POINT button to switch between the Heat Index and Dew Point.

HEAT INDEX 26.6°C → DEW POINT 9.6°C

23.5 Rainfall quantity

The weather station has an automatic memory for the amount of rainfall. The rainfall quantity can be

displayed in different chronicles either as a digital value or in diagram form:

Digital value:

RAINFALL TOTAL Value 407.0 mm Unit

Diagram:

The rainfall over the past days / weeks / months from the current time (0) up to 6 days / weeks / months earlier (-6)

Press the RAIN / CLEAR button to switch between the following rainfall quantity displays:

• Total rainfall quantity
• Rainfall quantity each day
• Rainfall quantity each week
• Rainfall quantity each month

The current value is displayed. A diagram is shown under this value containing the relevant history of the last 6 units.

Overall quantity

Quantity each day

Quantity each week

Quantity each month

Detailed information can be displayed on the history.

Example:

Press the RAIN / CLEAR until the rainfall quantity is shown. The value shown represents the rainfall quantity for the current day. Underneath this value, a diagram is shown containing the rainfall quantity for the current day and the past 6 days.

Press the RAIN HISTORY button to view the details. Every time the button is pressed, the display moves forward by one day. Below, you will find a display for the past 2 days:

RAINFALL DAILY 250.7 Current day min fall mm -6 -5 -4 -3 -2 -1 0

quantity 250.2 mm with bar display at 0

RAINFALL DAILY 1 day earlier: Rainfall 0.0 mm -6 -5 -4 -3 -2 -1 0

quantity 0.0 mm with bar display at -1

RAINFALL DAILY 156.7 mm -6 -5 -4 -3 -2 -1 0

2 days earlier: rainfall quantity 156.7 mm with bar display at -2

You can display the history for weekly and monthly quantities using the same procedure. There is no history for the total amount (TOTAL).

23.6 Ice/frost alarm

As soon as the outdoor temperature falls below 4 °C, the frost alarm symbol appears on the display. This warns of possible ground frost.

23.7 Wind direction

The wind gauge automatically shows the average wind direction for the last 2 minutes.

NE = North East E = East SE = South East S = South SW = South West W = West

N = North
NW = North West

23.8 Wind speed

The weather station shows the average wind speed (AVERAGE) for the last 2 minutes and the maximum speed for gusts of wind (GUST) in the last 10 minutes. Press the WIND button to switch between the two displays.

Wind Speed AVERAGE 0.0 km/h

Wind Speed GUST 0.0 km/h

23.9 Air pressure change

The weather station shows the changes in air pressure over the last 6 hours.

Hour trend

23.10 Minimum and maximum values

Use the MEMORY button to display saved minimum and maximum values.

28.5° MAX 69% HEAT INDEX MAX 31.3°C → 20.5° MIN 44% HEAT INDEX MIN 24.0°C

23.11 Weather forecast

The weather station can predict the weather for the next 12–24 hours. The weather prediction function is based on the change in air pressure and is up to 75% accurate. Since the weather can never be predicted with 100% correctness, the manufacturer cannot be held responsible for incorrect weather predictions.

Sunny Mainly sunny Rain StormsCloudy

23.12 Weather trend

The weather trend is also shown in addition to the weather forecast. There is an arrow for increasing, stable and decreasing.

24. Maintenance

24.1 Battery charge indicator

If the battery is empty, the symbol ☐ appears in the display. There is a separate symbol for the weather station, the wind gauge and the rain gauge.

CH d IN +188.8°E MAX MIN 88% HEAT INDEX DEW POINT MAX MIN +188.8°E

If the indoors temperature is displayed, the battery charge indicator applies for weather station. If the outside temperature is shown, the battery charge indicator applies for the wind gauge.

Battery charge indicator for the rain gauge

Replace the batteries as soon as ▶ appears in the display. If the batteries are weak or empty, it is impossible to guarantee accurate measurement results. The procedure for replacing the batteries is outlined under point 10. Inserting and replacing batteries.

24.2 Rain gauge leaf filter

Remove foliage and any other objects which collect in the leaf filter of the rain gauge regularly. Only then can precise rain measurement be guaranteed.

25. Troubleshooting errors in the measuring results

WARNING! The weather station and the outside sensor contain sensitive electronic components. Radio waves transmitted e.g. from mobile telephones, walkie talkies, radios, remote controls or microwaves may influence the functionality of the weather station and the outside sensor and lead to imprecise measurements. It is therefore important to maintain as great a distance as possible between the weather station and the external sensor and devices which send out radio waves. Electrostatic charge can also influence the measuring results. In this case, reset the weather station and the external sensor. This is done by removing the batteries and inserting them again after approximately 5 seconds.

NOTE! All saved data is lost.

Obstacles such as concrete walls can also cause that the reception is disturbed. In this case, change the location (eg near a window). Please take note that the external sensor should always be set up within max. 25 meters (open space) from the base station. The specified range is the free-field range and means that no obstacle should be between the remote sensor and the base station. A "visual contact" between remote sensor and base station often improves the transmission.

Cold (outdoor temperatures below 0^ C) can reduce the battery power of the outdoor sensor and thereby negatively impair the radio transmission.

Another factor that may cause harmful interference, are dead or weak batteries in the outdoor sensor. Replace them by new ones.

If your weather station is not working correctly, please remove the batteries for a short while and then replace them.

26. Cleaning

Only clean the device with a damp cloth. Never immerse the weather station, wind gauge or rain gauge in water.

27. Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries and/or the device to the available collection points.

Environmental damage through incorrect disposal of the batteries!

Batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

CE IP44

START ON START OK HOLD ON START PENSLOT CHANNELS ON ON HOLD ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON On

2

Technical line drawing of a mechanical device with attached components (no text or symbols)

3

Technical line drawing of a square industrial fan or vent with mesh grille and mounting feet (no text or symbols)

4

6

5

7

Diagram of a device rear panel with connectors and ports, no text or symbols present

Technical line drawing of a mechanical component with mounting holes and a central shaft (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Technical diagram of a battery pack with mounting holes and internal compartments (no text or labels)

Station météo :

Diagram of a device rear panel with labeled ports and connectors (no text or symbols)

Pluviomètre :

Technical line drawing of a mechanical device with no visible text or symbols

ALARM -17:46

ALARM 17:16

Wind Speed AVERAGE Hi 10.0 km/h

Wind CHILL CH I ALARM 18°C

Wind Chill CH I -▲Lo- 10.0 °C

16:48 → 11:25° → 10:00 Heure Date Jour

23.2 Fuseau horaire

HEAT INDEX 26.5°C → DEW POINT 9.5°C

23.5 Pluviométrie

N NW W SW S NE E SE

N = Nord

NE = Nord-est

E = Est

SE = Sud-est

S = Sud

SW = Sud-ouest

W = Ouest

NW = Nord-ouest

CH d IN 188.8°E MAX MIN 88% HEAT INDEX DEW POINT MAX MIN 188.8°E

Technical line drawing of a mechanical device with attached components (no text or symbols)

Technical line drawing of a square-shaped industrial or electronic component with internal mesh structure and mounting feet (no text or symbols)

Heat Index:

PHO 0.5 x 3 Ø 5 mm 5 mm 10 mm

Wandmontage weerstation:

Line drawing of a front panel with buttons and ventilation slots, showing no text or symbols

Ophanging

Diagram of a device rear panel with connectors and buttons, no text or symbols present

Montage windmeter:

Technical line drawing of a mechanical component with mounting holes and a central shaft (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Technical line drawing of a battery pack with mounting holes and internal compartments (no text or symbols)

Weerstation:

Diagram of a device rear panel with ports and indicator lights (no text or labels)

Regenmeter:

Technical line drawing of a mechanical assembly with no visible text or symbols

ALARM -17:46

ALARM 17:16

Wind Chill CH I ALARM 18°C

Wind Chill CH I 27°C Lo

16:48 → 11:25 → 70

Tijd Datum Dag

23.2 Tijdzone

HEAT INDEX 26.6°C → DEW POINT 9.6°C

23.5 Regenhoeveelheid

N NW W SW S NE E SE

N = noorden

NE = noordoosten

E = oosten

SE = zuidoosten

S = zuiden

SW = zuidwesten

W = westen

NW = noordwesten

Actuele

dag:

23.8 Windsnelheid

CH d IN -188.8°E MAX MIN 88% HEAT INDEX DEW POINT MAX MIN -188.8°E

RAINFALL DAILY MONTHLY WEEKLY TOTAL 88.88 in mm

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

Technical line drawing of a square-shaped industrial or electronic component with mounting feet (no text or symbols)

Six black screwdrivers arranged in a row, no text or symbols visible

Six identical cylindrical objects with internal zigzag patterns, arranged horizontally (no text or symbols)

Four identical cylindrical mechanical components with black and white segments, arranged horizontally (no text or symbols)

Two identical vertical cylindrical objects with circular ends, no text or symbols present

PHO 0.5 x 3 Ø 5 mm 5 mm 10 mm

Line drawing of a front panel with buttons and ventilation slots, showing internal components and a downward arrow indicating motion (no text or symbols)

Otvory pro zavěšení

Diagram of a device rear panel with labeled ports and connectors (no text or symbols)

Montáž větroměru:

Technical line drawing of a mechanical clamp or terminal block (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Technical line drawing of a battery pack with mounting holes and internal compartments (no text or symbols)

Diagram of a computer monitor rear panel showing internal components and ventilation slots (no text or labels)

Srážkoměr:

Technical line drawing of a mechanical component with mounting holes and a central square housing (no text or symbols)

Upevňovací šroub

Technical line drawing of a mechanical device with mounting flanges and internal components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

11:25 M D

Měsíc:

ALARM -17:46

ALARM 17:16

Wind Chill CH I ALARM 18°C

Wind Chill CH I Lo 27°C

RAINFALL 6.15 TOTAL in

HEAT INDEX 26.6°C → DEW POINT 9.6°C

N NW W SW S NE E SE

$$ \begin{array}{l} N = \text { sever } \ N E = \text { severovýchod } \ E = \text { východ } \ S E = j i h o v \acute {y} c h o d \ S = j i h \ S W = j i h o z á p a d \ W = z \text { a p a d } \ N W = \text { severozápad } \ \end{array} $$

23.8 Rychlost větru

CH d IN -188.8°E MAX MIN 88% HEAT INDEX DEW POINT MAX MIN -188.8°E

Technical line drawing of a square industrial fan or venturi component with mounting feet (no text or symbols)

4

5

START ON/OFF START ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFO ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF ON/OF

6

7

2

Technical line drawing of a mechanical device with mounting bracket and cylindrical components (no text or symbols)

Diagram of a TV set with three panels and connectors, no text or symbols present

Technical line drawing of a mechanical component with mounting holes and a central shaft (no text or symbols)

Technical diagram of a mechanical component with mounting holes and internal structure (no text or symbols)

Technical diagram of a device rear panel with mounting holes and internal compartments (no text or symbols)

Diagram of a device rear panel with ports and connectors (no text or symbols)

Pluviómetro:

Technical line drawing of an industrial machine with mounting brackets and internal components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

ALARM -17:46

ALARM 17:16

Wind Chill CHI ALARM 18°C

Wind Chill ALARM -18°C

RAINFALL 6.15 TOTAL in

16:48 → 11:25 → 7:00

HEAT INDEX 26.6°C → DEW POINT 9.6°C

N NW W SW S NE E SE

N = Norte NE = Noreste E = Este SE = Sudeste S = Sur SW = Sudoeste W = Oeste NW = Noroeste

CH d IN +188.8°E MAX MIN 88% HEAT INDEX DEW POINT +188.8°E MAX MIN

Technical line drawing of a square industrial fan or venturi with mesh grille and mounting base (no text or symbols)

4

5

6. Volume de entrega

1

START CLAMP ON OFF SET OK END OR SELECT CHANGE RESET HOLD ON SELECT ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON On

6

7

2

Technical line drawing of a mechanical device with mounting brackets and wheels (no text or symbols)

Line drawing of a front panel with buttons and ventilation slots, showing no text or symbols

Diagram of a device rear panel with connectors and buttons, no text or symbols present

Technical line drawing of a mechanical component with mounting holes and a cylindrical shaft (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal compartments (no text or symbols)

Diagram of a device rear panel with labeled ports and connectors (no text or symbols)

Pluviómetro:

Technical line drawing of a mechanical component with mounting holes and a central square housing (no text or symbols)

Parafuso de fixação

Technical line drawing of a mechanical device with mounting flanges and internal components (no text or symbols)

Norte HASTE

Technical line drawing of a mechanical device with no visible text or symbols

12.3 Registo automático do anemómetro e do pluviómetro na estação meteorológica

ALARM -17:46

ALARM 17:16

18. Ajustar o alarme de vento

Wind Speed AVERAGE Hi 10.0 km/h

Wind Chill ALARM 18°C

Prima a tecla ▲ ou a tecla ▼ para configurar o valor desejado.

Wind Chill CH I 27°C ▲Lo

16:48 → 11:25° → 7:00

Hora Data Dia da semana

23.2 Fuso horário

HEAT INDEX 26.6°C → DEW POINT 9.6°C

CH d IN -188.8°E MAX MIN 88% HEAT INDEX DEW POINT MAX MIN -188.8°E
