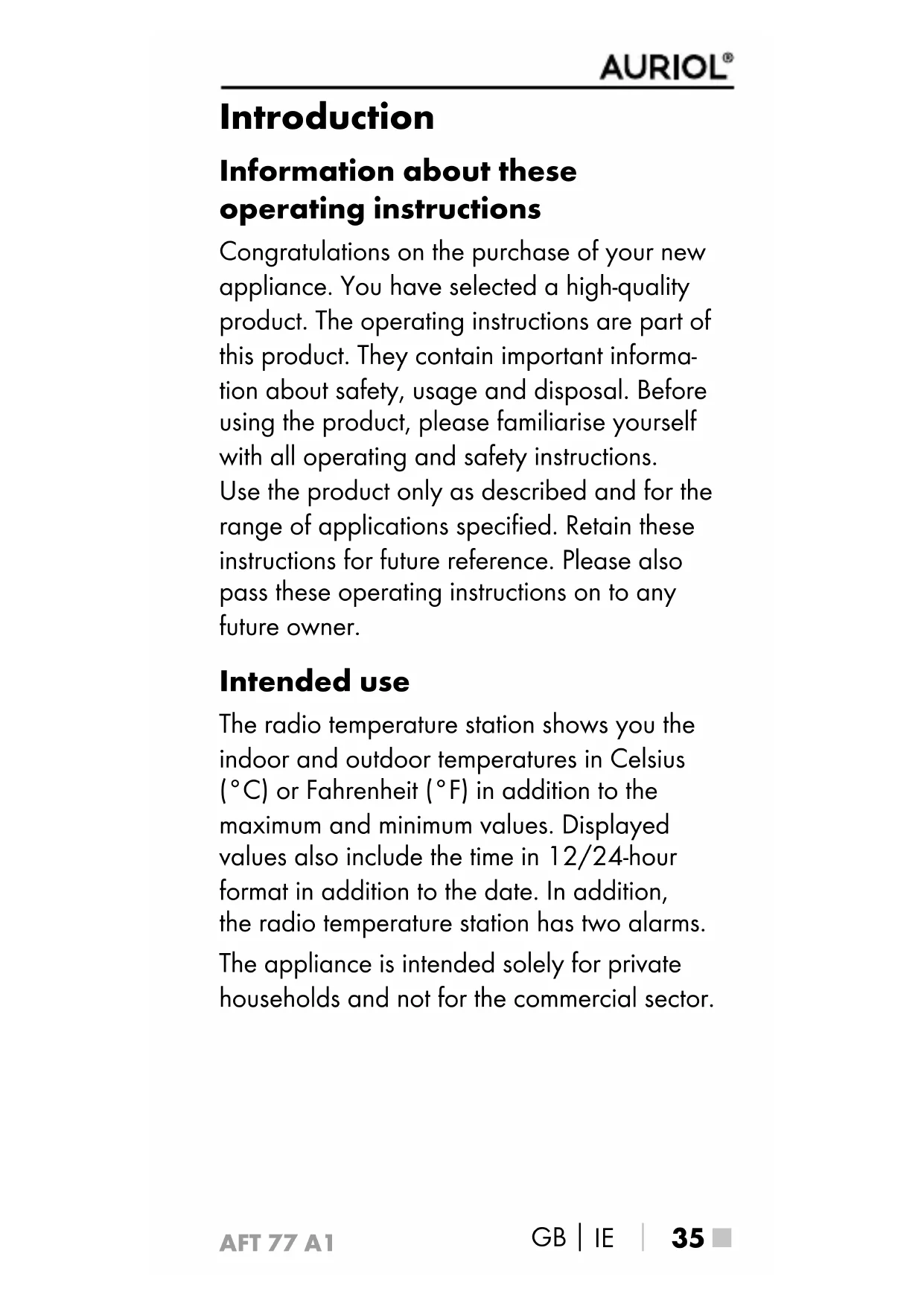

 35 ■ Introduction Information about these operating instructions Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important informa- tion about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Retain these instructions for future reference. Please also pass these operating instructions on to any future owner. Intended use The radio temperature station shows you the indoor and outdoor temperatures in Celsius (°C) or Fahrenheit (°F) in addition to the maximum and minimum values. Displayed values also include the time in 12/24-hour format in addition to the date. In addition, the radio temperature station has two alarms. The appliance is intended solely for private households and not for the commercial sector.AFT 77 A1 ■ 36 

Warning notices The following warning symbols are used in these operating instructions: DANGER A warning at this hazard level indicates a potentially hazardous situation. Failure to avoid this hazardous situation could result in injuries or death. ► Follow the instructions in this warning notice to prevent injury. CAUTION A warning notice of this hazard level indicates a risk of property damage. Failure to avoid this situation could result in property damage. ► Follow the instructions in this warning notice to prevent property damage. NOTE ► A note provides additional information that makes handling the appliance easier for you.AFT 77 A1

 37 ■ Safety This section contains important safety instruc- tions for using the appliance. Improper use may result in personal injury and property damage. Basic safety instructions To ensure safe operation of the appliance, follow the safety guidelines set out below: ■ This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks must not be carried out by children unless they are supervised. ■ Before use, ensure that the product is un- damaged! Never operate an appliance that is damaged. ■ Operate the temperature station only in dry indoor rooms. ■ Do not expose the temperature station to moisture or direct sunlight.AFT 77 A1 ■ 38 

Safety information for batteries DANGER Mishandling the batteries can cause fires, explosions, leakages or other hazards! ► Keep batteries out of the hands of children. Store batteries out of the reach of children. ► If a battery has been swallowed, seek medical assistance immediately. ► Batteries must never be short-circuited, tak- en apart, deformed or thrown into a fire. ► Never try to charge non-rechargeable batteries. ► Chemicals from leaking or damaged batteries can cause skin irritations when touched, so please use suitable protective gloves in this case. In event of contact with your skin, rinse off with plenty of water. If the chemicals come into contact with your eyes, rinse thoroughly with plenty of water, do not rub and consult a doctor immediately. ► Always use batteries of the same type. Never mix old batteries with new ones! ► Only ever use the stated battery type. ► Ensure that the batteries are inserted with the correct polarity. This is indicated in the battery compartment. ► Clean the battery and appliance contacts before inserting the batteries if necessary.AFT 77 A1

 39 ■ DANGER ► Remove the batteries if you do not intend to use the appliance for a long time. ► Always remove discharged batteries from the appliance immediately. Package contents The product includes the following components: 1 temperature station 1 outdoor sensor 4 batteries type AA 2 wall plugs (Ø 5 mm) 2 screws 1 set of operating instructions NOTE ► Check the package for completeness and signs of visible damage. ► If the contents are incomplete or damaged due to defective packaging or through transportation, contact the Service Hotline. ♦ Unpack all parts of the appliance from the packaging and remove all packaging materials. DANGER ► Do not allow children to play with pack- aging materials. Risk of suffocation.AFT 77 A1 ■ 40 

Description of components For illustrations see fold-out pages Figure A Display 1 Time panel 2 Internal temperature panel 3 Date panel 4 Outdoor temperature panel Temperature station

button q Battery compartment w Stand e Battery compartment cover Figure B Outdoor sensor r Control LED t Hanger z TX button u Channel selector i Battery compartment o Battery compartment coverAFT 77 A1

 41 ■ Setting up Requirements for the set-up location CAUTION ► When selecting the installation location, ensure that the appliances are not sub- jected to direct sunlight, vibration, dust, heat, cold and moisture. ► Do not set the appliance up in the vicinity of heat sources such as radiators. ► Fit the outdoor sensor at a maximum distance of 30 m from the temperature station. Ensure that there are no disruptive obstacles between the outdoor sensor and the temperature station. Otherwise, transmission can be disrupted. ♦ Both the temperature station and the outdoor sensor can be suspended from a screw using the hangers 7 and t. ♦ Alternatively, you can fold out the stand w of the temperature station to set it up on an even, horizontal surface. Operating the outdoor sensor ♦ Open the battery compartmention the rear of the appliance by pushing the bat- tery compartment coveroin the direction of the arrow. ♦ Insert two type AA batteries into the appli- ance’s battery compartmenti as shown.AFT 77 A1 ■ 42 

♦ Close the battery compartment

again. The control LED

on the front of the outdoor sensor lights up briefly. Afterwards, the control LEDr lights up once every minute to signal that transmis- sion is in progress. Operating the temperature station ♦ Open the battery compartmentqon the rear of the appliance by removing the battery compartment covere. ♦ Insert two type AA batteries into the appli- ance’s battery compartmentq as shown. ♦ Close the battery compartmentq again. Once the power supply has been established, the display will light up and go through a brief check of the display elements. The temperature station will now attempt to connect to the outdoor sensor. The reception symbol flashes on the outdoor temperature panel 4. NOTE If no outdoor temperature is displayed within around 3minutes, the temperature station will stop the reception search. The reception symbol goes out and is displayed on the outdoor temperature panel4.AFT 77 A1

 43 ■ NOTE It is possible that no signal can be received due to the surrounding buildings or because the distance is too great. If you are unable to establish an automatic connection to the outdoor sensor, you can do this manually: ♦ Press and hold the button0 until the reception signal flashes on the outdoor temperature panel4. The temperature station automatically starts to receive the DCF signal after 3minutes, irre- spective of whether the outdoor sensor recep- tion search has been successful or not. The reception symbol flashes on the time panel1. If the DCF signal is being received correctly, the current central European Time (CET) is displayed on the time panel1 and the date and weekday are displayed on the date panel3. In addition, the reception symbol is permanently displayed on the time panel1. If the appliance is unable to synchronise with the DCF signal, you can also set the time manually (see section Basic settings) or you can attempt the reception again. ♦ Press and hold the button9 for about 3 seconds to attempt the reception search again. The reception symbol flashes on the time panel1.AFT 77 A1 ■ 44 

The DCF signal The DCF signal (time signal transmitter) consists of time impulses which are transmitted by the most accurate clock in the world – near Frank- furt am Main, Germany. Under ideal conditions, the radio temperature station can receive the signals up to a distance of around 2000 km from Frankfurt am Main. Reception of these DCF signals normally takes between 3 and 5 minutes. If reception of the DCF signal fails, the temperature station will stop trying to establish reception after around 7 minutes. Reception can be considerably restricted by obstacles (e.g. concrete walls) or interference sources (e.g. other electronic appliances). If necessary, you should change the location of the temperature station (e.g. put it by a window) if reception problems continue. Displays in basic mode Once the temperature station has received the outdoor sensor signal and the DCF signal, it is in basic mode. In basic mode, the temperature station shows the following information on its display:AFT 77 A1

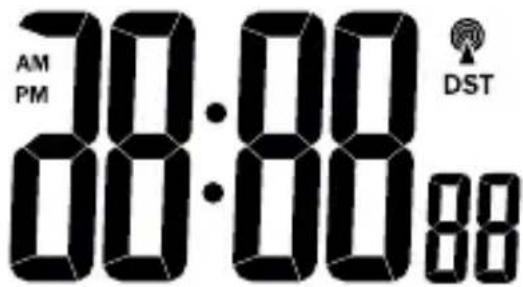

 45 ■ The time panel1 The time is shown in 24-hour format by default. If you select the 12-hour format in the basic settings, the abbreviation (Latin: “post meridiem” = afternoon) is shown in front of the time between 12 noon and 11.59 at night. The abbreviation (Latin: “ante meridiem” = morning) is shown in front of the time between 12 midnight and 11.59 in the morning. During the summer period, (daylight saving time) is displayed. This display is only shown if the DCF signal is being received. The date panel3 The current date appears under the display and the current month under the display . The abbreviation for the current weekday is shown to the right of the display . The language for this abbrevi- ation is preset to German but can be changed if required. Please refer to the section Basic settings for details.AFT 77 A1 ■ 46 

The indoor temperature panel2 The indoor temperature measured by the temperature station is displayed to one decimal place. The tempera- ture unit (degrees Celsius) is shown top right. The temperature unit can also be changed to (degrees Fahrenheit). If the temperature drops below the measuring range of 0°C to 50°C (or 32°F to 122°F) is shown; is shown if the temperature rises above this range. The temperature trend is shown to the left of the temperature display. The following displays are possible: = the temperature is rising. = the temperature is constant. = the temperature is dropping. If the battery symbol appears to the left of the temperature display, you should replace the batteries of the temperature station as soon as possible (see section Operating the temperature station).AFT 77 A1

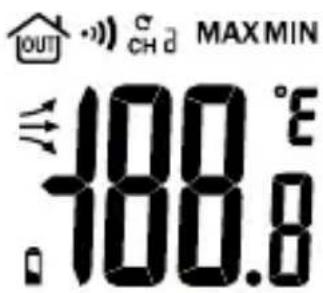

 47 ■ The outdoor temperature panel4 The outdoor temperature is displayed to one decimal place. The temperature unit (degrees Celsius) is shown top right. The temperature unit can also be changed to (degrees Fahr- enheit). If the temperature drops below the measuring range of -20°C to 60°C (or -4°F to 140°F) is shown; is shown if the temperature rises above this range. The temperature trend is shown to the left of the temperature display. The following displays are possible: = the temperature is rising. = the temperature is constant. = the temperature is dropping. If the battery symbol appears to the left of the temperature display, you should replace the batteries of the outdoor sensor as soon as possible (see section Operating the outdoor sensor).AFT 77 A1 ■ 48 

Operation and use Basic settings If the appliance is unable to synchronise with the DCF signal, you can also set the time manually. ♦ To make the basic settings, press and hold the button5 for around 3 seconds. (time zone setting) flashes on the time panel1. ♦ Press the button9 or the button0 to set the desired value. NOTE ► If you are in a country in which the DCF signal is being received, but the current time zone is different, you can use the time zone settings to set the temperature station to the current time in your country. ► If you are in a country in which the local time is one hour ahead of central Euro- pean Time (CET) you should set the time zone to . The temperature station is still being controlled by the DCF signal but will display the time as one hour ahead of CET. ♦ Press the button5 to confirm your entry. (year display) flashes on the time panel1. ♦ Press the button9 or the button0

to set the desired value.AFT 77 A1

 49 ■ ♦ Press the button5 to confirm your entry. The month display flashes on the date panel3. ♦ Press the button9 or the button0 to set the desired value. ♦ Press the button5 to confirm your entry. The day display flashes on the date panel3. ♦ Press the button9 or the button0

to set the desired value. ♦ Press the button5 to confirm your entry. The language selection option flashes on the date panel3. ♦ Press the button9 or the button0 to select the desired language. You can choose between ( ), Italian ( ), Spanish ( ), English ( ) and French ( ). German ( ) is set as the standard language by default. ♦ Press the button5 to confirm your entry. Flashes on the time panel1. ♦ Press the button9 or the button0 to select the required hour format (24- or 12-hour format). ♦ Press the button5 to confirm your entry. The hour display flashes on the time panel1. ♦ Press the button9 or the button0 to set the desired value.AFT 77 A1 ■ 50 

♦ Press the button5 to confirm your entry. The minute display flashes on the time panel1. ♦ Press the button9 or the button0 to set the desired value. ♦ Press the button5 to confirm your entry. The display will now change back to basic mode. Setting the alarm time You can set two different alarms on the tempera- ture station. ♦ In basic mode, press the button6 to access alarm mode. The current alarm time set and the display for the first alarm

are shown on the time panel1. ♦ Press and hold the button6 for around 3 seconds. The hour display flashes. ♦ Press the button9 or the button0 to set the desired value. The symbol appears on the time panel1 to indicate that Alarm 1 is active. ♦ Press the button6 to confirm your entry. The minute display flashes. ♦ Press the button9 or the button0 to set the desired value. ♦ Press the button 6 to confirm your entry. The display will change back to basic mode.AFT 77 A1

 51 ■ NOTE ► The process for setting the second alarm time is similar to that of setting the first. ♦ In basic mode, press the button6 twice to access alarm mode. The current alarm time set and the display for the second alarm ( ) are shown on the time panel1. ♦ Now, follow the steps described above to set the second alarm time. Activating/deactivating the alarm ♦ In basic mode, press the button6 to access alarm mode. The current alarm time set and the display for the first alarm

are shown on the time panel1. ♦ Press the button0 to activate Alarm 1. The symbol appears on the time panel1. ♦ Press the button0 again to deacti- vate Alarm 1. The symbol on the time panel1 goes out. ♦ In basic mode, press the button6 twice to access alarm mode. The current alarm time set and the display for the second alarm ( ) are shown on the time panel1. ♦ Press the button0 to activate Alarm

2. The symbol appears on the time

♦ Press the button0 again to deacti- vate Alarm 2. The symbol on the time panel1 goes out. Switching off the alarm The alarm signal will sound at the set time for around 2 minutes. ♦ Press any button with the exception of the button8 to switch the alarm signal off. You do not have to reactivate the alarm func- tion. The alarm signal will automatically sound again at the set time on the next day. Snooze function ♦ While the alarm is going off, press the button8 to activate the snooze function. The alarm signal is interrupted for around 5 minutes. The display for the snooze func- tion ( ) and the alarm symbol(s) and flash on the display. Displaying the maximum/minimum temperature Once the power supply and the connection to the outdoor sensor have been established, the maximum and minimum temperatures are automatically recorded and saved by the tem- perature station. ♦ In basic mode, press the button8 once. The symbol is shown on both temperature panels, and the highest meas- ured temperature for indoors and outdoors is displayed.AFT 77 A1

 53 ■ ♦ Press the button8 twice: the symbol is shown and the lowest measured temperature for indoors and outdoors is displayed. ♦ Press the button8 again to show the current indoor and outdoor temperatures. ♦ Press and hold the button8 for around 3 seconds while the maximum or minimum value is being displayed to delete the saved values. Changing the temperature unit On delivery, the temperature unit is preset to degrees Celsius ( ). ♦ In basic mode, press the button9 to switch between the temperature units ( or ). Battery display If the battery symbol is shown on the indoor temperature panel2, the batteries in the tem- perature station should be replaced as soon as possible (see also the section Operating the temperature station). If the battery symbol is shown on the outdoor temperature panel4, the batteries in the outdoor sensor should be replaced as soon as possible (see also section Operating the outdoor sensor).AFT 77 A1 ■ 54 

Changing the radio channel Changing the radio channel on the outdoor sensor You can select between 3 radio channels. Channel 1 is preset. ♦ Open the battery compartmention the rear of the appliance by removing the battery compartment covero. ♦ Select a radio channel by pushing the channel selectoru to CH1, CH2 or CH3. ♦ Press and hold the button0 until the reception signal flashes on the outdoor temperature panel4. ♦ Press the TX buttonz to manually initiate the outdoor sensor radio signal. If recep- tion is successful, the temperature on the outdoor temperature panel 4 will now be displayed on the new radio channel. ♦ Close the battery compartmenti again. Changing the radio channel display on the temperature station If the temperature station is receiving the out- door sensor radio signal, it will automatically display the corresponding channel. However, you can also manually set the dis- play of various radio channels. ♦ Press the button0 repeatedly to switch between the displays CH1 (display channel 1), CH2 (display channel 2), CH3 (display channel 3) and (display all channels alternately in a loop).AFT 77 A1

 55 ■ NOTE ► Only the values from outdoor sensors which are connected to the temperature station will be displayed. ► If you are using several outdoor sensors you should select a different radio chan- nel for each outdoor sensor. Troubleshooting Connection cannot be made to the outdoor sensor. ■ Disruptive obstacles or other interference sources such as concrete walls or other radio transmission appliances are located between the temperature station and the outdoor sensor. Change the installation location and try again. ■ Distance between weather station and outdoor sensor is too great. Decrease the distance. “Visual con- tact” between the outdoor sensor and the temperature station often improves the transmission. ■ The batteries in the temperature station or the outdoor sensor are dead. Replace the batteries.AFT 77 A1 ■ 56 

Synchronisation with DCF signal not possible ■ Disruptive obstacles or other interference sources such as concrete walls or other ra- dio transmission appliances are interfering with DCF signal reception. Change the installation location (e.g. near a window) and try again. ■ The batteries of the temperature station are dead. Replace the batteries. Cleaning CAUTION ► To avoid irreparable damage to the device, ensure that no moisture gets into it during cleaning. ► Do not use caustic, abrasive or solvent- based cleaning materials. These can damage the surfaces of the device. ♦ Clean the surfaces of the appliance with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth with a mild detergent. Storage ♦ If you decide not to use the product for a long period, remove the batteries and store it in a clean, dry place away from direct sunlight.AFT 77 A1

 57 ■ Disposal The symbol showing a crossed-out dustbin means that this device is subject to Directive 2012/19/EU. This directive states that this appli- ance may not be disposed of in the normal household waste at the end of its et-up collection locations, recycling depots or disposal companies. This disposal is free of charge for the user. Protect the environment and dispose of this appliance properly. Batteries should not be disposed of with normal household waste. Consumers are legally obliged to dispose of used batteries at a collection point in their town/district or at a retail store. They may contain poisonous heavy metals and must be disposed of in accordance with the rules for the treatment of hazardous waste. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. Dispose of batteries only when they are fully discharged.AFT 77 A1 ■ 58 

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composites Your local community or municipal authorities can provide information on how to dispose of the worn-out product. Appendix Technical details Temperature station Batteries 2 x 1.5 V (DC) (type AA/LR06) Temperature measuring range/ measuring accuracy 0 to +50°C (+32 to +122°F)/ ±1.5°C (±2.7°F) Temperature resolution 0.1°C (0.1°F) Radio clock signal DCF77AFT 77 A1

 59 ■ Outdoor sensor Batteries 2 x 1.5 V (DC) (type AA/LR06) Temperature measuring range/ measuring accuracy -20 to +60°C (-4 to +140°F)/ ±1.5°C (±2.7°F) Transmission frequency 433 MHz Transmission output < 10 dBm Range max. 30 m (in open terrain) Protection type IPX4 (splashproof) Notes on the EU Declaration of Conformity This appliance complies with the essential requirements and other relevant provisions of the RE Directive 2014/53/EU and the RoHS Directive 2011/65/EU. You can download the complete EU conformity declaration from www.kompernass.com/ support/300354_DOC.pdf. Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.AFT 77 A1 ■ 60 

Warranty conditions The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase. If any material or production fault occurs within three years of the date of purchase of the prod- uct, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new war- ranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.AFT 77 A1

 61 ■ The warranty covers material faults or produc- tion faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifica- tions / repairs which have not been carried out by one of our authorised Service centres. Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase. ■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.AFT 77 A1 ■ 62 

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com. Service Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: kompernass@lidl.ie IAN 300354 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
